R
Easy Guide
2

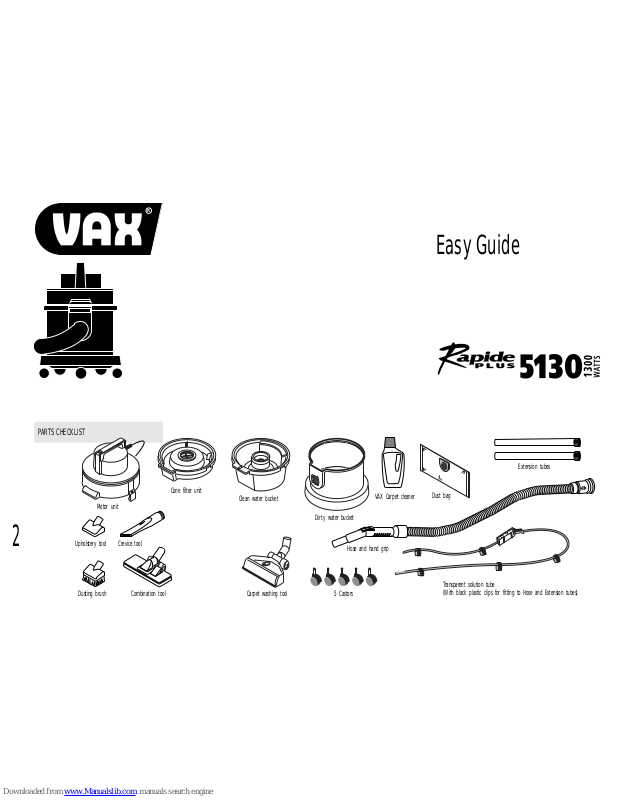

PARTS CHECKLIST
Dust bag
Hose and hand grip
Extension tubes
Dusting brush Combination tool
Crevice tool
Upholstery tool
Transparent solution tube
(With black plastic clips for fitting to Hose and Extension tubes)
Motor unit
Cone filter unit
Clean water bucket
Dirty water bucket
VAX Carpet cleaner
Carpet washing tool 5 Castors
1
4
3
2
3
STEPS FOR EASY VACUUMING
4
3
2
5
4
6
REPLACE THE CONE FILTER REGULARLY
1
5
2 3 4
WASH OUT THE BLUE FILTER OCCASIONALLY
1
6
1 2 3 4
WASH OUT THE BLACK FILTER OCCASIONALLY
3
7
1 2 4
GETTING READY TO WASH
CONTINUES ON PAGE 8
COLD WATER
VAX CARPET CLEANER
8
7
8
5
6
GETTING READY TO WASH (starts on page 7)
STARTS ON PAGE 7
9
2M x 2M 2M x 2M
4
5
WASHING CARPETS
1
3
2
WASHING
REMOVING MOISTURE
10
SUCKING UP LARGE SPILLS
UNBLOCKING SINKS
1 4
2
3
2 3
11
1
2
3
CLEANING YOUR VAX AFTER WASHING
12
POWERBRUSH AUTOMOP BLACK FILTERBLUE FILTER
CONE FILTERDUST BAGS
VAX parts and accessories are available from supermarkets and many electrical stores.
If you have difficulty obtaining them call the VAXCARE HELPLINE on FREEPHONE 0500 005987 for your nearest stockist.
VAXPARTS AND ACCESSORIES
NOT SUPPLIED WITH YOUR VAX
The brush bar inside the Powerbrush
rotates at high speed dislodging trapped
dust from within carpet pile.
The automatic air adjustment feature
allows air to drive the brush bar for
effective cleaning on all carpet types.
NOT SUPPLIED WITH YOUR VAX
Attach the Automop to the Extension
tube of your VAX. The Automop cleaning
head washes and dries hard floors.
Suitable for vinyl, ceramics,
terrazzos, quarry tiles and most other
hard floor surfaces.
13
●
As your VAX is very powerful, you may find that
the dust bag fills up quickly the first time that
you use your VAX.
●
BEFORE WASHING CARPETS,ALWAYS TEST FOR COLOUR
FASTNESS,WITH SOME UNDILUTED CARPET CLEANER
ON A HIDDEN AREA .
●
When washing deep pile carpets, move the washing
tool in the same direction as the pile lays.
●
Start from the furthest corner of the room and work
backwards towards the door.
●
If you are washing very dirty carpets, you may have
to wash them several times over a period of time to
bring the dirt to the surface.
●
If your carpet has previously washed with a high
foaming shampoo, you may have to pour VAX Defoamer
into the dirty water bucket (through the central hole in
the clean water bucket).
Refer to instructions on the bottle.
●
When washing stairs, always place your VAX above the
area you are washing.
ALWAYS ENSURE YOUR VAX IS STABLE.DO NOT PULL
EXCESSIVELY ON THE BLACK WASHING HOSE.
●
Metal or wooden furniture legs may mark a wet
carpet, wait until the carpet is dry before replacing
furniture or cover legs with aluminium foil.
●
Don’t allow children or animals onto your carpet until
it has had time to dry.
TIPS
There are over 700 approved VAX Service Agents in the
UK offering quality repair and a spares service.
If you want to know the location of your nearest VAX Service
Agent or have any queries or concerns about using your
VAX, please call our VAXCARE HELPLINE on
FREEPHONE 0500 005987.
All calls are free of charge. Lines are open Monday to Friday
8.30am to 6.00pm and Saturdays 9.00am to 1.00pm.
An answerphone is available outside these hours
to receive your message. Please make a note of the serial
number and model number of your VAXbefore calling.
They can be found on the label on the handle of your VAX.
HELPLINE AND SERVICE
R
TROUBLESHOOTING
IF YOUR VAX DOES NOT SUCK UP PROPERLY :
●
Check to see if the dust bag is full.
●
Ensure there are no blockages in the hose
●
Clean/change the filters. See pages 4/5/6.
IF YOUR VAX DOES NO T WASH PROPERLY:
●
Check to see if the Dirty water bucket is full.
If it is, empty it. See page 9 picture no. 5.
●
Make sure the solution tube is at the bottom of
the water/washing solution.
See page 7 picture no. 8.
●
Ensure that the Tube connector on the end of the
hose is fitted properly. See page 8 picture no. 6.
14
This ‘easy guide’ should be retained with your VAX for future reference . If your VAX is sold or transferred to
a new owner, this guide should be passed on so that the new owner can become acquainted with the
machine and this information. The following information is provided in the interest of safety.
Please read it before using your VAX.
EXTENSION CABLE
If using an extension cable always ensure that the insulation sheath is in good condition and is not
damaged in any way. Make sure that the plug and socket are fitted to the extension cable correctly, if in
doubt have it checked by a qualified electrician.Always use the cable in accordance with the manufacturer’s
instructions.
THE POWER SUPPLY CORD ONYOUR VAX HAS 2 INNER WIRES . IT SHOULD BE CONNECTED TO THE PLUG AS
INDICATED BELOW.WARNING: THIS APPLIANCE MUST NOT BE EARTHED
IMPORTANT:When carrying out any maintenance or cleaning operations on this product,it is essential that
the plug is removed from the wall socket.
The wires in the mains lead are coloured in accordance with the following code:
BLUE - NEUTRAL BROWN - LIVE
If the plug provided is unsuitable for your socket outlets, the plug must be cut off and a suitable plug fitted.
The cut-off plug should be disposed of and must not be inserted into any 13 amp socket as this can result
in electric shock. The plug or adaptor or the distribution panel should be provided with a 13 amp fuse. As
the colours of the wires in the mains lead of this appliance may not correspond with coloured markings
identifying the terminals in your plug, proceed as follows. The wire which is coloured blue MUST be
connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured
brown MUST be connected to the terminal which is marked with the letter L or coloured red.
DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL OF A THREE PIN PLUG (TH1S 1S MARKED ‘E’ OR
BY THE EARTH SYMBOL OR COLOURED GREEN OR GREEN AND YELLOW).
NOTE: After replacing or changing a fuse, the fuse cover in the plug must be replaced with a fuse cover
which corresponds to the colour of the insert in the base of the plug or the word that is embossed on the
base of the plug, and the appliance must not be used without a fuse cover.
If lost, replacement fuse covers can be obtained from VAX Ltd.
Only 13 amp fuses approved to B.S. 1362 A.S.T.A. should be used. This appliance conforms with the
requirements of EEC Directive No. 82/499/EEC relating to radio interference .In the interests of product
improvement, the Company reserve the right to introduce modifications or alterations without notice.
IMPORTANT SAFETY INFORMATION
This ‘Easy guide’ should be read completely and referred to at all times before using your VAX.
15
Do’s
●
Ensure the mains cable is fully unwound and straightened before use.
●
Ensure the mains cable is kept well away from the revolving brushes (where fitted) of your VAX, when it
is turned on and running.
●
Keep the mains cable away from heat, oil, sharp edges and rough surfaces and avoid damage in
any other way.
●
Exercise extreme care when cleaning stair carpets. Ensure that your VAX is in a stable position at either
the top or bottom of the stairs without over-stretching the hose or cable.
You may prefer to remove the castors.
●
Follow the instructions in this user guide when fitting accessories or tools.
●
Remove the plug from the wall socket before carrying out any maintenance specified in this guide.
●
Change dust bags, wash and/or replace filters at regular inter vals as specified in this guide .
●
Store your VAX in a dry place.
●
Have your VAX serviced by an authorised VAX Service Agent only using genuine VAX spare par ts .
●
Take caution when removing dust and debris from your VAX, to avoid injury.
Don’ts
●
Never allow children to tamper or play with your VAX.
●
Avoid dragging your VAX by the mains cable.
●
Never tug at the mains cable to remove the plug from the wall socket.
●
Never allow the complete coiled mains cable to drop on the floor as this may result in kinks or knots
occurring in the cable, causing premature failure.
●
Don’t let anyone touch the rotating brush bar (where fitted) unless your VAX is disconnected
from the mains.
●
Never use your VAX in the presence of flammable gases.
●
Avoid sucking up hot items, hazardous liquids or any other material which could damage your VAX.
●
Never leave your VAX running unattended.
●
Never use without a dust bag except when washing or sucking up spills.
●
If your VAX fails to operate, never attempt to repair it yourself as repairs carried out by an unauthorised
or inexperienced person may cause injury to you or damage to your VAX.
●
Never alter the specification or modify your VAX in any way.
VAX Ltd., Kingswood Road, Hampton Lovett, Droitwich,Worcestershire,WR9 OQH, UK. - Telephone (01905) 795959
Part No: 1-2-26-01-128 Version No:2
CARPET CLEANER
VAXCLEANING SOLUTIONS
Specially formulated for use with your VAX its colour care
formulation will keep colours true, whilst gently lifting out
deep down dirt quickly and efficiently. The anti-resoiling
system ensures carpets stay clean longer and the unique
fragrance will leave them smelling fresh.VAX Carpet Cleaner
is available in 500 ml, 1 litre and 2 litre bottles.
Formulated to prevent the build up of foam in the dirty
water tank. Foam may be caused by cleaning fluids
previously used on carpets, or when clearing up soapy spills.
Routine washing will not require Defoamer because VAX
Carpet Cleaner is designed to be low foaming.
Developed specifically for cleaning carpets that are made
from wool only or are predominantly wool in construction.
For cleaning your carpets by hand.Whilst this process will
clean the surface of the carpet it will not remove deep down
dirt as effectively as washing your carpets with your VAX.
A mild anti-bacterial formula which helps to kill germs
and eliminate odours left behind from accidental spills.
All VAXCleaning Solutions are approved
for use on wool and wool rich carpets
HIGH FOAM SPRAY
DEFOAMER
WOOL CARPET CLEANER
BRUSH-IN SHAMPOO
ALL VAX CARPET CARE PRODUCTS HAVE BEEN
INDEPENDENTLY TESTED AND APPROVED AS SAFE FOR USE
ON WOOL/WOOL RICH AND MAN MADE FIBRE CARPETS.
THEY ARE AVAILABLE FROM SUPERMARKETS AND MANY
ELECTRICAL STORES.
IF YOU HAVE DIFFICULTY OBTAINING THEM CALL THE
VAXCARE HELPLINE ON FREEPHONE 0500 005987
