Vax Careline:
0870 6061248
Instruction Manual
Please read carefully before using
the cleaner. Always fully extend
the mains cable before use.
www.vax.co.uk
BAGLESS UPRIGHT VACUUM CLEANER
Vax Model Number: V-047/V-047S
Vax V-047 10th.qxd 3/10/05 4:13 PM Page 1
1 Handle grip
2 Folding handle release knob
3 Dirt container lid
4 HEPA filter
5 Dirt container
6 Lower hose inspection tube
7 On/off switch
8 Carpet height adjuster
9 Vacuum head
Wheel
Cord clip
12 Dirt container button release
13 Crevice tool
14 Extension tube
15 Hose clip
16 Extendable hose
17 Power cord
18 Hose connector
19 Lower cord wrap with quick release
20 Handle release pedal
1. Diagram
Parts Overview
2
Fig.1/1
1
3
4
5
8
9
10
7
6
2
11
16
15
17
14
13
12
20
18
19
10
11
FRONT
BACK
Vax V-047 10th.qxd 3/10/05 4:14 PM Page 2
2. Safety Information
FOR HOUSEHOLD USE ONLY.
When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:
1. Only use the vacuum cleaner indoors on dry
surfaces.
2. Turn off the vacuum cleaner controls before
connecting to or disconnecting from the mains
supply.
3. Always unplug the vacuum cleaner before
connecting or disconnecting the vacuum hose.
4. Use only as described in this manual. Use only the
manufacturer’s recommended attachments.
5. Close attention is necessary when used by or near
children. Do not allow children to use as a toy.
6. Do not use the vacuum cleaner with a damaged
cord or plug. Do not use the vacuum cleaner if it
has been dropped, damaged, left outdoors or
dropped into water. Return the vacuum cleaner to
a Vax Authorised Service Agent or suitably
qualified person for examination, repair or
adjustment.
7. Do not pull or carry by the cord. Do not use the
cord as a handle, close a door on the cord or pull
the cord around sharp edges or corners. Do not
run the vacuum cleaner over the cord. Keep the
cord away from heated surfaces.
8. Do not handle the plug or vacuum cleaner with wet
hands. Do not use outdoors or on wet surfaces.
9. Do not put any objects into openings. Do not use
with any openings blocked and do not restrict air
flow. Keep all openings free of dust, lint, hair or
anything that may reduce airflow.
10. Keep hair, loose clothing, fingers and all parts of
the body away from openings and moving parts.
11. Do not pick up hot coals, cigarette butts, matches
or any hot, smoking or burning objects.
12. Do not pick up flammable or combustible materials
(lighter fluid, petrol, kerosene, etc) or use in the
presence of explosive liquids or vapours.
13. Do not vacuum up harmful or toxic material
(chlorine bleach, ammonia, drain cleaner, etc).
14. Do not vacuum up hard or sharp objects such as
glass, nails, screws, coins, etc.
15. Do not use without the filters in place.
16. Use extra care when vacuuming on stairs.
17. Keep vacuuming area well lit.
18. Store the vacuum indoors in a cool, dry area.
Safety Information/Use & Function
3. Use & Function
3
19. Turn off the switch before unplugging.
20. Use only CE-approved 13 amp extension cords.
Non-approved extension cords may overheat.
Care should be taken to arrange the cord so that
the cord cannot be pulled or tripped over.
WARNING: Always switch off and unplug the vacuum
cleaner from the electrical outlet before assembling,
opening or emptying the dirt container, or before
connecting/disconnecting the attachments.
CAUTION: The vacuum cleaner is a very powerful unit.
Before plugging the cord into the outlet make sure the
switch is in the ‘off’ position. Hold the vacuum cleaner
firmly when starting and in use.
IMPORTANT: If the vacuum inlet or hose is blocked,
switch off the vacuum cleaner and remove the
blockage(s) before re-starting the vacuum cleaner.
IMPORTANT: Cleaning filters regularly improves
vacuum performance. Make sure all filters are replaced
back into the vacuum cleaner before using.
This vacuum cleaner is intended for household use
only and not for commercial or industrial use.
PLEASE KEEP THESE INSTRUCTIONS FOR
FURTHER USE.
IMPORTANT: Always remove the power plug from the
electrical outlet before assembling or removing
accessories.
Assembling the Handle
TOOLS REQUIRED: Phillips screwdriver.
Insert the handle section into the end port of the upper
cover of the motor and fasten it with screws on either
side of the tube (Fig.3/1).
Fig.3/1
Screw points
Vax V-047 10th.qxd 3/10/05 4:14 PM Page 3
Assembling the Dirt Container
Insert the bottom of the dirt container to align with the
tab on the upper cover of the motor. To secure the dirt
container, push the top in place, there will be an
audible click when it is secure (Fig.3/2).
Assembly of Hose
Align the tabs on the lower hose/inspection tube with
the slots on the hose. Push and turn the hose
clockwise until secure (Fig.3/3).
4
Use & Function
Fig.3/2
Fig.3/3
Wrap the hose round and through the hose clip and
then down and insert into hose connector (Fig.3/4).
Cord Storage
This vacuum cleaner is equipped with a convenient
cord storage feature. The power cord winds around
the two cord holders at the side of the unit. The
bottom cord holder has a quick release feature. Turn
the cord hook to the left or the right to remove the
power cord (Fig.3/5).
Fig.3/4
Fig.3/5
Line up here
Vax V-047 10th.qxd 3/10/05 4:14 PM Page 4

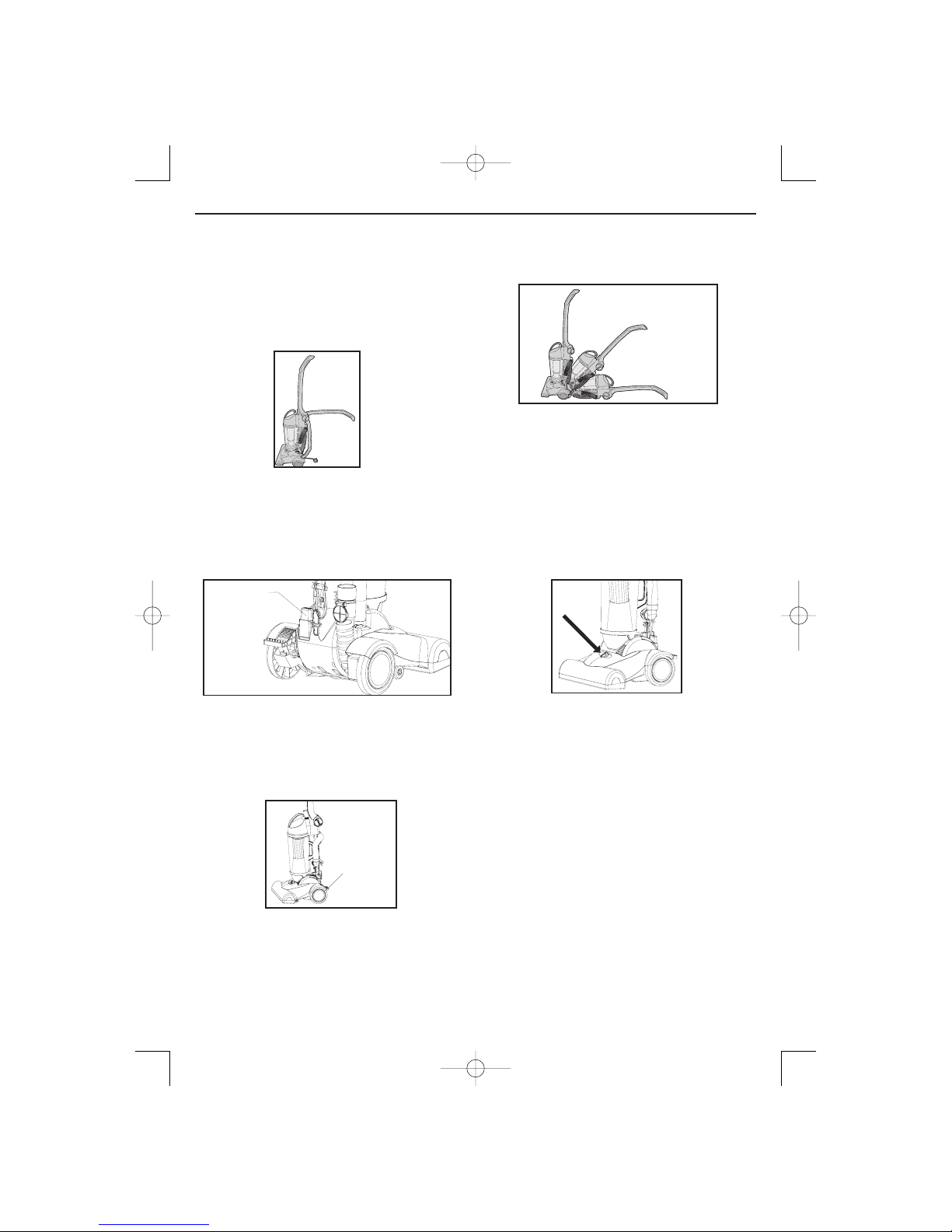

4. Operating the Vacuum
Cleaner
With the handle in its folded position, rotate the handle
vertically upward until it clicks into place. To fold the
handle, rotate the handle release knob anti-clockwise
and rotate the handle down to its folded position
(Fig.4/1A&B).
Fully unwind the power cord. Plug cord into the
electrical outlet. Turn the vacuum cleaner on by
pressing the on/off switch located on the lower right
side of the cleaner (Fig.4/2). The cleaner can be
turned off by pressing the on/off switch again.
Adjusting the Angle of the Main Body
To adjust the angle of the vacuum cleaner body,
push the release pedal on the lower left side of the
cleaner (Fig.4/3).
Operating the Vacuum Cleaner
5
Move the handle to the desired position. (A) for
upright position, (B) for normal operation and (C) to
clean under furniture (Fig.4/4).
Carpet Height Adjuster
The front of the vacuum cleaner has a carpet height
adjuster (Fig.4/5) that raises and lowers the brushbar
to suit the type of carpet. With the cleaner NOT
connected to the electrical outlet, set the adjustment
to the lowest setting for maximum cleaning. If the
cleaner is difficult to move, push the knob to the next
highest setting until the vacuum is comfortable to
push. The brushbar must reach the carpet for
effective cleaning.
IMPORTANT: When the vacuum cleaner is stood in
the upright position or when using the hose and
tools, the carpet height adjuster must be set to the
highest position.
WARNING: To avoid injury, keep loose clothing, hair,
fingers and all other parts of the body away from any
moving part (such as the brushbar). Turn off the
switch and unplug the cleaner before adjusting the
cleaner for the carpet height.
Motor Thermostat
IMPORTANT: The motor is equipped with a thermal
cut-out. If, for any reason, the vacuum cleaner
should over-heat, the thermostat will automatically
turn the unit off. Should this occur, unplug the
vacuum cleaner from the electrical outlet and turn off
the switch. Remove the dirt container and empty.
Clean the filters. Allow the cleaner to cool for
approximately one (1) hour. To re-start, plug into the
electrical outlet and switch back on.
Fig.4/3
Fig.4/4
Fig.4/5
Fig.4/2
B
On/off
switch
Press
here
Fig.4/1
A
B
A
C
Vax V-047 10th.qxd 3/10/05 4:14 PM Page 5

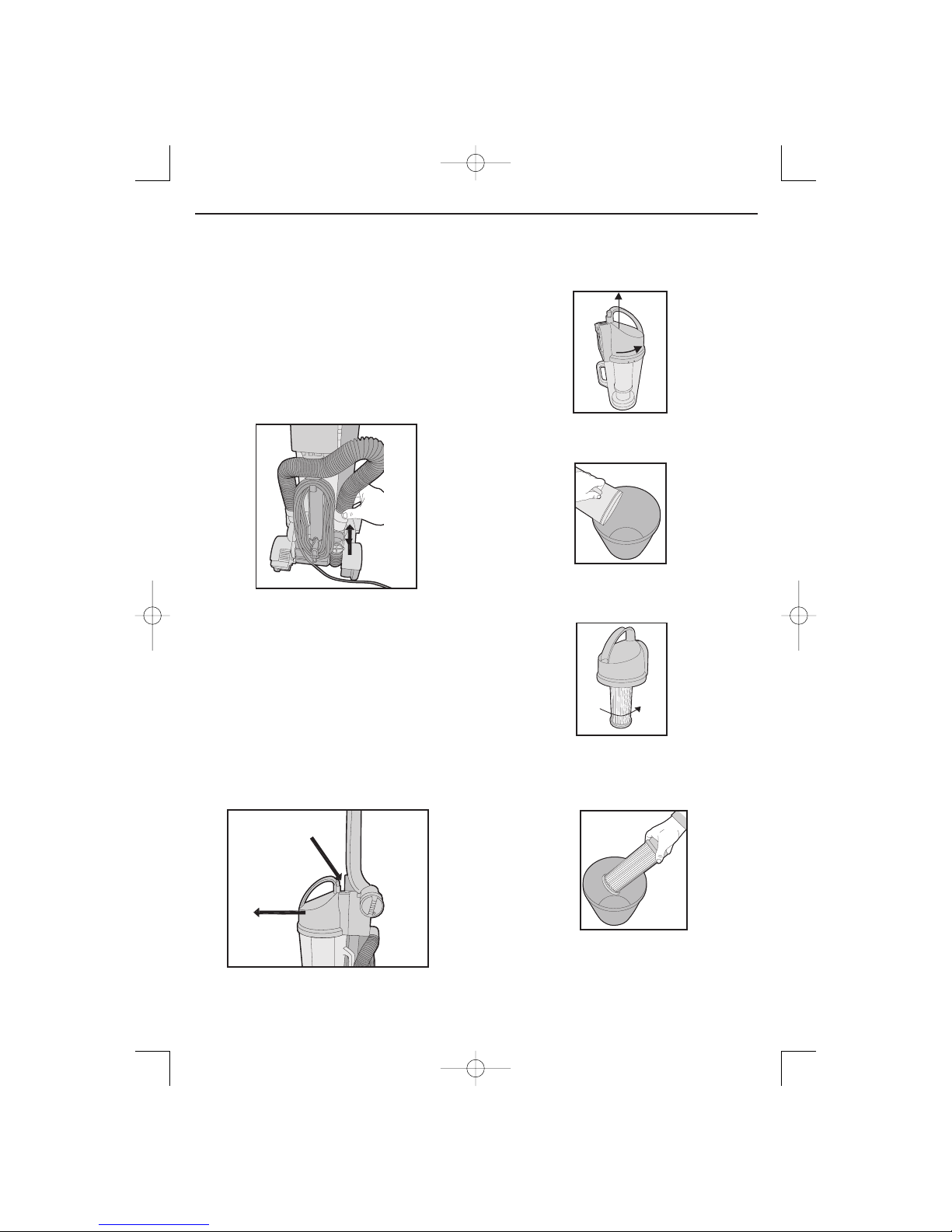

Accessories/Dirt Container & Filter: Removal & Replacement
6
Cleaning the HEPA Filter
Remove the dirt container lid by grasping the dirt
container and turning anti-clockwise (Fig.6/2).
Empty all the dirt from the container (Fig.6/3).
Remove the filter by twisting anti-clockwise and
pulling out (Fig.6/4).
Firmly tap clean the HEPA filter until no more dust is
observed falling out (Fig.6/5).
The HEPA filter may be washed by running it under
the tap. We recommend washing it once a month or
when suction appears reduced. Always allow to air
dry for 24 hours before replacing into the vacuum.
5. Accessories
Crevice Tool
Use the crevice tool for radiators, crevices, corners,
skirting boards and between cushions.
Attaching the Accessories
The crevice tool can be used with or without the
extension tube. To attach the accessory to the
hose, remove the hose from the machine and push
the crevice tool onto the end (Fig.5).
6. Dirt Container & Filter:
Removal & Replacement
IMPORTANT: Always unplug the unit from
electrical outlet before opening the dirt container.
IMPORTANT: Do NOT use the vacuum without the
HEPA filter in place.
To remove the dirt container, press the dirt
container release button and lift away from the
vacuum cleaner (Fig 6/1).
Fig.5
Fig.6/2
Fig.6/3
Fig.6/4
Fig.6/5
Fig.6/1
Vax V-047 10th.qxd 3/10/05 4:14 PM Page 6
Dirt Container & Filter: Removal & Replacement/Maintenance
PLEASE NOTE: The white material in the HEPA filter will
discolour over time -This is NORMAL and will NOT affect
the performance of the filter.
WARNING: Always empty the dirt container and clean
the HEPA filter before each use and during prolonged
usage. Never over fill the dirt container, remove dirt and
clean the HEPA filter each time the dirt container is
emptied during prolonged usage or risk motor damage.
Cleaning the Pre-Motor Filter
Underneath the dirt container is a pre-motor filter. If
found to be defective, please replace (Fig.6/6).
Cleaning the Dirt Container
WARNING: To reduce the risk of electric shock, the
power cord must be disconnected before removing
the dirt container, HEPA filter, changing the filters or
performing maintenance/troubleshooting checks.
• The dirt container can be washed in lukewarm
water (max 40ºC) (Fig.6/7).
• Do not use strong detergents.
• Ensure that the dirt container is fully dry before
putting back on the vacuum cleaner. Do not wash
in dishwasher.
7. Maintenance
Motor Thermostat
Important: This unit is equipped with a motor
protection thermostat. If for some reason the
vacuum cleaner should overheat, the thermostat will
automatically turn the unit off. Should this occur:
• Push the on/off switch once.
• Disconnect the plug from the electrical outlet.
• Check the source of overheating problem. (i.e.
clogged hose or filter).
• If clogged hose or filter is found, unclog the hose
and replace the filters.
• Wait at least one (1) hour before attempting to reuse the vacuum.
• After unit has cooled down for one (1) hour, plug in
the cleaner and push the on/off switch. The
vacuum should start again.
• If the vacuum still does not start, contact Vax Care
0870 606 1248.
Cleaning and Changing the Belt
TOOLS REQUIRED: Phillips screwdriver.
WARNING: To reduce the risk of electric shock, the
power cord must be disconnected before removing
the dirt container, HEPA filter, changing the filters or
performing maintenance/troubleshooting checks.
Occasionally, the power nozzle drive belt will require
changing, the frequency will depend upon the amount
of vacuum use.
1. Turn vacuum off and unplug from power supply.
Press handle release button and lay vacuum
cleaner on a flat, level surface.
2. Using a Phillips screwdriver, remove the four (4)
screws on the underside of the cleaner (Fig.7/1)
to release the top cover of the vacuum head
(Fig.7/2).
Fig.6/6
Fig.7/1
Fig.6/7
7
Vax V-047 10th.qxd 3/10/05 4:14 PM Page 7
8
3. Lift the right side of the brushbar and lift the left
hand side and remove the brushbar from the power
head (Fig.7/3).
4. Remove the worn or broken belt from the motor
drive shaft.
5. Carefully remove any belt residue that may exist in
the belt area before replacing with a new belt.
6. Loop the new belt first over the motor drive shaft
and then over the agitator pulley.
7. Insert the right side of the brushbar in first by
placing the end cap down in the slot and then so
the same with the left side. Press firmly to make
sure that each end is completely inserted.
8. Check to make sure that the belt is centred on the
agitator pulley and that the brushbar turns.
9. Replace the vacuum head cover by screwing in the
four (4) screws on the underside of the vacuum
cleaner.
Fig.7/3
Fig.7/2
Maintenance
Vax V-047 10th.qxd 3/10/05 4:14 PM Page 8
9
8. Troubleshooting
WARNING: TO REDUCE RISK OF PERSONAL INJURY, UNPLUG VACUUM CLEANER BEFORE
SERVICING
PROBLEM: Cleaner won’t run
Cause: Not properly plugged into wall outlet.
Solution: Plug in firmly.
Cause: No electricity in wall outlet.
Solution: Check fuse or breaker.
Cause: On/off switch not turned on.
Solution: Push on/off switch to on.
Cause: Motor thermostat tripped.
Solution: Reset motor thermostat (see page 7).
Cause: Blown fuse/tripped breaker.
Solution: Reset circuit breaker or replace fuse.
PROBLEM: Cleaner won't pick up
Cause: Full or clogged dirt container.
Solution: Clean dirt container.
Cause: Wrong pile height setting.
Solution: Adjust setting on carpet height adjuster.
Cause: Clogged nozzle.
Solution: Remove obstruction.
Cause: Clogged dirt inlet.
Solution: Remove power head cover and remove obstruction.
Cause: Clogged hose.
Solution: Remove obstruction.
Cause: Broken belt.
Solution: Replace belt.
Cause: Hose not inserted fully.
Solution: Push hose in securely.
Cause: Dirty filters.
Solution: Clean/change filters.
PROBLEM: Accessories won't pick up
Cause: Accessories not attached correctly.
Solution: Refer to page 6 for fitting information.
PROBLEM: Cleaner picks up moveable rugs or pushes too hard
Cause: Wrong pile height setting.
Solution: Adjust setting on carpet height adjuster.
PROBLEM: Brushbar does not turn
Cause: Broken belt.
Solution: Replace belt.
Troubleshooting
Vax V-047 10th.qxd 3/10/05 4:14 PM Page 9
10. Technical Specification
Power supply: 220-240V ~50Hz
Motor power: 1400W
Dirt container: 2.9 litres
Filter system: Pleated paper HEPA filter
Pre-motor
Cord length: 7.4m
Weight: 6.4kg
Subject to technical change without notice.
Troubleshooting/UK Service & Help/Technical Specification
10
9. UK Service & Help
Vax Care 0870 6061248
Monday-Friday 9.00am to 5.00pm.
An answerphone is available outside of these hours.
Any queries or concerns about using the Vax, call the
Vax Careline. Calls are charged at the UK national rate.
Please make a note of the serial number and model
number of the carpet cleaner before calling. There are
over 400 approved Vax Service Agents in the UK. For the
nearest Service Agent, please call the Vax Careline.
www.vax.co.uk
Cause: Belt installed incorrectly.
Solution: Check belt.
PROBLEM: Air flow restricted with attachment use
Cause: Attachment use restricts air flow.
Solution: Check attachment.
Cause: New carpet debris clogging air path.
Solution: Remove obstruction.
Vax V-047 10th.qxd 3/10/05 4:14 PM Page 10
11
This page has been left intentionally blank.
Vax V-047 10th.qxd 3/10/05 4:14 PM Page 11
EEC STATEMENT OF COMPLIANCE
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the declare that the
product Vax V-047/V-047S QuickLite FoldAway is manufactured in compliance with the following:
Safety: 73/23/EEC Low Voltage Directive, as modified by 93/68/EEC
EMC: 89/336/EEC Electromagnetic Compatibility Directive, as modified by 93/68/EEC
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 OQH, UK
email: info@vax.co.uk - website: www.vax.co.uk
Version 1
Vax V-047 10th.qxd 3/10/05 4:14 PM Page 12
Loading...
