Vax Navigator RBNAV1B1 User Manual

Download

M608

NAVIGATOR

RBNAV1B1

NavigatorRobot

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 1 19/02/2016 10:43

Contents

Thank you!

We are pleased that you have chosen the "Navigator" robot vacuum cleaner! Thank you for your purchase and your confidence in us.

This robot vacuum cleaner works fully automatically and is equipped with functions suitable for cleaning floor materials such as wood, short-pile carpet, tiles and plastic floors.

This operating manual should help you get to know your new robot so that you can use it safely and efficiently.

Table of contents

1 Overview .............................................................................. 2

2 Safety instructions .............................................................. 7

3 Prior to first use .................................................................. 11

4 Prior to each use ................................................................. 14

5 Use ........................................................................................ 15

6 After each use ..................................................................... 20

7 Troubleshooting .................................................................. 22

Technical data

Technical and design specifications may be changed in the course of continuous product improvement. © Royal Appliance International GmbH

Designations

All trademarks are the properties of their respective owners.

1Overview

Type of appliance : Robot vacuum cleaner

Model name : Navigator

Model :

M608-I (-0/-1/.../-8/-9)

Environmental conditions : 10 °C...40 °C

Dimensions : 320 x 320 x 75 mm

Max. speed (power mode) : 20 cm/s

AC adapter input : 100...240 V~, 50/60 Hz

AC adapter output : 19 V DC, 600 mA

Rechargeable batteries in the appliance : Ni-MH, 12 V DC, 1500 mAh

Operating time

(including charging reserve, might also be affected by conditions of the room to be cleaned and battery pack state)

: Power mode: approx. 60 minutes

Silent mode: approx. 80 minutes

Power : charging: 11.4 W

cleaning: 18 W

Charging time : approx. 4...5 h

Battery type for remote control : 1 x CR2025 3 V

Battery type for light fence tower : 2 x type C 1.5 V

Dust bin capacity : approx. 400 ml

Weight (with battery pack inserted) : approx. 1.8 kg

: Only for household use : Do not dispose of in household

waste

: Satisfies the applicable Europe-

an directives

: AC adapter only:

Protection class II (Protective insulation)

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 2 19/02/2016 10:43

Technical data

Technical and design specifications may be changed in the course of continuous product improvement. © Royal Appliance International GmbH

Designations

All trademarks are the properties of their respective owners.

1Overview

Type of appliance : Robot vacuum cleaner

Model name : Navigator

Model :

M608-I (-0/-1/.../-8/-9)

Environmental conditions : 10 °C...40 °C

Dimensions : 320 x 320 x 75 mm

Max. speed (power mode) : 20 cm/s

AC adapter input : 100...240 V~, 50/60 Hz

AC adapter output : 19 V DC, 600 mA

Rechargeable batteries in the appliance : Ni-MH, 12 V DC, 1500 mAh

Operating time (including charging reserve,

might also be affected by conditions of the room to be cleaned and battery pack state)

: Power mode: approx. 60 minutes

Silent mode: approx. 80 minutes

Power : charging: 11.4 W

cleaning: 18 W

Charging time : approx. 4...5 h

Battery type for remote control : 1 x CR2025 3 V

Battery type for light fence tower : 2 x type C 1.5 V

Dust bin capacity : approx. 400 ml

Weight (with battery pack inserted) : approx. 1.8 kg

: Only for household use : Do not dispose of in household

waste

: Satisfies the applicable Europe-

an directives

: AC adapter only:

Protection class II (Protective insulation)

RBNAV1B1

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 3 19/02/2016 10:43

1 Overview

1.1 Scope of delivery

1 Remote control,

see also ZFig. 4

8 Batteries

(2x type C, 1.5 V)

 not shown: Operatin

g manual

(this manual)

1 Overview

1.2 Robot vacuum cleaner in detail

1 Side brush:

- conveys dust to the main brush

- may be pulled off for short pile carpet cleaning

2 "Return to station" sensor:

- guides the appliance to the docking sta- tion as soon as the battery capacity be- comes low or it receives the respective command from the remote control ( )

3 LED indicators:

- indicate if the dust bin is not in the robot

- indicate if the cliff sensor de

tects a cliff

- indicate if the bumper got stuck

- indicate if the motor is overloaded

- see also ZChapter 7, "Troubleshooting"

4 "On/Off" key ( ):

- switches the appliance on or off if pressed longer than 1 second

- starts cleaning if the appliance is switched on and pressed less than 1 second

5 Upper cover:

- covers dust bin module and

- covers battery compartment

6 Bumper:

- senses impact and causes the appli- ance to bounce backwards

- if triggered constantly for 5 seconds or longer the robot will stop automatically

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 4 19/02/2016 10:43

1 Overview

1.2 Robot vacuum cleaner in detail

1 Side brush:

- conveys dust to the main brush

- may be pulled off for short pile carpet cleaning

2 "Return to station" sensor:

- guides the appliance to the docking station as soon as the battery capacity becomes low or it receives the respective command from the remote control ( )

3 LED indicators:

- indicate if the dust bin is not in the robot

- indicate if the cliff sensor de

tects a cliff

- indicate if the bumper got stuck

- indicate if the motor is overloaded

- see also ZChapter 7, "Troubleshooting"

4 "On/Off" key ( ):

- switches the appliance on or off if pressed longer than 1 second

- starts cleaning if the appliance is switched on and pressed less than 1 second

5 Upper cover:

- covers dust bin module and

- covers battery compartment

6 Bumper:

- senses impact and causes the appliance to bounce backwards

- if triggered constantly for 5 seconds or longer the robot will stop automatically

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 5 19/02/2016 10:43

1 Overview

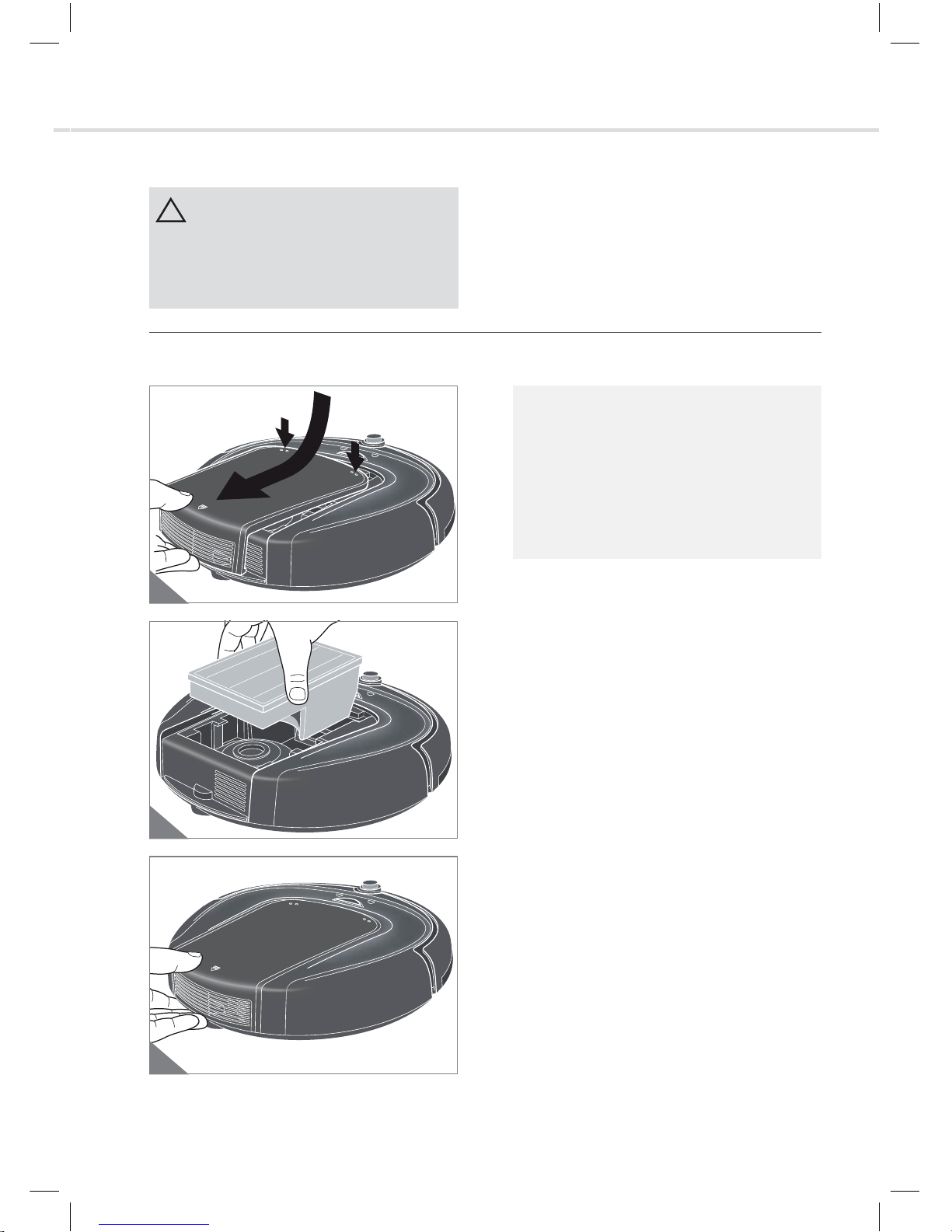

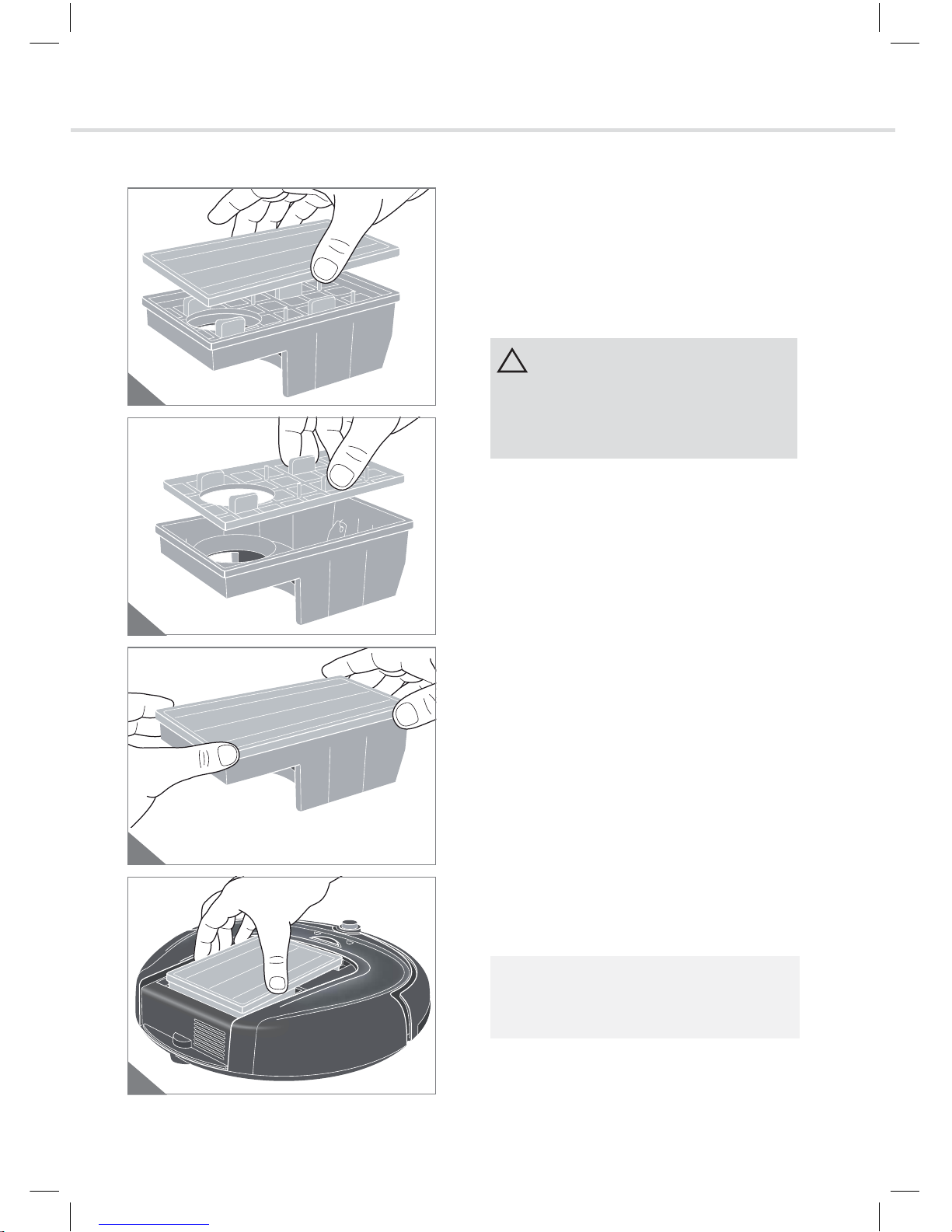

1.3 Dust bin module in detail

1 Upper cover

2 Dust bin cover

3 Filter

4 Dust bin

 hidden: battery compartment cover

 hidden: battery pack in battery

compartments next to the dust bin

1 Overview

1.4 Docking station and light fence tower in detail

Light fence tower:

1 Light fence transmitter

2 Power switch

3 LED (lights up if switched on)

4 Receiver

5 Battery cover

Docking station:

6 Transmitter window (with integrated LED:

- lights up when plugged in

- flashes during charging process)

7 Front button

8 Charging Pins

9 Socket for AC adapter plug

 hidden: 4 rubber feet underneath

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 6 19/02/2016 10:43

1 Overview

1.4 Docking station and light fence tower in detail

Light fence tower:

1 Light fence transmitter

2 Power switch

3 LED (lights up if switched on)

4 Receiver

5 Battery cover

Docking station:

6 Transmitter window (with integrated LED:

- lights up when plugged in

- flashes during charging process)

7 Front button

8 Charging Pins

9 Socket for AC adapter plug

 hidden: 4 rubber feet underneath

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 7 19/02/2016 10:43

2 Safety instructions

2.1 About the operating manual

Read this operating manual completely before using the appliance. Keep the operating manual in a safe place. If you pass the appliance on to someone else, give them the operating manual as well.

Failure to comply with these instructions can lead to serious injuries or damage to the appliance.

We assume no liability for damage that occurs as a result of failure to comply with the instructions in this operating manual.

2.2 Concerning certain groups of persons

 These appliances can be used by children of 8 years and

upwards and persons with impaired physical, sensory or mental abilities, or insufficient experience or knowledge, providing they are supervised or have been instructed in the proper use of the appliance

and understand the risks involved.

 Children must not perform cleaning or user maintenance

tasks without supervision.

 Children must not play with the appliance. Children must

not be allowed to stand

or sit on the appliance.

 Children under the age of eight should be kept away from

the appliance, its docking statio

n, AC adapter and power ca-

ble whilst it is switched on, plugged in or cooling down.

WARNING:

Warns of health hazards and identifies possible risks of injury.

CAUTION:

Indicates possible dangers to the appliance or other objects.

NOTE:

Highlights tips and information.

2 Safety instructions

 Keep packing materials and batteries away from children.

There is danger of suffocation.

2.3 Concerning the power supply

The appliance is charged with electrical power. There is al- ways danger of electrical shock. Therefore pay particular at- tention to the following:

 Never touch AC adapter or docking station with wet hands.

 Never immerse appliance, docking station or AC adapter in

water or other fluids. Keep these components away from rain and moisture.

 If you want to unplug the AC adapter from the socket, al-

ways pull directly on the plug. Never pull the AC adapter via its power cord. Do not carry the AC adapter by its power cord.

 Ensure that the AC adapter's power cord is not bent,

pinched, rolled over and that it does not come into contact with heat sources.

 Only charge the appliance if the voltage indicated on the

AC adapter matches the voltage of your socket.

 Only use the AC adapter and docking station supplied with

the appliance to charge this equipment.

 Always check the AC adapter's power cord for possible dam-

age before using it. Do not use an AC adapter with a damaged cord or plug.

 Before cleaning or performing maintenance on the appli-

ance or its docking station, ensure that the AC adapter has been unplugged from the socket.

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 8 19/02/2016 10:43

2 Safety instructions

 Keep packing materials and batteries away from children.

There is danger of suffocation.

2.3 Concerning the power supply

The appliance is charged with electrical power. There is always danger of electrical shock. Therefore pay particular attention to the following:

 Never touch AC adapter or docking station with wet hands.

 Never immerse appliance, docking station or AC adapter in

water or other fluids. Keep these components away from rain and moisture.

 If you want to unplug the AC adapter from the socket, al-

ways pull directly on the plug. Never pull the AC adapter via its power cord. Do not carry the AC adapter by its power cord.

 Ensure that the AC adapter's power cord is not bent,

pinched, rolled over and that it does not come into contact with heat sources.

 Only charge the appliance if the voltage indicated on the

AC adapter matches the voltage of your socket.

 Only use the AC adapter and docking station supplied with

the appliance to charge this equipment.

 Always check the AC adapter's power cord for possible dam-

age before using it. Do not use an AC adapter with a damaged cord or plug.

 Before cleaning or performing maintenance on the appli-

ance or its docking station, ensure that the AC adapter has been unplugged from the socket.

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 9 19/02/2016 10:43

2 Safety instructions

2.4 Concerning the batteries provided

Danger of injury and explosion due to improper handling of the batteries provided.

 Do not replace the battery pack with other batteries or re-

chargeable batteries.

 Only use an original battery pack that you bought from us.

 Before removing the battery pack, ensure that the AC

adapter has been unplugged from the socket and the toggle switch underneath the appliance is switched "off" ("0" position).

 Never short-circuit batteries, i.e. never touch both poles si-

multaneously, especially with metal objects.

 Never take batteries apart, ne

ver deform them and never

expose them to high temperatures.

 Improper handling can lead to liquid leaking from batteries.

Avoid any contact with such liquid.

 Only use the AC adapter and docking station supplied with

the appliance to charge this equipment.

 After its service life, dispose of the batteries in an environ-

mentally responsible manner, as described, ZChapter 7.9, "Disposing of appliance and batteries".

2.5 Concerning appropriate use

 This appliance may only be used in the household.

The appliance is not suitable for commercial use.

 The appliance must only be used for cleaning of level, hard

floors with normal accumulation of dirt or dust.

Any other use is considered inappropriate and is prohibited.

2 Safety instructions

 Especially the following are forbidden:

- To use, store or charge the appliance outdoors.

- To put objects on top of the appliance.

- To modify or repair the appliance or the AC adapter your- self.

- To insert objects, other than the objects described in this manual, into the openings of the appliance.

- To use the appliance near explosive or highly-flammable substances.

 It is also forbidden to vacuum the following:

- Persons, animals, plants, especially hair, fingers and other parts of the body as well as pieces of clothing worn on the body. They could be sucked in, resulting in inju- ries.

- Water and other liquids. Moisture inside the appliance can cause a short-circuit.

- Toner (for laser printers, copying machines, etc.). There is a risk of explosion.

- Hot ash or burning objects. This could cause a fire.

- Pointed objects, such as glass shards, nails, etc. The ap- pliance or substrate could be damaged.

- Construction rubble, plaster, cement, fine drilling-dust, makeup, etc. The appliance could be damaged.

 Also prohibited is use ...

- ... on long pile carpet (i. e. piles are longer than 1 cm).

- ... on wet floors.

- ... without the filter, dust bin and covers being correctly inserted.

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 10 19/02/2016 10:43

2 Safety instructions

 Especially the following are forbidden:

- To use, store or charge the appliance outdoors.

- To put objects on top of the appliance.

- To modify or repair the appliance or the AC adapter yourself.

- To insert objects, other than the objects described in this manual, into the openings of the appliance.

- To use the appliance near explosive or highly-flammable substances.

 It is also forbidden to vacuum the following:

- Persons, animals, plants, especially hair, fingers and other parts of the body as well as pieces of clothing worn on the body. They could be sucked in, resulting in injuries.

- Water and other liquids. Moisture inside the appliance can cause a short-circuit.

- Toner (for laser printers, copying machines, etc.). There is a risk of explosion.

- Hot ash or burning objects. This could cause a fire.

- Pointed objects, such as glass shards, nails, etc. The appliance or substrate could be damaged.

- Construction rubble, plaster, cement, fine drilling-dust, makeup, etc. The appliance could be damaged.

 Also prohibited is use ...

- ... on long pile carpet (i. e. piles are longer than 1 cm).

- ... on wet floors.

- ... without the filter, dust bin and covers being correctly inserted.

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 11 19/02/2016 10:43

3 Prior to first use

3.1 Unpacking

1. Unpack the appliance and its accessories.

2. Check the contents for completeness and

possible damage (Fig. 1).

3.2 Positioning the docking station

1. If possible, choose a location where there

is no carpet. The rubber feet will adhere better to a level surface.

2. Locate the docking station in close proximity to a mains so

cket.

3. Locate the docking station against a wall or a piece of furniture so it will not be moved by the robot.

4. Make sure that there is a space of at least 1 m x 1 m in front of and next to the docking station (Fig. 5).

5. Now remove the 4 protective films from the rubber feet underneath the docking station (Fig. 6) and position it in a stable manner.

6. Have the AC adapter cable placed behind the station (Fig. 7) so that it does not obstruct the robot's ability to dock.

CAUTION:

Keep the packaging for storing the appliance, or for safe transport. Always transport or ship the appliance in its original packaging to avoid damage.

NOTE:

Contact your dealer if you have found damage resulting from transport.

1 m 1 m

CAUTION:

Rubber may cause unwanted stains or discolouring on certain surfaces such as wood. Check the manufacturer's recommendations to avoid damage.

NOTE:

Also remember not to locate the light fence tower near the docking station. Otherwise your robot may be impeded from docking to the station.

3 Prior to first use

3.3 Connecting the docking station

1. Ensure, that the docking station is being

positioned correctly (Fig. 5).

2. Plug the connector of the AC adapter ca- ble into the socket on the side of the dock- ing station (Fig. 8).

3. Connect the AC adapter plug to the mains socket.

3.4 Charging the battery pack for the first time

1. Ensure that the docking station is correctly

positioned and connected, ZChapter 3.3, "Connecting the docking station".

2. Activate battery pack charging by switch- ing the toggle switch underneath the robot to "on" (Fig. 9, "I" position).

3. Place your robot manually onto the dock- ing station (Fig. 1

0).

4. Watch out that the charging pins of the docking station and the charging pins on the bottom of the robot make contact 1 (Fig. 10/1).

- Red LED is lit and blue LED is flashing.

- A short beep occurs.

- If not, it is not correctly positioned

In that case, try again.

WARNING:

Danger of injury! Only use the AC adapter and docking station supplied with the appli- ance to charge this equipment.

NOTE:

Before operating your robot for the first time, charge it. This will help to retain the battery life.

NOTE:

Battery pack can only be charged if toggle switch is put into "I" position.

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 12 19/02/2016 10:43

3 Prior to first use

3.3 Connecting the docking station

1. Ensure, that the docking station is being

positioned correctly (Fig. 5).

2. Plug the connector of the AC adapter cable into the socket on the side of the docking station (Fig. 8).

3. Connect the AC adapter plug to the mains socket.

3.4 Charging the battery pack for the first time

1. Ensure that the docking station is correctly

positioned and connected, ZChapter 3.3, "Connecting the docking station".

2. Activate battery pack charging by switching the toggle switch underneath the robot to "on" (Fig. 9, "I" position).

3. Place your robot manually onto the docking station (Fig. 1

0).

4. Watch out that the charging pins of the docking station and the charging pins on the bottom of the robot make contact 1 (Fig. 10/1).

- Red LED is lit and blue LED is flashing.

- A short beep occurs.

- If not, it is not correctly positioned

In that case, try again.

WARNING:

Danger of injury! Only use the AC adapter and docking station supplied with the appliance to charge this equipment.

NOTE:

Before operating your robot for the first time, charge it. This will help to retain the battery life.

NOTE:

Battery pack can only be charged if toggle switch is put into "I" position.

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 13 19/02/2016 10:43

3 Prior to first use

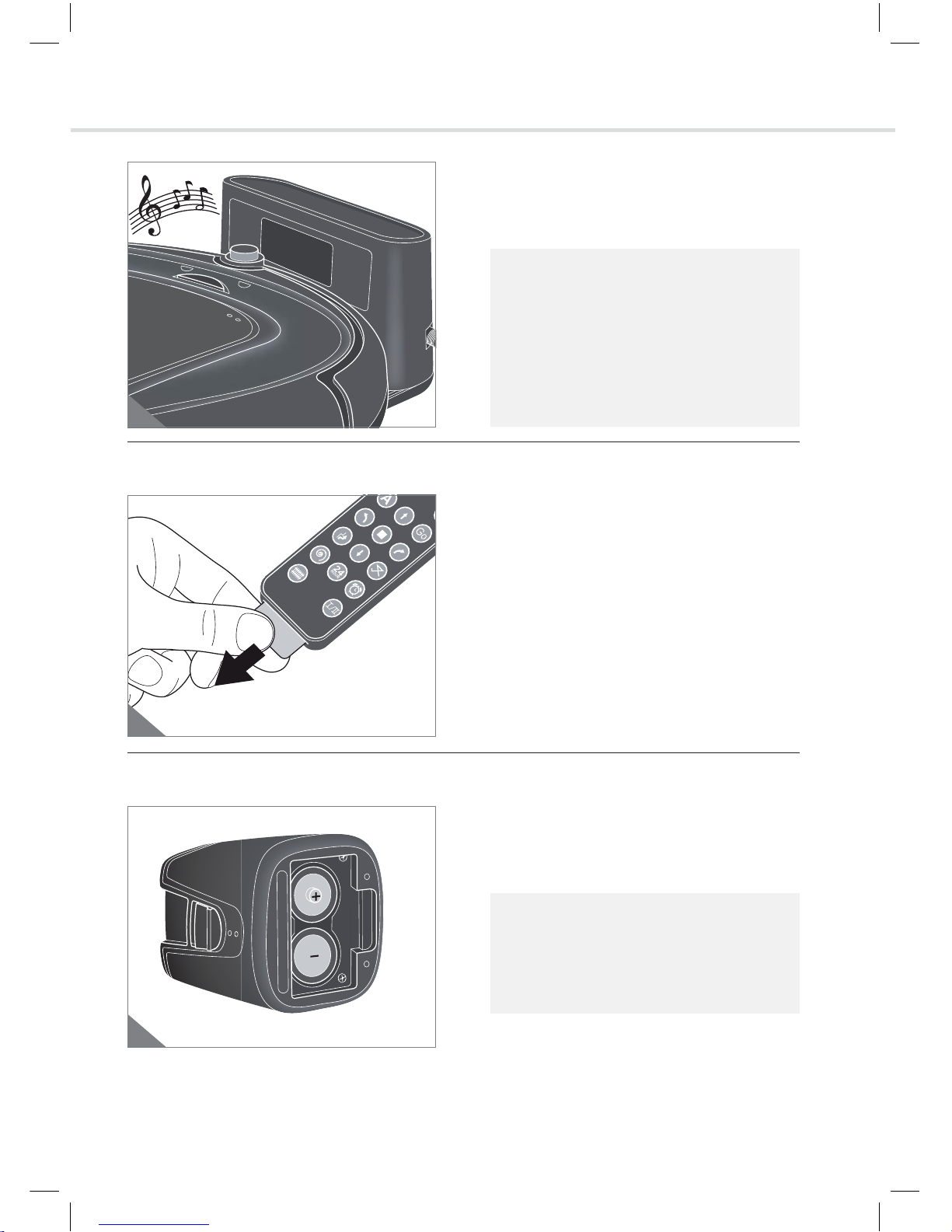

5. Now charge your robot for approx. 4 to 5

hours, until

- a short tune is played and

- both LEDs turn off (Fig. 11

3.5 Activating the remote control

1. Remove the plastic film (Fig. 12) from the

remote control's battery compartment.

3.6 Inserting batteries into the light fence tower

1. Open the battery compartment cover.

2. Insert the 2 supplied batteries (type C,

1.5 V) as indicated (Fig. 13). Make sure you position them correctly (Fig. 13).

NOTE:

When its battery capacity becomes low, your robot automatically returns to the docking station for charging. If it - for any reason - does not succeed in docking onto the docking station, you need to lift it manually onto the docking station, as described above.

NOTE:

When changing batteries, be sure not to mix batteries of different types or those that are fully charged with those that are partly charged.

4 Prior to each use

4.1 Preparing the room

No children or pets

Remove fragile objects

Remove sharp-edged debris

Use regularly

Remove obstacles

Short-pile carpets

WARNING:

Ensure that no children or pets are in the room or have access to the room to be cleaned.

CAUTION:

The appliance has a powerful drive. Do not underestimate its power. Put into a safe place objects that are fragile or could topple or fall over if the appliance drives into them.

CAUTION:

Remove pointed and sharp objects from the floor that could scratch surfaces if they get under the appliance.

NOTE:

Your robot can only take up small amounts of dirt. It does not replace a classic vacuum cleaner. Clean particularly dirty areas with a vacuum cleaner beforehand. Use your robot regularly so that large amounts of dirt cannot accumulate.

NOTE:

This robot vacuum cleaner vacuums more efficiently if it encounters as few obstructions as possi- ble and the covering does not change often. It may also be worthwhile to clear the room of poten- tial obstacles, cables, mats, carpet runners and similar items.

NOTE:

Short-pile carpets (up to 1 cm) may be cleaned by this robot as well. Use on long-pile carpet (longer than 1 cm) is not recommended.

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 14 19/02/2016 10:43

4 Prior to each use

4.1 Preparing the room

No children or pets

Remove fragile objects

Remove sharp-edged debris

Use regularly

Remove obstacles

Short-pile carpets

WARNING:

Ensure that no children or pets are in the room or have access to the room to be cleaned.

CAUTION:

The appliance has a powerful drive. Do not underestimate its power. Put into a safe place objects that are fragile or could topple or fall over if the appliance drives into them.

CAUTION:

Remove pointed and sharp objects from the floor that could scratch surfaces if they get under the appliance.

NOTE:

This robot vacuum cleaner vacuums more efficiently if it encounters as few obstructions as possible and the covering does not change often. It may also be worthwhile to clear the room of potential obstacles, cables, mats, carpet runners and similar items.

NOTE:

Short-pile carpets (up to 1 cm) may be cleaned by this robot as well. Use on long-pile carpet (longer than 1 cm) is not recommended.

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 15 19/02/2016 10:43

5 Use

5Use

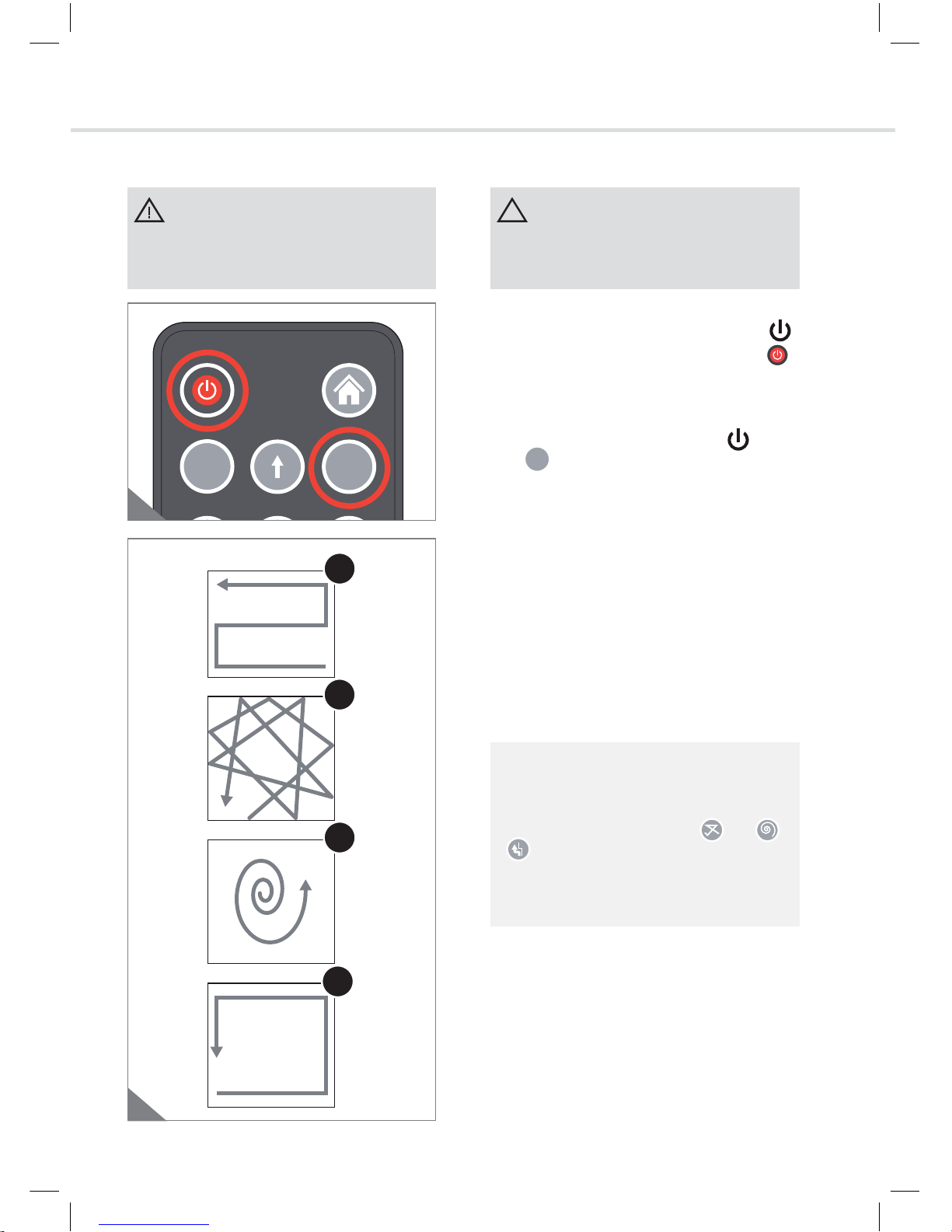

5.1 How to vacuum

1. Turn on the cleaning robot. To do this, ei-

ther press the robot's "On/Off" key ( ) for more than 1 second or press the " " key on the remote control.

- A short beep occurs.

- Both LEDs are lit.

2. Press the robot's "On/Off" key ( ) or the " " key on the remote control shortly to start the robot.

- A tune is played.

- The red LED turns off. The blue LED is

still lit.

- Your robot starts in power mode;

- if you want to adapt the cleaning rate,

see ZChapter 5.2, "Switching between power or silent mode".

- Based on certain conditions such as the

underlying surface, room geometry, obstacles and so on your robot will switch modes (Fig. 15/1 to 4) to achieve optimum effici

ency.

WARNING:

Danger of injury! You can let your robot run unsupervised, however always be careful not to step on it, this could cause you to fall.

CAUTION:

Although your robot recognises drop-offs, we strongly advise against using it on furniture. It is not suitable for this type of use.

NOTE:

Alternatively, you can activate the mode you prefer via remote control. Just press one of the following keys: " ", " ", " ".

Note that best cleaning results are achieved, if your robot combines all 4 modes automatically.

5 Use

 Alternatively, you can choose the "auto"

mode with the " " key of the remote control.

- Your robot will then effect 2 complete cleaning cycles (including one charging cycle).

 Alternatively, you can guide the robot di-

rectly via the direction keys " ", " ", " ", " " of the remote control.

- Your robot will then move into the cho- sen direction.

- Your robot can only effect one direction at once.

HOUR

NOTE:

When the capacity of the battery pack diminishes, your robot searches for the sig- nal of the docking station, docks on and charges for approx. 4 to 5 hours. Then the LEDs turn off and the robot can be used. If it - for any reason - does not succeed in docking onto the docking station, you have to lift it manually onto the docking station, see ZChapter 3.4, "Charging the battery

pack for the first time"

NOTE:

Cliff sensors detect stairs and other cliffs to avoid falling. A height difference of 7 cm or more would be judged as a cliff. When a cliff is detected, your robot will move backwards to avoid falling. Your robot will stop immedi- ately if all 3 cliff sensors detect a cliff simul- taneously.

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 16 19/02/2016 10:43

5 Use

 Alternatively, you can choose the "auto"

mode with the " " key of the remote control.

- Your robot will then effect 2 complete cleaning cycles (including one charging cycle).

 Alternatively, you can guide the robot di-

rectly via the direction keys " ", " ", " ", " " of the remote control.

- Your robot will then move into the chosen direction.

- Your robot can only effect one direction at once.

HOUR

NOTE:

When the capacity of the battery pack diminishes, your robot searches for the signal of the docking station, docks on and charges for approx. 4 to 5 hours. Then the LEDs turn off and the robot can be used. If it - for any reason - does not succeed in docking onto the docking station, you have to lift it manually onto the docking station, see ZChapter 3.4, "Charging the battery

pack for the first time"

NOTE:

Cliff sensors detect stairs and other cliffs to avoid falling. A height difference of 7 cm or more would be judged as a cliff. When a cliff is detected, your robot will move backwards to avoid falling. Your robot will stop immediately if all 3 cliff sensors detect a cliff simultaneously.

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 17 19/02/2016 10:43

5 Use

5.2 Switching between power or silent mode

After starting, the robot cleans in power mode.

1. Press the " " key on the remote control once to enable silent mode if necessary.

2. Press the button again to switch back to power mode.

5.3 Erecting a light fence

Proceed as follows to erect a light fence:

1. Set the light fence tower in a place that your robot will not pass (Fig. 19).

2. Switch the light fence tower's power switch to "On"

- The tower's LED is lit and then blinks.

- An invisible light fence is built up.

3. Now power on the robot. It will not pass the fence.

5.4 Erecting a smart fence

1. Erect a light fence as described in

ZChapter 5.3, "Erecting a light fence".

2. Press the " " key on the remote control to activate smart fence.

- A short beep occurs.

- An invisible smart fence is built up.

3. Now power on the robot. Your robot will completely clean the room it is in. Then it will pass the light fence to clean the adjacent room.

HOUR

NOTE:

Once you have chosen the power mode, the suction rate and working speed are higher than in silent mode and therefore your robot consumes more electricity.

HOUR

NOTE:

To deactivate the smart fence function, press the " " key again. You will hear two short beeps.

5 Use

5.5 Scheduling a cleaning cycle

There are 2 ways to schedule cleaning:

Cleaning right now and same time each day:

1. Press the " " key on the remote con-

trol.

- Your robot will start cleaning right away.

- Your robot will start cleaning at the same time each day.

Cleaning in 1, 2, 4 or 8 hours

 If you press the " " key once:

- You will hear one beep soun

- Then the appliance will start cleaning af- ter 1 hour.

 If you press the " " key twice:

- You will hear two beep sou

nds.

- The appliance will start cleaning after 2 hours.

 If you press the " " key three times:

- You will hear four beep sounds.

- The appliance will start cleaning after 4 hours.

 If you press the " " key four times:

-Y

ou will hear eight beep sounds.

- The appliance will start cleaning after 8 hours.

HOUR

NOTE:

To deactivate this timer, press the " " key again.

NOTE:

To deactivate this timer, press the " " key for 2 to 3 seconds.

HOUR

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 18 19/02/2016 10:43

5 Use

5.5 Scheduling a cleaning cycle

There are 2 ways to schedule cleaning:

Cleaning right now and same time each day:

1. Press the " " key on the remote con-

trol.

- Your robot will start cleaning right away.

- Your robot will start cleaning at the same time each day.

Cleaning in 1, 2, 4 or 8 hours

 If you press the " " key once:

- You will hear one beep soun

- Then the appliance will start cleaning after 1 hour.

 If you press the " " key twice:

- You will hear two beep sou

nds.

- The appliance will start cleaning after 2 hours.

 If you press the " " key three times:

- You will hear four beep sounds.

- The appliance will start cleaning after 4 hours.

 If you press the " " key four times:

-Y

ou will hear eight beep sounds.

- The appliance will start cleaning after 8 hours.

HOUR

NOTE:

To deactivate this timer, press the " " key again.

NOTE:

To deactivate this timer, press the " " key for 2 to 3 seconds.

HOUR

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 19 19/02/2016 10:43

5 Use

5.6 Switching off

HOUR

NOTE:

You can switch the robot off whenever you want; just choose one of the following:

 Press the "On/Off" key ( ) on the ro-

bot shortly. This will stop the robot (it is now in standby).

 Press the "On/Off" key ( ) on the ro-

bot for 1 second or longer. This will turn the robot off.

 Press the " " key on the remote con-

trol. This will stop the robot (it is now in standby).

 Press the " " key on the remote con-

trol for about 2 seconds. This will turn the robot off.

 Lift the robot. It will stop within 1 second.

NOTE:

If you lift the appliance while it is in operation, the motors will switch off automatically after approx. 1 second without floor contact. However, in this case the appliance is not switched off (blue LED flashing slow, red LED flashing fast). In this case switch off your robot via the "On/Off" key ( ) or the " " key on the remote control. The error will be deleted. You can start your robot again.

6 After each use

6.1 Transport and storage

 Always carry the appliance carefully; ide-

ally use both hands.

 Always store the appliance in its original

packaging in a cool, dry place, and keep it out of reach of children.

6.2 Emptying the dust bin module

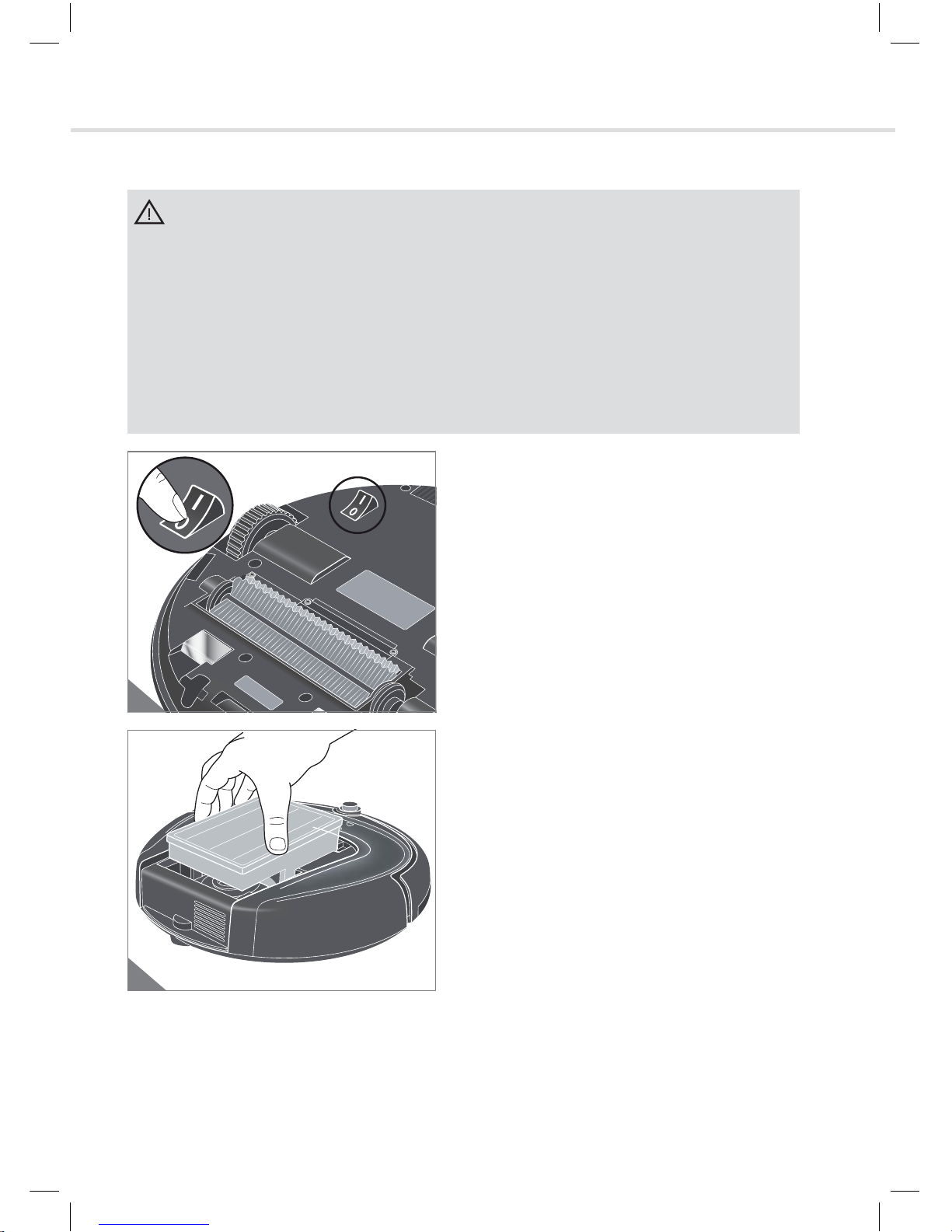

1. Ensure that the appliance is switched off

(no LED is lit).

2. Remove the robot's upper cover (Fig. 23). It might be necessary to press firmly (Fig. 23/arrows) to release the cover from its locked position.

3. Carefully pull the dust bin module out of the appliance (Fig. 24).

4. Remove the dust bin cover (Fig.

26).

5. Take out the filter (Fig. 27).

6. Tap lightly to knock out both parts and re-

move coarser debris with your hand.

7. If dust bin and filter can no longer be com- pletely emptied through this measure, pro- ceed as described under ZChapter 6.3, "Cleaning dust bin and filter".

8. Insert the filter back into the bin (Fig. 27) and put the dust bin cover back on (Fig. 28).

9. Insert the dust bin module back into the appliance (Fig. 24) and put on the upper cover (Fig. 25). It will audibly snap into place.

CAUTION:

Never store the appliance next to heat sources (e.g. heater, oven). Avoid exposing it to direct sunlight. Heat can damage the appliance.

NOTE:

It is best to empty the dust bin module after each vacuuming session. However, empty the dust bin module at the latest

 Once a month,

 Prior to a longer period of non use,

 Prior to shipping.

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 20 19/02/2016 10:43

6 After each use

6.1 Transport and storage

 Always carry the appliance carefully; ide-

ally use both hands.

 Always store the appliance in its original

packaging in a cool, dry place, and keep it out of reach of children.

6.2 Emptying the dust bin module

1. Ensure that the appliance is switched off

(no LED is lit).

2. Remove the robot's upper cover (Fig. 23). It might be necessary to press firmly (Fig. 23/arrows) to release the cover from its locked position.

3. Carefully pull the dust bin module out of the appliance (Fig. 24).

4. Remove the dust bin cover (Fig.

26).

5. Take out the filter (Fig. 27).

6. Tap lightly to knock out both parts and re-

move coarser debris with your hand.

7. If dust bin and filter can no longer be completely emptied through this measure, proceed as described under ZChapter 6.3, "Cleaning dust bin and filter".

8. Insert the filter back into the bin (Fig. 27) and put the dust bin cover back on (Fig. 28).

9. Insert the dust bin module back into the appliance (Fig. 24) and put on the upper cover (Fig. 25). It will audibly snap into place.

CAUTION:

Never store the appliance next to heat sources (e.g. heater, oven). Avoid exposing it to direct sunlight. Heat can damage the appliance.

NOTE:

It is best to empty the dust bin module after each vacuuming session. However, empty the dust bin module at the latest

 Once a month,

 Prior to a longer period of non use,

 Prior to shipping.

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 21 19/02/2016 10:43

6 After each use

6.3 Cleaning dust bin and filter

If the dust bin can no longer be completely emptied (ZChapter 6.2, "Emptying the dust bin module") or if you can no longer remove dirt on the filter by hand:

1. Take out and empty the dust bin module

as described under ZChapter 6.2, "Emp- tying the dust bin module".

2. Thoroughly rinse out the dust bin by hand under cold running water or lukewarm water.

3. Thoroughly rinse out the filter by hand under cold running water or lukewarm water, until all the dirt is removed.

4. Let both elements dry for at least 24 hours at room temperature, until they are completely dry.

5. Insert the filter back into the bin (Fig. 27) and put the dust bin cover back on (Fig. 28).

6. Insert the dust bin module back into the appliance (Fig. 29) and put on the upper cover (Fig. 25). It will audibly snap into place.

CAUTION:

Dust bin and filter are washable, but they are not suitable for cleaning in washing machines or dishwashers. Also, do not use detergents or brushes with hard bristles.

NOTE:

The appliance will only work if the dust bin is installed correctly.

7 Troubleshooting

Troubleshooting

7.1 If the appliance does not work as it should

See if you can solve the problem yourself by following the steps in the table below. If you cannot solve the problem using this table, please contact your retailer.

Problem Possible cause / solution

The appliance will not start.

The battery pack is not connected correctly. Connect the battery pack correctly, ZChapter 7.8, "Removing/replacing

the battery pack".

The battery pack is completely empty. Switch off the appliance via the On/Off switch (position "0") and charge the

battery pack as described, ZChapter 3.4, "Charging the battery pack for the first time".

The toggle switch underneath the robot is not switched to "on" position ("0").

Switch the toggle switch to "on" position ("I"), ZChapter 3.4, "Charging the battery pack for the first time".

Perhaps you tried to start the appliance docked to the docking station and charging. Wait until charging is completed.

Perhaps you tried to start the appliance via remote control but the battery of the remote control is completely empty. Change this battery, ZChapter

7.4, "Changing the side brush".

Red LED is blinking fast while the blue LED is lit constantly.

The capacity of the battery pack is too weak. Your robot should dock onto the docking station by itself. If it does not - for

whatever reason - charge the battery pack as described, ZChapter 3.4, "Charging the battery pack for the first time".

Red and blue LED blinking fast in com- bination with 30 sec- onds of short beep- ing

The dust bin is not installed or not installed correctly. Switch off your robot via the "On/Off" key ( ) or the " " key on the

remote control and insert dust bin module correctly, ZChapter 6.2, "Emp- tying the dust bin module".

Blue LED is lit and red LED is blinking fast in combination with 2 long beeps

Drive wheel, side brush or main brush stuck.

Switch off your robot via the "On/Off" key ( ) or the " " key on the remote control and remove dirt from wheels and brushes, ZChapter 7.3, "Removing and cleaning the main brush". If necessary, carefully use scis- sors or tweezers.

Red LED is blinking fast and blue LED is blinking slowly in combination with 2 long beeps

All 3 cliff sensors are triggered. Move robot to an area without cliffs and restart.

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 22 19/02/2016 10:43

7 Troubleshooting

Troubleshooting

7.1 If the appliance does not work as it should

See if you can solve the problem yourself by following the steps in the table below. If you cannot solve the problem using this table, please contact your retailer.

Problem Possible cause / solution

The appliance will not start.

The battery pack is not connected correctly. Connect the battery pack correctly, ZChapter 7.8, "Removing/replacing

the battery pack".

The battery pack is completely empty. Switch off the appliance via the On/Off switch (position "0") and charge the

battery pack as described, ZChapter 3.4, "Charging the battery pack for the first time".

The toggle switch underneath the robot is not switched to "on" position ("0").

Switch the toggle switch to "on" position ("I"), ZChapter 3.4, "Charging the battery pack for the first time".

Perhaps you tried to start the appliance docked to the docking station and charging. Wait until charging is completed.

Perhaps you tried to start the appliance via remote control but the battery of the remote control is completely empty. Change this battery, ZChapter

7.4, "Changing the side brush".

Red LED is blinking fast while the blue LED is lit constantly.

The capacity of the battery pack is too weak. Your robot should dock onto the docking station by itself. If it does not - for

whatever reason - charge the battery pack as described, ZChapter 3.4, "Charging the battery pack for the first time".

Red and blue LED blinking fast in combination with 30 seconds of short beeping

The dust bin is not installed or not installed correctly. Switch off your robot via the "On/Off" key ( ) or the " " key on the

remote control and insert dust bin module correctly, ZChapter 6.2, "Emp- tying the dust bin module".

Blue LED is lit and red LED is blinking fast in combination with 2 long beeps

Drive wheel, side brush or main brush stuck.

Red LED is blinking fast and blue LED is blinking slowly in combination with 2 long beeps

All 3 cliff sensors are triggered. Move robot to an area without cliffs and restart.

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 23 19/02/2016 10:43

7 Troubleshooting

Red LED is blinking fast and blue LED is blinking slowly in combination with 2 long beeps

Bumper is stuck. Move robot to an area without obstacles and restart.

Bumper function is impaired by debris inside the bumper. Remove the blockage inside the bumper and restart.

Side brush has stopped turning.

The side brush might be prevented by dirt from turning freely. Remove the side brush (ZChapter 7.3, "Removing and cleaning the main

brush") and free it and its receptacle of dirt. If necessary, carefully use scissors or tweezers.

Main brush has stopped turning.

The main brush might be prevented by dirt from turning freely. Remove the main brush (ZChapter 7.3, "Removing and cleaning the main

brush") and free it and its receptacle of dirt. If necessary, carefully use scissors or tweezers.

Robot will not charge.

The AC adapter is not plugged in properly. Check whether the plug or the AC adapter are fitted correctly in their so-

ckets (ZChapter 3.3, "Connecting the docking station").

The toggle switch underneath the robot is not switched to "on" position ("0").

Switch the toggle switch to "on" position ("I"), ZChapter 3.4, "Charging the battery pack for the first time".

The operating time is becoming increasingly shorter.

Drive wheel, side brush or main brush stuck.

Problem Possible cause / solution

7 Troubleshooting

7.2 Ordering accessories and spare parts

Item no. Content Item no. Content

0608001 2 side brushes 0608005 1 docking station

0608002 1 filter 0608006 1 light fence tower

0608003 1 AC adapter 0608007 1 remote control

0608004 1 battery pack

(rechargeable)

0608008 1 main brush

1 support brush

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 24 19/02/2016 10:43

7 Troubleshooting

7.2 Ordering accessories and spare parts

Item no. Content Item no. Content

0608001 2 side brushes 0608005 1 docking station

0608002 1 filter 0608006 1 light fence tower

0608003 1 AC adapter 0608007 1 remote control

0608004 1 battery pack

(rechargeable)

0608008 1 main brush

1 support brush

Brushbar and Bearings

1-3-137502

1-2-137875

1-2-137876

1-2-137877

1-3-137504

1-7-137506

1-5-137878

1-5-137510

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 25 19/02/2016 10:43

7 Troubleshooting

7.3 Removing and cleaning the main brush

If the main brush needs advanced cleaning, proceed as follows:

1. Ensure that the appliance is switched off (no LED is lit).

2. Position the robot upside down.

3. Unscrew the 3 screws as shown (Fig. 30).

4. Remove the support brush.

5. Remove the main brush as indicated

(Fig. 31).

6. Clean main brush and support brush thoroughly of hairs and lint.

7. Re-insert the main brush as indicated (Fig. 32).

8. Put the support brush back into place.

9. Screw in the 3 screws (Fig. 33).

NOTE:

If necessary, carefully use scissors or tweezers.

NOTE:

If the brush is excessively dirty, it might be useful to replace it;

7 Troubleshooting

7.4 Changing the side brush

1. Ensure that the appliance is switched off

(no LED is lit).

2. Pull off the side brush (Fig. 34).

3. Install the new side brush. It will audibly

snap into place.

7.5 Changing the remote control's battery

1. Open the remote control's battery com-

partment (Fig. 35). It is advisable to use a small coin to ease this operation.

2. Substitute the worn out CR2025 cell with a new one. Pay attention to correct polarity (Fig. 35).

3. Dispose of the worn out cell at your local recycling points. Keep these batteries away from children!

7.6 Changing the light fence tower's batteries

ZChapter 3.6, "Inserting batteries into the light fence tower"

7.7 If the appliance is defective

WARNING:

Danger of injury! Never use or charge a defective appliance! If the robot or power cord of the AC adapter is damaged, it must be replaced by the manufacturer, the manufacturer's customer ser- vice or a similarly qualified person, in order to avoid danger.

If the appliance has been dropped or damaged in another way and has obvious signs of damage, have it repaired by an authorised dealer or service agent

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 26 19/02/2016 10:43

7 Troubleshooting

7.4 Changing the side brush

1. Ensure that the appliance is switched off

(no LED is lit).

2. Pull off the side brush (Fig. 34).

3. Install the new side brush. It will audibly

snap into place.

7.5 Changing the remote control's battery

1. Open the remote control's battery com-

partment (Fig. 35). It is advisable to use a small coin to ease this operation.

2. Substitute the worn out CR2025 cell with a new one. Pay attention to correct polarity (Fig. 35).

3. Dispose of the worn out cell at your local recycling points. Keep these batteries away from children!

7.6 Changing the light fence tower's batteries

ZChapter 3.6, "Inserting batteries into the light fence tower"

7.7 If the appliance is defective

WARNING:

Danger of injury! Never use or charge a defective appliance! If the robot or power cord of the AC adapter is damaged, it must be replaced by the manufacturer, the manufacturer's customer service or a similarly qualified person, in order to avoid danger.

If the appliance has been dropped or damaged in another way and has obvious signs of damage, have it repaired by an authorised dealer or service agent

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 27 19/02/2016 10:43

7 Troubleshooting

7.8 Removing/replacing the battery pack

1. Hide the robot's docking station so that it

cannot recharge.

2. Run the robot until the battery pack is completely empty and the robot switches itself off.

3. Switch the toggle switch underneath the robot to "off" (Fig. 36, "0" position).

4. Forcefully pull off the u

pper cover.

5. Remove the dust bin (Fig. 37).

WARNING:

Danger of injury due to improper replacement or handling of the battery pack!

 Do not replace the battery pack with other batteries or rechargeable batteries. Only use an orig-

inal battery pack that you bought from us.

 Before removing the battery pack, ensure that the AC adapter has been unplugged from the

socket and the toggle switch underneath the appliance is switched "off" (Fig. 36, "0" position).

 Never short circuit batteries, i.e. never touch both poles simultaneously, especially with metal

objects.

 Never take the battery pack apart, never deform it and never expose it to high temperatures.

 Improper handling can lead to liquid leaking from batteries. Avoid any contact with such liquid.

7 Troubleshooting

6. Loosen the 4 screws that secure the bat-

tery compartment cover (Fig. 38).

7. Remove the battery compartment cover (Fig. 39).

8. Loosen the battery cable plug (Fig. 40).

9. Take out battery pack and wiring.

- If you want to replace the worn out bat-

tery pack with a new original battery pack, order one ZChapter 7.2, "Order- ing accessories and spare parts".

- Dispose of the worn out battery pack se-

parately via a municipal collection point.

10. Reinstall new battery pack, battery com- partment cover and battery compartment cover screws.

11. Reinstall dust bin and upper cover.

7.9 Disposing of appliance and batteries

Do not dispose of appliance or batteries with the household trash!

First remove all batteries:

- ZChapter 7.5, "Changing the remote control's battery",

- ZChapter 7.6, "Changing the light fence tower's batteries",

- ZChapter 7.8, "Removing/replacing the battery pack"

Then take the appliance and the removed batteries to the appropriate recycling points for separate disposal.

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 28 19/02/2016 10:43

7 Troubleshooting

6. Loosen the 4 screws that secure the bat-

tery compartment cover (Fig. 38).

7. Remove the battery compartment cover (Fig. 39).

8. Loosen the battery cable plug (Fig. 40).

9. Take out battery pack and wiring.

- If you want to replace the worn out bat-

tery pack with a new original battery pack, order one ZChapter 7.2, "Order- ing accessories and spare parts".

- Dispose of the worn out battery pack se-

parately via a municipal collection point.

10. Reinstall new battery pack, battery compartment cover and battery compartment cover screws.

11. Reinstall dust bin and upper cover.

7.9 Disposing of appliance and batteries

Do not dispose of appliance or batteries with the household trash!

First remove all batteries:

- ZChapter 7.5, "Changing the remote control's battery",

- ZChapter 7.6, "Changing the light fence tower's batteries",

- ZChapter 7.8, "Removing/replacing the battery pack"

Then take the appliance and the removed batteries to the appropriate recycling points for separate disposal.

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 29 19/02/2016 10:43

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 30 19/02/2016 10:43

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 31 19/02/2016 10:43

GET IN TOUCH

0330 026 8455 VaxVacuumsinfo@vax.co.uk vax.co.uk @VaxUK

EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the RBNAV1B1 manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage Directive. EMC: 2004/108/EC Electromagnetic Compatibility Directive.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

© 2016 Vax Limited. All rights reserved. The VAX trademark and VAX Lozenge are the property of Techtronic Floor Care Technology Ltd and is registered in the EU and may be pending or registered in other countries.

RBNAV1B1_Navigator_Robot_UG_Amd_190216.indd 32 19/02/2016 10:43

Vax Navigator RBNAV1B1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
