Vax VZL-7017 SERIES, Mach 7 VZL-7017 SERIES Instruction Manual

Retain this guide for future reference.
Bagless cylinder
Vax model number:VZL-7017 SERIES
GB
instruction manual
Vax careline 0870 6061248
1 On/off button
Insert the plug into the electrical outlet. Press the on/off switch on the top of the vacuum cleaner to switch the vacuum cleaner on and press the button again to turn the vacuum cleaner off.
2 Power light 3 Dirt container
Locks into the top of the unit.
4 Cyclone separator baffle
Located inside the Dirt Container.
5 Upper cyclone separation system
Located in the top of the dirt bin IMPORTANT: must only be accessed if the separators are blocked
6 Dirt container handle/carry handle
Use the carry handle located at the top of the dirt bin to move the vacuum cleaner from room to room.
7 Dirt bin release button
Press the button on the top of the dirt container to release the dirt bin from vacuum cleaner.
8 Auto cord rewind
To rewind the power cord, press the cord rewind button, located on the top of the vacuum cleaner.
9 Floor tool parking slot
For convenience there is a parking slot located at the rear of the vacuum cleaner where the Floor Tool can be parked for carrying and storage.
10 Plug 11 Post-motor filter
Located behind the cover
12 Pre-motor filter cover
This is located under the dirt container.
13 Dirt bin quick release button
Hold the dirt container over a bin and press the release button.
5
4
1
2
3
6
13
www.vax.co.uk
7
12
8
9
10
6
7
Parts overview
11
!
1. Diagram
www.vax.co.uk
2
parts overview
17
16
19
Accessories
14 2-in1 tool
a Dusting Brush: For delicate surfaces. b Upholstery Tool: For carpet, upholstery and stairs etc.
15 Crevice tool
For crevices, corners and cracks.
16 Combination floor tool
For carpet and rug cleaning: Press the rocker switch on the floor head to raise the brushes. For hard/parquet floor cleaning: Press the rocker switch on the floor head to lower the brushes.
17 Telescopic extension tube
The telescopic tube can be lengthened or shortened by moving the slider grip up or down as required.
18 TurboTool
For Pet hair, stair and upholstery cleaning. NOTE: do not use the TurboTool on Suede and leather surfaces.
19 Hose
Tool caddy on handle for tool storage.
Fig.1/1
15
18
16
14
Keep your Vax like New!
20 Foam pre-motor filter 21 Anti-bacterial HEPA post-motor filter
IMPORTANT: The condition of the filters affects
the performance of your vacuum cleaner. Please check and test filters periodically (dependant on level of use) See page 5 ‘The Filters’ for maintenance advice.
20
21
1
4
a
b
!
Your filters
!
To replace or purchase parts for your vacuum
cleaner, please visit our website:
www.vax.co.uk
If your Vacuum Cleaner or Accessories are Damaged/Faulty
Please Call our Vax Careline on: 0870 6061248
Replacement filter kits are available at: www.vax.co.uk
3. Assembling your vacuum cleaner
4.Choose the attachment
5. Operating the appliance
6. Packing away and storage
assemble / accessories/ operate / storage
3
WARNING: Always switch off and
unplug the vacuum cleaner from the electrical outlet before assembling, opening or emptying the dirt container, or before connecting/disconnecting the attachments.
NOTE: Fully unwind the power cord.
A red mark on the power cord indicates the recommended cord length. Do not exceed the cord length beyond the red mark.
!
!
WARNING: Always unplug the vacuum cleaner from the electrical outlet and rewind the power cord as
directed before storing.
NOTE: When rewinding the power cord, guide the cord with one hand. This prevents the cord from
whipping which could cause damage or injury
NOTE: For convenience there is a parking slot located at the rear of the vacuum cleaner where the
floor toll can be parked for carrying and storage.
!!!
www.vax.co.uk
4
storage / dirt container and filters

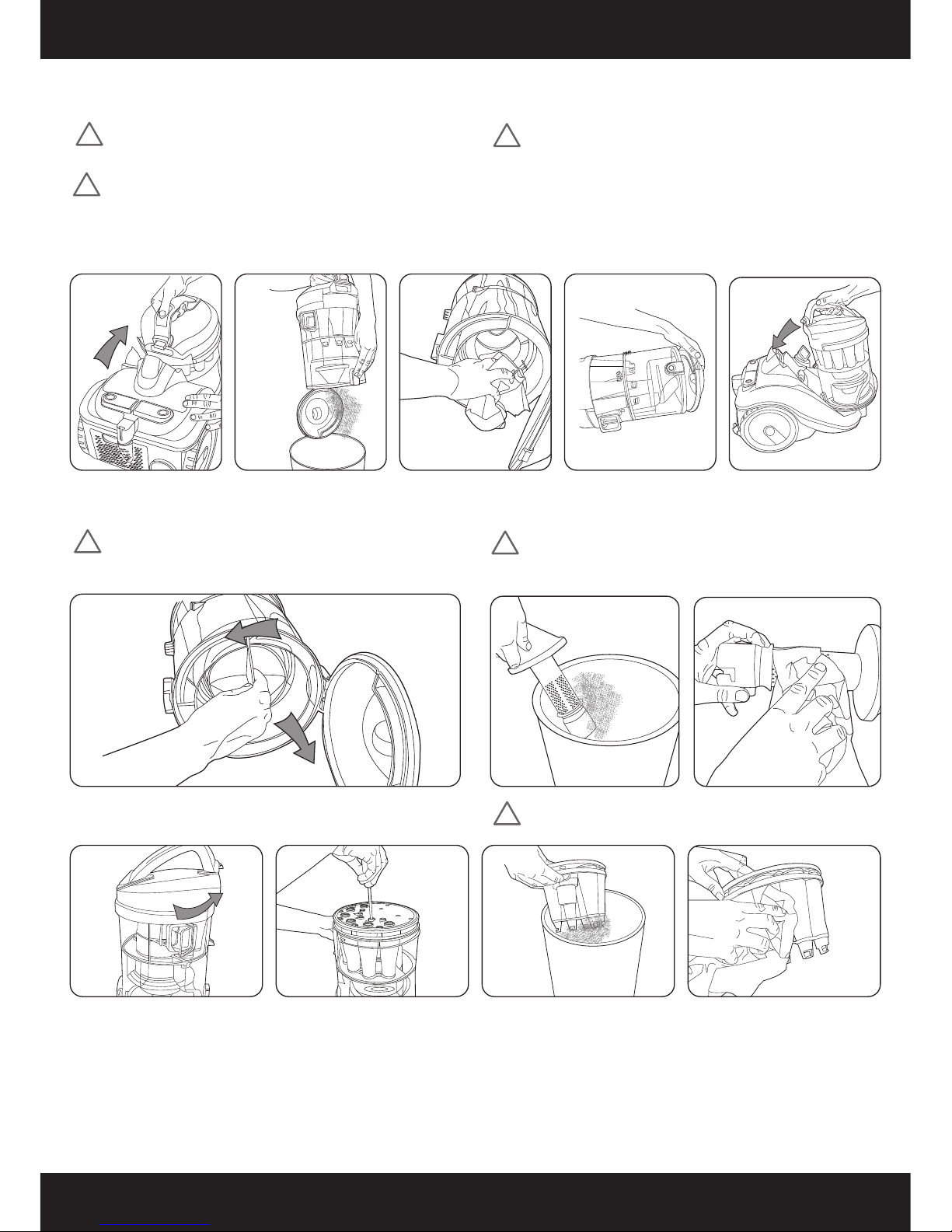

Emptying the Dirt Container
Cleaning the Cyclone Separator Baffle
Cleaning the upper Cyclone Separator system
IMPORTANT: Do NOT use the vacuum cleaner
without ALL of the filters in place.
IMPORTANT: Vax recommends cleaning the filters every time the dirt container is emptied for
consistent cleaning performance.
IMPORTANT: Always unplug the vacuum cleaner from the electrical outlet before removing the dirt
container
!!!
IMPORTANT: Remove the dirt container from the unit and dispose of the dirt inside the container
before cleaning.
IMPORTANT: The cyclone separator baffle should not be submerged in water.
!
!
WARNING: This must only be accessed when the cyclones become blocked.
!
1
2
7. Dirt Container :Maintenance
5
V
ax Careline 0870 606 1248
clearing blockages / filters
24
24
CLICK!
WARNING : To reduce the risk of electric shock, the
power cord must be disconnected before performing maintenance/ troubleshooting checks. Turn the vacuum cleaner off and unplug from the electrical outlet.
Hose Blockages: The flexible hose may be disconnected from the vacuum cleaner by pressing the clips on either side of the connector and pulling away from the machine. Carefully remove any blockages found and reconnect the hose securely.
Accessory Blockage: Remove the accessory from the hose handle/ tube. Carefully remove the blockage and return to the cleaner.
IMPORTANT: Your vax vacuum cleaner is fitted with
high performance filters it is essential that these are well maintained and cleaned according to the following instructions.
Vax recommends that the pre- and post-motor filter should be checked and cleaned periodically depending on the frequency of use and the volume of dirt being picked up on each occasion.
NOTE : Both Pre- and Post-Motor Filters can be rinsed in warm water (max 40°C). Allow to air dry for
24 hours before replacing.
IMPORTANT: Do NOT use any detergents or boiling water to wash the filters.
!
!!!
8. Cleaning Blockages
Clearing debris from the TurboTool
Replacement filter kits are available on: www.vax.co.uk
Cleaning the Pre-motor filter
Once completely dry, return the pre-motor filters and case to the vacuum cleaner. Replace the pre-motor filter cover before restarting the vacuum cleaner.
Cleaning the anti-bacterial HEPA Post-motor filter
NOTE: Switch the vacuum cleaner off and
disconnect the power plug from the electrical outlet.
!
9. The Filters: Maintenance
www.vax.co.uk
11. UK Service & Help Vax Care 0870 6061248
Monday-Friday 8.00am to 8.00pm Saturday-Sunday 9.00am to 5.00pm
Any queries or concerns about using your Vax machine/ vacuum cleaner, call the Vax Careline. Calls are charged at the UK national rate.
Please make a note of the model number and serial number of your Vax before calling. There are over 400 approved Vax Service Agents in the UK. For the nearest Vax Service Agent, please call the Vax Careline or visit www.vax.co.uk
Technical Specification
Voltage:
Wattage: 1500W
Capacity:
Filters: Cyclone separator baffle – wipe clean
Pre-motor filter – washable Anti- bacterial HEPA Post-motor filter – washable
Cord Length: 6.5m (approx)
Weight: 7.4 Kg (approx)
Subject to technical change without notice
10. FAQs
!
WARNING: to reduce the risk of personal injury, unplug the vacuum cleaner before performing maintenance/ FAQ checks
What do I do if an accessory/the unit becomes damaged or broken?
• Visit www.vax.co.uk for parts and spares.
• Please call our Vax careline to purchase new spares or order a
replacement: 0870 606 1248
why won’t the accessories pick up properly?
• The accessory may be blocked: Refer to ‘Cleaning Blockages’ (Page 5).
• The accessory may be faulty: call our Vax Careline to order a replacement: 0870 606 1248
Why will the vacuum cleaner not run?
• It may not be plugged into the electrical outlet correctly: Ensure that the plug is pushed into the electrical outlet securely.
• The electrical outlet may not be working: Check the fuse or breaker and consult an electrician.
• The motor thermostat may have tripped: Switch off and unplug the cleaner. Leave for one hour before switching the vacuum cleaner back on.
If none of these questions apply to you, or for further
assistance please call our Vax Careline team on:
0870 606 1248
6
troubleshooting / service / specification
220 - 240 50H ~
2.6 litres (approx)
Z
~
Is there an accessory missing?
check the parts Overview page in this guide to make sure that the part is definitely included with your unit.
• If it is missing, please call our Vax Careline to order a r
eplacement: 0870 606 1248 or visit www.vax.co.uk to
order online.
Why won’t the vacuum cleaner pick up ?
• The filters may be clogged: Refer to ‘The Filters: Maintenance’
• The Dirt Container is full or blocked: Refer to ‘Dirt Container:
• The Dirt Container may be incorrectly installed: Refer to ‘Dirt Container: Maintenance’ (Page 4).
Why is dust escaping from the vacuum?
• The filters may not be installed correctly. Refer to
• The dirt container may be incorrectly installed: Remove the Dirt Container from the unit by pressing the Dirt Container Release Button (7) and reattach it to the unit, ensuring it is locked firmly back into place.
• The filters may be clogged: Refer to ‘The Filters: Maintenance’
(Page 5).
Maintenance’ (Page 4).
The Filters: Maintenance’ (Page 5).
(Page 5).
12. Safety Information
For Household Use Only
When using the vacuum cleaner, basic safety precautions should always be observed, including the following:
1. Only use the vacuum cleaner indoors on dry surfaces.
2. Turn off the vacuum cleaner controls before connecting or disconnecting from the mains supply.
3. Always unplug the vacuum cleaner before connecting or disconnecting the vacuum hose and accessories.
4. Children should be supervised to ensure that they do not play with the appliance.
5. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
6. Use only as described in this manual. Use only the manufacturer’s recommended attachments.
7. Do not use the vacuum cleaner if it has been dropped, damaged, left outdoors or dropped into water. Do not use the vacuum cleaner with a damaged cord or plug. If the supply cord or plug is damaged, return the vacuum cleaner to a Vax Authorised Service Agent or suitably qualified person for examination, repair or adjustment.
8. Do not pull or carry by the cord. Do not use the cord as a handle, close a door on the cord or pull the cord around sharp edges or corners. Do not run the vacuum cleaner over the cord. Keep the cord away from heated surfaces.
9. Do not handle the plug or vacuum cleaner with wet hands. Do not use outdoors or on wet surfaces.
10. Do not put any objects into openings. Do not use with any openings blocked and do not restrict air flow. Keep all openings free of dust, lint, hair or anything that may reduce airflow.
11. Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts.
12. Do not pick up hot coals, cigarette butts, matches or any hot, smoking or burning objects.
13. Do not pick up flammable or combustible materials (lighter fluid, petrol, kerosene, etc) or use in the presence of explosive liquids or vapours.
14. Do not vacuum up harmful or toxic material (chlorine bleach, ammonia, drain cleaner, etc).
15. Do not vacuum up hard or sharp objects such as glass, nails, screws, coins, etc.
16. Do not use without the filters in place.
17. Take extra care when vacuuming on stairs.
18. Keep vacuuming area well lit.
19. Store the vacuum cleaner indoors in a cool, dry area.
20. Turn off the on/off switch before unplugging the vacuum cleaner.
21. Use only CE-approved 13 amp extension cords. Non­approved extension cords may overheat. Care should be taken to arrange the cord so that the cord cannot be pulled or tripped over.
WARNING: Always switch off and unplug the
vacuum cleaner from the electrical outlet before assembling, opening or emptying the dirt container, or before connecting/disconnecting the attachments.
CAUTION: The vacuum cleaner is a very
powerful unit. Before plugging the cord into the electrical outlet, make sure the switch is in the ‘off’ position.
IMPORTANT: If the inlet, hose or telescopic
tube is blocked, switch off the vacuum cleaner and remove the blockage(s) before re-starting the vacuum cleaner.
IMPORTANT: Cleaning filters prolongs the life
of the machine and improves vacuum cleaner performance. Make sure all the filters are completely dry before inserting back into the vacuum cleaner.
This vacuum cleaner is intended for household use only and not for commercial or industrial use.
!
!!!
Motor Thermostat
IMPORTANT: The motor is equipped with a
thermal cut-out. If for any reason, the vacuum cleaner should over-heat, the thermostat will automatically turn the unit off. Should this occur, unplug the vacuum cleaner from the electrical outlet and turn off the switch. Remove the dirt container and empty. Clean the filters. Allow the cleaner to cool for approximately one (1) hour. To re-start, plug into an electrical outlet and switch back on.
!
