H85-ACH-B
H85-ACH-BD
H85-ACH-BA
PERFECT FOR QUICK SPILLS
AND SPOT CLEANING
LET’S GET STARTED.
AirTMCordless
HANDHELD
Let’s talk safety
Basic
safety
precautions
Don’ts
Do’s
This handheld cleaner is intended for household use only and
NOT for commercial or industrial use. It is a battery-operated
appliance, the battery being charged outside the appliance.
• Only use the handheld cleaner indoors and keep the area
you’re cleaning well lit.
• Keep ngers, hair and loose clothing from moving parts
and openings whilst using the handheld cleaner.
• Keep the charger and battery in a dry place and use them
indoors only.
• Don’t use this handheld cleaner if it has been dropped,
damaged, immersed in water or left outdoors.
• Don’t handle the charger plug or use the handheld cleaner
with wet hands.
• Don’t run over the charger cord or use the handheld cleaner
if the charger cord or plug is damaged. Please contact
our Customer Care Line on: 0330 026 8455 (Mon-Fri 8:30am
to 6:30pm, Sat 9:00am to 5:00pm).
• Always make sure the lter and dirt container are tted
correctly before using your handheld cleaner.
• Always turn o and unplug the handheld cleaner from
the charger before carrying out any maintenance.
• Turn o all controls on the handheld cleaner before
disconnecting or connecting the battery.
• Take extra care when cleaning on the stairs.
• Always replace the fuse in the plug with a British 3amp fuse.
• This handheld cleaner can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the handheld cleaner in a safe way and understand
the hazards involved. Children should not play with the handheld cleaner.
Cleaning and user maintenance should not be made by children without
supervision.
• Only Vax recommended tools and accessories should be used with
this handheld cleaner.
• If the charger cord is damaged, it must be replaced by the manufacturer,
a service agent or similarly qualied persons in order to avoid a hazard.
• Don’t attempt to remove blockages with sharp objects as this may
cause damage to your handheld cleaner.
• Don’t use the handheld cleaner with incorrect voltage as this may
result in damage or injury to the user. The correct voltage is listed
on the ratings label.
• Don’t vacuum up hot coals, cigarette butts, matches or smoking hot burning
items or use in an area where there may be harmful uids (chlorine, bleach,
and ammonia drain cleaner).
• Don’t try to short the terminals of the battery and the charger.
• Always protect the charger cord from heated surfaces or near open ames.
• Use only CE approved 13amp extension cords, non-approved extension
cords may overheat. Care should be taken to arrange the extension cord
as it can be a trip hazard.
• Always carry the handheld cleaner by the correct carry handle.
• Store your handheld cleaner, charger and battery in a cool, dry area.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.
Thank you for buying this Air Cordless Handheld.
Taking care of small cleaning tasks
The Air Cordless Handheld is designed to make cleaning as quick and convenient as possible and
this user guide will help you get the most out of your machine.
The Air Cordless Handheld is perfect for small cleaning tasks on surfaces and upholstery.
Taking care of your Air Cordless Handheld
Also inside this guide are instructions on maintaining your new machine, so that it’s always ready
when you need to tackle those small jobs.
Let us know what you think @VaxUK
Taking care of you
We’re here if you need us. Instead of taking me back
to the shop, simply visit:
vax.co.uk/support or call:
(UK) 0330 026 8455 (ROI) 1-800 928 308
Monday-Friday 8:30am to 6:30pm, Saturday 9:00am to 5:00pm
Calls are charged at the UK local rate. Please make a note of the serial number and model number
of the product before calling.
Alternatively, you can write to us at:
Vax Ltd., Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich,
Worcestershire, WR9 0LW, UK
This user guide can be found online at: vax.co.uk/support
LithiumLifeTM Battery*
Included with
your machine
Battery Charger**
Crevice Tool
Air™ Cordless Handheld
*Extended runtime battery
on H85-ACH-B Model only.
**Dependent on model.
Subject to technical change without notice.
*To purchase consumables and accessories, please visit vax.co.uk
Technical Specication
Name Air Cordless Handheld Extra
Battery Model No. BH03120UK
Charger Model No. BH03200UK
Weight 1.56kg
Part number 1-1-136611-00
Product Code H85-ACH-B
Dirt Container Capacity 0.7l
Name Air Cordless Handheld
Battery Voltage 20V
Battery Model No. BH03100UK
Charger Model No. BH03220UK
Weight 1.28kg
Part number 1-1-136767-01
Product Code H85-ACH-BD
Dirt Container Capacity 0.7l
Name Air Cordless Bare Unit Only
Battery Voltage 20V
Weight 0.92kg
Part number 1-1-136762-01
Product Code H85-ACH-BA
Dirt Container Capacity 0.7l

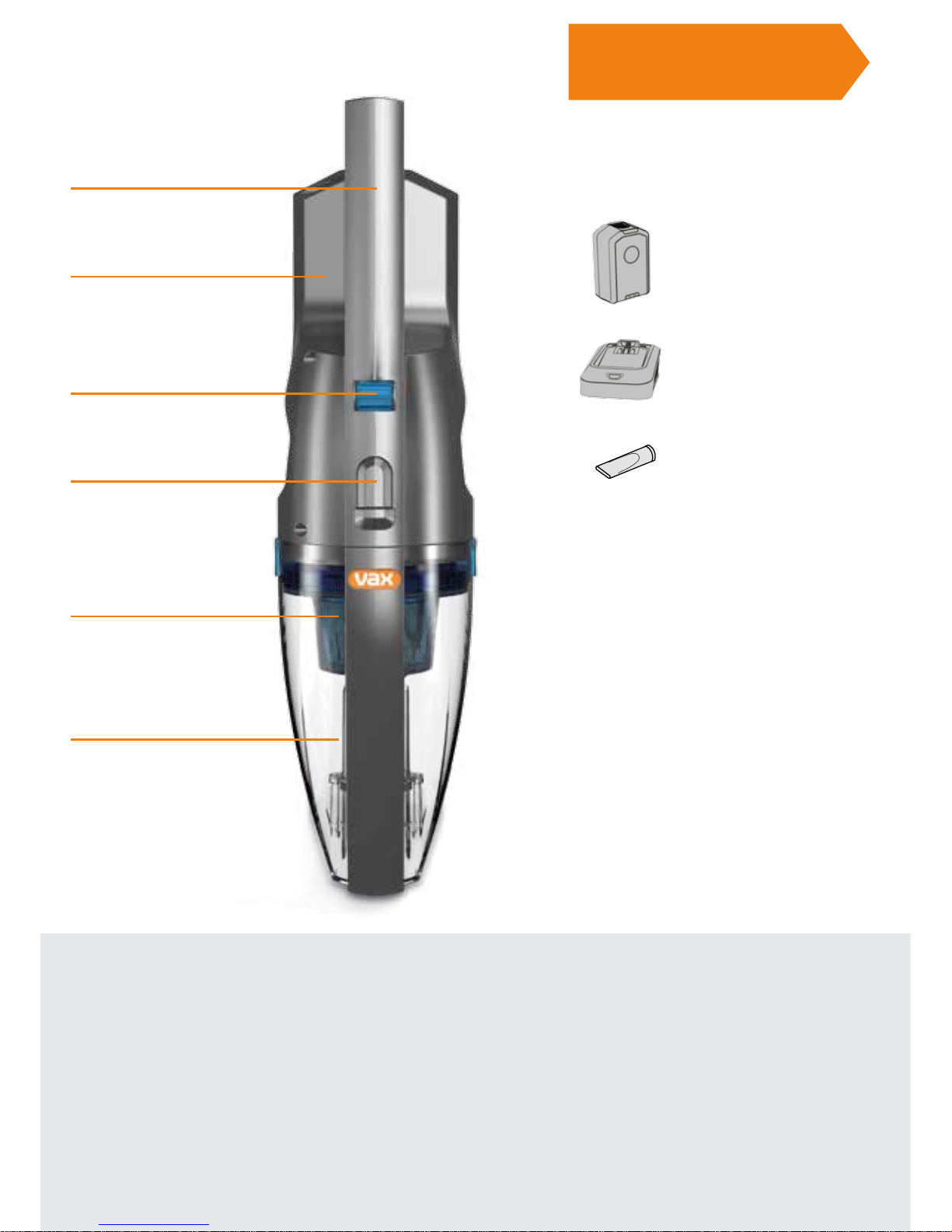

Accessories & Consumables
Stair Tool 1-1-135363-00
Handle
Battery
Handheld On/O control
Dust separator and shroud
Dirt container
Dirt container release button
Getting started
PLEASE READ ‘LET’S TALK SAFETY’ BEFORE USE
CAUTION: The battery used in this device may present a risk of re or chemical burn if mistreated. Do not disassemble
or heat above manufacturer’s maximum temperature limit (60°C/140°F) or incinerate. Replace battery with a Vax battery
only. Use of another battery may present a risk of re or explosion. Dispose of used battery promptly. Keep away from
children. Do not disassemble and do not dispose of in re. Do not attempt to disassemble the battery or remove any
component projecting from the battery terminals. The battery and charger have no user serviceable parts. Fire or injury
may result. Prior to disposal, protect exposed terminals with heavy insulating tape to prevent shorting. The battery
must be recycled or disposed of in an environmentally sound manner.
CAUTION: For best performance terminals on battery, battery charger and handheld cleaner must
be clean and free from dust and dirt.
NOTE: The life expectancy of the battery will vary depending on the usage of the handheld cleaner.
If you require a replacement battery contact us - Vax Careline: (UK) 0330 026 8455.

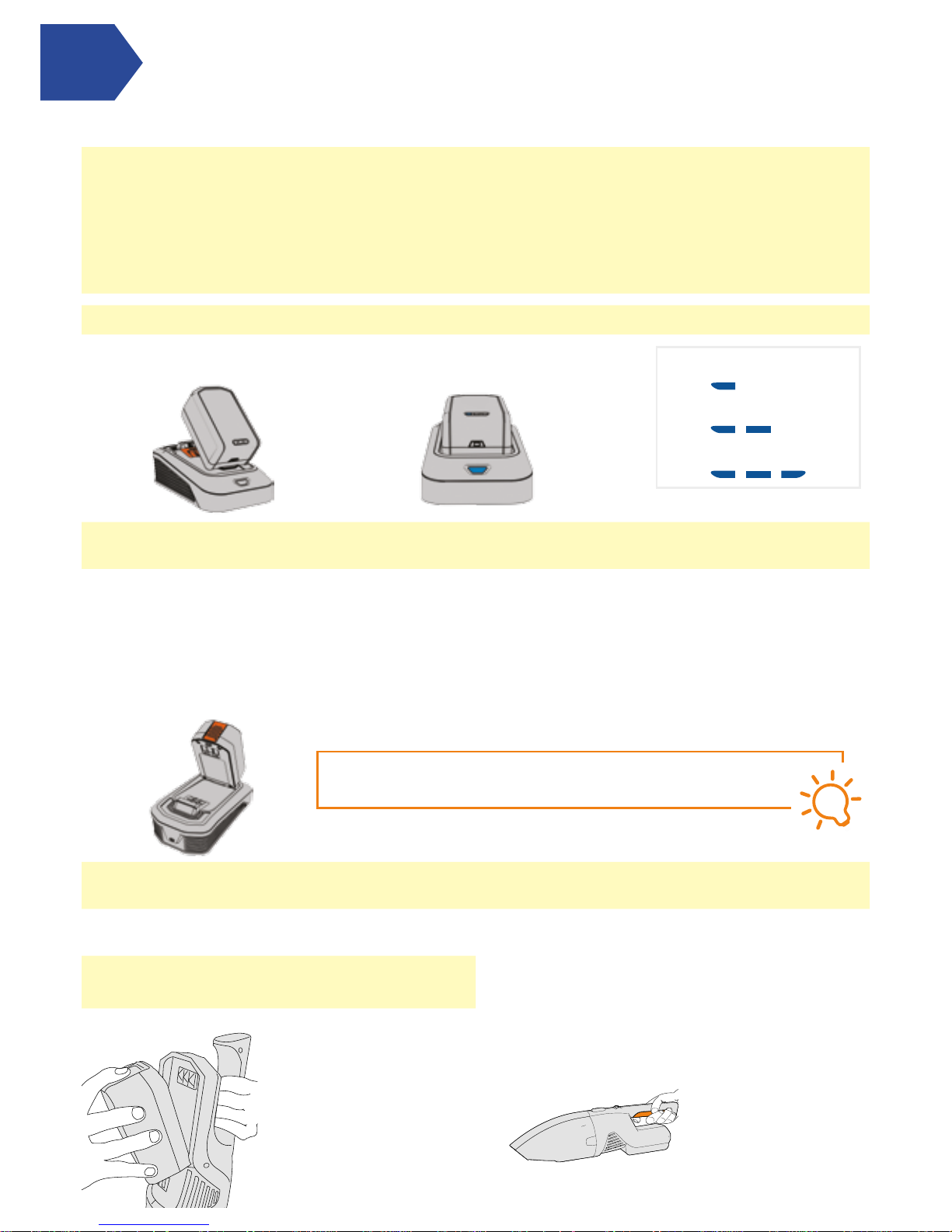

Charging the battery
Fit the battery onto the battery charger. The battery charger light will turn blue when charging. If a red light appears an error
has occurred, remove the battery and re-t. Once the battery is fully charged the charger light will turn o.
Removing the battery from charger
Press the release button on the battery, hold the base of battery charger and lift the battery to remove.
Getting started with your LithiumLifeTM battery:
IMPORTANT: The battery will need charging before rst use. Do not attempt to charge non rechargeable batteries.
25% Charged
50% Charged
75% Charged
TIP
The battery can remain on the battery charger once fully charged.
Carrying your handheld vacuum cleaner
Fit the battery onto
the handheld cleaner.
The battery will click
into position when
correctly tted.
Use handle to
carry handheld
vacuum cleaner.
Assembling your handheld vacuum cleaner
CAUTION: Always make sure the pre-motor lter
is correctly tted before using the handheld cleaner.

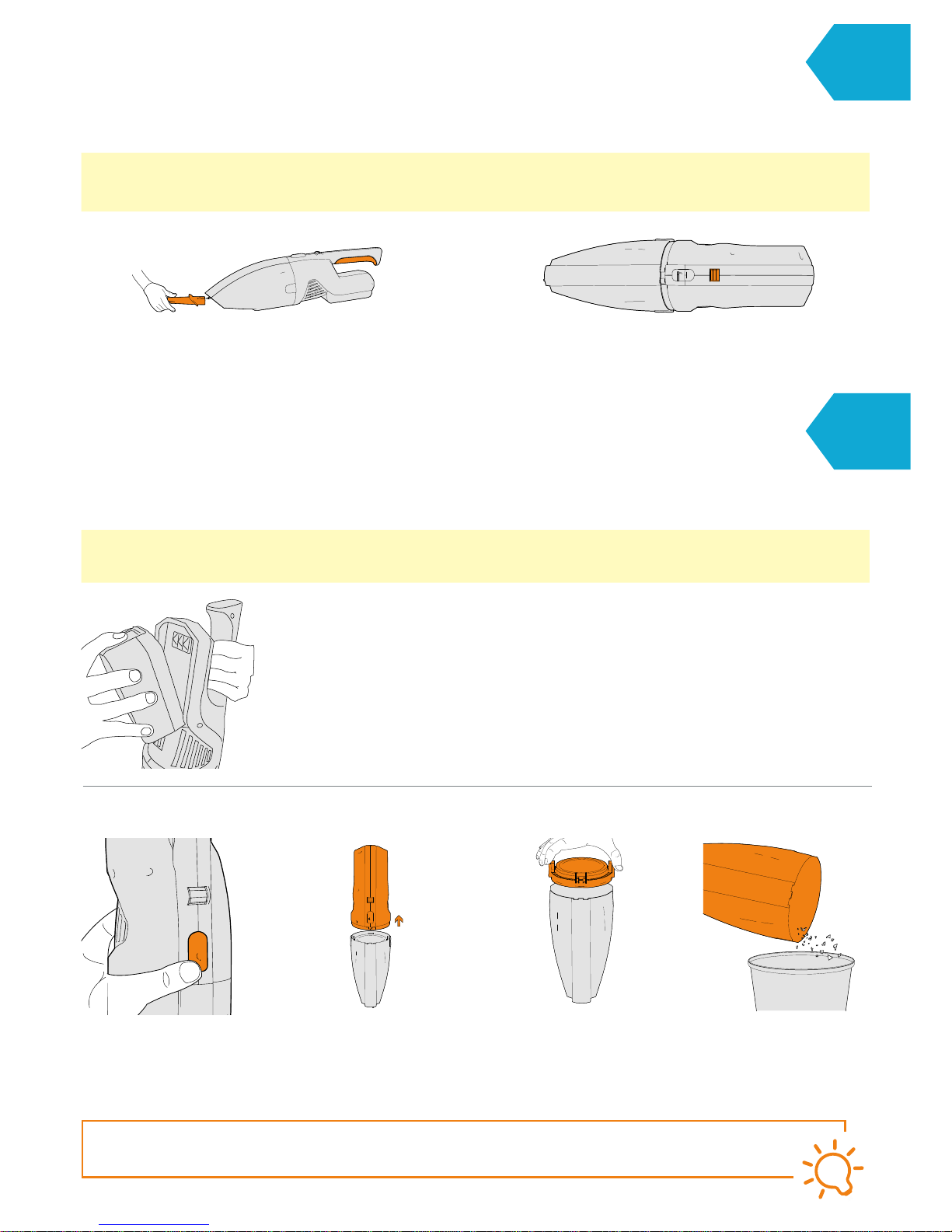

Using your machine
Taking care of your machine
For a more detailed clean, line up the crevice tool with
the nozzle on the handheld and push rmly into place.
Roll the On/O control back to switch
the handheld o. Pull to remove tool from nozzle.
Handheld cleaner
CAUTION: Always take extra care when cleaning stairs.
Always switch the handheld o before connecting or disconnecting the accessories.
Removing the battery from your handheld cleaner
CAUTION: Always switch o the handheld cleaner and remove the battery before carrying out any maintenance
or troubleshooting.
Hold the battery securely
and press the release button
on the top of the battery.
Lift to remove dirt
container lid.
Press the dirt container
release button.
Lift separator tabs on
either side of dirt
container. Lift to
remove separator.
Hold dirt container
over a bin allowing
dirt/debris to fall out.
Emptying the dirt container
TIP
Don’t over ll the dirt container to avoid blocking the air ow through the handheld cleaner
and replace lters every 6-9 months.
Pull the lter tab
to remove the pre-motor
lter from the separator.
Tap separator over
a bin allowing
dirt/debris to fall out.
TA
P
MAX
40˚C
24hr
24hr
Tap the lter over
a bin to remove any
dirt/debris. Wash the
lter under running
water (40 degrees max).
Leave for 24hrs
or until fully dry
before replacing.
Ret the pre-motor lter
and separator.

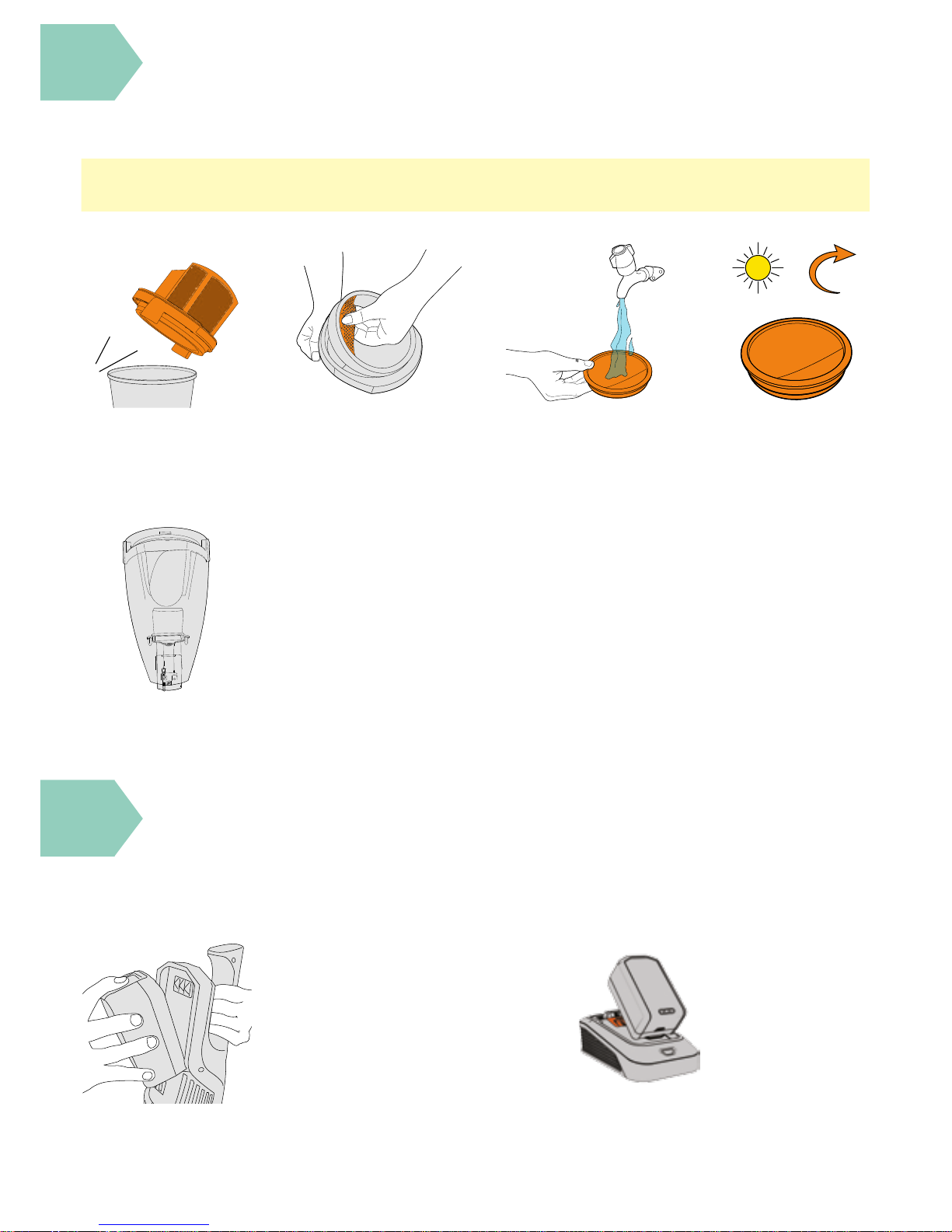

Cleaning the separator and pre-motor lter
CAUTION: For best cleaning results lters require cleaning every 4-6 uses or as needed.
Do not use your handheld cleaner without the lter in place.
Using a dry cloth or soft
dusting brush remove any
dust/debris from
terminals on battery
charger, battery and
handheld cleaner.
Cleaning terminals
Taking care of your machine
Let’s talk technical
Don’t forget your accessories!
Order at: www.vax.co.uk/spares-and-solutions
Accessories
Stair Tool
1-1-135636-00
Use the Stair Tool for vacuuming your stairs,
upholstery and car interiors. It’s great for picking up
stubborn pet hair.
Battery Charger
1-1-134171-00
This battery charger provides a charge time 6x faster
(1.5 hours) with a standard LithiumLifeTM battery*.
This battery charger charges the LithiumLifeTM Extended
Runtime Battery within 3 hours.
*Faster charge time in comparison to the battery charger included with this product.
LithiumLifeTM Extended Runtime Battery
1-1-134164-00
LithiumLifeTM extended runtime doubles the cleaning
time to 30mins for whole-home cleaning.
What to do if it goes wrong
• Check the battery is inserted correctly into the handheld vacuum cleaner.
Go to ‘Getting started’.
• Check the handheld has been correctly tted into the main body.
Go to ‘Getting started’.
• The battery may not be charged, remove and charge battery.
• Check terminals on battery and handheld cleaner are clean.
Go to ‘Lets talk technical’.
• Battery might be too hot, remove and allow to cool for 30 minutes.
Replace battery.
• The Motor Protection Sensor may have been activated. If this has happened,
switch o the handheld cleaner. Remove and empty the dirt container and
check for blockages. Clean the lters and allow the handheld cleaner to cool
for approximately 1 hour (if you have washed the lters you will need to wait
24 hours for the lters to fully dry before putting them back into the handheld
cleaner).
• Empty the dirt container and clean lters. Go to ‘Taking care of your machine’.
• There may be a blockage in the handheld cleaner. Check , the nozzle of
handheld, separator, shroud and tool for blockages.
• The separator has not been tted correctly. Go to ‘Taking care
of your machine’.
• Check the battery charger is plugged in.
• Check the battery is inserted correctly into the charger.
• Check terminals on battery and handheld cleaner are clean.
Go to ‘Lets talk technical’.
• The battery may not be connecting with the charger. Remove battery
and unplug charger, wait 10 seconds then retry.
• The battery is fully charged and the charger light has turned o.
• The battery has not been fully charged. Go to ‘Getting started’.
• Check the battery is inserted correctly into the charger.
• The battery or charger has an error. Remove the battery and unplug charger,
wait 10 seconds then plug charger into the mains and re-insert the battery.
• Check terminals on battery and handheld cleaner are clean.
Go to ‘Lets talk technical’.
Why does my
handheld cleaner
have no power?
Why won’t the
handheld cleaner
pick up?
Why isn’t the
battery charger
light lit when
the battery
is charging?
Why does my
battery have
a short run time?
Why is the battery
charger light
continually ashing?
SolutionProblem
CAUTION: To reduce the risk of personal injury, remove the battery before performing maintenance
/troubleshooting checks.
Getting in touch
†
Registration required. Terms and conditions apply.
* Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling.
GET IN TOUCH
0330 026 8455 VaxVacuumsinfo@vax.co.uk vax.co.uk @VaxUK
EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
H85-ACH-B/BD/BA is manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage Directive.
EMC: 2004/108/EC Electromagnetic Compatibility Directive.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice.
© 2015 All rights reserved. VAX®, VAX Lozenge LithiumLife™ and Air™ Cordless, are trade marks or registered trade marks of
Techtronic Floor Care Technology Ltd.
Loading...
