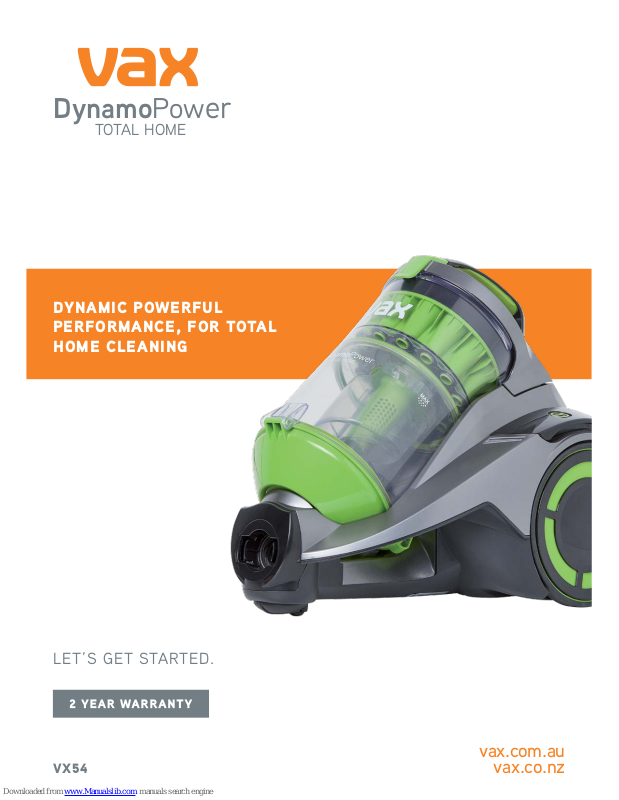

LET’S GET STARTED.
VX54
vax.com.au
vax.co.nz
DYNAMIC POWERFUL
PERFORMANCE, FOR TOTAL
HOME CLEANING
DynamoPower
TOTAL HOME
Let’s talk safety
Basic
safety
precautions
Don’ts
Do’s
This vacuum cleaner is intended for household use only and
NOT for commercial or industrial use.
READ ALL THE INSTRUCTIONS BEFORE USING
THIS APPLIANCE
• Only use the vacuum cleaner indoors and keep the area you’re
cleaning well lit.
• Keep ngers, hair and loose clothing from moving parts and
openings whilst using the vacuum cleaner.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities
or lack of experience and knowledge unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should not play with the vacuum cleaner. Cleaning and user
maintenance should not be made by children without supervision
• Only Vax recommend tools and accessories should be used with this
vacuum cleaner
• Vax recommends the use of a Residual Current Device rating of 30 mA or less.
• If the supply cord is damaged, it must be replaced by the manufacturer,
or similarly qualied person in order to avoid a hazard, or invalidating
the warranty.
• IMPORTANT: The motor is equipped with a thermal cut-out. If for any
reason the unit should overheat, the thermostat will automatically turn the
unit o. Should this occur, unplug the vacuum cleaner from the electrical
outlet and turn o the switch. Remove dirt container and empty. Clean
lters. Allow the unit to cool for approximately one (1) hour. To re-start,
plug into an electrical outlet and switch back on.
• Do not pull or carry by cord, use cord as a handle, close a door
on cord, or pull cord around sharp edges or corners. Do not
place product on cord. Do not run appliance on cord.
• Don’t handle the plug or use the vacuum cleaner with wet hands.
• Don’t use the vacuum cleaner with incorrect voltage as this may
result in damage or injury to the user. The correct voltage is
listed on the rating label.
• Don’t vacuum up hot coals, cigarette butts, ash, matches or
smoking hot burning items or use in an area where there may be
harmful uids (chlorine, bleach, and ammonia drain cleaner).
• Don’t attempt to remove blockages with sharp objects as this may cause
damage to the vacuum cleaner.
• Do not vacuum hard or sharp objects such as glass, nails, screws or coins etc.
• Do not vacuum plaster dust, concrete dust or any other building
or vitreous material.
• Do not vacuum our, baking soda or any other powder-based carpet
refresher or deodoriser.
• Don’t use this vacuum cleaner if it has been dropped, damaged or left outdoors.
• Don’t vacuum up any ammable or combustible materials (lighter uid, petrol,
kerosene etc.) or use the vacuum cleaner in an area with explosive vapours
or liquid.
• Always make sure the lter and dirt container are tted
correctly before using your vacuum cleaner.
• Turn o all controls on the vacuum cleaner before
disconnecting or connecting the battery.
• Take extra care when cleaning on the stairs.
• Always switch o the vacuum cleaner before disconnecting
or connecting the hose and accessories.
• Always protect the charger cord from heated surfaces
or near open ames.
• Use only SAA approved 10amp extension cords. Care should be taken to
arrange the extension cord as it can be a trip hazard.
• Always carry the vacuum cleaner by the handle.
• Store your vacuum cleaner in a cool, dry area.
• Always keep the power cord away from the brushes whilst using your
vacuum cleaner.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.
Contents
Let’s talk safety
Getting to know your machine
Getting started
Using your machine
Taking care of your machine
Let’s talk technical
Accessories
Notes
What to do if it goes wrong
Getting in touch
Thank you for buying this
Dynamo Power Total Home.
Taking care of your carpets and hard oors
The Dynamo Power Total Home is designed to make vacuuming carpets and hard
oors regularly, as eective and ecient as possible and this user guide will help you
get the most out of your machine.
Maintaining your carpets and hard oors will ensure they keep their appearance
for longer. You’ve chosen carpets and hard oors for your home for a reason
and Vax will help you take good care of them.
Taking care of your Dynamo Power Total Home
Also inside this guide are instructions on maintaining your new machine, so that it’s
always ready when you are to tackle your carpets and hard oors.
Included with
your machine
Accessory Hose
Combination Floorhead
TurboTool
Telescopic Extension Tube
3-in-1 Tool
Hardoor Tool
Turbo Brush
Up-top Tool
Dynamo Power
Total Home
We’re here if you need us
For troubleshooting simply visit or call:
Australia: 1300 361 505* New Zealand: 0800 800 900*
vax.com.au vax.co.nz
*Monday – Friday: 8:30am -5:00pm
Calls are charged at the standard local rate. Please make note of the serial
number and model number of the product before calling.
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
Getting to know your machine
Name Dynamo Power Total Home
Voltage 220-240V~50Hz
Wattage 1600w
Cord length 6m
Weight 5.2kg
Technical Specication
Subject to technical change without notice.
*To purchase consumables and accessories, please visit vax.com.au
Getting started
Carry handle
Separator and shroud
Dirt container release button
Power On/O button
Hose entry point
Dirt bin lid release clip
Cord rewind button
Post-motor lter
cover release clip
Post-motor lter cover
Dirt container
Before you begin cleaning
• Always switch o and unplug the vacuum cleaner before connecting or disconnecting the hose/attachments,
or removing and emptying the dirt container.
• The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does overheat the
thermostat will automatically turn the vacuum cleaner o. If this happens, switch the vacuum cleaner o and unplug
from electrical socket. Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the
vacuum cleaner to cool for approximately 1 hour (if you have cleaned the lters please wait 24 hours for the lters
to fully dry before putting back into the vacuum machine).
• For best cleaning results, lters should be tapped over a bin every 4-6 uses to remove dirt and debris and washed
every 3 to 6 months (depending on the level of use).
• If the vacuum cleaner is blocked, switch o and unplug before removing the blockage.
Assembling your vacuum cleaner
Press both buttons
at the end of the hose
and push hose into
the hose entry point.
Insert the hose grip into the
telescopic extension tube.
click!
!
Fully unwind the power
cord. A yellow mark on
the cord indicates the
recommended cord length.
Do not exceed the cord
beyond the yellow mark.
Plug in and switch the
unit on by pressing the
power button.
Press the button on the
telescopic extension
tube and adjust to
required length.
Insert the other end of
the telescopic extension
tube into the oorhead.
When unwinding the
power cord always pull
out to the yellow marker
but no further.
CAUTION
Filter pack*
VX54F
Accessories & Consumables
Double
Insulated
This product
meets applicable
regulatory
requirements
Indoor
Use
Read
Instructions
Press the cord rewind
button to retract the cord
into the vacuum cleaner.
Place the oorhead into the parking
slot on the back of the vacuum
cleaner for storage and carrying.
Using your machine
For use on carpets, click
rocker switch forward.
For use on hard oors
click rocker switch back.
Slide vent cover on hose
grip open to reduce
suction if required.
Raise brushes for carpets.
Lower brushes
for hard oors.
How to use
Using your machine
Choose an accessory. Choose an accessory
and push onto the
telescopic extension
tube or hose.
Using accessories
Storage
CAUTION: The base of the vacuum cleaner should always be positioned at on the oor when starting and in use.
The dirt container should be locked into place before lifting the vacuum cleaner by the carry handle.
For the most ecient results on hard
oors replace the combination oorhead
with the specialist hard oor tool.
CAUTION: Make sure to hold the cord with your other hand to prevent injury when rewinding.
Taking care of your machine
Cleaning the separator, shroud and separator plate
Post-motor lter maintenance
Push the post-motor lter
cover release clip to the right
to remove the post motor
lter cover.
Pull the post motor
lter to the left and
remove the post
motor lter.
Check the post motor lter for discolouration.
Do not wash the post motor lter.
Remove dirt container
by pushing down the dirt
container release button and
lifting the dirt container.
Hold the dirt container over
a bin. Push down the dirt
release clip at the bottom
of the dirt container.
The dirt release door will
open allowing dirt/debris
to fall out.
Emptying and cleaning the dirt container
Taking care of your machine
IMPORTANT: Always switch o and unplug the vacuum cleaner from the electrical socket before assembling,
opening or emptying the dirt container, or before connecting/disconnecting the attachments.
Pre-motor lter should be tapped over a bin every 4-6 uses to remove dirt and debris. Do not use your vacuum
cleaner without all of the lters in place.
The motor is equipped with a thermal cut-out. If for any reason the unit should overheat, the thermostat wil l
automatically turn the unit o.
!
40˚C
MAX
TIP
Don’t over ll the
dirt container to
avoid blocking the
air ow through the
vacuum cleaner.
After emptying the dirt container, twist the separator
clockwise to unlock and lift to remove.
Lift the dirt bin lid
release clip. In a hinge
like manner lift open
the dirt bin lid.
Cleaning the Pre-motor lter
Pull the lter tab and
remove the pre-motor lter.
Tap the lter over a bin
to remove any dirt/debris.
Wash the lter under
running water
(40 degrees max).
Ret the pre-motor lter
into the dirt container
with the tab being visible.
Leave for 24 hours
or until fully dry
before replacing.
In a hinge like manner
close the dirt bin lid until
it clicks into place.
click!
CAUTION: Incorrect tting of the separator cap will reduce suction.
24hr
IMPORTANT: The post motor lter is designed to oer long life with no maintenance. The lter should
be checked periodically and when heavily discoloured it should be replaced. Please do not wash,
scrub or brush the lter as this will damage the lter
Slide the locking ring
to remove.
Lift and separate
the housing.
Using a pair of scissors,
cut any hair or debris free
from around the brushes.
Removing blockages from the TurboTool
Re-tting the separator plate, shroud plate
Tabs
Line up the tabs on front of
housing and push together
to ret. Slide locking ring
into groove to secure.
Remove the hose from the vacuum cleaner
and telescopic extension tube.
Insert a broom handle or similar blunt
instrument into the hose to remove blockage.
Removing blockages from the hose
TIP
To test for a blockage
in the hose, drop a
small ball of paper
into the hose.
The paper will
drop through if
the hose is clear.
Taking care of your machine Let’s talk technical
Unscrew the shroud anti
clockwise and remove.
Tap the separator, shroud and separator plate over a bin to remove any dirt/debris. Using
a dry cloth wipe the remaining dirt /debris from the separator, shroud and separator plate.
Pull to remove the separator plate.
Line up and push the
separator plate into place.
Ret the shroud twisting
clockwise to lock
into place.
Twist the separator
anti clockwise to lock
into place.
Ret the dirt container pushing
down rmly until it clicks and
locks into place.
Line up the separator
making sure both
rectangular holes in
the dirt container and
separator line up.
Removing blockages from the Turbobrush
Switch the vacuum cleaner o and disconnect the power plug from the
electrical outlet.
Lay the Turbobrush on a at surface and turn over to expose the brushbar.
Using a pair of scissors, cut through any threads or hairs caught around the
brushes and brushbar.
NotesAccessories
Don’t forget your accessories!
Order at: www.vax.com.au / www.vax.co.nz
Pro Cleaning Kit
Model no. VPCK
Crevice tool
For awkward gaps and crevices.
Upholstery attachment
Gently cleans large areas of upholstery, curtains,
sofas and chairs.
Pet hair removal attachment
Tackles stubborn pet hair on furniture, rugs and carpets.
Stubborn dust brush attachment
Removes built up dust from skirting, banisters and corners.
Mattress Tool
Quickly and easily removes
embedded dust from mattresses.
Radiator Tool
Long slim design, is perfect for cleaning behind
and inside the radiator.
Up Top Tool
Ideal for reaching those hard to reach
high areas.
Soft Brush
Gently removes dust and dirt
from delicate surfaces such
as tiles and glass without
scratching.
Filter Pack
Model no. VX54F
Includes pre-motor lter and post-motor lter.
NotesNotes
* Calls are charged at the standard local rate. Please make a note of the serial number and model number of the vacuum cleaner
before calling.
Getting in touch
• Check the ‘This pack contains’ panel on the box to make sure the part
is included with your vacuum cleaner.
• The dirt container may not be correctly tted, remove the dirt container from
the vacuum cleaner and check it’s assembled correctly, ret ensuring it’s locked
into place.
• The separator/shroud are blocked. Go to ‘Taking care of your machine’
• The separator/shroud are incorrectly tted. Go to ‘Taking care of your machine’
• The lter may be clogged, clean the lter. Go to ‘Taking care of your machine’.
• The dirt container may be blocked, empty the dirt container. Go to ‘Taking care
of your machine’.
• There may be a blockage in the hose/tube. Disconnect from the vacuum cleaner
and carefully remove any blockages. Go to ‘Let’s talk technical’.
• The lters may be clogged, clean the lter. Go to ‘Taking care of your machine’.
• The plug may not be fully pushed into the electrical socket.
• The motor thermostat may have tripped. If this has happened, unplug
the vacuum cleaner. Remove and empty the dirt container and check
the hose for blockages. Clean the lters and allow the vacuum cleaner
to cool for approximately 1 hour (if you have washed the lters you will
need to wait 24 hours for the lters to fully dry before putting them back
into the vacuum cleaner).
SolutionProblem
IMPORTANT: To reduce the risk of personal injury, unplug the vacuum before performing maintenance/
troubleshooting checks.
What to do if it goes wrong
There is an
accessory missing
Why won’t the vacuum
cleaner pick up?
Why does my vacuum
cleaner have no power?
Why is dust escaping
from the vacuum?
Distributed by Techtronic Industries Australia Pty. Ltd.
31 Gilby Road, Mt Waverley, VIC 3149 Australia.
Careline AU: 1300 361 505 www.vax.com.au
Careline NZ: 0800 800 900 www.vax.co.nz
Loading...
