Power
BAGLESS CYCLONIC
CYLINDER VACUUM
LET’S GET STARTED.
CCMBPCV1P1
CCMBPCV1T1
CCMBPCV1C1
CCMBPNV1P1
CCMBPNV1T1
CCMBPNV1C1
CCMBPDV1P1
CCMBPDV1T1
CCMBPDV1C1
CCMBPV1P1
CCMBPV1T1
CCMBPV1C1
Let’s talk safety
This vacuum cleaner is intended for household use only
and NOT for commercial or industrial use.
Basic
safety
precautions
Don’ts
• Only use the vacuum cleaner indoors on dry surfaces and
keep the area you’re cleaning well lit.
• Keep ngers, hair and loose clothing away from moving parts
and openings whilst using the vacuum cleaner.
• Only Vax recommended tools and accessories should be used
with this vacuum cleaner.
• Don’t use the vacuum cleaner if it has been dropped, damaged
or left outdoors.
• Don’t run over the power cord or use vacuum cleaner if the
power cord or plug is damaged.
• Don’t handle the plug or use the vacuum cleaner with wet hands.
• Don’t pull or carry the vacuum cleaner by the power cord.
• Don’t use the power cord as a handle, pull the power cord
around corners, sharp edges or close a door over the power cord.
• Don’t unplug vacuum cleaner by pulling on the power cord.
Do’s
• Turn o all controls on the vacuum cleaner before
disconnecting or connecting the power cord.
• Always make sure the lters are in place before use.
• Always switch o the vacuum cleaner before disconnecting
or connecting the hose and accessories.
• Keep all openings clear and free from debris as this may
aect the airow/suction.
• Always replace the fuse in the plug with a British 13amp
fuse. Always protect the power cable from heated surfaces
and open ames.
• This vacuum cleaner can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the vacuum cleaner in a safe way and understand the
hazards involved. Children shall not play with the vacuum cleaner. Cleaning
and user maintenance shall not be made by children without supervision.
• Don’t vacuum up any ammable or combustible materials (lighter uid, petrol,
kerosene etc.) or use the vacuum cleaner in an area with explosive vapours
or liquid.
• Don’t vacuum up hot coals, cigarette butts, matches or smoking hot burning
items or use in an area where there may be harmful uids (chlorine, bleach,
and ammonia drain cleaner).
• Don’t attempt to remove blockages with sharp objects as this may cause
damage to the vacuum cleaner.
• Don’t vacuum up hard or sharp objects such as glass, nails, screws
or coins etc.
• Don’t use the vacuum cleaner with incorrect voltage as this may result in
damage or injury to the user. The correct voltage is listed on the ratings label.
• Take extra care when positioning and using the vacuum cleaner
on the stairs.
• Use only CE approved 13amp extension cords, non-approved extension
cords may overheat. Care should be taken to arrange the extension cord
as it can be a trip hazard.
• Store the vacuum cleaner in a cool, dry area. If lters have been cleaned
as per user guide instructions ensure they are thoroughly dry before
storing away.
Please keep instructions for further use.
Thank you for buying this Power product.
Taking care of your carpets and hard oors
The Power series is designed to make vacuuming carpets and hard oors regularly,
as eective and ecient as possible and this user guide will help you get the most out
of your machine.
Maintaining your carpets and hard oors will ensure they keep their appearance for longer.
You’ve chosen the carpets and hard oors for your home for a reason and Vax will help you
take good care of them.
Taking care of your Power product
Also inside this guide are instructions on maintaining your new machine, so that it’s always
ready when you are to tackle your carpets and hard oors.
Taking care of you
We’re here if you need us. Instead of taking me back
to the shop, simply visit our online support:
vax.co.uk/support
Still need to get in touch?
Our UK based Customer Care Team are here to support you - for help with assembly,
operational/performance problems or buying and tting new accessories. Whether you wish to chat,
use Facebook, Twitter or Email, you can nd all our contact details at vax.co.uk/contactus
This user guide can be found online at: vax.co.uk/support
Let us know what you think @VaxUK
Contents
Included with
your machine
Let’s talk safety
Getting to know your machine
Getting started
Using your machine
Taking care of your machine
Let’s talk technical
Accessories
What to do if it goes wrong
Power Series
(Included with all models)
Hose
Telescopic
extension tube
Combination oorhead
3-in-1 Tool
Included with some models
(Check the contents panel on the
back of the box to nd out what’s
included with your model)
TurboTool
Getting in touch
Initial Setup for normal operation
1. Use the base accessories.
a. Shortest hose.
b. Extension tube set to shortest practicable length.
2. Clean lters installed.
3. Dust receptacle empty.
4. All air vents must be closed.
5. Floorheads/tools set to Carpet Mode for carpet cleaning.
6. Mechanical Agitation turned ON for carpet cleaning.
7. Floorheads/tools set to Hard Floor Mode for hard oor cleaning.
8. Mechanical Agitation turned OFF for hard oor cleaning.
Stretch hose
Mattress Tool
Soft Dusting Brush
Getting to know your machine
Dirt container lid
Dirt container
Carry handle
Dirt container
release button
Separator
and shroud
Post-motor
lter cover
Hose entry point
Post-motor lter (hidden)
Parking slot
Cord rewind button
On/O button
Images are illustrative only.
Technical Specication
Name Power
Voltage See rating label on machine for details
Wattage See rating label on machine for details
Cord Length 5-6m
Weight 4.3kg
Subject to technical change without notice.
Accessories & Consumables
Filter Kit (Type 95)
1-1-134231
3-in-1 Tool
1-9-130815
TurboTool (Type 6)
1-1-134419
*
To purchase consumables and accessories, please visit vax.co.uk
Carbon Filter (Pet Odour Filter)
1-7-138825
Mattress Tool
1-9-138879
Soft Dusting Brush
1-9-138880
Getting started
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
Before you begin cleaning
CAUTION: Always switch o the vacuum cleaner before connecting or disconnecting the hose/attachments, or
removing and emptying the dirt container.
IMPORTANT: The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does
overheat the thermostat will automatically turn the vacuum cleaner o. If this happens, switch the vacuum cleaner o
and unplug. Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the vacuum
cleaner to cool for approximately 1 hour (if you have cleaned the lters please wait 24 hours for the lters to fully dry
before putting back into the machine).
Clean the pre-motor lter every time the dirt container is emptied and replace the lters every 12 months.
Assembling your vacuum cleaner
Press both buttons at the
end of hose and insert into
hose entry point.
Using your accessories
Choose an accessory.
Insert hose grip into
telescopic extension tube.
Push the accessory onto
the telescopic extension
tube or hose end.
Press button on telescopic
extension tube and adjust
to required length.
Insert the other end of
the telescopic tube into
the oorhead.
Using your machine
IMPORTANT: The base of the vacuum cleaner should always be positioned at on the oor when starting and in use.
The dirt container should be locked into place before lifting the vacuum cleaner by the carry handle.
IMPORTANT: The power cord must always be completely unwound, do not pull further than the yellow marker.
Operating the appliance and accessories

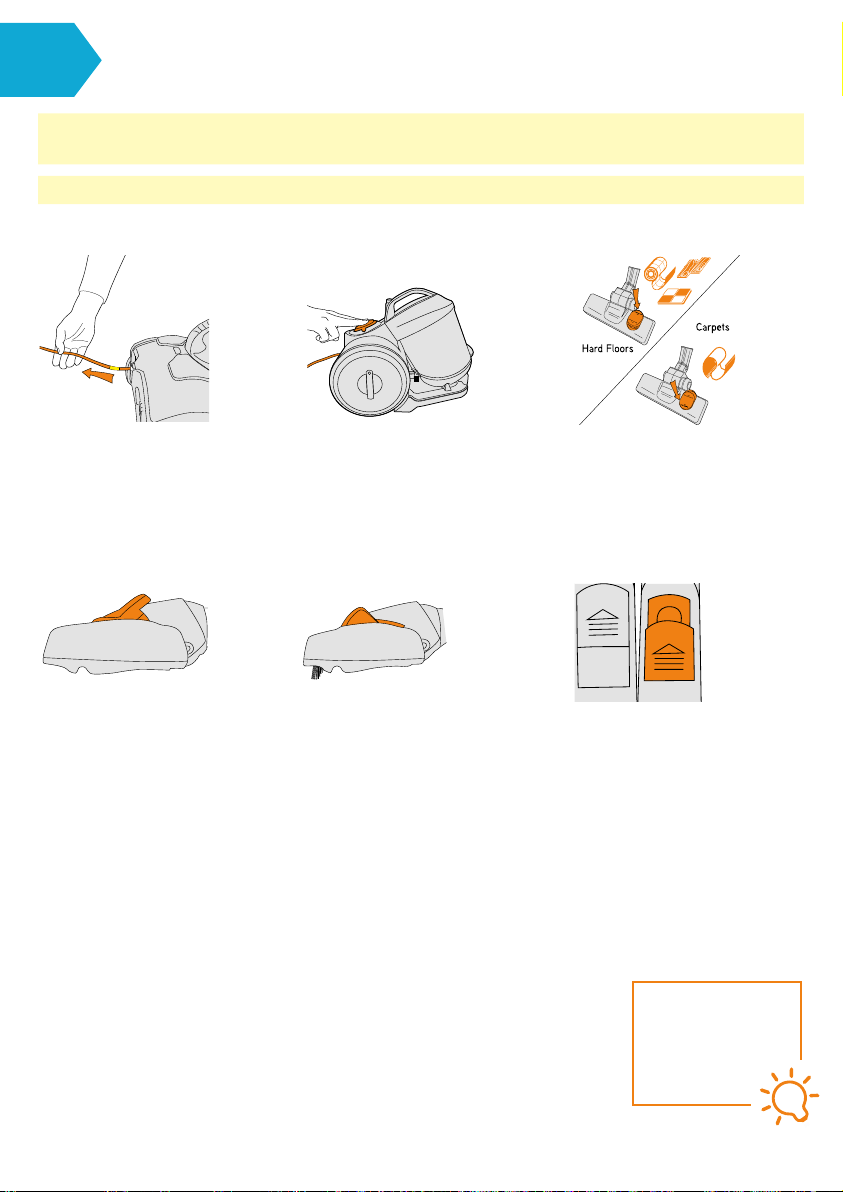

Unwind the power cord.
Do not pull further than
the yellow marker.
Plug into mains and press
the On/O button to switch
the machine on.
Lower brushes for hard oors.Raise brushes for carpets.
For use on carpets, click
rocker switch forward.
For use on hard oors
click rocker switch back.
Slide vent cover on hose grip open
to reduce suction if required.
Brushes on the
oorhead should be
visible when using
on hard oors.
TIP
24hr
IMPORTANT: Unplug and switch o vacuum cleaner before performing maintenance or troubleshooting checks.
Emptying and cleaning the dirt container
Don’t over ll the dirt
Press dirt container
release button. Lift to
remove dirt container
from machine.
Hold dirt container over the bin.
Press release clip at the bottom
of the container, the dirt release
door will open allowing dirt/debris
container to avoid
blocking the air
ow through the
vacuum cleaner.
to fall out.
Cleaning the pre-motor lter
NOTE: Clean the pre-motor lter every time the dirt container is emptied and replace the lters every 12 months.
Filters available at www.vax.co.uk
T
TIP
AP
Turn the dirt container
lid anti-clockwise
to remove.
40˚C
MAX
Wash pre-motor lter
under running water.
Lift to remove the
pre-motor lter out
of dirt container.
Leave to dry for 24 hours or
until fully dry before placing
back in the machine.
Tap the lter against a bin
to remove excess debris.
Taking care of your machine
T
AP
Cleaning the separator
Turn the dirt container
lid anti-clockwise.
to remove.
Twist grips clockwise
and remove cap
from separator.
Retting the separator
Lift to remove the
pre-motor lter out
of dirt container.
Tap the separator
against a bin to
remove any dirt
or debris.
Using central grips lift
to remove separator
from dirt container.
For any stubborn dirt/
debris remaining
in the separator,
use a soft brush
to remove.
TIP
Replace the separator cap,
twist clockwise to lock.
IMPORTANT: Incorrect tting of the separator will reduce suction.
Replace separator into dirt container, make sure the
rectangular hole in the dirt container lines up with the
rectangular hole on the separator.
Post-motor lter maintenance
!
40˚C
MAX
!
40˚C
MAX
IMPORTANT: The exhaust lter is designed to oer long life with no maintenance. The lter should be checked
periodically and when heavily discoloured it should be replaced. Please do not wash, scrub or brush the lter as
this will damage the delicate lter media.
Turn the post-motor lter
cover anti-clockwise
to remove.
Push post-motor lter into
wheel and re-t.
Pull to remove
post-motor lter.
Check the post-motor lter
for discolouration.
Line up the lter cover tabs with the wheel and turn
clockwise. The lter cover will be locked into place
when the centre trim is in the horizontal position.
Pet odour lter maintenance
IMPORTANT: Do not wash, scrub or brush the pet odour lter as this will damage it. Replace lters at least every
6-9 months.
Turn the post-motor lter
cover anti-clockwise
to remove.
Pull to remove post-motor
lter to gain access to the
pet odour lter.
Tap the pet odour lter against a
bin to remove any dirt or debris.
Let’s talk technical
Storing your vacuum cleaner
Unplug from the mains
and hold the cord rewind
button in, the cord
will retract into the
vacuum cleaner.
CAUTION: Make sure to hold the cord with your other hand to prevent injury when re-winding.
Place oorhead into
parking slot located at
back of vacuum cleaner
for storage and carrying.
Removing blockages from the TurboTool (some models only)
A
B
Clean the TurboTool by removing the
2 screws (A), located on the bottom
cover, with a crosshead screwdriver.
CAUTION: To reduce the risk of injury from moving parts – unplug before servicing. The brushbar is equipped with
bearings which contain sucient lubrication for their lifetime. Do not add lubricant to the brushbar.
Remove the bottom cover (B).
Clean out any debris or hair from
the brushbar and turbine fan.
Replace the bottom cover, insert
and tighten the screws.
Removing a blockage from the hose
Remove the hose from the vacuum cleaner
and telescopic tube. Insert a blunt instrument
into the hose to remove the blockage.
Accessories
Don’t forget your accessories!
Order at: www.vax.co.uk/spares-and-solutions
Pro Cleaning Kit (Type 2)
1-1-133326
All our best tools in one kit that makes cleaning your
home quicker, easier and with even better results.
We’ve taken care of cleaning all of the hard to reach
areas, such as on top of cupboards and in between
blinds, as well as the dust that collects behind and
within the radiator.
TurboTool (Type 6)
1-1-134419
Use the TurboTool for vacuuming your stairs, upholstery
and car interiors. It’s great for picking up stubborn pet hair.
Fur ‘n’ Flu Tool
1-1-131392
Specically designed to remove extra stubborn
pet hair from upholstery, furniture and carpets.
What to do if it goes wrong
Is there an
accessory missing?
Why won’t the vacuum
cleaner pick up?
SolutionProblem
• Check the contents panel on the back of the box to make sure
the part is included with your vacuum cleaner.
• The dirt container may not be correctly tted, remove the dirt container
from the vacuum cleaner and check it’s assembled correctly, ret
ensuring it’s locked into place.
• The separator is blocked. Go to ‘Taking care of your machine’.
• The separator is incorrectly tted. Go to ‘Taking care of your machine’.
• The lter may be clogged, clean the lter. Go to ‘Taking care
of your machine’.
• The dirt container may be blocked, empty the dirt container.
Go to ‘Taking care of your machine’.
• There may be a blockage in the hose/tube. Disconnect from the vacuum
cleaner and carefully remove any blockages. Go to ‘Let’s talk technical’.
• The plug may not be fully pushed into the electrical socket.
• Check the fuse in the plug if this needs replacing, always replace with
Why does my vacuum
cleaner have no power?
a 13amp fuse.
• The motor thermostat may have tripped. If this has happened, unplug
the vacuum cleaner. Remove and empty the dirt container and check
the hose for blockages. Clean the lters and allow the vacuum cleaner
to cool for approximately 1 hour (if you have washed the lters you will
need to wait 24 hours for the lters to fully dry before putting them back
into the vacuum cleaner).
• The lters may be clogged, clean the lter. Go to ‘Taking care
of your machine’.
Why is dust escaping
from the vacuum?
CAUTION: To reduce the risk of personal injury, unplug the vacuum cleaner before performing maintenance
/troubleshooting checks.
Getting in touch
†
Registration required. Terms and conditions apply, see vax.co.uk for details.
GET IN TOUCH
VaxVacuumsinfo@vax.co.uk vax.co.uk @Vax UK
EU Statement of Compliance: Manufacturer/EU importer: Vax Limited, hereby on our own responsibility, declare that the
CCMBPCV1P1/CCMBPCV1T1/CCMBPNV1P1/CCMBPNV1T1/ CCMBPNV1C1/CCMBPV1P1/CCMBPV1T1/CCMBPV1C1/CCMBPDV1P1/
CCMBPDV1T1/CCMBPDV1C1/CCMBPCV1C1 are manufactured in compliance with the following Directives:
Safety: 2014/35/EU Low Voltage Directive. EMC: 2014/30/EU Electromagnetic Compatibility Directive.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice.
© 2017 Vax Limited. All rights reserved. The VAX trade mark and Vax lozenge are the property of Techtronic Floor Care
Technology Ltd and are registered in the EU and may be pending or registered in other countries.
This marking on the product(s) and/or accompanying documents means that used electrical and electronic equipment (WEEE)
should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this product(s) to
designated collection points where it will be accepted free of charge. Disposing of this product correctly will help save valuable
resources and prevent any potential negative eects on human health and the environment, which could otherwise arise from
inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.
Loading...
