Bagless Cylinder

C88-T1 Series

Vax Careline: (UK) 0844 412 8455

(ROI) 1-800 928 308

User Guide

vax.co.uk

C88-T1 series

C88-T1-BP User Guide v1.0_User guide 12/04/2012 18:51 Page 1

All manuals and user guides at all-guides.com

all-guides.com

---

Unit

Accessories

14a

14b

24hr

1 On/off button 2 Dirt container 3

Separator 4 Pre-motor filter cover 5 Dirt container/carry handle 6

Dirt container release button 7

Auto cord rewind button 8 Floor tool parking storage 9 Post-motor filter cover

10 Dirt container quick release button (hidden)

11 Hose inlet 12 Combination floor head 13 Crevice tool 14 2-in-1 tool

14a) Dusting brush

14b) Upholstery tool 15 Telescopic extension tube 16 Hose and handle 17 Foam pre-motor filter 18 Pre-motor frame 19 HEPA post-motor filter (Anti-bacterial

depending on model)

20 TurboTool (depending on model)

PLEASE NOTE: some parts may vary according to model. Please check inside flap of box for more details.

Filters

Machine Overview

Vax Careline: (UK) 0844 412 8455

(ROI) 1-800 928 308

24hr

C88-T1-BP User Guide v1.0_User guide 12/04/2012 18:51 Page 2

All manuals and user guides at all-guides.com

FOR HOUSEHOLD USE ONLY.

When using the vacuum cleaner, basic safety precautions should always be observed, including the following:

1. Only use the vacuum cleaner indoors on dry surfaces. Do not handle the plug or vacuum cleaner with wet hands. Do not use outdoors or on wet surfaces.

2. Turn off the vacuum cleaner controls before disconnecting or c

onnecting from the mains supply.

3. Always unplug the vacuum cleaner before connecting or disconnecting the vacuum hose and accessories.

4. Children should be supervised to ensure that they do not play with the appliance.

5. This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

6. Use only as described in this manual. Use only Vax recommended attachments.

7. Do not use the vacuum cleaner if it has been dropped, damaged, left outdoors or dropped into water. Do not use the vacuum cleaner with a damaged cord or plug. If the supply cord is damaged, it must be replaced by the manufacturer or a recommended Service Agent to avoid hazard and invalidating the guarantee.

8. Do not pull or carry by cord. Do not use the cord as a handle, close a door on the cord or pull cord around sharp edges or corners. Do not run the vacuum cleaner over the cord. Keep the cord away from heated surfaces.

9. Do not put any objects into openings. Do not use with any openings blocked and do not restrict airflow. Keep all openings free of dust, lint, hair or anything that might reduce airflow.

10. Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts.

11. Do not pick up hot coals, cigarette butts, matches or any hot, smoking or burning objects.

12. Do not pick up flammable or combustible materials (lighter fluid, petrol, kerosene etc.) or use in the presence of explosive liquids or vapours.

13. Do not vacuum up harmful or toxic materials (chlorine, bleach, ammonia, drain cleaner etc.).

14. Do not vacuum up hard or sharp objects such as glass, nails, s

crews, coins, etc.

15. Do not use without ALL of the filters in place.

16. Take extra care when vacuuming on stairs.

7. Keep vacuuming area well lit.

8. Store the vacuum cleaner in a cool, dry area.

9. Turn off the on/off switch before unplugging the vacuum c

leaner.

0. Use only CE-approved 13 amp extension cords. N

on-approved cords may overheat. Care should be taken to

arrange the cord so that the cord cannot be tripped over.

WARNING: Always switch off and unplug the vacuum cleaner

from the electrical socket before assembling, opening or emptying the dirt container, or before connecting/disconnecting the attachments.

CAUTION: The vacuum cleaner is a very powerful unit. Before

plugging the cord into the electrical socket, make sure the switch is in the ‘off’ position.

IMPORTANT: If the inlet, hose or telescopic tube is blocked,

switch off the vacuum cleaner and remove the blockage(s) before re-starting the vacuum cleaner. See Maintenance: Clearing blockages.

IMPORTANT: Washing filters maintains vacuum performance.

Vax recommends that they should be checked and cleaned periodically (depending on the level of use). Make sure all filters are completely dry before inserting back into the vacuum cleaner.

IMPORTANT:

The motor is equipped with a thermal cut-out. If

for any reason the unit should overheat, the thermostat will automatically turn the unit off. Should this occur, unplug the vacuum cleaner from the electrical socket and turn off the switch. Remove dirt container and empty. Clean filters. Allow the unit to cool for approximately one (1) hour. To re-start, plug into an electrical socket and switch back on.

This vacuum cleaner is intended for household use only and NOT for commercial or industrial use.

PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.

General Safety Information

vax.co.uk

C88-T1-BP User Guide v1.0_User guide 12/04/2012 18:51 Page 3

All manuals and user guides at all-guides.com

---

Operation

Operating the appliance and accessories

NOTE: Fully unwind the power cord.

A yellow mark on the cord indicates

the recommended cord length. Do

not exceed the cord length beyond

the yellow mark.

Assembling your vacuum cleaner

IMPORTANT: Always unplug the vacuum cleaner from the electrical socket before assembling or removing

the accessories.

NOTE: The TurboTool, crevice tool and 2-in-1 dusting brush and upholstery tool can all be attached to telescopic

tube or hose handle. The combination floor head can only be attached to the telescopic extension tube.

Carpets

ard floors

Vax Careline: (UK) 0844 412 8455

(ROI) 1-800 928 308

To vary the suction power,

open/close the slider on the

hose handle.

Plug into mains, turn on and

press power button on.

C88-T1-BP User Guide v1.0_User guide 12/04/2012 18:51 Page 4

All manuals and user guides at all-guides.com

Maintenance (Keep your Vax as good as new)

Packing away and storage

vax.co.uk

NOTE: For convenience there is a

parking slot located at the rear of

the vacuum cleaner where the floor

head and tubes can be attached for

storage and carrying.

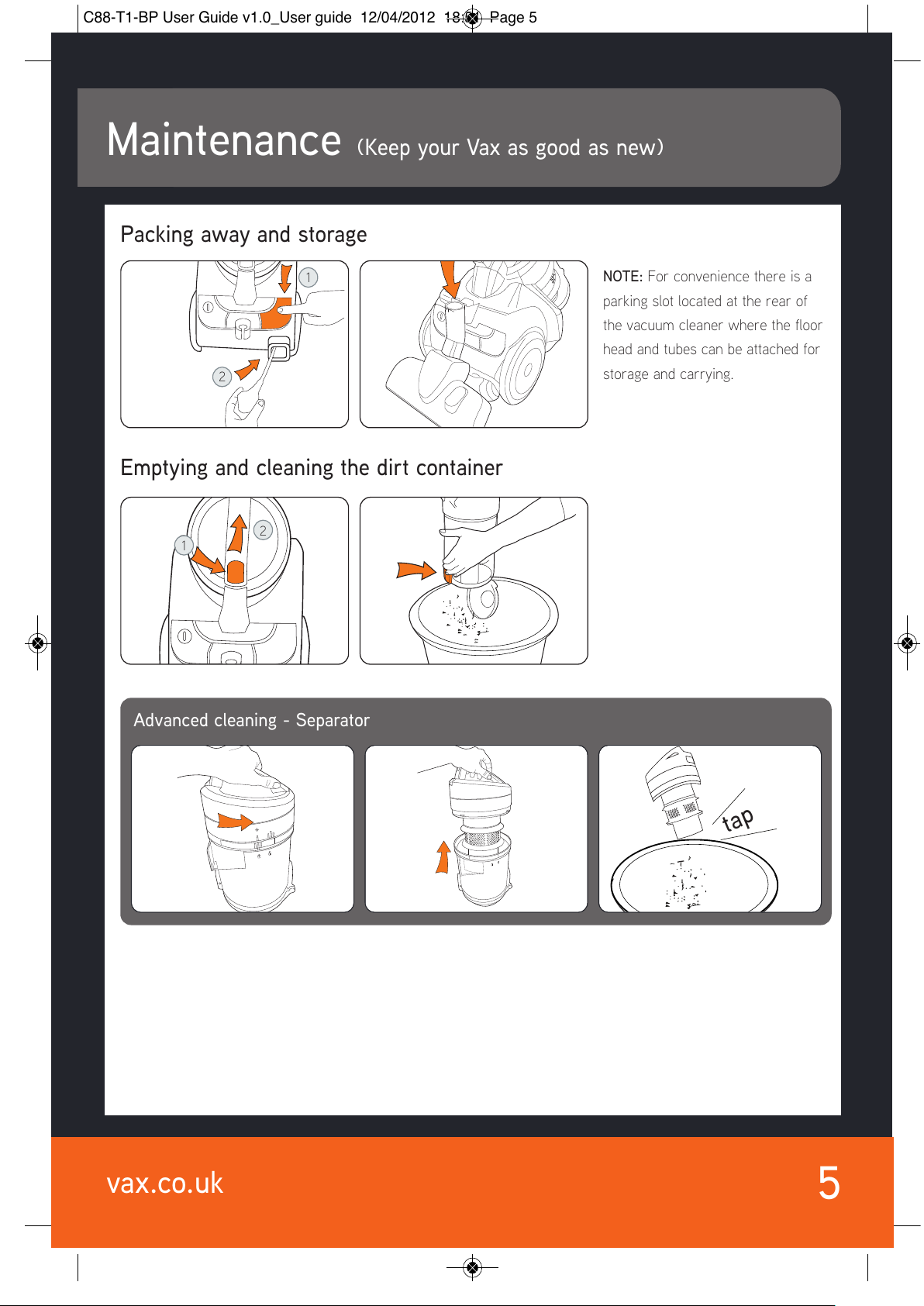

Emptying and cleaning the dirt container

Advanced cleaning - Separator

C88-T1-BP User Guide v1.0_User guide 12/04/2012 18:51 Page 5

All manuals and user guides at all-guides.com

---

Maintenance (Keep your Vax as good as new)

Vax Careline: (UK) 0844 412 8455

(ROI) 1-800 928 308

Maintenance (Keep your Vax as good as new)

Cleaning the HEPA post-motor filter (Anti-bacterial depending on model)

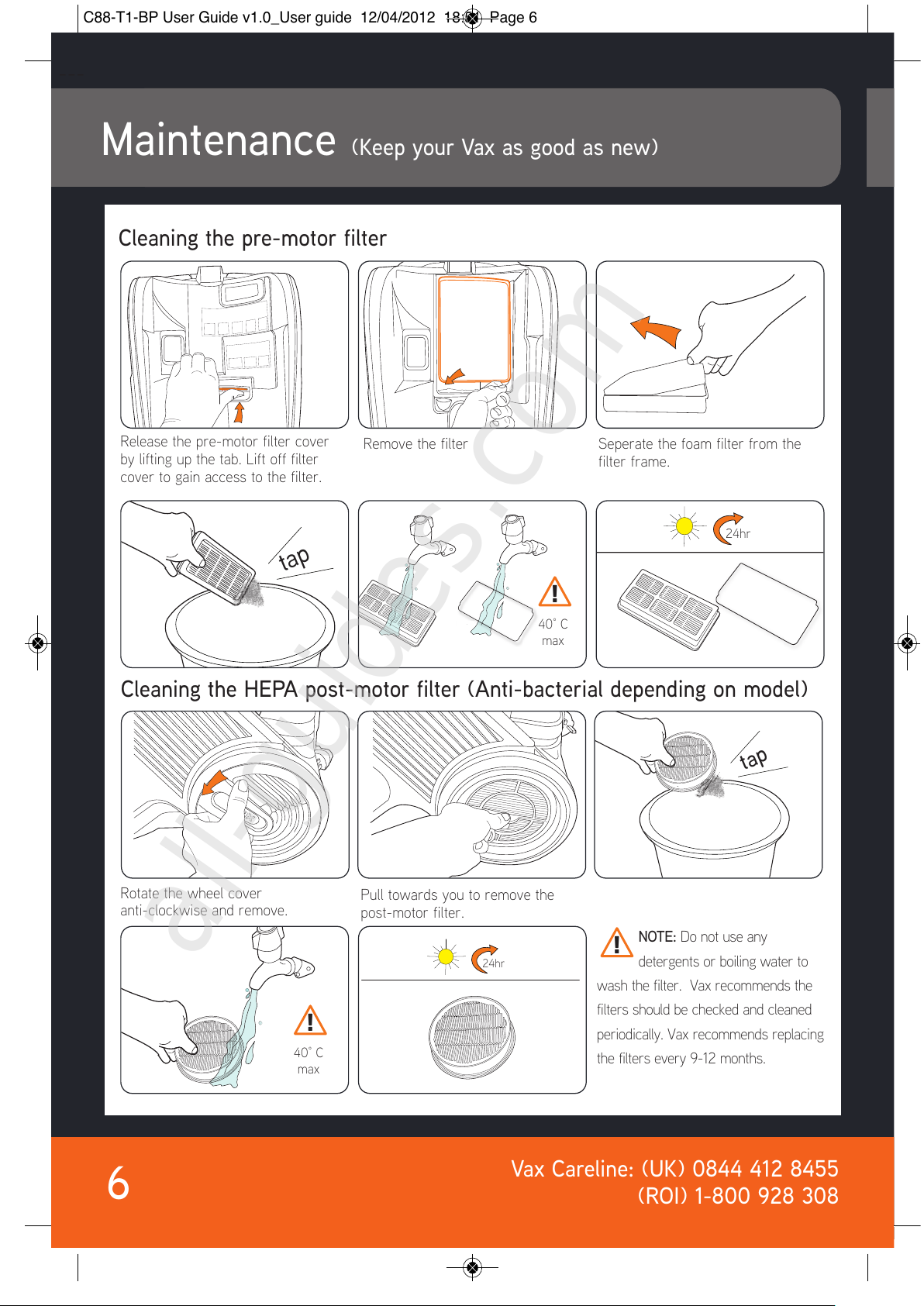

Cleaning the pre-motor filter

24hr

40° C

max

24hr

40° C

max

NOTE: Do not use any

detergents or boiling water to

wash the filter. Vax recommends the

filters should be checked and cleaned

periodically. Vax recommends replacing

the filters every 9-12 months.

Remove the filter Seperate the foam filter from the

filter frame.

Rotate the wheel cover anti-clockwise and remove.

Pull towards you to remove the post-motor filter.

Release the pre-motor filter cover by lifting up the tab. Lift off filter cover to gain access to the filter.

C88-T1-BP User Guide v1.0_User guide 12/04/2012 18:51 Page 6

All manuals and user guides at all-guides.com

all-guides.com

vax.co.uk

Maintenance (Keep your Vax as good as new)

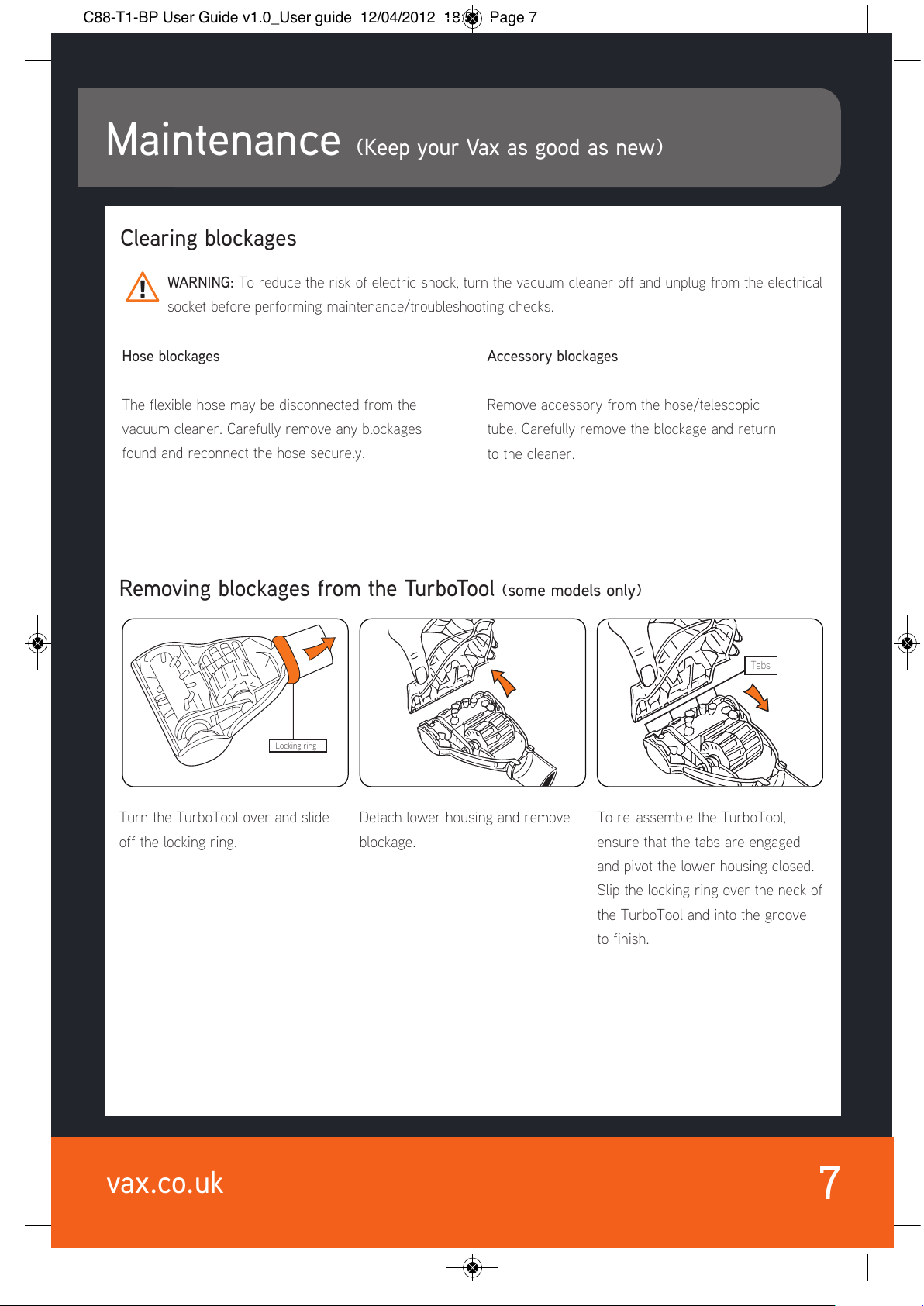

Clearing blockages

WARNING: To reduce the risk of electric shock, turn the vacuum cleaner off and unplug from the electrical

socket before performing maintenance/troubleshooting checks.

Hose blockages

The flexible hose may be disconnected from the

vacuum cleaner. Carefully remove any blockages

found and reconnect the hose securely.

Accessory blockages

Remove accessory from the hose/telescopic

tube. Carefully remove the blockage and return

to the cleaner.

Locking ring

Tabs

Removing blockages from the TurboTool (some models only)

Turn the TurboTool over and slide

off the locking ring.

Detach lower housing and remove

blockage.

To re-assemble the TurboTool,

ensure that the tabs are engaged

and pivot the lower housing closed.

Slip the locking ring over the neck of

the TurboTool and into the groove

to finish.

C88-T1-BP User Guide v1.0_User guide 12/04/2012 18:51 Page 7

All manuals and user guides at all-guides.com

---

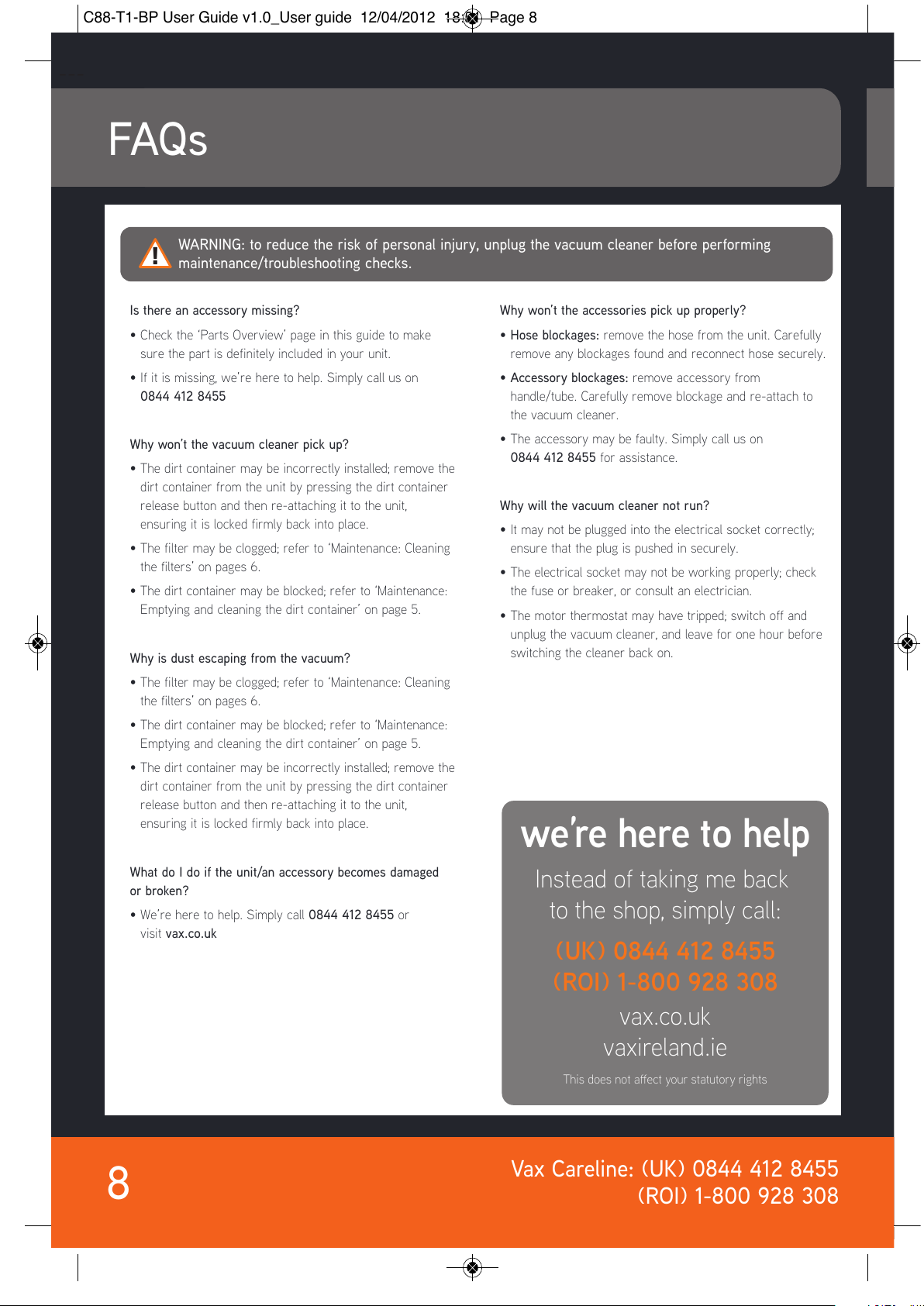

FAQs

Vax Careline: (UK) 0844 412 8455

(ROI) 1-800 928 308

WARNING: to reduce the risk of personal injury, unplug the vacuum cleaner before performing maintenance/troubleshooting checks.

Is there an accessory missing?

• Check the ‘Parts Overview’ page in this guide to make

sure the part is definitely included in your unit.

• If it is missing, we’re here to help. Simply call us on 0

844 412 8455

Why won’t the vacuum cleaner pick up?

• The dirt container may be incorrectly installed; remove the

dirt container from the unit by pressing the dirt container release button and then re-attaching it to the unit, ensuring it is locked firmly back into place.

• The filter may be clogged; refer to ‘Maintenance: Cleaning the filters’ on pages 6.

• The dirt container may be blocked; refer to ‘Maintenance: Emptying and cleaning the dirt container’ on page 5.

Why is dust escaping from the vacuum?

• The filter may be clogged; refer to ‘Maintenance: Cleaning

the filters’ on pages 6.

• The dirt container may be blocked; refer to ‘Maintenance: Emptying and cleaning the dirt container’ on page 5.

• The dirt container may be incorrectly installed; remove the dirt container from the unit by pressing the dirt container release button and then re-attaching it to the unit, ensuring it is locked firmly back into place.

What do I do if the unit/an accessory becomes damaged or broken?

• We’re here to help. Simply call 0844 412 8455 or visit vax.co.uk

Why won’t the accessories pick up properly?

• Hose blockages: remove the hose from the unit. Carefully

remove any blockages found and reconnect hose securely.

• Accessory blockages: remove accessory from h

andle/tube. Carefully remove blockage and re-attach to

the vacuum cleaner.

• The accessory may be faulty. Simply call us on 0844 412 8455 for assistance.

Why will the vacuum cleaner not run?

• It may not be plugged into the electrical socket correctly;

ensure that the plug is pushed in securely.

• The electrical socket may not be working properly; check the fuse or breaker, or consult an electrician.

• The motor thermostat may have tripped; switch off and unplug the vacuum cleaner, and leave for one hour before switching the cleaner back on.

(UK) 0844 412 8455

(ROI) 1-800 928 308

vax.co.uk

vaxireland.ie

This does not aect your statutory rights

Instead of taking me back

to the shop, simply call:
