Bagless Cylinder
C90-EL, C90-PM, C90-AS,
C90-CX2, C88-CX Series
Get Cleaning...
What’s your Vax’s model number?
What’s your serial number? (Located on the base of the machine)
Note these down in case you need them in future. Please keep instructions for further use.
– – – – –
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
User Guide
C88-CX Series UG_User guide 17/04/2012 16:05 Page 1
---
Machine Overview
5
Accessories
2
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
Unit
1 On/off button (hidden)
2 Carry handle
3 Cord rewind button
4 Cord and plug
5 Wheel
6 Hose connector
7 Dirt container
8 Separator and central
HEPA filter
1
2
3
4
6
7
8
Filters
17
9 Telescopic extension tube
10 Dusting brush
11 Combination floor tool
12 Hose
13 Handle
14 Hose connector
15 Crevice tool
16 TurboTool (some models only)
17 TurboTool connector
(some models only)
16 Post motor filter
17 (Anti-bacterial depending on model)
HEPA filter
16
9
10
11
12
13
14
15
C88-CX Series UG_User guide 17/04/2012 16:05 Page 2
FOR HOUSEHOLD USE ONLY.
When using the vacuum cleaner, basic safety precautions should always
be observed, including the following:
1. Only use the vacuum cleaner indoors on dry surfaces.
Do not handle the plug or vacuum cleaner with wet
hands. Do not use outdoors or on wet surfaces.
2. Turn off the vacuum cleaner controls before disconnecting or
c
onnecting from the mains supply.
3. Always unplug the vacuum cleaner before connecting or
disconnecting the vacuum hose and accessories.
4. Children should be supervised to ensure that they do not play with
the appliance.
5. This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for
their safety.
6. Use only as described in this manual. Use only Vax
recommended attachments.
7. Do not use the vacuum cleaner if it has been dropped,
damaged, left outdoors or dropped into water. Do not use the
vacuum cleaner with a damaged cord or plug. If the supply cord
is damaged, it must be replaced by the manufacturer or a
recommended Service Agent to avoid hazard and invalidating
the guarantee.
8. Do not pull or carry by cord. Do not use the cord as a handle,
close a door on the cord or pull cord around sharp edges or
corners. Do not run the vacuum cleaner over the cord.Keep the
cord away from heated surfaces.
9. Do not put any objects into openings. Do not use with any
openings blocked and do not restrict air- flow. Keep all
openings free of dust, lint, hair or anything that might reduce
airflow.
10. Keep hair, loose clothing, fingers and all parts of the body away
from openings and moving parts.
11. Do not pick up hot coals, cigarette butts, matches or any hot,
smoking or burning objects.
12. Do not pick up flammable or combustible materials (lighter
fluid, petrol, kerosene etc.) or use in the presence of explosive
liquids or vapours.
13. Do not vacuum up harmful or toxic material (chlorine, bleach,
ammonia, drain cleaner etc.).
14. Do not vacuum up hard or sharp objects such as glass, nails,
s
crews, coins, etc.
15. Do not use without ALL of the filters in place.
16. Take extra care when vacuuming on stairs.
1
7. Keep vacuuming area well lit.
1
8. Store the vacuum cleaner in a cool, dry area.
1
9. Turn off the on/off switch before unplugging the
v
acuum cleaner
2
0. Use only CE-approved 13 amp extension cords. Non-approved
c
ords may overheat. Care should be taken to arrange the cord
so that the cord cannot be tripped over.
WARNING: Always switch off and unplug the vacuum
cleaner from the electrical socket before assembling, opening
or emptying the dirt container, or before connecting/disconnecting
the attachments.
CAUTION: The vacuum cleaner is a very powerful unit.
Before plugging the cord into the electrical socket, make sure
the switch is in the ‘off’ position.
IMPORTANT: If the inlet, hose or telescopic tube is blocked,
switch off the vacuum cleaner and remove the blockage(s)
before re-starting the vacuum cleaner. See Maintenance:
Clearing blockages.
IMPORTANT: Washing filters improves vacuum performance.
Vax recommends that they should be checked and cleaned
periodically (depending on the level of use). Make sure all filters are
completely dry before inserting back into the vacuum cleaner.
IMPORTANT:
The motor is equipped with a thermal cut-out.
If for any reason the unit should overheat, the thermostat will
automatically turn the unit off. Should this occur, unplug the
vacuum cleaner from the electrical outlet and turn off the switch.
Remove dirt container and empty. Clean filters. Allow the unit to cool
for approximately one (1) hour. To re-start, plug into an electrical
outlet and switch back on.
This vacuum cleaner is intended for household use only and NOT
for commercial or industrial use.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.
!!!!!
General Safety Information
vax.co.uk
3
C88-CX Series UG_User guide 17/04/2012 16:05 Page 3
---

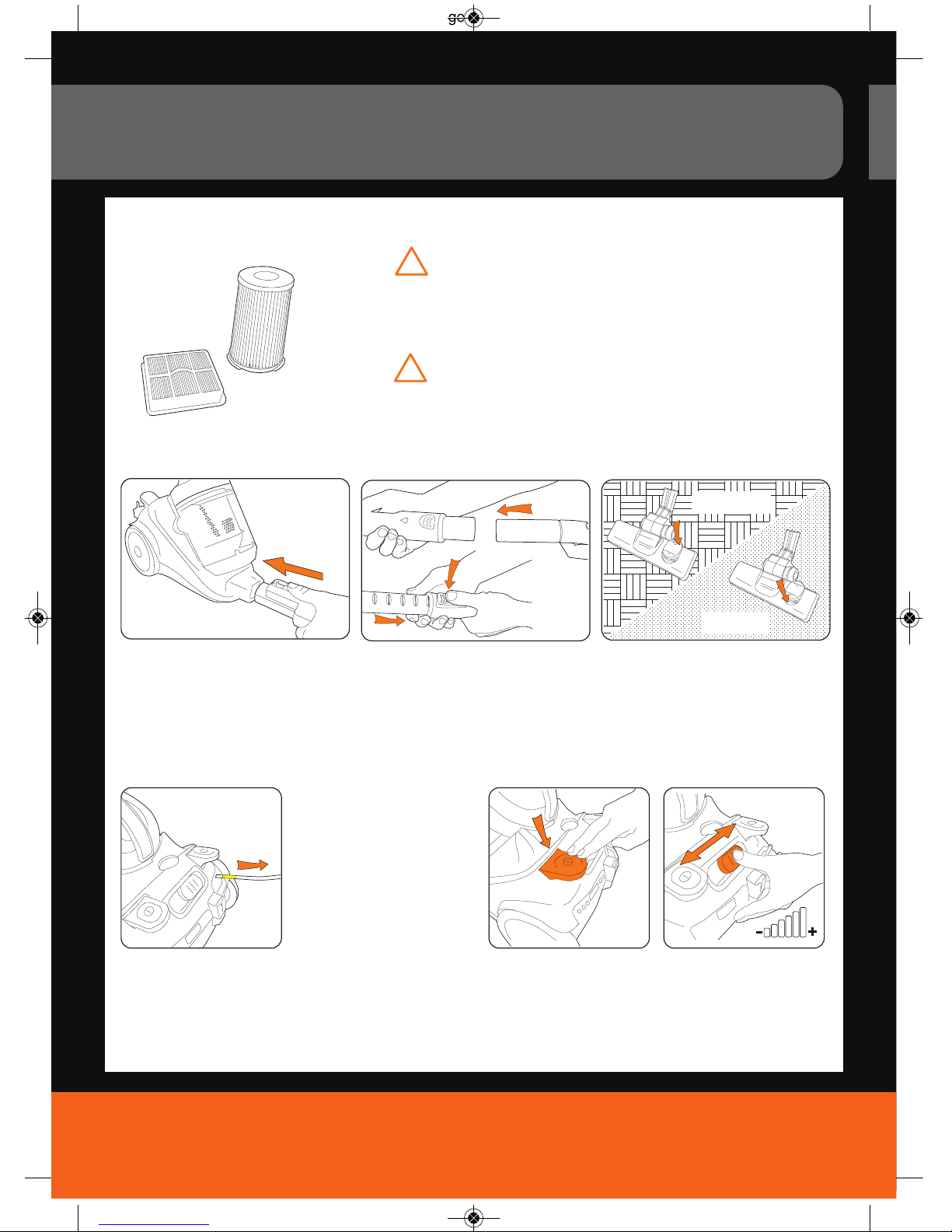

Operation
Assembling your vacuum cleaner
Operating the appliance
NOTE: Fully unwind the
power cord. A yellow
mark on the cord indicates
the recommended cord
length. Do not exceed the
cord length beyond the
yellow mark.
4
Keep your Vax like new
IMPORTANT: The condition of the filters affects the
performance of your machine. Please check and wash filters
periodically (depending on the level of use). For full cleaning
instructions, see pages 5 and 6.
!
IMPORTANT: Do not use the vacuum cleaner without all of the
filters in place.
!
NOTE: The crevice tool and dusting brush can all be attached to the telescopic tube or hose handle.
Carpets
Hard floors
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
C88-CX Series UG_User guide 17/04/2012 16:05 Page 4
Maintenance (Keep your Vax as good as new)
Packing away and storage
Emptying and cleaning the dirt container
vax.co.uk
5
NOTE: For convenience there is a
parking slot located at the rear of
the vacuum cleaner where the
floor tool and tubes can be
attached for storage and carrying.
Cleaning the HEPA central filter
2
4
‘Tap’
C88-CX Series UG_User guide 17/04/2012 16:05 Page 5
---
6
Clearing blockages
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
Warning: To reduce the risk of electric shock, the power cord must be disconnected before performing
maintenance/troubleshooting checks. Turn the vacuum cleaner off and unplug from the electrical socket
!
Hose Blockages
The flexible hose may be disconnected from the
vacuum cleaner. Carefully remove any blockages found
and reconnect the hose securely.
Accessory Blockages
Remove accessory from the hose/handle tube.
Carefully remove the blockage and return to the cleaner.
Maintenance (Keep your Vax as good as new)

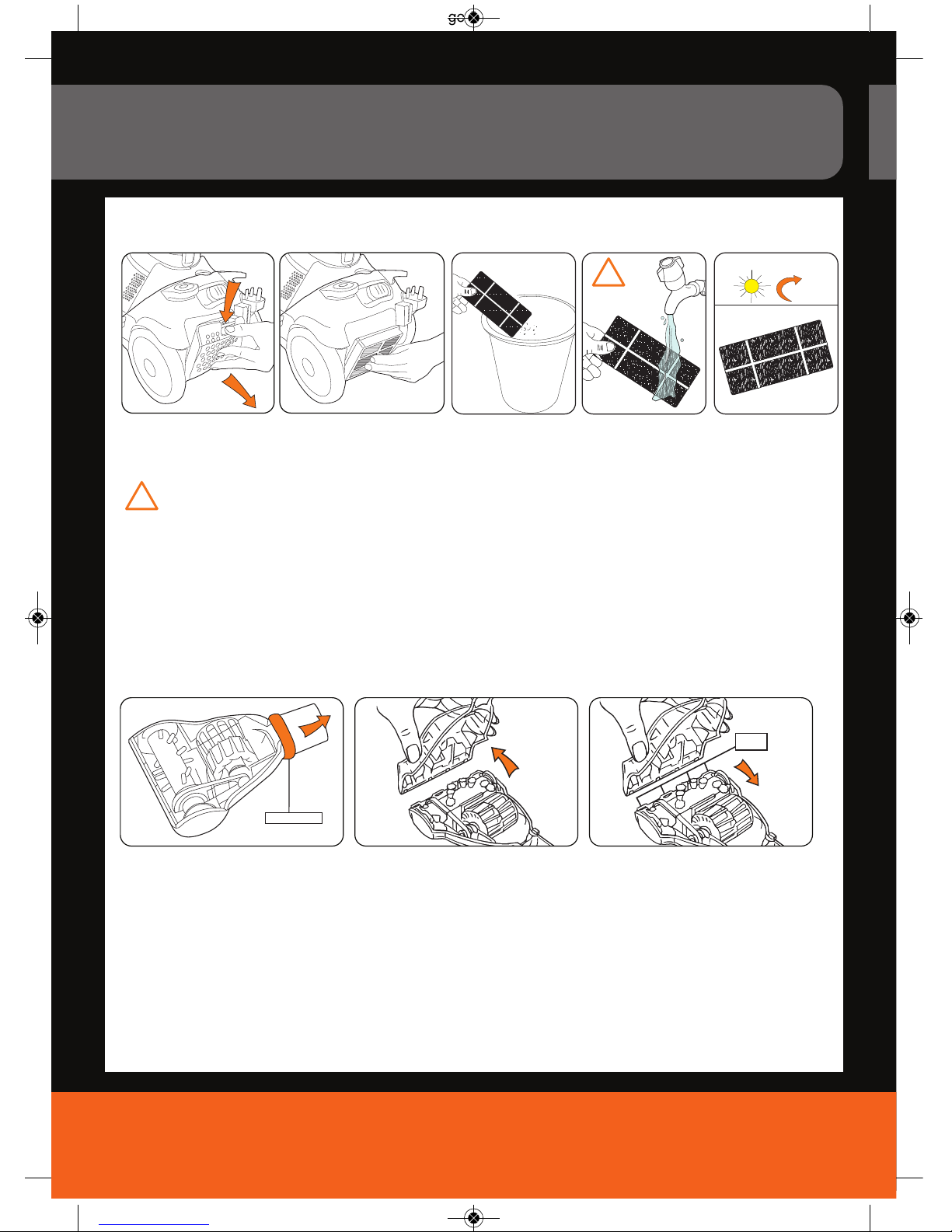

Cleaning the post-motor filter
2
4
‘Tap ’
!
4
0° C max
Removing blockages from the TurboTool (some models only)
Locking ring
Tabs
Turn the TurboTool over and slide
off the locking ring.
Detach lower housing and
remove blockage.
To re-assemble the TurboTool, ensure
that the tabs are engaged and pivot the
lower housing closed. Slip the locking
ring over the neck of the TurboTool and
into the groove to finish.
C88-CX Series UG_User guide 17/04/2012 16:05 Page 6
vax.co.uk
7
FAQs
!
WARNING: to reduce the risk of personal injury, unplug the vacuum cleaner before performing
maintenance/troubleshooting checks.
Is there an accessory missing?
• Check the ‘Parts Overview’ page in this guide to
make sure the part is definitely included in your
unit.
• If it is missing, we’re here to help. Simply call us
on 0844 412 8455
Why won’t the vacuum cleaner pick up?
• The dirt container may be incorrectly installed;
remove the dirt container from the unit by pressing
the dirt container release catch and then reattaching it to the unit, ensuring it is locked firmly
back into place.
• The filter may be clogged; refer to ‘Maintenance:
Cleaning the filters’ on page 5. iner may be blocked;
refer to ‘Maintenance: Emptying and cleaning the
dirt container’ on page 5.
Why is dust escaping from the vacuum?
• The filter may be clogged; refer to ‘Maintenance:
Cleaning the filters’ on page 5.
• The dirt container may be blocked; refer to
‘Maintenance: Emptying and cleaning the dirt
container’ on page 5.
• The dirt container may be incorrectly installed;
remove the dirt container from the unit by pressing
the dirt container release catch and then reattaching it to the unit, ensuring it is locked firmly
back into place.
What do I do if the unit/an accessory becomes
damaged or broken?
• We’re here to help. Simply call 0844 412 8455 or
visit vax.co.uk
Why won’t the accessories pick up properly?
Hose blockages: remove the hose from the unit.
Carefully remove any blockages found and reconnect
hose securely.
Accessory blockages: remove accessory from
handle/tube. Carefully remove blockage and re-attach
to the vacuum cleaner.
• The accessory may be faulty. Simply call us on
0844 412 8455 for assistance.
Why will the vacuum cleaner not run?
• It may not be plugged into the electrical socket
correctly; ensure that the plug is pushed in
securely.
• The electrical socket may not be working properly;
check the fuse or breaker, or consult an electrician.
• The motor thermostat may have tripped; switch off
and unplug the vacuum cleaner, and leave for one
hour before switching the cleaner back on.
(UK) 0844 412 8455
(ROI) 1-800 928 308
vax.co.uk
vaxireland.ie
This does not aect your statutory rights
Instead of taking me back
to the shop, simply call:
we’re here to help
C88-CX Series UG_User guide 17/04/2012 16:05 Page 7
---
Other Information
UK Service & Help
Vax Careline:
(UK) 0844 412 8455
(ROI) 1-800 928 308
Monday-Friday 8.30am to 6.30pm
Saturday-Sunday 9.00am to 5.00pm
If you have queries or concerns about using your Vax, call the Vax Careline.
Please make a note of the serial number and model number of the carpet cleaner before calling.
Consumables
To purchase spares and accessories, please visit vax.co.uk
Filter kit (Type 55) 1-1-130537-00
Technical Specification
Voltage: 220-240V ~50Hz
Wattage: 1800 / 2000 W (depending on model)
Capacity: 1.7L
Filters: Central HEPA filter
Pleated post-motor filter (washable)
Cord length: 5 m (approx)
Weight: 4.99 kg (approx)
Subject to technical change without notice.
8
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
C88-CX Series UG_User guide 17/04/2012 16:05 Page 8
Other Information
vax.co.uk
9
EEC Statement of Compliance
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
C90-EL/C90-PM/C90-AS/C90-CX2/C88-CX Series are manufactured in compliance with the
following Directives:
Safety: 2006/95/EC Low Voltage Directive
EMC: 2004/108/EC Electromagnetic Compatibility Directive
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
C88-CX Series UG_User guide 17/04/2012 16:05 Page 9
---
Notes
10
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
C88-CX Series UG_User guide 17/04/2012 16:05 Page 10
Notes
vax.co.uk
11
C88-CX Series UG_User guide 17/04/2012 16:05 Page 11
Loading...
