Impact 306
Let’s get started
C86-IA-(Be, Pe, Te)
vax.co.uk
Let’s talk safety
Let’s talk safety
Basic safety precautions
This vacuum cleaner is intended
for household use only and NOT for
commercial or industrial use.
• Only use the vacuum cleaner indoors
on dry surfaces and keep the area
your cleaning well lit.
• Keep ngers, hair and loose clothing
from moving parts and openings
whilst using the vacuum cleaner.
• This vacuum cleaner can be used
by children aged from 8 years and
above and persons with reduced
physical, sensory or mental
Don’ts
8 Don’t use this vacuum cleaner if it
has been dropped, damaged or left
outdoors.
8 Don’t run over the power cord or use
vacuum cleaner if the power cord or
plug is damaged. Please contact our
Customer Care Line on: 0844 4128
455 (Mon-Fri 8.30am to 6.30pm, Sat
9.00am to 5.00pm).
8 Don’t handle the plug or use the
vacuum cleaner with wet hands.
8 Don’t pull or carry this vacuum
cleaner by the power cord. Don’t use
the power cord as a handle, pull the
power cord around corners, sharp
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning
use of the vacuum cleaner in a safe
way and understand the hazards
involved. Children shall not play with
the vacuum cleaner. Cleaning and
user maintenance shall not be made
by children without supervision.
• Only Vax recommend tools should be
used with this vacuum cleaner.
Please keep instructions for further
use.
edges or close a door over the power
cord. Don’t unplug vacuum cleaner
by pulling on the power cord.
8 Don’t vacuum up any ammable
or combustible materials (lighter
uid, petrol, kerosene etc.) or use
the vacuum cleaner in an area with
explosive vapours or liquid.
8 Don’t vacuum up hot coals, cigarette
butts, matches
or smoking hot burning items or
use in an area where there may be
harmful uids (chlorine, bleach, and
ammonia drain cleaner).
Don’ts
8 Don’t attempt to remove blockages
with sharp objects as this may cause
damage to your vacuum cleaner.
8 Don’t vacuum up hard or sharp
objects such as glass, nails, screws
or coins etc.
3 Turn o all controls on the vacuum
cleaner before disconnecting or
connecting the power cord.
3 Always make sure lters are in place
before use.
3 Always switch o the vacuum
cleaner before disconnecting
or connecting the hose and
accessories.
3 Keep all openings clear and free
from debris as this may aect the
airow/suction.
3 Always replace the fuse in the plug
with a British 13amp fuse. Always
protect the power cable from heated
surfaces and open ames.
8 Don’t use the vacuum cleaner with
incorrect voltage as this may result
in damage or injury to the user.
The correct voltage is listed on the
ratings label.
Do’s
3 Take extra care when positioning
and using the vacuum cleaner on
the stairs.
3 Use only CE approved 13amp
extension cords, non-approved
extension cords may overheat.
Care should be taken to arrange
the extension cord as it can be a
trip hazard.
3 Store your vacuum cleaner in a cool,
dry area. If lters have been cleaned
as per user guide instructions
ensure they are thoroughly dry
before storing away.
Thank you for buying this Impact 306.
Taking care of your carpets
The Impact 306 is designed to make vacuuming carpets and hard oors regularly, as eective
and ecient as possible and this user guide will help you get the most out of your machine.
Maintaining your carpets and hard oors will ensure they keep their appearance for longer.
You’ve chosen carpets and hard oors for your home for a reason and Vax will help you take
good care of them.
Taking care of your Impact 306
Also inside this guide are instructions on maintaining your new machine, so that it’s always ready
when you are to tackle your carpets and hard oors.
Contents
Let’s talk safety
Getting to know your machine
Getting started
Using your machine
Impact 306
Included with
your machine
Accessory hose
and handle
Telescopic
extension tube
Combination
oorhead
Taking care of you
We’re here if you need us. Instead of taking me back
to the shop, simply visit:
vax.co.uk/support or call:
(UK) 0844 412 8455 (ROI) 1-800 928 308
Monday-Friday 8.30am to 6.30pm, Saturday 9.00am to 5.00pm
Calls are charged at the UK local rate. Before you call we’ll need you to have the following
information to hand: Your Machine, Your Proof of Purchase or Warranty registration code.
Alternatively, you can write to us at:
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 0QH, UK
Let us know what you think @VaxUK
Taking care of your machine
Let’s talk technical
Accessories
What to do if it goes wrong
Getting in touch
Initial Setup for normal operation
1. Use the base accessories.
– Shortest hose
– Extension tube set to shortest practicable length.
2. Clean lters installed.
3. Dust receptacle empty.
4. All Bleeds must be closed.
5. Floor heads/tools set to Carpet Mode for carpet cleaning.
6. Mechanical Agitation turned ON for carpet cleaning.
7. Floor heads/tools set to Hard Floor Mode for hard oor cleaning.
8. Mechanical Agitation turned OFF for hard oor cleaning.
Crevice tool
Dusting brush
Post motor lter
Pre-motor lter
Impact 306 Pet
+
Turbo Tool
Tool connector
Impact 306 Total Home
+
4.2m stretch hose
Getting to know your machine
Separator and shroud
Dirt container
On/O button
Carry handle
Dirt container
release button
Cord rewind
button
Getting started
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
Before you begin cleaning
• Always switch o and unplug the vacuum cleaner before connecting or disconnecting the hose/attachments,
or removing and emptying the dirt container.
• The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does overheat the
thermostat will automatically turn the vacuum cleaner o. If this happens, switch the vacuum cleaner o and unplug
from electrical socket. Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the
vacuum cleaner to cool for approximately 1 hour (if you have cleaned the lters please wait 24 hours for the lters
to fully dry before putting back into the vacuum machine).
• Clean the pre-motor lter every time the dirt container is emptied and replace the post motor lter every 12 months
• If the vacuum cleaner is blocked, switch o and unplug before removing the blockage
Assembling your vacuum cleaner
Hose
entry point
Pre-motor lter
(hidden)
Technical Specication
Name Impact 306
Voltage 220-240V~50Hz
Wattage 700W
Cord length 5.5/5.8/6.0m
Weight 4.9kg
Accessories & Consumables
Filter Kit (Type 105)
1-1-134328-00
Tool Connector (Type 1)
(selected models only)
1-1-133838-00
Turbo Tool (Type 4)
(selected models only)
1-1-134340-00
Combination Floor Tool (Type 6)
1-1-134330-00
Crevice Tool (Type 10)
1-9-128020-00
Dusting brush
1-1-127512-00
Floorhead
parking slot
Post motor
lter cover
Post motor
lter (hidden)
Press both buttons at end
of hose and insert into
hose entry point.
Press button on telescopic
extension tube and adjust
to required length.
Insert hose grip into
telescopic extension tube.
Insert the other end of the
telescopic tube into the
oor head.
WARNING
When unwinding the power
cord do not pull further than
the yellow marker.
Using your machine
Taking care of your machine
IMPORTANT: The base of the vacuum cleaner should always be positioned at on the oor when starting and
in use. The dirt container should be locked into place before lifting the vacuum cleaner by the carry handle
Using your vacuum cleaner
Unwind the power cord.
Do not pull further than
the yellow marker.
Raise brushes for carpets.
Plug into mains and press
the on/o button to turn
the machine on.
Lower brushes for
hard oors.
For use on carpets, click rocker
switch forward. For use on hard
oors click rocker switch back.
Slide vent cover on
hose grip open to
reduce suction if
required.
Brushes on the oor head
should be visible when
using on hard oors.
TIP
IMPORTANT: Unplug and switch o vacuum cleaner before performing maintenance or troubleshooting checks
Emptying and cleaning the dirt container
Press dirt container release
button and lift to remove.
Hold dirt container over a bin and pull the
dirt release clip on the bottom of the dirt
container, allowing dirt/debris to fall out.
Cleaning the shroud
Twist the shroud to remove.
Tap the shroud over a bin to
remove any dirt/debris.
Using accessories
Choose an accessory.
Attach accessory to
hose end.
If required use tool
connector.
40˚C
MAX
Rinse the shroud under water (Max 40°C).
Leave to dry for 24 hours or until fully dry
before placing back in the machine.
TIP
Don’t over ll the dirt
container to avoid blocking
the air ow through the
vacuum cleaner.
Taking care of your machine
Taking care of your machine

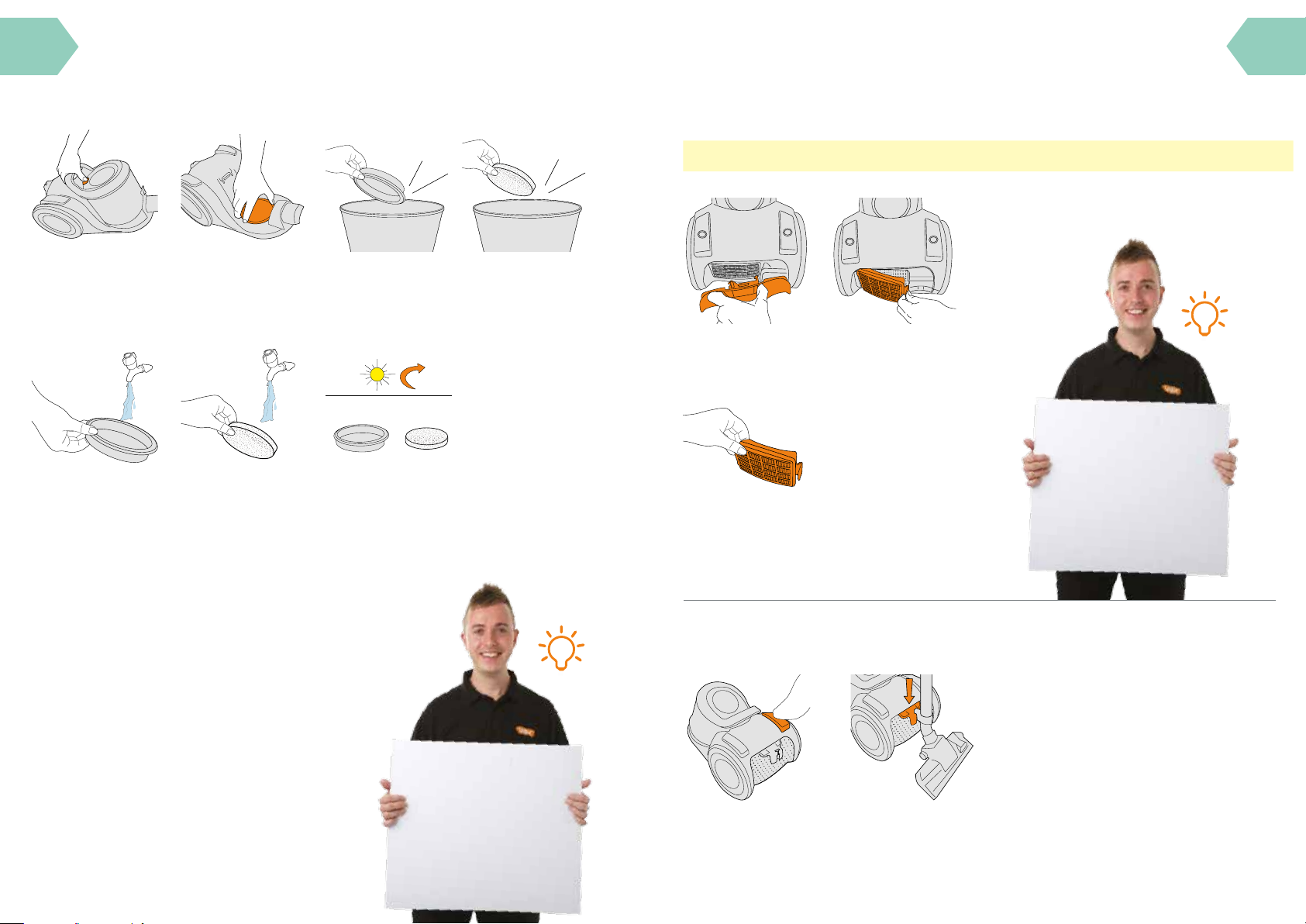

Cleaning the pre-motor lter
Press dirt container release
button and lift to remove.
40˚C
MAX
Rinse both the frame and foam under water
(Max 40°C).
Remove the pre motor
lter. Separate the frame
and foam by pulling.
40˚C
MAX
AP
T
Tap the lter frame and foam over a bin to remove
any dirt/debris.
24hrs
Leave to dry for 24 hours or
until fully dry before placing
back in the machine.
AP
T
Post-motor lter maintenance
WARNING: Do not wash the post motor lter
Squeeze the lter cover
clips together and pull
to remove.
Check the post-motor lter for
discolouration.
Push tab pull to remove
the post-motor lter.
TIP
Replace the post-motor
lter every 12 months.
Clean the pre-motor
lter every time the dirt
container is emptied.
TIP
Storing your vacuum cleaner
Press cord rewind button
to retract cord into vacuum
cleaner.
Place oor head into parking slot
on the back of vacuum cleaner for
storage and carrying.
Tabs
Let’s talk technical
Accessories
IMPORTANT: Remove accessory from hose or telescopic extension tube before performing maintenance or
trouble shooting checks
Removing dirt/debris from turbo tool*
Slide the locking ring to
remove.
*Not applicable for all models
Lift and separate the
housing. Using a pair
of scissors remove any
threads or hair caught
around the brush bar.
Line up the tabs on front of
housing and push together to
re-t. Slide locking ring into
groove to secure.
Removing a blockage from the hose
Don’t forget your accessories!
Order at: www.vax.co.uk/spares-and-solutions
Pro cleaning kit
1-1-133326-00
All our best tools all in one kit that makes cleaning your
home quicker, easier and with even better results.
We’ve taken care of cleaning all of the hard to reach
areas such as on top of cupboards and in between blinds
to the dust that collates behind and within the radiator.
TurboTool (Type 4)
1-1-134340-00
Use the TurboTool for vacuuming your stairs,
upholstery and car interiors. It’s great for
picking up stubborn pet hair.
Remove the hose from the vacuum cleaner and
telescopic extension tube. Remove any blockage
by inserting wire coat hanger in to hose
To test for a blockage in
the hose, drop a small ball
of paper into the hose. The
paper will drop through if
the hose is clear.
TIP
Fur ‘n‘ Flu tool
1-1-131392-00
Specically designed to remove extra stubborn
pet hair from upholstery, furniture and carpets.
What to do if it goes wrong
SolutionProblem
Getting in touch
Is there an accessory
missing?
Why won’t the vacuum
cleaner pick up?
Why does my
vacuum cleaner
have no power?
• Check the ‘This pack contains’ panel on the box to make sure the part is
included with your vacuum cleaner
• The dirt container may not be correctly tted, remove the dirt container from
the vacuum cleaner and check it’s assembled correctly, ret ensuring it’s locked
into place
• The lter may be clogged, clean the lter. Go to ‘Taking care of your machine’
• The dirt container may be blocked, empty the dirt container. Go to ‘Taking care
of your machine’
• There may be a blockage in the hose/tube. Disconnect from the vacuum cleaner
and carefully remove any blockages. Go to ‘Let’s talk technical’
• The plug may not be fully pushed into the electrical socket
• Check the fuse in the plug if this needs replacing, always replace with a
13amp fuse
• The motor thermostat may have tripped. If this has happened, unplug the
vacuum cleaner. Remove and empty the dirt container and check the hose
for blockages. Clean the lters and allow the vacuum cleaner to cool for
approximately 1 hour (if you have washed the lters you will need to wait 24
hours for the lters to fully dry before putting them back into the
vacuum cleaner)
Why is dust escaping
from the vacuum?
WARNING: To reduce the risk of personal injury, unplug the vacuum cleaner before performing maintenance
/troubleshooting checks.
• The lters may be clogged, clean the lter.
Go to ‘Taking care of your machine’
* Calls are charged at the UK local rate. Please make a note of the serial number and model number of the vacuum cleaner before calling.
@VaxUK
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 0QH, UK
email: info@vax.co.uk website: vax.co.uk
Version 2.0
EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility,
declare that the C86-IA-(Be, Pe, Te) is manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive. EMC: 2004/108/EC Electromagnetic Compatibility Directive
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
Loading...
