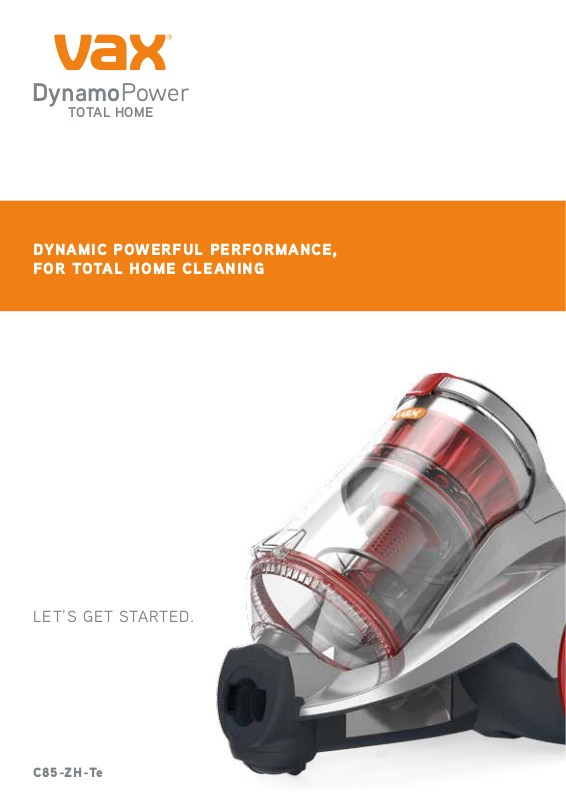

DynamoPower
TOTAL HOME
DYNAMIC POWERFUL PERFORMANCE,
FOR TOTAL HOME CLEANING
LET’S GET STARTED.
C85-ZH-Te
Let’s talk safety
Basic
safety
precautions
Don’ts
This vacuum cleaner is intended for household use only and
NOT for commercial or industrial use.
• Only use the vacuum cleaner indoors on dry surfaces and
keep the area you’re cleaning well lit.
• Keep ngers, hair and loose clothing from moving parts and
openings whilst using the vacuum cleaner.
• This vacuum cleaner can be used by children aged from 8
years and above and persons with reduced physical, sensory
• Don’t use this vacuum cleaner if it has been dropped, damaged
or left outdoors.
• Don’t run over the power cord or use vacuum cleaner if the
power cord or plug is damaged. Please contact our Customer
service Line on: 0330 026 8455 (Mon-Fri 8:30am to 6:30pm,
Sat 9:00am to 5:00pm).
• Don’t handle the plug or use the vacuum cleaner with wet hands.
• Don’t pull or carry this vacuum cleaner by the power cord.
• Don’t use the power cord as a handle, pull the power cord around
corners, sharp edges or close a door over the power cord.
Do’s
• Turn o all controls on the vacuum cleaner before
disconnecting or connecting the power cord.
• Always make sure both the pre-motor/post-motor lters are
in place before use.
• Always switch o the vacuum cleaner before disconnecting
or connecting the hose and accessories.
• Keep all openings clear and free from debris as this may aect
the airow/suction.
• Always replace the fuse in the plug with a British 13amp fuse.
• Always protect the power cable from heated surfaces and
open ames.
or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the vacuum cleaner in a
safe way and understand the hazards involved. Children shall not play with
the vacuum cleaner. Cleaning and user maintenance shall not be made by
children without supervision.
• Only Vax recommended tools and accessories should be used with this
vacuum cleaner.
• Don’t unplug vacuum cleaner by pulling on the power cord.
• Don’t vacuum up any ammable or combustible materials (lighter uid, petrol,
kerosene etc.) or use the vacuum cleaner in an area with explosive vapours
or liquid.
• Don’t vacuum up hot coals, cigarette butts, matches or smoking hot burning
items or use in an area where there may be harmful uids (chlorine, bleach,
and ammonia drain cleaner).
• Don’t attempt to remove blockages with sharp objects as this may cause
damage to your vacuum cleaner.
• Don’t vacuum up hard or sharp objects such as glass, nails, screws or coins etc.
• Don’t use the vacuum cleaner with incorrect voltage as this may result in
damage or injury to the user. The correct voltage is listed on the ratings label.
• Take extra care when positioning and using the vacuum cleaner on the stairs.
• Use only CE approved 13amp extension cords, non-approved extension cords
may overheat. Care should be taken to arrange the extension cord as it can
be a trip hazard.
• Store your vacuum cleaner in a cool, dry area. If lters have been cleaned
as per user guide instructions ensure they are thoroughly dry before
storing away.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.
Thank you for buying this
Dynamo Power Total Home.
Taking care of your carpets and hard oors
The Dynamo Power Total Home is designed to make vacuuming carpets and hard
oors regularly, as eective and ecient as possible and this user guide will help you
get the most out of your machine.
Maintaining your carpets and hard oors will ensure they keep their appearance
for longer. You’ve chosen carpets and hard oors for your home for a reason
and Vax will help you take good care of them.
Taking care of your Dynamo Power Total Home
Also inside this guide are instructions on maintaining your new machine, so that it’s
always ready when you are to tackle your carpets and hard oors.
Taking care of you
We’re here if you need us. Instead of taking me back
to the shop, simply visit:
vax.co.uk/support or call:
(UK) 0330 026 8455 (ROI) 1-800 928 308
Monday-Friday 8:30am to 6:30pm, Saturday 9:00am to 5:00pm
Calls are charged at the UK local rate. Please make a note of the serial number and model number
of the product before calling.
Alternatively, you can write to us at:
Vax Ltd., Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich,
Worcestershire, WR9 0LW, UK
This user guide can be found online at: vax.co.uk/support
Let us know what you think @VaxUK
Contents
Let’s talk safety
Dynamo Power
Total Home
(Included with all models)
Included with
your machine
Getting to know your machine
Getting started
Using your machine
Taking care of your machine
Let’s talk technical
Accessories
Notes
What to do if it goes wrong
Combination Floorhead
Telescopic Extension Tube
3-in-1 Tool
Accessory Hose
Hardoor Tool
TurboTool
Tool Connector
Getting in touch
Initial Setup for normal operation
1. Use the base accessories.
a. Shortest hose.
b. Extension tube set to shortest practicable length.
2. Clean lters installed.
3. Dust receptacle empty.
4. All Bleeds must be closed.
5. Floorheads/tools set to Carpet Mode for carpet cleaning.
6. Mechanical Agitation turned ON for carpet cleaning.
7. Floorheads/tools set to Hard Floor Mode for hard oor cleaning.
8. Mechanical Agitation turned OFF for hard oor cleaning.
Stretch Hose
Up-top Tool
Getting to know your machine
Separator and shroud
Hose entry point
Dirt container release button
Dirt bin lid release clip
Dirt container
Carry handle
Power On/O button
Post-motor lter cover
Technical Specication
Name Dynamo Power Total Home
Voltage 220-240V~50Hz
Wattage 800w
Cord length 6m
Weight 5.2kg
Subject to technical change without notice.
Cord rewind button
Post-motor lter
cover release clip
Accessories & Consumables
Pre lter
1-7-136844-24
Post-motor
1-7-136845-24
TurboTool (Type 6)
1-1-134419-00
*To purchase consumables and accessories, please visit vax.co.uk
Tool connector (Type 1)
1-1-133838-00
Hardoor tool (Type 2)
1-9-128016-00
Combination oorhead tool (Type 5)
1-1-134341-00
Getting started
!
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
Before you begin cleaning
• Always switch o and unplug the vacuum cleaner before connecting or disconnecting the hose/attachments,
or removing and emptying the dirt container.
• The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does overheat the
thermostat will automatically turn the vacuum cleaner o. If this happens, switch the vacuum cleaner o and unplug
from electrical socket. Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the
vacuum cleaner to cool for approximately 1 hour (if you have cleaned the lters please wait 24 hours for the lters
to fully dry before putting back into the vacuum machine).
• For best cleaning results, lters should be tapped over a bin every 4-6 uses to remove dirt and debris and washed
every 3 to 6 months (depending on the level of use).
• If the vacuum cleaner is blocked, switch o and unplug before removing the blockage.
Assembling your vacuum cleaner
click!
Press both buttons
at the end of the hose
and push hose into
the hose entry point.
Fully unwind the power
cord. A yellow mark on
the cord indicates the
recommended cord length.
Do not exceed the cord
beyond the yellow mark.
Insert the hose grip into the
telescopic extension tube.
Plug in and switch the
unit on by pressing the
power button.
Press the button on the
telescopic extension
tube and adjust to
required length.
Insert the other end of
the telescopic extension
tube into the oorhead.
When unwinding the
power cord always pull
out to the yellow marker
but no further.
CAUTION
Using your machine
CAUTION: The base of the vacuum cleaner should always be positioned at on the oor when starting and in use.
The dirt container should be locked into place before lifting the vacuum cleaner by the carry handle.
How to use
For use on carpets, click
rocker switch forward.
For use on hard oors
click rocker switch back.
Slide vent cover on hose
grip open to reduce
suction if required.
Raise brushes for carpets.
For the most ecient results on hard
oors replace the combination oorhead
with the specialist hard oor tool.
Lower brushes
for hard oors.
Using accessories
Choose an accessory. Choose an accessory
and push onto the
telescopic extension
tube or hose.
The TurboTool connector must
be tted on the hose when
using the TurboTool.
Storage
Press the cord rewind
button to retract the cord
into the vacuum cleaner.
CAUTION: Make sure to hold the cord with your other hand to prevent injury when rewinding.
Place the oorhead into the parking
slot on the back of the vacuum
cleaner for storage and carrying.
Taking care of your machine
IMPORTANT: Always switch o and unplug the vacuum cleaner from the electrical socket before assembling,
opening or emptying the dirt container, or before connecting/disconnecting the attachments.
Pre-motor lter should be tapped over a bin every 4-6 uses to remove dirt and debris. Do not use your vacuum
cleaner without all of the lters in place.
The motor is equipped with a thermal cut-out. If for any reason the unit should overheat, the thermostat will
automatically turn the unit o.
Emptying and cleaning the dirt container
Remove dirt container
by pushing down the dirt
container release button and
lifting the dirt container.
Hold the dirt container over
a bin. Push down the dirt
release clip at the bottom
of the dirt container.
The dirt release door will
open allowing dirt/debris
to fall out.
Cleaning the Pre-motor lter
CAUTION: Incorrect tting of the separator cap will reduce suction.
Lift the dirt bin lid
release clip. In a hinge
like manner lift open
the dirt bin lid.
Pull the lter tab and
remove the pre-motor lter.
Tap the lter over a bin
to remove any dirt/debris.
Wash the lter under
running water
(40 degrees max).
Don’t over ll the
dirt container to
avoid blocking the
air ow through the
vacuum cleaner.
TIP
!
40˚C
MAX
24hr
Taking care of your machine
click!
Leave for 24 hours
or until fully dry
before replacing.
Ret the pre-motor lter
into the dirt container
with the tab being visible.
In a hinge like manner
close the dirt bin lid until
it clicks into place.
Post-motor lter maintenance
IMPORTANT: The post motor lter is designed to oer long life with no maintenance. The lter should
be checked periodically and when heavily discoloured it should be replaced. Please do not wash,
scrub or brush the lter as this will damage the lter
Push the post-motor lter
cover release clip to the right
to remove the post motor
lter cover.
Pull the post motor
lter to the left and
remove the post
motor lter.
Check the post motor lter for discolouration.
Do not wash the post motor lter.
Cleaning the separator, shroud and separator plate
After emptying the dirt container, twist the separator
clockwise to unlock and lift to remove.
Taking care of your machine Let’s talk technical
Unscrew the shroud anti
clockwise and remove.
Tap the separator, shroud and separator plate over a bin to remove any dirt/debris. Using
a dry cloth wipe the remaining dirt /debris from the separator, shroud and separator plate.
Pull to remove the separator plate.
Re-tting the seperator plate, shroud plate
Line up and push the
separator plate into place.
Ret the shroud twisting
clockwise to lock
into place.
Line up the separator
making sure both
rectangular holes in
the dirt container and
separator line up.
Twist the separator
anti clockwise to lock
into place.
Ret the dirt container pushing
down rmly until it clicks and
locks into place.
Removing blockages from the TurboTool
Let’s talk technical
Tabs
Slide the locking ring
to remove.
Lift and separate
the housing.
Removing blockages from the hose
Remove the hose from the vacuum cleaner
and telescopic extension tube.
Insert a broom handle or similar blunt
instrument into the hose to remove blockage.
Using a pair of scissors,
cut any hair or debris free
from around the brushes.
Line up the tabs on front of
housing and push together
to ret. Slide locking ring
into groove to secure.
To test for a blockage
in the hose, drop a
small ball of paper
into the hose.
The paper will
drop through if
the hose is clear.
TIP
Accessories
Don’t forget your accessories!
Order at: www.vax.co.uk/spares-and-solutions
Pro Cleaning Kit (Type 2)
1-1-133326-00
All our best tools all in one kit that makes cleaning
your home quicker, easier and with even better
results. We’ve taken care of cleaning all of the hard
to reach areas such as on top of cupboards and in
between blinds to the dust that collates behind and
within the radiator.
TurboTool (Type 6)
1-1-134419-00
Use the TurboTool for vacuuming your stairs,
upholstery and car interiors. It’s great for picking
up stubborn pet hair.
Fur ‘n’ Flu Tool
1-1-131392-00
Specically designed to remove extra stubborn
pet hair from upholstery, furniture and carpets.
Notes
Notes
What to do if it goes wrong
There is an
accessory missing
Why won’t the vacuum
cleaner pick up?
SolutionProblem
• Check the ‘This pack contains’ panel on the box to make sure the part
is included with your vacuum cleaner.
• The dirt container may not be correctly tted, remove the dirt container from
the vacuum cleaner and check it’s assembled correctly, ret ensuring it’s locked
into place.
• The separator/shroud are blocked. Go to ‘Taking care of your machine’
• The separator/shroud are incorrectly tted. Go to ‘Taking care of your machine’
• The lter may be clogged, clean the lter. Go to ‘Taking care of your machine’.
• The dirt container may be blocked, empty the dirt container. Go to ‘Taking care
of your machine’.
• There may be a blockage in the hose/tube. Disconnect from the vacuum cleaner
and carefully remove any blockages. Go to ‘Let’s talk technical’.
• The plug may not be fully pushed into the electrical socket.
• Check the fuse in the plug if this needs replacing, always replace with a British
Why does my vacuum
cleaner have no power?
13amp fuse.
• The motor thermostat may have tripped. If this has happened, unplug
the vacuum cleaner. Remove and empty the dirt container and check
the hose for blockages. Clean the lters and allow the vacuum cleaner
to cool for approximately 1 hour (if you have washed the lters you will
need to wait 24 hours for the lters to fully dry before putting them back
into the vacuum cleaner).
• The lters may be clogged, clean the lter. Go to ‘Taking care of your machine’.
Why is dust escaping
from the vacuum?
IMPORTANT: To reduce the risk of personal injury, unplug the vacuum before performing maintenance/
troubleshooting checks.
Getting in touch
†
†
Registration required. Terms and conditions apply, see vax.co.uk for details.
* Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling.
GET IN TOUCH
0330 026 8455 VaxVacuumsinfo@vax.co.uk vax.co.uk @VaxUK
EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
C85-ZH-Te is manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage Directive.
EMC: 2004/108/EC Electromagnetic Compatibility Directive.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice.
© 2015 All rights reserved. VAX®, VAX Lozenge, are trade marks or registered trade marks of Techtronic Floor Care
Technology Ltd.
Loading...
