This vacuum cleaner is intended for
household use only and NOT for
commercial or industrial use
• Only use the vacuum cleaner indoors
on dry surfaces and keep the area
you’re cleaning well lit
• Keep ngers, hair and loose clothing
away from moving parts and openings
whilst using the vacuum cleaner
• This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved. Children shall not
play with the appliance. Cleaning and
user maintenance shall not be made
by children without supervision
• Only Vax recommended tools should
be used with this vacuum cleaner.
Please keep instructions for
further use.
Basic safety precautions
3 Turn o all controls on the vacuum
cleaner before disconnecting or
connecting the power cord
3 Always keep the power cord away
from the brushes whilst using your
vacuum cleaner. After use always
wrap the power cord around the
cord clips provided
3 Always make sure both the pre-
motor/post motor lters are in place
before use
3 Always switch o the vacuum
cleaner before disconnecting or
connecting the hose and accessories
3 Keep all openings clear and free
from debris as this may aect the
airow/suction
3 Always replace the fuse in the plug
with a British 13amp fuse. Always
protect the power cable from heated
surfaces and open ames
3 Use only CE approved 13amp
extension cords, non-approved
extension cords may overheat.
Care should be taken to arrange
the extension cord as it could be
a trip hazard
Don’ts
Do’s
8 Don’t use this vacuum cleaner if
it has been dropped, damaged or left
outdoors
8 Don’t run over the power cord or use
vacuum cleaner if the power cord or
plug is damaged. Please contact our
Customer Care Line on: 0330 026
8455 (Mon-Fri: 8.30am to 6.30pm,
Sat: 9.00am to 5.00pm)
8 Don’t handle the plug or use the
vacuum cleaner with wet hands
8 Don’t vacuum up any ammable
or combustible materials (lighter
uid, petrol, kerosene etc.) or use
the vacuum cleaner in an area with
explosive vapours or liquid
8 Don’t vacuum up hot coals, cigarette
butts, matches or smoking hot burning
items or use in an area where there
may be harmful uids (chlorine,
bleach, and ammonia drain cleaner)
8 Don’t attempt to remove blockages
with sharp objects as this may cause
damage to your vacuum cleaner
8 Don’t vacuum up hard or sharp
objects such as glass, nails, screws
or coins etc
8 Don’t use the vacuum cleaner with
incorrect voltage as this may result
in damage or injury to the user.
The correct voltage is listed on the
ratings label.
Let’s talk safety Let’s talk safety
U86-AB_e_Series_Action_802_UG_[J2543]_Amd_02.07.14.indd 2-3 02/07/2014 13:47
Thank you for buying this Action 802.
Taking care of your carpets
The Action 802 is designed to make vacuuming carpets regularly, as eective and ecient
as possible and this user guide will help you get the most out of your machine.
Maintaining your carpets will ensure they keep their appearance for longer. You’ve chosen carpets
for your home for a reason and Vax will help you take good care of them.
Taking care of your Action 802
Also inside this guide are instructions on maintaining your new machine, so that it’s always ready
when you are to tackle your carpets.
Contents
Let’s talk safety
Getting to know your machine
Getting started
Using your machine
Taking care of your machine
Let’s talk technical
What to do if it goes wrong
Getting in touch
Notes
Action 802
3 in 1 tool
Included with
your machine
TurboTool
Tool connector
Pre-motor lter
Post-motor lter
Action 802 Reach
+
Initial Setup for normal operation
1. Use the base accessories.
a. Shortest hose
b. Extension tube set to shor test practicable length.
2. Clean lters installe d.
3. Du st receptacle empty.
4. All Bleeds mu st be closed.
5. Floor hea ds/tools set to Carpe t Mode for carpet cleaning.
6. Mechanic al Agitation turned ON for carpet clea ning.
7. Floor heads/tools set to Hard Floo r Mode for hard oor cleaning.
8. Mechanic al Agitation turned OFF for hard oor cle aning.
+
Action 802 Pet
Taking care of you
We’re here if you need us. Instead of taking me back
to the shop, simply visit:
vax.co.uk/support or call:
(UK) 0330 026 8455 (ROI) 1-800 928 308
Monday-Friday 8.30am to 6.30pm, Saturday 9.00am to 5.00pm
Calls are charged at the UK local rate. Before you call we’ll need you to have the following
information to hand: your machine, your proof of purchase or warranty registration code.
Alternatively, you can write to us at:
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 0QH, UK
This user guide can also be found online at: vax.co.uk/support
Let us know what you think @VaxUK
3.2m Stretch hose
U86-AB_e_Series_Action_802_UG_[J2543]_Amd_02.07.14.indd 4-5 02/07/2014 13:47
Getting started
Name Action 802 Series
Voltage 220-240V~50Hz
Wattage 750W
Cord length 8/10m
Weight 6.5kg
Technical Specication
Filter Kit (Type 98)*
1-1-134233-00
Belt Kit (Type 1)*
1-1-130669-01
Pro Cleaning Kit (Type 2)
1-1-133326-00
Turbo Tool (Type 6)
3 in 1 Tool
1-1-134419-00
Accessories & Consumables
Carry handle
Hose
Handle
Extension tube
Dirt container release button
Power on / o button
Pre-motor lter
Separator
Dirt container
Post-motor lter
Carpet height
adjuster
Handle release button
Quick release
cord hook
Hose to machine
connector
Getting to know your machine
Insert the back panel
into the oorhead.
Insert the lower cord
hook into the hole
at the bottom of the
back panel.
Now take the small
clip and push it down
between the end of the
cord hook and the
machine, to lock the
cord holder in place.
Place the dirt container onto the machine.
Ensure the dirt container tabs line up with
the holes in the post motor lter cover.
Assembling your upright
Ensure that the back of
the dirt container connects
to the inlet tube.
Place dirt container on
machine and click into
place at the back panel.
Insert the short end of the
hose into the tube at the
back of the machine and
turn to lock.
Push the hose end into the
hose to machine connector.
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
Wrap the power cord around the quick
release cord hook at the top and the lower
cord hook, continue wrapping the power
cord until it is secure.
Attach TurboTool clip to the
handle. Snap TurboTool
into position.*
Inset the handle into the
top of the back panel until it
clicks into place.
U86-AB_e_Series_Action_802_UG_[J2543]_Amd_02.07.14.indd 6-7 02/07/2014 13:47
Before you begin cleaning
• Always switch o and unplug the vacuum cleaner before connecting or disconnecting the hose/attachments,
or removing and emptying the dirt container.
• The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does overheat the
thermostat will automatically turn the vacuum cleaner o. If this happens, switch the vacuum cleaner o and unplug
from electrical socket. Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the
vacuum cleaner to cool for approximately 1 hour (if you have cleaned the lters please wait 24 hours for the lters
to fully dry before putting back into the vacuum machine).
• Filters require cleaning at least every 3 months.
• If the vacuum cleaner is blocked, switch o and unplug before removing the blockage.
Push the on/o switch to
turn machine on.
Place your foot gently on the oorhead and pull the
handle backwards to recline the machine.
Taking care of your machine
Remove hose end from
the oorhead.
Attach accessory
adapter to hose end.
If required use tool
connector.
Push the quick release
cord hook to one side to
release the power cord.
Turn the height adjuster
dial backwards for the
carpet setting.
Turn the height adjuster dial
forwards for the hard oor setting,
the oorhead will tilt forward.
Using accessories
Choose an accessory.
Using your machine
MAX
40˚C
T
A
P
24hr
Cleaning the pre-motor lter
Press dirt container release
button to remove the dirt
container.
Place ngers under the
catch of the dirt container
lid and pull to release it.
The lid will lift on a hinge. Use the tab on the lter to
pull the lter out of
it’s housing.
Tap the lter over a bin
to release dirt.
Hold the dirt container over a bin
and unclip the lock on the bottom
of the dirt container, allowing the
dirt to fall out.
Close the base of the dirt
container and click the dirt
container back on to the
back panel.
Emptying and cleaning the dirt container
MAX
40˚C
24hr
24hr
Wash the lter under running
water (40 degree max).
Leave to fully dry for a least
24 hours before placing back
in the machine.
U86-AB_e_Series_Action_802_UG_[J2543]_Amd_02.07.14.indd 8-9 02/07/2014 13:47
Place ngers under the
catch of the bin to dirt
container lid and pull to
release it.
Press dirt container
release button to remove
the dirt container.
24hr
MAX
40˚C
Cleaning the shroud
Taking care of your machine Let’s talk technical
Remove the pre-motor
lter to allow access to
the shroud.
Remove the exhaust cover
by turning it counter clockwise
and lifting it o. To nd the
post-motor lter.
Tap the shroud over the
bin to release dirt.
Wash the shroud under
running water and leave
to dry. The shroud will need
to be placed back correctly.
Remove the lter.
Always switch o and unplug the
vacuum cleaner before carrying
out any maintenance.
IMPORTANT
Removing blockages from the TurboTool*
3
4
1 2
3
4
3
4
4
Removing debris from the brushbar
Vacuuming the stairs
Switch o your vacuum
cleaner at the main socket.
Using a pair of scissors
cut any hair or debris free
from around the brushbar.
Ensure that the vacuum
is upright at the top or
bottom of the stairs while
vacuuming.
Do not lean on the machine
while using the hose.
*Not applicable for all models.
The exhaust lter is designed to oer long life with no maintenance. The lter should be checked periodically and
when heavily discoloured it should be replaced. Please do not wash, scrub or brush the lter as this will damage the
delicate lter media.
HEPA post-motor lter maintenance
Check the post-motor lter
for discolouration.
Remove the rubber ring. Detach lower housing
and remove blockages.
Using a pair of
scissors cut any hair
or debris free from
around the brushes.
Line up the tabs on front of
housing and push together
to re-t. Slide the rubber
ring into groove to secure.
U86-AB_e_Series_Action_802_UG_[J2543]_Amd_02.07.14.indd 10-11 02/07/2014 13:47
Changing the belt
Switch o your vacuum
cleaner at the main socket
and unplug. Remove the
4 screws on the bottom
of the oorhead.
Lift the brush from the
machine starting at the
side without the belt on.
Squeeze the sides of the
oor plate to release it.
Unhook the belt from the
motor spindle in the belt
compartment. (This may
be easier if you use a
screwdriver to do this).
Remove the oor plate.
Place the new belt
around the brush bar.
Remove the belt cover.
Let’s talk technical
Feed the other side into
the belt compartment.
Using a screwdriver,
hook the belt onto the
motor spindle.
Reinsert the brushbar. One end of the
brushbar has a square slot, and one end
has a circular slot, ensure that it is put
back into the correct position.
Accessories
Don’t forget your accessories!
Order at: www.vax.co.uk/spares-and-solutions
Pro cleaning kit
1-1-133326-00
All our best tools all in one kit that makes cleaning
your home quicker, easier and with even better results.
We’ve taken care of cleaning all of the hard to reach
areas such as on top of cupboards and in between
blinds to the dust that collates behind and
within the radiator.
Flexi Crevice Tool
1-1-131393-00
A handy long, exible tool for getting far behind and
around furniture.
TurboTool (Type 6)
1-1-134419-00
Use the TurboTool for vacuuming your stairs,
upholstery and car interiors. It’s great for picking
up stubborn pet hair.
Flat Upholstery Tool
1-1-131394-00
Cleans large areas of upholstery like sofas and
curtains, quickly and eectively.
3 in 1 Tool
1-1-129167-00
3-in-1 tool includes crevice tool for awkward
areas and corner, dusting brush for areas such
as skirting and an upholstery tool for cleaning
sofas, curtains, chair seats and car interiors.
U86-AB_e_Series_Action_802_UG_[J2543]_Amd_02.07.14.indd 12-13 02/07/2014 13:47
* Calls are charged at the UK local rate. Please make a note of the serial number and model number of the vacuum cleaner before calling.
• The vacuum cleaner is making a whistling noise, please remove the dirt
container open the bottom and clean the seals. Replace the dirt container
and retry.
• If there is air sucking noise from the top of the dirt container, this would
indicate a blockage in the machine Go to ‘Why won’t the vacuum cleaner pick
up’ above.
Solution
Problem
CAUTION: To reduce the risk of personal injury, unplug the vacuum cleaner before performing maintenance
/troubleshooting checks.
What to do if it goes wrong
• The plug may not be fully pushed into the electrical socket.
• Check the fuse in the plug if this needs replacing, always replace with
a 13amp fuse.
• The motor thermostat may have tripped. If this has happened, unplug the
vacuum cleaner. Remove and empty the dirt container and check the hose
for blockages Clean the lters and allow the vacuum cleaner to cool for
approximately 1 hour (if you have washed the lters you will need to wait
24 hours for the lters to ful ly dry before putting them back into the
vacuum cleaner).
Why won’t the vacuum
cleaner turn on?
What if my vacuum
cleaner is making an
excessive noise?
• The brushbar may be jammed. If this happens then the machine needs to be
switched o immediately to avoid damage. To remove debris from brushbar
refer to page.
• The belt might not turn if it is broken. To check the belt, go to ‘Changing
the belt’.
My brushbar
isn’t turning?
• There may be a blockage in the hose. Please remove the hose from the vacuum
cleaner, check and clear any blockages.
• Empty the dirt container and clean lters. Go to ‘Taking care of your machine’.
• The brushbar may not be turning. Go to ‘My brushbar isn’t turning?’ below.
• If the accessory/tool will not pick up, check and clear any blockages.
Why won’t the vacuum
cleaner pick up?
• Check the ‘This pack contains’ panel on the box to make sure the part
is included with your machine.
There is an accessory
missing?
Getting in touch
U86-AB_e_Series_Action_802_UG_[J2543]_Amd_02.07.14.indd 14-15 02/07/2014 13:47

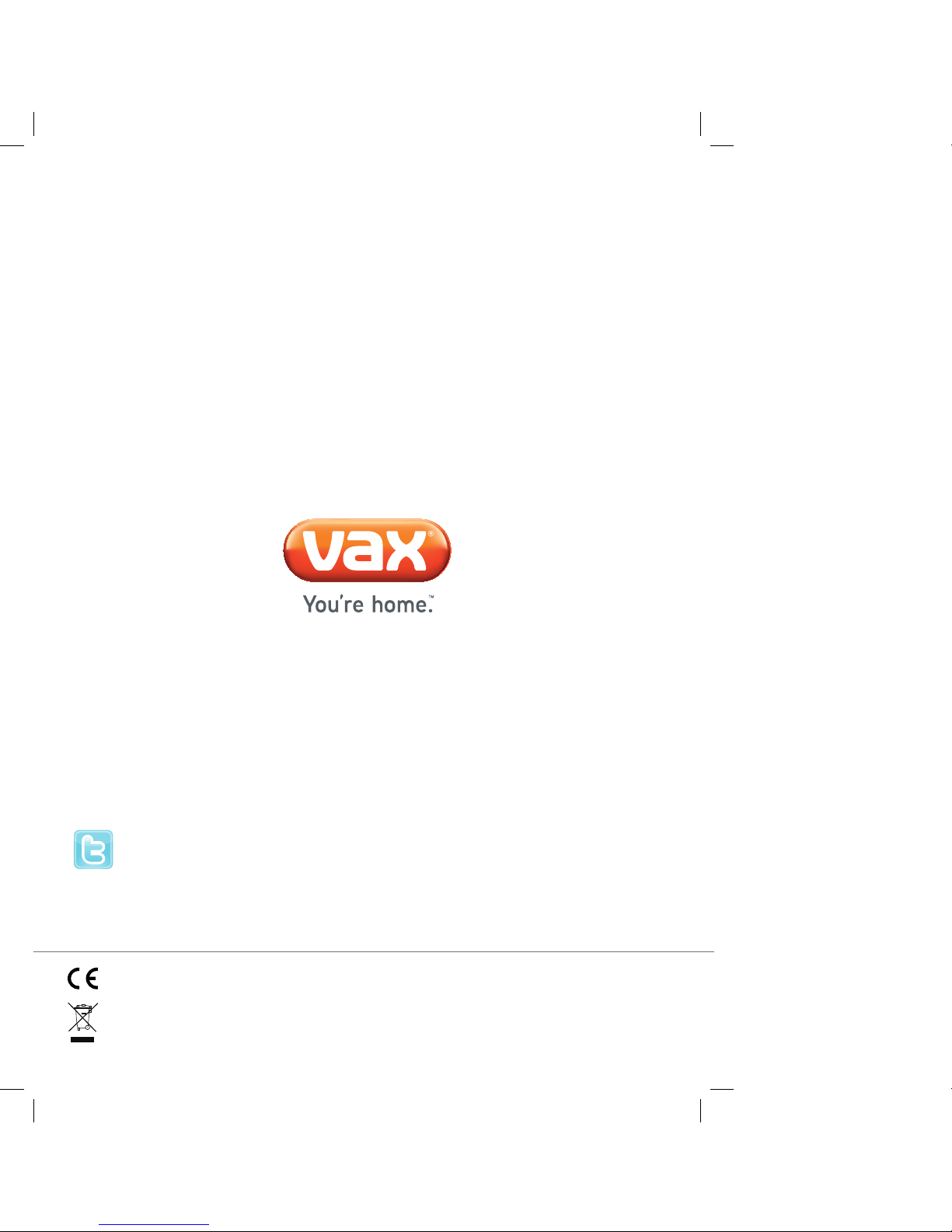

Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 0QH, UK
email: info@vax.co.uk website: vax.co.uk
Version 1.0
EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility,
declare that the U86-AB-Be/U86-AB-Pe/U86-AB-Re is manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive. EMC: 2004/108/EC Electromagnetic Compatibility Directive
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
@VaxUK
© 2014 All rights reserved. VAX®, VAX Lozenge, are trade marks or registered trade marks of Techtronic Floor Care Technology Ltd.
U86-AB_e_Series_Action_802_UG_[J2543]_Amd_02.07.14.indd 16 02/07/2014 13:47
Loading...
