www.vax.co.uk
Please read carefully before using this cleaner.
Always fully extend the mains cable before use.
R
e
tain f
or future reference.
instruction manual
Multifunction
Vax model number:
8131
Vax 8131A Pet&Stair Guide.qxd 13/6/07 17:34 Page 1
8131 Pets and Stairs
1. Diagram
www.vax.co.uk
2
parts overview
1
2 3 4
5 6
7
9
10
11 12
8
13
14
15
16
17
18
Fig.1/1
1 Motor unit
2 Cone filter unit
3
Clean water bucket
4 Dirty water bucket
5 ‘For Pets’ AAAcarpet cleaning solution
6
W
ater delivery tube (+5 clips)
7 Hose and hand grip
8
Extra long stair hose (for dry vacuuming only)
9 Dust bags (x2)
10 Upholstery / stair tool
11 Crevice tool
12
Dusting brush
13 TurboTool
14 TurboBrush
15
Ext
ension tubes (x2)
16 Upholstery wash tool
17
Fibreflow carpet wash head
18 Hard floor tool (for dry vacuuming only)
Vax 8131A Pet&Stair Guide.qxd 13/6/07 17:34 Page 2
3
safety information
2. Safety Information
FOR HOUSEHOLD USE ONLY.
When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:
1. Do not leave the carpet washer unattended when
plugged in. Unplug it from socket when not in use.
2. To prevent electric shock do not use outdoors.
3. Not to be used as a toy. Children should be supervised to
ensure that they do not play with the appliance.
4. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning the use of the appliance by a person
responsible for their safety.
5. Use only as described in this manual.
6. Do not use with a damaged cord or plug. If the supply
cord and/or plug is damaged, they must be replaced
by the manufacturer, a Vax Service Agent or similarly
qualified persons in order to avoid hazard.
7. Do not pull or carry by the cord, use the cord as a
handle, allow the cord to come into contact with hot
or sharp surfaces or close a door on the cord.
8. Do not unplug by pulling on the cord.
9. Do not handle the plug or carpet washer with wet
hands.
10. Do not put any objects into openings or operate with
openings blocked, keep them free of anything that
may reduce airflow.
11. Keep hair, loose clothing, fingers and all parts of the
body away from openings and moving parts.
12. Do not use the carpet washer on any glowing,
burning or smoking particles.
13. Do not use without the solution tank and dirty water
tank in place.
14. Do not use the vacuum without the dust bag in place.
15. Turn off all controls before unplugging.
16. Do not use to pick up flammable or combustible
liquids such as pe
tr
ol, or use in areas where they may
be present.
17.
K
eep the unit on the floor
.
18. Do not use an extension cord.
19. Do not attempt to remove blockages with sharp
objects as the
y ma
y cause damage.
20. Store indoors put away after use to prevent tripping
acciden
ts.
21. Using improper voltage may result in damage to the
motor and possible injury to the user. The correct
voltage is listed on the rating label.
22. A hazard may occur if the carpet washer runs over
the power supply cord.
23. To prevent dirty water from running into motor, do
not hold the appliance upside-down or lay on its side.
Use appliance in normal vacuuming position.
24. Use extra care when cleaning on stairs.
25. Do not carry appliance while motor is running.
NOTE: Carpets should be dry vacuumed thoroughly
before washing.
NOTE: The unit must be unplugged from the mains
socket outlet after use, and before cleaning or
maintaining the unit.
IMPORTANT: This unit is not intended for
commercial use.
PLEASE KEEP THESE INSTRUCTIONS
FOR FURTHER USE.
!
Vax 8131A Pet&Stair Guide.qxd 13/6/07 17:34 Page 3
www.vax.co.uk
4
set up / preparation
3. Initial Set Up
IMPORTANT: Always unplug the vacuum cleaner
from the electrical outlet before assembling or
removing the accessories.
4. Preparing the Unit for
Carpet Washing
IMPORTANT: Use only Vax AAA carpet cleaner
with this machine. Using other cleaning
solutions may cause excessive foaming and damage
the unit. Using other soaps will void your warranty.
Fig.3/1
W
ATER - Max. 40º C
Fig.4/1
Fig.4/2
Fig.4/3
Fig.3/2
Fig.3/3
!
!
Vax 8131A Pet&Stair Guide.qxd 13/6/07 17:34 Page 4
5
operation
5. Carpet Washing Instructions
Fig.5/3
Fig.4/4
Fig.4/5
Fig.5/1
2M
2M
DRYINGWASHING
Fig.5/2
Vax 8131A Pet&Stair Guide.qxd 13/6/07 17:34 Page 5
www.vax.co.uk
6
cleaning up
6. Upholstery Washing Instructions
7. Cleaning Up After Use
Fig.7/1
Fig.7/2
Fig.7/3
Fig.6/3
Fig.6/1
DRYING
WASHING
Fig.6/2
Vax 8131A Pet&Stair Guide.qxd 13/6/07 17:34 Page 6
7
maintenance / clearing blockages
8. Maintaining Your Unit
Replace the cone filter regulalrly (Fig.8/1).
Wash out the blue filter regularly and replace occasionally
(Fig.8/2).
9. Clearing Blockages
WARNING: To reduce the risk of electric shock,
the power cord must be disconnected before
performing maintenance or troubleshooting checks.
Turn the vacuum cleaner off and unplug from the electrical
outlet.
The flexible hose can be disconnected from the vacuum
cleaner by rotating the hose connector 90 degrees anticlockwise and pulling away from the machine. Remove any
blockages found then reconnect the hose securely.
Removing debris from the TurboTool
Switch the vacuum cleaner off and disconnect the power
plug from the electrical outlet.
Rotate the locking ring 180º (Fig.9/1).
Lift the top cover off and remove any blockage (Fig.9/2).
To re-assemble, ensure that the tabs are engage. Pivot the
lower housing closed and rotate the locking ring 180º
(Fig.9/2).
Removing debris from the TurboBrush
The brushbar will stop rotating if it is blocked during
oper
ation by vacuuming up foreign objects, or is strands of
carpet are wrapped around it.
Fig.8/1
Fig.8/2
L
OCKING RING
Fig.9/1
Fig.9/2
!
TABS
Vax 8131A Pet&Stair Guide.qxd 13/6/07 17:34 Page 7
www.vax.co.uk
8
clearing blockages / troubleshooting
Switch the vacuum cleaner off and disconnect the power
plug from the electrical outlet.

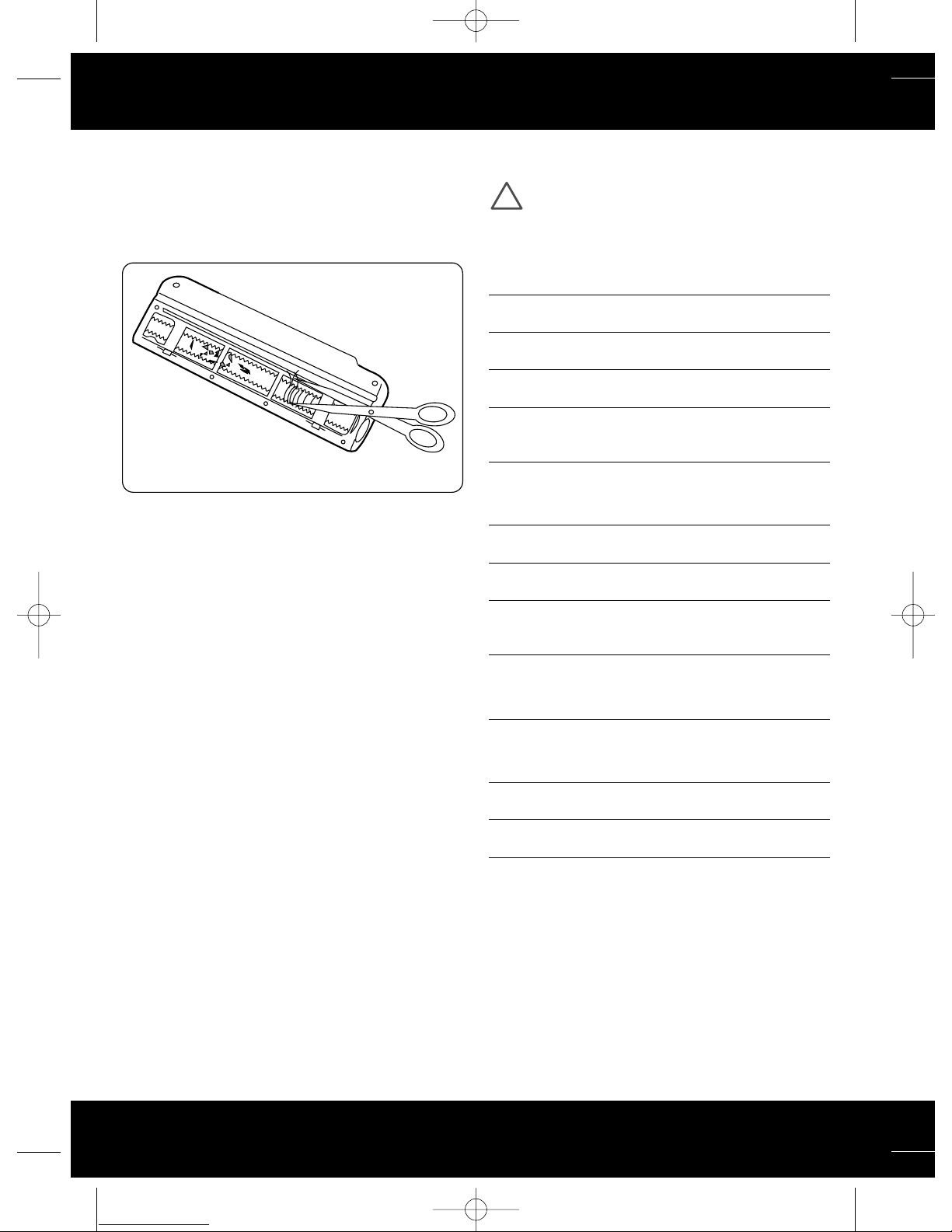

Lay the TurboBrush floor head on a flat surface and turn
over to expose the brushbar. Using a pair of scissors, cut
through any threads or hairs caught by the brushbar that
have wrapped around the guides (Fig.9/3).
10. Troubleshooting
WARNING: To reduce the risk of personal injury,
unplug the vacuum cleaner before performing
maintenance or troubleshooting checks.
PROBLEM: Vacuum cleaner won't run
Cause:
Not properly plugged into electrical outlet.
Solution: Plug unit in firmly.
Cause: Vacuum cleaner not turned on.
Solution: Press on/off button.
Cause: No electricity in the electrical outlet.
Solution: Check fuse or breaker.
Cause: Blown fuse / tripped breaker.
Solution: Reset circuit breaker or replace fuse.
Cause: Motor thermostat has tripped.
Solution: Switch off and unplug the vacuum cleaner.
Leave for one (1) hour. See page 3.
PROBLEM: Cleaner won’t pick up/loss of suction.
Cause:
Dust bag not installed correctly.
Solution: Review dust bag removal and replacement.
Cause: Dust bag full or blocked.
Solution: Replace dust bag.
Cause: Clogged filter.
Solution: Remove filter and clean.
Cause: Blockage in hose.
Solution: Disconnect hose, remove the obstruction
then re-fit.
PROBLEM: Accessories won’t pick up.
Cause:
Accessories not attached correctly.
Solution: Refer to page 7 for fitting information.
PROBLEM: Dust escaping from the vacuum cleaner.
Cause:
Dust bag full.
Solution: Dispose of dust bag, replace with a new one.
Cause: Dust bag not installed correctly.
Solution: Review dust bag removal and replacement.
Cause: Hose not installed correctly.
Solution: Review hose installation.
Cause: Filt
er not installed completely.
Solution: Review filter removal and replacement.
!
Fig.9/3
Vax 8131A Pet&Stair Guide.qxd 13/6/07 17:34 Page 8
9
technical specification
11. Technical Specification
Voltage: 220-240V ~50Hz
Wattage: 1300W
Capacity: Clean water tank: 4 litres
Dirty water tank: 8 litres
Filters: Pre-motor filters
Post-motor filter
Cone filter
Cord length: 7.5m
Weight: 7.5kg
Subject to technical change without notice.
Vax 8131A Pet&Stair Guide.qxd 13/6/07 17:34 Page 9
www.vax.co.uk
10
This page has been left intentionally blank
Vax 8131A Pet&Stair Guide.qxd 13/6/07 17:34 Page 10
11
This page has been left intentionally blank
Vax 8131A Pet&Stair Guide.qxd 13/6/07 17:34 Page 11
EEC STATEMENT OF COMPLIANCE
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
8131Pets and Stairs multifunction cleaner is manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive
EMC: 89/336/EEC Electromagnetic Compatibility Directive
W
as
te electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
Vax 8131A Pet&Stair Guide.qxd 13/6/07 17:34 Page 12
