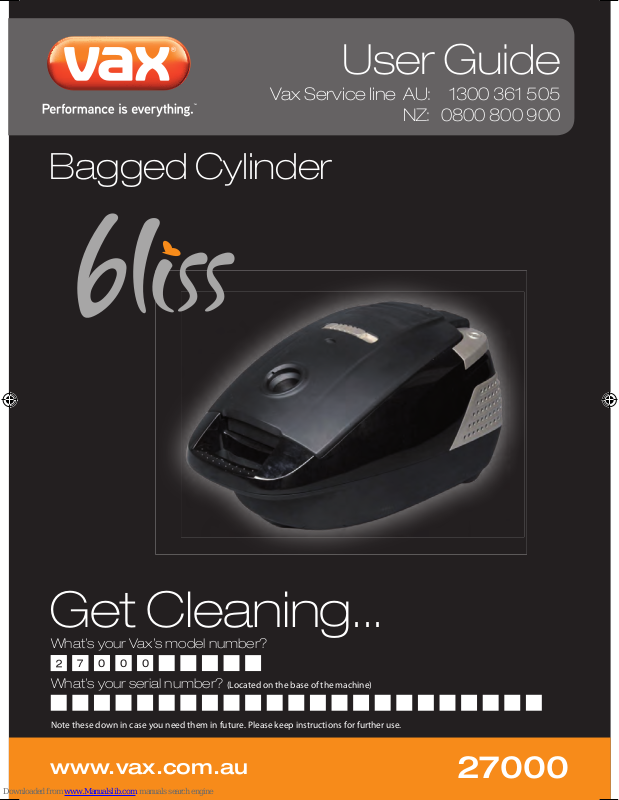

Vax Service line AU: 1300 361 505
2
7
000
Bagged Cylinder
User Guide
NZ: 0800 800 900
Get Cleaning...
What’s your Vax’s model number?
What’s your serial number?
Note these down in case you need them in future. Please keep instructions for further use.
www.vax.com.au
(Located on the base of the machine)
27000
2
Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
3
www.vax.com.au
General Safety Information
Machine Overview
Accessories Filters
Carry handle
Bag full indicator
On / Off button
Air Intake Duct
Hose and handle
Dust bag
Combination floor head
Crevice tool
2-in-1 tool (Upholstery &
Dusting Brush)
Variable power
Cord rewind button
Ionizer light
Telescopic wand
Cloth bag
Hard floor brush
Turbo brush
Pre motor filter
Post motor filter
1
1
6
6
2
2
7
7
3
3 8
4
4
5
5
1
4
7
6
2
3
5
FOR HOUSEHOLD USE ONLY.
When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:
1. Only use the vacuum cleaner indoors on dry surfaces.
2. Turn off the vacuum cleaner controls before disconnecting
or connecting from the mains supply.
3. Always unplug the vacuum cleaner before connecting or
disconnecting the vacuum hose and accessories.
4. Children should be supervised to ensure that they do not
play with the appliance.
5. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
6. Use only as described in this manual. Use only Vax
recommended attachments.
7. Do not use the vacuum cleaner if it has been dropped,
damaged, left outdoors or dropped into water. Do not
use the vacuum cleaner with a damaged cord or plug.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
8. Do not pull or carry by cord. Do not use the cord as a
handle, close a door on the cord or pull cord around sharp
edges or corners. Do not run the vacuum cleaner over the
cord. Keep the cord away from heated surfaces.
9. Do not handle the plug or vacuum cleaner with wet hands.
Do not use outdoors or on wet surfaces.
10. Do not put any objects into openings. Do not use with
any openings blocked and do not restrict airflow. Keep
all openings free of dust, lint, hair or anything that might
reduce airflow.
11. Keep hair, loose clothing, fingers and all parts of the body
away from openings and moving parts.
12. Do not pick up hot coals, cigarette butts, matches or any
hot, smoking or burning objects.
13. Do not pick up flammable or combustible materials
(lighter fluid, petrol, kerosene etc.) or use in the presence
of explosive liquids or vapours.
14. Do not vacuum up harmful or toxic material (chlorine,
bleach, ammonia, drain cleaner etc.).
15. Do not vacuum up hard or sharp objects such as glass,
nails, screws, coins, etc.
16. Do not use without ALL of the filters in place.
17. Take extra care when vacuuming on stairs.
18. Keep vacuuming area well lit.
19. Store the vacuum cleaner in a cool, dry area.
20. Turn off the on/off switch before unplugging the
vacuum cleaner
21. Use only SAA approved 10 amp extension cords. Non-
approved cords may overheat. Care should be taken to
arrange the cord so that the cord cannot be tripped over.
22. Damaged cord to be replaced by manufacturer or
authorised Vax service agent.
23. We recommend the use of a residual current device with
a residual current rating of 30mA or less.
WARNING: Always switch off and unplug the
vacuum cleaner from the electrical outlet before
assembling, opening or emptying the dirt container, or
before connecting/disconnecting the attachments.
CAUTION: The vacuum cleaner is a very powerful
unit. Before plugging the cord into the electrical outlet,
make sure the switch is in the ‘off’ position. Hold the vacuum
cleaner firmly when starting and in use.
IMPORTANT: If the inlet, hose or telescopic tube is
blocked, switch off the vacuum cleaner and remove
the blockage(s) before re-starting the vacuum cleaner.
IMPORTANT: Cleaning filters improves vacuum
performance. Vax recommends that your filters
should be checked and cleaned periodically. If your filters
are washable make sure they are completely dry before
inserting back into the vacuum cleaner.
IMPORTANT: The motor is equipped with a thermal
cut-out. If for any reason the unit should overheat, the
thermostat will automatically turn the unit off. Should this
occur, unplug the vacuum cleaner from the electrical outlet
and turn off the switch. Remove dirt container and empty.
Clean filters. Allow the unit to cool for approximately one hour.
To re-start, plug into an electrical outlet and switch back on.
This vacuum cleaner is intended for household use
only and NOT for commercial or industrial use.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.
1
2
3
4
6
10
11
5
7
8
9
10
11
9
4 5
www.vax.com.au
Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
Operation
Operation
Keep your Vax like new
Operating the appliance
Assembling your vacuum cleaner
1. Attaching the Flexible Hose into the vacuum. (Pict. 1)
2. Connect the flexible hose into the air intake duct; push in until you hear a “click”, indicating it is in its locked position.
IMPORTANT: The condition of the filters affects the performance of
your machine. Please check and clean filters periodically (depending
on the level of use). For full cleaning instructions, see Maintenance.
IMPORTANT: Do not use the vacuum cleaner without all of the
filters in place.
3. Push the tube into the curved hose extension, (Pict. 2). Fit the tube into the Floor Brush by pushing. (Pict. 3) Adjust the tube to
the desired length. (Pict. 2- 3)
Once all attachments are in place
1. Unwind a sufficient length of cable and insert the plug into the wall outlet.
2. A yellow mark on the power cord shows the ideal cable length, (Pict. 4).
3. Do not pull the power cord beyond the red mark, (Pict. 5).
4. Insert the power plug into the wall outlet.
5. Press the power on/off button located on the unit to turn the vacuum cleaner “on”, (Pict. 6).
To rewind the power cord:
1. Press the Cord Rewind Button with one hand and guide the power cord with the other hand to ensure that it does not whip
around causing damage or injury, (Pict. 7).
To adjust the suction:
1. Slide the suction control button on the suction handle to increase or reduce the suction. (Pict. 8).
