Vax 20RTC User Manual

20-INCH

TFT-LCD MONITOR

20RTC

INSTRUCTION MANUAL

Please read this manual thoroughly before use, and keep it handy for future reference.

SAFETY INSTRUCTION…………………………………………………………………….2 - 3
CAUTIONS ………………………………………..……………………………………………..4
FCC RF INTERFERENCE STATEMENT …………………………………………………….5
CONNECTING WITH EXTERNAL EQUIPMENT…………………………………………… 6
REMOTE FUNCTIONS ………………………………………………………………… …….. 7

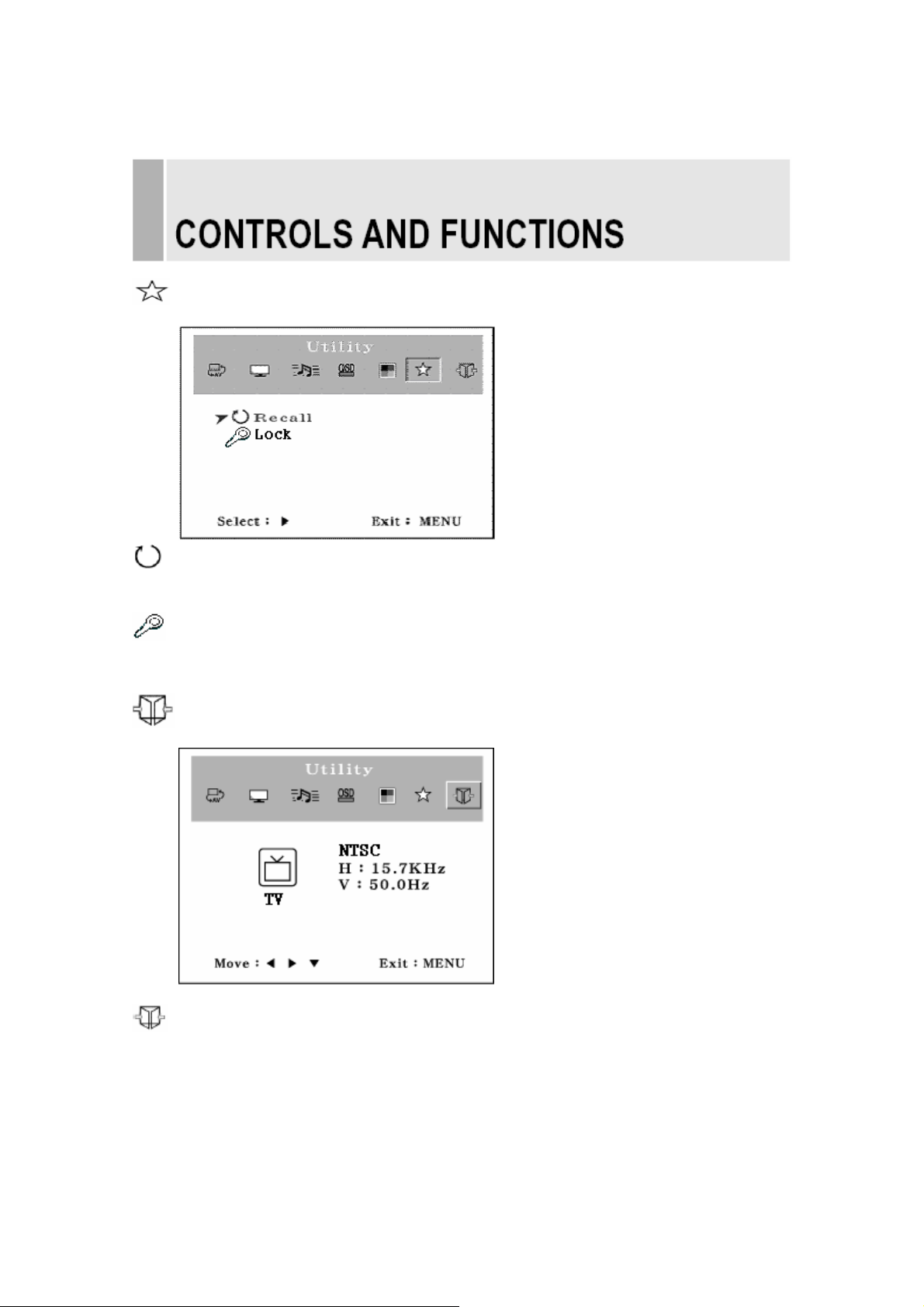

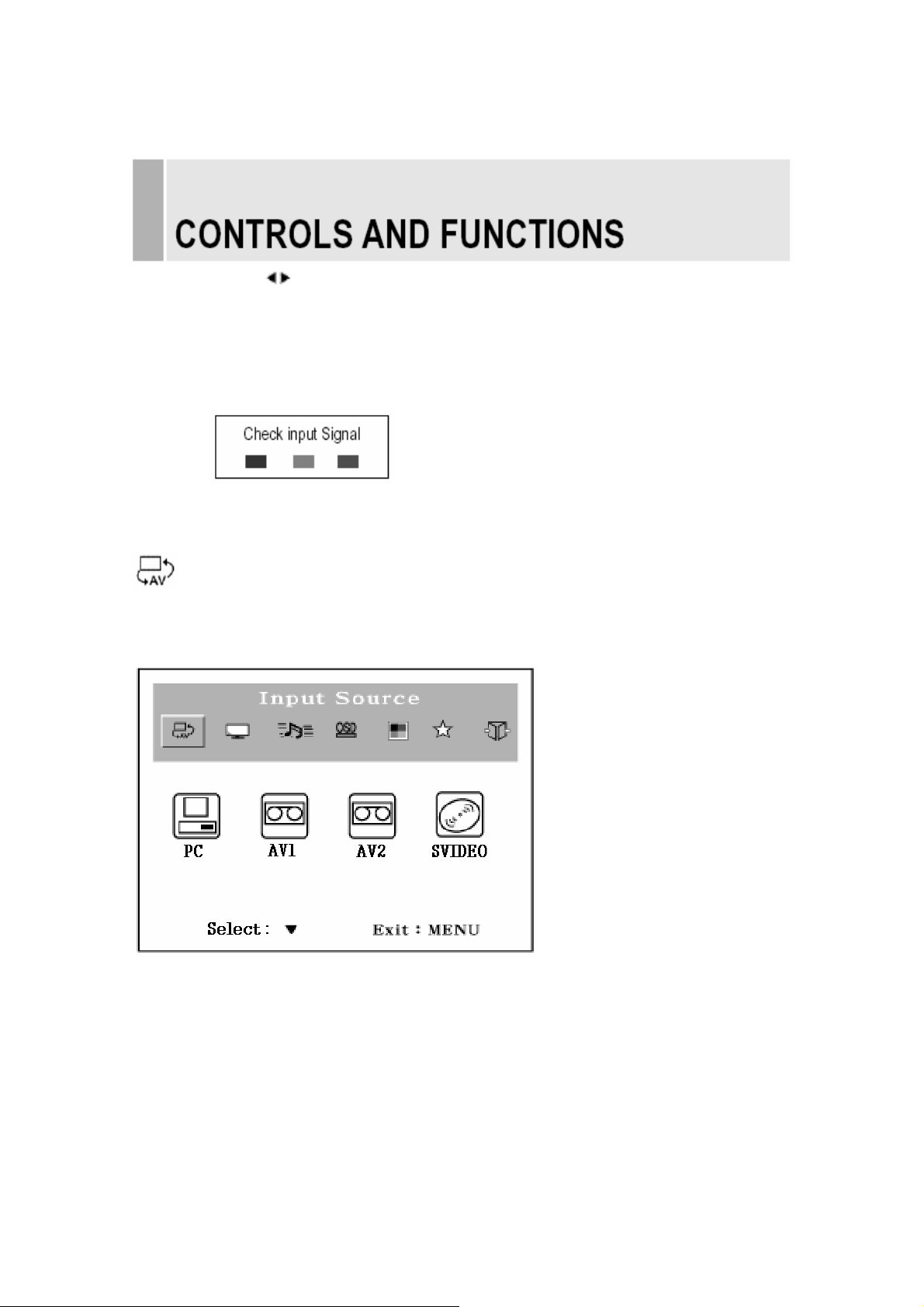

CONTROLS AND FUNCTIONS…………………………………………………………..8 - 14
D-SUB CONNECTOR PIN ASSIGNMENTS ……………………………………………….15
POWER MANAGEMENT……………………………………………………………………..16
SPECIFICATIONS………………………………………………………………………. ……17
TROUBLESHOOTING GUIDE. ……………………………………………………………..18

.

1

……………………………………………………………………………

INSTRUCTION MANUAL

1. Read all of these instructions.

2. Save these instructions for later use.

3. Follow all warnings and instructions marked on the product.

4. Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

5. Do not use this product near water.

6. Do not place this product on an unstable cart, stand or table.
The product may fall, causing serious damage to the product.

7. Please keep the below conditions.

A. Minimum distances(10Cm) around the apparatus for sufficient ventilation.
B. The ventilation should not be impeded by covering the ventilation openings with items,

such as newspapers, table-cloths, curtains, etc..
C. No naked flame sources, such as lighted candles, should be placed on the apparatus.
D. Attention should be drawn to the environmental aspects of battery disposal.
E. The use of apparatus in tropical and/or moderate climates.

8. This product should be operated from the type of power source indicated on the marking

label. If you are not sure of the type of power available, consult your dealer or local power
company.

9. This product is equipped with a 3 wire grounding type plug having a third(grounding) pin. This

is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician
to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug.

10. Do not allow anything to rest on the power cord.

Do not locate this product where persons will walk on the cord.

11. If an extension cord is used with this product, make sure that the total of the ampere ratings

on the products plugged into the extension cord do not exceed the extension cord ampere
rating. Also, make sure that the total of all products plugged into the wall outlet does not
exceed 10 amperes.

12. Never push objects of any kind into this product through cabinet slots as they may touch

dangerous voltage points or short out parts that could result in a risk of fire or electric shock.
Never spill any kind of liquid on the product.

INSTRUCTION MANUAL

………………………………………………………………………………

2

13. Do not attempt to service this product yourself, as opening or removing covers may expose

you to dangerous voltage points or other risks.
Refer all servicing to service personnel.

14. Unplug this product from the wall outlet and refer servicing to qualified service personnel

under the following conditions.
A. When the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the Product does not operate normally when the operating instructions are followed. Adjust

only those controls that are covered by the operating instructions since improper adjustment

of other controls may result in damage and will often require extensive work by a qualified

technician to restore normal operation.
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinct change in performance, indicating a need for service.

CAUTIONk

The power supply cord is used as the main disconnect device, ensure that the
socket-outlet is located/installed near the equipment and is easily accessible.

ATTENTIONN

Le cordon d`alimentation est utillsé comme interrupteur général. La prise de
courant doit être située ou installée à proximité du matériel et être facile
d`accès

3

………………………………………………………………………………

INSTRUCTION

▶ NEVER REMOVE THE BACK COVE R

Removal of the back cover should be carried out only by qualified personnel.

▶ DO NOT USE IN HOSTILE ENVIRONMENTS

To prevent shock or fire hazard, do not expose the unit to rain or moisture.

This unit is designed to be used in the office or home. Do not subject the unit to vibrations,

dust of corrosive gases.

▶ KEEP IN A WELL VENTILATED P LACE

Ventilation holes are provided on the cabinet to prevent the temperature from rising.

Do not cover the unit or place anything on the top of unit.

▶ AVOID HEAT

Avoid placing the unit in direct sunshine or near a heating appliance.

▶ TO ELIMINATE EYE FATIGUE

Do not use the unit against a bright back ground and where sunlight or other light sources will

shine directly on the monitor.

▶ BE CAREFUL OF HEA VY OBJECT

Neither the monitor itself nor any other heavy object should rest on the power cord.

Damage to a power cord can cause fire or electrical shock.

INSTRUCTION MANUAL

……………………………………………………………………………

4

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures.

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.

- Consult the dealer or an experienced radio, TV technician for help.

- Only shielded interface cable should be used.

Finally, any changes or modifications to the equipment by the user not expressly approved by
the grantee or manufacturer could void the users authority to operate such equipment.

▶ DOC COMPLIANCE NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital
apparatus set out in the radio interference regulation of Canadian Department of
communications.

.

5

………………………………………………………………………………
