6 Introduction

Introduction

General information ....................... 6

Theft-deterrent feature ................... 7

Control elements overview ............ 8

Usage .......................................... 11

General information

The Infotainment system provides you with state-of-the-art in-car infotainment.

Using the FM, AM or DAB radio functions, you can register a great number of stations on various favourites pages.

You can even register music tracks, telephone numbers, destination addresses or tone settings on the favourites pages.

You can connect external data storage devices to the Infotainment system as further audio sources; either via a cable or via Bluetooth®.

The navigation system with dynamic route planning will reliably guide you to your destination, and, if desired, automatically avoid traffic jams or other traffic problems.

In addition, the Infotainment system is equipped with a Phone portal that allows comfortable and safe use of your mobile phone in the vehicle.

Using the phone projection function, you can operate specific applications on your smartphone via the Infotainment system.

Via the shop application, you may download additional apps to the Infotainment system.

Optionally, the Infotainment system can be operated using controls on the steering wheel or via the speech recognition system.

The well-thought-out design of the control elements, the touch screen and the clear displays enable you to control the system easily and intuitively.

Notice This manual describes all options and features available for the various Infotainment systems. Certain descriptions, including those for display and menu functions, may not apply to your vehicle due to model variant, country specifications, special equipment or accessories.

Page 7

Introduction 7

Important information on operation and traffic safety

9 Warning

Drive safely at all times. Only operate the Infotainment system if the traffic conditions allow a safe usage.

In the interest of safety, it might be appropriate to stop the vehicle before operating the Infotainment system (e.g. for entries of addresses).

9 Warning

The usage of the navigation system does not release the driver from the responsibility for a correct, vigilant attitude in road traffic. Always follow the applicable traffic rules.

9 Warning

In some areas one-way streets and other roads and entrances (e.g. pedestrian zones) that you are not allowed to turn into are not marked on the map. In such areas the Infotainment system may issue a warning that must be accepted. Here you must pay particular attention to one-way streets, roads and entrances that you are not allowed to drive into.

Radio reception

Radio reception may be disrupted by static, noise, distortion or loss of reception due to:

● changes in distance from the transmitter

● multi-path reception due to reflection

● shadowing

Theft-deterrent feature

The Infotainment system is equipped with an electronic security system for the purpose of theft deterrence.

The Infotainment system therefore functions only in your vehicle and is worthless to a thief.

Page 8

8 Introduction

Control elements overview

Centre display with controls

Page 9

Introduction 9

1 Display/touch screen ............. 14

2 Information on the OnStar

module with Wi-Fi connectivity and on the hotspot connection to

another device ...................... 11

3 BACK

Press: return to previous screen/menu

4 v

Radio: short press: skip to next station; long press:

seek up ................................. 31

External devices: short press: skip to next track;

long press: fast forward ......... 37

5 X

If switched off: short press:

switch power on .................... 11

If switched on: short press: mute system; long press:

switch power off .................... 11

Turn: adjust volume .............. 11

6 t

Radio: short press: skip to previous station; long

press: seek down .................. 31

External devices: short press: skip to previous track; long press: fast

rewind ................................... 37

7 ;

Short press: display home screen

Long press: start phone projection

Steering wheel controls

1 s

Short press: take phone call . 69

or activate speech

recognition ............................ 61

or interrupt a prompt and

speak directly ........................ 61

Long press: activate voice pass-thru (if supported by

phone) ................................... 61

2 n

Press: end/decline call .......... 69

Page 10

10 Introduction

or deactivate speech

recognition ............................ 61

or activate/deactivate

mute function ........................ 11

For a description of all other controls, see Owner's Manual.

1 m

Press: display menu for application selection; return to next higher menu level on the Driver Information Centre (see images below)

2 d / c

Short press: select menu item on the Driver Information Centre

Long press: fast-scroll through a long contacts list on the Driver Information Centre

3 9

Press: confirm selection on the Driver Information Centre

4 n

Press: display applicationspecific main menu on the Driver Information Centre

5 À / Á ............................... 11

Press upwards: increase volume

Press downwards: decrease volume

Page 11

Introduction 11

6 k / l

Radio: press to select next / previous favourite on the Driver Information

Centre ................................... 18

Media: press to select next / previous track on the

Driver Information Centre ...... 37

Driver Information Centre (midlevel):

Driver Information Centre (uplevel):

The uplevel Driver Information Centre enables switching between two different display modes (themes), Tour and Sport.

The image above shows the Tour theme (for changing the display theme, see Owner's Manual).

Usage

Switching Infotainment system on/off

Press X briefly. After switching on, the last selected Infotainment source becomes active.

Automatic switch-off If the Infotainment system is switched on by pressing X while the ignition is switched off, it switches off again automatically after 10 minutes.

Setting the volume

Turn X. The current setting is shown on the

display.

Page 12

12 Introduction

When the Infotainment system is switched on, the last selected volume is set, provided that the volume is lower than the maximum start-up volume 3 26.

Auto volume When Auto volume is activated 3 26, the volume is adapted automatically to compensate for the road and wind noise while driving.

Mute Briefly press X to mute the audio sources.

To cancel mute again: turn X or press it briefly.

Modes of operation

Radio Press ; and select AUDIO on the home screen. Select RADIO in the interaction selector bar.

For a detailed description of the radio functions 3 31.

External devices Press ; and select AUDIO on the home screen. Repeatedly select MEDIA in the interaction selector bar.

For a detailed description on connecting and operating external devices 3 36.

Navigation Press ; and select NAV on the home screen.

The navigation map showing the area around the current location is displayed.

For a detailed description of the navigation functions 3 42.

Phone Before the phone portal can be used, a connection has to be established between the Infotainment system and the mobile phone.

For a detailed description of preparing and establishing a Bluetooth connection between the Infotainment system and a mobile phone 3 66.

If the mobile phone is connected, press ; and then select PHONE on the home screen.

The main menu of the phone portal is displayed.

For a detailed description of mobile phone operation via the Infotainment system 3 69.

Phone projection To show specific apps of your smartphone on the Infotainment system, connect your smartphone.

Press ; and then select PROJECTION on the home screen.

Depending on the smartphone connected, a main menu with different selectable apps is displayed.

For a detailed description 3 39.

App shop To download additional apps to the Infotainment system, select SHOP.

For a detailed description 3 39.

OnStar To display a menu with the OnStar Wi-Fi settings, select OnStar.

Page 13

For a detailed description, see Owner's Manual.

Introduction 13

Page 14

14 Basic operation

Basic operation

Basic operation ............................ 14

Menu operation ............................ 16

Keyboards .................................... 17

Favourites .................................... 18

Contacts ....................................... 22

Tone settings ............................... 26

Volume settings ........................... 26

System settings ........................... 27

Basic operation

The centre display has a touchsensitive surface that allows direct interaction with the screen.

m screen button

To return to the next higher menu level, select m.

Exit screen button

To leave the menu currently active, select Exit.

Selecting or activating a screen button or menu item

Touch a screen button or menu item. The corresponding system function is

activated, a message is shown, or a submenu with further options is displayed.

Notice In subsequent chapters, the operating steps for selecting and activating a screen button or menu item via the touch screen will be described as "...select <button name>/<item name>".

Moving items

Page 15

Basic operation 15

Touch and hold the element you wish to move until frame marks appear around the icons. Move your finger to the desired location and release the element.

Notice Constant pressure must be applied and the finger must be moved at a constant speed.

All other items are rearranged. Press ; on the control panel to exit

edit mode.

Notice In subsequent chapters, the operating steps for moving a screen element via the touch screen will be described as "...drag the...icon to..." or "...drag the...menu item to...".

Scrolling lists

If there are more items available than presentable on the screen, the list must be scrolled.

To scroll through a list of menu items, you may optionally:

● Place your finger anywhere on the screen and move it upwards or downwards.

Notice Constant pressure must be applied and the finger must be moved at a constant speed.

● Touch o or n at the top or bottom of the scroll bar.

● Move the slider of the scroll bar up and down with your finger.

● In alphabetically ordered lists, touch the respective letter in the vertical keyboard. The list jumps to the corresponding location within the list.

To return to the top of the list, touch the list title.

Notice In subsequent chapters, the operating steps for scrolling to a list item via the touch screen will be described as "...scroll to <item name>".

Page 16

16 Basic operation

Menu operation

Home screen

The home screen is shown on the centre display.

All applications installed may be accessed from the home screen.

To personalise the home screen, drag the icon you wish to move to its new position. Release the icon to drop it in the respective location. Press ; on the control panel to exit edit mode.

Notice If there is a second home page available, the icons can be placed on both pages. Drag the icon to the right edge of the display to scroll to the next page.

Application tray

The application tray is located in the top centre of the screen and is accessible from all main menus.

Three to five application icons may be stored in the application tray.

Some application icons dynamically adapt to the current situation, e.g. indicating that you missed a phone call.

The application tray can be personalised by moving items into and out of the application tray area.

Interaction selector bar

The interaction selector bar is located at the bottom of the screen and is accessible from all main menus.

Using the interaction selector bar, you may change the different views within one application or perform application-specific actions, e.g. start a speech recognition session.

To display the interaction selector bar when it is not shown on the display, select n at the bottom of the screen.

Page 17

Basic operation 17

Messages

In the case of a system event, before the execution of a system function, or due to an outside trigger, e.g. incoming phone call, you may be prompted with a message.

Select one of the available options. If ignored, most of the messages are

dismissed automatically after a certain period of time. Alerts that are not dismissed automatically remain on the screen until they are acknowledged or the trigger becomes invalid.

Keyboards

Keyboard

Letter keyboard:

Symbol keyboard:

Depending on the application or function currently active, the keyboard menu is displayed differently.

To switch to the symbol keyboard, select Sym.

To switch to the letter keyboard, select ABC.

Entering characters To enter a character, touch the respective screen button. The character is entered upon release.

Touch and hold a letter screen button to display associated letters in a letter pop-up menu. Release and then select the desired letter.

Page 18

18 Basic operation

To confirm your input, select the respective confirmation screen button.

Autocomplete function If a character sequence has been entered once, it is stored within the system and may be recalled by the autocomplete function.

As soon as one character (letter or digit) is entered, the autocomplete function becomes active. Every additional character entered is considered in the matching process, reducing the list of autocomplete matches.

Select o next to the characters entered to display a list of all autocomplete matches.

Notice Above the o screen button, the number of available options is displayed. It changes according to the number of matches found.

Select the respective list item. The keyboard is redisplayed with the respective list entry shown in the entry field.

Editing text To place the cursor, touch the respective position within the text. Enter your changes.

Depending on the application, select ╳ to delete one entered character. Touch and hold ╳ to delete all characters.

Select the respective confirmation screen button to confirm an input.

Mixed case characters In most cases, only capital letters may be entered.

If mixed case character recognition is available, an additional Shift screen button is displayed.

To activate the shift function and capitalise one letter, select Shift.

The function is automatically deactivated after one letter has been entered.

Keypad

If only a number or PIN code have to be entered, a keypad is displayed. Depending on the application or function currently active, the keypad menu is displayed differently.

For a detailed description of how to enter characters and change entered text, see above.

Favourites

A range of different information may be stored as favourites, e.g.:

● radio stations

● music tracks

Page 19

Basic operation 19

● albums or artists

● telephone numbers

● destinations and routes

● POIs

● contact entries

● tone settings

● home screen applications

60 individual favourite locations are available, displayed as five favourites per row.

They can be displayed in a one-row view or in a three-row view.

If a favourite location is occupied, the favourite screen button displays the label text of the respective favourite. If a favourite location is empty, the position number of the favourite location (1 to 60) is indicated.

Displaying favourites

The favourites list is accessible from all menus.

To display one row of favourites when no interaction selector bar is shown at the bottom of the screen:

Select n.

To display one row of favourites when an interaction selector bar is shown on the screen:

Place your finger on the interaction selector bar and move it upwards until one row of favourites becomes visible.

Notice Constant pressure must be applied and the finger must be moved at constant speed.

To display three rows of favourites, drag the favourites list up further.

Page 20

20 Basic operation

Scrolling through favourites pages

The favourites page is visible in the one row or the three row view. To scroll through the favourites pages, place your finger anywhere on the favourites page and move it left or right.

The next or previous page of favourites is displayed.

Notice Constant pressure must be applied and the finger must be moved at constant speed.

When reaching the beginning or the end of the favourites pages, the whole list is wrapped.

Notice At the bottom of the screen, indication marks designate how many favourites pages may be accessed and which page is currently displayed. The number of indication marks adapts to the view chosen (more pages in one-row view, less pages in three-row view).

Storing favourites

Favourites may be stored from the home screen, the audio application, the navigation application or the phone application.

Reveal the favourites list and scroll to the respective favourites page.

Touch and hold the respective favourite screen button.

If there is only one storable item on the screen, a beeping sound is given out and the item is stored to the respective screen button.

If there is more than one storable item on the screen, the favourites page is minimised and the previously shown menu is redisplayed. Select the item you wish to store as a favourite. A beeping sound is given out and the item is stored to the respective screen button.

A few examples for storing favourites are given below.

Example: Radio station Press ; and select AUDIO on the home screen.

To activate the desired waveband, repeatedly select RADIO in the interaction selector bar.

Seek for the station you wish to store as a favourite 3 31.

To store this station as a favourite, reveal the favourites list and scroll to the respective favourites page.

Touch and hold the respective favourite screen button until a beep sounds. The station is stored as a favourite.

Example: Album Press ; and select AUDIO on the home screen. Repeatedly select MEDIA in the interaction selector bar until the desired audio source is active.

Select BROWSE to activate the browse menu and then select ALBUMS 3 37.

To store one of the albums as a favourite, reveal the favourites list and scroll to the respective favourites page.

Page 21

Basic operation 21

Touch and hold the respective favourite screen button. The favourites page is minimised and the list of albums is redisplayed.

Select the album you wish to store as a favourite. The selected album is stored as a favourite.

Example: Destination Press ; and select NAV on the home screen.

Select DESTINATION, select RECENT in the interaction selector bar and then touch the desired destination from the list 3 49.

To store the address as a favourite, reveal the favourites list and scroll to the respective favourites page.

Touch and hold the respective favourite screen button. The selected address is stored as a favourite.

Example: Telephone number Press ; and select PHONE on the home screen.

Select KEYPAD and enter the number you wish to call 3 69.

To store this number as a favourite, reveal the favourites list and scroll to the respective favourites page.

Touch and hold the respective favourite screen button. The number is stored as a favourite.

Retrieving favourites

Display a favourites page (see above) and scroll to the desired favourites page (if necessary).

Notice Unavailable favourites are greyed out.

Select the respective favourite screen button. Depending on the kind of favourite selected, a radio station or track is played, a phone call is initiated, a route is calculated or an application is started.

Notice The active favourite is highlighted.

Editing favourites

Select SETTINGS on the home screen, Radio and then Manage Favourites. A three-row view of the

favourites list is displayed with the editing options shown in the interaction selector bar.

Renaming favourites Scroll to the respective favourites page.

Select the favourite you wish to edit. Select RENAME. A keyboard opens up with the current

favourite label text displayed in the entry field as well as in the label preview area.

Enter the new label text and select Save. You are returned to the favourites page.

Page 22

22 Basic operation

Select H at the bottom of the screen to reveal the interaction selector bar and then select DONE to return to the settings menu.

Deleting favourites Scroll to the respective favourites page.

Select the favourite you wish to delete.

Select DELETE. The favourite and all associated data are deleted.

Select DONE to return to the settings menu.

Moving favourites Scroll to the respective favourites page.

Drag the favourite you wish to move to its new position.

To store a favourite in a location beyond the favourites page currently visible, drag it to the p or q symbols on top of the favourites page. The list starts scrolling. To stop scrolling, navigate back to the favourites page area.

Select DONE to confirm the action and return to the settings menu.

Defining the number of favourites shown

Press ; and select SETTINGS on the home screen. Select Radio and then Number of Favourites Shown.

Activate the desired number of favourites to be displayed.

Notice If the number of favourites stored exceeds the number of favourites activated in the settings menu, the additionally stored favourites are not deleted but just hidden from the

view. They may be reactivated by increasing the number of viewable favourites.

Contacts

Two different types of contacts lists may be accessed from the Infotainment system:

● contacts lists downloaded from Bluetooth devices or other external sources

● vehicle contacts list

Notice A maximum of 1000 contacts may be stored in the vehicle contacts list. There is no limit for downloaded contacts lists.

The contacts list displayed upon first access differs depending on the application active and the devices connected.

Changing the source

To display a contacts list, press ;, activate the phone or navigation application and then select CONTACTS in the interaction selector bar.

Page 23

Basic operation 23

Select Change Contacts List on the right side of the screen. A list of all contact sources available is displayed. The currently active contacts list is marked with 9.

Select the desired contacts list. The respective list is displayed.

Notice The system remembers a list chosen within an application. When reentering the contacts list from this application, the list previously selected is redisplayed.

Using the contacts list

To display a contacts list, press ;, activate the phone or navigation application and then select CONTACTS in the interaction selector bar.

Navigation application:

Phone application:

To display the contact details view, select one of the entries from the list.

The contact details view may comprise:

● first name and last name

● several phone numbers

● several email addresses

● several addresses (e.g. home and work)

● in the vehicle contacts list: category entry

Page 24

24 Basic operation

● in the vehicle contacts list: notes field

● for POI entries: information on business hours, menu (e.g. restaurant), prices etc.

Notice The data is ordered depending on the application active, e.g. in the phone application, the phone numbers are displayed first.

Select the desired entry.

Adding new contacts

To add information from the application menus to the vehicle contacts list, open the respective application.

Navigation application: Select or enter a destination 3 49. The destination details view is displayed. Select Save. A menu is displayed.

Phone application: Select RECENT. Select w beside the phone number you wish to add to the contacts list. A menu is displayed.

Select one of the options. Create New Contact

A data category selection menu is displayed.

Select the respective data category for the information you wish to store, e.g. work address or mobile phone. The contact details view is displayed.

Notice The data categories presented in the new menu correspond to the information you wish to store, e.g. if the information to be stored is an address, only address types are presented in the list.

Complete the entry and select Save to save the contact.

Add to Existing Contact The vehicle contacts list is displayed. Select the desired contact.

The contact details view is displayed with the information to be added shown separately on the right side of the screen.

Select the respective data category for the information you wish to store, e.g. work address or mobile phone.

If you choose an existing data category, the existing information is overwritten.

Select Save to save the new information.

Editing contacts

To edit a contact, open the vehicle contacts list. Select the desired contact entry in the vehicle contacts list.

Select Edit Contact on the right side of the screen.

Page 25

Basic operation 25

The editing view is displayed.

Modifying information Select the field you wish to modify. Depending on the field selected, the keyboard or keypad is displayed.

Enter your changes 3 17. Select Save in the contact details

view to save your changes.

Adding new information Select the field where you wish to enter additional information.

If you wish to create a new field for a data category already existing, e.g. a second mobile phone number, select w in the respective data field.

Notice The w screen button is only displayed if it is possible to add more information for that data category.

Depending on the field selected, the keyboard or keypad is displayed 3 17.

Enter the new data and select the screen button in front of the entry field.

Select Save in the contact details view to save your changes.

Deleting contacts

Deleting a single contact To delete a single contact, open the vehicle contacts list. Select the desired contact entry in the vehicle contacts list.

Select Edit Contact on the right side of the screen.

To delete the contact entry and all associated information, select Delete. A confirmation message is displayed.

Confirm the message. The entry is deleted.

Delete the whole vehicle contacts list To delete the whole vehicle contacts list, open the vehicle contacts list.

Select Change Contacts List on the right side of the screen. A list of all available contacts sources is displayed. The currently active contacts list is marked with 9.

Select the ─ screen button next to Vehicle. A confirmation message is displayed.

Confirm the message to delete the list.

Sorting the contacts lists

By default, the lists are ordered alphabetically by first name. If there is no first name available, the last name is taken instead. If there is no first or last name, one of the first characters entered is used as sorting criteria.

The sorting order may be changed if first name and last name are stored in two different fields.

To change the sorting order, select Sort.

Choose the desired sorting order. The list is resorted accordingly.

Page 26

26 Basic operation

Tone settings

In the tone settings menu, the tone characteristics can be set. The menu may be accessed from each audio main menu.

Notice A customised set of tone settings may be stored as a favourite. For a detailed description 3 18.

To open the tone settings menu, select MENU in the respective audio main menu. Select Tone Settings.

Treble

Use this setting to enhance or attenuate the high frequencies of the audio sources.

Adjust the setting by repeatedly touching ─ or w.

Alternatively, move the slider on the settings bar.

Midrange

Use this setting to enhance or attenuate the midrange frequencies of the audio source.

Adjust the settings by repeatedly touching ─ or w.

Alternatively, move the slider on the settings bar.

Bass

Use this setting to enhance or attenuate the deep frequencies of the audio sources.

Adjust the settings by repeatedly touching ─ or w.

Alternatively, move the slider on the settings bar.

Balance and fader

In the illustration at the right side of the menu, define the point within the passenger compartment which is to have the best sound.

To adjust the settings, touch n, o, p and q.

To quickly change between the front and rear speakers, select Front or Rear at the top and bottom of the vehicle diagram.

Equalizer modes

Select one of the screen buttons in the interaction selector bar to optimise the tone for the specific styles of music.

Select CUSTOM if you wish to define the tone settings yourself.

Volume settings

Maximum startup volume

Press ; and select SETTINGS on the home screen.

Page 27

Basic operation 27

Scroll through the list and select Radio and then Maximum Start-Up Volume.

Touch ─ or w to set the desired volume.

Automatic volume adjustment

Press ; and select SETTINGS on the home screen.

Scroll through the list and select Radio and then Auto Volume.

To adjust the degree of volume adaptation, set Auto Volume to one of the available options.

Off: no enhancement of volume with increasing vehicle speed.

High: maximum enhancement of volume with increasing vehicle speed.

Volume of traffic announcements

To adjust the volume of traffic announcements, set the desired volume while a traffic announcement is given out by the system. The respective setting is then stored by the system.

System settings

Various settings and adaptions for the Infotainment system can be made via the SETTINGS application.

Time and Date

Press ; and select SETTINGS on the home screen.

Select Time and Date.

Set time Select Set Time to enter the respective submenu.

Select Auto Set at the bottom of the screen. Activate either On - RDS or Off - Manual.

If Off - Manual is selected, adjust hours and minutes by touching n or o.

Touch 12-24 Hr on the right side of the screen to select a time mode.

If 12-hour mode is selected, a third column for AM and PM setting is displayed. Select the desired option.

Set date Select Set Date to enter the respective submenu.

Page 28

28 Basic operation

Notice If date information is automatically provided, this menu item is not available.

Select Auto Set at the bottom of the screen. Activate either On - RDS or Off - Manual.

If Off - Manual is selected, adjust the date by touching n or o.

Clock display Select Clock Display to enter the respective submenu.

To turn off the digital clock display in the menus, select Off.

Language

Press ; and select SETTINGS on the home screen.

Scroll through the list and select Language.

Notice The language currently active is marked with 9.

Scroll through the list and select the desired language.

Valet mode

If valet mode is activated, all vehicle displays are locked and no changes may be performed within the system.

Notice Vehicle-related messages and the rear view camera remain enabled.

Locking the system Press ; and select SETTINGS on the home screen.

Scroll through the list and select Valet Mode. A keypad is displayed.

Enter a four-digit code and select Enter. The keypad is redisplayed.

To confirm the first input, re-enter the four-digit code and select Lock. The system is locked.

Unlocking the system Turn the Infotainment system on. A keypad is displayed.

Enter the respective four-digit code and select Unlock. The system is unlocked.

Forgotten PIN Code To reset the PIN code to the default setting, contact your workshop.

Page 29

Basic operation 29

Display

Press ; and select SETTINGS on the home screen.

Scroll through the list and select Display.

Mode Select Mode to enter the respective submenu.

Depending on the external lighting conditions, select Day or Night.

If you select Auto, the system automatically adjusts the display.

Calibrate Touchscreen Select Calibrate Touchscreen to enter the respective submenu.

Follow the instructions on the screen, touching the respective points indicated. The touch screen is calibrated.

Turn Display Off Select Turn Display Off to turn off the display.

To turn the display back on, touch the touch screen or press a button on the control panel.

Return to Factory Settings

Press ; and select SETTINGS on the home screen.

Scroll through the list and select Return to Factory Settings.

Restore Vehicle Settings Select Restore Vehicle Settings to restore all vehicle personalisation settings. A warning message is displayed.

Select Restore. The settings are reset.

Clear All Private Data Select Clear All Private Data to delete the following data:

● paired Bluetooth devices

● stored phone books

● vehicle contacts list

● destination lists

● favourites A warning message is displayed. Select Delete. The data is deleted.

Page 30

30 Basic operation

Restore Radio Settings Select Restore Radio Settings to reset the following data:

● tone settings

● volume settings

● speech settings

● application tray

● contacts sources A warning message is displayed. Select Restore. The settings are

reset.

Software Information

Press ; and select SETTINGS on the home screen.

Scroll through the list and select Software Information.

A list of version numbers of all items loaded to the system is displayed.

System update To update your system software, contact your workshop.

Page 31

Radio 31

Radio

Usage .......................................... 31

Station search .............................. 31

Radio data system (RDS) ............ 32

Digital audio broadcasting ........... 33

Usage

The radio function is part of the AUDIO application.

Activating the radio function

Press ; and select AUDIO on the home screen. Select RADIO in the interaction selector bar.

Selecting the waveband

Repeatedly select RADIO to toggle between the different wavebands.

Station search

Automatic station search

Press t or v to play the previous or next station.

Manual station search

Press and hold t or v. Release the respective button when the desired frequency has almost been reached.

Station tuning

Select TUNE in the interaction selector bar. A keypad is displayed.

Page 32

32 Radio

Touch the Direct Tune field and then enter the desired frequency. Confirm your input.

Station lists

In the station lists, all receivable radio stations within the current reception area are available for selection.

To display the station list of the waveband currently active, select BROWSE in the interaction selector bar.

The station list is displayed.

Notice The currently received station is highlighted.

Scroll through the list and select the desired list item.

Category lists

Numerous RDS 3 32 and DAB 3 33 stations broadcast a PTY code, which specifies the type of programme transmitted (e.g. news). Some stations also change the PTY code depending on the content which is currently transmitted.

The Infotainment system stores these stations, sorted by programme type in the corresponding category list.

Notice The Categories list item is only available for the FM and the DAB wavebands.

Select MENU in the interaction selector bar to display the respective waveband menu and select Categories.

A list of programme type categories currently available is displayed.

Select the desired category. A list of stations is displayed transmitting a programme of the selected type.

Select the desired station.

Updating the station list

If the stations stored in a wavebandspecific station list can no longer be received, select Update Station List.

Notice If a waveband-specific station list is updated, the corresponding category list is also updated.

Updating Station List is displayed on the screen until the search has been completed.

Radio data system (RDS)

RDS is a service of FM stations that considerably improves the finding of the desired station and its fault-free reception.

Advantages of RDS

● On the display, the programme name of the station appears instead of its frequency.

● During a station search, the Infotainment system tunes in to RDS stations only.

Page 33

Radio 33

● The Infotainment system always tunes into the best receivable broadcasting frequency of the set station by means of AF (alternative frequency).

● Depending on the station received, the Infotainment system displays radio text that can contain e.g. information on the current programme.

RDS settings

To configure the RDS settings options, activate the radio function and then select the FM waveband. Select MENU in the interaction selector bar to display the FM menu.

RDS Set RDS - On or RDS - Off.

Traffic Programme (TP) Radio traffic service stations are RDS stations that broadcast traffic news. If the traffic service is switched on, the function currently active is interrupted for the duration of the traffic announcement.

If the radio traffic service is activated, [TP] is shown in the top line of all main menus. If the current station or media played is not a radio traffic service station, [ ] is displayed and a search is started automatically for the next radio traffic service station available. As soon as a radio traffic service station is found, [TP] is highlighted. If no radio traffic service station is found, [ ] remains on the screen.

If a traffic announcement is broadcast on the respective radio traffic service station, a message is displayed.

To interrupt the announcement and return to the function previously activated, dismiss the alert.

Set Traffic Programme (TP) - On or Traffic Programme (TP) - Off.

Region Sometimes RDS stations broadcast regionally different programmes on different frequencies.

If regionalisation is switched on, alternative frequencies with the same regional programmes are selected if necessary. If regionalisation is switched off, alternative frequencies of the stations are selected without regard to regional programmes.

Set Region - On or Region - Off.

Digital audio broadcasting

DAB broadcasts radio stations digitally.

Advantages of DAB

● DAB stations are indicated by the programme name instead of the broadcasting frequency.

● With DAB, several radio programmes (services) can be broadcast on a single ensemble.

● Besides high-quality digital audio services, DAB is also able to transmit programme-associated

Page 34

34 Radio

data and a multitude of other data services including travel and traffic information.

● As long as a given DAB receiver can pick up the signal sent out by a broadcasting station (even if the signal is very weak), sound reproduction is ensured.

● In the event of poor reception, the volume is reduced automatically to avoid the output of disagreeable noises.

If the DAB signal is too weak to be picked up by the receiver, reception is interrupted completely. This can be avoided by activating DAB to DAB Linking and/or DAB to FM Linking in the DAB menu (see below).

● Interference caused by stations that are on nearby frequencies (a phenomenon that is typical of AM and FM reception) does not occur with DAB.

● If the DAB signal is reflected by natural obstacles or buildings, the reception quality of DAB is

improved, whereas AM or FM reception is considerably impaired in such cases.

● When DAB reception is enabled, the FM tuner of the Infotainment system remains active in the background and continually searches for the best receivable FM stations. If TP 3 32 is activated, traffic announcements of the FM station with the best reception are issued. Deactivate TP if you do not wish DAB reception to be interrupted by FM traffic announcements.

DAB settings

To configure the DAB settings options, activate the radio function and then select the DAB waveband. Select MENU in the interaction selector bar to display the DAB menu.

DAB announcements Besides their music programmes, many DAB stations also broadcast announcements of various categories. If you activate some or all categories, the DAB service currently received is interrupted when an announcement of these categories is made.

Select DAB Announcements to display the DAB categories list.

Select the desired categories. The categories selected are marked with

Page 35

Radio 35

Notice DAB announcements can only be received if the DAB waveband is activated.

DAB to DAB Linking If this function is activated, the device switches over to the same service (programme) on another DAB ensemble (if available) when the DAB signal is too weak to be picked up by the receiver.

Set DAB to DAB Linking - On or DAB to DAB Linking - Off.

DAB to FM Linking If this function is activated, the device switches over to a corresponding FM station of the active DAB service (if available) when the DAB signal is too weak to be picked up by the receiver.

Set DAB to FM Linking - On or DAB to FM Linking - Off.

L Band If L Band is activated, the Infotainment system receives an additional frequency range. The

frequencies for L-band comprise earth and satellite radio (1452 - 1492 MHz).

Set L Band - On or L Band - Off.

Intellitext The Intellitext function allows for the reception of additional information such as announcements, financial information, sports, news etc.

Select one of the categories and choose a specific item to display detailed information.

Page 36

36 External devices

External devices

General information ..................... 36

Playing audio ............................... 37

Playing movies ............................. 38

Using smartphone applications ...39

Using apps ................................... 39

General information

A USB port for the connection of external devices is located in the centre console.

Notice The USB port must always be kept clean and dry.

USB port

An MP3 player, USB device or smartphone can be connected to the USB port.

The Infotainment system can play music files and movies contained in these devices.

When connected to the USB port, the devices mentioned above can be operated via the controls and menus of the Infotainment system.

Notice Not all auxiliary devices are supported by the Infotainment system. Check the compatibility list on our website.

Connecting/disconnecting a device Connect the USB device to the USB port.

Notice If a non-readable USB device is connected, a corresponding error message appears and the Infotainment system automatically switches to the previous function.

To disconnect the USB device, select another function and then remove the USB storage device.

Caution

Avoid disconnecting the device during playback. This may damage the device or the Infotainment system.

Bluetooth

Devices which support the Bluetooth music profiles A2DP and AVRCP can be connected wirelessly to the Infotainment system.

The Infotainment system can play music files contained in these devices.

Connecting/disconnecting a device For a detailed description on the Bluetooth connection 3 67.

Page 37

External devices 37

Bluetooth device management To change the Bluetooth device connected, select MENU in the interaction selector bar.

Select Manage Bluetooth Devices to display the device list.

For a detailed description 3 67.

File formats

Only devices formatted in the FAT32, NTFS and HFS+ file systems are supported.

Notice Some files may not be played properly. This might be due to a different recording format or the condition of the file.

Files from online shops to which Digital Rights Management (DRM) has been applied cannot be played.

The Infotainment system can play the following audio and movie files stored on external devices.

Audio files The playable audio file formats are MP3, WMA, AAC, M4A and AIF.

When playing a file with ID3 tag information, the Infotainment system can display information, e.g. on the track title and artist.

Movie files The playable movie file formats are AVI, MPG, MP4, XVID and WMV.

Common audio and video combinations for mobile devices are generally supported.

Playing audio

Starting playback

If not connected, connect the device 3 36.

Press ; and select AUDIO on the home screen.

Repeatedly select MEDIA in the interaction selector bar to activate the desired media source.

Example: USB main menu.

Function buttons

Pausing playback Select = to pause playback.

Select l to resume playback.

Skipping to previous or next track Select t or v to play the previous or next track.

Fast forwarding or rewinding Touch and hold t or v to rewind or fast forward.

Alternatively, move the slider on the time bar (only available for USB).

Page 38

38 External devices

Browse function

To display the browse screen, select BROWSE in the interaction selector bar.

Select PLAYLISTS, ARTISTS, ALBUMS, SONGS, GENRES or MORE. MORE comprises the additional categories: Folder View, Podcasts, Audiobooks, Videos and Composers.

Browse through the categories until you find the desired track. Select the track to start playback.

Playback order

If Shuffle is activated, the tracks on the active device are played in random order.

Notice In USB playback, the shuffle function is dependent on the filter mode selected for song playback, e.g. album, artist, genre.

To display the respective audio menu, select MENU in the interaction selector bar.

Set Shuffle - On or Shuffle - Off.

Playing movies

Starting video playback

Connect the device 3 36. Press ; and select AUDIO on the

home screen. Repeatedly select MEDIA in the

interaction selector bar to activate the desired media source.

Select BROWSE and then MORE. Select Videos and then the desired movie file. Video playback is started.

Notice Videos may only be played if the parking brake is applied.

Function buttons

Pausing playback Select = to pause playback.

Select l to resume playback.

Skipping to previous or next file Select t or v to play the previous or next movie file.

Fast forwarding or rewinding Touch and hold t or v to rewind or fast forward.

Page 39

External devices 39

Alternatively, move the slider on the time bar.

Video menu

To display the video menu, select MENU in the interaction selector bar.

Using smartphone applications

The phone projection applications Apple CarPlay™ and Android™ Auto display selected apps from your smartphone on the Infotainment screen and allow their operation directly via the Infotainment controls.

Check with the device's manufacturer if this function is compatible with your smartphone and if this application is available in the country you are in.

Preparing the smartphone

Android phone: Download the Android Auto app to your smartphone from the Google Play™ Store.

iPhone®: Make sure Siri® is activated on your smartphone.

Activating phone projection in the settings menu

Press ; and then select SETTINGS on the home screen.

Scroll through the list and select Apple CarPlay or Android Auto to display a submenu.

Make sure the respective application is activated.

To display a list of all devices registered for this function, select Manage Devices.

Connecting the mobile phone

Connect the smartphone to the USB port 3 36.

Starting phone projection

To start the phone projection function, press ; and then select PROJECTION.

Notice If the application is recognised by the Infotainment system, the application icon may change to Apple CarPlay or Android Auto.

To start the function, you can alternatively press and hold ; for a few seconds.

The phone projection screen displayed depends on your smartphone and software version.

Returning to the Infotainment screen

Press ;.

Using apps

Via the SHOP application, external apps can be downloaded to the Infotainment system.

User registration

When first starting the SHOP application, a user registration is required.

Press ; and then select SHOP. Follow the instructions on the screen:

1. Start the registration process.

2. Enter your first and last name.

Page 40

40 External devices

3. Choose your country.

4. Accept the terms of use and privacy notice.

Notice To read the terms of use and/or the privacy notice, display the text on the screen or send it to your email account.

When the registration process is completed, the app shop main page is displayed.

Notice The apps in the app shop can only be downloaded if the Infotainment system is connected to the internet.

Internet connection

An internet connection is required either via the in-vehicle OnStar Wi-Fi hotspot or an external device, e.g. smartphone.

Press ; and then select SETTINGS. Select Wi-Fi to display the Wi-Fi menu.

Make sure that Wi-Fi is activated. Select Manage Wi-Fi Networks to

display a submenu for internet connections. Select Add Other

Network to establish a new connection. Follow the instructions on the screen.

Downloading an app

Before the external apps can be used on the Infotainment system, they have to be downloaded.

Press ; and then select SHOP. Choose the browse tab to gain access to all apps available for download. Select the desired app to display its main page and then start the download process.

Notice Apps which have been downloaded to the Infotainment system are also accessible via the home screen.

Starting an app

Press ;, scroll the home screen pages if required and then select the downloaded app you want to start.

Notice Depending on the app downloaded, a registration might be required when first starting the app.

Deleting an app

Press ; and then select SHOP. To gain access to all downloaded apps, choose the tab for apps already downloaded. Select the desired app to display its main page and then start the deletion process.

The application is deleted from the Infotainment system.

Page 41

External devices 41

Settings

Internet connection Press ; and then select SHOP. Choose the settings tab to display the settings menu and then select the networks menu item.

Activate the desired network.

Info To display information on the app shop, press ; and then select SHOP. Choose the settings tab to display the settings menu and then select the info menu item.

Terms of use and privacy notice To display the terms of use or the privacy notice, press ; and then select SHOP. Choose the settings tab. Select the desired menu item.

If desired, you can send the texts to your email account.

Select E-Mail on the bottom of the screen. Enter your email address and confirm your input. The respective text is forwarded to your email account.

Reset user To delete all registration data entered, press ; and then select SHOP. Choose the settings tab to display the settings menu and then reset all user-specific settings.

Page 42

42 Navigation

Navigation

General information ..................... 42

Usage .......................................... 43

Destination input .......................... 49

Guidance ..................................... 55

General information

The navigation system will reliably guide you to your destination.

The current traffic situation is taken into account in the route calculation. For this purpose, the Infotainment system receives traffic announcements in the current reception area via RDS-TMC.

The navigation system cannot, however, take into account traffic incidents, traffic regulations changed at short notice and hazards or problems that arise suddenly (e.g. road works).

Caution

The usage of the navigation system does not release the driver from the responsibility for a correct, vigilant attitude in road traffic. The relevant traffic regulations must always be followed. If a navigation instruction contradicts traffic regulations, the traffic regulations always apply.

Functioning of the navigation system

The position and movement of the vehicle are detected by the navigation system using sensors. The travelled distance is determined by the vehicle's speedometer signal, turning movements on bends by a gyro sensor. The position is determined by the GPS (Global Positioning System) satellites.

By comparing the sensor signals with the digital maps, it is possible to determine the position with an accuracy of approx. 10 metres.

The system will also work with poor GPS reception. However, the accuracy of the determination of the position will be reduced.

After the entry of the destination address or point of interest (nearest petrol station, hotel, etc.), the route is calculated from the current location to the destination selected.

Route guidance is provided by voice output and an arrow, as well as with the aid of a multi-colour map display.

Page 43

Navigation 43

Important information

TMC traffic information system and dynamic route guidance

The TMC traffic information system receives all current traffic information from TMC radio stations. This information is included in the calculation of the overall route. During this process, the route is planned so that traffic problems related to preselected criteria are avoided.

If there is a traffic problem during active route guidance, depending on the pre-settings, a message appears as to whether the route should be changed.

TMC traffic information is displayed in the map display as symbols or as detailed text on the TMC messages menu.

To be able to use TMC traffic information, the system must receive TMC stations in the relevant region.

The TMC traffic stations can be selected in the navigation menu 3 43.

Map data All required map data is stored within the Infotainment system. To update your map software via the USB port, contact your workshop.

Usage

To display the navigation map, press ; and select NAV on the home screen.

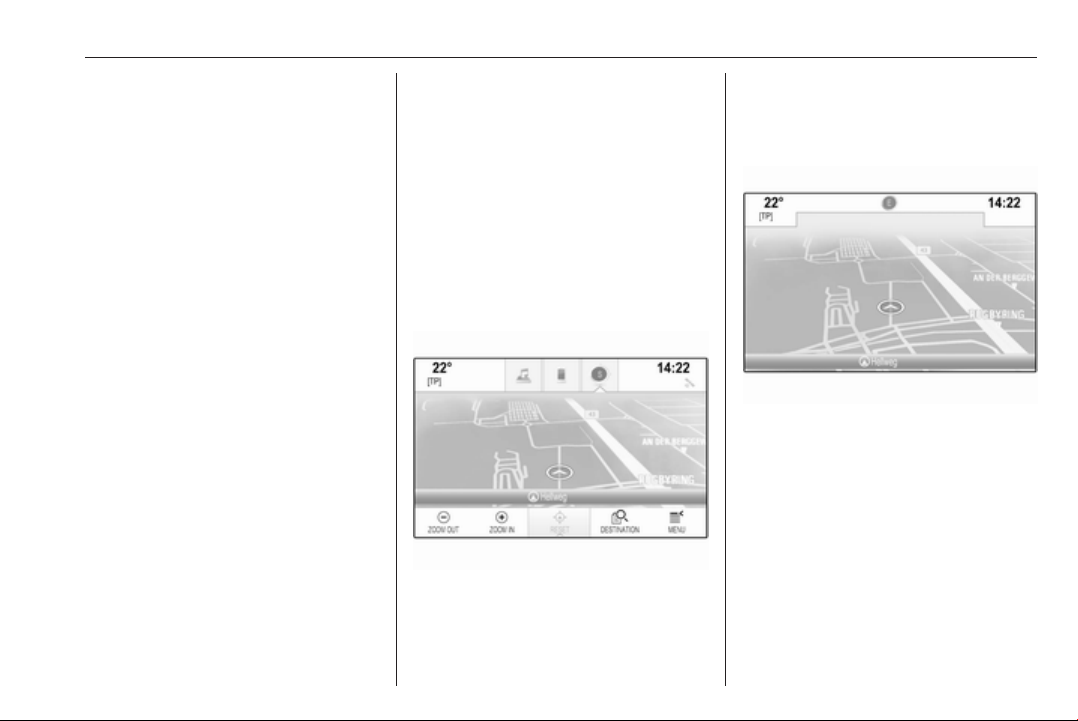

Route guidance not active

The current location is indicated by a circle with an arrow pointing into the direction of travel.

After a timeout of approx. 15 seconds, the application tray and the interaction selector bar disappear to show a full screen view of the map.

To redisplay the application tray and the interaction selector bar, touch the screen.

Page 44

44 Navigation

Route guidance active

● The map view is displayed.

● The active route is indicated by a coloured line.

● The moving vehicle is marked by a circle.

● The next turning manoeuvre is indicated by an arrow symbol on the right side of the screen.

● Lane guidance is provided on the right side of the screen.

● The arrival time is shown above the arrow symbol.

● The distance to the next turning manoeuvre is shown below the arrow symbol.

Map manipulation

Scrolling To scroll the map, place your finger anywhere on the screen and move it up, down, left or right depending on the direction in which you want to scroll.

The map moves accordingly displaying a new section.

To return to the current location, select RESET in the interaction selector bar.

Centring Touch the desired location on the screen. The map centres around this location.

A red v is displayed at the respective location and the corresponding address is shown on a label.

To return to the current location, select RESET in the interaction selector bar.

Zooming To zoom in on a selected map location, select ZOOM IN.

To zoom out and display a larger area around the selected location, select ZOOM OUT.

Overview button During active route guidance, an OVERVIEW screen button is displayed in the interaction selector bar.

Page 45

Navigation 45

To display an overview of the route currently active on the map, select OVERVIEW.

The screen button changes to RESET.

To return to the normal view, select RESET.

Map display

View mode Select MENU in the interaction selector bar and then select Map View to display the respective submenu.

Select the desired map view (3D View, Heading Up View, North Up View).

Notice Alternatively, you may repeatedly select x in the application tray to quickly toggle between the different map views (3D View, Heading Up View, North Up View).

Audio information If Audio Information - On is set, information on the station, album or song currently playing is displayed on the map screen.

Select MENU in the interaction selector bar and then select Map View to display the respective submenu.

Set Audio Information - On or Audio Information - Off.

Display mode Select MENU in the interaction selector bar and then select Map View to display the respective submenu.

Select Day / Night Mode. Depending on the external lighting

conditions, activate Day or Night. If you wish the screen to adjust

automatically, activate Auto.

Display of buildings Select MENU in the interaction selector bar and then select Map View to display the respective submenu.

Buildings can be displayed in 3D or normal view.

Set 3D Buildings - On or 3D Buildings

- Off.

Autozoom function Select MENU in the interaction selector bar and then select Map View to display the respective submenu.

The system may zoom in on the map in case of special manoeuvres.

Set Autozoom - On or Autozoom - Off.

POI icons Select MENU in the interaction selector bar and then select Display "Points of Interest" Icons to display the respective submenu.

If POI Icons is activated, points of interest around the current location or along the route are displayed on the map.

Set POI Icons - On or POI Icons - Off. If POI Icons is set to On, activate the

POI categories you wish to be displayed.

Page 46

46 Navigation

Select Clear All to deselect all categories.

Information on the current location

Select MENU in the interaction selector bar to display the navigation menu.

Select Current Location to display the respective submenu indicating details on the nearest address, the coordinates, and Points of interest (3 49) around the current location.

Nearest address From this submenu, you may store the nearest address to the system.

Select Nearest Address: to display the destination details view.

For a detailed description on how to save an address

● as or to a contact 3 22

● as a favourite 3 18

Points of interest From this submenu, you may start route guidance to one of the nearest points of interest.

Select the desired point of interest. The destination details view is displayed.

Select Go. For a detailed description on how to

enter a destination 3 49.

Navigation data management

Select MENU in the interaction selector bar and then select Personal Data.

A list of different data storage locations of the navigation application is displayed.

Contacts list Select Contacts to display the respective submenu.

To delete all entries in the contacts list, select Delete All Entries. Confirm the message displayed to delete the entire contacts list.

To display the contacts edit mode, select Edit Contacts List.

For a detailed description on editing the contacts list 3 22.

Page 47

Navigation 47

Recent destinations list Select Recent Destinations to display the respective submenu.

To delete all entries in the recent destinations list, select Delete All Destinations. Confirm the message displayed to delete the entire recent destinations list.

To delete individual destinations, select Delete Individual Destinations. The recent destinations list is displayed. Select ─ next to the respective destination. Confirm the message displayed to delete the destination.

Downloaded POIs Select My POIs to display the respective submenu.

POIs which were previously downloaded to the system may be deleted. The other POIs remain within the system.

To delete all entries in the contacts list, select Delete All My POIs. Confirm the message displayed to delete the entire POIs list.

To delete only individual categories, select Delete Individual Categories to display a list of POI categories. Select ─ next to the respective category. Confirm the message displayed to delete the category.

Uploading destination data to a USB device

For later use, e.g. in other vehicles, you can store the vehicle contacts list and POIs previously downloaded (see "Creating and downloading user defined POIs" below) on a USB device:

Select Upload Saved Locations. The contacts list and POI data is

stored on the connected USB device in the folders "F:\myContacts" or "F: \myPOIs", where "F:\" is the root folder of the USB device.

Notice This function may only be carried out if a USB device with sufficient storage space is connected.

Autocomplete function To delete the list of destination entries used by the autocomplete function, select Delete Autocomplete.

Downloading contacts data

You can exchange your vehicle contacts list data with Infotainment systems in other vehicles:

To upload the data to a USB device, see "Uploading destination data to a USB device" above.

Connect the USB device to the Infotainment system of another vehicle 3 36.

A message is displayed that prompts you to confirm the download.

After confirmation, the contacts data is downloaded to the Infotainment system.

The downloaded contacts are then selectable via the CONTACTS menu 3 22.

Creating and downloading user defined POIs (My POIs)

In addition to the predefined POIs already stored in the Infotainment system, you can create user defined POIs that meet your personal requirements. After creation, such

Page 48

48 Navigation

user defined POIs can be downloaded to the Infotainment system.

For each POI, you need to define the GPS coordinates (longitude and latitude values) of the respective location and a descriptive name.

After downloading the POI data to the Infotainment system, you will find the respective POIs as selectable destinations in the My POIs menu, see "POIs entry" in chapter "Destination input" 3 49.

Creating a text file with POI data Create a text file (e.g. by using a simple text editor software) with an arbitrary name and the file extension .poi, e.g. "TomsPOIs.poi".

Notice Character encoding UTF-8 (Unicode) must be selected when storing the text file. Otherwise the POI data may not be imported correctly to the system.

Enter the POI data into the text file in the following format:

Longitude coordinate, Latitude coordinate, "Name of POI", "Additional information", "Phone number"

Example:

7.0350000, 50.6318040, "Michaels Home", "Bonn, Hellweg 6", "02379234567", see illustration above.

The GPS coordinates must be expressed in decimal degrees and can be taken, e.g., from a topographical map.

The additional information and phone number strings are optional. If, e.g., no additional information is required, "" must be entered at the respective position.

Example:

7.0350000, 50.6318040, "Michaels Home", "", "02379234567".

The POI name and the additional information string may not exceed 60 characters each. The phone number string may not exceed 30 characters.

The POI data of each destination address must be entered in a single separate line, see illustration above.

Storing the POI data on a USB drive In the root directory of a USB drive, create a folder named "myPOIs", e.g. "F:\myPOIs", where "F:\" is the root directory of the USB drive.

In the "myPOIs" folder, store the text file with your POIs, e.g. "F:\myPOIs \TomsPOIs.poi".

Page 49

Navigation 49

Organising the POI data in several subfolders Optionally, you can organise the text files in several randomly named subfolders (max. depth of subfolder structure: 2).

Examples: F:\myPOIs\AnnsPOIs or F:\myPOIs\MyJourney\London, where F:\ is the root directory of the USB drive.

Notice In a folder, only subfolders or only POI files may be stored. A mixture of both will not be imported correctly to the system.

After downloading individual POI data organised in that way to the Infotainment system (see download description further below), the My POIs menu will show a list of selectable submenus.

After selecting a submenu, further submenus or the related list of imported POI categories will be displayed.

Downloading the POI data to the Infotainment system

Connect the USB device with your user defined POI data to the USB port 3 36 of the Infotainment system.

A message is displayed that prompts you to confirm the download.

After confirmation, the POI data will be downloaded to the Infotainment system.

The downloaded POIs are then selectable as destinations via the My POIs menu, see "POIs entry" in chapter "Destination input" 3 49.

Destination input

The navigation application provides different options to set a destination for route guidance.

Press ; and select NAV on the home screen to display the navigation map.

Select DESTINATION in the interaction selector bar and then select one of the different address entry options.

One-shot destination entry

Touch the entry field in the top line of the menu. A keyboard is displayed.

For a detailed description on the keyboards 3 17.

Enter an address or search term and confirm your input.

Two lists with possible destinations are created. To switch between the list tabs, touch Address or POI in the top line of the screen.

Address list:

Page 50

50 Navigation

Select one of the destinations. The destination details view is displayed.

POI list:

For a detailed description on POIs, see "POIs entry" below.

To start route guidance, select Go.

Address entry screen

Select ADDRESS. The Address Entry screen is displayed.

Touch one of the entry fields next to the address part entries. A keyboard is displayed.

For a detailed description on the keyboards 3 17.

Enter the required destination information.

Notice The screen does not need to be filled out completely.

To confirm your input, select 9 in the top right corner of the screen.

Page 51

Navigation 51

If there is more than one destination possible according to the information entered, a list of all matching destinations found is displayed. Select the desired address.

The destination details view is displayed.

To start route guidance, select Go.

Crossroad entry screen

Select CROSSROADS. The Crossroads Entry screen is displayed.

Touch one of the entry fields next to the address part entries. A keyboard is displayed.

For a detailed description on the keyboards 3 17.

Enter the required destination information.

To confirm your input, select 9 in the top right corner of the screen.

If there is more than one destination possible according to the information entered, a list of all matching destinations found is displayed. Select the desired address.

The destination details view is displayed.

To start route guidance, select Go.

POIs entry

A point of interest (POI) is a specific location that might be of general interest, e.g. a petrol station, a parking area or a restaurant.

The data stored within the navigation system contains a great number of predefined POIs, which are indicated on the map (if activated, 3 43).

You may also store individual POIs within the system, see "Creating and downloading user defined POIs (My POIs)" in chapter "Usage" 3 43.

Those POIs are selectable as destinations via the POI main category My POIs.

To select a POI as a destination for route guidance, select DESTINATION in the interaction selector bar and then select POIs. A list for search area selection is displayed.

Setting a search location Select one of the options.

Notice The options POIs along Route and POIs near Destination are only available when route guidance is active.

Page 52

52 Navigation

If POIs at Another Location is selected, a keyboard is displayed.

For a detailed description on the keyboards 3 17.

Enter the desired location and confirm your entry.

A list of POI categories is displayed.

Searching POIs via categories Select one of the main categories in the list. A list with subcategories is displayed.

To display all POIs available in the respective main category, select List All. Scroll through the list and select the desired POI.

To display all POIs within one subcategory, select the respective subcategory. Scroll through the list and select the desired POI.

The destination details view is displayed.

For more information on the POI selected, touch Info in the top right corner of the screen.

To start route guidance, select Go.

Searching POIs via name input To search for a particular POI, a category or a specific location, select Spell Name in the POI main categories list or in one of the subcategory lists. A keyboard is displayed.

For a detailed description on the keyboards 3 17.

Enter the desired name or category. Select 9 to confirm your input. The

destination details view is displayed. For more information on the POI

selected, touch Info in the top right corner of the screen.

To start route guidance, select Go.

Recent destinations list

Select RECENT. A list of all recently entered

destinations is displayed.

Select one of the entries. The destination details view is displayed.

To start route guidance, select Go.

Contacts list

Select CONTACTS. The contacts list is displayed.

Page 53

Navigation 53

Quick function icon If there is only one address stored for a contact, a quick route icon is displayed next to the respective entry in the contacts list.

Select 1 to directly display the destination details view.

To start route guidance, select Go.

Contact details view If there is more than one address stored for a contact, select the desired contacts entry. The contact details view is displayed.

Select one of the addresses stored for the contact. The destination details view is displayed.

To start route guidance, select Go.

Selecting an address from the map

Tap on the desired location on the map. The map centres around this location.

A red v is displayed at the respective location and the corresponding address is shown on a label.

Tap on the label. The destination details view is displayed.

To start route guidance, select Go.

Waypoint trips

A waypoint is an intermediate destination that is considered in the calculation of a route to its final destination. To create a waypoint trip, you may add one or several waypoints.

Enter or select the final destination of your waypoint trip and start route guidance.

While under active route guidance, select DESTINATION in the interaction selector bar of the map view.

Page 54

54 Navigation

Alternatively, touch the arrow symbol indicating your next turning manoeuvre on the right side of the screen to display the route guidance menu. Select DESTINATION in the interaction selector bar of the route guidance menu.

Enter or select a new address.

Select Go. You are prompted with a message.

Select Add as Waypoint. The route is recalculated and the new destination is added as a waypoint to the current route.

If desired, enter further waypoints as described above.

To save the entire route with waypoints, select Save.

The waypoint trip is saved in the contacts list in the Saved Trips folder and designated according to its final destination.

The saved waypoint trip can be recalled via the contacts list.

For a detailed description on how to edit a waypoint trip 3 55.

Page 55

Navigation 55

New destination

To set a new destination, you may cancel route guidance to the current destination and then enter a new destination. Or you may directly enter a new destination.

While under active route guidance, select DESTINATION in the interaction selector bar of the map view.

Enter or select a new address. Select Go. You are prompted with a

message. Select Set New Destination. The

route is recalculated and the new destination is set.

Calling a destination

After entering a destination and before starting route guidance, the destination details view is displayed.

To initiate a phone call to the selected location, select Call.

Notice The Call screen button is only available if a phone number is stored for the respective location.

Storing destinations

Contacts entry After entering a destination and before starting route guidance, the destination details view is displayed.

To save the respective destination in the contacts list, select Save. For a detailed description on how to save an address in the contacts list 3 22.

Notice The Save screen button is only available if the address has not yet been stored in the system.

Favourite Favourites may be stored from almost all screen views.

For a detailed description on how to store destination favourites 3 18.

Guidance

Route guidance is provided by the navigation system through visual instructions and voice prompts (voice guidance).

Visual instructions Visual instructions are provided on the displays.

Navigation voice prompts Navigation voice prompts announce which direction to follow, when approaching an intersection at which you need to turn.

To activate the voice prompts function and set the volume, see "Navigation voice settings" below.

Page 56

56 Navigation

Starting and cancelling route guidance

Starting route guidance To start route guidance to a new destination chosen, select Go in the destination details view.

To directly start route guidance to the last destination chosen, select MENU in the interaction selector bar and then select Resume to.

Route guidance to the last destination selected is restarted.

Cancelling route guidance To cancel route guidance, you may optionally:

● Touch x on the navigation map screen.

● Select MENU in the interaction selector bar and then select Cancel Route.

● Touch the arrow symbol indicating your next turning manoeuvre on the right side of the screen to display the route guidance menu.

Select END in the interaction selector bar.

Navigation voice settings

Mute To temporarily mute the output of navigation voice prompts, select y on the left side of the map screen. The icon changes to z.

To unmute the system, select z again.

Voice prompts Select MENU in the interaction selector bar and then select Navigation Voice Preferences to display the respective submenu.

If Voice Prompts - On is set, navigation voice prompts are read out by the system during active route guidance.

Set Voice Prompts - On or Voice Prompts - Off.

If set to Off, no navigation voice prompts are provided by the system.

Voice prompts during phone calls Select MENU in the interaction selector bar and then select Navigation Voice Preferences to display the respective submenu. Select Prompts During Phone Calls.

If On is selected, navigation voice prompts are also read out during phone calls.

If Off is selected, no voice prompts are given out. If Beeps is selected, a beep sounds instead of the announcement.

Volume To adjust the volume of the voice prompts, select ─ or w.

Information on traffic incidents

Traffic list To display a list of traffic incidents close to the current location of the vehicle, press ; and select TRAFFIC.

Page 57

Navigation 57

Alternatively, select MENU in the interaction selector bar and then select Traffic to display the respective submenu. Select Show Nearby Traffic Incidents.

If route guidance is not active, the list is displayed as follows:

If route guidance is active, two additional screen buttons are displayed: All for a list displaying all traffic incidents and Along Route for a list displaying only those traffic incidents regarding your current route.

By default, the list is sorted by distance from the vehicle location. To sort the list alphabetically, select Sort in the top line of the screen.

Touch one of the list elements to display detailed information on the respective traffic incident.

Notice If the traffic list has been entered via the TRAFFIC screen button on the home screen, touch w in the top left corner of the screen to enter the menu for traffic settings.

Traffic icons on the map If Show Icons on Map - On is set, traffic incident icons around the current location and along the route are displayed on the map.

Set Show Icons on Map - On or Show Icons on Map - Off.

Traffic routing This submenu contains settings of how the system may deal with traffic incidents before and during route guidance.

Select Traffic Routing Preferences to display the respective submenu.

If you wish slow traffic to be generally avoided, set Avoid Slow Traffic to On.

Select Automatically Avoid Traffic or Ask Me before Avoiding.

Types of traffic incidents Select Traffic Types to display the respective submenu.

Select the types of traffic incidents to be avoided.

TMC stations The TMC radio stations supply information on the current traffic situation considered in the calculation of the route.

Notice Depending on the country you are in, the TMC service is enhanced by a PayTMC functionality integrated in the Infotainment system.

Select TMC Station to display the respective submenu.

The default setting is Auto consulting different TMC stations.

If you wish a specific TMC station to be observed, select the respective station from the list.

Page 58

58 Navigation

If this station is no longer received, the system switches back to the Auto function.

Route settings

Select MENU in the interaction selector bar and then select Routing Preferences to display the respective submenu.

Route style To define by what criteria a route may be calculated, select Route Style.

Select Fast, Eco Friendly or Short from the list.

If Eco Friendly has been selected, the eco-friendly route style may be adapted to the load of the vehicle.

Select Edit Eco Profile to display the respective submenu.

Repeatedly select Roof Load and Trailer to toggle between the available load options. Set the options as needed.

Road selection Select from the list which road types may be included in the calculation of the route.

Route modification

To modify the route during active route guidance, touch the arrow symbol indicating your next turning manoeuvre on the right side of the screen.

The route guidance menu is displayed.

Notice The route guidance menu may only be displayed if route guidance is active.

The route guidance menu provides additional options to change route settings during active route guidance.

Displaying the turn list The turn list displays all streets on the calculated route, starting from the current location.

Select TURN LIST in the interaction selector bar of the route guidance menu. The turn list is displayed and the next manoeuvre is read out by the system.

Each list entry may show the following information:

● name of the street, motorway or motorway junction

● direction arrow

● distance to the next street on the route

● estimated arrival time to reach the next street

To display all available information on a particular list item, select the respective list item and then select Info in the top line of the screen.

Page 59

Navigation 59

Excluding streets from route guidance

After route guidance has been started, you may exclude streets from the previously calculated route. The route is then recalculated bypassing the streets excluded.

Select AVOID in the interaction selector bar of the route guidance menu. The turn list is displayed.

Select the street, motorway or motorway junction you wish to avoid. You are prompted with a message.

Select the desired distance option. The respective street or motorway is

displayed in the Avoided Areas section on top of the turn list indicated by a red 9.

Notice The Avoided Areas section also comprises roads automatically avoided by the system due to traffic incidents.

To reinclude the avoided street or motorway into the route, deselect the respective list item.

Displaying the waypoint list If you are in a waypoint trip, the route guidance menu comprises additional menu functions for waypoint trip modification.

The waypoint list displays all waypoints of the calculated waypoint trip, starting with the next upcoming waypoint.

Select WAYPOINTS in the interaction selector bar of the route guidance menu. The waypoints list is displayed.

Each list entry may show the following information:

● name or address of the waypoint

● distance to the next waypoint

● estimated arrival time to reach the next waypoint

Editing the waypoint trip To arrange a waypoint trip as desired, select EDIT in the interaction selector bar of the route guidance menu. The waypoints list is displayed.

To change the position of the waypoints within the list, select ▲ and ▼ next to the respective list items.

To delete a waypoint from the list, select ☓.

Select Save at the top of the screen to save the changes.

Optimising the waypoint trip If several waypoints have been added and the waypoint trip has been edited several times, you may want to rearrange the waypoints in the most efficient order.

Page 60

60 Navigation

Select OPTIMISE in the interaction selector bar of the route guidance menu.

Wait until the waypoints list has been updated.

Select Save at the top of the screen to save the changes.

Page 61

Speech recognition 61

Speech recognition

General information ..................... 61

Usage .......................................... 63

General information

Embedded speech recognition

The embedded speech recognition of the Infotainment system enables you to operate various functions of the Infotainment system via voice input. It recognises commands and numeric sequences independently of the relevant speaker. The commands and numeric sequences can be spoken without a voice pause between the individual words.

In the event of incorrect operation or commands, the speech recognition gives visual and/or acoustic feedback and requests you to re-enter the desired command. Apart from this, the speech recognition acknowledges important commands and will enquire if necessary.

In general, there are different ways to speak commands for performing the desired actions.

Notice To ensure that conversations inside the vehicle do not lead to unintentional triggering of the

system functions, the speech recognition does not start until it has been activated.

Important information Language support

● Not all languages available for the display of the Infotainment system are also available for the speech recognition.

● If the display language currently selected is not supported by the speech recognition, speech recognition is not available.

In such a case, you need to select another language for the display if you want to control the Infotainment system via voice input. To change the display language, see "Language" in chapter "System settings" 3 27.

Address input of destinations in foreign countries In case you want to enter the address of a destination located in a foreign country via voice input, you need to change the language of the InfoDisplay to the language of the foreign country.

Page 62

62 Speech recognition

E.g., if the display is currently set to English and you want to enter the name of a city located in France, you need to change the display language to French.

Exceptions: If you want to enter addresses in Belgium, you may optionally change the display language to French or Dutch. For addresses in Switzerland you may optionally change the display language to French, German, or Italian.

For changing the display language, see "Language" in chapter "System settings" 3 27.

Input order for destination addresses The order in which the parts of an address need to be entered using the speech recognition system is dependent on the country where the destination is located.

● Austria, Germany: <city> <street> <house number>

● Belgium, France, Great Britain:

● Denmark, Italy, Netherlands, Poland, Portugal, Russia, Spain, Switzerland, Turkey:

Setting up the speech recognition Several settings and adaptions for the embedded speech recognition of the Infotainment system can be performed.

Press ; and select SETTINGS on the home screen.

Select Voice item to enter the respective submenu.

Confidence Threshold Depending on the option selected in the corresponding submenu, the speech recognition appears more or less 'confident' in correctly understanding your commands.

Confirm More: If selected, the system asks you relatively often to confirm your commands. Consequently, the system performs the correct action in most cases.

Confirm Less: If selected, the system asks you less often to confirm your voice inputs. Consequently, the system might sometimes misinterpret your commands and not perform the correct action.

Notice When starting to use the speech recognition, it may be advantageous to use the Confirm More setting. As you get more experienced, i.e., you get to know how to pronounce your commands in a way the speech recognition understands you correctly, it may be advantageous to use the Confirm Less setting.

Page 63

Speech recognition 63

Prompt Length The length and the level of detail of the questions and statements the speech recognition gives out can be adjusted in the corresponding submenu.

Audio Feedback Speed The speed with which the speech recognition asks questions or makes statements can be adjusted in the corresponding submenu.

If Medium is selected, the system's speech rate corresponds to natural speech.

Notice When starting to use the speech recognition, it may be advantageous to use the Long setting. As you get more experienced, it may be advantageous to use the Short setting.

Display "What Can I Say?" Tips Depending on whether you want possible speech commands to be displayed on the screen, set Display "What Can I Say?" Tips to On or Off.

Voice pass-thru application

The voice pass-thru application of the Infotainment system allows access to the speech recognition commands on your smartphone.

The availability of this function depends on your smartphone. For more information on compatibility, see our website.

Usage

Embedded speech recognition

Activating speech recognition

Notice Speech recognition is not available during an active phone call.

Activation via the w button on the steering wheel Press w on the steering wheel.

The audio system mutes, a voice output message prompts you to say a command, and help menus with the most important commands currently available are shown on the InfoDisplay.

As soon as the speech recognition is ready for voice input, a beep is heard. The speech recognition symbol in the upper left corner of the help menu changes from white to red.

You can now say a voice command to initiate a system function (e.g. playing a preset radio station).

Activation via the VOICE screen button on the centre display Select VOICE in the interaction selector bar of a centre display main menu.

The audio system mutes, a voice output message prompts you to say a command, and a help menu with the most important commands currently available is shown on the centre display.

As soon as the speech recognition is ready for voice input, a beep is heard. The speech recognition symbol on the right side of the help menu changes from black to red.

You can now say a voice command, see description above.

Page 64

64 Speech recognition

Adjusting the volume of voice prompts

Press ! or # on the steering wheel upwards (increase volume) or downwards (decrease volume).

Interrupting a voice prompt As an experienced user, you can interrupt a voice prompt by briefly pressing w on the steering wheel.

A beep is heard immediately, the speech recognition symbol changes to red, and a command can be stated without having to wait.

Cancelling a dialogue sequence There are various ways to cancel a dialogue sequence and to deactivate the speech recognition:

● Say "Cancel" or "Exit".

● Press n on the steering wheel.

● If the speech recognition session was started via the VOICE screen button on the centre display, you may alternatively:

● Press ; on the control panel.

● Select m or Exit in the help

menu.

In the following situations, a dialogue sequence is automatically cancelled:

● If you do not say any command for a certain period of time (by default you are prompted three times to say a command).

● If you say commands that are not recognised by the system (by default you are prompted three times to say a correct command).

Operation via speech commands The speech recognition can understand commands that are either naturally stated in sentence form, or direct commands stating the application and the action.

For best results:

● Listen for the voice prompt and wait for the beep before saying a command or replying.

● Say "Help" or read the example commands on the screen.

● The voice prompt can be interrupted by pressing w again.

● Wait for the beep and then speak the command naturally, not too fast, not too slow. Use short and direct commands.

Usually commands can be spoken in a single command. For example, "Call David Smith at work", "Play" followed by the artist or song name, "Tune to" followed by the radio waveband and frequency/station name, or "Find address" followed by the address e.g. "123 Main Road, London".

In case of complex commands or when information is missing, the system starts a dialogue sequence.

When searching for a "Point of Interest", only major chains may be selected by name. Chains are businesses with at least 20 locations. For other POIs, say the name of a category, e.g. "Restaurants", "Shopping centres", or "Hospitals".

If you say "Phone" or "Phone commands", the system understands that a phone call is requested and responds with relevant questions until

Page 65

Speech recognition 65

enough details are gathered. If the phone number has been saved with a name and a place, the direct command should include both, for example "Call David Smith at work".

Selecting list items When a list is displayed, a voice prompt asks to confirm or select an item from that list. A list item may be manually selected, or by speaking the line number of the item.

The list on a speech recognition screen functions the same as a list on other screens. Manually scrolling the list on a screen during a speech recognition session suspends the current speech recognition event and plays a prompt like "Make your selection from the list using the manual controls, press the back button on the faceplate, or press the back screen button to try again".

If no manual selection is made within 15 seconds, the speech recognition session terminates, you are prompted with a message, and the former screen is redisplayed.

The "Back" command To return to the previous menu, optionally: say "Back", press k BACK on the control panel, or press m.

The "Help" command After saying "Help", the help prompt for the current screen is read aloud. Additionally, the prompt is displayed on the screen.

To interrupt the help prompt, press w. A beep is heard. You may say a command.

Voice pass-thru application

Activating speech recognition Press and hold s on the steering wheel until a speech recognition icon is displayed.

Adjusting the volume of voice prompts

Turn m on the control panel or press ! or # on the steering wheel upwards (increase volume) or downwards (decrease volume).

Deactivating speech recognition Press n on the steering wheel. The speech recognition session is ended.

Page 66

66 Phone

Phone

General information ..................... 66

Bluetooth connection ................... 67

Emergency call ............................ 69

Operation ..................................... 69

Text messages ............................ 73

Mobile phones and CB radio

equipment .................................... 75

General information

The Phone portal provides you with the possibility of having mobile phone conversations via a vehicle microphone and the vehicle loudspeakers as well as operating the most important mobile phone functions via the Infotainment system in the vehicle. To be able to use the Phone portal, the mobile phone must be connected to the Infotainment system via Bluetooth.

Not all Phone functions are supported by every mobile phone. The usable phone functions depend on the relevant mobile phone and network provider. You will find further information on this in the operating instructions for your mobile phone, or you can enquire about them with your network provider.

Important information for operation and traffic safety

9 Warning

Mobile phones have effects on your environment. For this reason, safety regulations and directions have been prepared. You should be familiar with the related directions before you use the telephone function.

9 Warning

Use of the hands-free facility while driving can be dangerous because your concentration is reduced when telephoning. Park your vehicle before you use the handsfree facility. Follow the stipulations of the country in which you find yourself at present.

Do not forget to follow the special regulations that apply in specific areas and always switch off the mobile phone if the use of mobile phones is prohibited, if

Page 67

Phone 67

interference is caused by the mobile phone or if dangerous situations can occur.

Bluetooth

The Phone portal is certified by the Bluetooth Special Interest Group (SIG).

You will find further information about the specification on the internet at http://www.bluetooth.com

Bluetooth connection

Bluetooth is a radio standard for the wireless connection of e.g. mobile phones or other devices.

To be able to set up a Bluetooth connection to the Infotainment system, the Bluetooth function of the Bluetooth device must be activated. For further information, please consult the operating instructions for the Bluetooth device.

Via the Bluetooth settings menu, pairing (PIN code exchange between Bluetooth device and Infotainment

system) and connecting of the Bluetooth devices to the Infotainment system are carried out.

Bluetooth settings menu

Press ; and select SETTINGS on the home screen.

Select Bluetooth to display the respective submenu.

Pairing a device

Important information

● Up to five devices can be paired to the system.

● Only one paired device can be connected to the Infotainment system at a time.

● Pairing normally only needs to be carried out once, unless the device is deleted from the list of paired devices. If the device has been connected previously, the

Infotainment system automatically establishes a connection.

● Bluetooth operation considerably drains the device's battery. Therefore, connect the device to the USB port for charging.

Pairing via the Settings application

1. Press ; and select SETTINGS on the home screen.

Select Bluetooth to display the respective submenu.

2. Select Pair Device. Alternatively, select Device

Management to display the device list and then select Pair Device.

3. A message is displayed on the Infotainment system indicating the name and PIN code of the Infotainment system.

4. Start Bluetooth searching on the Bluetooth device to be paired.

5. Confirm the pairing procedure:

● If SSP (secure simple pairing) is supported:

Page 68

68 Phone

Compare the PIN code (if demanded) and confirm the messages on the Infotainment system and the Bluetooth device.

● If SSP (secure simple pairing) is not supported:

If desired, select Set PIN to change the PIN code of the Infotainment system. A keypad is displayed. Enter the new PIN code and confirm your input.

Enter the Infotainment PIN code on the Bluetooth device and confirm your input.

6. The Infotainment system and the device are paired and the device list is displayed.

Notice If the Bluetooth connection fails, a failure message is displayed on the screen of the Infotainment system.

7. If available on the Bluetooth device, phone book and calls lists are downloaded to the Infotainment system. If required,

confirm the respective message on your smartphone.

Notice For the contacts to be read by the Infotainment system, they have to be stored in the phone memory of the mobile phone.

If this function is not supported by the Bluetooth device, a corresponding message is displayed on the Infotainment system.

Pairing via the Phone application

1. Press ; and select PHONE on the home screen.

2. Select Pair Device.

3. Proceed from step 3 of "Pairing via the Settings application" (see above).

4. If the device has been successfully paired, the phone menu is displayed.

Notice If the Bluetooth connection fails, a failure message is displayed on the screen of the Infotainment system.

Connecting a paired device

1. Press ; and select SETTINGS on the home screen.

Select Bluetooth to display the respective submenu.

2. Select Device Management to display the device list.

3. Select the Bluetooth device you wish to connect.

4. The device is connected and displayed within the Connected field of the device list.

Disconnecting a device

1. Press ; and select SETTINGS on the home screen.

Select Bluetooth to display the respective submenu.

2. Select Device Management to display the device list.

3. Select ╳ beside the Bluetooth device currently connected. You are prompted with a message.

4. Select Yes to disconnect the device.

Page 69

Phone 69

Deleting a device

1. Press ; and select SETTINGS on the home screen.

Select Bluetooth to display the respective submenu.

2. Select Device Management to display the device list.

3. Select ─ beside the Bluetooth device to be deleted. You are prompted with a message.

4. Select Yes to delete the device.

Emergency call

9 Warning

Connection setup cannot be guaranteed in all situations.For this reason you should not rely exclusively on a mobile phone when a vitally important communication (e.g. a medical emergency) is concerned.

In some networks it may be necessary for a valid SIM card to be properly inserted in the mobile phone.

Warning

Bear in mind that you can make and receive calls with the mobile phone if it is in a service area with a sufficiently strong signal. Under certain circumstances, emergency calls cannot be made on all mobile phone networks; it is possible that they cannot be made when certain network services and/or telephone functions are active. You can enquire about this with the local network operators.

The emergency call number can differ depending on the region and country. Please enquire beforehand about the correct emergency call number for the relevant region.

Making an emergency call

Dial the emergency call number (e.g.

112). The telephone connection to the

emergency call centre is set up. Answer when the service personnel

questions you about the emergency.

Warning

Do not end the call until you are requested to do so by the emergency call centre.

Operation

As soon as a connection via Bluetooth has been set up between your mobile phone and the Infotainment system, you can operate many functions of your mobile phone via the Infotainment system.

Notice Not every mobile phone supports all functions of the Phone portal. Therefore, deviations from the range of functions described below are possible.

Phone application

Press ; and select PHONE on the home screen to display the respective menu.

The Phone portal comprises different views accessible via tabs. Select the desired tab.

Page 70

70 Phone

Notice The phone main menu is only available if a mobile phone is connected to the Infotainment system via Bluetooth. For a detailed description 3 67.

Initiating a phone call

Keypad Press ; and select PHONE on the home screen to display the respective menu.

If necessary, select KEYPAD in the interaction selector bar. The keypad is displayed.

Enter the desired number and select Call. The number is dialled.

To dial a speed dial number, enter the number and touch and hold the last digit. The number is dialled.

Contacts Press ; and select PHONE on the home screen to display the respective menu.

If necessary, select CONTACTS in the interaction selector bar. The contacts list is displayed.

For a detailed description of the contacts lists 3 22.

Scroll to the desired contacts entry.

Quick function icon If there is only one number stored for a contact, a quick dial icon is displayed next to the respective entry in the contacts list.

Select z to directly initiate the call.

Contact details view If more than one number is stored for a contact, select the respective contact.

The contact details view is displayed. Select one of the phone numbers

stored for the contact. The number is dialled.

Calls lists Press ; and select PHONE on the home screen to display the respective menu.

If necessary, select RECENT in the interaction selector bar. The recent calls list is displayed.

Page 71

Phone 71

Notice Missed calls are highlighted in red in the recent calls list and indicated by a 9 next to the phone icon in the application tray.

Select one of the phone numbers stored in the recent calls list. The number is dialled.

Favourites Reveal the favourites page.

If necessary, scroll through the pages.

Select the desired favourite screen button.

For a detailed description 3 18.

Incoming phone call

Taking a phone call If a radio or media source is active when a call comes in, the audio source is muted and remains muted until the call is ended.

A message with the caller's name or number is displayed at the bottom of the screen.

To answer the call, select the message.

Rejecting a phone call To reject the call, select Ignore in the message.

Answer in

Changing the ringtone Press ; and select SETTINGS on the home screen.

Select Bluetooth to display the respective submenu and then select Ringtones. A list of all phones paired to the Infotainment system is displayed.

Select the desired phone. A list of all ringtones available for the respective phone is displayed.

Select the desired ringtone.

Functions during a phone call

During a phone call, the in-call view is displayed.

Page 72

72 Phone

Ending a phone call Select End to end the call.

Deactivating the microphone Select Mute to temporarily deactivate the microphone.

The screen button changes to Unmute.

To reactivate the microphone, select Unmute.

Deactivating the hands-free function To continue the conversation on your mobile phone, select Handset.

The screen button changes to Handsfree.

To reactivate the hands-free function, select Handsfree.

Second phone call

Initiating a second phone call To initiate a second phone call, select Add in the in-call view. The phone menu is displayed.

Initiate a second phone call. For a detailed description, see above.

To cancel the initiation of the second call and return to the in-call view, select Current Call.

Both calls are displayed in the in-call view.

Second incoming phone call A message with the caller's name or number is displayed at the bottom of the in-call view.

Select Answer or Ignore in the message.

Ending the phone calls To end both calls, select End at the bottom of the screen.

To end just one of the calls, select A next to the respective call.

Conference call Select B to merge the two calls. Both calls become active.

The B screen button changes to C.

To unmerge the calls, select

Phones

Select PHONES in the interaction selector bar to display the device list.

Page 73

Phone 73

For a detailed description 3 67.

Text messages

The TEXT application allows text messages to be received and replied to via the Infotainment system.

Notice If the vehicle is going faster than 5 mph, some functions of the text application may not be available.

Prerequisites

The following prerequisites must be met in order to use the TEXT application:

● The Bluetooth function of the respective phone must be activated (see operating instructions for the device).

● Dependent on the phone, it may be required to set the device to "visible" (see operating instructions for the device).

● Depending on the phone, it may be required to manually allow access to the text messages function on the phone (see operating instructions for the device).

● The respective phone must be paired and connected to the Infotainment system. For a detailed description 3 67.

● The respective phone must support Bluetooth Message Access Profile (BT MAP).

Starting the text application

Press ; and select TEXT on the home screen.

If a new text message is received, you are prompted with a message. Select one of the screen buttons to enter the TEXT application.

Notice Text message alerts are only displayed if Text Alerts in the text settings menu is set to On.

Page 74

74 Phone

Listening to a message

Select INBOX in the interaction selector bar. The text messages stored on the respective phone are displayed in a list.

Notice Depending on the phone, not all text messages stored on the phone are displayed in the inbox.

To listen to a message, select 3 beside the respective message.

Alternatively, select the desired message to display the message view. Select LISTEN in the interaction selector bar.

Viewing a message

Select INBOX in the interaction selector bar. The text messages stored on the respective phone are displayed in a list.

Select the desired message to display the complete message text.

Calling the sender

Select INBOX in the interaction selector bar. The text messages stored on the respective phone are displayed in a list.

Select the desired message to display the message view.

Select Call in the interaction selector bar. The sender of the message is called.

Replying to a message

Notice Depending on the phone, the reply function may not be supported.

Select INBOX in the interaction selector bar. The text messages stored on the respective phone are displayed in a list.

Select the desired message to display the message view.

Select REPLY in the interaction selector bar. A list of predefined messages is displayed.

Select the desired predefined text message.

If none of the predefined messages serves your purpose, you can write a new message, see "Manage Predefined Messages" below.

Deleting a message

Select INBOX in the interaction selector bar. The text messages stored on the respective phone are displayed in a list.

Select the desired message to display the message view.

To delete the text message, select Delete in the interaction selector bar.

Page 75

Phone 75

Device list

Select PHONES to display the device list.

For a detailed description 3 67.

Text settings

Select Settings to enter the settings menu.

Text Alerts If you wish an alert to pop-up when a new text message is received, set Text Alerts - On.

Manage Predefined Messages Select Manage Predefined Messages to display a list of all predefined messages.

Adding a new message

Notice Predefined messages can only be entered when the vehicle is stationary.

Select Add New Predefined Message. A keyboard is displayed.

Enter the desired message text and confirm your input. The new message is added to the list of predefined messages.

Deleting a predefined message To delete a predefined message, select ‒ beside the message you wish to delete.

Mobile phones and CB radio equipment

Installation instructions and operating guidelines

The vehicle specific installation instructions and the operating guidelines of the mobile phone and handsfree manufacturer must be observed when installing and operating a mobile telephone. Failure to do so could invalidate the vehicle type approval (EU directive 95/54/ EC).

Recommendations for fault-free operation:

● The exterior antenna must be professionally installed to obtain the maximum range possible.

● Maximum transmission power: 10 watts.

● The mobile phone must be installed in a suitable spot. Consider relevant note in the Owner's Manual, chapter Airbag system.

Page 76

76 Phone

Seek advice on predetermined installation points for the external antenna or equipment holder and ways of using devices with a transmission power exceeding 10 watts.

Use of a hands-free attachment without external antenna with mobile telephone standards GSM 900/1800/1900 and UMTS is only permitted if the maximum transmission power of the mobile telephone is 2 watts for GSM 900 or 1 watt for the other types.

For reasons of safety, do not use the phone while driving. Even use of a hands-free set can be a distraction while driving.

9 Warning

Operation of radio equipment and mobile telephones which fail to meet above mentioned mobile telephone standards is only permitted using an antenna located outside of the vehicle.

Caution

Mobile telephones and radio equipment may lead to malfunctions in the vehicle electronics when operated inside the vehicle with no exterior antenna, unless the above mentioned regulations are observed.

Page 77

Frequently asked questions 77

Frequently asked questions

Frequently asked questions ......... 77

Frequently asked questions

Phone

How can I pair my phone with the

Infotainment system? In order to pair a phone, press ;,

select the PHONE icon and then select Pair Device. Follow the instructions on your device and make sure Bluetooth is enabled.

Detailed description 3 67.

How can I access my phone book

contacts and recent calls? In order to access the contacts or

calls list, press ;, select the PHONE icon and then select CONTACTS or RECENT. Make sure access to the phone book and recent calls list is allowed on the phone. Depending on the phone, loading the phone book and recent calls list might take a few minutes.

Detailed description 3 69.

Favourites

What can be stored as a favourite?

Up to 60 favourites of almost all

elements can be stored, e.g. destinations, phone contacts, playlists, radio stations, etc.

Detailed description 3 18.

How can I store a new favourite?

Activate the respective application

and touch and hold a favourite screen button to store a new favourite in this location. A short beep sound confirms storing. In some cases, it is required to select a specific item.

Detailed description 3 18.

How can I rename, delete or move

my favourites? Press ;, select the SETTINGS

icon on the Home screen, Radio in the settings list and then Manage Favourites in order to rename, delete or move the favourites.

Detailed description 3 18.

Page 78

78 Frequently asked questions

Where are the favourites stored

and how can I recall them? The favourites are stored in the

favourites list. To recall a favourite, select the respective screen button on the favourites row displayed. On certain screens, the favourites list is hidden to extend the main content view. On these screens, select n on the lower right of the screen or drag the interaction selector bar upwards with the finger.

Detailed description 3 18.

Navigation

After entering a destination

address, an error message is shown. What am I doing wrong?

For full address entry, the

navigation system expects a certain input order. Depending on the country in which the entered address is located, a different input order might be required. Add the country name at the end of the entry if a destination in another country has been entered.

Detailed description 3 49.

How can I cancel active route

guidance? To cancel route guidance, select

MENU in the interaction selector bar and then select Cancel Route.

Detailed description 3 55.

Audio

How can I change the audio

source? By selecting RADIO repeatedly,

you can toggle through all available radio sources (AM/FM/ DAB). By selecting MEDIA repeatedly, you can toggle through all available media sources.

Detailed description for radio 3 31, external devices 3 36.

How can I browse radio stations or

media music? To browse radio stations or media

music, such as playlists or albums, select BROWSE on the audio screen.

Detailed description for radio 3 31, external devices 3 37.

Other

How can I improve the

performance of the voice recognition?

The voice recognition is designed

to understand naturally pronounced voice commands. Wait for the beep tone and speak afterwards. Try to speak naturally, not too fast or too loud.

Detailed description 3 61.

How can I improve the touch

screen's performance? The touch screen is pressure-

sensitive. Especially when doing drag gestures, try to apply more pressure with the finger.

Detailed description 3 14.

Page 79

Frequently asked questions 79

Page 80

Index

Activating Bluetooth music........... 37

Activating phone projection.......... 39

Activating radio............................. 31

Activating the Infotainment system 11 Activating the navigation system..43

Activating the phone portal........... 69

Activating USB........................ 37, 38

Address book................................ 49

Application tray............................. 16

Audio files..................................... 36

Automatic volume adjustment

Auto volume.............................. 26

Auto Set........................................ 27

Auto volume.................................. 26

Balance......................................... 26

Basic operation............................. 14

Application tray.......................... 16

Character recognition pane....... 17

Contacts.................................... 22

Favourites................................. 18

Home screen............................. 16

Interaction selector bar............. 16

Keyboard................................... 17

Keypad...................................... 17

Bass.............................................. 26

Bluetooth connection.................... 67

Bluetooth music............................ 36

Category list.................................. 31

Character modifiers...................... 17

Character recognition pane.......... 17

Clock display................................ 27

Contacts................................. 22, 49

Modifying................................... 22

Retrieving.................................. 22

Storing....................................... 22

Control elements

Infotainment system.................... 8

Steering wheel............................ 8

Control elements overview............. 8

DAB.............................................. 33

DAB linking................................... 33

Date.............................................. 27

Destination input .......................... 49

Digital audio broadcasting............ 33

Displaying favourites.................... 18

Display mode................................ 27

Emergency call............................. 69

EQ................................................ 26

Equaliser....................................... 26

Fader............................................ 26

Favourites..................................... 18

Page 81

Deleting..................................... 18

Displaying.................................. 18

Renaming.................................. 18

Retrieving.................................. 18

Storing....................................... 18

File formats

Audio files.................................. 36

Movie files................................. 36

Forgotten PIN............................... 27

Frequency list............................... 31

Frequently asked questions......... 77

General information.... 36, 42, 61, 66

Bluetooth music......................... 36

Infotainment system.................... 6

Navigation................................. 42

Phone portal.............................. 66

Radio......................................... 31

USB........................................... 36

Guidance ..................................... 55

Home button................................. 16

Home screen................................ 16

Individual POIs............................. 43

Infotainment control panel.............. 8

Intellitext....................................... 33

Interaction selector bar................. 16

Keyboard

Letter keyboard......................... 17

Symbol keyboard...................... 17

Keyboards.................................... 17

Keypad......................................... 17

Language..................................... 27

L-Band.......................................... 33

Maps............................................. 43

Maximum startup volume............. 26

Menu operation............................. 16

Messages..................................... 16

Midrange....................................... 26

Mobile phones and CB radio

equipment ................................ 75

Movie files..................................... 36

Movies.......................................... 38

Mute.............................................. 11

Navigation..................................... 55

Contacts.............................. 22, 49

Current location......................... 43

Destination input....................... 49

Favourites................................. 18

Individual POIs.......................... 43

Map display............................... 43

Map manipulation...................... 43

Map update............................... 42

OVERVIEW screen button........ 43

Recent destinations.................. 49

Route guidance......................... 55

Route guidance menu............... 55

TMC stations....................... 42, 55

Traffic incidents......................... 55

Turn list..................................... 55

Voice prompts........................... 55

Waypoint list.............................. 55

Waypoint trip............................. 49

Operation...................................... 69

Bluetooth music......................... 37

Contacts.................................... 22

Favourites................................. 18

Infotainment system.................. 11

Keyboards................................. 17

Navigation system..................... 43

Phone........................................ 69

Radio......................................... 31

Touch screen............................ 14

USB..................................... 37, 38

OVERVIEW screen button........... 43

Page 82

Pairing.......................................... 67

Phone

Bluetooth................................... 66

Bluetooth connection................ 67

Contacts.................................... 22

Emergency calls........................ 69

Favourites................................. 18

Hands-free mode...................... 69

Phone book......................... 22, 69

Recent calls............................... 69

Ringtone.................................... 69

Text messages.......................... 73

Phone book............................ 22, 69

Phone call

Initiating..................................... 69

Rejecting................................... 69

Taking....................................... 69

Phone projection.......................... 39

Playing audio................................ 37

Playing movies............................. 38

POIs.............................................. 49

Radio

Category list.............................. 31

DAB........................................... 33

DAB announcements................ 33

DAB menu................................. 33

Digital audio broadcasting......... 33

Favourites................................. 18

FM menu................................... 32

Frequency list............................ 31

Intellitext.................................... 33

L-Band....................................... 33

Radio Data System................... 32

RDS........................................... 32

Region....................................... 32

Regionalisation......................... 32

Station list.................................. 31

Station search........................... 31

TP.............................................. 32

Traffic Programme.................... 32

Waveband................................. 31

Radio data system (RDS) ............ 32

Region.......................................... 32

Regionalisation............................. 32

RESET screen button................... 43

Retrieving favourites..................... 18

Return to factory settings.............. 27

Ringtone....................................... 69

Route guidance............................ 55

Route style.................................... 55

Shop............................................. 39

Smartphone

Phone projection....................... 39

Speech recognition....................... 61

Station list..................................... 31

Station search............................... 31

Storing favourites.......................... 18

Switching the Infotainment

system on.................................. 11

System settings............................ 27

Display...................................... 27

Language.................................. 27

Return to factory settings.......... 27

Time and Date........................... 27

Valet mode................................ 27

TA................................................. 32

Text messages............................. 73

Theft-deterrent feature ................... 7

Time.............................................. 27

TMC stations................................ 42

Tone settings................................ 26

Touch screen................................ 14

Touch screen calibration.............. 27

Touch screen operation................ 14

TP................................................. 32

Traffic incidents............................ 55

Traffic Programme........................ 32

Treble........................................... 26

Turn list......................................... 55

Usage......................... 11, 31, 43, 63

Bluetooth music......................... 37

Infotainment system.................. 11

Page 83

Navigation system..................... 43

Phone........................................ 69

Touch screen............................ 14

USB..................................... 37, 38

USB.............................................. 36

Using apps.................................... 39

Using smartphone applications.... 39

Valet mode

Locking...................................... 27

Unlocking.................................. 27

Voice recognition.......................... 61

Volume

Auto Volume.............................. 26

Maximum startup volume.......... 26

Mute function............................. 11

Setting the volume.................... 11

Volume settings............................ 26

Waveband selection..................... 31

Waypoint list................................. 55

Waypoint trip................................. 49

Wrong scrolling direction.............. 27

Page 84

Page 85

R 4.0 IntelliLink

Introduction .................................. 86

Basic operation ............................ 95

Radio ......................................... 101

External devices ........................ 107

Speech recognition .................... 114

Phone ........................................ 115

Index .......................................... 124

Page 86

86 Introduction

Introduction

General information ..................... 86

Theft-deterrent feature ................. 87

Control elements overview .......... 88

Usage .......................................... 92

General information

The Infotainment system provides you with state-of-the-art in-car infotainment.

Using radio tuner functions, you may register up to 25 stations on five favourites pages.

You can connect external data storage devices to the Infotainment system as further audio sources; either via cable or via Bluetooth®.

In addition, the Infotainment system is equipped with a phone portal that allows for comfortable and safe use of your mobile phone in the vehicle.

You can also operate specific smartphone applications via the Infotainment system.

Optionally, the Infotainment system can be operated using the touch screen and buttons on the control panel, the controls on the steering wheel, or - if provided by your mobile phone - via speech recognition.

The well-thought-out design of the control elements, the touch screen and the clear displays enable you to control the system easily and intuitively.

Notice This manual describes all options and features available for the various Infotainment systems. Certain descriptions, including those

for display and menu functions, may

not apply to your vehicle due to model variant, country specifications, special equipment or accessories.

Important information on operation and traffic safety

9 Warning

The Infotainment system must be used so that the vehicle can be driven safely at all times. If in doubt, stop the vehicle and operate the Infotainment system while the vehicle is stationary.

Page 87

Radio reception

Radio reception may be disrupted by static, noise, distortion or loss of reception due to:

● changes in distance from the transmitter

● multipath reception due to reflection

● shadowing

Theft-deterrent feature

The Infotainment system is equipped with an electronic security system for the purpose of theft deterrence.

The Infotainment system therefore functions only in your vehicle and is worthless to a thief.

Introduction 87

Page 88

88 Introduction

Control elements overview

Control panel

Page 89

Introduction 89

1 Display / touch screen ........... 95

2 Home menu .......................... 95

Screen buttons for access to:

Audio: audio functions

Gallery: picture and movie functions

Phone: mobile phone functions

Projection: phone projection

Settings: system settings

OnStar: OnStar Wi-Fi

settings .................................. 92

3 Time, date and

temperature indicators .......... 99

4 g

Short press: open phone

menu ................................... 119

or open phone projection

function (if activated) ........... 112

Long press: activate

speech recognition .............. 114

5 v

Short press: skip to next

station when radio active ....101

or skip to next track when

external devices active ....... 109

Long press: seek up when

radio active .......................... 101

or fast forward when

external devices active ....... 109

6 m

Short press: switch on Infotainment system if

turned off ............................... 92

or mute system if turned on . 92

Long press: switch off

Infotainment system .............. 92

Turn: adjust volume .............. 92

7 t

Short press: skip to previous station when

radio active .......................... 101

or skip to previous track when external devices

active ................................... 109

Long press: seek down

when radio active ................ 101

or fast rewind when

external devices active ....... 109

8 ;

Short press: open home

menu ..................................... 92

Long press: open phone projection function (if

activated) ............................ 112

Page 90

90 Introduction

Steering wheel controls (Type 1)

1 qw

Short press: open OnStar menu if no phone

connected ............................. 92

or take phone call if phone

connected ........................... 115

or dial last number in call list when phone menu

displayed ............................. 119

or switch between calls

when calls are waiting ......... 119

Long press: activate

speech recognition .............. 114

2 SRC (Source) ........................ 92

Press: select audio source .... 92

Turn upwards/ downwards: select next/ previous preset radio

station when radio active ....101

or select next/previous track/chapter/picture when external devices

active ................................... 109

or select next/previous entry in call list when phone portal active and

call list open ........................ 119

Turn upwards/downwards and hold: scroll quickly through the entries in the

call list ................................. 119

3 +

Press: increase volume

4 -

Press: reduce volume

5 xn

Press: end/decline call ........ 119

or deactivate speech

recognition .......................... 114

or activate/deactivate

mute function ........................ 92

Page 91

Introduction 91

Steering wheel controls (Type 2)

1 s

Short press: take phone call 119

or activate speech

recognition .......................... 114

or interrupt a prompt and

speak directly ...................... 114

Long press: activate voice pass-thru (if supported by

phone) ................................. 114

2 n

Press: end/decline call ........ 119

or deactivate speech

recognition .......................... 114

or activate/deactivate

mute function ........................ 92

3 k / l

Radio: press to select

next / previous favourite ...... 103

Media: press to select

next / previous track ............ 109

4 À / Á ............................... 92

Press upwards: increase volume

Press downwards: decrease volume

Page 92

92 Introduction

For a description of all other controls, see Owner's Manual.

Usage

Control elements

The Infotainment system is operated via function buttons, a touch screen and menus that are shown on the display.

Inputs are made optionally via:

● the central control unit in the

control panel 3 88

● the touch screen 3 95

● audio controls on the steering

wheel 3 88

● the speech recognition 3 114

Switching the Infotainment system on or off

Press X. After switching on, the last selected Infotainment source becomes active.

Automatic switch-off If the Infotainment system has been switched on pressing X while the ignition is switched off, it will switch off again automatically 10 minutes after the last user input.

Setting the volume

Turn X. The current setting is shown on the display.

When the Infotainment system is switched on, the last selected volume is set, provided that it is lower than the maximum start-up volume. For a detailed description 3 98.

Speed compensated volume When the speed compensated volume is activated 3 98, the volume is adapted automatically to make up for the road and wind noise as you drive.

Mute Press X to mute the Infotainment system.

To cancel the mute function: press X again. The last selected volume is set again.

Modes of operation

Press ; to display the home menu.

Notice For a detailed description of menu operation via touch screen 3 95.

Audio Select Audio to open the main menu of the last selected audio mode.

Select Source on the screen to display the interaction selector bar.

To change to another audio mode: touch one of the items in the interaction selector bar.

Page 93

Introduction 93

For a detailed description of:

● Radio functions 3 101

● External devices 3 109

Notice To easily return to the audio screen currently active, touch A in the top line of any screen.

Gallery Select Gallery to open the picture and movie menu for files stored on an external device such as USB stick or smartphone.

Select l or m to display the picture or movie menu. Select the desired picture or movie file to show the respective item on the display.

For a detailed description of:

● Picture functions 3 110

● Movie functions 3 111

Phone Before the phone portal can be used, a connection has to be established between the Infotainment system and the mobile phone.

For a detailed description of preparing and establishing a Bluetooth connection between the Infotainment system and a mobile phone 3 115.

If the mobile phone is connected, select Phone to display the main menu of the phone portal.

For a detailed description of mobile phone operation via the Infotainment system 3 119.

Projection To show specific apps of your smartphone display on the Infotainment system, connect your smartphone.

Select Projection to start the projection function.

Page 94

94 Introduction

Depending on the smartphone connected, a main menu with different selectable apps is displayed.

For a detailed description 3 112.

Settings Select Settings to open a menu for various system-related settings, e.g. deactivating Audible Touch Feedback.

OnStar To display a menu with the OnStar Wi-Fi settings, select OnStar.

For a detailed description, see Owner's Manual.

Page 95

Basic operation 95

Basic operation

Basic operation ............................ 95

Tone settings ............................... 97

Volume settings ........................... 98

System settings ........................... 99

Basic operation

The Infotainment system display has a touch-sensitive surface that allows direct interaction with the displayed menu controls.

Caution

Do not use pointed or hard items like ballpoint pens, pencils or similar for touch screen operation.

9 screen button

When operating the menus, press 9 in the respective submenu to return to the next higher menu level.

When no 9 screen button is displayed, you are on the top level of the respective menu. Press ; to display the home screen.

Selecting or activating a screen button or menu item

Touch a screen button or menu item. The corresponding system function is

activated, a message is shown, or a submenu with further options is displayed.

Page 96

96 Basic operation

Notice In subsequent chapters, the operating steps for selecting and activating a screen button or menu item via the touch screen will be described as "...select <button name>/<item name>".

Moving items on the home menu

Touch and hold the element you wish to move until red boxes appear around the icons. Move your finger to the desired location and release the element.

Notice Constant pressure must be applied and the finger must be moved at constant speed.

All other items are rearranged. Press one of the buttons on the

control panel to exit edit mode.

Notice Edit mode exits automatically after 30 seconds of inactivity.

Scrolling lists

If there are more items available than presentable on the screen, the list must be scrolled.

To scroll through a list of menu items, you may optionally:

● Place your finger anywhere on the screen and move it upwards or downwards.

Notice Constant pressure must be applied and the finger must be moved at constant speed.

● Touch S or R at the top or bottom of the scroll bar.

● Move the slider of the scroll bar up and down with your finger.

To return to the top of the list, touch the list title.

Notice In subsequent chapters, the operating steps for scrolling to a list item via the touch screen will be described as "...scroll to <item name>".

Page 97

Basic operation 97

Scrolling pages

Notice Pages are only scrollable if there is more than one page available.

To scroll from one page to another:

● Place your finger anywhere on the screen and move it left to scroll to the next page or right to scroll to the previous page.

Notice Constant pressure must be applied and the finger must be moved at constant speed.

● Touch q or p on the screen.

Notice In subsequent chapters, the operating steps for scrolling pages via the touch screen will be described as "...scroll to...page...".

Tone settings

In the tone settings menu, the tone characteristics can be set. The menu may be accessed from each audio main menu.

To open the tone settings menu, select Menu in the bottom line of the respective audio main menu. If necessary, scroll through the list of menu items and select Tone Settings. The respective menu is displayed.

Equaliser mode

Use this setting to optimise the tone for the style of music, e.g. Rock or Classical.

Select the desired sound style in the interaction selector bar at the bottom of the screen. If you choose Custom, you can manually adjust the following settings.

Bass Use this setting to enhance or attenuate the deep frequencies of the audio sources.

Touch + or - to adjust the setting.

Page 98

98 Basic operation

Midrange Use this setting to enhance or attenuate the midrange frequencies of the audio source.

Touch + or - to adjust the setting.

Treble Use this setting to enhance or attenuate the high frequencies of the audio sources.

Touch + or - to adjust the setting.

Setting balance and fader Use the illustration at the right side of the menu to adjust balance and fader.

To define the point in the passenger compartment where the sound is at its highest level, touch the corresponding point in the illustration. Alternatively, you can move the red marker to the desired point.

Notice The balance and fader settings are valid for all audio sources. They cannot be adjusted individually for each audio source.

Volume settings

Adjusting the maximum startup volume

Press ; and then select Settings. Select Radio, scroll through the list

and then select Max Startup Volume. Touch + or - to adjust the setting.

Adjusting the speed compensated volume

Press ; and then select Settings. Select Radio, scroll through the list

and then select Auto Volume. To adjust the degree of volume

adaptation, select one of the options in the list.

Off: no enhancement of volume with increasing vehicle speed.

High: maximum enhancement of volume with increasing vehicle speed.

Activating or deactivating the audible touch feedback function

If the audible touch feedback function is activated, each touch of a screen button or menu item is indicated by a beeping sound.

Press ; and then select Settings. Select Radio and then scroll through

the list to Audible Touch Feedback.

Touch the screen button next to Audible Touch Feedback to activate or deactivate the function.

Page 99

Basic operation 99

Volume of traffic announcements

To adjust the volume of traffic announcements, set the desired volume while a traffic announcement is given out by the system. The respective setting is then stored by the system.

System settings

The following settings concern the whole system. All other settings are described by theme in the respective chapters of this manual.

Time and date settings

Press ; and then select Settings. Select Time and Date to display the

respective submenu.

Set Time Format To select the desired time format, touch the screen buttons 12 h or 24 h.

Set Date Format To select the desired date format, select Set Date Format and choose between the available options in the submenu.

Auto Set To choose whether time and date are to be set automatically or manually, select Auto Set.

For time and date to be set automatically, select On - RDS.

For time and date to be set manually, select Off - Manual. If Auto Set is set to Off - Manual, the submenu items Set Time and Set Date become available.

Set time and date To adjust the time and date settings, select Set Time or Set Date.

Touch + and - to adjust the settings.

Language settings

Press ; and then select Settings. Select Language to display the

respective menu. To adjust the language for the menu

texts: touch the desired language.

Text scroll function

If long text is displayed on the screen e.g. song titles or station names, the text may either be scrolled continually or it may be scrolled once and displayed in truncated form.

Press ; and then select Settings. Select Radio.

Page 100

100 Basic operation

If you wish the text to be scrolled continually, activate Text Scroll.

If you wish the text to be scrolled in blocks, deactivate the setting.

Black display function

If you do not want to see the illuminated display, e.g. during night time, you can turn the display off.

Press ; and then select Settings. Scroll through the list and select Turn

Display Off. The display is turned off; the audio functions remain active.

To turn the display on again, touch the screen or press a button.

Factory defaults

Press ; and then select Settings. Scroll through the list and select

Return to Factory Settings. To restore all vehicle personalisation

settings, select Restore Vehicle Settings.

To delete the paired Bluetooth devices, the contacts list and the voice mail numbers stored, select Clear All Private Data.

To reset tone and volume settings, delete all favourites, and erase the ringtone selection, select Restore Radio Settings.

In each case, a warning message is displayed. Select Continue to reset the settings.

System version

Press ; and then select Settings. Scroll through the list and select

Software Information. If a USB device is connected, you

may save the vehicle information to this USB device.

Select System Update and then Save Vehicle Info to USB.

For a system update, contact your workshop.

Vehicle settings

Vehicle settings are described in the Owner's Manual.

Vauxhall Insignia Navi 900 IntelliLink, Insignia R 4.0 IntelliLink Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Navi 900 IntelliLink

Introduction

General information

Important information on operation and traffic safety

Radio reception

Theft-deterrent feature

Control elements overview

Centre display with controls

Steering wheel controls

Usage

Switching Infotainment system on/off

Setting the volume

Modes of operation

Basic operation

Basic operation

m screen button

Exit screen button

Selecting or activating a screen button or menu item

Moving items

Scrolling lists

Menu operation

Home screen

Application tray

Interaction selector bar

Messages

Keyboards

Keyboard

Keypad

Favourites

Displaying favourites

Scrolling through favourites pages

Storing favourites

Retrieving favourites

Editing favourites

Defining the number of favourites shown

Contacts

Changing the source

Using the contacts list

Adding new contacts

Editing contacts

Deleting contacts

Sorting the contacts lists

Tone settings

Treble

Midrange

Bass

Balance and fader

Equalizer modes

Volume settings

Maximum startup volume

Automatic volume adjustment

Volume of traffic announcements

System settings

Time and Date

Language

Valet mode

Display

Return to Factory Settings

Software Information

Radio

Usage

Activating the radio function

Selecting the waveband

Station search

Automatic station search

Manual station search

Station tuning

Station lists

Category lists

Updating the station list

Radio data system (RDS)

Advantages of RDS

RDS settings

Digital audio broadcasting

Advantages of DAB

DAB settings
