Owner’s Manual Model Year 2012 Edition: February 2012 TS 1700-A-12

0 - 1Owner’s Manual Model Year 2012 Edition: February 2012 TS 1700-A-12

VAUXHALL Antara

Contents

Introduction .................................... 2

In brief ............................................ 6

Keys, doors and windows ............ 18

Seats, restraints ........................... 33

Storage ........................................ 52

Instruments and controls ............. 70

Lighting ...................................... 102

Climate control ........................... 110

Driving and operating ................. 116

Vehicle care ............................... 143

Service and maintenance .......... 185

Technical data ........................... 188

Customer information ................ 201

Index .......................................... 204

2 Introduction

Introduction

Introduction 3

Vehicle specific data

Please enter your vehicle's data on the previous page to keep it easily accessible. This information is available in the sections "Service and maintenance" and "Technical data" as well as on the identification plate.

Introduction

Your vehicle is a designed combination of advanced technology, safety, environmental friendliness and economy.

This Owner's Manual provides you with all the necessary information to enable you to drive your vehicle safely and efficiently.

Make sure your passengers are aware of the possible risk of accident and injury which may result from improper use of the vehicle.

You must always comply with the specific laws and regulations of the country that you are in. These laws may differ from the information in this Owner's Manual.

When this Owner's Manual refers to a workshop visit, we recommend your Vauxhall Authorised Repairer.

All Vauxhall Authorised Repairers provide first-class service at reasonable prices. Experienced mechanics trained by Vauxhall work according to specific Vauxhall instructions.

The customer literature pack should always be kept ready to hand in the vehicle.

Using this manual

■ This manual describes all options and features available for this model. Certain descriptions, including those for display and menu functions, may not apply to your vehicle due to model variant, country specifications, special equipment or accessories.

■ The "In brief" section will give you an initial overview.

■ The table of contents at the beginning of this manual and within each section shows where the information is located.

■ The index will enable you to search for specific information.

■ This Owner's Manual depicts lefthand drive vehicles. Operation is similar for right-hand drive vehicles.

■ The Owner's Manual uses the factory engine designations. The corresponding sales designations can be found in the section "Technical data".

■ Directional data, e.g. left or right, or front or back, always relate to the direction of travel.

■ The vehicle display screens may not support your specific language.

■ Display messages and interior labelling are written in bold letters.

Danger, Warnings and Cautions

9 Danger

Text marked 9 Danger provides information on risk of fatal injury. Disregarding this information may endanger life.

4 Introduction

9 Warning

Text marked 9 Warning provides information on risk of accident or injury. Disregarding this information may lead to injury.

Caution

Text marked Caution provides information on possible damage to the vehicle. Disregarding this information may lead to vehicle damage.

Symbols

Page references are indicated with 3. 3 means "see page".

Thank you for choosing a Vauxhall. We wish you many hours of

pleasurable driving. Your Vauxhall Team

Introduction 5

6 In brief

In brief

Initial drive information

Vehicle unlocking

Press button q to unlock the doors and load compartment. Open the doors by pulling the handles. To open the tailgate, operate button above number plate.

Radio remote control 3 19, Central locking system 3 20, Load compartment 3 22.

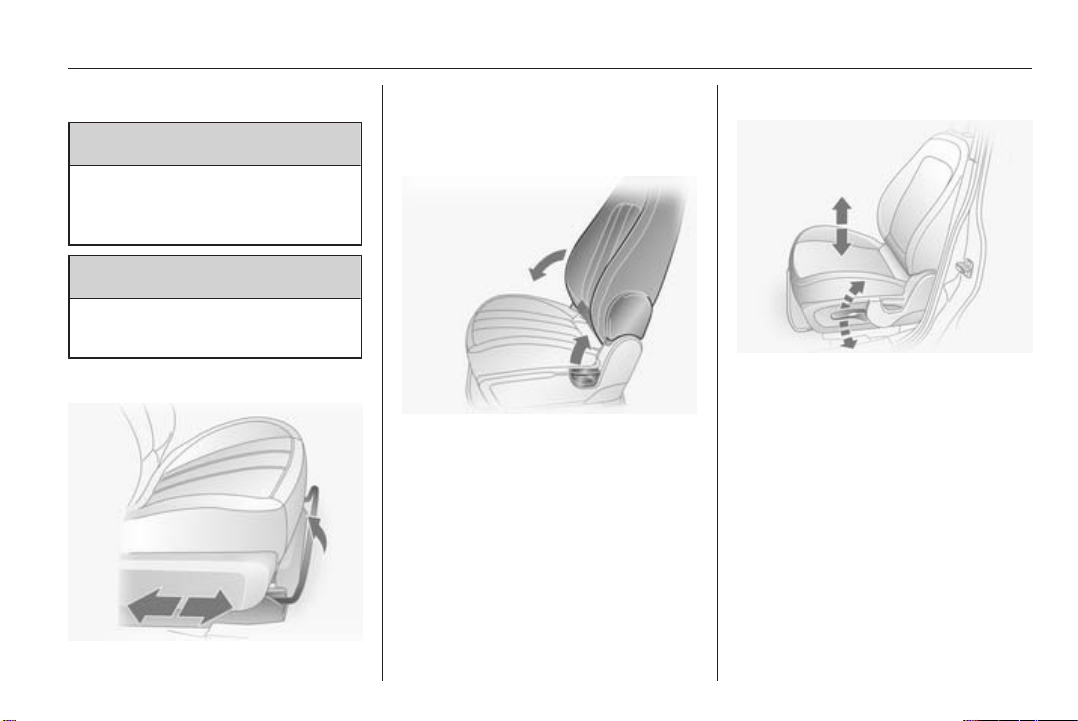

Seat adjustment

Seat positioning

Pull handle, slide seat, release handle.

Seat position 3 34, Seat adjustment 3 35.

9 Danger

Do not sit nearer than 25 cm from the steering wheel, to permit safe airbag deployment.

In brief 7

Seat backrests

Pull lever, adjust inclination and release lever. Allow the backrest to engage audibly. Do not lean on the seat backrest whilst adjusting it.

Seat position 3 34, Seat adjustment 3 35.

Seat height

Lever pumping motion up = seat higher

down = seat lower

Seat position 3 34, Seat adjustment 3 35.

Power seat adjustment

Operate switches.

8 In brief

Positioning = move front switch

forwards/backwards Height of front part of seat

Height of rear part of seat

Height of entire seat

Backrest = move upper part of

Seat position 3 34, Power seat adjustment 3 36.

= move front part of

front switch

upwards/

downwards

= move rear part of

front switch

upwards/

downwards

= move entire front

switch upwards/

downwards

rear switch

forwards/backwards

Head restraint adjustment

Press release button, adjust height and engage.

Head restraints 3 33.

Seat belt

Pull out the seat belt and engage in belt buckle. The seat belt must not be twisted and must fit close against the body. The backrest must not be tilted back too far (maximum approx. 25 °).

To release belt, press red button on belt buckle.

Seat position 3 34, Seat belts 3 39, Airbag system 3 43.

In brief 9

Mirror adjustment

Interior mirror

To reduce dazzle, adjust the lever on the underside of the mirror housing.

Interior mirror 3 28, Automatic antidazzle interior mirror 3 28.

Exterior mirrors

Select the relevant exterior mirror and adjust it.

Convex exterior mirrors 3 26, Electric adjustment 3 26, Folding exterior mirrors 3 27, Heated exterior mirrors 3 27.

Steering wheel adjustment

Unlock lever, adjust steering wheel, then engage lever and ensure it is fully locked.

Do not adjust steering wheel unless vehicle is stationary and steering wheel lock has been released.

Airbag system 3 43, Ignition positions 3 117.

10 In brief

Instrument panel overview

In brief 11

1 Side air vents ..................... 114

2 Fixed air vents .................... 114

3 High beam .......................... 103

Headlight flash ................... 103

Turn and lane-change

signals ................................ 105

Exit lighting ......................... 109

Parking lights ..................... 106

Cruise control ....................... 87

4 Remote control on

steering wheel ...................... 70

Trip computer ....................... 97

5 Horn ..................................... 71

6 Instruments .......................... 77

7 Windscreen wiper and

washer system, headlight

washer system ..................... 71

Rear window wiper and

washer system ..................... 73

8 Info-Display .......................... 91

Check control, tyre pressure monitoring

system ................................ 168

Trip computer ....................... 97

9 Centre air vents .................. 114

10 Hazard warning flashers ....104

Parking assist ..................... 135

Electronic Stability Control . 131

Descent control system ...... 132

Status LED for anti-theft

alarm system ........................ 23

Folding exterior mirrors ........ 27

Eco button for stop/start

system ................................. 118

11 Infotainment system ............. 10

12 Front passenger airbag ........ 43

13 Status LEDs for front

passenger airbag ................. 45

Control indicator for front

passenger seat belt ............. 40

14 Glovebox .............................. 52

15 Fuse box ............................ 162

16 Climate control system ....... 110

17 Ignition switch with

steering wheel lock ............ 117

18 Accelerator pedal ............... 116

19 Driver airbag ........................ 43

20 Brake pedal ........................ 129

21 Clutch pedal ....................... 116

22 Steering wheel adjustment ..70

23 Bonnet release ................... 144

24 Coin storage ......................... 52

25 Card holder .......................... 52

26 Light switch ........................ 102

Automatic light control .......102

Instrument illumination ....... 107

Rear fog light ...................... 106

Front fog lights ................... 105

Headlight range

adjustment ......................... 103

12 In brief

Exterior lighting

Turn light switch AUTO = Automatic light control:

Headlights are switched on and off automatically.

8 9

Press button

> r

Lighting 3 102.

= Off (or deactivation of

automatic light control) = Sidelights = Headlights

= Front fog lights = Rear fog light

Headlight flash, high beam and low beam

headlight flash high beam = push lever low beam = pull lever back

Automatic light control 3 102, High beam 3 103, Headlight flash 3 103.

= pull lever

towards steering wheel

Turn and lane-change signals

right = lever up left = lever down

Turn and lane-change signals 3 105, Parking lights 3 106.

In brief 13

Hazard warning flashers

Operated with the ¨ button. Hazard warning flashers 3 104.

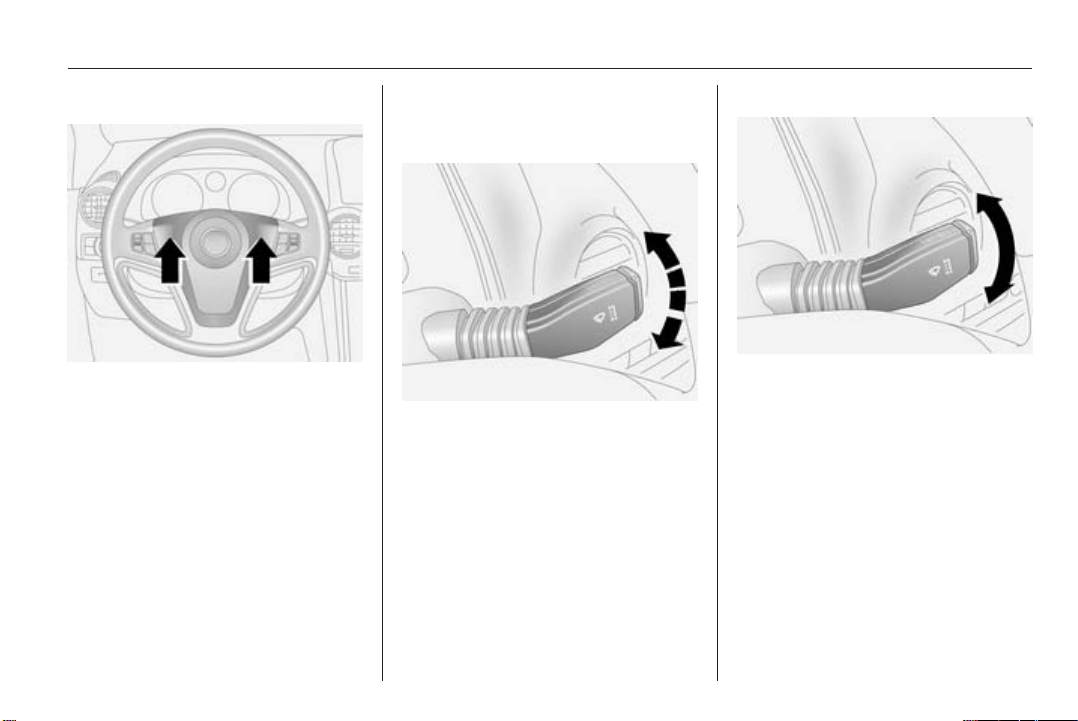

Horn

Press j.

Washer and wiper systems

Windscreen wiper

= fast

= slow

= timed interval wiping or

automatic wiping with rain sensor

= off

For a single wipe when the windscreen wiper is off, press the lever down.

Windscreen wiper 3 71, Wiper blade replacement 3 151.

14 In brief

Windscreen and headlight washer systems

Pull lever. Windscreen and headlight washer

system 3 71, Washer fluid 3 147.

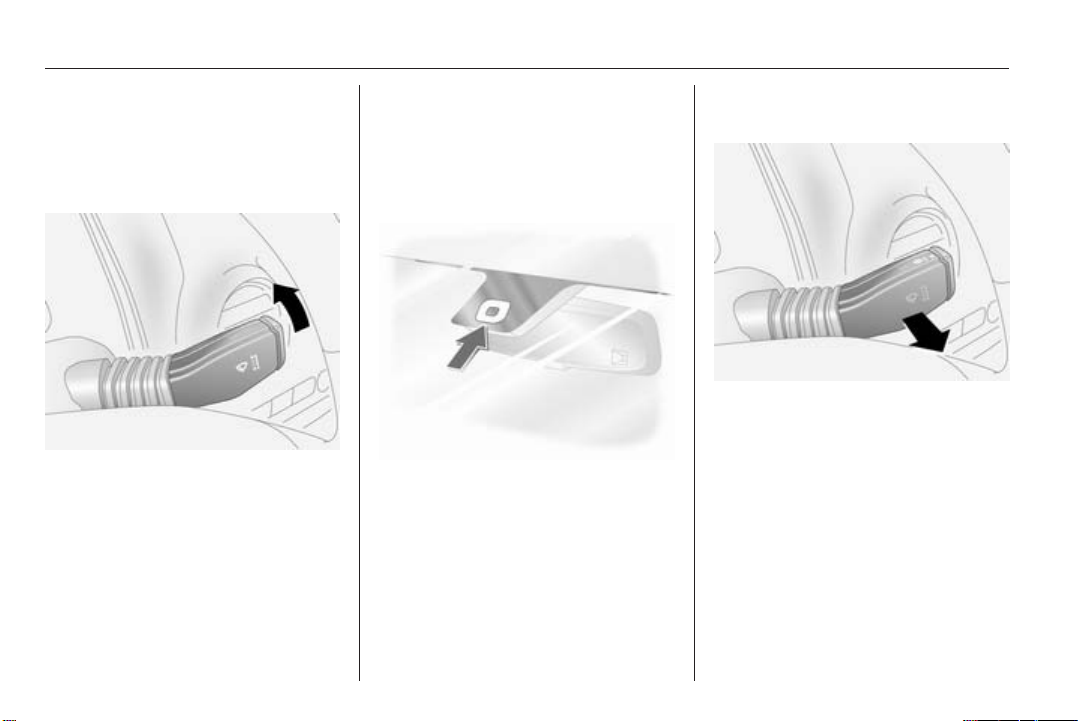

Rear window wiper and washer system

Wiper on = push lever Wiper off = pull lever Wash = press and hold button

Rear window wiper and washer system 3 73, Wiper blade replacement 3 151, Washer fluid 3 147.

Climate control

Heated rear window, heated exterior mirrors

Heating is operated by pressing the Ü button.

Heated rear window 3 30, Heated exterior mirrors 3 27.

In brief 15

Demisting and defrosting the windows

Air distribution to l. Cooling n and air recirculation 4

are switched on automatically to improve defrosting efficiency.

Set temperature to highest level. Set fan speed to highest level. Switch on heated rear window Ü. Close centre air vents, open side air

vents and direct them towards the door windows.

Climate control system 3 110.

Transmission

Manual transmission

Reverse: with the vehicle stationary, wait 3 seconds after depressing clutch pedal and engage the gear.

If the gear does not engage, set the lever to neutral, release the clutch pedal and depress again; then repeat gear selection.

Manual transmission 3 126.

Automatic transmission

P = park R = reverse N = neutral D = drive

Manual mode: move selector lever from D to the left.

= higher gear

= lower gear

]

The selector lever can only be moved out of P when the ignition is on and the foot brake is applied. To engage P or R, push the release button.

Automatic transmission 3 122.

16 In brief

Starting off

Check before starting off

■ Tyre pressure and condition 3 168, 3 198.

■ Engine oil level and fluid levels 3 145.

■ All windows, mirrors, exterior lighting and number plates are free from dirt, snow and ice and are operational.

■ Proper position of mirrors, seats, and seat belts 3 26, 3 34, 3 40.

■ Brake function at low speed, particularly if the brakes are wet.

Starting the engine

■ Turn key to position ACC

■ move the steering wheel slightly to release the steering wheel lock

■ manual transmission in neutral

■ operate clutch and brake pedals

■ automatic transmission in P or N

■ do not accelerate

■ diesel engines: turn key to ON for preheating and wait until control indicator ! extinguishes

■ turn key to START and release

Starting the engine 3 117.

Stop-start system

If the vehicle is at a low speed or at a standstill and certain conditions are fulfilled, activate an Autostop as follows:

■ Depress the clutch pedal

■ shift the selector lever to N

■ release the clutch pedal An Autostop is indicated by the

needle at the AUTOSTOP position in the tachometer.

To restart the engine, depress the clutch pedal again.

Stop-start system 3 118.

In brief 17

Parking

■ Always apply the electrical parking brake.

Pull switch m. For maximum force, e.g. parking

with a trailer or on inclines, pull switch m twice.

■ Switch off the engine and turn the ignition key to position LOCK, push key into ignition switch and remove.

Turn the steering wheel until the steering wheel lock is felt to engage.

For vehicles with automatic transmission, depress foot brake and shift into P before pushing key into ignition switch and removing.

■ If the vehicle is on a level surface or uphill slope, engage first gear or move the selector lever to P before switching off the ignition. On an uphill slope, turn the front wheels away from the kerb.

If the vehicle is on a downhill slope, engage reverse gear or move the selector lever to P before switching

off the ignition. Turn the front wheels towards the kerb.

■ Lock the vehicle with button p on the radio remote control 3 20 and activate the anti-theft alarm system 3 23.

■ Do not park the vehicle on an easily ignitable surface. The high temperature of the exhaust system could ignite the surface.

■ Close windows and sunroof.

■ Switch off exterior lights, otherwise the headlight warning device will sound when the driver's door is opened.

■ The engine cooling fans may run after the engine has been switched off 3 144.

■ After running at high engine speeds or with high engine loads, operate the engine briefly at a low load or run in neutral for approx. 1 or 2 minutes, before switching off in order to protect the turbocharger.

Keys, locks 3 18, Laying the vehicle up for a long period of time 3 143.

18 Keys, doors and windows

Keys, doors and windows

Keys, locks ................................... 18

Doors ........................................... 22

Vehicle security ............................ 23

Exterior mirrors ............................ 26

Interior mirrors ............................. 28

Windows ...................................... 29

Roof ............................................. 31

Keys, locks

Keys

Replacement keys

The key number is specified in the Car Pass or on a detachable tag.

The key number must be quoted when ordering replacement keys as it is a component of the immobiliser system.

Locks 3 182.

Lock cylinders

Designed to free-wheel if they are forcefully rotated without the correct key or if the correct key is not fully inserted. To reset, turn cylinder with the correct key until its slot is vertical, remove key and then re-insert it. If the cylinder still free-wheels, turn the key through 180° and repeat operation.

Key with foldaway key section

Press button to extend. To fold the key, first press the button.

Car Pass

The Car Pass contains security related vehicle data and should therefore be kept in a safe place.

When the vehicle is taken to a workshop, this vehicle data is needed in order to perform certain operations.

Keys, doors and windows 19

Radio remote control

Used to operate:

■ Central locking system

■ Anti-theft locking system

■ Anti-theft alarm system The radio remote control has a range

of approx. 6 metres. This range can be affected by outside influences. The hazard warning flashers confirm operation.

Handle with care, protect from moisture and high temperatures and avoid unnecessary operation.

Fault

If the central locking system cannot be operated with the radio remote control, it may be due to the following:

■ Range exceeded.

■ Battery voltage too low.

■ Frequent, repeated operation of the radio remote control while not in range, which will require reprogramming. Seek the assistance of a workshop.

■ Overload of the central locking system by operating at frequent intervals, the power supply is interrupted for a short time.

■ Interference from higher-power radio waves from other sources.

Unlocking 3 20.

Radio remote control battery replacement

Replace the battery as soon as the range reduces.

Batteries do not belong in household waste. They must be disposed of at an appropriate recycling collection point.

Key with foldaway key section

Extend the key and open the unit. Replace the battery (battery type CR2032), paying attention to the installation position. Close the unit.

20 Keys, doors and windows

Key with fixed key section

Open the unit with a small screwdriver in the notch on the cover. Replace the battery (battery type CR2032), paying attention to the installation position. Close the unit.

Central locking system

Unlocks and locks doors, load compartment and fuel filler flap.

Notice In the event of an accident of a certain severity, the vehicle unlocks automatically.

Unlocking

Press button q.

Notice If no door is opened within 5 minutes after the vehicle has been unlocked, the vehicle is relocked automatically (and the anti-theft alarm is reactivated).

When button q is pressed, the instrument panel illuminates for approx. 30 seconds or until ignition switch is turned to position ACC.

Locking

Close doors, load compartment, fuel filler flap, bonnet, windows and sunroof.

Press button p. The central locking system can be

activated with the windows open.

Notice For safety reasons, the vehicle cannot be locked or unlocked via the remote control (and the anti-theft systems will not be activated) if the key is in the ignition switch.

Keys, doors and windows 21

Unlocking the tailgate

Press button q. The tailgate is unlocked together with

the doors. With the engine running, the tailgate

will only unlock when the electrical parking brake is applied or automatic transmission is in position P.

Central locking buttons

Locks or unlocks all doors, the load compartment and fuel filler flap from the passenger compartment.

Press left part of switch m to lock. Press right part of switch m to unlock. When the key is in the ignition switch,

locking is only possible if all doors are closed.

Fault in radio remote control system

Unlocking Manually unlock the driver's door by turning the key in the lock. Switch on the ignition and press the left part of central locking switch m to unlock all doors, load compartment and fuel filler flap.

Locking Manually lock the driver's door by turning the key in the lock.

Child locks

9 Warning

Use the child locks whenever children are occupying the rear seats.

Using a key or suitable screwdriver, turn button on rear door lock to the horizontal position. The door cannot be opened from inside.

22 Keys, doors and windows

Doors

Load compartment

Tailgate

Opening

Operate the button above the number plate and lift the tailgate.

If the tailgate is open when the ignition is switched on, control indicator 1 illuminates in the instrument cluster 3 88.

Central locking system 3 20.

Caution

Ensure there are no obstructions and that there is adequate clearance when opening the tailgate.

9 Warning

Do not drive with the tailgate open or ajar, e.g. when transporting bulky objects, since toxic exhaust gases, which can not be seen or smelled, could enter the vehicle. This can cause unconsciousness and even death.

Notice The installation of certain heavy accessories onto the tailgate may affect its ability to remain open.

Closing

Use the interior handle. Do not operate the button above the

number plate while closing the tailgate, as this will unlock it again.

Central locking system 3 20.

Keys, doors and windows 23

Fault

To open the tailgate in the event of power interruption:

Remove the interior trim cover from the central latch area, then push the lever using a suitable tool.

Vehicle security

Anti-theft locking system

9 Warning

Do not use the system if there are people in the vehicle! The doors cannot be unlocked from the inside.

The system deadlocks all the doors. All doors must be closed otherwise the system cannot be activated.

If the ignition was on, the driver's door must be opened and closed once so that the vehicle can be secured.

Unlocking the vehicle disables the mechanical anti-theft locking system. This is not possible with the central locking button.

Activating

Press button p on the radio remote control twice within 3 seconds.

Alternatively, turn key in driver's door towards rear of vehicle again within 3 seconds after locking.

Anti-theft alarm system

The system monitors:

■ Doors, tailgate, bonnet

■ Passenger compartment including adjoining load compartment

■ Vehicle inclination, e.g. if it is raised

24 Keys, doors and windows

■ Siren power supply

■ Ignition

Activation

Ensure the doors, tailgate, fuel filler flap, bonnet, windows and sunroof are closed.

Press button p on radio remote control or manually lock the driver's door.

The system is activated:

■ Automatically, 30 seconds after locking the vehicle (initialisation of the system)

■ Directly by pressing p on the radio remote control once more after locking

If the hazard warning lights do not flash once upon activation or the control indicator flashes rapidly, this may indicate that a door, the tailgate or the bonnet is not fully closed.

Notice Changes to the vehicle interior such as the use of seat covers, and open windows or sunroof, could impair the function of passenger compartment monitoring.

Activation without monitoring of passenger compartment and vehicle inclination

Switch off the monitoring of passenger compartment and vehicle inclination when people or animals are being left in the vehicle, because of high volume ultrasonic signals, movements triggering the alarm and when the vehicle is on a ferry or train.

1. Close tailgate, bonnet, windows and sunroof.

2. Press button o. Control indicator o illuminates yellow in the instrument cluster.

Keys, doors and windows 25

3. Close doors.

4. Activate the anti-theft alarm system.

Press button o again to cancel. Control indicator o extinguishes.

Status LED

Status LED is located in the centre console.

Status during the first 30 seconds of anti-theft alarm system activation:

LED illuminates LED flashes quickly

Status after system is armed: LED flashes

slowly LED flashes quickly 3 times after unlocking

Seek the assistance of a workshop in the event of faults.

= test, arming delay.

= doors, tailgate or

bonnet not completely closed, or system fault.

= system is

armed.

= system is

disarmed.

Deactivation

Unlocking the vehicle deactivates anti-theft alarm system. Hazard warning lights flash twice upon deactivation.

If no door is opened or the engine is not started within 30 seconds after the vehicle has been unlocked, the vehicle is relocked automatically and the alarm is reactivated.

If the alarm has been triggered, the hazard warning lights will not flash upon deactivation.

Alarm

When triggered, the alarm sounds via a separate battery-backed power sounder, and the hazard warning lights flash simultaneously. The number and duration of alarm signals are stipulated by legislation.

The alarm can be silenced by pressing any button of the radio remote control or manually unlocking the driver's door with the ignition key. The anti-theft alarm system is deactivated at the same time.

26 Keys, doors and windows

Immobiliser

The system is integrated into the ignition switch and checks whether the vehicle is allowed to start with the key being used. If the transponder in the key is recognized, the engine can be started.

The electronic immobiliser is activated automatically after the key has been removed from the ignition switch.

Control indicator d illuminates in the instrument cluster when the ignition is switched on, then extinguishes. If d remains illuminated when the ignition

is on, there is a fault in the system; the engine cannot be started. Switch off the ignition and remove key, wait approx. 2 seconds and then repeat the start attempt.

If the control indicator remains illuminated, attempt to start the engine using the spare key and seek the assistance of a workshop.

Notice The immobiliser does not lock the doors. You should always lock the vehicle after leaving it and switch on the anti-theft alarm system 3 20, 3 23.

Control indicator d 3 87.

Exterior mirrors

Convex shape

The convex exterior mirror reduces blind spots. The shape of the mirror makes objects appear smaller, which will affect the ability to estimate distances.

Electric adjustment

Select the relevant exterior mirror by turning the switch to left (L) or right (R). Then swivel the control to adjust the mirror.

Keys, doors and windows 27

Folding

For pedestrian safety, the exterior mirrors will swing out of their normal mounting position if they are struck with sufficient force. Reposition the mirror by applying slight pressure to the mirror housing.

Manual folding

Press lightly on the outside of the mirror housing to fold in the exterior mirrors.

Electric folding

With ignition switch in positions ACC or ON, press button n and both exterior mirrors will fold in.

Press button n again - both exterior mirrors return to their original position.

If an electrically folded mirror is manually extended, pressing button n will only electrically extend the other mirror. Pressing button n again folds both mirrors back in.

Fold mirrors back to the driving position before driving the vehicle.

Heated

Operated by pressing the Ü button. LED illuminates in the button.

Heating works with the key in ignition switch positions ACC or ON and is switched off automatically after a short time.

To avoid discharging the battery, operate only with the engine running. Do not operate when you are just starting the vehicle, or if there is a build up of snow or ice on the exterior mirrors.

28 Keys, doors and windows

Do not use sharp instruments or abrasive cleaners on the exterior mirrors and avoid scratching or damaging the heating elements.

Interior mirrors

Manual anti-dazzle

To reduce dazzle, adjust the lever on the underside of the mirror housing.

Automatic anti-dazzle

Press button on mirror housing to turn function on; button illuminates and dazzle from following vehicles at night is automatically reduced. Press button again to turn function off.

There are two light sensors in the mirror housing. To avoid interference and loss of function, do not cover the sensors or hang anything on the mirror.

Keys, doors and windows 29

Windows

Windscreen

Heat-reflecting windscreen

The heat-reflecting windscreen has a coating which reflects solar radiation. Also data signals, e.g. from toll stations, might be reflected.

The marked areas of the windscreen behind the interior mirror are not covered with the coating. Devices for electronic data recording and fee

payment must be attached in these areas. Otherwise data recording malfunctions may occur.

Manual windows

The door windows can be opened or closed with the window winders.

Power windows

9 Warning

Take care when operating the power windows. Risk of injury, particularly to children.

If there are children on the rear seats, switch on the child safety system for the power windows.

Keep a close watch on the windows when closing them. Ensure that nothing becomes trapped in them as they move.

Power windows can be operated:

■ with ignition on,

■ within 10 minutes of switching ignition off.

After switching off the ignition, window operation is disabled when the driver's door is opened.

Operate the switch for the respective window by pushing to open or pulling to close.

For incremental operation: Push or pull switch briefly.

For automatic opening or closing: Push or pull switch for longer. Window moves up or down automatically with safety function enabled. To stop movement, operate the switch once more in the same direction.

30 Keys, doors and windows

Additional switches are located in the front passenger's door and the rear doors. The rear windows do not open fully.

Safety function

If the window glass encounters resistance above the middle of the window during automatic closing, it is immediately stopped and opened again.

Override safety function

In the event of closing difficulties due to frost or the like, pull the relevant window switch several times until the window is closed. The window moves up with the safety function disabled.

Child safety system for rear windows

Press switch z to deactivate rear door power windows. To reactivate, press z again.

With the child safety system on, rear door windows can only be operated via the switches in the driver's door.

Overload

If the windows are repeatedly operated within short intervals, the window operation is disabled for some time.

Heated rear window

Operated by pressing the Ü button. LED illuminates in the button.

Heating works with the key in ignition switch positions ACC or ON and is switched off automatically after a short time.

To avoid discharging the battery, operate only with the engine running. Do not operate when you are just starting the vehicle, or if there is a build up of snow or ice on the rear window.

Keys, doors and windows 31

Do not use sharp instruments or abrasive cleaners on the rear window and avoid scratching or damaging the heating elements.

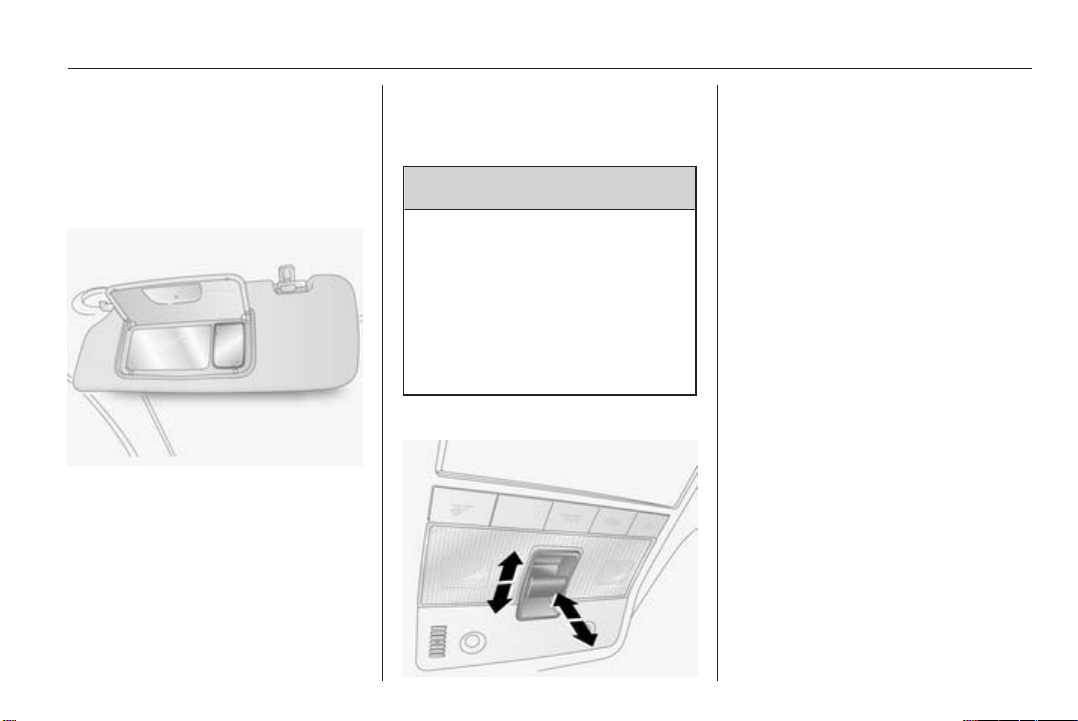

Sun visors

The sun visors can be folded down or swivelled to the side to prevent dazzling.

Sun visors have vanity mirrors and a ticket holder on the rear. When the vanity mirror covers are opened, the sun visor light illuminates.

The mirror covers should be closed when driving.

Roof

Sunroof

9 Warning

Take care when operating the sunroof. Risk of injury, particularly to children.

Keep a close watch on the movable parts when operating them. Ensure that nothing becomes trapped in them as they move.

Slide/tilt sunroof

For incremental operation, briefly press the switch in the required direction. For automatic opening or closing, press and hold the switch.

Open Press switch rearwards; it will open automatically unless the switch is pressed again in another direction, or released.

Notice If the top of the roof is wet, tilt sunroof, allow water to run off and then open sunroof.

Close Press and hold switch forwards. Release switch when sunroof reaches desired position.

Tilt Press and hold switch upwards. Release switch when sunroof reaches desired position.

To return sunroof to its original position, pull and hold switch downwards. Release switch when sunroof reaches desired position.

32 Keys, doors and windows

General hints

Function standby The sunroof can be operated:

■ with ignition on,

■ within 10 minutes of switching ignition off,

After switching off the ignition, sunroof operation is disabled when driver's door is opened.

Seats, restraints 33

Seats, restraints

Head restraints ............................ 33

Front seats ................................... 34

Rear seats ................................... 38

Seat belts ..................................... 39

Airbag system .............................. 43

Child restraints ............................. 47

Head restraints

Position

9 Warning

Only drive with the head restraint set to the proper position.

For maximum protection, the upper edge of the head restraint should be at upper head level. If this is not possible for extremely tall people, set to highest position, and set to lowest position for small people.

Height adjustment

Press release button, adjust height then release the button and engage.

Pull head restraint up to raise. Push head restraint down while pressing the release button to lower the head restraint.

Removal Insert a suitable tool into the small hole in the side of the guide sleeve without the release button and depress the lock. Press the release button on the other guide sleeve and pull up the head restraint.

34 Seats, restraints

Stow head restraints securely in load compartment.

Active head restraints on front seats

In the event of a rear-end impact, the active head restraints automatically tilt forwards. The head is more effectively supported by the head restraint and the risk of whiplash injury is reduced.

Do not attach objects or components that are not approved for your vehicle to the head restraints. These affect the protective effect of the head restraints and can be propelled through the vehicle in an uncontrolled manner if the driver brakes hard or an accident occurs.

Front seats

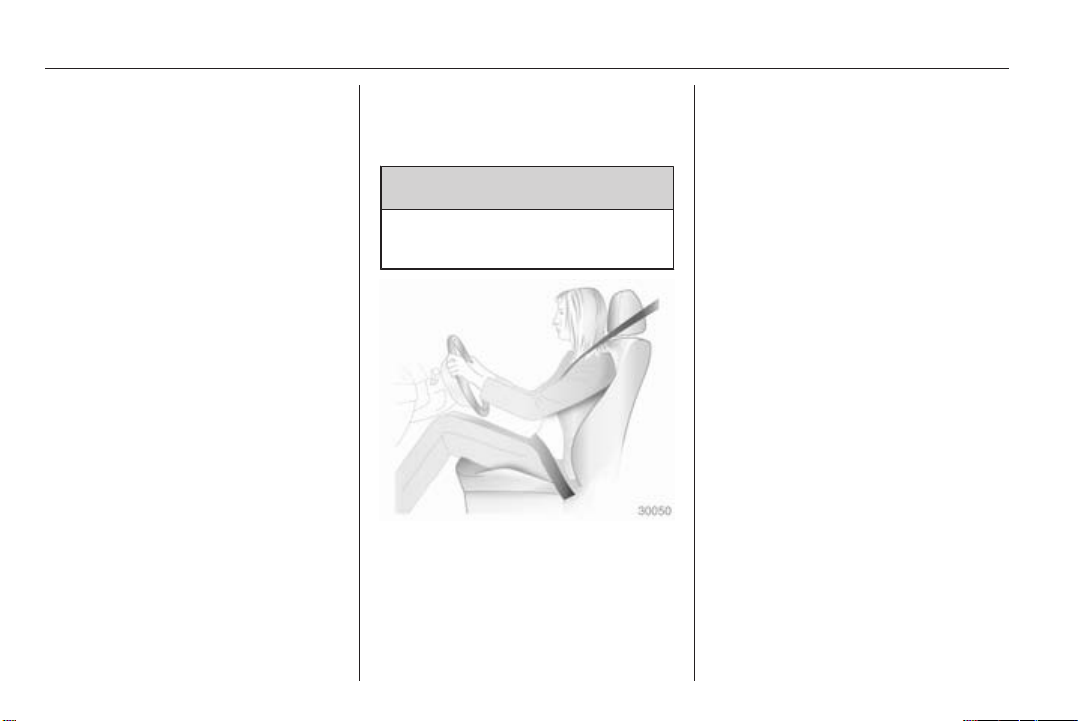

Seat position

9 Warning

Only drive with the seat correctly adjusted.

Sit with buttocks as far back against

■ the backrest as possible. Adjust the distance between the seat and the pedals so that legs are slightly angled when pressing the pedals. Slide the front passenger seat as far back as possible.

■ Sit with shoulders as far back against the backrest as possible. Set the backrest rake so that it is possible to easily reach the steering wheel with arms slightly bent. Maintain contact between shoulders and the backrest when turning the steering wheel. Do not angle the backrest too far back. We recommend a maximum rake of approximately 25°.

■ Adjust the steering wheel 3 70.

■ Set seat height high enough to have a clear field of vision on all sides and of all display instruments. There should be at least one hand of clearance between head and the roof frame. Your thighs should rest lightly on the seat without pressing into it.

■ Adjust the head restraint 3 33.

■ Adjust the height of the seat belt 3 40.

■ Adjust the lumbar support so that it supports the natural shape of the spine.

Seats, restraints 35

Seat adjustment

9 Danger

Do not sit nearer than 25 cm from the steering wheel, to permit safe airbag deployment.

9 Warning

Never adjust seats while driving as they could move uncontrollably.

Seat positioning

Pull handle, slide seat, release handle.

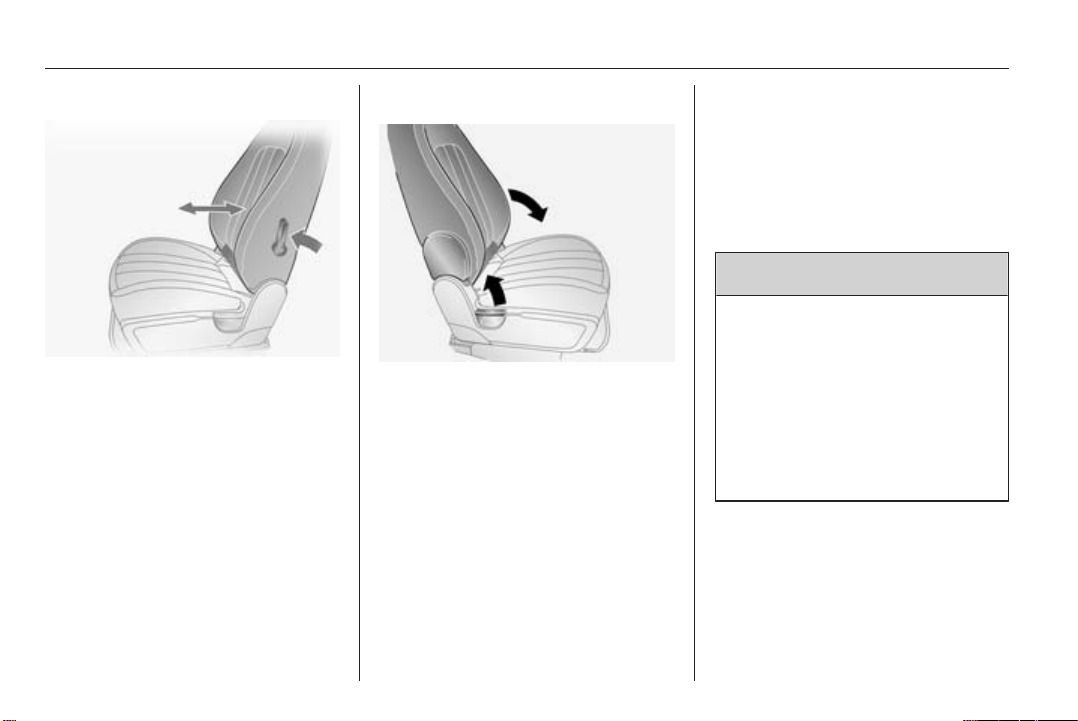

Seat backrests

Pull lever, adjust inclination and release lever. Allow the backrest to engage audibly.

Do not lean on the seat backrest whilst adjusting it.

Seat height

Lever pumping motion up = seat higher

down = seat lower

36 Seats, restraints

Lumbar support

Adjust lumbar support to suit personal requirements using the lever.

To increase or decrease lumbar support, move lever forwards or backwards.

Seat folding

Push head restraint all the way down. Slide seat as far back as it will go. Lift release lever and fold backrest

down onto seat cushion. Lower lever and backrest engages in lowered position.

Slide seat forwards. To return the backrest to its original

position, slide seat as far back as it will go, lift release lever, move the backrest to upright position, lower lever and the backrest engages.

Folding the backrest forwards is possible only when the backrest is in an upright position.

Do not operate lever to adjust lumbar support with backrest tilted forward.

Power seat adjustment

9 Warning

Care must be taken when operating the power seats. There is a risk of injury, particularly for children. Articles could become trapped.

Keep a close watch on the seats when adjusting them. Vehicle passengers should be informed accordingly.

Seats, restraints 37

Seat positioning

Move front switch forwards/ backwards.

Seat height

Move front of switch upwards/ downwards to adjust height of front part of seat cushion.

Move rear of switch upwards/ downwards to adjust height of rear part of seat cushion.

Move front and rear of switch upwards/downwards to adjust height of entire seat cushion.

Seat backrests

Move upper part of rear switch forwards/backwards.

The seat backrest must not be tilted back too far (recommended maximum tilting angle approx. 25°).

Heating

Adjust heating to the desired setting by pressing the ß button for the respective seat one or more times with the ignition switch set to ACC or ON. The control indicator in the button indicates the setting.

To deactivate heating, set the heating level to its lowest setting and press the ß button. The control indicator in the button will extinguish.

Prolonged use of the highest setting for people with sensitive skin is not recommended.

38 Seats, restraints

If temperature continues to rise, turn seat heating off and seek the assistance of a workshop.

Rear seats

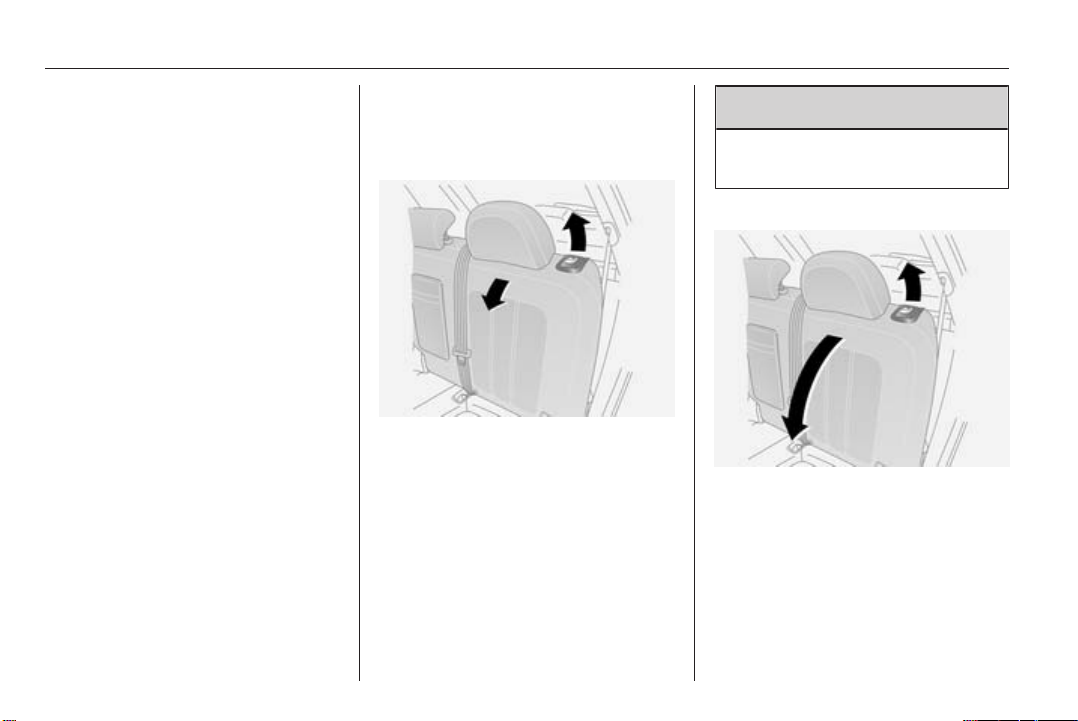

Seat backrests

To adjust seat backrests, lift release lever on top of backrest and move backrest forwards/backwards to desired position.

Do not lean on the backrest whilst adjusting it.

When folding the backrests, ensure the seat belts are unbuckled.

9 Warning

Never adjust seats while driving as they could move uncontrollably.

Seat folding

The load compartment can be enlarged by folding the seat backrests onto the seat cushions.

To fold backrests separately, unbuckle all three rear seat belts and ensure front seats are not in a reclined position.

Seats, restraints 39

Push head restraints all the way down, lift backrest release lever and fold backrest forwards and down onto seat cushion.

Do not allow passengers to sit on a folded backrest, or place any unrestrained loads on it.

To move backrest to its original position, lift and push the backrest into place and ensure the backrest engages.

Safety net 3 66.

Armrest

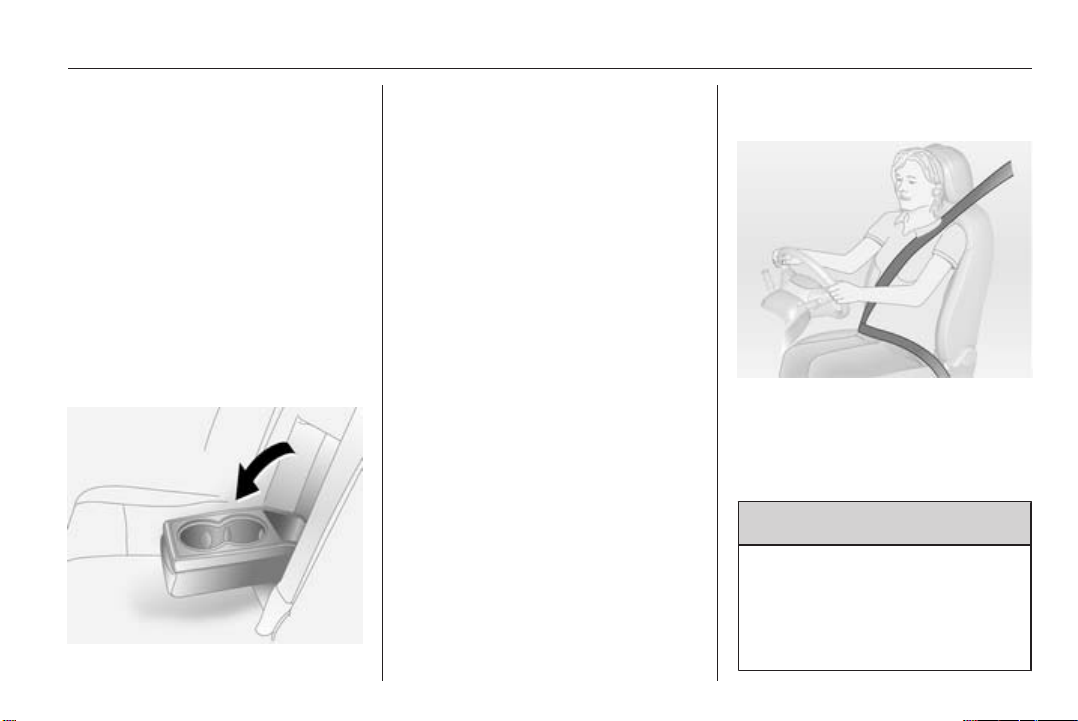

Fold armrest down. The armrest contains cupholders and a storage box.

Seat belts

The seat belts are locked during heavy acceleration or deceleration of the vehicle holding the occupants in the seated position. Thereby the risk of injury is considerably reduced.

9 Warning

Fasten seat belt before each trip. In the event of an accident, people

not wearing seat belts endanger their fellow occupants and themselves.

40 Seats, restraints

Seat belts are designed to be used by only one person at a time. They are not suitable for people smaller than 150 cm. Child restraint system 3 47.

Periodically check all parts of the belt system for damage and proper functionality.

Have damaged components replaced. After an accident, have the belts and triggered belt pretensioners replaced by a workshop.

Notice Make sure that the belts are not damaged by shoes or sharp-edged objects or are trapped. Prevent dirt from getting into the belt retractors.

Driver seat belt reminder X 3 81. Front passenger seat belt reminder k

3 40.

Belt force limiters

Located on the front seats. Stress on the body is reduced by the gradual release of the belt during a collision.

Belt pretensioners

In the event of a head-on collision or side impact of a certain severity, the front seat belts are tightened.

9 Warning

Incorrect handling (e.g. removal or fitting of belts) can trigger the belt pretensioners.

Deployment of the belt pretensioners is indicated by illumination of control indicator v 3 81.

Triggered belt pretensioners must be replaced by a workshop. Belt pretensioners can only be triggered once.

Notice Do not affix or install accessories or other objects that may interfere with the operation of the belt pretensioners. Do not make any modifications to belt pretensioner components as this will invalidate the vehicle type approval.

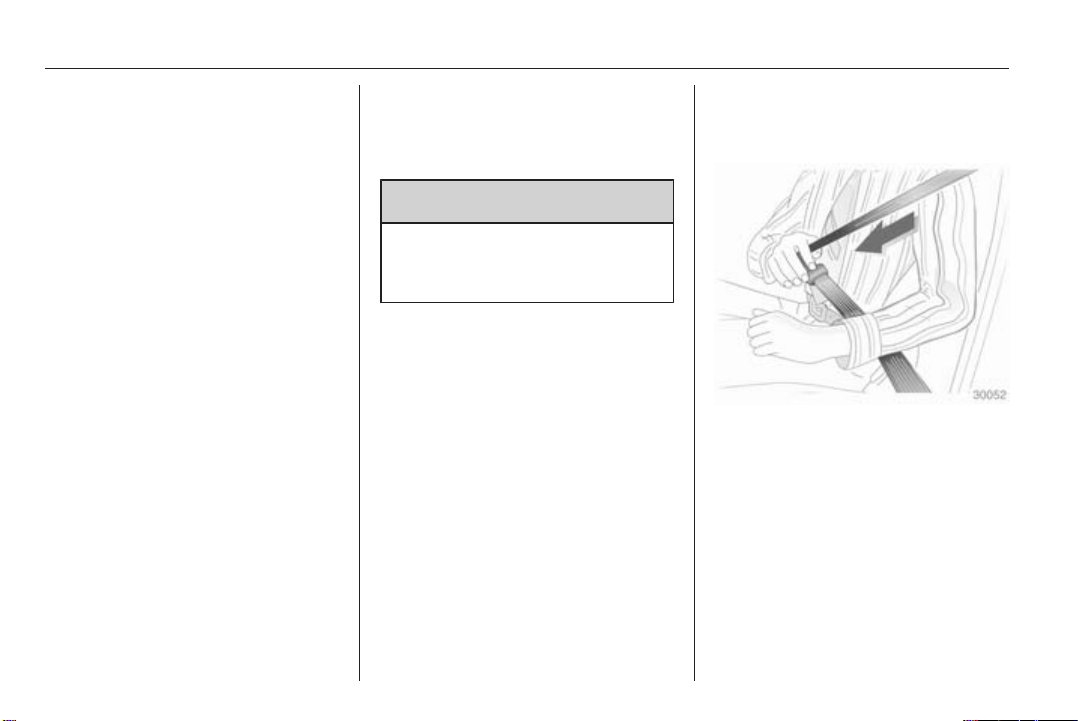

Three-point seat belt

Fastening

Withdraw the belt from the retractor, guide it untwisted across the body and insert the latch plate into the buckle. Tighten the lap belt regularly whilst driving by pulling the shoulder belt.

Seat belt reminder X 3 81.

Height adjustment

Seats, restraints 41

Loose or bulky clothing prevents the belt from fitting snugly. Do not place objects such as handbags or mobile phones between the belt and your body.

9 Warning

The belt must not rest against hard or fragile objects in the pockets of your clothing.

1. Squeeze release buttons together.

2. Slide adjuster up or down.

3. Ensure adjuster latches into position.

Adjust the height so that the belt lies across the shoulder. It must not lie across the throat or upper arm.

Do not adjust while driving.

42 Seats, restraints

Removing

To release belt, press red button on belt buckle.

Using the seat belt while pregnant

9 Warning

The lap belt must be positioned as low as possible across the pelvis to prevent pressure on the abdomen.

Front passenger seat belt reminder

When the engine is running, control indicator k flashes then illuminates if the passenger seat is occupied and the seat belt is not engaged.

If vehicle speed exceeds 14 mph, k will flash for 90 seconds along with a warning chime, then illuminate until the seat belt is fastened.

Illuminates briefly when ignition is switched on.

Control indicator X for driver's seat belt reminder 3 81.

Seats, restraints 43

Airbag system

The airbag system consists of a number of individual systems depending on the scope of equipment.

When triggered the airbags inflate within milliseconds. They also deflate so quickly that it is often unnoticeable during the collision.

9 Warning

If handled improperly the airbag systems can be triggered in an explosive manner.

Notice The airbag systems and belt pretensioner control electronics are located in the centre console area. Do not put any magnetic objects in this area.

Do not stick anything on the airbag covers and do not cover them with other materials.

Each airbag is triggered only once. Have deployed airbags replaced by a workshop. Furthermore, it might be necessary to have the steering wheel, the instrument panel, parts of the panelling, the door seals, handles and the seats replaced.

Do not make any modifications to the airbag system as this will invalidate the vehicle type approval.

When the airbags inflate, escaping hot gases may cause burns.

Control indicator v for airbag systems 3 81.

Front airbag system

The front airbag system consists of one airbag in the steering wheel and one in the instrument panel on the front passenger side. These can be identified by the word AIRBAG.

The warning label reminds that the use of rear-facing child restraint systems on the front passenger seat is not permitted. Risk of fatal injury.

The front airbag system is triggered in the event of a front-end impact of a certain severity and functions independently of the side airbag system and curtain airbag system. The ignition needs to be switched on.

44 Seats, restraints

Fit the seat belt correctly and engage securely. Only then the airbag is able to protect.

Side airbag system

The inflated airbags cushion the impact, thereby considerably reducing the risk of injury to the upper body and head of the front seat occupants.

9 Warning

Optimum protection is only provided when the seat is in the proper position 3 34.

Keep the area in which the airbag inflates clear of obstructions.

The side airbag system consists of an airbag in each front seat backrest. This can be identified by the word AIRBAG.

The side airbag system is triggered in the event of a side impact of a certain severity and functions independently of the front airbag system. The ignition needs to be switched on.

The inflated airbags cushion the impact, thereby considerably reducing the risk of injury to the upper body and pelvis in the event of a sideon collision.

9 Warning

Keep the area in which the airbag inflates clear of obstructions.

Notice Only use protective seat covers that have been approved for the vehicle. Be careful not to cover the airbags.

Seats, restraints 45

Curtain airbag system

The curtain airbag system consists of an airbag in the roof frame on each side. This can be identified by the word AIRBAG on the roof pillars.

The curtain airbag system is triggered in the event of a side-on impact of a certain severity. The ignition needs to be switched on.

The curtain airbag system is triggered with the side airbag system and functions independently of the front airbag system.

The inflated airbags cushion the impact, thereby considerably reducing the risk of injury to the head in the event of a side-on impact.

9 Warning

Keep the area in which the airbag inflates clear of obstructions.

The hooks on the handles in the roof frame are only suitable for hanging up light articles of clothing, without coat hangers. Do not keep any items in these clothes.

Airbag deactivation

The front passenger airbag system must be deactivated if a child restraint system is to be fitted on this seat. The belt pretensioners and all driver airbag systems will remain active.

The front passenger airbag system can be deactivated via a keyoperated switch on the right side of the instrument panel.

46 Seats, restraints

Use the ignition key to choose the position:

= front passenger airbag

OFF

systems are deactivated and will not inflate in the event of a collision. Control indicator * illuminates continuously on the passenger side of the instrument panel. A child restraint system can be installed in accordance with the chart Child restraint installation locations 3 48. No adult person is allowed to occupy the front passenger seat.

= front passenger airbag

systems are active. A child restraint system must not be installed.

9 Danger

Risk of fatal injury for a child using a child restraint system on a seat with activated front passenger airbag.

Risk of fatal injury for an adult person on a seat with deactivated front passenger airbag.

Control indicators for the front passenger airbag system are located on the passenger side of the instrument panel.

As long as control indicator is not illuminated, the front passenger airbag system will inflate in the event of a collision.

Change status only when the vehicle is stopped with the ignition off.

Status remains until the next change.

Control indicator V for front passenger airbag 3 78.

Seats, restraints 47

Child restraints

Child restraint systems

We recommend the Vauxhall child restraint system which is tailored specifically to the vehicle.

When a child restraint system is being used, pay attention to the following usage and installation instructions and also those supplied with the child restraint system.

Always comply with local or national regulations. In some countries, the use of child restraint systems is forbidden on certain seats.

9 Warning

When using a child restraint system on the front passenger seat, the airbag systems for the front passenger seat must be deactivated; if not, the triggering of the airbags poses a risk of fatal injury to the child.

This is especially the case if rearfacing child restraint systems are used on the front passenger seat.

Selecting the right system

The rear seats are the most convenient location to fasten a child restraint system.

Children should travel facing rearwards in the vehicle as long as possible. This makes sure that the child's backbone, which is still very weak, is under less strain in the event of an accident.

Children under the age of 12 years that are smaller than 150 cm are only allowed to travel in a restraint system that is suitable for the child. Child restraint systems that comply with ECE 44-03 or ECE 44-04 are suitable. Since the proper position of the belt is rarely possible with a child that is smaller than 150 cm, we strongly advise the use of an appropriate child restraint system, even though this may, due to the age of the child, no longer be legally binding.

Ensure that the child restraint system to be installed is compatible with the vehicle type.

Ensure that the mounting location of the child restraint system within the vehicle is correct.

Allow children to enter and exit the vehicle only on the side facing away from the traffic.

When the child restraint system is not in use, secure the seat with a seat belt or remove it from the vehicle.

Notice Do not stick anything on the child restraint systems and do not cover them with any other materials.

A child restraint system which has been subjected to stress in an accident must be replaced.

48 Seats, restraints

Child restraint installation locations

Permissible options for fitting a child restraint system

On front passenger seat

Weight and age class

Group 0: up to 10 kg

or approx. 10 months

Group 0+: up to 13 kg

or approx. 2 years

Group I: 9 to 18 kg

or approx. 8 months to 4 years

Group II: 15 to 25 kg

X X U X

or approx. 3 to 7 years

Group III: 22 to 36 kg

X X U X

or approx. 6 to 12 years

= Only if front passenger seat airbag system is deactivated 3 45. Child restraint system must be secured using a three-

point seat belt. Move seat height adjustment to uppermost position and ensure that vehicle seat belt runs forwards from the upper anchorage point.

= Vehicle seat with ISOFIX mounting available. When mounting with ISOFIX, only ISOFIX child restraint systems that

have been approved for the vehicle may be used. U = Universal suitability in conjunction with three-point seat belt. X = No child restraint system permitted in this weight and age class.

On rear outboard seats On rear centre seatactivated airbag deactivated airbag

U, <

Seats, restraints 49

Permissible options for fitting an ISOFIX child restraint system

Weight and age class Size class Fixture

Group 0: up to 10 kg or approx. 10 months E ISO/R1 X IL X

Group 0+: up to 13 kg or approx. 2 years E ISO/R1 X IL X

D ISO/R2 X IL X

C ISO/R3 X IL X

Group I: 9 to 18 kg or approx. 8 months to 4 years D ISO/R2 X IL X

C ISO/R3 X IL X

B ISO/F2 X IUF X

B1 ISO/F2X X IUF X

A ISO/F3 X IUF X

IL = Suitable for particular ISOFIX restraint systems of the 'vehicle-specific', 'restricted' or 'semi-universal' categories.

The ISOFIX restraint system must be approved for the specific vehicle type.

IUF = Suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight and

age class.

X = No ISOFIX child restraint system approved in this weight and age class.

On front passenger seat

On rear outboard seats

On rear centre seat

50 Seats, restraints

ISOFIX size class and seat device

A - ISO/F3 = Forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg. B - ISO/F2 = Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg. B1 - ISO/F2X = Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg. C - ISO/R3 = Rear-facing child restraint system for children of maximum size in the weight class up to 13 kg. D - ISO/R2 = Rear-facing child restraint system for smaller children in the weight class up to 13 kg. E - ISO/R1 = Rear-facing child restraint system for young children in the weight class up to 13 kg.

Seats, restraints 51

ISOFIX child restraint systems

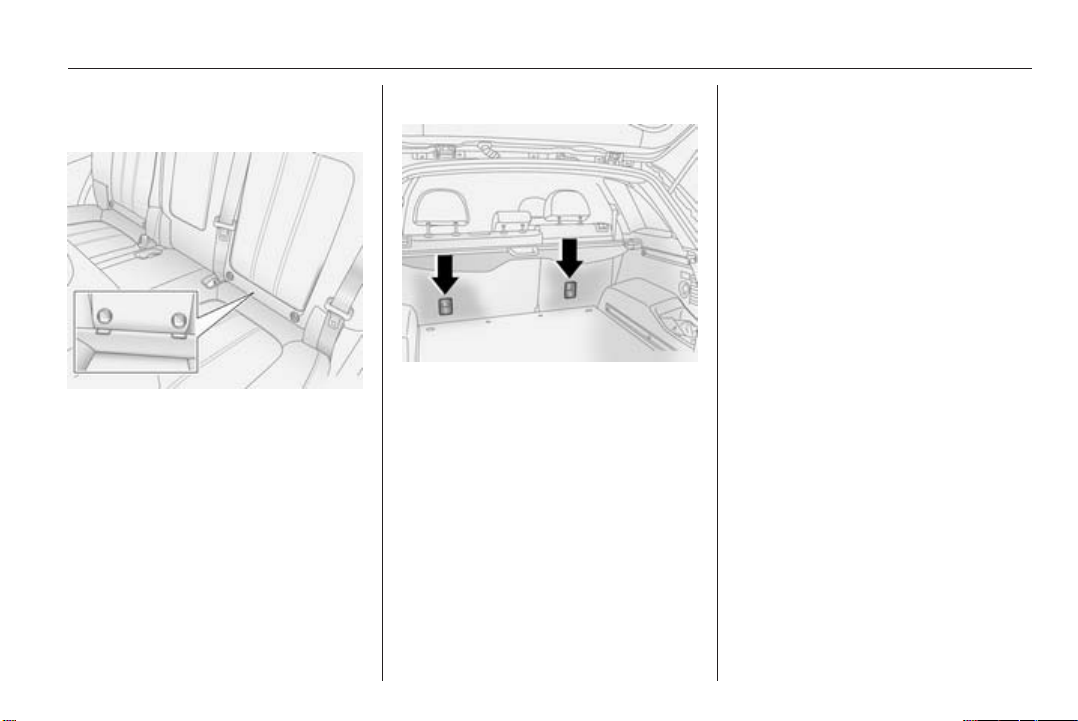

Fasten vehicle-approved ISOFIX child restraint systems to the ISOFIX mounting brackets.

Permitted installation positions for specific vehicle ISOFIX child restraint systems are marked in the table by IL.

No more than two ISOFIX child restraint systems can be installed on the rear seats at the same time, though not on the rear centre seat.

ISOFIX mounting brackets are indicated by a label on the backrest.

Top-tether fastening eyes

The Top-tether anchors located on the rear of the backrests are designed to hold child restraints which come equipped with Top-tether anchor attachments only. Follow the instructions provided with the Top-tether child restraint system.

For use of ISOFIX and Top-tether fixings, universal ISOFIX child restraint systems may be used. Permitted installation positions are marked in the table by IUF.

52 Storage

Storage

Storage compartments ................ 52

Load compartment ....................... 63

Roof rack system ......................... 68

Loading information ..................... 68

Storage compartments

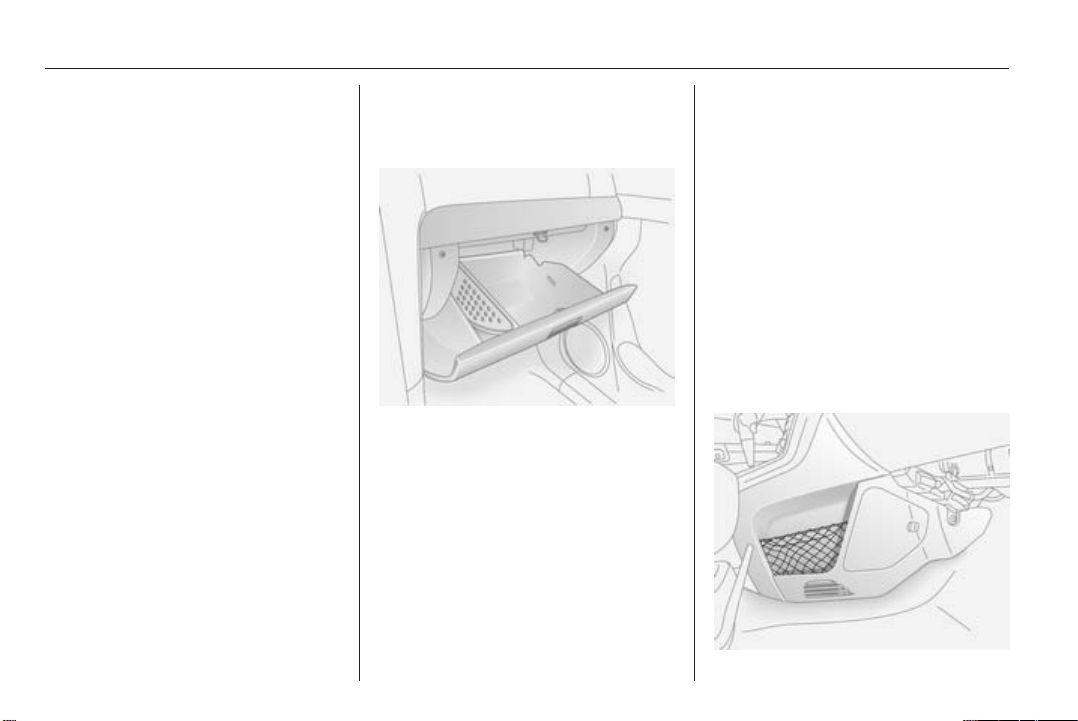

Glovebox

The glovebox will illuminate when opened.

The glovebox partition can be removed from its groove. Store the partition in the groove on the far lefthand side of the glovebox.

The glovebox should be closed whilst driving.

Lockable glovebox

Lock and unlock the glovebox with the key.

Cupholders

Cupholders are located in the front of the centre console.

The cupholder is flexible, allowing different size drink containers to be stored.

Additional cupholders are located in the centre rear seat armrest. Fold down the armrest to access the cupholder.

Front storage

Console net

Storage 53

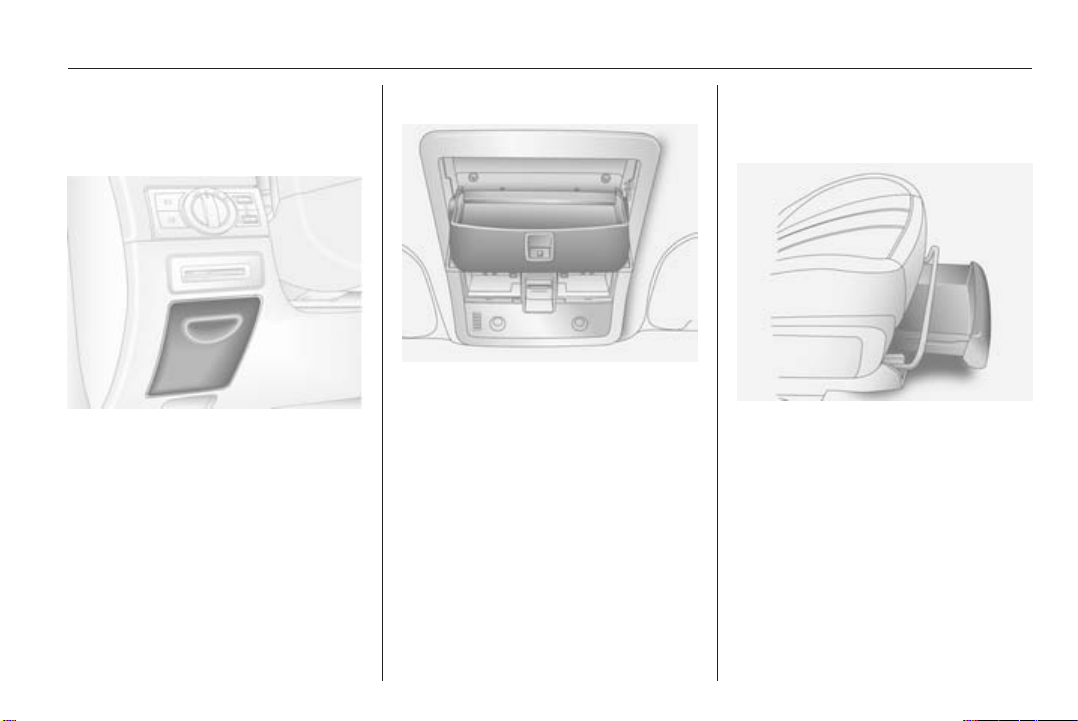

Located in the front passenger foot well.

Coin storage

Pull handle to open. Push door firmly to close.

Card holder

Located above the coin storage compartment. A card can be retained in the slot for convenient use.

Sunglasses storage

To open: push the rear part of the cover.

To close: pull up cover and push it until it latches into place.

Do not use for storing heavy objects.

Underseat storage

Front passenger seat undertray

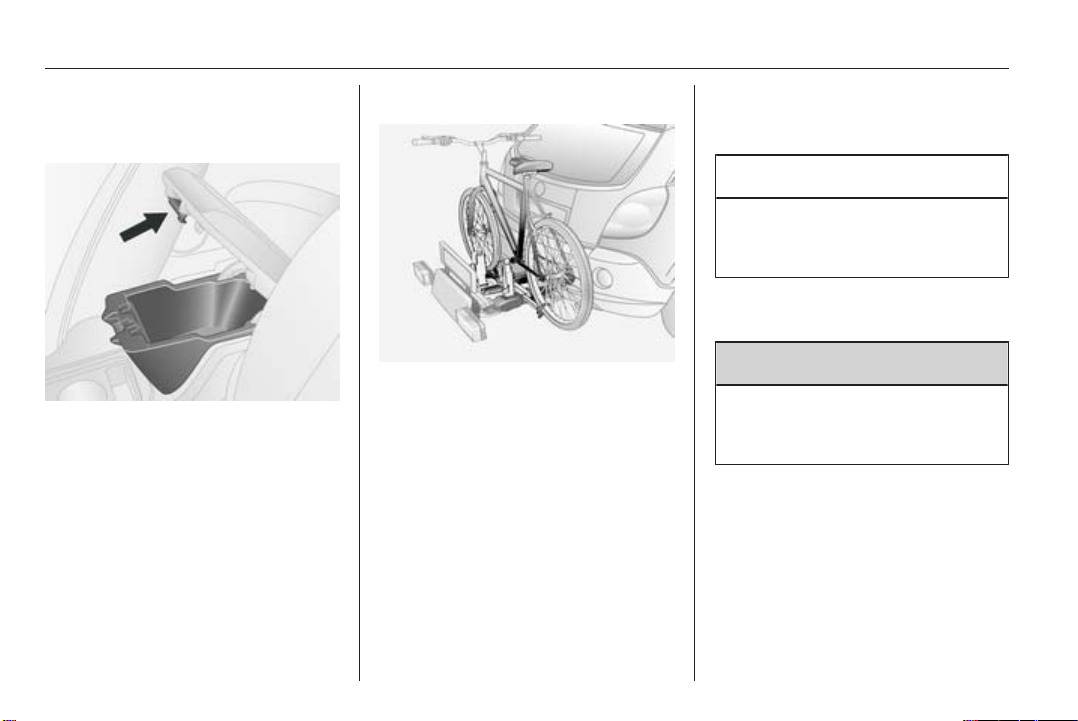

Pull up on front of tray then pull it forwards. Push the tray towards the seat to return it to its original position.

54 Storage

Armrest storage

Console box in front armrest

To open: pull up lever and lift the lid. To close: lower lid and push it down

until it latches into position.

Centre console storage

To access the storage compartment, cigarette lighter and AUX input, slide the cupholder tray rearwards.

Rear carrier system

The rear carrier system (Flex-Fix system) allows bicycles to be attached to a pull-out carrier integrated into the vehicle floor. The transportation of other objects is not permitted.

The maximum load of the rear carrier system is 40 kg. The maximum load per bicycle is 20 kg.

If not in use, the carrier system must be slid back into the vehicle floor.

A multifunction box is offered as an accessory for the rear carrier system.

There must not be any objects on the bicycles that could become loose during transportation.

Caution

Do not attach bicycles with carbon pedal cranks to bicycle carriers. The bicycles might get damaged.

Extending

Open the tailgate.

9 Warning

No-one should be in the extension zone of the rear carrier system, risk of injury.

Storage 55

Raise release lever. The system disengages and travels quickly out of the bumper.

Completely pull out the rear carrier system until it engages.

Ensure that it is not possible to push in the rear carrier system without pulling the release lever again.

9 Warning

It is only permissible to fit objects to the rear carrier system if the system has been correctly engaged. If the rear carrier system will not engage correctly, do not fit objects to the system and slide the system back. Seek the assistance of a workshop.

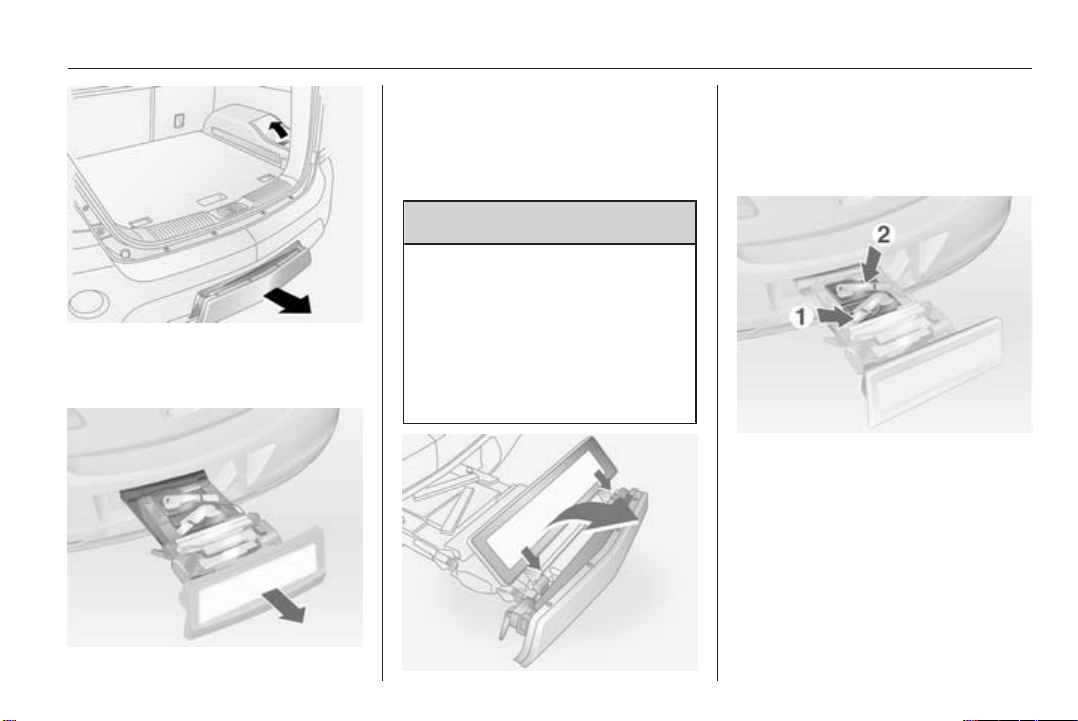

Pull up license plate holder and fully insert the holder supports into the retainers.

Install the tail lamps

First remove the rear ( front (2) tail lamp from the recesses.

1), then the

56 Storage

Open out the bulb holder on the back of the tail lamp completely.

Push the clamping lever and push the bulb holder into the retainer until it hits the stop.

Perform this procedure for both tail lamps.

Check the cable and lamp position to make sure these are correctly installed and are securely located.

Lock the rear carrier system

Swivel the left clamping lever (1) back first, followed by the right clamping lever (2) until they stop. Both clamping levers must point backwards, otherwise safe functionality is not guaranteed.

Notice Close the tailgate!

Storage 57

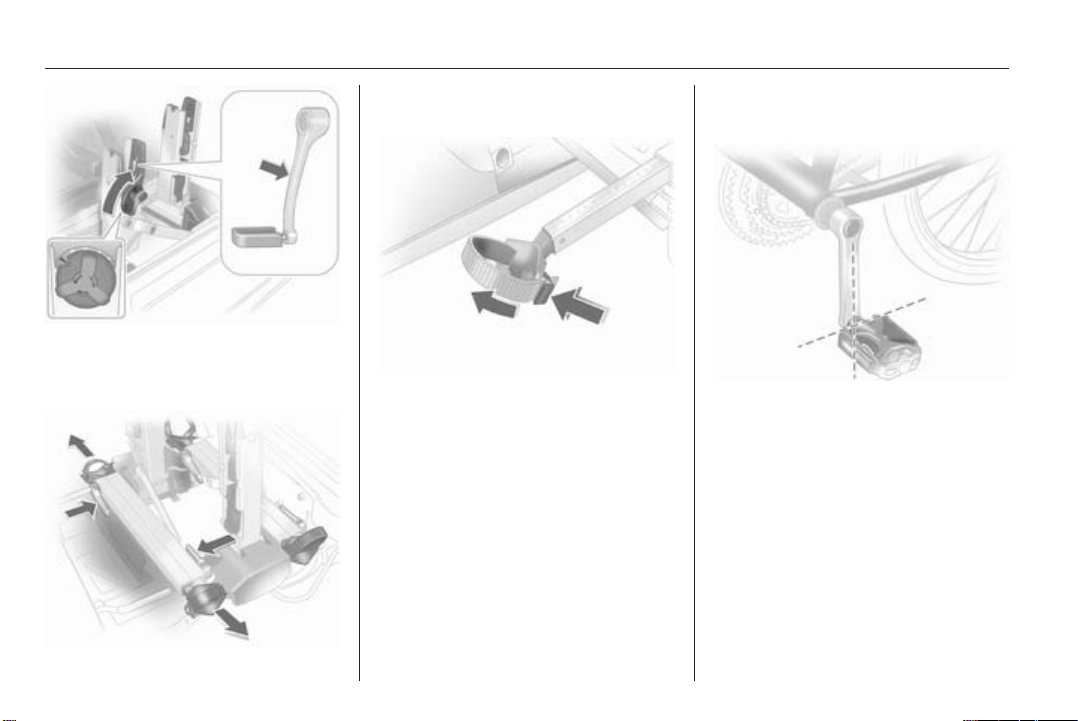

Unfold pedal crank recesses

Fold one or both pedal crank recesses upwards until the diagonal support engages.

Adapting the rear carrier system to a bicycle

Remove the pedal crank mounts from the pedal crank recesses.

With the rotary lever on the pedal crank recess, roughly adapt the adjustable pedal crank unit to the protrusion of the pedal crank.

If the bicycle has straight pedal cranks, unscrew the pedal crank unit completely (position 5).

58 Storage

If the bicycle has curved pedal cranks, screw in the pedal crank unit all the way (position 1).

Press the release lever and withdraw the wheel recesses.

Push the release lever on the strap retainer and remove the strap retainer.

Prepare the bicycle for attachment

Notice The maximum width for the pedal crank is 38,3 mm and the maximum depth is 14,4 mm.

Rotate the left pedal (without a chain cog) vertically downwards. The pedal on the left pedal crank must be horizontal.

The front bicycle must have its front wheel facing left.

The rear bicycle must have its front wheel facing right.

Storage 59

Attaching a bicycle to the rear carrier system

Put on the bicycle. The pedal crank here must be placed in the pedal crank recess opening as shown in the illustration.

Caution

Make sure that the pedal does not touch the surface of the rear end carrier. Otherwise the bicycle chainset might be damaged during transport.

Insert pedal crank mount into outer rail of each pedal crank recess from above and slide downwards as far as it will go.

Attach the pedal crank by rotating the attachment screw on the pedal crank mount.

Place the wheel recesses such that the bicycle is more or less horizontal. Here, the distance between the pedals and the tailgate should be at least 5 cm.

Both bicycle tyres must be in the wheel recesses.

60 Storage

saved for each bicycle. Correct presetting will facilitate refitting of the bicycle.

Align the bicycle in the longitudinal direction of the vehicle: Slightly loosen the pedal mount.

Place the bicycle upright using the rotary lever on the pedal crank recess.

If the two bicycles obstruct one another, the relative positions of the bicycles can be adapted by adjusting the wheel recesses and the rotary lever on the pedal crank recess until the bicycles no longer touch one another. Make sure there is sufficient clearance from the vehicle.

Tighten the attachment screw for the pedal bearing mount to its maximum point by hand.

Secure both bicycle wheels to the wheel recesses using strap retainers.

Check the bicycle to make sure it is secure.

Caution

Ensure gap between bicycle and vehicle is at least 5 cm.

The settings for the wheel recesses and on the rotary lever on the pedal crank recess should be noted and

It is recommended to attach a warning sign on the rearmost bicycle to increase visibility.

Storage 61

Removing a bicycle from the rear carrier system

Undo strap retainers on both bicycle tyres.

Hold on to the bicycle, loosen the attachment screw for the pedal bearing mount, then lift the pedal bearing mount to remove it.

Retracting the rear carrier system

Insert the strap retainer and pull tightly downwards as far as possible.

Push the pedal crank mounts into the pedal crank recess as shown in the illustration.

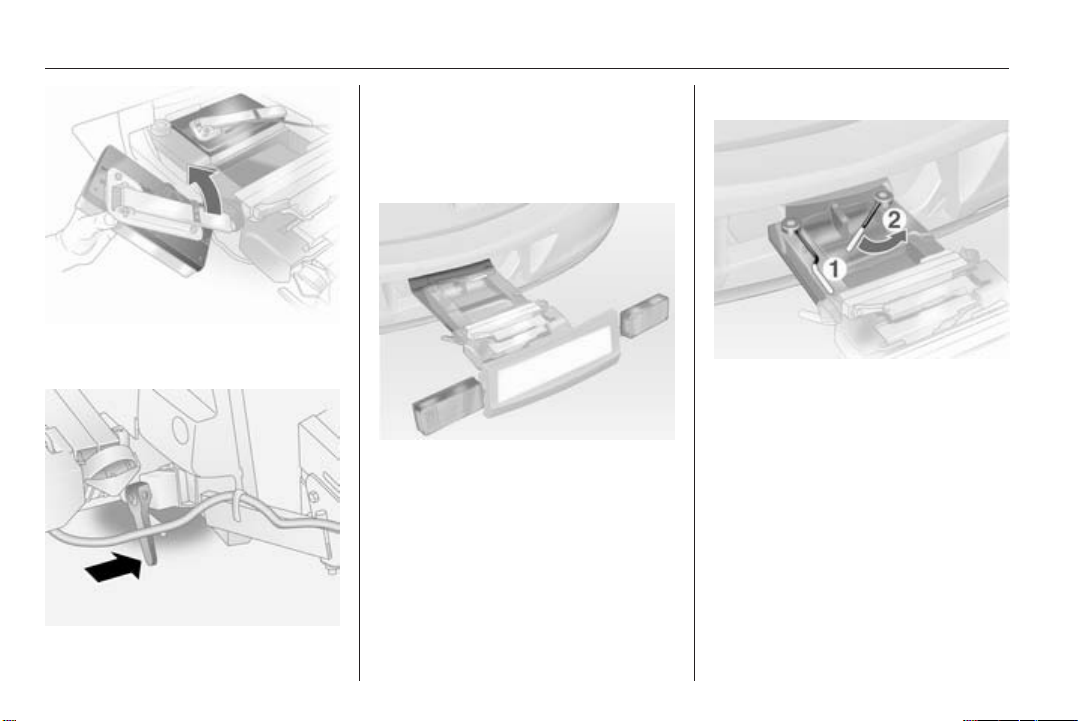

62 Storage

Press release lever and slide in wheel recesses all the way as far as they will go.

Disengage the locking lever on the diagonal support and fold both pedal crank recesses down.

9 Warning

Risk of pinching.

Swivel first the right clamping lever (1) forwards, followed by the left clamping lever (2), until they can be engaged in their respective recesses.

Push the clamping lever down and pull both lamp supports out of the recesses.

Fold in the bulb holders on the backs of the tail lamps.

First place the front tail lamp (1), then the rear tail lamp (2) in the recesses and push down as far as possible. Push cables all the way into all guides in order to prevent damage.

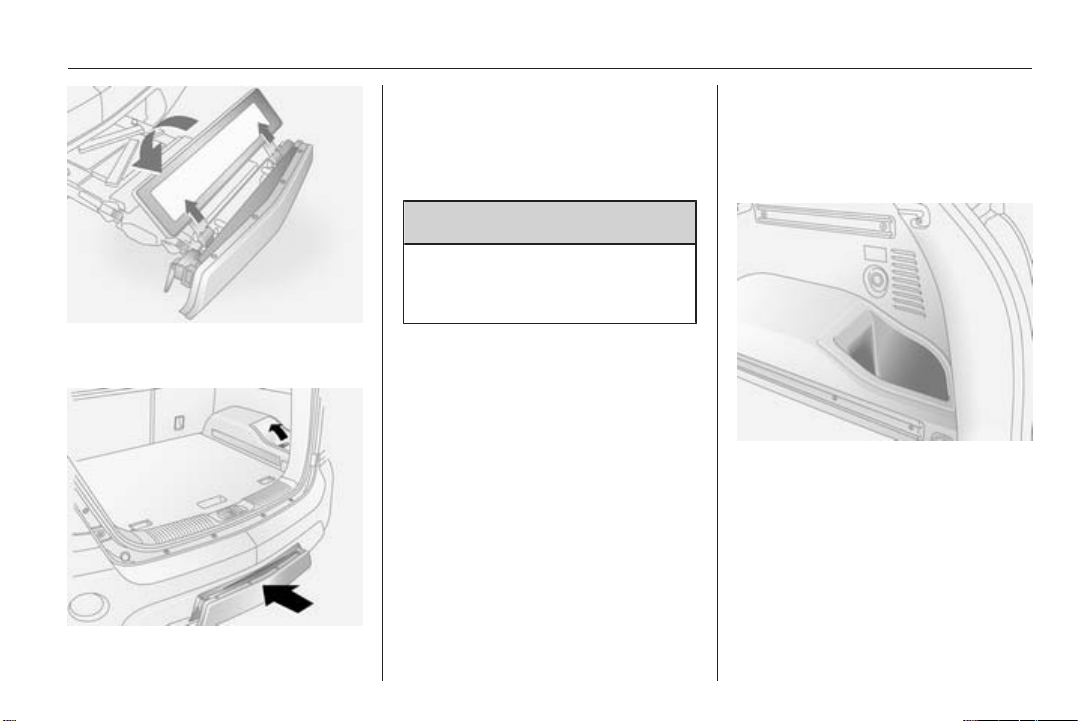

Storage 63

Pull up license plate holder and fold down into horizontal position.

Open the tailgate.

Raise the release lever up and push the system into the bumper until it engages.

Release lever must return to original position.

9 Warning

If the system cannot be correctly engaged, please seek the assistance of a workshop.

Load compartment

Storage compartments in the load compartment

Located on both sides of the load compartment floor.

Load compartment cover

Do not place any objects on the cover.

64 Storage

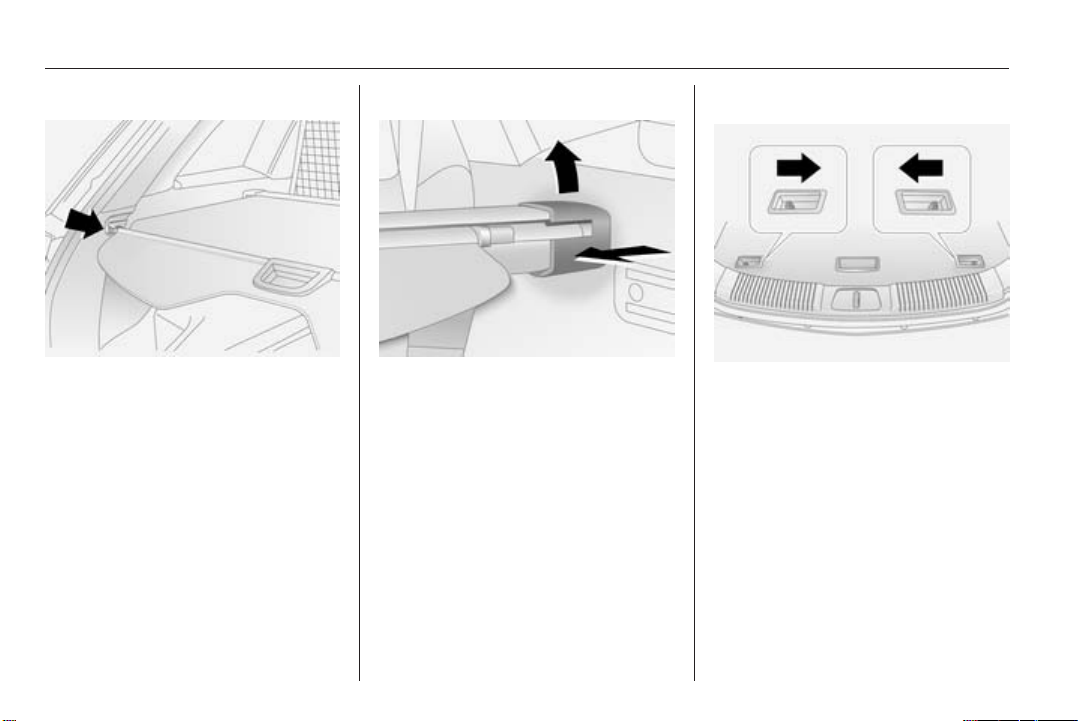

Closing the cover

Pull load compartment cover towards rear of vehicle using handle and insert retainers into brackets on either side of load compartment.

Opening the cover

Remove load compartment cover from side brackets. The cover rolls up automatically.

Removing the cover

Open load compartment cover. Pull socket on either side of cover towards centre of vehicle, lift and remove cover from the side guides.

Fit in reverse order.

Rear floor storage cover

To access the rear floor storage compartment, push both levers on the floor cover towards the handle and pull up the cover by the handle.

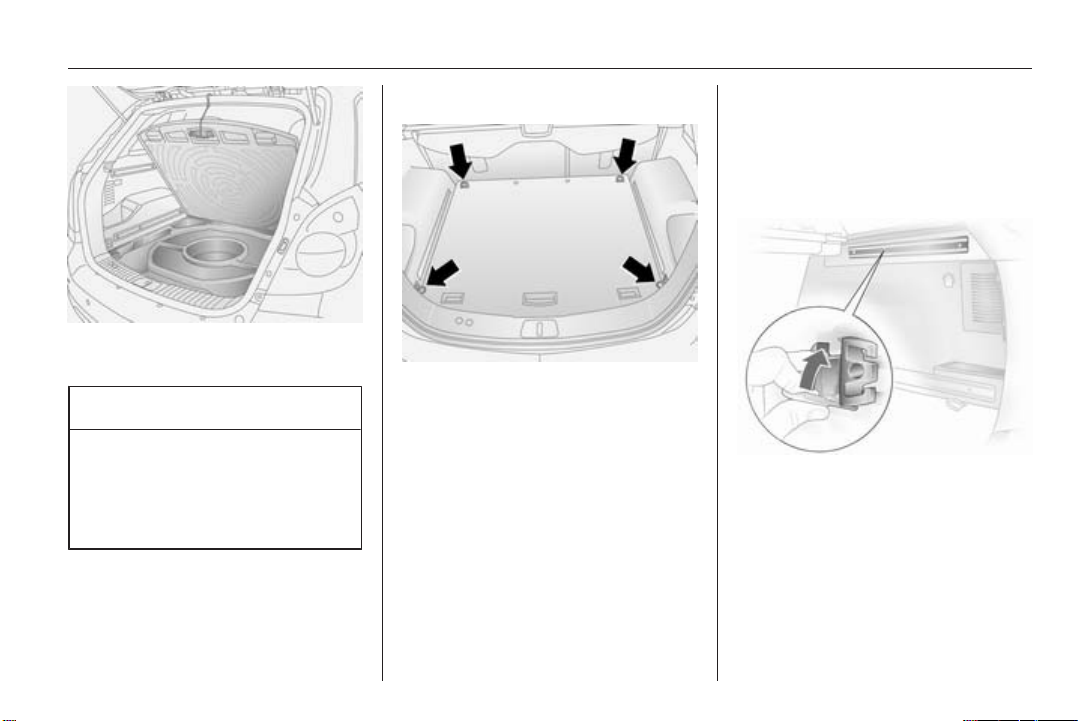

Storage 65

Hang the hook to the upper part of the tailgate opening.

Caution

Do not allow objects to protrude above the top of the rear floor storage compartment, to avoid damage to the storage area and the load compartment floor.

Jack and vehicle tools 3 165. Tyre repair kit 3 171. Temporary spare wheel 3 177.

Lashing eyes

The lashing eyes are designed to secure items against slippage, e.g. using lashing straps or a luggage floor net.

Two additional lashing eyes are located in front of the rear seats for fitting a safety net 3 66.

Designed for carrying small, light items only, a luggage floor net helps keep loads from moving during sharp turns or quick starts and stops.

To install: attach the four net hooks to the lashing eyes mounted on the load compartment floor.

Cargo management system

The FlexOrganizer is a flexible system for dividing the load compartment or securing loads.

The system consists of:

■ adapters,

■ variable partition net,

■ mesh pockets,

■ hooks. The components are fitted in two

guide rails in the side walls of the load compartment using adapters and hooks.

66 Storage

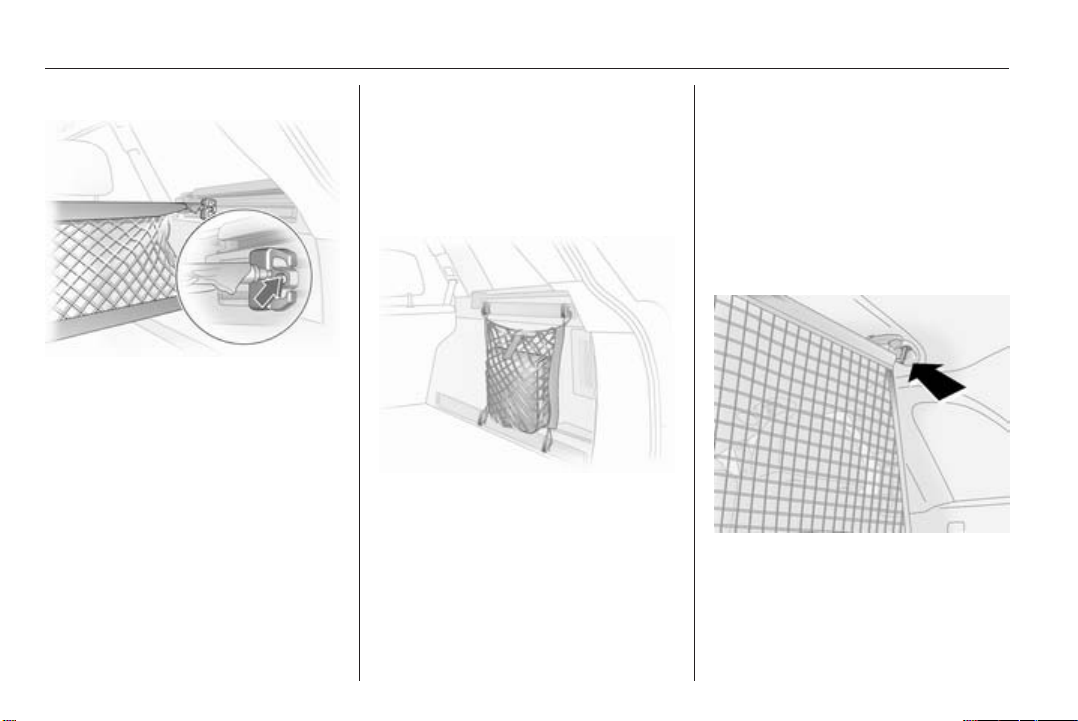

Variable partition net

Insert an adapter into each rail: fold open the handle plate, insert adapter into upper and lower groove of rail and move to required position.

Turn handle plate upwards to lock the adapter. The rods of the net must be extended before inserting into the adapters: pull out all of the end pieces and lock by rotating clockwise.

To install, push rods together a little and insert into the relevant openings in the adapters. The longer rod must be inserted into the upper adapter.

To remove, press the net rod together and remove from the adapters. Fold open the adapter handle plate, disengage from lower groove and then from upper groove.

Hooks and mesh pocket

Insert the hooks in the desired position in the rails: insert the hook in the upper groove on the rail and press in the lower groove.

The mesh pocket can be hung from the hooks.

Safety net

The safety net can be mounted behind the rear seats or, if the rear seat backrests are folded down, in front of the rear seats.

Passengers must not be transported behind the safety net.

Fitting

There are four installation openings in the roof frame, two located in front of and two behind the rear seats.

When fitting behind the rear seats, remove the load compartment cover 3 63.

Storage 67

When fitting in front of the rear seats, push head restraints of the rear seats down and fold down rear seat backrests 3 38.

Open aperture covers on the roof frame and insert top corners of safety net into large apertures in roof frame and secure by sliding them into the smaller apertures.

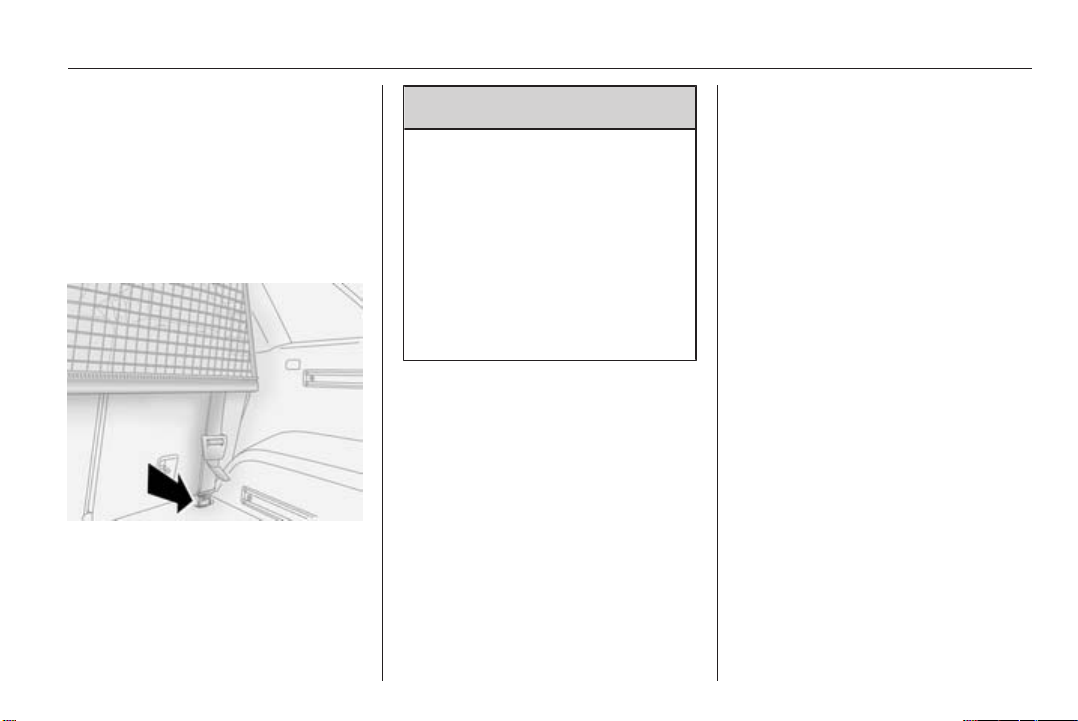

In front of and behind the rear seats on both sides of the vehicle are the hook holders (lashing eyes) for the lower strap hooks. Hang strap hooks in the two lashing eyes. Pull on the straps to take up any slack.

9 Warning

Do not stack loads higher than the upper end of the safety net.

Avoid applying excessive force to the safety net or hanging heavy items from it.

Do not place loads behind the safety net which have sharp edges that could pass through the net in the event of heavy braking, for example.

Removing

Loosen straps by pulling up strap adjusters and remove the strap hooks from the lashing eyes. Pull top corners of safety net from the smaller apertures into the larger apertures and remove.

Warning triangle

Stow the warning triangle below the floor cover in the load compartment.

First aid kit

Stow the first aid kit below the floor cover in the load compartment.

68 Storage

Roof rack system

Roof rack

For safety reasons and to avoid damage to the roof, the vehicle approved roof rack system is recommended.

Fasten the roof rack to the roof rails following the instructions that accompany the system, ensuring that the roof load is evenly distributed over the side or cross rails.

Loads must not be placed on the roof surface. To prevent damage or loss, check frequently that roof loads are securely fastened.

Driving with a roof load affects the vehicle centre of gravity; drive carefully in crosswinds and do not drive at high speeds.

Remove the roof rack when not in use.

Loading information

■ Heavy objects in the load compartment should be evenly distributed and placed as far forward as possible. Ensure the backrests are securely engaged. If objects can be stacked, the heavier objects should be placed at the bottom.

With rear seats in the folded position, or with safety net installed behind rear seats, objects must not be stacked higher than the seat backrests.

■ Secure objects with lashing straps attached to lashing eyes 3 65.

■ Secure loose objects in the load compartment using FlexOrganizer or a luggage floor net to prevent sliding.

■ When transporting objects in the load compartment, fit the safety net 3 66. The backrests of the rear seats must not be angled forward.

■ Do not allow the load to protrude above the upper edge of the backrests.

■ Do not place any objects on the load compartment cover or the instrument panel, and do not cover the sensor on top of the instrument panel.

■ The load must not obstruct the operation of the pedals, electrical parking brake and gear selector, or hinder the freedom of movement of the driver. Do not place any unsecured objects in the interior.

■ Do not drive with an open load compartment.

9 Warning

Always make sure that the load in the vehicle is securely stowed. Otherwise objects can be thrown around inside the vehicle and cause personal injury or damage to the load or car.

■ The payload is the difference between the permitted gross

Storage 69

vehicle weight (see identification plate 3 189) and the EC kerb weight.

To calculate the EC kerb weight, enter the data for your vehicle in the Weights table at the front of this manual.

The EC kerb weight includes weights for the driver (68 kg), luggage (7 kg) and all fluids (tank 90 % full).

Optional equipment and accessories increase the kerb weight.

■ Driving with a roof load increases the sensitivity of the vehicle to cross-winds and has a detrimental effect on vehicle handling due to the vehicle's higher centre of gravity. Distribute the load evenly and secure it properly with retaining straps. Adjust the tyre pressure and vehicle speed according to the load conditions. Check and retighten the straps frequently.

Do not drive faster than 75 mph.

The permissible roof load is 100 kg. The roof load is the combined weight of the roof rack and the load.

70 Instruments and controls

Instruments and controls

Controls ....................................... 70

Warning lights, gauges and

indicators ..................................... 77

Information displays ..................... 88

Vehicle messages ........................ 96

Trip computer ............................... 97

Controls

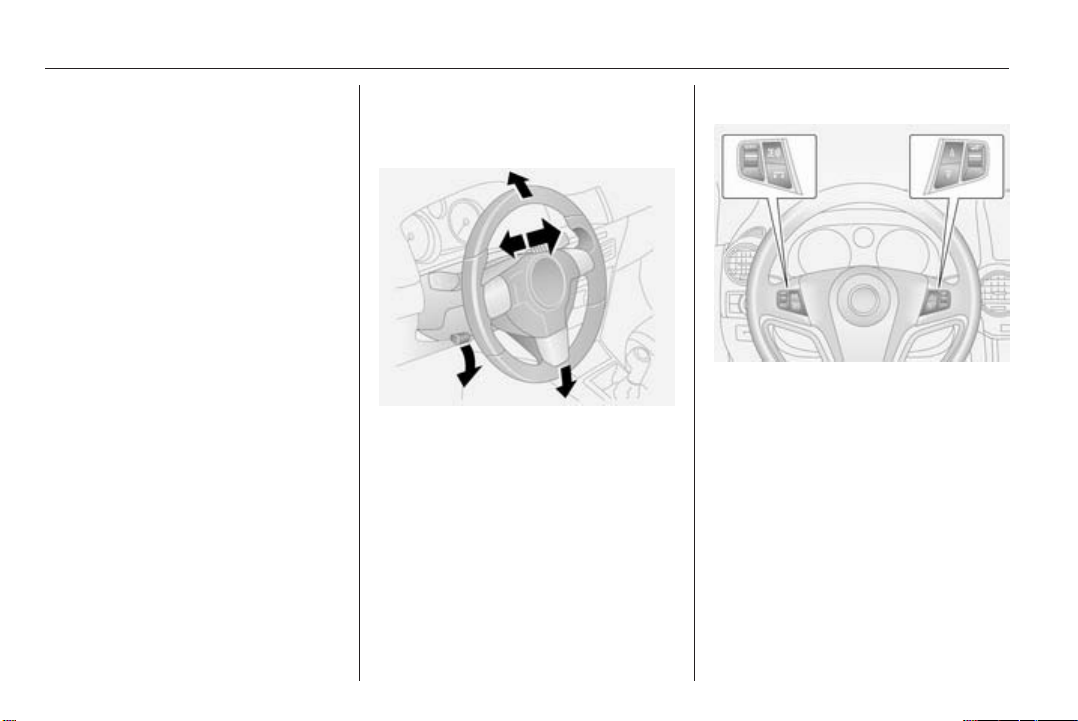

Steering wheel adjustment

Unlock lever, adjust steering wheel, then engage lever and ensure it is fully locked.

Do not adjust steering wheel unless vehicle is stationary and steering wheel lock has been released.

Steering wheel controls

The Infotainment system can be operated via the controls on the steering wheel.

Further information is available in the Infotainment system instruction manual.

Instruments and controls 71

Horn

Press j.

Windscreen wiper/washer

Windscreen wiper

= fast

= slow

= timed interval wiping or

automatic wiping with rain sensor

= off

For a single wipe when the windscreen wiper is off, press the lever down.

Do not use if the windscreen is frozen. Switch off in car washes.

Adjustable wiper interval

To set the wiping interval to a value between 1 and 10 seconds:

■ Switch on ignition.

■

Push lever down from position §.

■ Wait until wiping frequency reaches the desired interval.

■

Set lever to position $.

The interval remains stored until the next change or until the ignition is switched off. Switching the ignition on and moving the lever to $ sets the interval to 3.5 seconds.

72 Instruments and controls

In this mode, wiping frequency is also affected by vehicle speed. As vehicle speed increases, wiping will become more frequent.

Automatic wiping with rain sensor

= automatic wiping with rain

sensor

The rain sensor detects the amount of water on the windscreen and automatically regulates the frequency of the windscreen wiper.

The wiper operates for one cycle to check the system when the key is turned to ignition switch position ACC.

To turn wiper off, move lever to position §.

Keep the rain sensor area clean by activating the windscreen washer system.

Windscreen and headlight washer

Pull lever. Washer fluid is sprayed onto the windscreen.

If the lever is held longer, the wiper operates for two cycles after the lever has been released and once more after a 3 second delay.

If the headlights are on, washer fluid is also sprayed onto the headlights. The headlight washer system can only be operated again after a short delay. If washer fluid level is low then this delay is increased.

Instruments and controls 73

Control indicator G illuminates in the instrument cluster when the washer fluid level is low.

Wiper activated lighting

With light switch in the AUTO position, when the windscreen wiper is operated for 8 cycles or more the exterior lights illuminate automatically.

Rear window wiper/washer

Move lever to activate the rear window wiper:

Push lever = wiper on Pull lever = wiper off

To activate rear window washer system, press and hold button on end of lever. Washer fluid is sprayed onto rear window and the wiper wipes a few times when the button is released.

Do not use if the windscreen is frozen. Switch off in car washes.

Outside temperature

A drop in temperature is indicated immediately and a rise in temperature after a time delay.

If outside temperature drops to 3 °C, the symbol : illuminates in the Board-Info-Display as a warning for icy road conditions. : remains illuminated until outside temperature reaches at least 5 °C.

In vehicles with Graphic-Info-Display or Colour-Info-Display, a message appears on the display as a warning for icy road conditions. There is no message below -5 °C.

74 Instruments and controls

9 Warning

The road surface may already be icy even though the display indicates a few degrees above 0 °C.

Clock

Date and time are shown in the Info-Display.

Board-Info-Display 3 88.

Automatic time synchronisation

Board-Info-Display

Graphic-Info-Display, Colour-Info-Display 3 91.

The RDS (Radio Data System) signal of most VHF transmitters automatically sets the time, identified by } in the display.

Some RDS transmitters do not send a correct time signal. In such cases, switch off automatic time synchronisation and set the time manually.

Instruments and controls 75

Deactivate (Clock Sync.Off) or activate (Clock Sync.On) automatic time synchronisation with the arrow buttons on the Infotainment system.

To set date and time manually, select the menu item for time and date setting from the Settings menu and make the desired setting. The value ready for modification is marked with arrows. Use the arrow buttons to make the required setting. The setting is saved when the menu item is exited.

To correct time with the help of RDS, select the menu item for time synchronisation from the Settings menu and make the desired setting.

Board-Info-Display 3 88.

Graphic-Info-Display, Colour-InfoDisplay

With the navigation system, date and time are set automatically upon receipt of a GPS satellite signal. If the displayed time does not match local time, it can be corrected manually or automatically by receiving an RDS time signal.

Some RDS transmitters do not send a correct time signal. In such cases, switch off automatic time synchronisation and set the time manually.

To set date and time manually, select menu item Time, Date from the Settings menu. The menu is displayed. Select the menu items required and make the desired setting.

To correct time with the help of RDS, select menu item Synchron. clock automatical. from the Time, Date menu. The box in front of Synchron. clock automatical. will be checked.

Graphic-Info-Display, Colour-Info-Display 3 91.

Power outlets

The socket for the cigarette lighter can be used to connect electrical accessories.

76 Instruments and controls

A 12 Volt power outlet is located in the rear centre console and on the righthand side of the load compartment.

Pull the cap out to use the accessory socket, and replace the cap when not in use.

Do not exceed the maximum power consumption of 120 watts.

Operational with ignition switch in positions ACC or ON. Use of accessory sockets while the engine is not running will discharge the battery.

Electrical accessories that are connected must comply with the electromagnetic compatibility requirements laid down in DIN VDE 40 839.

Do not connect any current-delivering accessories, e.g. electrical charging devices or batteries.

Do not damage the outlet by using unsuitable plugs.

Cigarette lighter

Depending on the equipment, the cigarette lighter may be located in the front centre console or beneath the cupholder.

Slide the cupholder tray back to access the cigarette lighter.

With ignition switch in position ACC or ON, press in cigarette lighter. Heating switches off automatically once the element is glowing. Pull out lighter.

Ashtrays

Caution

To be used only for ash and not for combustible rubbish.

The portable front ashtray can be placed in the front console cupholder.

To open: gently lift up lid. Illuminates depending on outside light conditions.

To empty: rotate upper part of ashtray anticlockwise and remove. After use, close lid firmly.

Instruments and controls 77

To replace battery: remove screw on ashtray lid and replace with CR 2032 (or equivalent) battery.

Warning lights, gauges and indicators

Speedometer

Indicates vehicle speed.

Odometer

The bottom line displays the recorded distance.

Trip odometer

The top line displays the recorded distance since the last reset.

There are two independent trip odometers. Press the trip odometer button once to toggle between Trip A and Trip B.

To reset, hold the trip odometer button depressed for a few seconds with the ignition on.

78 Instruments and controls

Tachometer

Displays the engine speed. Drive in a low engine speed range for

each gear as much as possible.

Caution

If the needle is in the red warning zone, the maximum permitted engine speed is exceeded. Engine at risk.

Fuel gauge

Displays the fuel level in the tank. Control indicator Y illuminates if the

level in the tank is low. Refuel immediately 3 137.

Never run the tank dry. Erratic fuel supply can cause catalytic converter to overheat 3 121.

Diesel engines: if the tank has been run dry, bleed the fuel system 3 151.

Because of the fuel remaining in the tank, the top-up quantity may be less than the specified tank capacity 3 197.

Transmission display

Displays the mode or selected gear with automatic transmission.

P = park position R = reverse gear N = neutral D = drive position (automatic

mode)

1-6 = selected gear in manual mode

Control indicators

The control indicators described are not present in all vehicles. The description applies to all instrument versions.

Instruments and controls 79

When the ignition is switched on, most control indicators will illuminate briefly as a functionality test.

The control indicator colours mean: red = danger, important

reminder yellow = warning, information, fault green = confirmation of activation blue = confirmation of activation

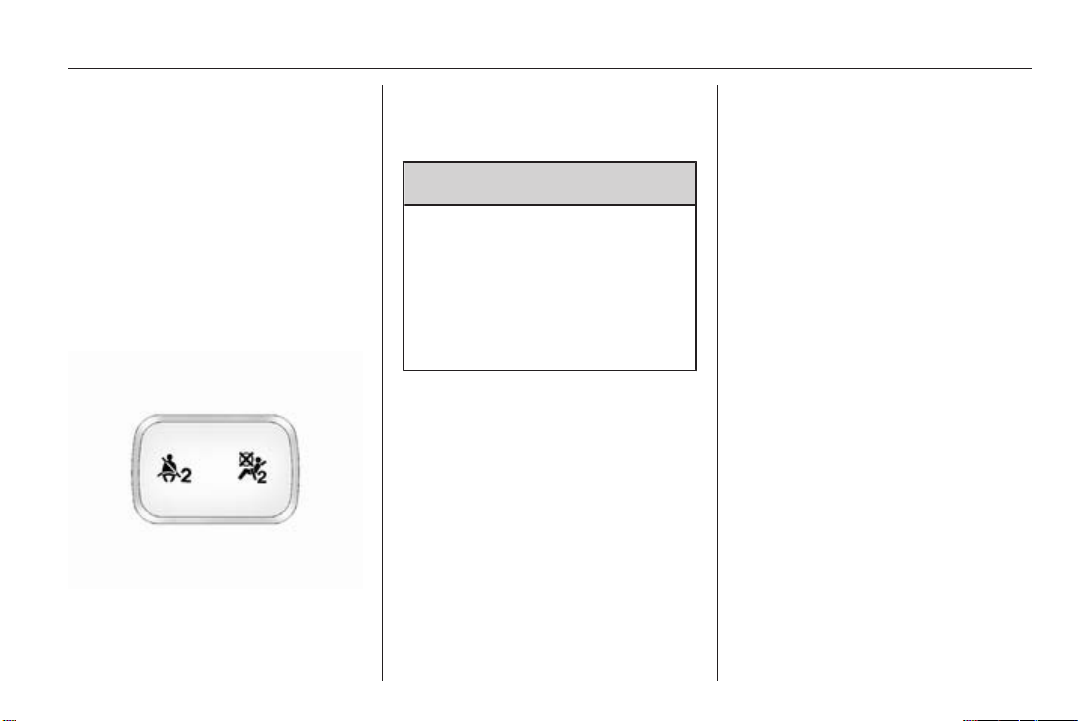

Control indicators on the instrument panel

k illuminates red. Front passenger seat belt reminder

3 40.

* illuminates yellow. The front passenger airbag is

deactivated 3 45.

9 Danger

Risk of fatal injury for a child using a child restraint system together with activated front passenger airbag.

Risk of fatal injury for an adult person with deactivated front passenger airbag.

80 Instruments and controls

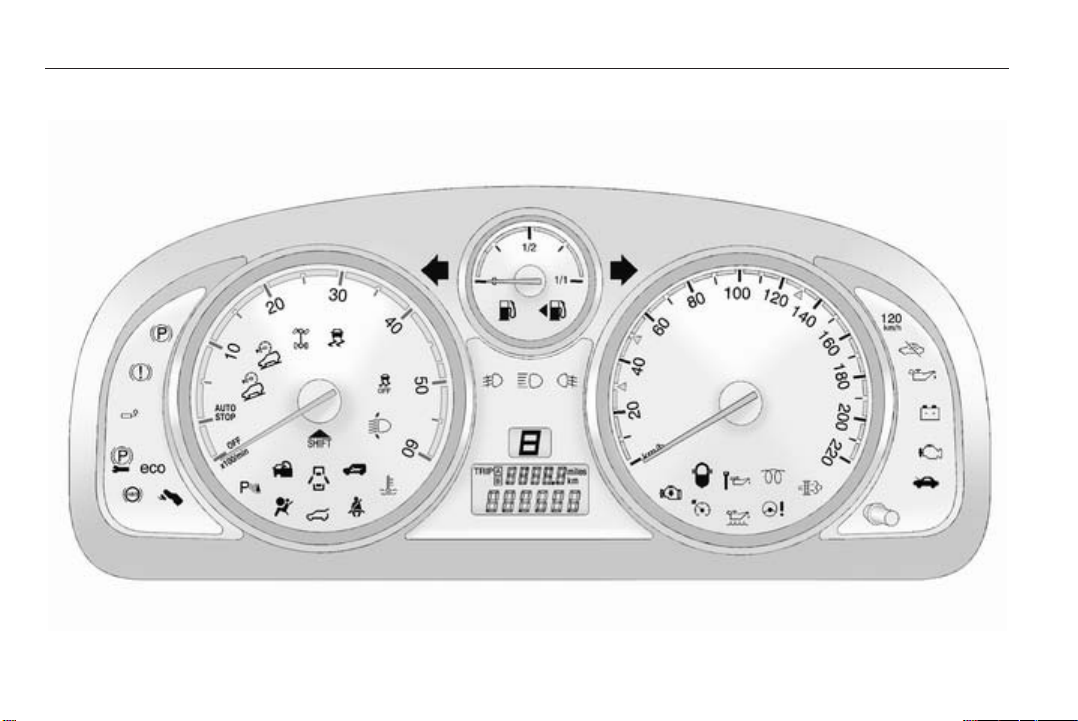

Control indicators in the instrument cluster

Instruments and controls 81

Turn signal

O illuminates or flashes green. The relevant control indicator flashes

when the turn signal is switched on 3 105.

Rapid flashing: failure of a turn signal bulb or the associated fuse or failure of a turn signal light on trailer.

Both control indicators flash when the hazard warning flashers are active 3 104.

Bulb replacement 3 151, Fuses 3 157.

Turn signals 3 105.

Seat belt reminder

X illuminates or flashes red. When the engine is running, if driver's

seat belt is not engaged, X will flash for 90 seconds then illuminate until seat belt is fastened.

If vehicle speed exceeds 14 mph, X will flash for 90 seconds along with a warning chime and remains illuminated until seat belt is fastened.

Fastening the seat belt 3 39. Front passenger seat belt reminder k

3 40.

Airbag and belt tensioners

v illuminates red. When the ignition is switched on, v

flashes briefly. If it does not flash, stays lit or flashes during driving, there is a fault with the belt pretensioners or the airbag system. Seek the assistance of a workshop. The airbags and belt pretensioners may fail to trigger in the event of an accident.

Deployment of the belt pretensioners or airbags is indicated by continuous illumination of v.

9 Warning

Have the cause of the fault remedied immediately by a workshop.

Belt pretensioners, airbag system 3 39, 3 43.

Charging system

p illuminates red. Illuminates when the ignition is

switched on and extinguishes shortly after the engine starts. If it does not illuminate, seek the assistance of a workshop.

Illuminates when the engine is running

Stop vehicle and switch off engine. Battery is not charging. Engine cooling may be interrupted. The brake servo unit may cease to be effective.

Interrupt your journey immediately. Remove key and check drive belt condition and tensioning before seeking the assistance of a workshop.

Malfunction indicator light

Z illuminates or flashes yellow.

82 Instruments and controls

Illuminates when the ignition is switched on and extinguishes shortly after the engine starts. If it does not illuminate, seek the assistance of a workshop.

Can illuminate briefly when driving; this is normal and does not indicate a system fault.

Illuminates when the engine is running

Fault in the emission control system. The permitted emission limits may be exceeded. Fuel economy and vehicle driveability may be impaired. Seek the assistance of a workshop immediately.

Control indicator Z also illuminates if there is a fault in the diesel particle filter 3 120 or with the automatic transmission 3 125. Seek the assistance of a workshop as soon as possible.

Ensure the fuel filler cap is screwed in completely 3 137.

Flashes when the engine is running

Fault that could lead to catalytic converter damage 3 121. Ease up on the accelerator until the flashing stops. Seek the assistance of a workshop immediately.

Service vehicle soon

g illuminates yellow. Illuminates when the engine is

running to indicate a fault in the engine or transmission electronics. The electronics switch to an emergency running programme, fuel consumption may be increased and vehicle handling may be impaired.

In some cases, the fault can be eliminated by switching the engine off and back on again. If g illuminates again after restarting the engine, the vehicle may need a service.

Have the cause of the fault eliminated by a workshop.

Brake system

R illuminates red. Illuminates when the ignition is

switched on and extinguishes shortly after the engine starts. If it does not illuminate, stop and seek the assistance of a workshop.

If it stays lit while the engine is running, the brakes do not operate as normal, or leaks are found in the brake system, do not attempt to drive the vehicle. Have the vehicle towed to a workshop for inspection and repair.

9 Warning

Stop. Do not continue your journey. Consult a workshop.

Illuminates when engine is running if fluid level for brake hydraulics is too low 3 147.

Brake system 3 129.

Electrical parking brake

m illuminates or flashes red.

Instruments and controls 83

When the engine is started, m illuminates briefly. If it does not illuminate, seek the assistance of a workshop.

Illuminates

Electrical parking brake is applied 3 129.

Flashes

Electrical parking brake is not fully applied or released.

Switch on ignition, depress brake pedal and attempt to reset the system by first releasing and then re-applying the electrical parking brake.

If m remains flashing, do not drive and seek the assistance of a workshop.

Electrical parking brake fault

j illuminates yellow. When the ignition is switched on, j

illuminates briefly. If it does not illuminate, seek the assistance of a workshop.

Illuminates

Electrical parking brake is operating with degraded performance 3 129.

9 Warning

Have the cause of the fault remedied immediately by a workshop.

Antilock brake system (ABS)

u illuminates yellow. The system is ready for operation

when the control indicator extinguishes.

If the control indicator does not illuminate when the ignition is switched on, stays lit or illuminates during driving, there is a fault in the ABS. The brake system remains operational but without ABS regulation.

If control indicator u illuminates during driving along with brake system control indicator R, there is a

serious fault in the brake system. Have the system checked immediately by a workshop.

Antilock brake system 3 129.

All wheel drive

B illuminates or flashes yellow. Illuminates briefly when the ignition is

switched on. If it does not illuminate, seek the assistance of a workshop.

Flashes briefly when the engine is running

The system is temporarily disabled.

Flashes continuously when the engine is running

System fault. Seek the assistance of a workshop immediately.

All wheel drive 3 126.

Descent control system

u illuminates yellow and/or green. Both the yellow and green control

indicators illuminate briefly when the ignition is switched on.

84 Instruments and controls

Green

Illuminates when system is ready for operation.

Flashes during driving when system is in operation, after pressing the u button.

Yellow

Flashes to indicate system is not ready for conditions to operate.

Illuminates to indicate there is a fault in the system.

If it flashes or illuminates during driving, friction material needs to cool down: drive the vehicle without braking as much as possible.

Descent control system 3 132.

Power steering

2 illuminates yellow. When the ignition is switched on, 2

illuminates briefly. If it does not illuminate, stays lit or illuminates during driving, there is a fault in the system. Seek the assistance of a workshop.

Power steering 3 116.

Ultrasonic parking assist

r illuminates yellow. Fault in system or Fault due to sensors that are dirty or

covered by ice or snow or Interference due to external sources

of ultrasound. Once the source of interference is removed, the system will operate normally.

Have the cause of the fault in the system remedied by a workshop.

Ultrasonic parking assist 3 135.

Electronic Stability Control

b illuminates or flashes yellow. When the engine is started, b

illuminates briefly. If it does not illuminate, seek the assistance of a workshop.

Illuminates

Fault in the system. Continued driving is possible. Driving stability, however, may deteriorate depending on road surface conditions.

Have the cause of the fault remedied by a workshop.

Flashes

The system is actively engaged. Engine output may be reduced and the vehicle may be braked automatically to a small degree.

Electronic Stability Control 3 131.

Electronic Stability Control off

t illuminates yellow. When the ignition is switched on, t

illuminates briefly. If it does not illuminate, seek the assistance of a workshop.

Illuminates when ESC has been switched off manually by pressing button t on the centre console.

Electronic Stability Control 3 131.

Instruments and controls 85

Engine coolant temperature

W illuminates red. When the engine is started, W

illuminates briefly. If it does not illuminate, seek the assistance of a workshop.

Illuminates when the engine is running

Stop vehicle and switch off engine.

Caution

Coolant temperature too high.

Check coolant level 3 146. If there is sufficient coolant, seek the

assistance of a workshop.

Preheating

! illuminates yellow. Preheating is activated. Only

activates when outside temperature is low.

If it illuminates during driving or if the engine cannot be started, seek the assistance of a workshop as soon as possible.

Starting the engine 3 117.

Diesel particle filter

% illuminates or flashes yellow. The diesel particle filter requires

cleaning. Continue driving until %

extinguishes. If possible, do not allow engine speed to drop below 2000 rpm.

Illuminates during driving

The diesel particle filter is full. Start cleaning process as soon as possible.

Flashes during driving

The maximum filling level of the filter is reached. Start cleaning process immediately to avoid damage to the engine.

Diesel particle filter 3 120.

Engine oil pressure

I illuminates red. Illuminates when the ignition is

switched on and extinguishes shortly after the engine starts. If it does not illuminate, seek the assistance of a workshop.

Illuminates when the engine is running

Caution

Engine lubrication may be interrupted. This may result in damage to the engine and/or locking of the drive wheels.

1. Depress clutch.

2. Select neutral gear, set selector lever to N.

3. Move out of the flow of traffic as quickly as possible without impeding other vehicles.

4. Switch off ignition.

86 Instruments and controls

9 Warning

When the engine is off, considerably more force is needed to brake and steer.

Do not remove key until vehicle is stationary, otherwise the steering wheel lock could engage unexpectedly.

Check oil level before seeking the assistance of a workshop 3 145.

Low engine oil level

S illuminates yellow. When the ignition is switched on, S

illuminates briefly. If it does not illuminate, seek the assistance of a workshop.

Illuminates during driving

Oil level is low: top up oil to specified level 3 145.

Change engine oil

Engine oil life monitor

C illuminates yellow. When the engine is started, C

illuminates briefly. If it does not illuminate, seek the assistance of a workshop.

The engine oil life monitor lets you know when to change the oil. Control indicator C illuminates to indicate that engine oil life has been diminished and the oil needs changing.

Based on driving conditions, the interval at which an oil change will be indicated can vary considerably.

Change oil within 600 miles. Engine power may be decreased.

Once the engine oil has been changed 3 145, the engine oil life monitor needs to be reset. Seek the assistance of a workshop.

Fuel economy mode

s illuminates green.

Illuminates when fuel ecomony mode is switched on 3 124.

Low fuel

Y illuminates yellow. When the engine is started, Y

illuminates briefly. If it does not illuminate, seek the assistance of a workshop.

Illuminates during driving when fuel level in tank is too low. Refuel immediately 3 137.

Never run the tank dry. Erratic fuel supply can cause catalytic converter to overheat 3 121.

Diesel engines: if the tank has been run dry, bleed the fuel system 3 151.

Fuel tank capacity 3 197.

Drain fuel filter

N illuminates yellow. Illuminates when water level in diesel

fuel filter exceeds a specified level.

Instruments and controls 87

Residual water in the diesel fuel filter must be drained 3 150. Seek the assistance of a workshop as soon as possible.

Immobiliser

d illuminates red. When the engine is started, d

illuminates briefly. If it does not illuminate, seek the assistance of a workshop.

Illuminates to indicate a fault in the immobiliser system. The engine cannot be started.

Electronic immobiliser 3 26.

Reduced engine power

# illuminates yellow. Illuminates in conjunction g, the

vehicle needs a service. Pull off the road, stop the engine and restart after 10 seconds.

The engine power is limited. Consult a workshop.

Apply footbrake

- illuminates yellow. Brake pedal needs to be depressed

to release the electrical parking brake 3 129.

Clutch pedal needs to be depressed to restart the engine.

Stop-start system 3 118.

High beam

C illuminates blue. Illuminated when high beam is on and

during headlight flash 3 103.

Automatic headlight levelling system

q illuminates yellow Illuminates during driving to indicate a

fault that requires immediate attention. Seek the assistance of a workshop as soon as possible.

Automatic headlight range adjustment 3 103.

Fog light

> illuminates green. Illuminates when the front fog lights

are switched on 3 105.

Rear fog light

r illuminates yellow. Illuminates when the rear fog light is

switched on 3 106.

Cruise control

m illuminates yellow or green.

Illuminates yellow

The system is ready for operation.

Illuminates green

A certain speed is stored. Cruise control 3 133.

Speed warning

W illuminates yellow. In vehicles equipped with the

overspeed warning light, when vehicle speed exceeds 75 mph,

88 Instruments and controls

control indicator W flashes, accompanied by a warning chime, to warn the driver to reduce speed as appropriate.

Trailer indicator

g illuminates green. Illuminates when a trailer is

connected to the vehicle 3 139.

Bonnet open

/ illuminates red. Illuminates when the bonnet is open. Stop-start system 3 118.

Door open

9 illuminates red. Illuminates when a door is open or not

securely latched.

Tailgate open

1 illuminates red. Illuminates when tailgate is open or

not securely latched 3 22.

Anti-theft alarm system

a illuminates yellow. Illuminates when alarm system

monitoring of the passenger compartment and vehicle inclination has been switched off with button a in the roof lining.

Anti-theft alarm system 3 23.

Information displays

Board-Info-Display

The Info-Display is located in the instrument panel above the Infotainment system.

Info-Display indicates:

■ time 3 74

■ outside temperature 3 73

■ date 3 74

■ Infotainment system - see Infotainment system instruction manual

Instruments and controls 89

The Info-Display is located in the instrument panel above the Infotainment system.

An F in the display indicates a fault. Have the cause of the fault remedied by a workshop.

Trip computer, Board-Info-Display 3 97.

Selecting functions

Functions and settings of the Infotainment system can be accessed via the Info-Display.

Functions are selected and executed in the menu on the display using the arrow buttons on the Infotainment system or the left adjuster wheel on the steering wheel.

If a check control warning message appears on the Info-Display, the display is blocked from other functions. Acknowledge the message by pressing the OK button or the left adjuster wheel. If there are several warning messages, acknowledge them one at a time.

Check control 3 96.

Select using the Infotainment system buttons

In the Settings menu, use the OK button to call up the required function. Use the arrow buttons to change settings.

In the BC menu, use the OK button to call up the required function. Use the OK button to operate the stop watch or restart measurement and calculation.

Select using the left adjuster wheel on the steering wheel

Turn the adjuster wheel to call up the required function.

Press the adjuster wheel to open the BC menu, to select marked items and confirm commands. In the BC menu press to operate the stop watch or restart measurement and calculation.

90 Instruments and controls

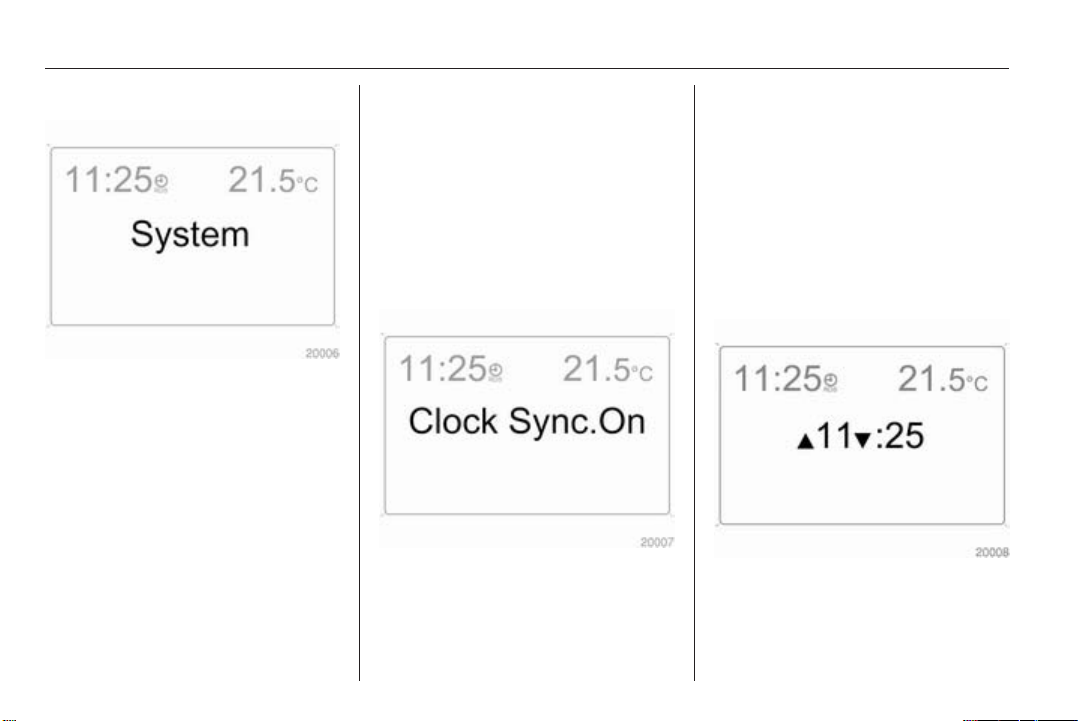

System settings

Press the Settings button of the Infotainment system. Menu item Audio then opens.

Call up System with the left arrow button and select with the OK button.

The first function of the System menu is highlighted. Some of the functions appear on the display in an abbreviated form.

The functions are displayed in the following order:

■ Time synchronisation

■ Time, setting hours

■ Time, setting minutes

■ Date, setting day

■ Date, setting month

■ Date, setting year

■ Ignition logic

■ Language selection

■ Setting units of measure

Automatic time synchronisation

The RDS (Radio Data System) signal of most VHF transmitters automatically sets the time, identified by } in the display.

Some transmitters do not send a correct time signal. In such cases, switch off automatic time synchronisation and set the time manually.

Deactivate (Clock Sync.Off) or activate (Clock Sync.On) automatic time synchronisation with the arrow buttons.

Setting date and time

To set date and time manually, select the menu item for time and date settings and make the desired setting.

Instruments and controls 91

The value ready for modification is marked with arrows. Use the arrow buttons to make the required setting. The setting is saved when the menu item is exited.

Ignition logic See Infotainment system instruction manual.

Language selection

The display language for some functions can be selected.

Select the required language with the arrow buttons.

Setting units of measure

Select the required unit of measurement with the arrow buttons.

Graphic-Info-Display, Colour-Info-Display

Depending on the vehicle configuration the vehicle has a Graphic-Info-Display or Colour-Info-Display. The Info-Display is located in the instrument panel above the Infotainment system.

Info-Display indicates:

■ time 3 74

■ outside temperature 3 73

■ date 3 74

■ Infotainment and navigation systems - see Infotainment system instruction manual

■ system settings

The Info-Display is located in the instrument panel above the Infotainment system. The Graphic-Info-Display presents the information in monochrome. The Colour-Info-Display presents the information in colour.

92 Instruments and controls

The type of information and how it is displayed depends on the equipment of the vehicle and the settings of the trip computer and Infotainment system. Some information appears on the display in an abbreviated form.

An F in the display indicates a fault. Have the cause of the fault remedied by a workshop.

Trip computer, Graphic-Info-Display, Colour-Info-Display 3 99.

Selecting functions

The functions and settings of the Infotainment system can be accessed via the Info-Display.

Functions are selected and executed in the menu on the display using the arrow buttons and the central multifunction knob on the Infotainment system or the left adjuster wheel on the steering wheel.

If a check control warning message appears on the Info-Display, the display is blocked from other functions. Acknowledge the message by pressing an arrow button, the multifunction knob or the left adjuster

wheel. If there are several warning messages, acknowledge them one at a time.

Check control 3 96.

Select using the Infotainment system buttons

Select a function via the Infotainment system arrow buttons. The menu of the selected function is displayed.

Select using the central multifunction knob

The multifunction knob is the central control element for the menus:

Turn

■ To mark a menu option

■ To set a numeric value or to display a menu option

Press

■ To select or activate the marked option

■ To confirm a set value

■ To switch a system function on/off

To exit a menu, turn the multifunction knob left or right to Return or Main and select.

Instruments and controls 93

Select using the left adjuster wheel on the steering wheel

Turn the adjuster wheel to call up the required function.

Press the adjuster wheel to select marked items and confirm commands. Press to operate the stop watch or restart measurement and calculation.

Trip computer 3 99.

Function areas

For each function area there is a main page (Main), which is selected at the top edge of the display:

■ Audio,

■ Navigation,

■ Telephone,

■ Trip computer. See Infotainment system instruction

manual for further information.

System settings

The settings are accessed via the Settings menu. Press the Main button (not found on all Infotainment systems) on the Infotainment system, to call up main display. Press the Settings button. On Infotainment System CD 30, ensure no menu has been selected. The Settings menu is displayed.

The functions are displayed in the following order:

■ Time, Date

■ Language

■ Units

94 Instruments and controls

■ Contrast

■ Day / Night

■ Ignition logic

Setting date and time

Some RDS transmitters do not send a correct time signal. In such cases, switch off automatic time synchronisation and set the time manually.

To set date and time manually, select menu item Time, Date from the Settings menu. The menu is displayed. Select the menu items required and make the desired setting.

To correct time with the help of RDS, select menu item Synchron. clock automatical. from the Time, Date menu. The box in front of Synchron. clock automatical. will be checked.

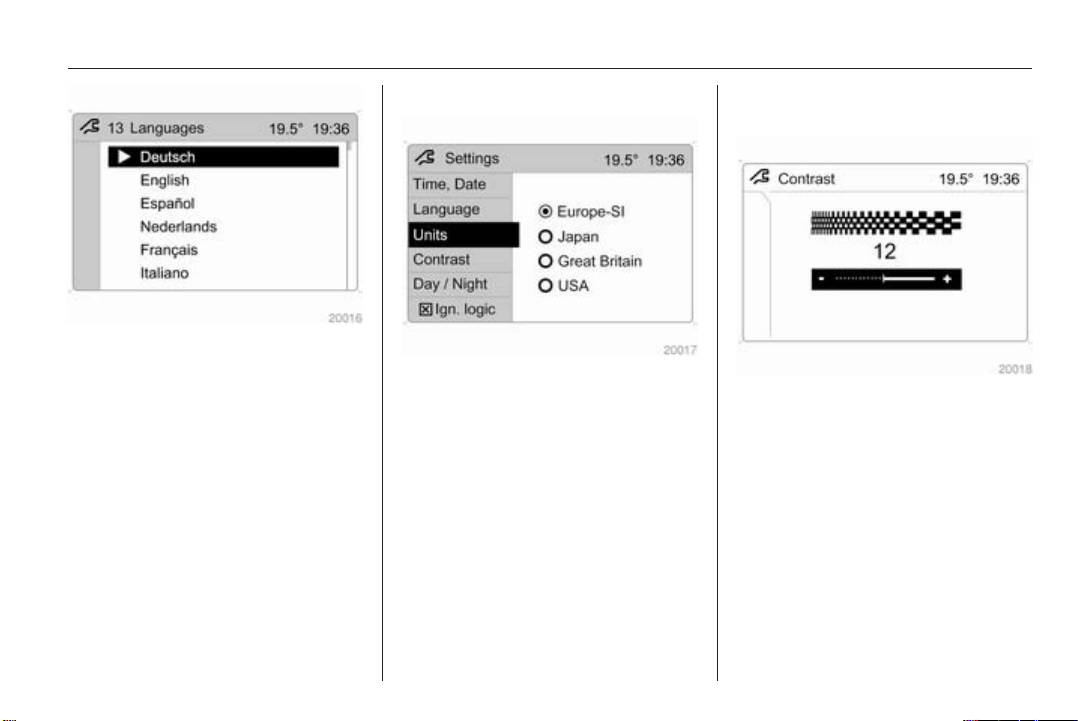

Language selection

The display language for some functions can be selected. Select menu item Language from the Settings menu. The available languages are displayed.

Instruments and controls 95

Select the desired language. Selections are indicated by a 6 in front of the menu item.

In systems with voice output, when the language setting of the display is changed, the system will ask whether the announcement language should also be changed – see Infotainment system instruction manual.

Setting units of measure

Select menu item Units from the Settings menu. The available units are displayed. Select the desired unit.

Selections are indicated by a o in front of the menu item.

Adjusting contrast (Graphic-Info-Display)

Select menu item Contrast from the Settings menu. The menu is displayed. Confirm the required setting.

Setting display mode The display can be adjusted to suit the lighting conditions:

Select menu item Day / Night from the Settings menu. The options are displayed.

Automatic; adapted based on vehicle lighting.

96 Instruments and controls

Always day design; black or coloured text on a light background.

Always night design; white or coloured text on a dark background.

Selections are indicated by a o in front of the menu item.

Ignition logic See Infotainment system instruction manual.

Vehicle messages

Warning chimes

When starting the engine or whilst driving

■ If seat belt is not fastened.

■ When operating the turn and lanechange signals.

■ When the vehicle is being driven and the electrical parking brake is applied 3 129.

■ When releasing the electrical parking brake without applying the foot brake 3 87.

■ If there is a fault in the braking system 3 82.

■ If the parking assist detects an object 3 135.

■ In vehicles equipped with engine overspeed warning; when vehicle speed exceeds 75 mph 3 87.

When the vehicle is parked and/ or the driver's door is opened

■ When the key is in the ignition switch.

■ With exterior lights on.

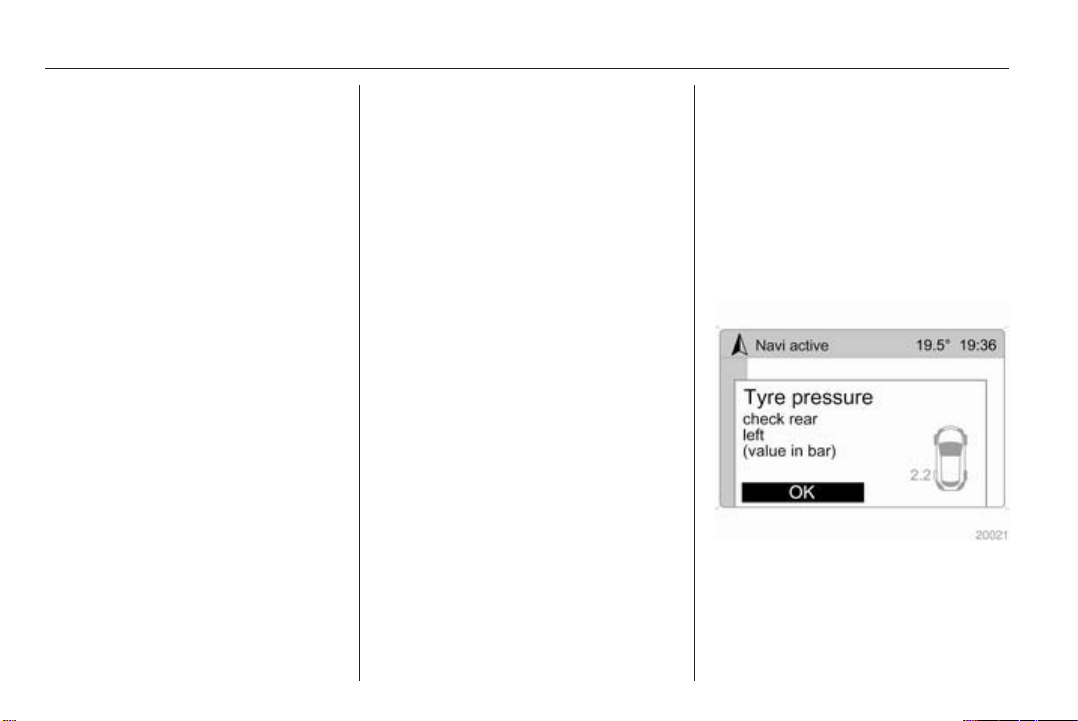

Tyre pressure

Check control

In vehicles with tyre pressure monitoring system, if low tyre pressures are detected, relevant information appears on the information display.

Instruments and controls 97

Reduce speed and check tyre pressure at the next opportunity.

Tyre pressure monitoring system 3 168.

Check tyre pressures 3 168, 3 198.

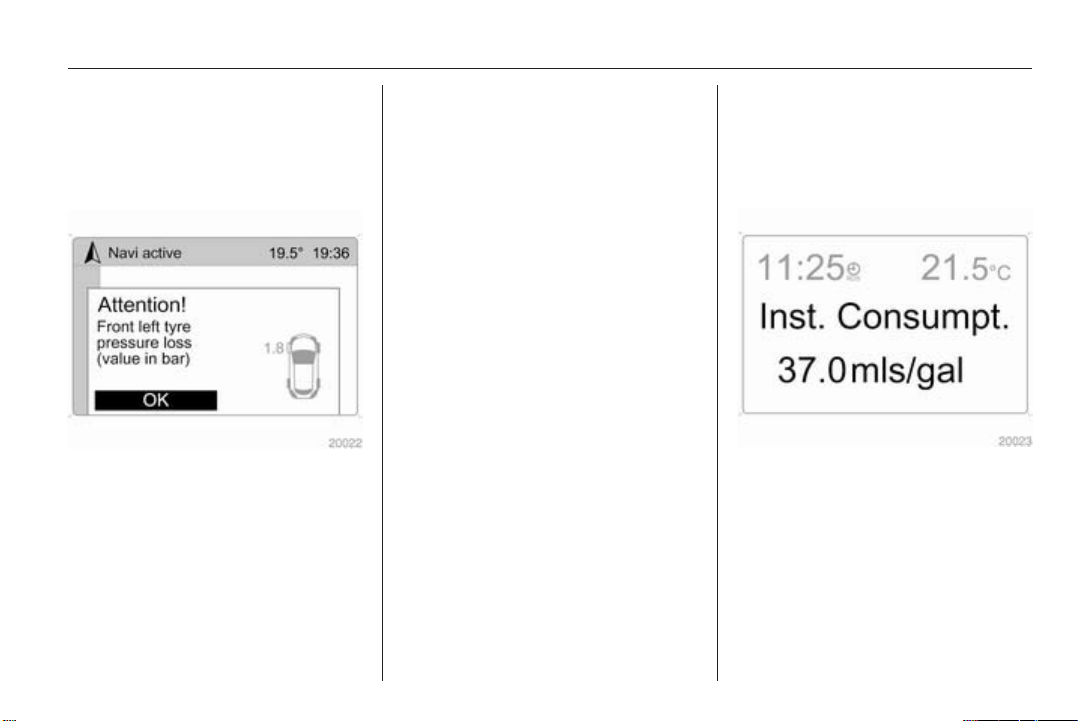

If there is a considerable loss of pressure, a corresponding message appears indicating the relevant tyre.

Steer out of the flow of traffic as quickly as possible without endangering other vehicles. Stop and check the tyres. Mount the spare wheel 3 174, 3 177.

Tyre pressure monitoring system 3 168.

Trip computer

Trip computer in BoardInfo-Display

The trip computer provides information on driving data, which is continually recorded and evaluated electronically. Access trip computer vehicle data by pressing the BC button on the Infotainment system or the left adjuster wheel on the steering wheel.

Some of the functions appear on the display in an abbreviated form. Once a function has been selected, the subsequent rows of the trip computer function are displayed.

The functions are displayed in the following order:

■ Instantaneous consumption

■ Average consumption

■ Effective consumption

■ Average speed

■ Distance travelled

■ Range

■ Stop watch Board-Info-Display 3 88.

Instantaneous consumption

Display of the instantaneous consumption.

Display changes depending on speed:

Display in gal/h = below 8 mph Display in miles/gal = above 8 mph

98 Instruments and controls

Average consumption

Display of average consumption. The measurement can be reset at any time.

Effective consumption

Display of the amount of fuel consumed. The measurement can be reset at any time.

Average speed

Display of average speed. The measurement can be reset at any time.

Stoppages in the journey with the ignition off are not included in the calculations.

Distance travelled

Display of distance travelled. The measurement can be reset at any time.

Range

Range is calculated from current fuel tank content and instantaneous consumption. The display shows average values.

After refuelling, the range is updated automatically after a brief delay.

If the fuel in the tank allows less than 30 miles of travel, the warning Range appears on the display.

If the fuel in the tank allows less than 20 miles of travel, the warning Refuel! appears on the display.

Acknowledge the menu item 3 88.

Resetting trip computer information

Select the desired trip computer information and reset by pressing the left adjuster wheel on the steering wheel or the OK button on the Infotainment system.

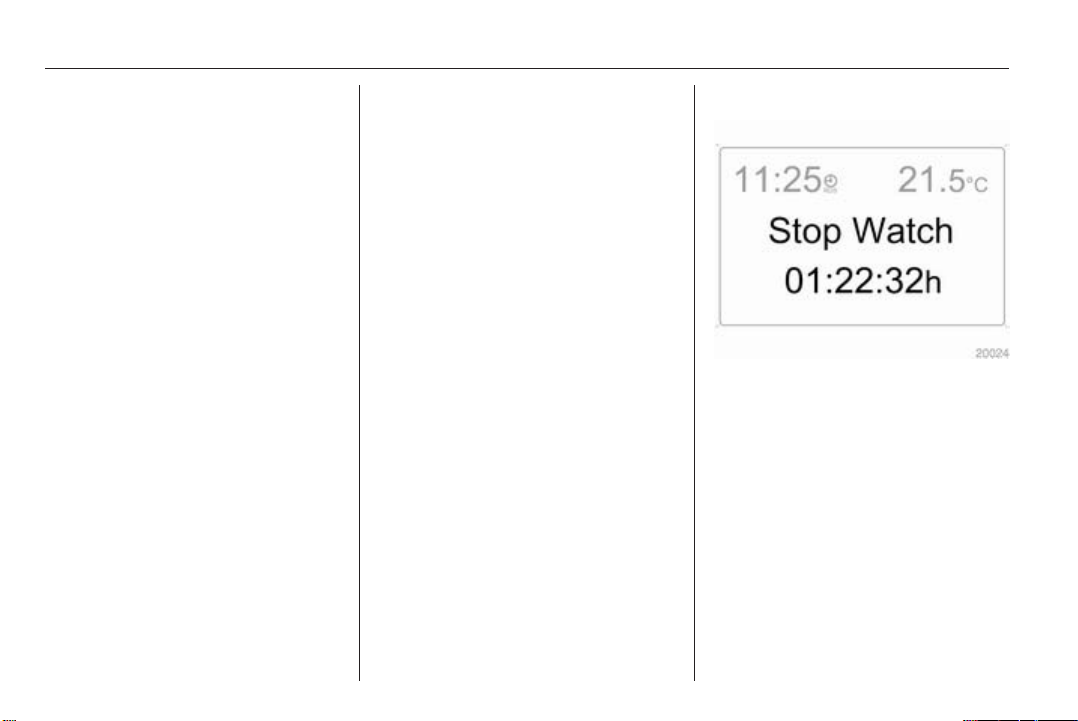

Stop watch

Using the arrow buttons: To start, press left arrow button to

select menu item Start and press OK button to start/stop. To reset, press left arrow button to select menu item Reset and press OK button.

Using the left adjuster wheel on the steering wheel:

To start, select menu item Start and press to start/stop. To reset, select menu item Reset and press to confirm command.

Instruments and controls 99

Interruption of power supply

If the power supply has been interrupted or if the battery voltage has dropped too low, the values stored in the trip computer will be lost.

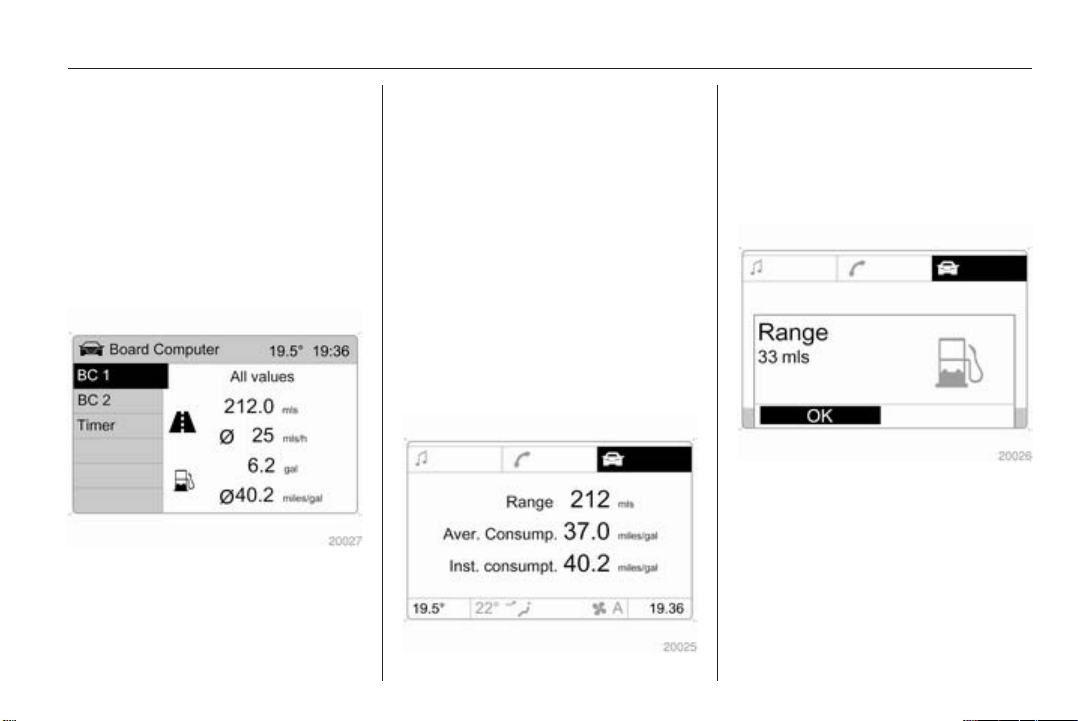

Trip computer in GraphicInfo-Display or ColourInfo-Display

The trip computers provide information on driving data, which is continually recorded and evaluated electronically. The trip computer main

page provides information on range, average consumption and instantaneous consumption.

To display other trip computer data, press the BC button on the Infotainment system and select the trip computer menu in the display.

The information of the two trip computers can be reset separately, making it possible to display different trip distances.

Graphic-Info-Display, Colour-Info-Display 3 91.

Range

Range is calculated from current fuel tank content and instantaneous consumption. The display shows average values.

After refuelling, the range is updated automatically after a brief delay.

If the fuel in the tank allows less than 30 miles of travel, the warning Range appears on the display.

If the fuel in the tank allows less than 20 miles of travel, the warning Refuel! appears on the display.

Acknowledge the menu item 3 91.

Vauxhall Antara 2012 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

In brief

Initial drive information

Vehicle unlocking

Seat adjustment

Seat positioning

Seat backrests

Seat height

Power seat adjustment

Head restraint adjustment

Seat belt

Mirror adjustment

Interior mirror

Exterior mirrors

Steering wheel adjustment

Instrument panel overview

Exterior lighting

Headlight flash, high beam and low beam

Turn and lane-change signals

Hazard warning flashers

Horn

Washer and wiper systems

Windscreen wiper

Windscreen and headlight washer systems

Rear window wiper and washer system

Climate control

Heated rear window, heated exterior mirrors

Demisting and defrosting the windows

Transmission

Manual transmission

Automatic transmission

Starting off

Check before starting off

Starting the engine

Stop-start system

Parking

Keys, doors and windows

Keys, locks

Keys

Replacement keys

Lock cylinders

Key with foldaway key section

Car Pass

Radio remote control

Fault

Radio remote control battery replacement

Key with foldaway key section

Key with fixed key section

Central locking system

Unlocking

Locking

Unlocking the tailgate

Central locking buttons

Fault in radio remote control system

Child locks

Doors

Load compartment

Tailgate

Opening

Closing

Fault

Vehicle security

Anti-theft locking system

Activating

Anti-theft alarm system

Activation

Activation without monitoring of passenger compartment and vehicle inclination

Status LED

Deactivation

Alarm

Immobiliser

Exterior mirrors

Convex shape

Electric adjustment

Folding

Manual folding
