1969 Chevrolet® Corvette

owner’s manual

bedienungsanleitung manuel de l’utilisateur manuale dell’utente

Page 2

2EN4

Page 3

Page 4

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product.

MEANING OF SPECIAL LANGUAGE

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

notICe: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.

CautIon: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

warnInG: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superﬁcial injury.

/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

warnInG: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, Inc. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

AGE RECOMMENDATION: Not for children under 14 years. This is not a toy.

Register your vehicle now and be the ﬁrst to ﬁnd out about the latest option parts, product updates and more. Click on the Support tab at WWW.VATERRARC.COM and follow the product registration link to stay connected.

SAFETY PRECAUTIONS AND GUIDELINES

» Always keep a safe distance in all directions around your

model to avoid collisions or injury. This model is controlled by a radio signal subject to interference from many sources outside your control. Interference can cause momentary loss of control.

» Always operate your model in open spaces away

from full-size vehicles, trac and people.

» Always carefully follow the directions and warnings for this

and any optional support equipment (chargers, rechargeable battery packs, etc.).

» Always keep all chemicals, small parts and anything electrical

out of the reach of children.

» Always avoid water exposure to all equipment not speciﬁcally

designed and protected for this purpose. Moisture causes damage to electronics.

» Never place any portion of the model in your mouth as it

could cause serious injury or even death.

» Never operate your model with low transmitter batteries.

Page 5

water-resIstant vehICle wIth waterproof eleCtronICs

Your new Horizon Hobby vehicle has been designed and built with a combination of waterproof and waterresistant components to allow you to operate the product in many “wet conditions”, including puddles, creeks, wet grass, snow and even rain.

While the entire vehicle is highly waterresistant, it is not completely waterproof and your vehicle should NOT be treated like a submarine. The various electronic components used in the vehicle, such as the Electronic Speed Control (ESC), servo(s) and receiver are waterproof, however, most of the mechanical components are water-resistant and should not be submerged.

Metal parts, including the bearings, hinge pins, screws and nuts, as well as the contacts in the electrical cables, will be susceptible to corrosion if additional maintenance is not performed after running in wet conditions. To maximize the long-term performance of your vehicle and to keep the warranty intact, the procedures described in the “Wet Conditions Maintenance” section to follow must be performed regularly if you choose to run in wet conditions. If you are not willing to perform the additional care and maintenance required, then you should not operate the vehicle in those conditions.

GENERAL PRECAUTIONS

CautIon: Failure to exercise caution while using this product and complying with the following precautions could

result in product malfunction and/or void the warranty.

» Read through the wet conditions maintenance procedures

and make sure that you have all the tools you will need to properly maintain your vehicle.

» Not all batteries can be used in wet conditions. Consult the

battery manufacturer before use. Caution should be taken when using Li-Po batteries in wet conditions.

» Most transmitters are not water-resistant. Consult your

transmitter’s manual or the manufacturer before operation.

» Never operate your transmitter or vehicle where lightning

may be present.

» Do not operate your vehicle where it could come in contact

with salt water (ocean water or water on salt-covered roads), contaminated or polluted water. Salt water is very conductive and highly corrosive, so use caution.

» Even minimal water contact can reduce the life of your motor

if it has not been certiﬁed as water-resistant or waterproof. If the motor becomes excessively wet, apply very light throttle until the water is mostly removed from the motor. Running a wet motor at high speeds may rapidly damage the motor.

» Driving in wet conditions can reduce the life of the motor.

The additional resistance of operating in water causes excess strain. Alter the gear ratio by using a smaller pinion or larger spur gear. This will increase torque (and motor life) when running in mud, deeper puddles, or any wet conditions that will increase the load on the motor for an extended period of time.

/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

WET CONDITIONS MAINTENANCE

» Drain any water that has collected in the tires by

spinning them at high speed. With the body removed, place the vehicle upside down and pull full throttle for a few short bursts until the water has been removed.

CautIon: Always keep hands, ﬁngers, tools and any loose or hanging objects away from rotating parts when performing the above drying technique.

» Remove the battery pack(s) and dry the contacts. If you have

an air compressor or a can of compressed air, blow out any water that may be inside the recessed connector housing.

» Remove the tires/wheels from the vehicle and gently rinse

the mud and dirt o with a garden hose. Avoid rinsing the bearings and transmission.

notICe: Never use a pressure washer to clean your vehicle.

» Use an air compressor or a can of compressed air to dry

the vehicle and help remove any water that may have gotten into small crevices or corners.

» Spray the bearings, drive train, fasteners and other metal

parts with a water-displacing light oil. Do not spray the motor.

» Let the vehicle air dry before you store it.

Water (and oil) may continue to drip for a few hours.

» Increase the frequency of disassembly,

inspection and lubrication of the following:

• Front and rear axle hub assembly bearings.

• All transmission cases, gears and dierentials.

• Motor—clean with an aerosol motor cleaner and

re-oil the bearings with lightweight motor oil.

Page 6

table of Contents

warnInG aGaInst

CounterfeIt proDuCts:

Thank you for purchasing a genuine Spektrum product. Always purchase from a Horizon Hobby, Inc. authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, Inc. disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum.

/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Quick Start

Components

The Vehicle Battery

The Transmitter

Transmitter and Receiver Binding

Control Test

Run Time

Tuning, Adjusting & Maintaining Your Vehicle

Dynamite 12T ESC

Dynamite 15T Brushed Motor

Troubleshooting Guide

Limited Warranty

FCC Statement

IC Information

Compliance Information for the European Union

Fasteners

Replacement Parts

Optional Parts

QuICk start

Please read the entire manual to gain a full understanding of the vehicle, ﬁne-tuning the setup, and performing maintenance.

1 Read the safety precautions found in this manual. 2 Charge the battery. Refer to the included charging

warnings and instructions for battery charging information.

3. Install the AA batteries in the transmitter. Only use alkaline or rechargeable batteries.

4 Install the fully charged battery in the vehicle. 5 Power ON the transmitter and then the vehicle. Always

power the transmitter ON before the vehicle and power it OFF after the vehicle has been powered OFF.

6 Check the steering and throttle control directions.

Verify that the servos are moving in the correct direction.

7 Drive your vehicle. 8 Perform any necessary maintenance.

/ / / / / / / / / / / / / / / / / / / / /

Page 7

Components

/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

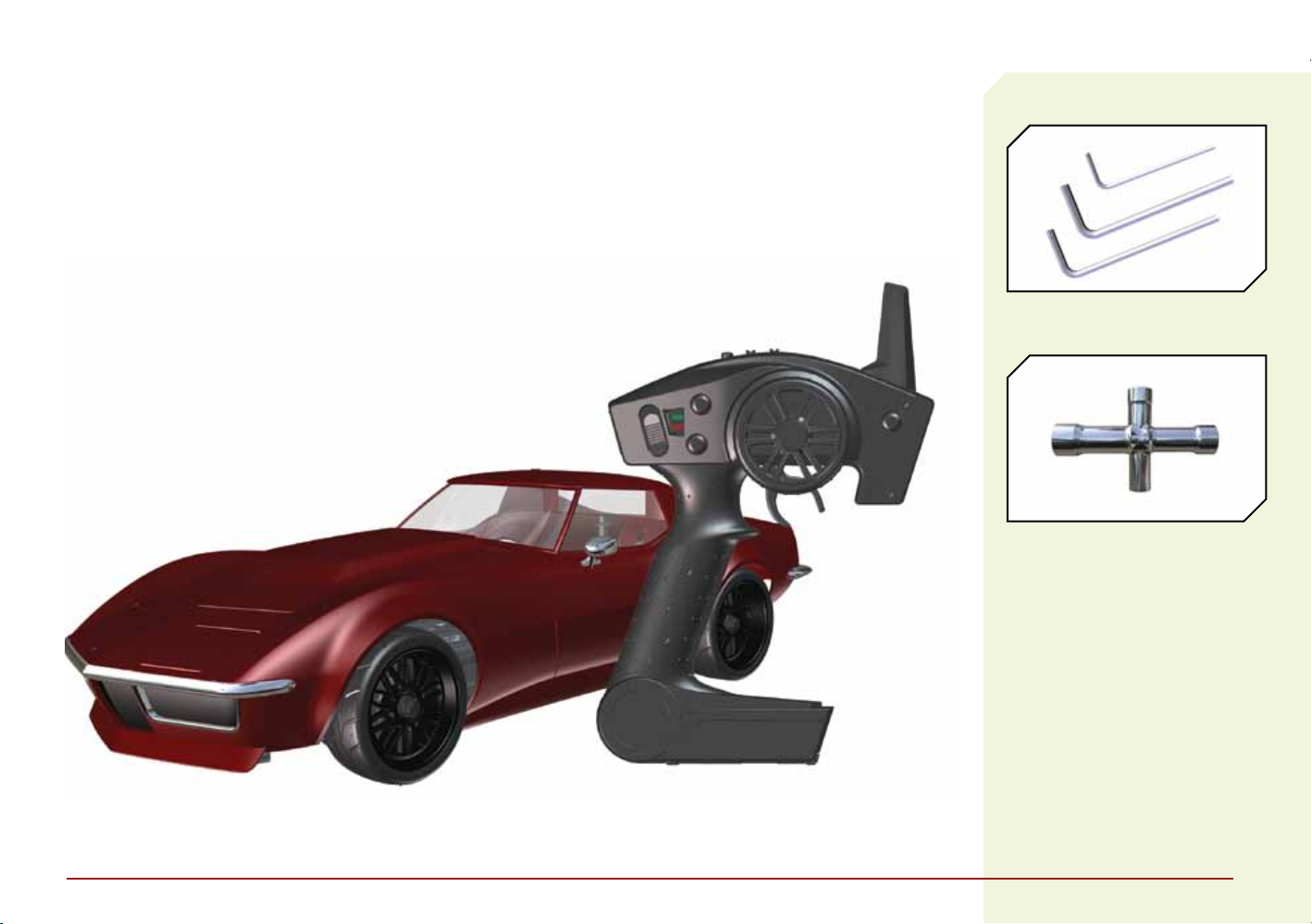

» 1/10-scale V100 RTR Sedan » Spektrum™ DX2E 2.4GHz DSM® Radio System » Dynamite® 12T ESC » Dynamite 540 Brushed Motor » Spektrum Standard Digital Servo » Dynamite Speedpack™ 7.2V 1800mAh Ni-MH Battery » Dynamite 2A Ni-MH AC Charger » 4 AA Batteries (for transmitter)

SUPPLIED TOOLS

» 3 “L” shaped hex wrenches

• 1.5mm, 2mm, 2.5mm

» 4-way wrench

• 7mm, 5.5mm, 5mm, 4.5mm

REQUIRED TOOLS

» Hobby-grade knife » Needle nose pliers » Side cutting pliers » Safety goggles » Soldering iron » Soft brush

* Use only Dynamite tools or other

high-quality tools. Use of inexpensive tools can cause damage to the small screws and parts used on this type of model.

Page 8

the vehICle battery

/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Refer to the charging warnings. It is recommended you charge the battery while you inspect the vehicle. The battery will be required to conﬁrm proper operation in future steps.

Charge only batteries that are cool to the touch and are not damaged. Inspect the battery to make sure it is not damaged, e.g., swollen, bent, broken or punctured.

warnInG: Failure to exercise caution while using this product and comply with the following warnings could result in product malfunction, electrical issues, excessive heat, FIRE, and ultimately injury and property damage.

warnInG: Never leave charger unattended, exceed maximum charge rate, charge with non-approved batteries or charge batteries in the wrong mode. Failure to comply may result in excessive heat, ﬁre and serious injury.

CautIon: If at any time during the charging process the battery becomes hot to the touch, disconnect the battery immediately and discontinue the charging process.

CHARGING WARNINGS

» Read all safety precautions and

literature prior to use of this product.

» Never leave the battery and charger

unattended during use.

» Never allow children under 14 years

of age to charge batteries.

» Never attempt to charge dead

or damaged batteries.

» Never charge a battery if the cable

has been pinched or shorted.

» Never allow the batteries or charger

to come into contact with moisture at any time.

1 Connect the AC power cord to

the power slot on the charger, then connect the other end of the power cord to an AC power source.

2 The Power LED and Charging LED

will turn green when the charger is connected to the AC power source.

» Never charge batteries in extremely

hot or cold places (recommended between 50–80°F (10–26°C)) or place in direct sunlight.

» Always use only Ni-MH rechargeable

batteries. This charger cannot charge batteries such as “heavy duty”, “alkaline”, “mercury” or “lithium” batteries.

» Always connect to the charger

correctly.

» Always disconnect the battery and

charger after charging and let them cool between charges.

» Always inspect the battery

before charging.

3 Connect the battery connector

to the charger connector.

4 Press the Start/Stop button to

charge the battery. The Charging LED turns red.

5 When the battery is fully charged,

the Charging LED will turn green.

» Always terminate all processes and

contact Horizon Hobby if the product malfunctions.

» Always make sure you know the speci-

ﬁcations of the battery to be charged or discharged to ensure it meets the requirements of this charger.

» Always constantly monitor the tem-

perature of the battery while charging.

» Always end the charging process if the

charger or battery becomes hot to the touch or starts to change form during the charge process.

6 Disconnect the battery pack

connector from the charger connector.

7 Disconnect the AC power cord

from the AC power source.

The vehicle battery charger produces 2000 milliAmps. Divide the mAh capacity on the label of a battery by 2000 to determine battery charge time. For example, an 1800mAh battery requires .9 hours, or 54 minutes, to charge.

Page 9

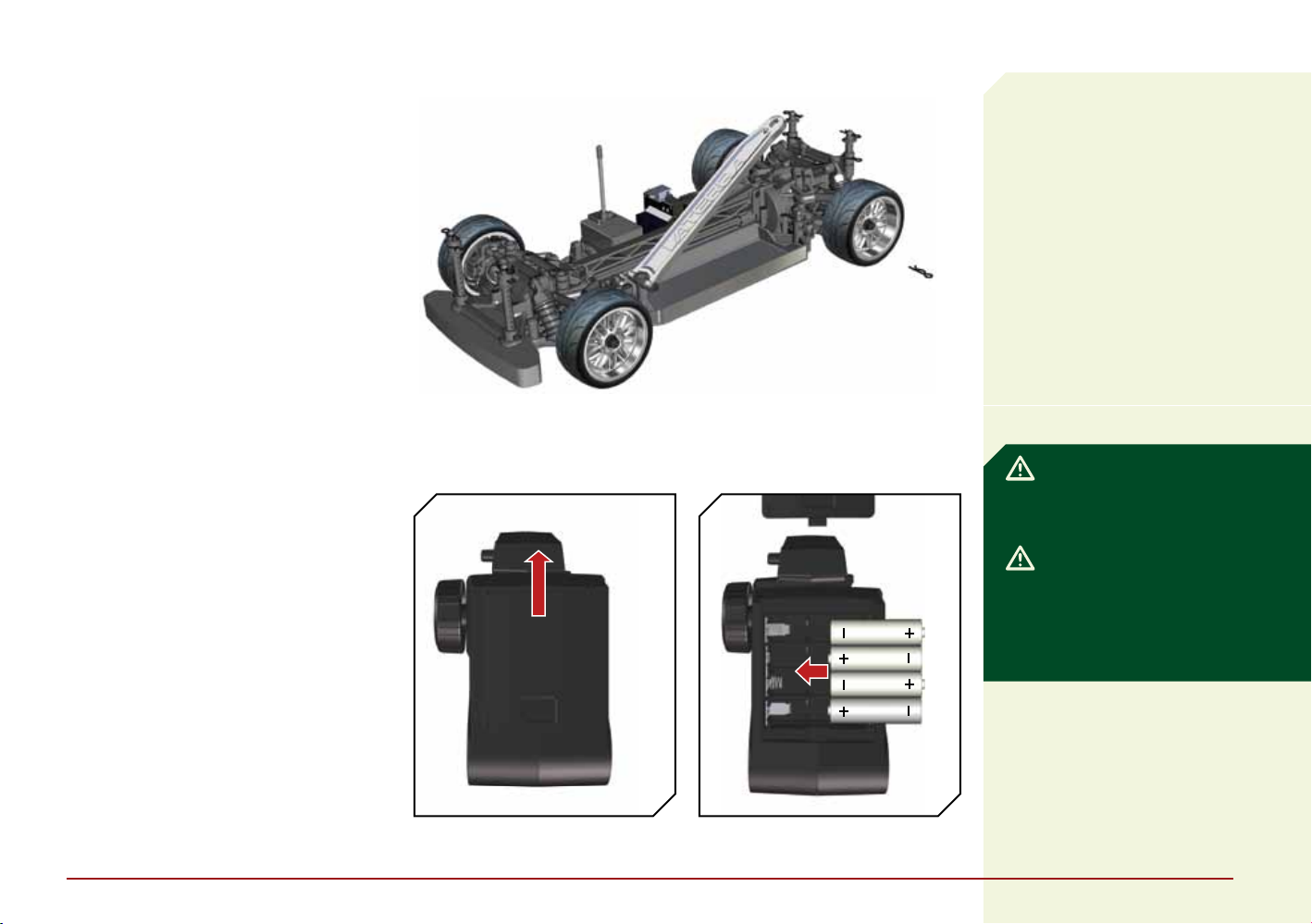

INSTALLING THE VEHICLE BATTERY

1 Ensure the ESC is powered OFF. 2 Remove the body from the chassis. 3 Remove the body clip from the battery

strap, then lift the back of the battery strap. The battery strap will rotate toward the front of the car.

4 Install the fully charged battery in the

battery cavity.

5 Connect the battery to the ESC. 6 Lower the battery strap and secure

it using the body clip.

7 Power ON the transmitter, then the vehicle. 8 Replace the body on the chassis.

the transmItter

/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

INSTALLING THE TRANSMITTER BATTERIES

1 Push in the battery cover a small amount

to release the retaining tab, then remove the cover.

2 Install 4 AA batteries, taking care to align

the battery polarity to the diagram in the transmitter’s battery case.

3 Carefully reinstall the battery cover

by aligning the tabs with the slots on the transmitter.

CautIon: NEVER remove the transmitter batteries while the vehicle is powered ON, as loss of control, property damage or injury may result.

CautIon: If using rechargeable batteries, charge only rechargeable batteries. Charging non-rechargeable batteries may cause the batteries to burst, resulting in injury to persons and/or damage to property.

Page 10

For more information on the transmitter, go to www.horizonhobby.com and click on the support tab for the Spektrum DX2E to download the instruction manual.

SPEKTRUM DX2E RADIO SYSTEM

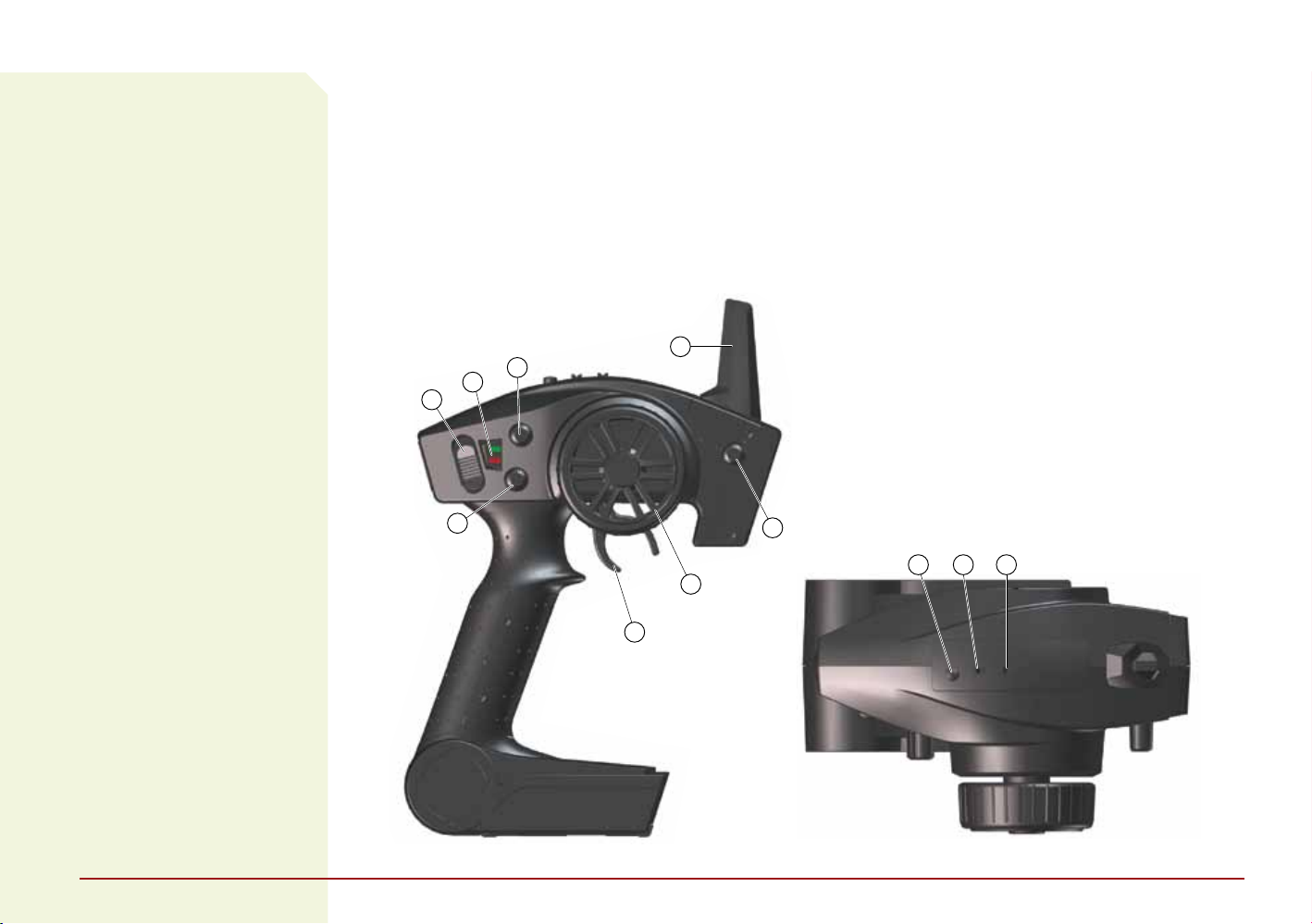

1 Steering Wheel controls direction (left/right) of the model 2 Throttle Trigger controls speed and direction

(forward/brake/reverse) of the model

3 Antenna transmits the signal to the model 4 ON/OFF Switch turns the power ON/OFF for the transmitter 5 Indicator Lights

• Solid green light indicates adequate battery power

• Flashing green light indicates the battery

voltage is critically low. Replace batteries.

6 ST. Trim adjusts the “hands o” direction of the model 7 TH. Trim adjusts the motor speed to stop at neutral 8 Steering Dual Rate adjusts the amount the front wheels

move when the steering wheel is turned left and right

9 BIND Button puts the transmitter into Bind Mode 10 ST. REV reverses the function of the steering

when the wheel is turned left or right

11 TH. REV reverses the function of the speed

control when pulled back or pushed forward

9 10 11

Page 11

transmItter anD reCeIver bInDInG

/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

BINDING PROCEDURE

1 Make sure the transmitter and vehicle are both powered OFF. 2 Install a bind plug in the receiver battery/bind port. You

do not need to remove any of the other plugs to re-bind.

3 With the bind plug installed, power ON the vehicle.

The receiver LED will ﬂash green.

4 Move the steering wheel and throttle trigger to the failsafe

positions and continue to hold those positions until the binding process is complete.

Control test

/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

FORWARD

5 Press the bind button on the transmitter while powering on

the transmitter. The green LED on the transmitter will ﬂash after 4 seconds when the transmitter is in bind mode.

6 Release the bind button after the red LED on the

transmitter ﬂashes. Continue holding the failsafe positions until the receiver LED is solid. The green LED on the receiver will glow solid when the transmitter and receiver are bound.

7 Disconnect the battery from the ESC. Remove the bind plug

from the receiver. The receiver will keep the binding to the transmitter until another binding is done.

Your Spektrum Transmitter comes prebound to the vehicle.

If you encounter problems, obey binding instructions and refer to the transmitter troubleshooting guide for other instructions. If needed, contact the appropriate Horizon Product Support oce.

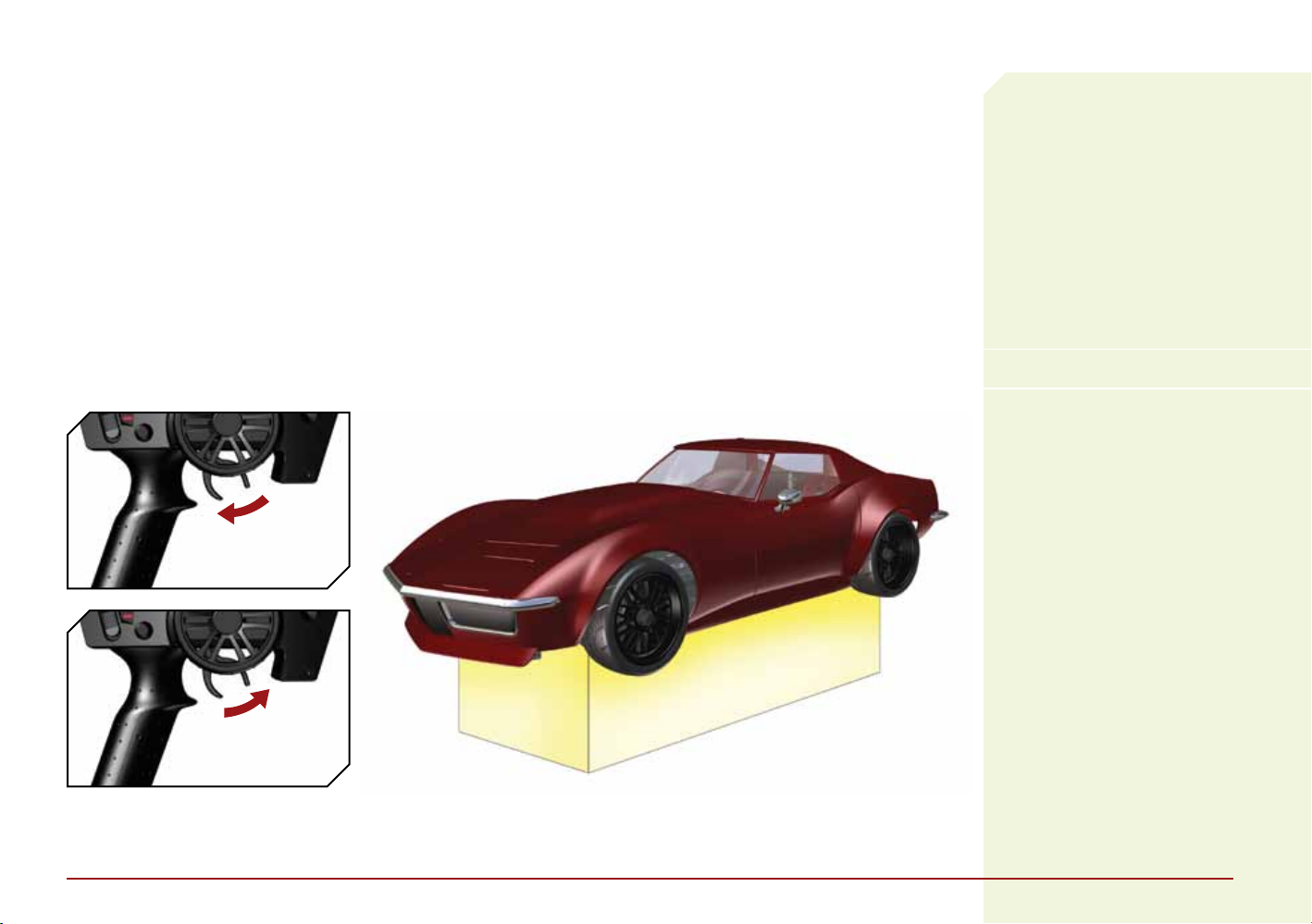

Perform a control test with the vehicle wheels o the ground. If the wheels rotate after the vehicle is powered ON, adjust the “TH. Trim” knob until they stop. To make the wheels move forward, pull the trigger. To reverse them, wait for the wheels to stop, then push the trigger. When moving forward, the wheels should maintain a straight line without any steering wheel input. If not, adjust the “ST. Trim” knob so the wheels maintain a straight line without having to turn the steering wheel.

BRAKE/REVERSE

Page 12

run tIme

/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

BEFORE RUNNING YOUR VEHICLE

1 Check for free suspension

movement. All suspension arms and steering components should move freely. Any binds will cause the vehicle to handle poorly.

2 Charge the battery. 3 Check the calibration of the ESC.

If recalibration is required, follow the setup instructions.

4 Adjust the transmitter settings

to your desired conﬁguration.

The largest factor in run time is the capacity of the battery pack. A larger mAh rating increases the amount of run time experienced.

The condition of a battery pack is also an important factor in both run time and speed. The battery connectors may become hot during driving. Batteries will lose performance and capacity over time.

Driving the vehicle from a stop to full speed repeatedly will damage the batteries and electronics over time. Sudden acceleration will also lead to shorter run times.

TO IMPROVE RUN TIMES

» Clean and oil bearings often. If bearings

are dirty, they will increase friction and cause reduced performance.

tunInG, aDjustInG & maIntaInInG your vehICle

SERVICE/REPAIR

If any problems other than those covered in this manual arise, please call the appropriate electronics service department. Refer to the Warranty and Service Information section for the appropriate department to contact.

CLEANING

Performance can be hindered if dirt gets in any of the moving suspension parts. Use compressed air, a soft paintbrush, or a toothbrush to remove dust or dirt. Avoid using solvents or chemicals as they can actually wash dirt into the bearings or moving parts, as well as cause damage to the electronics.

» Examine your vehicle on a regular basis. » Use a brush to remove dirt and dust. » Look for damage to the suspension arms

and other molded parts.

» Re-glue the tires to the wheels, if necessary. » Clean and oil all wheel bearings. » Use suitable tools to tighten fasteners. » Make sure the camber and steering linkages

are not bent. Replace any bent linkages.

» Adjust the Toe and Camber settings, if necessary.

» Keep your vehicle clean and maintained. » Allow more airﬂow to the ESC

and motor.

» Change the gearing to a lower ratio.

A lower ratio decreases the operating temperature of the electronics. Use a smaller pinion gear or larger spur gear to lower the gear ratio.

» Use a battery pack with a higher

mAh rating.

DRIVING PRECAUTIONS

» Maintain sight of the vehicle at all times. » Routinely inspect the vehicle for loose

wheel hardware.

» Routinely inspect the steering assem-

bly for any loose hardware. Driving the vehicle o-road can cause fasteners to loosen over time.

» Do not drive the vehicle in tall grass.

Doing so can damage the vehicle or electronics.

» Stop driving the vehicle when you

notice a lack of power. Driving the vehicle when the battery is overly discharged can cause the receiver to power o. If the receiver loses power, you will lose control of the vehicle.

» Do not apply forward or reverse throttle

if the vehicle is stuck. Applying throttle in this instance can damage the motor or ESC.

» After driving the vehicle, allow the

electronics to cool before driving the vehicle again. Remove the body of the vehicle to reduce cooling time.

/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

» Remove the shocks and inspect them for

damage. Rebuild the shocks if oil is leaking.

» Inspect electronics and batteries for exposed wires.

Repair exposed wires with shrink-wrap, or replace the wire.

» Make sure the ESC and receiver are secure on

the chassis. Replace the double-sided tape, if necessary.

» Power ON the transmitter. If the green LED is dim

or o, replace the AA batteries in your transmitter.

» Check the spur gear and pinion gear for wear.

Page 13

DynamIte 12t esC

/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

MOUNTING THE ESC

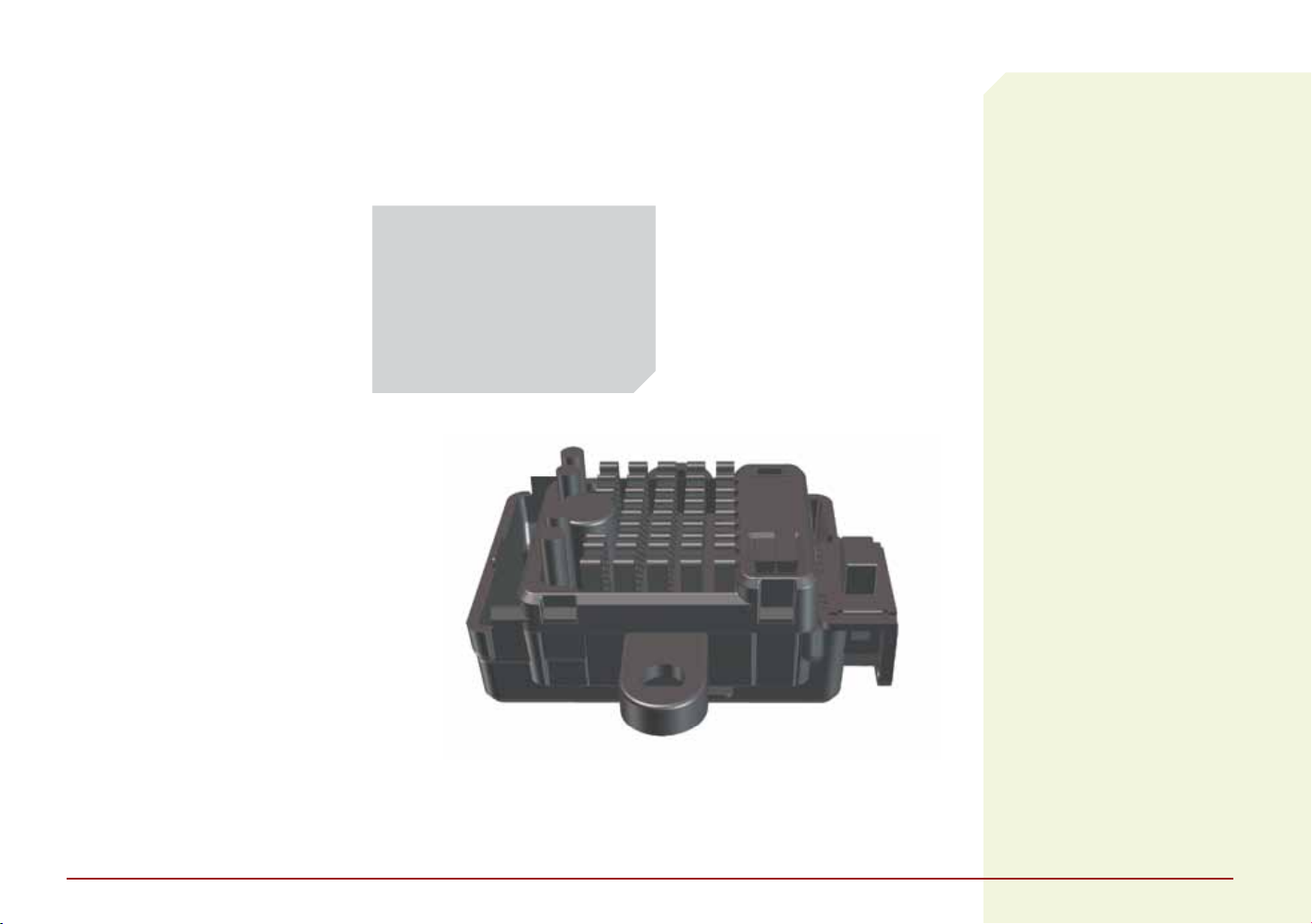

1 Mount the ESC in the location

speciﬁed by your vehicle’s instruction manual.

Important: Ensure all wiring

connections can be reached prior to mounting.

2 The ESC can be mounted in vehicles

with mounting posts using the removable mounting tabs.

3 If the vehicle doesn’t have mount-

ing posts, remove the tabs and use double-sided foam tape to secure the ESC in position.

4 The switch can be mounted to the

side of the ESC with the slide mount. Or use double-sided foam tape to secure the switch in a convenient location in the vehicle.

CONNECTING THE ESC

1 Connect the RED (+) ESC wire

to the RED (+) motor wire.

2 Connect the BLACK (–) ESC wire

to the BLACK (–) motor wire.

notICe: Always disconnect the battery from the ESC when you have ﬁnished operating your vehicle. The ESC’s switch only controls power to the receiver and servos. The ESC will continue to draw current when connected to the battery, resulting in possible damage to the battery through over-discharge.

CALIBRATING THE ESC

Ensure proper ESC function by calibrating the ESC to your transmitter inputs.

1 Power OFF the ESC. 2 Ensure your transmitter is powered

ON, the throttle is not reversed, the throttle trim is neutral and the throttle travel range is at 100%. Disable any special functions such as ABS, etc.

3 Keep the throttle at neutral and

power ON the ESC.

4 The ESC automatically calibrates

the throttle range after 3 seconds.

5 One long beep will sound when

the ESC is ready to run.

SPECIFICATIONS

Type

Brushed

Constant/Peak

40A/180A

Resistance

0.002 Ohms

Function

Forward/Brake/Reverse; Forward/Brake

Vehicle Type

1/12 on-road; 1/10 on- and o-road; 1/10 rock crawler

Operation

Proportional forward, proportional reverse with braking delay

Input Voltage

2-cell Li-Po, 5-9 cell Ni-MH/Ni-Cd

Motor Type

540-/550-size closed endbell motors: 2S Li-Po down to 8T

BEC output

5V/2A

Overload Protection

Thermal

Dimensions

1.40 in x 1.34 in x 0.71 in (35.6 x 34 x 18mm)

Weight

1.41 oz (40 g) with wires

Battery Connector

EC3 connector

Motor Connector

3.5mm Tamiya style bullet

Page 14

LED INDICATOR

OPERATION LED STATUS SOUND AT POWER UP

Stop OFF

Forward Blinks

Forward (full speed) Solid

Reverse Blinks

Brake Blinks

Brake (full brake) Solid

Ni-MH/Ni-Cd Battery 1 Short Beep

2S Li-Po Battery 2 Short Beeps

ESC Ready 1 Long Beep

Battery Low Voltage Blinks

Overheat Blinks

PROGRAMMING THE ESC

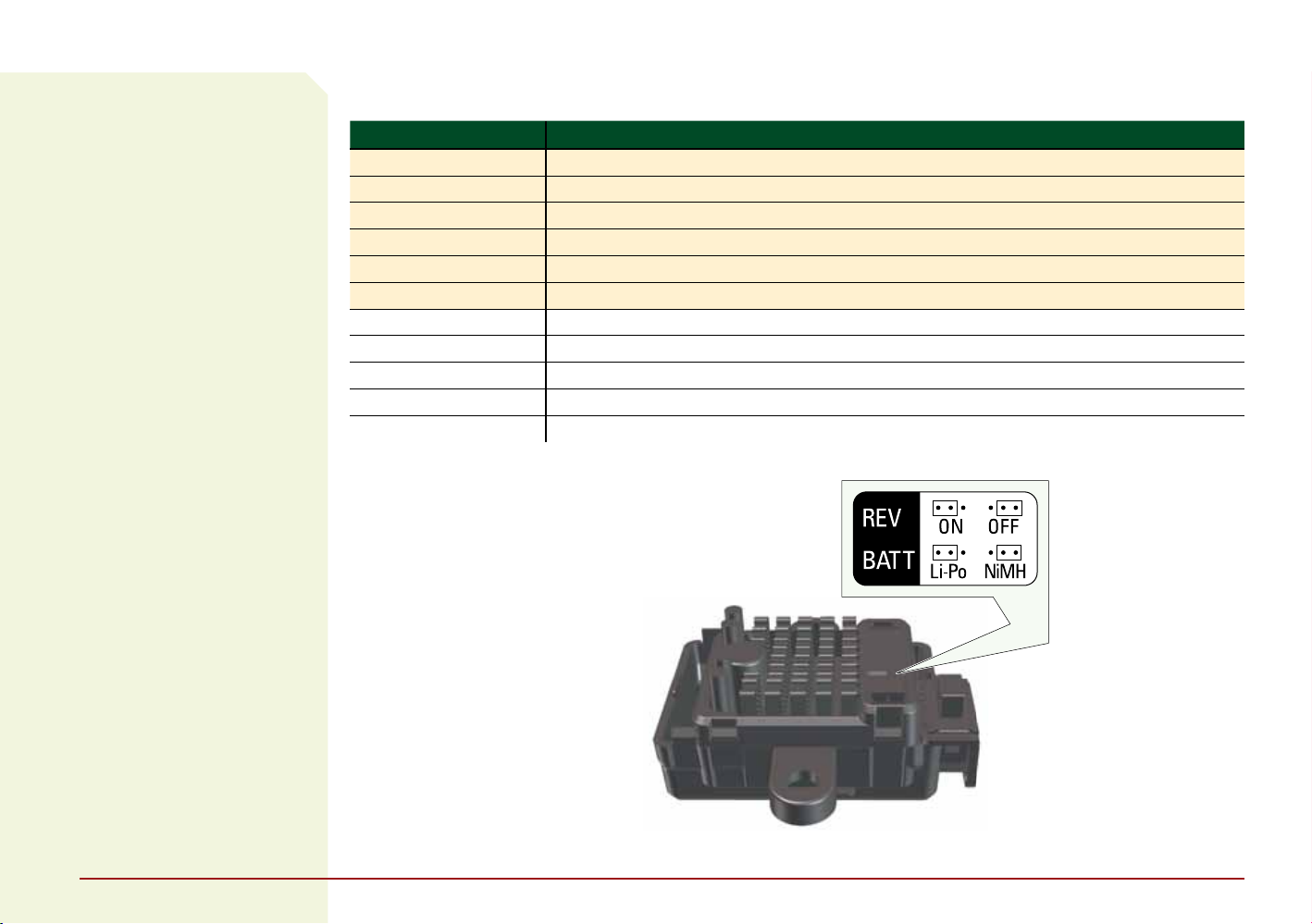

The ESC comes with two jumpers pre-installed in the REV: ON and BATT: Ni-MH conﬁgurations. To disable reverse or change the battery type to Li-Po, disconnect the jumper from the default port and connect it to the desired port. Power o the ESC, then power it on again. If the jumpers are lost or not installed, the ESC will default to REV: ON and BATT: Li-Po.

Page 15

DynamIte 15t brusheD motor

/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

BRUSHED MOTOR

DYN1172 15 turn motor

RECOMMENDED BRUSHLESS MOTOR

Brushless motor

10.5 turn or less

Brushless motor

13.5 turn

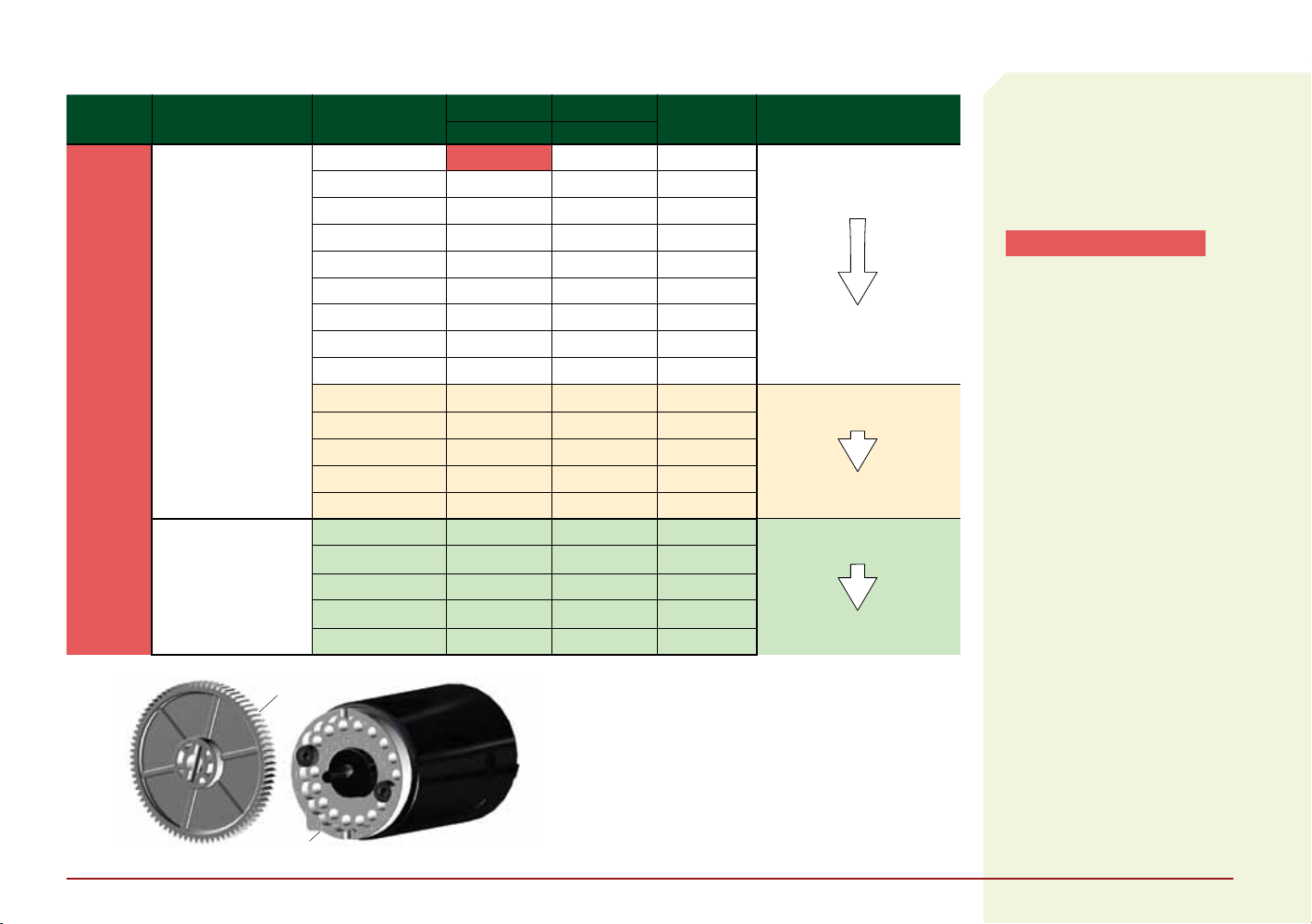

MOTOR MOUNT PLATE POSITION

a 22 77 12 32 9.33 STD 77T Spur Gear with

b 23 77 12 32 8.93

C 24 77 12 32 8.56

D 25 77 12 32 8.21

e 26 77 12 32 7.90

f 27 77 12 32 7.60

G 28 77 12 32 7.33

h 29 77 12 32 7.08

I 30 77 12 32 6.84

a 28 71 12 32 6.76 Optional 71T Spur Gear with

b 29 71 12 32 6.53

C 30 71 12 32 6.31

D 31 71 12 32 6.11

e 32 71 12 32 5.92

e 38 65 12 32 4.56 Optional 65T Spur Gear

f 39 65 12 32 4.44

G 40 65 12 32 4.33

h 41 65 12 32 4.23

1st FINAL (2.66)

TOTAL GEAR RATIO MOTOR PLATE POSITIONPinion Spur Drive Ring

minimum Pinion Gear

STD 77T Spur Gear with

max Pinion Gear

minimum Pinion Gear

Optional 71T Spur Gear

with max Pinion Gear

with minimum Pinion Gear

Optional 65T Spur Gear

with max Pinion GearI 42 65 12 32 4.13

PRECAUTIONS

» Never touch moving parts. » Never disassemble while

the batteries are installed.

» Always let parts cool

before touching.

COMES WITH STD KIT

VTR232044

VTR232050

Page 16

troubleshootInG GuIDe

/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

PROBLEM POSSIBLE CAUSE SOLUTION

Vehicle does not operate

Motor runs but rear wheels don’t move

Steering does not work

Won’t turn in one direction

Motor does not run

ESC gets hot

Poor run time and/or sluggish acceleration

Poor range and/or glitching

» Battery not charged or connected » ESC switch not ON » Transmitter not ON or low battery

» Pinion not meshing with spur gear » Pinion spinning on motor shaft » Transmission gears stripped » Drive pin broken

» Servo plug not in receiver properly » Servo gears or motor damaged

» Charge battery/connect » Turn ON ESC switch » Turn ON/replace batteries

» Adjust pinion/spur mesh » Replace pinion gear on motor » Replace transmission gears » Check and replace drive pin

» Check if connected/all the way » Replace or repair servo

» Servo gears damaged » Replace servo

» Motor plugs loose » Motor wire broken » ESC damaged

» Motor over-geared » Driveline bound up

» Ni-MH pack not fully charged » Charger not allowing full charge » Motor worn out » Driveline bound up

» Transmitter batteries low » Vehicle battery low » Loose plugs or wires

» Plug in completely » Repair or replace as needed » Contact Horizon Hobby Product Support

» Use smaller pinion or larger spur gear on motor » Check wheels, suspension and transmission for binding

» Recharge battery » Try another charger » Replace motor » Check wheels, transmission for binding

» Check and replace » Recharge or replace » Check all wire connections and plugs

Page 17

lImIteD warranty

/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

WHAT THIS WARRANTY COVERS

Horizon Hobby, Inc., (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship at the date of purchase.

WHAT IS NOT COVERED

This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modiﬁcation of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, or (vi) Product not compliant with applicable technical regulations.

OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.

PURCHASER’S REMEDY

Horizon’s sole obligation and purchaser’s sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY.

LIMITATION OF LIABILITY

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES,

LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, ﬁnal assembly, modiﬁcation or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase.

LAW

These terms are governed by Illinois law (without regard to conﬂict of law principals). This warranty gives you speciﬁc legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.

warranty servICes

QUESTIONS, ASSISTANCE, AND SERVICES

Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative.

INSPECTION OR SERVICES

If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http://www.horizonhobby.com/ content/_service-center_render-service-center. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.

notICe: Do not ship Li-Po batteries to Horizon. If you have any issue with a LiPo battery, please contact the appropriate Horizon Product Support oce.

WARRANTY REQUIREMENTS

For Warranty consideration, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty conditions have been met,

your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.

Page 18

NON-WARRANTY SERVICE

Should your service not be covered by warranty, service will be completed and payment will be required without notiﬁcation or estimate of the expense unless the expense exceeds 50% of the retail purchase cost.

By submitting the item for service you are agreeing to payment of the service without notiﬁcation. Service estimates are available upon request. You must include this request with your item submitted for service. Nonwarranty service estimates will be billed a minimum of 1/2 hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier’s checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon’s Terms and Conditions found on our website http://www.horizonhobby.com/content/_service-center_render-servicecenter.

ATTENTION: Horizon service is limited to Product compliant in the country of use and ownership. If received, a non-compliant Product will not be serviced. Further, the sender will be responsible for arranging return shipment of the un-serviced Product, through a carrier of the sender’s choice and at the sender’s expense. Horizon will hold noncompliant Product for a period of 60 days from notiﬁcation, after which it will be discarded.

WARRANTY AND SERVICE CONTACT INFORMATION

COUNTRY OF PURCHASE

United States of America

United Kingdom

Germany Horizon Technischer

France Horizon Hobby SAS [email protected]

China Service/Parts/Sales:

HORIZON HOBBY CONTACT INFORMATION ADDRESS

Horizon Service Center (Repairs and Repair Requests)

Horizon Product Support (Product Technical Assistance)

Sales [email protected]

Service/Parts/Sales: Horizon Hobby Limited

Service Sales: Horizon Hobby

GmbH

Horizon Hobby - China

servicecenter.horizonhobby.com/ RequestForm/

www.quickbase.com/db/ bghj7ey8c?a=GenNewRecord 888-959-2306

888-959-2306 [email protected]

+44 (0) 1279 641 097

[email protected] +49 (0) 4121 2655 100

+33 (0) 1 60 18 34 90

[email protected] +86 (021) 5180 9868

4105 Fieldstone Rd Champaign, Illinois 61822 USA

Units 1-4 Ployters Rd Staple Tye Harlow, Essex CM18 7NS United Kingdom

Christian-Junge-Straße 1 25337 Elmshorn

11 Rue Georges Charpak 77127 Lieusaint, France

Room 506 No. 97 Changshou Rd. Shanghai, China 200060

Page 19

fCC statement

/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

ComplIanCe InformatIon for the european unIon

/ / / / / / /

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CautIon: Changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This product contains a radio transmitter with wireless technology which has been tested and found to be compliant with the applicable regulations governing a radio transmitter in the 2.400GHz to

2.4835GHz frequency range.

IC InformatIon

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

ANTENNA SEPARATION DISTANCE

When operating your Spektrum transmitter, please be sure to maintain a separation distance of at least 5 cm between your body (excluding ﬁngers, hands, wrists, ankles and feet) and the antenna to meet RF exposure safety requirements as determined by FCC regulations.

The following illustrations show the approximate 5 cm RF exposure area and typical hand placement when operating your Spektrum transmitter.

AT BE BG CZ CY DE DK

EE ES FI FR GR HR HU

IE IT LT LU LV MT NL

PL PT RO SE SI SK UK

IS LI NO CH

DECLARATION OF CONFORMITY

(in accordance with ISO/IEC 17050-1)

No. HH2014031802 Product(s): VTR 1969 Custom Corvette V100-S 1/10th RTR

Item Number(s): VTR03022I Equipment class: 2

The object of declaration described above is in conformity with the requirements of the speciﬁcations listed below, following the provisions of the European R&TTE directive 1999/5/EC, EMC Directive 2004/108/EC and LVD Directive 2006/95/EC:

EN 300-328 V1.7.1: 2006 EN 301 489-1 V1.9.2: 2012 EN 301 489-17 V2.1.1: 2009

EN 60950-1:2006+A11:2009+A1:2010+A12: 2011 EN 55022:2010 + AC:2011

EN 55024:2010 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2008

Signed for and on behalf of: Horizon Hobby, Inc. Champaign, IL USA March 18, 2014

(Spektrum DX2E transmitter and SR200WP receiver included)

Robert Peak Chief Financial Ocer Horizon Hobby, Inc.

INSTRUCTIONS FOR DISPOSAL OF WEEE BY USERS IN THE EUROPEAN UNION

This product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop o your waste equipment for recycling, please contact your local city oce, your household waste disposal service or where you purchased the product.
