1
smartphone
RLTP4028-BLACK
User
manual
Content
smartphon
e ........................................................................................................................................ 1
RLTP4028-BLACK .......................................................................................................................... 1
User manual ...................................................................................................................................... 1
Content .............................................................................................................................................. 1
1 Introduction .................................................................................................................................... 3
1.2 Announcements ................................................................................................................... 3
1.3 Safety Instruction ................................................................................................................ 3
1.4 Abbreviation/Terminology .................................................................................................. 4
2 Phone Introduction ......................................................................................................................... 4
2.1 Phone Operation and Preparation ........................................................................................ 4
2.2 Phone Status and Reminder ........................................................................................... 5
3 Quick Start Guide ........................................................................................................................... 5
3.1 Keys Function ..................................................................................................................... 5
3.2 Startup and Shutdown button .............................................................................................. 6
3.3 Open and Close of the Screen ............................................................................................. 6
3.4 Usage of Touch Screen ........................................................................................................ 7
3.5 Home Page .......................................................................................................................... 8
3.6 Visit Application Procedures ............................................................................................. 10
3.7 USB Connection ............................................................................................................... 11
3.8 Typing words ..................................................................................................................... 12
3.9 Operation Technique ......................................................................................................... 13
4 Basic Setting ................................................................................................................................ 15
4.1 SIM Management .............................................................................................................. 15
4.2 Wi-Fi ................................................................................................................................. 16
4.3 Bluetooth ..................................................................................................................... 18
4.4 Data Usage ........................................................................................................................ 20
2
4.5 More .................................................................................................................................. 21
4.6 Audio profiles .................................................................................................................... 24
4.7 Display .............................................................................................................................. 27
4.8 Storage .............................................................................................................................. 29
4.9 Battery ............................................................................................................................... 31
4.10 Apps ................................................................................................................................ 32
4.11 Location ........................................................................................................................... 33
4.12 Security ........................................................................................................................... 34
4.13 Language & input ............................................................................................................ 36
4.14 Backup & reset ................................................................................................................ 38
4.15 Add account..................................................................................................................... 39
4.16 Date & time ..................................................................................................................... 40
4.17 Accessibility .................................................................................................................... 41
4.18 Developer options ........................................................................................................... 41
4.19 About phone .................................................................................................................... 42
5 Multi-Media ................................................................................................................................. 43
5.1 Music ................................................................................................................................. 43
5.2 Videos ................................................................................................................................ 43
5.3 Gallery ............................................................................................................................... 44
5.4 Camera .............................................................................................................................. 45
5.5 FM Radio .......................................................................................................................... 45
6 Communication Function ............................................................................................................. 47
6.1 Phone ................................................................................................................................. 47
6.2 Text Message ..................................................................................................................... 47
6.3 Contact List ....................................................................................................................... 48
7 Internet ......................................................................................................................................... 49
7.1 Browser ............................................................................................................................. 49
7.2 Email ................................................................................................................................. 50
8 Other Application Procedures ...................................................................................................... 52
8.1 Clock ................................................................................................................................. 52
8.2 Ca
lculator
.......................................................................................................................... 53
8.3 File Manager ..................................................................................................................... 53
8.4 Sound Recorder ................................................................................................................. 56
9 Installation of Procedures ............................................................................................................. 57
9.1 Installation ......................................................................................................................... 57
9.2 Uninstall ............................................................................................................................ 57
10 Troubles Shooting ...................................................................................................................... 59
3
1 Introduction
1.1 Announcements
Preventive maintainance
z Please always keep the Phonedry. To avoid the device short trouble, corrosion fault
and electric short, please prevent the device, battery and charger from water and
moisture, and don’t operate the device or charger by wet hand.
z To avoid failure of device, battery and charger, please prevent the device, battery,
charger from violent shock or shake.
z To avoid failure of device, battery and charger, please prevent the device, battery,
charger of all over heating or too cold circumstance
z Never shock, throw, prod the Phone, or drop, extrude, bend the Phone.
z Never disassemble the device and accessories arbitrarily, otherwise the device and
accessories are not in our company warranty scope.
1.2 Safety Instruction
Before the operation of the Phone, please read this chapter and teach your kids about these
information. For further details, please refer to the safety instructions and announcement.
z Never use the Phonewhen driving car, in order to ensure safe driving.
z In the medical area, please abide by related rules and regulations. Please shut
down the Phonewhen it is near to the medical area.
z To avoid the wireless signal to interrupt the plane- controlled signal, please shut
down the Phoneor using airplane mode when you are boarding a flight,
z To avoid electronic equipment failure, please shut down the Phonein the vicinage
4
of high-accuracy electronic equipments.
z Please don’t disassemble the Phoneand accessories. Only authorized agent has
access to service the Phone.
z Please keep the Phonefar away from magnetic equipments, the radiation of
Phonemay erase the data stored in the magnetic equipments.
z Never use the Phonein the vicinage of high temperature, inflammable gas ( gas
station).
z Protect the Phoneand accessories from kids reach scope, and avoid the kids to use
the Phonewithout parents’ supervision.
z Please comply with related rules and regulations, and respect others’ privacy and
legal rights while using the Phone.
z Please strictly adhere to related instructions in the manual when using USB cable
to ensure the safety of the Phoneor PC.
z Never use the Phonein bathroom or other huPhoneenvironment, and please protect
the Phonefrom liquid wash or wet.
1.4 Abbreviation/Terminology
Abbreviation/Terminology Full Name Description
WIFI Wireless Fidelity Base on IEEE 802.11bgn standard
wireless LAN
T F TransFlash Alternative name Micro SD,super
miniature memory card
2 Phone Introduction
2.1 Phone Operation and Preparation
Battery Charging
If this navigator is first used, please use AV adaptor to fully charge it.
5
Apply the power adaptor to charge for Phone.
2.2 Phone Status and Reminder
Reminder icons
When some remind message appears in your reminder window, please click column and slip
the screen to open the reminder list. Choose the menu you need, and confirm the information.
Then you can close the reminder window through clicking the column to slide up. Please refer to
below status icons:
New email
Airplane Mode on
USB connected
USB debugging connected
Downloading
WIFI connected, internet is
available
Current electric
volume.
Reminder board
Reminder icons will work while receiving emails, WIFI is open, you can open the reminder
board to view the detailed information.
Open the reminder board
When the reminder column shows new reminder icon, please hold the column and slip down
your finger, then the reminder board is opened.
3 Quick Start Guide
3.1 Keys Function
Keys Funcction Description：
6
Power button Short press to sleep/wake up, long press to startup and
shutdown.
Vo l um e + （up） increase the volume
Vo l um e - （down） decre ase the volume
HOME（home） Click it in any interface will return to main interface.
Menu button
This button will display in menu interface.
3.2 Startup and Shutdown button
Startup
Long press POWER key for three seconds, you can enter into startup picture. The system enters
into screen lock status, please unlock it
Notice: When the Phonehas crashed,long press POWER key for eleven seconds to reset.
Shutdown
1． Long press POWER, it will popoup shutdown window.
2． Shutdowm window contains Power off, Airplane mode and Audio profiles three
options.
3． Click Power off is the last step.
3.3 Open and Close of the Screen
Screen will be closed on its own when no operation happens.
1. Screen will be closed on its own if no operation happens for some time to save battery
power
2. When screen is open, press POWER key, the screen will be closed immediately.
Open the screen when it is closed.
If the screen is closed, short press POWER to open the screen. The screen will be locked
open it, it will show the picture as below picture 3.1, slide
around to unlock the screen.
7
Picture 3.1
3.4 Usage of Touch Screen
Phoneoperating methods
There are below methods to view the main screen, menu and application procedure in your MID.
Click
When you want to use the screen keyboard typing or choose application in the main interface, you
only need to touch it by your finger.
Press on
If you want to open some item( textbox or the link in the webpage), or shortcut and main
procedure move, you can press on this item.
Quickly slide or slide
Quickly slide or slide indicates make quick vertical or horizoncial movement by finger.
Pull
Before you pull, you need to hold the it with strenghth until you pull it into the position you want.
Rotate
For most pictures, you only need to rotate the Phonesidewise to change the screen direction from
horizontal to vertical. For instance, when you are typing works, and watching movies.
8
3.5 Home Page
Main interface as below picture 3.2, long press the blank and it will popup windows to set
wallpaper.
Picture 3.2
The extended home page
The home page can be extended beyond the wideness of screen to provide more space,
which you can put new-added shortcuts and widgets. Click the blank space in home page
then slide right or left to extend to the right or left of the screen. In the home page, there are
two extended pictures, as Picture 3.3.
search
time
Batty volume
Notice
column
9

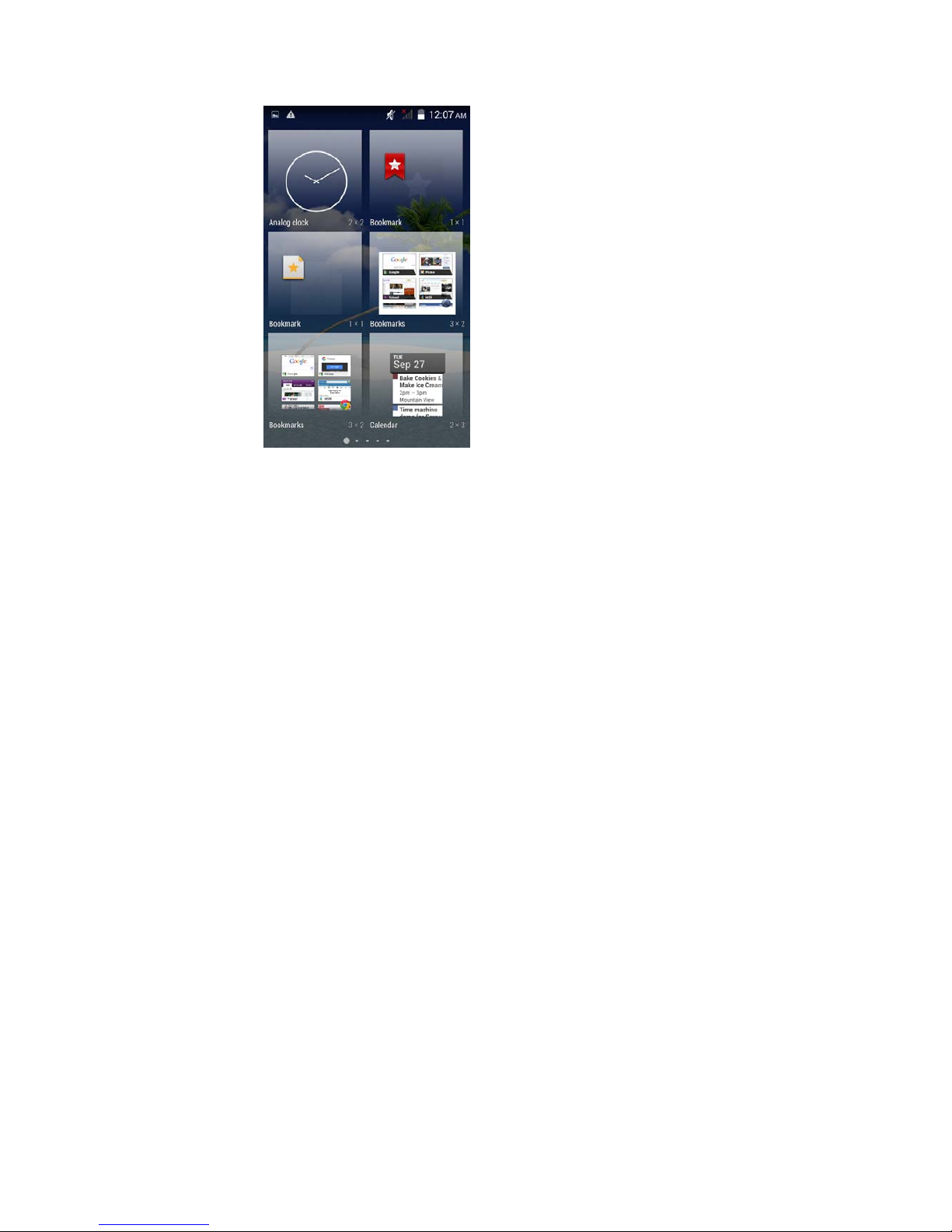

Picture 3.3
The shortcut icons management in desktop application.
Picture 3.4
Remove the icons in desktop
1. Long press the icons need to be remove, then on the right above of the screen, it
will appear
i cons.
2. Drag the icon to the above of the remove icon, till the icon become red, then move
your finger to delete the icon.
10
Picture 3.5
Change the wallpaper of desktop
1． In home page, long press any blank space in main screen, it will popup a window
to change the wallpaper.
2． Click the gallery or wallpaper gallery to select the wallpaper.
3.6 Visit Application Procedures
Click in right top of Picture 3.2, enter into main interface as Picture 3.6, choose the
application procedure you want to visit.
11
Picture 3.6
3.7 USB Connection
Phonestorage configuration
Before transmitting documents, you have to conduct storage configuration for your MID:
1. Connect the Phoneand computer by USB cable, the reminder column will show the
remind information.
2. Open the reminder board; please view the Phonestatus and reminder to learn how to
open the board.
3. In the reminder board, click the “USB Connected”, it will as below Picture 3.7, then
click “open USB storage configuration”.
4. Now the USB is connected successfully.
Picture 3.7
12
Copy the document into memory card
1. Connect the Phoneto computer with USB cable.
2. As Phonestorage configuration, it is connected with computer successfully.
3. Open the “My computer” in your computer, check the items in “removable disc”.
4. Copy the documents you need into “removable disc”.
5. After copying finishes, click “shutdown the USB storage configuration” to uninstall.
Notice: When the Phoneis connected with USB cable, and you open the USB storage
configuration, you can’t view the memory card through the MID. Only after you detach the
USB cable, you can view the memory card in the MID.
3.8 Typing words
Use the screen keyboard
When you start the procedure or choose the words or numbers edition, it will show the screen
keyboard. The keyboard contains below typing options:
Android keyboard
Choose the typing method you want
1.Click setting application in main menu interface.
2.Click Language and Keyboard.
3.In the text setting area will reveal all the installed words-typing methods in your MID.
4.Tick the typing method you want.
Use and switch of input method
13
Picture 3.8
3.9 Operation Technique
Enter widgets interface
In the application interface,click widgets on the above of screen, or slide the screen, it
will swtich into widgets interface. Long press any widget to create its shortcut, then
you can enter into the application through the shortcut icon.
1
switch the capital and small letter
2
click to insert the space
3
click input to execute
4
delete the character in the left of cursor, click and hold to delete all the
characters in the left on the cursor.
①
②
④
③
14
Create application shortcut icons in the desktop
In the application interface or widgets interface, long press any icon to switch into
desktop automatically, drag and hold the icon, you can move to any position in the
desktop.
Remind: If the target position has no space, the widget won’t be add in the main
screen.
15
4 Basic Setting
4.1 SIM Management
Click settings in main menu, choose SIM Management, as Picture 4.1
Picture 4.1
Data Connection
Click setting application in main menu, choose SIM management, click data connection, choose
off or on, as Picture 4.2
Picture 4.2
16
4.2 Wi-Fi
1. Connect Wi-Fi
1) In the main menu or interface, choose setting application procedure.
2) Click WLAN, open wifi, Phonewill automatically search the available Wifi
wireless internet. As Picture 4.3
3) Choose the Wi-Fi internet you want to connect, if it has password, it will popup the
password window, enter password, click connect.
Picture 4.3
2. Add Network
1) Click
icon, as Picture 4.4
17
Picture 4.4
2) Input network SSID, the wireless network name, click save.
3) Click user name already saved, click connect to use network, as Picture 4.5
Picture 4.5
3. Network Notice
If you open Network Notice, when WIFI signal appears, the right bottom will
remind you available WLAN network.
4. Keep WI-FI on during sleep
1. Click icon in right bottom of Picture 4.5, select advanced.
2. Click Keep WI-FI on during sleep, as Picture 4.6
18
Picture 4.6
4.3 Bluetooth
Bluetooth function operation
1. Click setting application in main menu interface
2. Click bluetooth and open it.
3. If somebody open bluetooth in your surroudings, click search device in right above,
then Phonewill automatically search the bluetooth device nearby. As picture 4.7
Picture 4.7
Loading...
