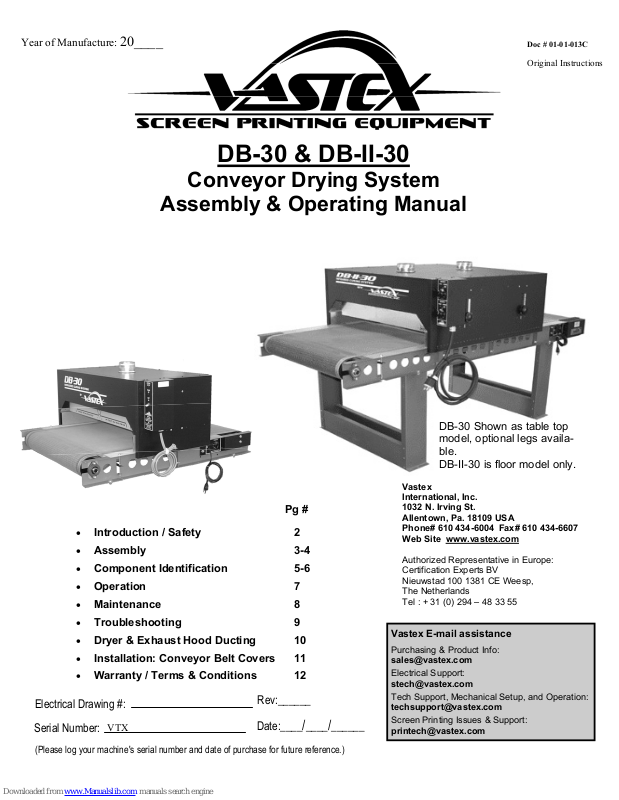

Year of Manufacture: 20____
Doc # 01-01-013C
Original Instructions
DB-30 & DB-II-30
Conveyor Drying System
Assembly & Operating Manual
Pg #
Introduction / Safety 2
Assembly 3-4

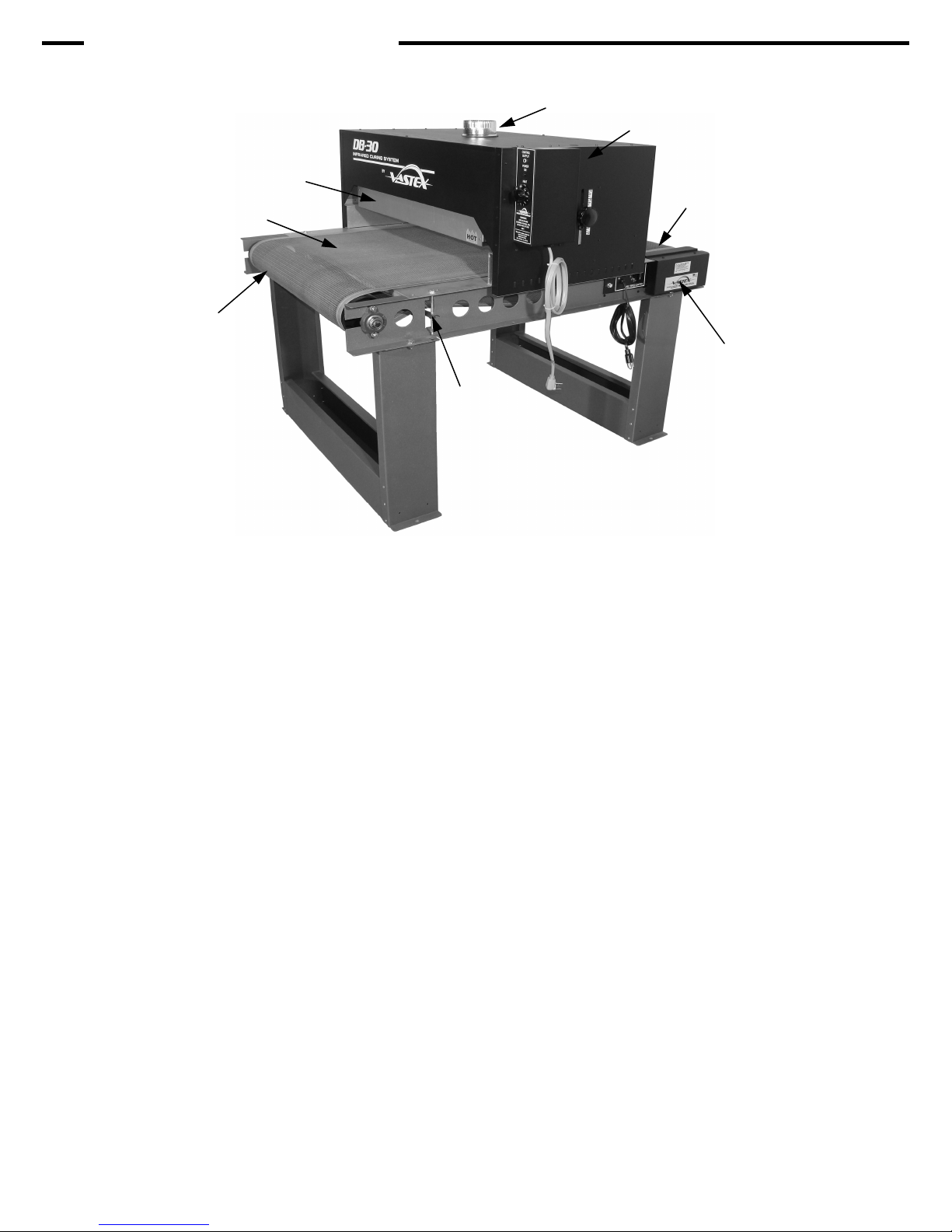

Component Identification 5-6
Operation 7
Maintenance 8
Troubleshooting 9

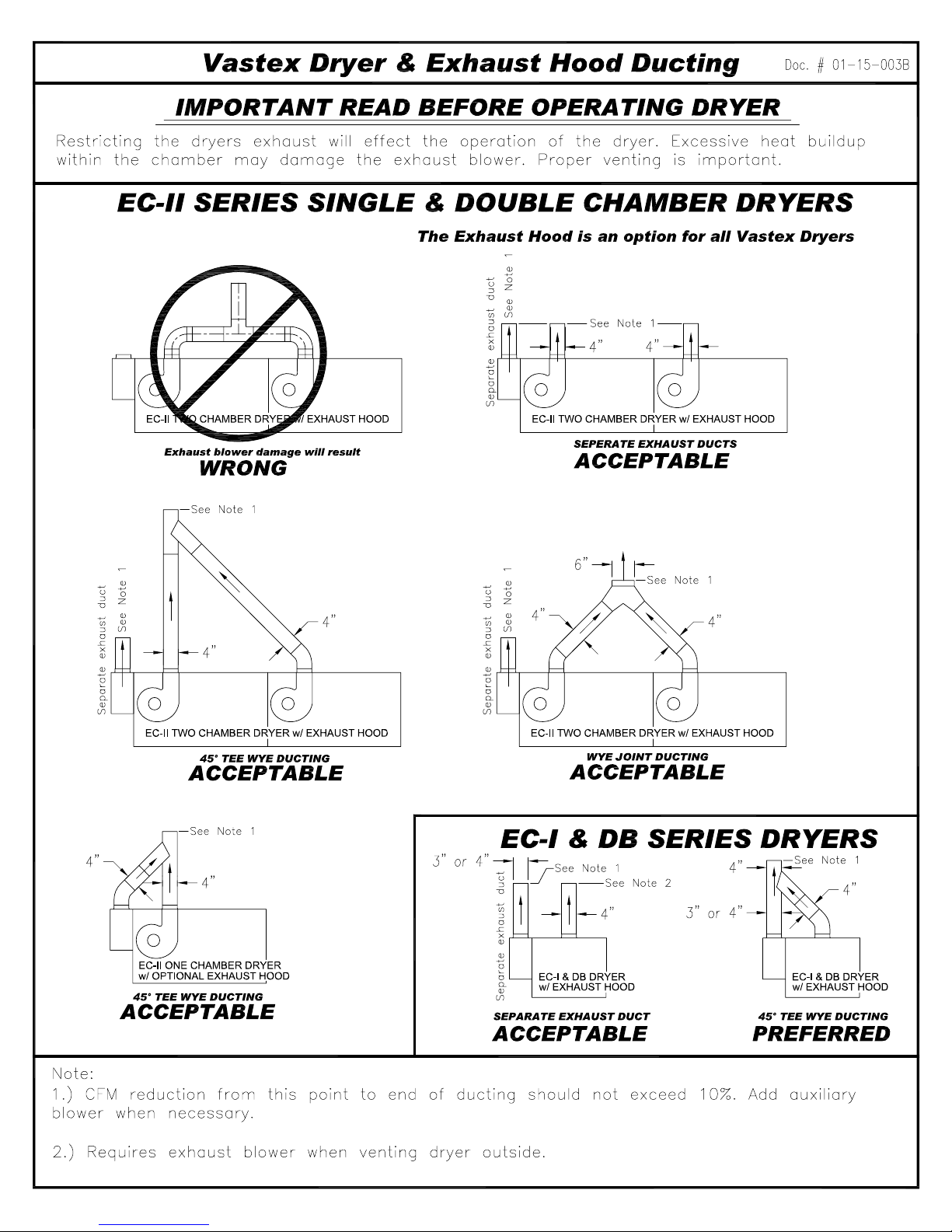

Dryer & Exhaust Hood Ducting 10
Installation: Conveyor Belt Covers 11
Warranty / Terms & Conditions 12
Electrical Drawing #:
Serial Number:
(Please log your machine's serial number and date of purchase for future reference.)
VTX
Rev:______
Date:____/____/______
DB-30 Shown as table top
model, optional legs available.
DB-II-30 is floor model only.
Vastex
International, Inc.
1032 N. Irving St.
Allentown, Pa. 18109 USA
Phone# 610 434-6004 Fax# 610 434-6607
Web Site www.vastex.com
Authorized Representative in Europe:
Certification Experts BV
Nieuwstad 100 1381 CE Weesp,
The Netherlands
Tel : + 31 (0) 294 – 48 33 55
Vastex E-mail assistance
Purchasing & Product Info:
sales@vastex.com
Electrical Support:
stech@vastex.com
Tech Support, Mechanical Setup, and Operation:
techsupport@vastex.com
Screen Printing Issues & Support:
printech@vastex.com
Introduction
2
Congratulations, you have chosen a VASTEX conveyor curing system. VASTEX has been designing and
building dryers since 1960 and has the knowledge and expertise to supply a quality dryer and help you keep it running
for years to come. VASTEX has innovated many of the features found in conveyor ovens today from control methods,
modular features, air movements and belt tracking.
Your Vastex Infrared Dryer has been Factory tested and burned in for a period of 2-8 hours. All components
Safety
The Instruction Manual and Safety Instructions must be read and understood by anyone
operating the Vastex Conveyor Drying System.
The operator should read and understand the instruction manual before operating this equipment.
Store instruction manual and safety instructions near equipment for easy access to operators.
VASTEX Conveyor Drying System is intended for the curing of non-flammable inks on screen printed
materials. Do not use for any other purpose unless authorized by Vastex International, Inc. Use of this
equipment for any other purpose can be dangerous and may cause damage to this equipment, voiding
the warranty.
It is recommended that the area around this equipment be designated as a work area and only author-
ized employees be allowed in the area.
Children and pets must be kept clear of the work area.
Do not place any objects on top of the drying chamber. Surfaces are hot!
Never leave equipment unattended.
Do not operate conveyor or dryer with any cover or guard removed.
Operator must be familiar with controls of the dryer and conveyor.
Never put excessive load on the conveyor belt.
Before starting production, the operator must check that all covers and guards are in place, no material
has been left on the conveyor, and the work area is clear of obstructions.
Switch on and verify conveyor belt is moving before turning on the heat.
Allow dryer to cool to 300°F (149°C) before switching off conveyor.
Always turn off power at the main disconnect at the end of production.
In case an abnormal symptom occurs, for example excessive vibration, noise, and strong smell or
smoke development, turn off the VASTEX Conveyor Drying System and contact a qualified technician.
Immediately turn off the VASTEX Conveyor Drying System if products become jammed in the drying
chamber or conveyor belt.
Do not remove any cover or guard until power at the main disconnect is switched off and locked out.
No unauthorized persons are to be allowed inside the control boxes.
Turn off and lock out power at the main disconnect before any cleaning or maintenance.
Only qualified technicians should be allowed to make repairs on the VASTEX Conveyor Drying System.
Noise and vibration: This equipment does not produce noise in excess of 70 dB(A) at workstations.
Stability during use, transportation, assembly, dismantling when out of service, testing, and foreseeable breakdowns: This equipment is designed and expected to be stable during all foreseeable con-
ditions, so long as the procedures and instructions given in this manual are followed. When dryers are assembled onto legs, it is recommended that two or more people stand the unit upright after bolting legs on.
Safe handling, transport, and storage: Before storing the unit, follow the shutdown procedure on P. 8 to
allow the heater assembly to cool properly. No special handling considerations are necessary, except to
be aware of the weight of the equipment and take standard precautions for moving such weights:
DB-30:
Main Unit: 265 lbs (120.2 kg)
Optional Legs: 30 lbs (13.6 kg)
Optional locking casters are available for all DB-series dryers equipped with legs. When equipment is
to be moved frequently, it is recommended that these be installed.
DB-II-30:
Main Unit: 465 lbs (210.9 kg)
Included Legs: 30 lbs (13.6 kg)
Assembly
3
Tools Needed: (2) 9/16” open end wrenches, (1) 7/16” open end wrench or socket, (1) 1/4” nut driver OR flat blade screw driver
1) The conveyors are assembled in the same way for all DB-Series dryers. The DB-30 is being used for
the pictures. Remove the conveyor parts from skid and lay out on a large table or the floor as shown.
1
Belt
Front
Section
Drive
Section
2) Bolt together all sections of the conveyor. Each section is bolted to the
next using (2) 3/8”x 3/4” bolts, serrated locknuts. Photo on right.
3/8” Serrated Locknut
3/8” x 3/4” bolt
3
3) Install the (Optional) leg assemblies using
(2) 3/8” x 3/4” bolts and serrated locknuts
on each leg assembly.
2
Leg Assembly
(optional)
3/8” Serrated Locknut

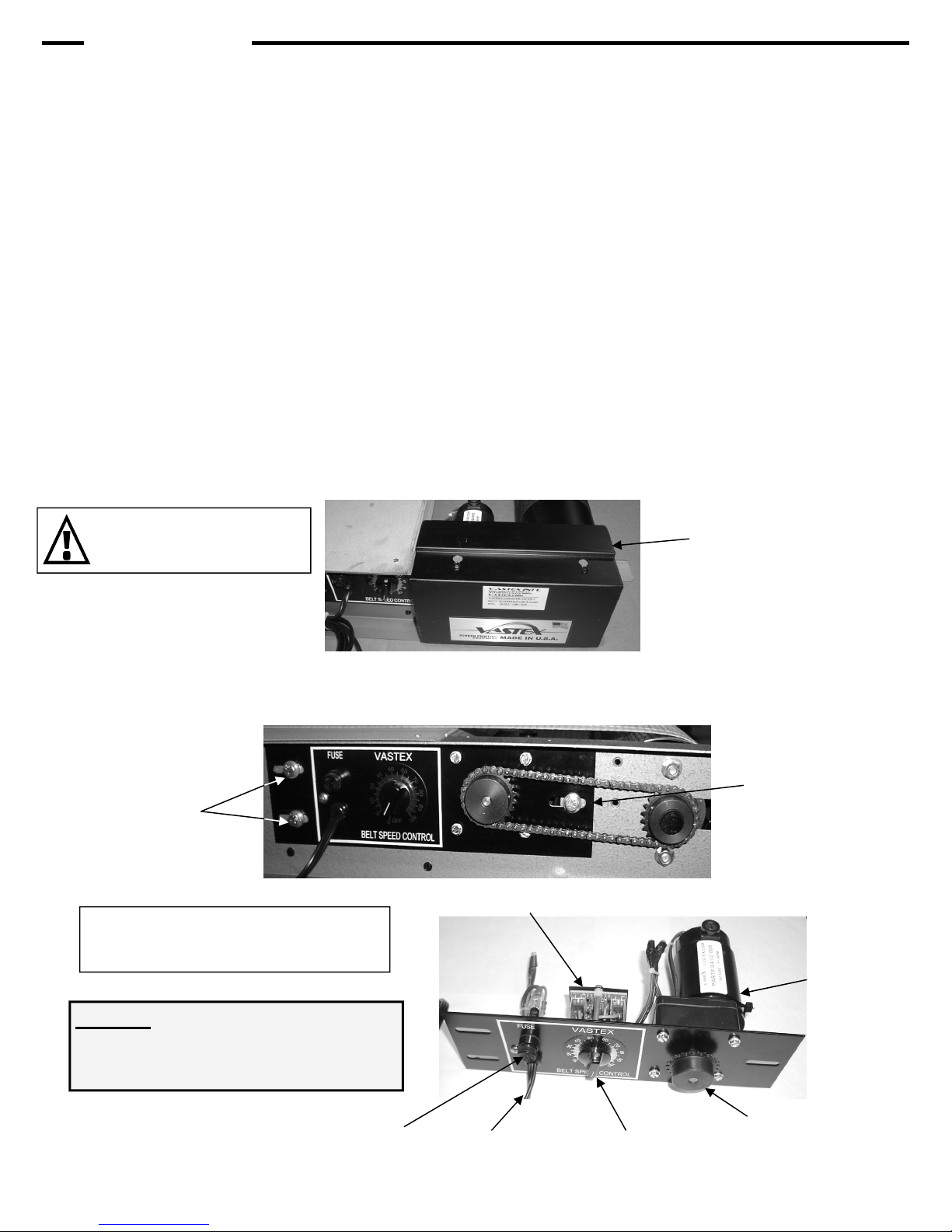

4) Turn the conveyor right side up. Install the chain guard with the
(2) black #8 machine screws. See Maintenance section for chain
adjustment
Do not operate with Chain Guard
removed. Serious Injury may result!
3/8” x 3/4” bolt
Chain Guard
4
Assembly (cont’d)
4
5) The belt needs to be installed as shown in the diagram below. Be sure the belt is routed under the brace found near
the gear motor. To connect your belt, align the Alligator Lace and install the pin. Some belts will have a plastic flap
over the Alligator Lace. Position it as shown in the diagram.
5
Belt Travel
Belt
Alligator Lace
Plastic Flap
5
Front Pulley
Aligner
Alligator lace
Brace
Rear Pulley
6
6) The belt needs to be tightened and adjusted. To tighten and
adjust the belt, use the Aligner Bolts. To raise the Aligner, turn
the Aligner Bolt clockwise with a 7/16” wrench. To lower it, turn it
counter clockwise. Raise the Aligner until you have about 2”-2½”
of slack as shown on right.

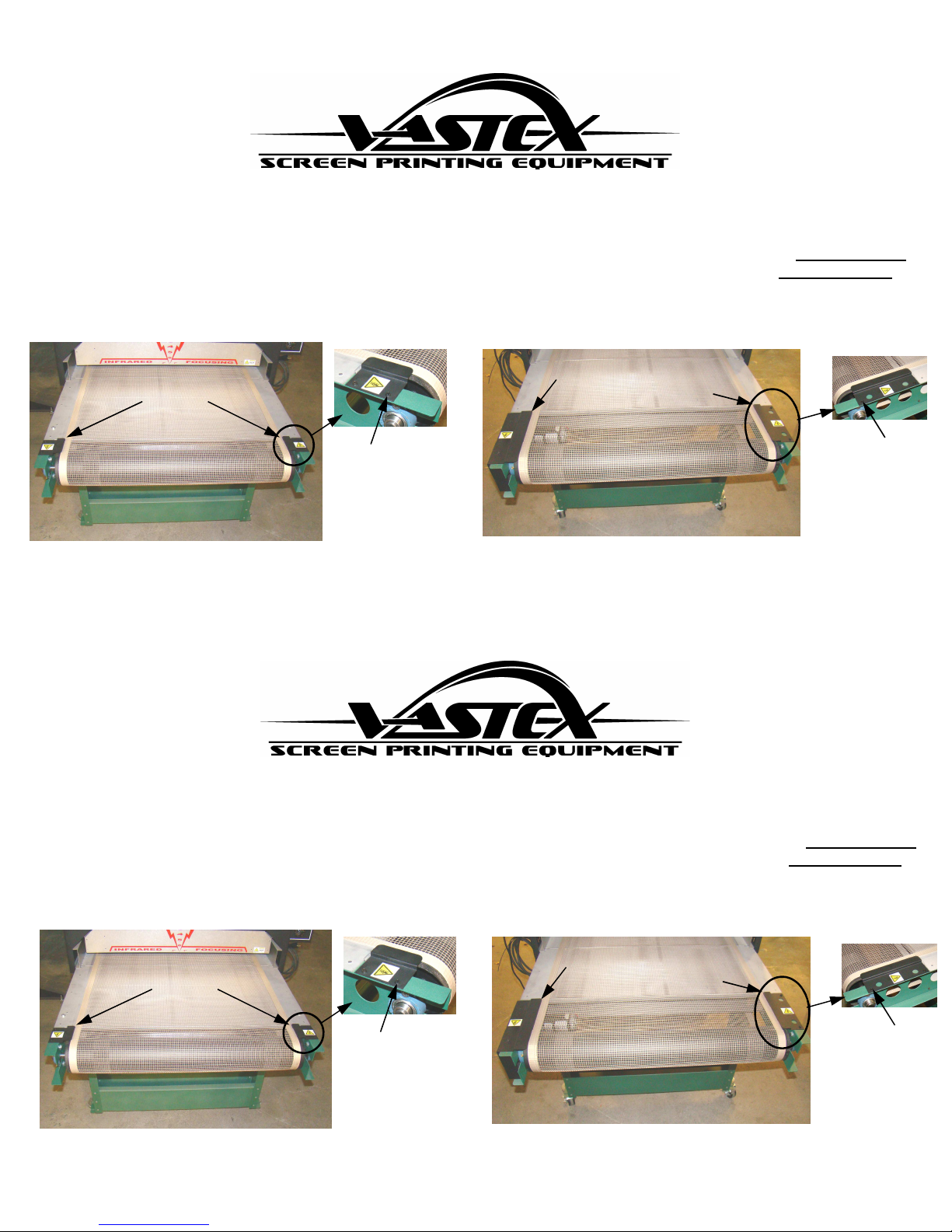

7) Install the three conveyor belt covers. See supplied document
01-01-014 for installation.
Aligner Bolt
8) Place the Heat Chamber on the conveyor, centered between the belt’s rollers, with the Control Panel on the right side.
9) Electrical Connections
Chamber: Refer to the wiring diagrams included with your dryer. Several combinations available.

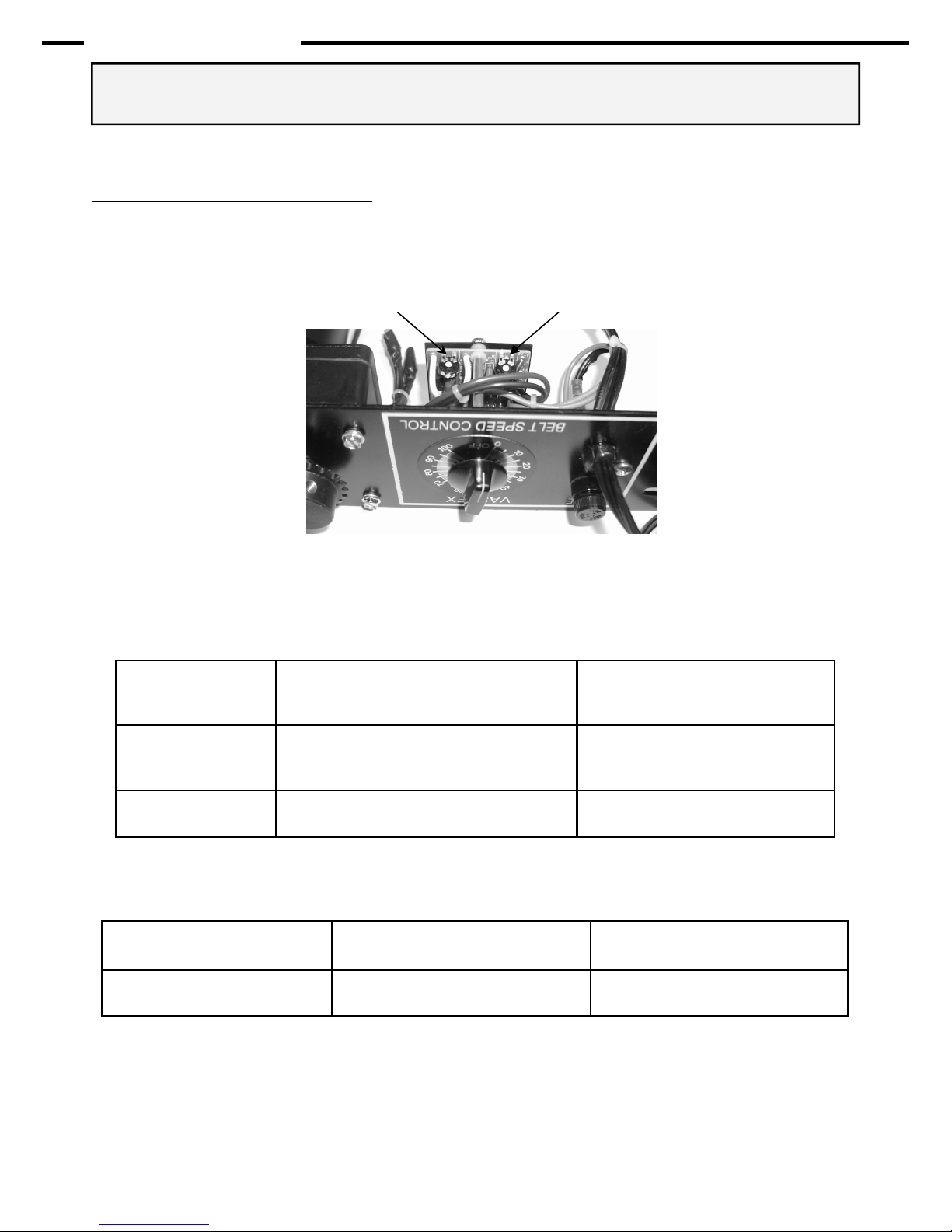

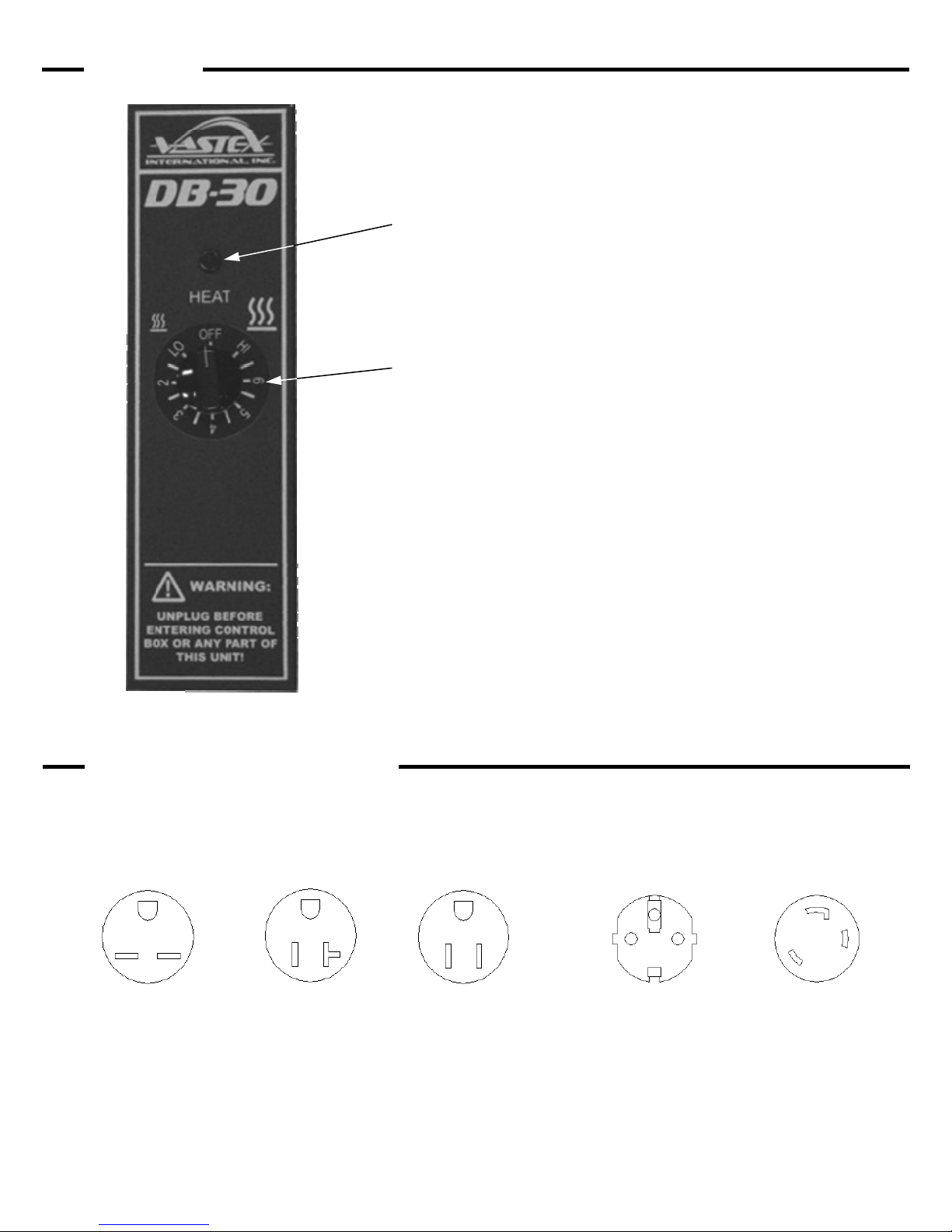

Conveyor: Refer to plug diagrams on the Control page. Conveyors are available in either 120V or 240V
120V, 1 Amp, 50/60Hz 240V, .5 Amp, 50/60Hz
10) Tracking the belt is the final step in setting up your Dryer. The belt speed should be turned up during belt tracking.
The model below shows how to track the belt. Be sure to adjust the Aligner bolts at 1/4 turn at a time. The dryer
should be on a flat surface for proper belt tracking.
CW
CCW
Belt moving to the left
Raise this side
CCW
Aligner Rail
CW
Lower this side
Belt moving to the right
Lower this side
01-16-005A Belt Tracking
Raise this side
