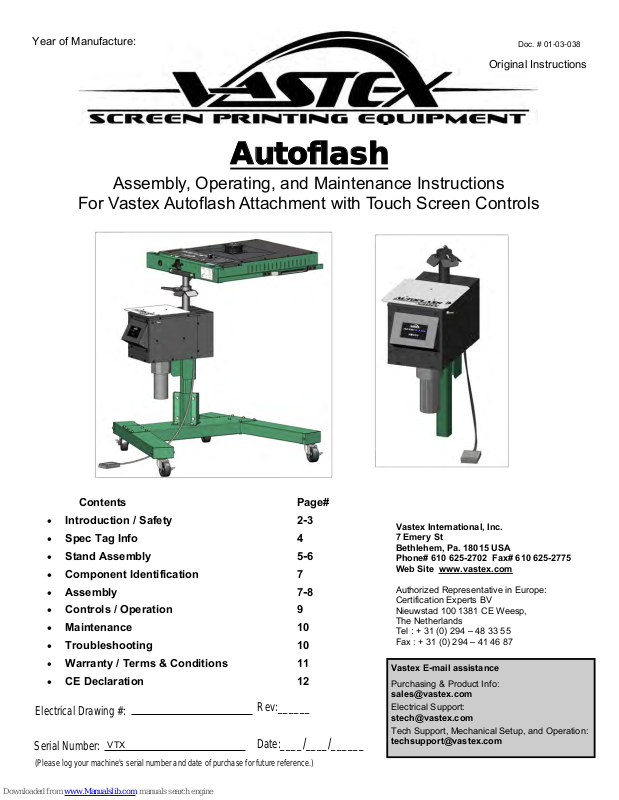

VASTEX Autoflash Assembly, Operating, And Maintenance Instructions

Year of Manufacture:

Assembly, Operating, and Maintenance Instructions

For Vastex Autoflash Attachment with Touch Screen Controls

Doc. # 01-03-038

Original Instructions

Autoflash

Contents Page#

• Introduction / Safety 2-3

• Spec Tag Info 4

• Stand Assembly 5-6

• Component Identification 7

• Assembly 7-8

• Controls / Operation 9

• Maintenance 10

• Troubleshooting 10

• Warranty / Terms & Conditions 11

• CE Declaration 12

Electrical Drawing #:

Serial Number:

(Please log your machine's serial number and date of purchase for future reference.)

VTX

Rev:______

Date:____/____/______

Vastex International, Inc.

7 Emery St
Bethlehem, Pa. 18015 USA
Phone# [phone] Fax# [phone]

Web Site www.vastex.com

Authorized Representative in Europe:
Certification Experts BV

Nieuwstad 100 1381

The Netherlands
Tel : + 31 (0) 294 – 48 33 55
Fax : + 31 (0) 294 – 41 46 87

Vastex E-mail assistance

Purchasing & Product Info:

[e-mail]

Electrical Support:

[e-mail]

Tech Support, Mechanical Setup, and Operation:

[e-mail]

CE Weesp,

Introduction

Pg. 2

Congratulations, you have chosen a VASTEX Autoflash Attachment. VASTEX has been designing and building screen printing
equipment since 1960 and has the knowledge and expertise to supply a quality machine and help you keep it running for years to
come. VASTEX has innovated many of the features found in screen printing equipment today from control methods, modular fea­tures, air movements, belt tracking and even the dual rotary manual press. All components are tested to be sure they work correctly

when the equipment leaves our factory.

Safety

The Instruction Manual and Safety Instructions must be read and understood by anyone

operating the Vastex Conveyor Curing System.

• The operator should read and understand the instruction manual before operating this equipment. Store instruction manual

and safety instructions near equipment for easy access to operators.

• VASTEX Autoflash attachment is for use on Vastex Flash units in accordance to the language in this manual. Do not use for

any other purpose unless authorized by Vastex International, Inc. Use of this equipment for any other purpose can be danger-

ous and may cause damage to this equipment, voiding the warranty.

• It is recommended that the area around this equipment be designated as a work area and only authorized employees be al-

lowed in the area.

• Children and pets must be kept clear of the work area.

• Do not place any objects on top of the Autoflash or Flash Head. Surfaces are hot!

• Never leave equipment unattended.

• Do not operate Autoflash with any cover or guard removed.

• Operator must be familiar with controls of the Autoflash and Flash Head.

• Before starting production, the operator must check that all covers and guards are in place, no material has been placed on or

under the Autoflash or Flash Head, and the work area is clear of obstructions.

• Always turn off power at the main disconnect at the end of production.

• In case an abnormal symptom occurs, for example excessive vibration, noise, and strong smell or smoke development, turn

off the VASTEX Autoflash and contact a qualified technician.

• Do not remove any cover or guard until power at the main disconnect is switched off and locked out. No unauthorized persons

are to be allowed inside the control boxes.

• Turn off and lock out power at the main disconnect before any cleaning or maintenance.

• Only qualified technicians should be allowed to make repairs on the VASTEX Autoflash.

• Noise and vibration: This equipment does not produce noise exceeding 70 dB(A) at workstations.

• Operating Temperature: Vastex Equipment should not be operated in temperatures below 40°F(5°C) or above 105°F

(41°C)

Safety (cont’d)

Pg. 3

• Stability during use, transportation, assembly, dismantling when out of service, testing, and foreseeable

breakdowns: This equipment is designed and expected to be stable during all foreseeable conditions, so long as the

procedures and instructions given in this manual are followed.

• Safe handling, transport, and storage: Before storing the unit, detach Flash Head from AutoFlash and store sepa-

rately. No special handling considerations are necessary, except to be aware of the weight of the equipment and take

standard precautions for moving such weights:

Autoflash (AF-120/AF-240) 51 Lb(25 kg) 31” x 22” x 14” (79 x 56 x 36 cm)

Residual Risks

Please read and understand all parts of this manual to avoid any Residual Risks.

• Your Vastex Autoflash moves a high temperature heater. There is an inherent danger when dealing with a heat source of this

degree. These heaters are often run at temperatures near 1,000° F(538° C). Any body part or item that comes in direct contact
with the heater on the Flash Head will be damaged. The heaters are guarded against direct contact from all sides except the bot-

tom.

Workspace

• The workspace that your Autoflash occupies must be kept clean and clear of debris.

• Do not store items, especially food or drink, on the top of your Vastex equipment.

• The room that you are operating your Autoflash in should be adequately ventilated. Please refer to the MSDS sheet of the ink you

are flashing/curing.

Important

Pg. 4

Please read and understand your Flash Head manual before attempting to use or assemble this Autoflash Attachment. Flash head
manuals can be found at www.vastex.com or call us to have one emailed/mailed to you directly. This manual only covers the assem-

bly, operation, and maintenance of your Autoflash Attachment.

Placing your equipment into service and using your machine:

To place your machine into service, follow the assembly instructions on Pages 5-8.
To use your machine, reference the control section on Page 9.

Spec Tag

Vastex Model #

Input Voltage

Rated Amp Draw

Heater output

Single or 3 Phase

Weight of Machine

Year of Manufacture
