30-inch Audio/Video Tower
Model # PRO9005GB
LOT No.:
DATE OF PURCHASE:
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if you are missing parts, do not return this item to
the Retailer Store. Please call our toll free customer service number and have your instructions
and parts list ready to provide the model name, part name or factory number:
1-866-942-5362 8:30 a.m. - 4:30 p.m. PST, Monday - Friday
ONLINE: www.whalenfurniture.com EMAIL: parts@whalenfurniture.com
Video Instruction Guides
Go to http://whalen.showuhow.com to view step-by-step instructional
videos for assembling and installing your product. Enter the following
product number on the ShowUhow homepage.
PRO9005GB
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 1
SAFETY INFORMATION.
Model # PRO9005GB
QUALITY GUARANTEE
We are confident that you will be delighted with your VAS Furniture purchase.
Should this product be defective in workmanship or materials or fail under
normal use, we will repair or replace it for up to 1 year from date of purchase.
Every VAS Furniture product is designed to meet your highest expectations.
This warranty gives you specific legal rights and you may also have other rights
which vary from State to State.
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m. PST Monday to Friday
WWW.WHALENFURNITURE.COM
MANUFACTURER: VAS FURNITURE
CATALOG: 30-inch Audio/Video Tower (PRO9005GB)
DATE OF MANUFACTURE: June 2009
MADE IN CHINA
MAXIMUM LOA D 25 LBS
FITS UP TO MOST 40” FLAT PANEL TV’S
MAXIMUM LO A D 80 LBS
This unit is intended for use only with the products and maximum
weights indicated. Use with other products or products heavier than the maximum
weights indicated may result in instability causing possible injury.
Notes: Plasma TV’s with base support should be placed squarely in the center of the
stand with no overhanging on either side.
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 2
MAXIMUM SHELF LOAD 50 LBS
Model # PRO9005GB
Furniture Tipping Restraint
Young children may be injured by tipping furniture and the use of a tipping restraint is
highly recommended. This hardware, when properly installed, could provide
protection against the unexpected tipping of furniture due to improper use.
Warning: This product is only a deterrent and is not a substitute for proper adult
supervision.
Follow instruction printed on the White bag inside the hardware for this unit. You
must install the hardware with the product in use.
Care and Maintenance
We use only top quality materials. To preserve the luster and beauty we recommend
you treat this furniture regularly with quality cleaning Oil.
Compare this furniture and you will find we offer one of the Best Values in the
marketplace today.
We hope you enjoy your purchase for many years
ASSEMBLY TIPS
Read all instructions BEFORE assembly.
Remove all hardware from box and sort by size.
Check to see that all hardware and parts are present BEFORE assembling.
Ask a friend to assist you with the assembly of this furniture.
To avoid damage, assemble the unit on a sturdy, level and non-abrasive surface.
Please wait until all steps are completed before tightening bolts.
Make sure all bolts are tightly fastened before the unit is used.
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 3
Model # PRO9005GB

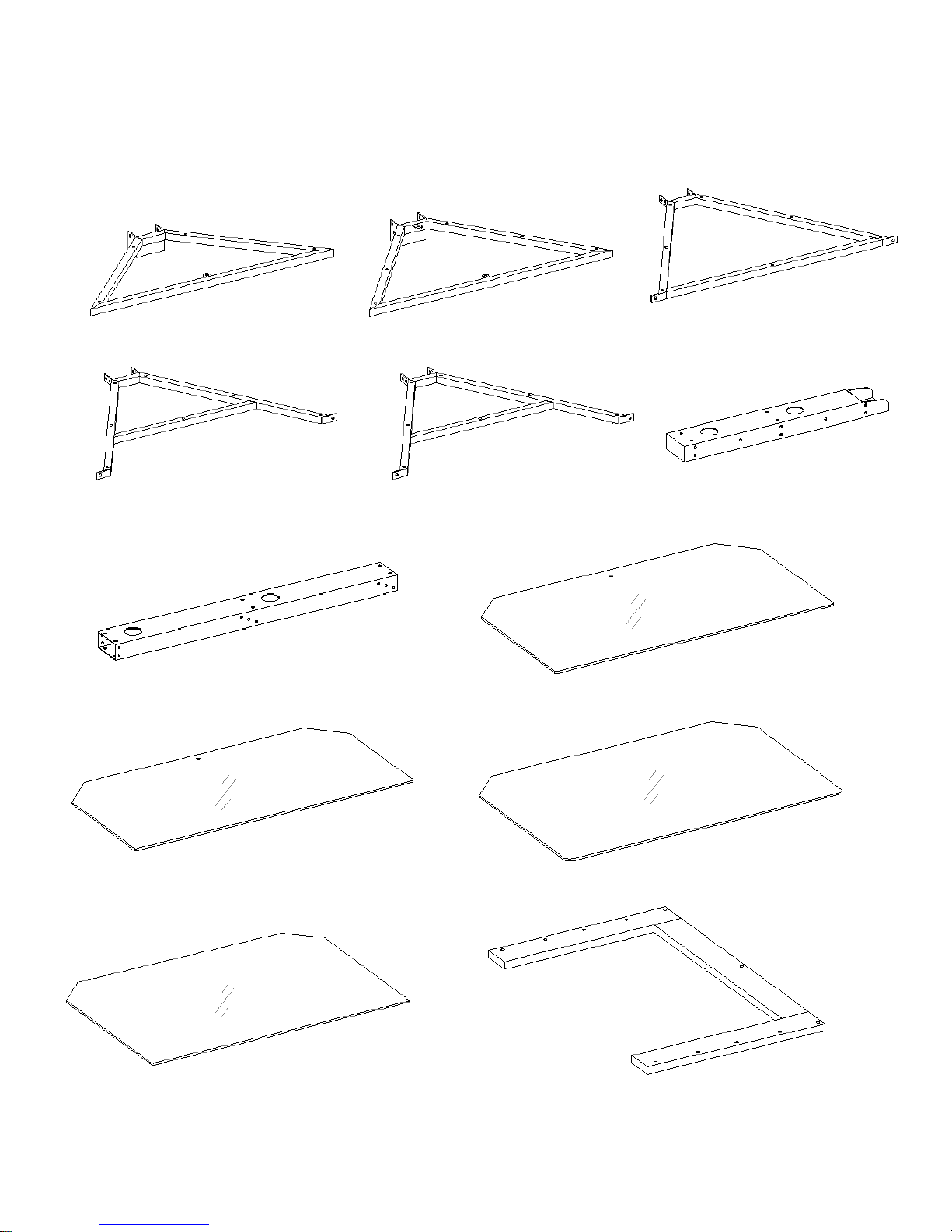

Parts & Hardware List
Please read completely through the instructions and verify that all parts listed are
present before beginning assembly.
A- To
G- Upper Spine (1) H- Top Glass (1)
p Shelf Frame (1) B- Second Shelf Frame (1) C- Large Shelf Frame (1)
D- Fourth Shelf Frame (1) E- Bottom Shelf Frame (1) F- Lower Spine (1)
(with threaded inserts on bottom for leveler)
I- Small Glass Shelf (1) J- Large Glass Shelf (1)
K- Bottom Glass Shelf (2) L- Front Panel (1)
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 4
Model # PRO9005GB
Parts & Hardware List
Please read completely through the instructions and verify that all parts listed are
present before beginning assembly.
M- Front Left Support (2) N- Front Right Support (2) O- Back Left Support (2)
P- Back Right Support (2) (1)- 2 1/8” Bolt (10+1 extra) (2)- 1 1/4” Bolt (1+1 extra)
(3)- 5/8” Bolt (48+2 extra) (4)- Lock Washer (59+2 extra) (5)- Flat Washer (59+2 extra)
(6)- Suction Cup (33+1 extra) (7)- Glass Pin (2) (8)- Floor Leveler (2)
Allen Wrench (1) Tipping Restraint Hardware Kit (1)
(Inside Plastic White Bag)
Tools Required: Allen Wrench (provided).
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 5
Model # PRO9005GB
Assembly Instructions
Note: Please do not fully tighten all bolts until you finish assembling all parts, then go
back and fully tighten all bolts, this will make it easier during assembly of unit.
1. Unpack the unit and confirm that you have all the hardware and required parts listed.
2. Attach two Floor Levers (8) to the bottom threaded inserts of Bottom Shelf Frame (E) for the
necessary adjustment as shown in detail #1.
3. Insert the upper part of Lower Spine (F) into the Upper Spine (G) to form a long Spine.
Secure them in place using two 5/8” Bolts (3) with Lock Washer & Flat Washer (4 & 5)
through the upper hole set. As shown in detail #1A.
Parts Provided Qty Tools Required
E- Bottom Shelf Frame (1) Allen Wrench
F- Lower Spine (1)
G- Upper Spine (1)
(3) - 5/8” Bolt (2)
(4) - Lock Washer (2)
(5) - Flat Washer (2)
(8)- Floor Leveler (2)
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 6
Model # PRO9005GB
Assembly Instructions
4. Locate the assembled Spine and set back face down on a scratch free surface as shown in
detail #2.
5. Align and attach Top Shelf Frame (A) to the top of the Spine, using the 5/8” Bolts (3) with
Lock Washer & Flat Washer (4 & 5) through the bracket holes into the Spine. Tighten bolts
with provided Allen Wrench, see detail #2.
6. Repeat last procedure to attach the other Shelf Frames (B, C, D & E) onto the Spine in
place. Make certain the Floor Levelers on Bottom Shelf Frame (E) are facing bottom as
shown in detail #2.
Parts Provided Qty Tools Required
A – Top Shelf Frame (1) Allen Wrench
B – Second Shelf Frame (1)
C – Large Shelf Frame (1)
D – Fourth Shelf Frame (1)
(3) - 5/8” Bolt (24)
(4) - Lock Washer (24)
(5) - Flat Washer (24)
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 7
Model # PRO9005GB
Assembly Instructions
7. Flip over last assembly.
8. Align and attach the lower 3 Shelf Frames to Front Panel (L). Insert and screw six 5/8” Bolts
(3) with Washer (4 & 5) through the end bracket holes and one 1 1/4″Bolt (2) with Washers
(4 & 5) through the middle hole on front rail of Large Shelf Frame (C) into the threaded
inserts on the Front Panel. See detail #3.
Note: Make sure the Front Panel is flush with the top surface of Top Frame.
9. Proceed to fasten all Shelf Frames to the assembled Spine using the 2 1/8” Bolts (1) with
Washers (4 & 5) through the predrilled holes of the Spine into place, two bolts per Shelf
Frame. Tighten bolts with Allen Wrench provided as shown in detail #3A.
Parts Provided Qty Tools Required
L – Front Panel (1) Allen Wrench
(1) - 2 1/8” Bolt (10)
(2) – 1 1/4” Bolt (1)
(3) - 5/8” Bolt (6)
(4) - Lock Washer (17)
(5) - Flat Washer (17)
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 8
Model # PRO9005GB
r
Assembly Instructions
10. Turn the unit upright.
11. Attach the Front Left & Front Right Supports (M & N) in place to connect the Shelf Frames
(C & D) with Front Panel (L) using the 5/8” Bolts (3) with Washers (4 & 5), as shown in detail
#4.
12. Attach the Back Left and Back Right Support (O & P) to the Shelf Frames (C & D) and
Lower Spine (F) in place with the 5/8” Bolts (3) with Washers (4 & 5), as shown in detail #4.
Parts Required Qty Tools Required
M- Front Left Support (2) Allen Wrench
N - Front Right Support (2)
O –Back Left Support (2)
P –Back Right Support (2)
(3) - 5/8” Bolt (16)
(4) -Lock Washer (16)
(5) -Flat Washe
(16)
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 9
Model # PRO9005GB
Assembly Instructions
13. Put Suction Cups (6) into top holes of all Shelf Frames in place as shown in detail #5.
14. Place the Top Glass and Glass Shelves (H, I, J & K) in place, make sure the glasses are
center and the cut edges point towards back. See detail #5.
15. Proceed to align and secure the Top Glass & Small Glass Shelf (H & I) in place with two
provided Glass Pins (7) through the pre-drilled hole on Glass into top hole of the Upper
Spine (G) and the bracket welded on the Second Shelf Frame (B) respectively, as shown in
detail #5A.
Note: Make sure that the Glass sits correctly and the Glass Pins go all the way into the
bracket to prevent the glass shelf from falling and getting damage. If glass is scratched you
can repair by using a BLACK marker and filling in scratched area from underneath.
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 10
Parts Required Qty Tools Required
H- Top Glass Shelf (1) No Tool Required
I – Small Glass Shelf (1)
J- Large Glass Shelf (1)
K– Bottom Glass Shelf (2)
(6) – Suction Cup (33)
(7)- Glass Pin (2)
Model # PRO9005GB
Assembly Instructions
16. In case of uneven floor, simply tilt the unit back and use your hand to turn the Floor Levelers
attached at the bottom of Bottom Shelf Frame (E) to correct tilting, until the unit is level. As
shown in detail #6.
17. Now follow the instructions printed on the plastic white bag in order to mount the Tipping
Restraint Hardware Kit to the Upper Spine (G) properly. As shown in detail #6.
NOTE: YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO
THE WALL, TO PREVENT ACCIDENTS AND/OR INJURIES.
18. The audio video tower is ready for use now. Be sure to position your TV in center of Large
Glass Shelf with no overhang on either side.
Tools Required: Allen Wrench (provided), Phillips Screwdriver, Mallet, Power Drill, and 3/8”
Your assembly should now be complete.
Thank you for your purchase.
Drill Bit
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 11
