Page 1
Manual

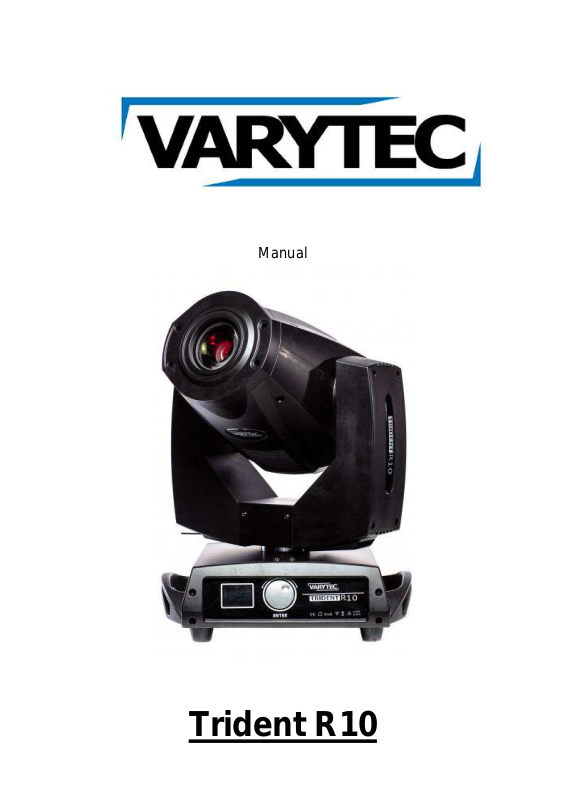

Trident R10
Page 2
Table of contents
1. Safety instructions ............................................................................................................................ 3
1.1. FOR SAFE AND EFFICIENT OPERATION ............................................................................ 3
1.2. Additional Information for safety .............................................................................................. 4
2. Statement ......................................................................................................................................... 5
2.1. Product description .................................................................................................................. 5
2.2. Introduction to the product ....................................................................................................... 5
2.2.1.
Technical Data ................................................................................................................. 5
3. Packaging ......................................................................................................................................... 7
3.1. Inclusive ................................................................................................................................... 7
3.2. Transport lock .......................................................................................................................... 7
3.3. Lamp type ................................................................................................................................ 7
3.3.1.
Changing the lamp .......................................................................................................... 7
4. Control .............................................................................................................................................. 9
4.1. Description of the display section ............................................................................................ 9
4.1.1.
Structure of the menu ...................................................................................................... 9
4.2. DMX Chart ............................................................................................................................. 11
4.2.1.
Mode 1 Compressed mode (15 Channels) ................................................................... 11
4.2.2.
Mode 2 Normal mode (17 channels) ............................................................................. 14
4.2.3.
Mode 3 Extended mode (24 channels) ......................................................................... 17
2 / 24
Page 3
1. Safety instructions
• This device is suitable for indoor use (not outdoors) only.
• All modifications to the device will void the warranty.
• Repairs are to carry out by skilled personnel only.
• Use only fuses of the same type and original parts as spare parts.
• Protect the unit from rain and humidity to avoid fire and electric shocks.
• Make sure to unplug the power supply before opening the housing.
1.1. FOR SAFE AND EFFICIENT OPERATION
Be careful with heat and extreme temperature
Avoid exposing it to direct rays of the sun or near a heating appliance.
Not put it in a temperature bellow 32°F /0°C, or exceeding 104°F /40°C.
Keep away from humidity, water and dust
Do not place the set in a location with high humidity or lots of dust.
Containers with water should not be placed on the set.
Keep away from sources of hum and noise
Such as transformer motor, tuner, TV set and amplifier.
To avoid placing on un-stable location
Select a level and stable location to avoid vibration.
Do not use chemicals or volatile liquids for cleaning
Use a clean dry cloth to wipe off the dust, or a wet soft cloth for stubborn dirt.
If out of work, contact sales agency immediately
Any troubles arose, remove the power plug soon, and contact with an engineer for repairing,
do not open the cabinet by yourself, it might result a danger of electric shock.
Take care with the power cable
Never pull the power cable to remove the plug from the receptacle, be sure to hold the plug.
When not using the device for an extended period of time, be sure to disconnect the plug
from the receptacle
.
3 / 24
Page 4
Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability f
the electrical connection is carried out by qualified personnel. All electrical and mechanical
connections have to be carried out according to the European safety standards.
Additional Information for safety
Exessive temperature
Please do not use the device if the temperature exceeds 40°C/104°F.
Risk of breakage
If the lens is broken you
lens only for an original of the producer. Size of lens:
To avoid injuries carry the package only by twos.
mounting bracket has the ability to car
Always u
working at the device the place below has to be vacated
UV protection and lamp explosion
Do not look unprotected directly into the light.
lens and the casing, but without the casing it is possible to cause damages
Beware of electrical shock
Make sure the electrical connection is carried out
you plug in the device make sure that the power supply system has the right
voltage and also a crowbar. Every device has to be grounded.
if you want to change a lamp or you have to open the device. Yo
to accomplish this action if there is a thunderstorm or high humidity.
Make sure that the fuse functioned. It is never allowed to bridge it.
exchange it only use fuses of the same type.
The distance between the
distance of 3m the temperature of the beam subside among 60°C.
It is not allowed cover fans and
or any resulting defects or problems. Make sure
use the device anymore. Exchange in this case the
d = 74 x30mm.
If you install the device the
ry the tenfold load of the weight of the
se a corresponding safety to safe the device additional. While
The UV radiation is
by qualified personnel.
device and lighted things has to be at least 3m. From a
Important:
1.2.
Ta=40°C
cannot
Drop safety
device.
shielded by the
on the
eyes.
Unplug the power
supply
Fire risk
air in and outlets.
Before
u also have
If you have to
4 / 24
Page 5
Make sure that there is a distance between the device and all objects in an area of
0.5m.
Don’t put or mount anything on the lens.
The device has to cool down for 20 minutes before opening.
2. Statement
When we send out the goods, they are well packaged and also at best condition. Every product was
tested before delivery. If you recognize mistakes or damages please contact the delivery agent or the
supplier. Please read this manual faithful. In this manual you can find information about the handling
and the safety regulations of this product. If you disregard this manual we cannot give a warranty for it.
Technical changes, which are for progress, may be possible at any time. They are not mentioned
particularly in this manual, but affixed extra.
2.1. Product description
Thank you for choosing this device. This device is on the current state of technology and has a range
of features and meets the requirements of the DMX512 USITT 1990 standard. This device was
developed for many different purposes e.g. TV studios, discos, nightclubs, bars and concerts.
2.2. Introduction to the product
2.2.1. Technical Data
Power supply
Voltage 110V - 240V / 50-60HZ
Light source
Lamp type Osram Sirius HRI
Wattage 280W
Color temperature 8000K
Optics
Zoom 3.8°-45°
Focus yes
Connections
Power in
Power out no
DMX in/out XLR Neutrik 3pin
Functions
Pan 540°
Tilt 250°
Colors Color wheel (17 colors)
Gobo wheel 1 9xrotatable
Gobo wheel 2 17xstatic
Prism 3-way
Frost filter no
Powercon
5 / 24
Page 6
Operation
Sound-to-light yes
Automatic yes
Master-Slave yes
DMX 15/17/24 channels
Artnet no
RDM no
Hardware
Protection class IP20
Skill indoor
Measurements (LxWxH) 320 x 400 x 580 mm
Weight 18.5kg
Material Plastic
6 / 24
Page 7
Hanging
3. Packaging
3.1. Inclusive
The device could be packed in carton, in a single case or in twin case.
To every device belong the following accessories, which you have to multiply with the number of
devices.
Per device:
Material Quantity
Manual 1 pcs.
Brackets 2 pcs.
Cable 1 pcs.
3.2. Transport lock
To protect the device there is a transport lock. Before connecting the device to the power supply
system you have to open the transport lock. If you want to transport you have to close the transport
lock, so that the head of the device is not able to swing freely.
3.3. Lamp type
In this Device a lamp of the type
the device.
Please change always the lamp when lifetime runs out. If you do not it could be possible that the lamp
implodes and damages the device.
Osram Sirius HRI 280W is used. Please use only this type of lamp for

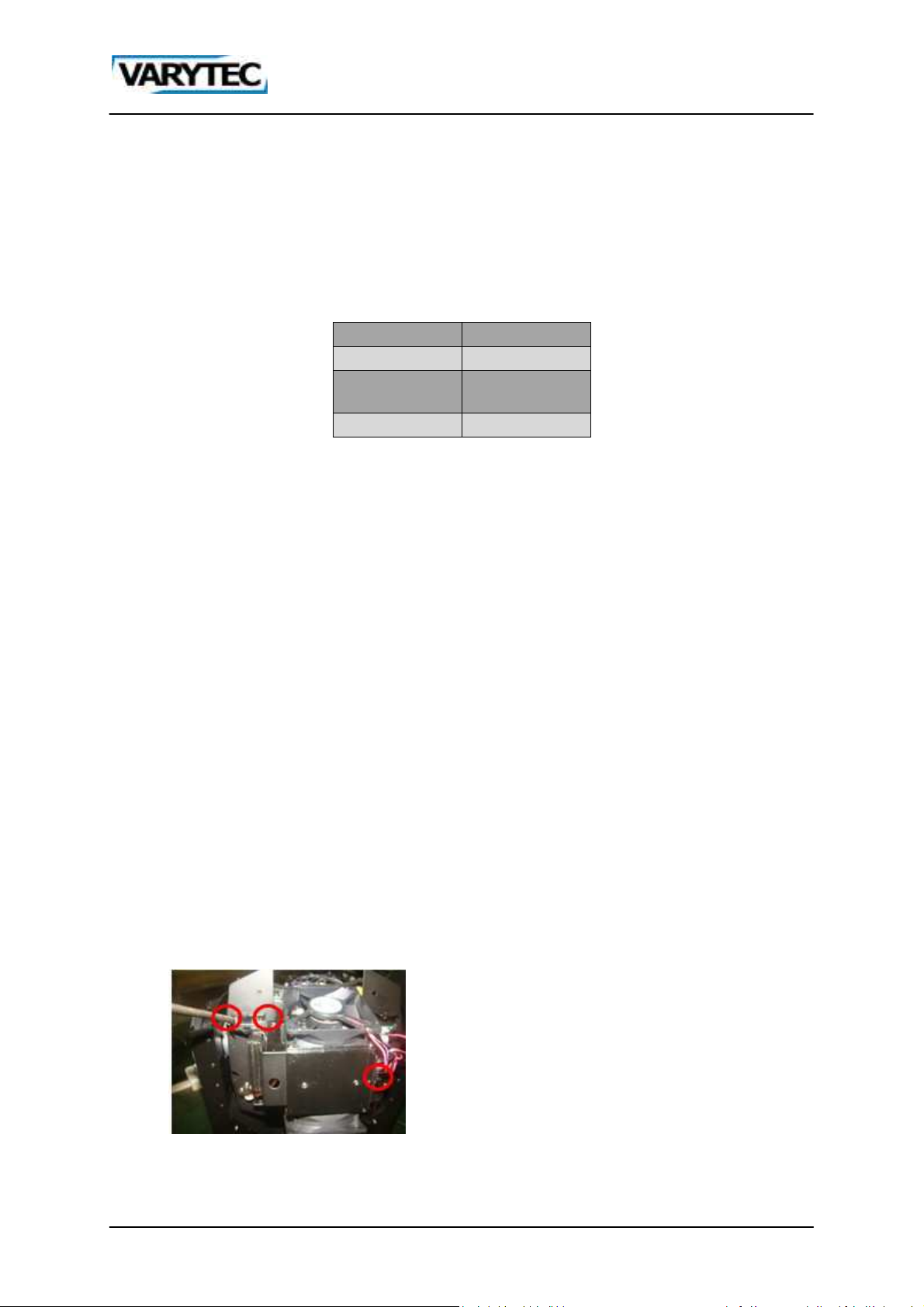

3.3.1. Changing the lamp
Important! If you change the lamp it is not allowed to touch the lamp with bare fingers. The body fat
layer remains in the lamp and could damaged it or brand.
1. Interrupt the current supply. Wait at least 20min before you open the device, so that the old
lamp can cool down. Arrest the Y-position of the device to 60°.
2. Use a cross-tip screwdriver to open the cover. Release the bracket of the fan and the cable at
the three points which you can see in the picture.
7 / 24
Page 8
3. Now you can release the screws of the fan how you can see here.
4. Press cautious on the reflector. Like you can see in this picture.
5. Pull the lamp in one direction like it is shown.
6. Now you can remove the lamp, you only have to release the cables of the lamp and then you
can remove it.
7. Install the new lamp backwards.
8 / 24
Page 9
Description of the display section
Every menu is controlled by the jogwheel on the right of the display.
Rotation changes the values if you push it you confirm the value.
there you have to push the wheel again.
Structure of the menu
Submenu 2
Xreverse
Yreverse
XY Speed
X Angle
XY Fback
Return
You can exit the menu with point of
Function description
Address number set
(15 DMX channels)
(17 DMX channels)
24 DMX channels)
Backlight close after delay 60s
Backlight light always
Menu back to main menu after delay 90s
Menu back not automatically
Pan/Tilt optical sensor testing off
Pan/Tilt optical sensor testing on
Shortcut off for colors and gobos
colors and gobos
Accept other signal control
Inside program run
4. Control
4.1.
menu EXIT;
4.1.1.
Main Menu Submenu 1
Address
DMX
Display
Feature
Mode
ShowReve
BrigSett
Backligh
MenuBack
Return
XY Setup
Shortcut
FullColr
ReceMode
RunMode
SigClear
Function SET
1-512
Off keep signal data
Smal Simplify mode
Stan Standard mode
Exte Extended mode (
Natu Normal
Revl Reverse 180°
000-007 Brightness set
60S
Ligh
90S
Off
Return
Off Pan scan normal
Open Pan scan reverse
Off Tilt scan normal
Open Tilt scan reverse
Fast Pan/Tilt fast speed
NORM Pan/Tilt normal
Solw Pan/Tilt slow
360, 360 Pan angle 360°
540, 540 Pan angle 540°
630, 630 Pan angle 630°
Off
Open
Return
Off
Open Shortcut open for
Off Half color function
Open Full color function
DMX, DMX Accept DMX
Wire Accept Wireless
Auto AutoRun
Slve
Muse Sound active
Auto
automatically
9 / 24
Page 10
TimeLimi
TimsLimi
Passwor1
Passwor2
Passwor3
Passwor4
X Drivin
X Driven
Y Drivin
Y Driven
LampPowe
Y Angle
Lamp off by manual
Lamp on by manual
Close other signal control the
open other signal control the lamp
Password input enter
working hours memo
Fan rotation speed 1
Fan rotation speed 2
Chan 00
-
DMX value number
Chan
00
-
Control the channels
Password input enter
Recover factory set
Password input enter
Close other signal control reset
other signal control reset
Password input enter
Password input enter
Open fixture time limit
Pan main drive gear
Pan slave drive gear
Tilt main drive gear
Tilt slave drive gear
Tilt angle rotation set
LampSett
InfoSee
Return
Default
Control
DmxLamp
LampTime
ClearTim
LampStat
Return
WorkHour
Times
Fan1Rota
Fan2Rota
Version
Open clear signal data
Return
Wink Lamp off
Ilum Lamp on
Wink
Ilum
Off
On
lamp
0000-9999 Lamp time
*
Ilum Clear lamp time
Wink Lamp off
Ilum Lamp on
Return
0000-9999
for connect power
0000-9999 Open times memo
0000-9999
0000-9999
V0.0 Version
ChanLevel
Return
Control
Factory
Defaults
DMXReset
Redress
AssiTool
Brightne
Chan40
Return
Chan40
*
Fold
Save Save factory set
*
Fold Recover to default
Off
Open Open
*
00-10 Set motors
*
0000-9999
0000-9999 Fixture times limit
000-255 Revise password 1
000-255 Revise password 2
000-255 Revise password 3
000-255 Revise password 4
000-255
000-255
000-255
000-255
Off Ballast earthed
total 5V, Open Ballast 5V
000-255
10 / 24
Page 11
Return
-
Mode 1 Compressed mode (15 Channels)
Value
from
100
105
110
115
120
125
130
135
Check cabrilate data
Checksum 01
Return
Reset
ExitMenu
4.2. DMX Chart
000-255 Return
10
Annu Cancel
Exec Reset
Return
Exit
4.2.1.
Channel
1 PAN 0
2 PAN f 0
3 TILIT 0
4 TILT f 0
5 PT Speed 0
0
5
10
15
20
25
30
35
40
45
50
55
60
6 COLOR
65
70
75
80
85
90
95
Value to Description
255 Pan
255 Pan fine
255 Tilt
255 Tilt fine
255 PT speed from fast to slow
4 Open white
9 Open white + Color 1
14 Color 1
19 Color 1 + Color 2
24 Color 2
29 Color 2 + Color 3
34 Color 3
39 Color 3 + Color 4
44 Color 4
49 Color 5 + Color 5
54 Color 5
59 Color 5 + Color 6
64 Color 6
69 Color 6 + Color 7
74 Color 7
79 Color 7 + Color 8
84 Color 8
89 Color 8 + Color 9
94 Color 9
99 Color 9 + Color 10
104 Color 10
109 Color 10 + Color 11
114 Color 11
119 Color 11 + Color 12
124 Color 12
129 Color 12 + Color 13
134 Color 13
139 Color 13 + Color 14
11 / 24
Page 12
7 Gobo 1
8 Gobo Rot
9 Gobo
140 144 Color 14
145 149 Color 14 + Open white
150 200 Color rotation from slow to fast clockwise
201 204 Stop at any position
205 255 Color rotation from fast to slow counterclockwise
0 4 Gobo off
5 9 Gobo 1
10 14 Gobo 2
15 19 Gobo 3
20 24 Gobo 4
25 29 Gobo 5
30 34 Gobo 6
35 39 Gobo 7
40 44 Gobo 8
45 49 Gobo 9
50 54 Gobo 1 shake
55 59 Gobo 2 shake
60 64 Gobo 3 shake
65 69 Gobo 4 shake
70 74 Gobo 5 shake
75 79 Gobo 6 shake
80 84 Gobo 7 shake
85 89 Gobo 8 shake
90 94 Gobo 9 shake
95 170 Gobo wheel rotation slow to fast clockwise
171 179 Stop at any position
180 255 Gobo wheel rotation slow to fast counterclockwise
0 127 Indexing of the Gobo 0-360°
128 178 Gobo rotation slow to fast clockwise
179 204 Stop at any position
205 255 Gobo rotation slow to fast counterclockwise
0 4 Gobo open
5 9 Gobo 1
10 14 Gobo 2
15 19 Gobo 3
20 24 Gobo 4
25 29 Gobo 5
30 34 Gobo 6
35 39 Gobo 7
40 44 Gobo 8
45 49 Gobo 9
50 54 Gobo 10
55 59 Gobo 11
60 64 Gobo 12
65 69 Gobo 13
12 / 24
Page 13
70 74 Gobo 14
75 79 Gobo 15
80 84 Gobo 16
85 89 Gobo 17
90 94 Gobo 1 shake
95 99 Gobo 2 shake
100 104 Gobo 3 shake
105 109 Gobo 4 shake
110 114 Gobo 5 shake
115 119 Gobo 6 shake
120 124 Gobo 7 shake
125 129 Gobo 8 shake
130 134 Gobo 9 shake
135 139 Gobo 10 shake
140 144 Gobo 11 shake
145 149 Gobo 12 shake
150 154 Gobo 13 shake
155 159 Gobo 14 shake
160 164 Gobo 15 shake
165 169 Gobo 16 shake
170 174 Gobo 17 shake
175 210 Gobo wheel rotation slow to fast clockwise
211 224 Stop at any position
225 255 Gobo wheel rotation slow to fast counterclockwise
0 19 Off
20 39 Open
40 59 Random strobe from slow to fast
60 79 Open
10 Shutter
80 99 Ramp up from slow to fast
100 119 Open
120 139 Ramp down from slow to fast
140 249 Strobe standard from slow to fast
250 255 Open
11 Dimmer 0 255 Linear dimmer
12 Focus 0 255 Linear focus
13 Zoom 0 255 Linear zoom
0 19 No effect
20 99 Indexing prism 360°
100 149 Prism rotation from slow to fast clockwise
14 Prism
150 159 Stop at any position
160 209 Prism rotation from slow to fast counterclockwise
210 255
Prism rotation clockwise counterclockwise altering
from slow to fast
15 Reset 0 33 No function
13 / 24
Page 14
34 36
Lamp off after 3 seconds when dimmer and shutter
are both at 0
37 79 No function
80 89
Lamp on after 3 seconds when dimmer and shutter
are at 255
90 99 No function
100 109 Motor reset after 3 seconds
110 129 No function
130 139 Reset complete after 3 seconds
140 255 No function
4.2.2. Mode 2 Normal mode (17 channels)
Channel
1 PAN 0 255 Pan
2 PAN f 0 255 Pan fine
3 TILIT 0 255 Tilt
4 TILT f 0 255 Tilt fine
5 PT Speed 0 255 PT speed from fast to slow
6 COLOR
Value
from
Value to Description
0 4 Open white
5 9 Open white + Color 1
10 14 Color 1
15 19 Color 1 + Color 2
20 24 Color 2
25 29 Color 2 + Color 3
30 34 Color 3
35 39 Color 3 + Color 4
40 44 Color 4
45 49 Color 5 + Color 5
50 54 Color 5
55 59 Color 5 + Color 6
60 64 Color 6
65 69 Color 6 + Color 7
70 74 Color 7
75 79 Color 7 + Color 8
80 84 Color 8
85 89 Color 8 + Color 9
90 94 Color 9
95 99 Color 9 + Color 10
100 104 Color 10
105 109 Color 10 + Color 11
110 114 Color 11
115 119 Color 11 + Color 12
120 124 Color 12
14 / 24
Page 15
7 Gobo 1
125 129 Color 12 + Color 13
130 134 Color 13
135 139 Color 13 + Color 14
140 144 Color 14
145 149 Color 14 + Open white
150 200 Color rotation from slow to fast clockwise
201 204 Stop at any position
205 255 Color rotation from fast to slow counterclockwise
0 4 Gobo off
5 9 Gobo 1
10 14 Gobo 2
15 19 Gobo 3
20 24 Gobo 4
25 29 Gobo 5
30 34 Gobo 6
35 39 Gobo 7
40 44 Gobo 8
45 49 Gobo 9
50 54 Gobo 1 shake
55 59 Gobo 2 shake
60 64 Gobo 3 shake
65 69 Gobo 4 shake
70 74 Gobo 5 shake
75 79 Gobo 6 shake
80 84 Gobo 7 shake
85 89 Gobo 8 shake
90 94 Gobo 9 shake
95 170 Gobo wheel rotation slow to fast clockwise
171 179 Stop at any position
8 Gobo Rot
9 Gobo
180 255 Gobo wheel rotation slow to fast counterclockwise
0 127 Indexing of the Gobo 0-360°
128 178 Gobo rotation slow to fast clockwise
179 204 Stop at any position
205 255 Gobo rotation slow to fast counterclockwise
0 4 Gobo open
5 9 Gobo 1
10 14 Gobo 2
15 19 Gobo 3
20 24 Gobo 4
25 29 Gobo 5
30 34 Gobo 6
35 39 Gobo 7
40 44 Gobo 8
45 49 Gobo 9
15 / 24
Page 16
50 54 Gobo 10
55 59 Gobo 11
60 64 Gobo 12
65 69 Gobo 13
70 74 Gobo 14
75 79 Gobo 15
80 84 Gobo 16
85 89 Gobo 17
90 94 Gobo 1 shake
95 99 Gobo 2 shake
100 104 Gobo 3 shake
105 109 Gobo 4 shake
110 114 Gobo 5 shake
115 119 Gobo 6 shake
120 124 Gobo 7 shake
125 129 Gobo 8 shake
130 134 Gobo 9 shake
135 139 Gobo 10 shake
140 144 Gobo 11 shake
145 149 Gobo 12 shake
150 154 Gobo 13 shake
155 159 Gobo 14 shake
160 164 Gobo 15 shake
165 169 Gobo 16 shake
170 174 Gobo 17 shake
175 210 Gobo wheel rotation slow to fast clockwise
211 224 Stop at any position
225 255 Gobo wheel rotation slow to fast counterclockwise
0 19 Off
20 39 Open
40 59 Random strobe from slow to fast
60 79 Open
10 Shutter
80 99 Ramp up from slow to fast
100 119 Open
120 139 Ramp down from slow to fast
140 249 Strobe standard from slow to fast
250 255 Open
11 Dimmer 0 255 Linear dimmer
12 Focus 0 255 Linear focus
13 Zoom 0 255 Linear zoom
0 19 No effect
14 Prism
20 99 Indexing prism 360°
100 149 Prism rotation from slow to fast clockwise
150 159 Stop at any position
16 / 24
Page 17
160 209 Prism rotation from slow to fast counterclockwise
210 255
Prism rotation clockwise counterclockwise altering
from slow to fast
0 33 No function
34 36
Lamp off after 3 seconds when dimmer and shutter
are both at 0
37 79 No function
15 Reset
80 89
Lamp on after 3 seconds when dimmer and shutter
are at 255
90 99 No function
100 109 Motor reset after 3 seconds
110 129 No function
130 139 Reset complete after 3 seconds
140 255 No function
16 Move 0 255 Preprogrammed effects
17 Speed 0 255 Speed for effects from slow to fast
4.2.3. Mode 3 Extended mode (24 channels)
Channel
1 PAN 0 255 Pan
2 PAN f 0 255 Pan fine
3 TILIT 0 255 Tilt
4 TILT f 0 255 Tilt fine
5 PT Speed 0 255 PT speed from fast to slow
6 COLOR
Value
from
Value to Description
0 4 Open white
5 9 Open white + Color 1
10 14 Color 1
15 19 Color 1 + Color 2
20 24 Color 2
25 29 Color 2 + Color 3
30 34 Color 3
35 39 Color 3 + Color 4
40 44 Color 4
45 49 Color 5 + Color 5
50 54 Color 5
55 59 Color 5 + Color 6
60 64 Color 6
65 69 Color 6 + Color 7
70 74 Color 7
75 79 Color 7 + Color 8
80 84 Color 8
85 89 Color 8 + Color 9
90 94 Color 9
95 99 Color 9 + Color 10
17 / 24
Page 18
7 Gobo 1
100 104 Color 10
105 109 Color 10 + Color 11
110 114 Color 11
115 119 Color 11 + Color 12
120 124 Color 12
125 129 Color 12 + Color 13
130 134 Color 13
135 139 Color 13 + Color 14
140 144 Color 14
145 149 Color 14 + Open white
150 200 Color rotation from slow to fast clockwise
201 204 Stop at any position
205 255 Color rotation from fast to slow counterclockwise
0 4 Gobo off
5 9 Gobo 1
10 14 Gobo 2
15 19 Gobo 3
20 24 Gobo 4
25 29 Gobo 5
30 34 Gobo 6
35 39 Gobo 7
40 44 Gobo 8
45 49 Gobo 9
50 54 Gobo 1 shake
55 59 Gobo 2 shake
60 64 Gobo 3 shake
65 69 Gobo 4 shake
70 74 Gobo 5 shake
75 79 Gobo 6 shake
80 84 Gobo 7 shake
85 89 Gobo 8 shake
90 94 Gobo 9 shake
95 170 Gobo wheel rotation slow to fast clockwise
171 179 Stop at any position
180 255 Gobo wheel rotation slow to fast counterclockwise
0 127 Indexing of the Gobo 0-360°
8 Gobo Rot
128 178 Gobo rotation slow to fast clockwise
179 204 Stop at any position
205 255 Gobo rotation slow to fast counterclockwise
9 Gobo index 0 255 0-360° Gobo indexing 0-360°
10 Index fine 0 255 Gobo index fine
0 4 Gobo open
11 Gobo
5 9 Gobo 1
10 14 Gobo 2
18 / 24
Page 19
15 19 Gobo 3
20 24 Gobo 4
25 29 Gobo 5
30 34 Gobo 6
35 39 Gobo 7
40 44 Gobo 8
45 49 Gobo 9
50 54 Gobo 10
55 59 Gobo 11
60 64 Gobo 12
65 69 Gobo 13
70 74 Gobo 14
75 79 Gobo 15
80 84 Gobo 16
85 89 Gobo 17
90 94 Gobo 1 shake
95 99 Gobo 2 shake
100 104 Gobo 3 shake
105 109 Gobo 4 shake
110 114 Gobo 5 shake
115 119 Gobo 6 shake
120 124 Gobo 7 shake
125 129 Gobo 8 shake
130 134 Gobo 9 shake
135 139 Gobo 10 shake
140 144 Gobo 11 shake
145 149 Gobo 12 shake
150 154 Gobo 13 shake
155 159 Gobo 14 shake
160 164 Gobo 15 shake
165 169 Gobo 16 shake
170 174 Gobo 17 shake
175 210 Gobo wheel rotation slow to fast clockwise
211 224 Stop at any position
12 Shutter
225 255 Gobo wheel rotation slow to fast counterclockwise
0 19 Off
20 39 Open
40 59 Random strobe from slow to fast
60 79 Open
80 99 Ramp up from slow to fast
100 119 Open
120 139 Ramp down from slow to fast
140 249 Strobe standard from slow to fast
250 255 Open
19 / 24
Page 20
13 Dimmer 0 255 Linear dimmer
14 Dimmer f 0 255 Dimmer fine
15 Focus 0 255 Linear focus
16 Focus f 0 255 Focus fine
17 Zoom 0 255 Linear zoom
18 Zoom f 0 255 Zoom fine
0 99 Prism rotation from slow to fast clockwise
100 109 Stop at any position
19
110 209 Prism rotation from slow to fast counterclockwise
210 255
Prism rotation clockwise counterclockwise altering
from slow to fast
20 Index prism 0 255 Index prism 0-360°
21 Index P f 0 255 Index prism fine
0 33 No function
34 36
Lamp off after 3 seconds when dimmer and shutter
are both at 0
37 79 No function
22 Reset
80 89
Lamp on after 3 seconds when dimmer and shutter
are at 255
90 99 No function
100 109 Motor reset after 3 seconds
110 129 No function
130 139 Reset complete after 3 seconds
140 255 No function
23 Move 0 255 Preprogrammed effects
24 Speed 0 255 Speed for effects from slow to fast
20 / 24
Page 21
21 / 24
Page 22
22 / 24
Page 23
23 / 24
Page 24
Importer:
B & K Braun GmbH
Industriestraße 2
D-76307 Karlsbad
www.bkbraun.com
info@bkbraun.com
24 / 24
Loading...
