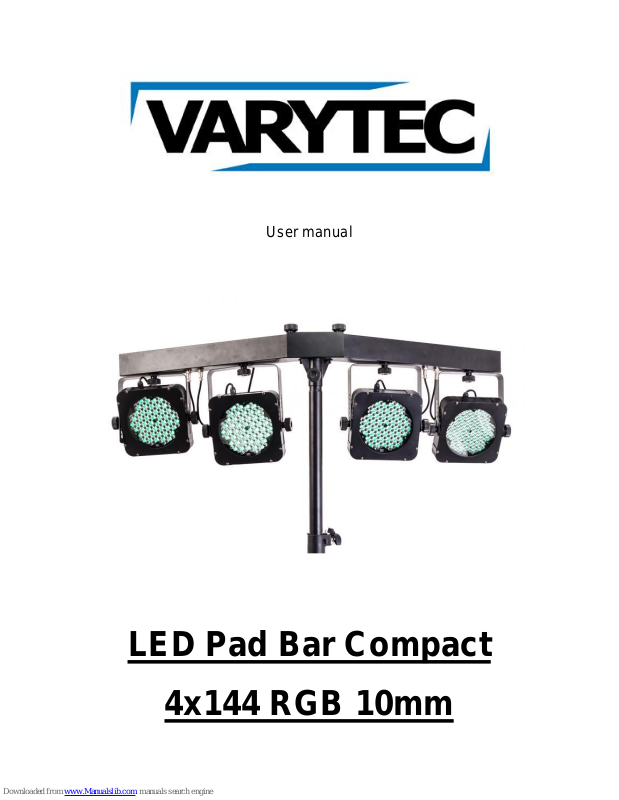

Page 1
User manual
LED Pad Bar Compact
4x144 RGB 10mm
Page 2
2 / 10
Table of contents
1. Safety instructions ............................................................................................................................ 3
1.1. FOR SAFE AND EFFICIENT OPERATION ............................................................................ 3
2. Technical Information ....................................................................................................................... 4
3. Menu structure ................................................................................................................................. 5
4. DMX Table ....................................................................................................................................... 6
4.1. DMX Mode 14 (14 Channel) .................................................................................................... 6
4.2. DMX Mode 5 (5Channel) ......................................................................................................... 7
5. Building instructions ......................................................................................................................... 8
6. Foot controller (optional fixtures) ...................................................................................................... 9
7. Technical Data ................................................................................................................................. 9
Page 3
3 / 10
1. Safety instructions
This device is suitable for indoor use only.
All modifications to the device will void the warranty.
Repairs are to carry out by skilled personnel only.
Use only fuses of the same type and original parts as spare parts.
Protect the unit from rain and humidity to avoid fire and electric shocks.
Make sure to unplug the power supply before opening the housing.
1.1. FOR SAFE AND EFFICIENT OPERATION
Be careful with heat and extreme temperature
Avoid exposing it to direct rays of the sun or near a heating appliance.
Not put it in a temperature bellow 32°F /0°C, or exceeding 104°F /40°C.
Keep away from humidity, water and dust
Do not place the set in a location with high humidity or lots of dust.
Containers with water should not be placed on the set.
Keep away from sources of hum and noise
Such as transformer motor, tuner, TV set and amplifier.
To avoid placing on un-stable location
Select a level and stable location to avoid vibration.
Do not use chemicals or volatile liquids for cleaning
Use a clean dry cloth to wipe off the dust, or a wet soft cloth for stubborn dirt.
If out of work, contact sales agency immediately
Any troubles arose, remove the power plug soon, and contact with an engineer for repairing,
do not open the cabinet by yourself, it might result a danger of electric shock.
Take care with the power cable
Never pull the power cable to remove the plug from the receptacle, be sure
to hold the plug. When not using the device for an extended period of time, be sure to
disconnect the plug from the receptacle.
Page 4
4 / 10
Important: Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or
problems. Make sure the electrical connection is carried out by qualified
personnel. All electrical and mechanical connections have to be carried out
according to the European safety standards.
2. Technical Information
- Full DMX 512 control
- DMX Modes with 5 or 14 Channels
- Sound controlled via built-in microphone
- Adjustable sound sensitivity
- Function: Colour mix
Automatic colour change
Built-in programs
Strobe effect with adjustable speed
Dimmer
Master/slave
- LED-display
- 3 Pin XLR Input & Output
- 4x144 LEDs RGB
Page 5
5 / 10
3. Menu structure
Menu
Addr
1
Adjusts the DMX address 1...512
512
Auto
Aut 1
SP 1…SP 9
2 different programs, speed control 1-9
Aut 2
SoUd
SoU1
SP 1…SP 9
Sound to Light, Flash white, control of
sound sensitivity 1-9
SoU 2
Sound to Light, color change flash, control
of sound sensitivity
CoLO
CoL1
9 selective colours
…
Col 9
ALF
r 0-255
Dimmer red LEDs
g 0-255
Dimmer green LEDs
b 0-255
Dimmer blue LEDs
ChAS
C1
SP 1…SP 9
5 saved chases
…
C5
Chnd
14 Ch
2 DMX modes
5 Ch
Slav
SLA
Slave mode
uer
Readout software version
Tips: Push the MENU-button to reach the first menu and use the UP/Down-buttons to get to submenu. To open the
submenu you have to push the ENTER-button, here you can also reach other menu items with the UP/DOWNbuttons, confirm with ENTER. Push the MENU-button to store you settings.
Page 6
6 / 10
4. DMX Table
4.1. DMX Mode 14 (14 Channel)
DMX
Value
Function
Channel
1
0-255
Dimmer 1 red LEDs
2
0-255
Dimmer 1 green LEDs
3
0-255
Dimmer 1 blue LEDs
4
0-255
Dimmer 2 red LEDs
5
0-255
Dimmer 2 green LEDs
6
0-255
Dimmer 2 blue LEDs
7
0-255
Dimmer 3 red LEDs
8
0-255
Dimmer 3 green LEDs
9
0-255
Dimmer 3 blue LEDs
10
0-255
Dimmer 4 red LEDs
11
0-255
Dimmer 4 green LEDs
12
0-255
Dimmer 4 blue LEDs
13
0-255
Shutter, speed slow-fast
14
Special functions
0-11
No function
12-23
Chase 1
24-35
Chase 2
36-47
Chase 3
48-59
Chase 4
60-71
Chase 5
72-83
Auto 1
84-95
Auto 2
96-107
Auto 3
108-119
Auto 4
120-131
Auto 5
132-143
Auto 6
144-155
Auto 7
156-167
Auto 8
168-179
Auto 9
180-191
Auto 10
192-203
Auto 11
204-215
Auto 12
216-227
Auto 13
228-239
Auto 14
240-251
Sound 1
252-255
Sound 2
Page 7
7 / 10
4.2. DMX Mode 5 (5Channel)
DMX
Value
Function
Channel
1
0-255
Dimmer red LEDs
2
0-255
Dimmer green LEDs
3
0-255
Dimmer blue LEDs
4
0-255
Shutter, speed slow-fast
5
Special functions
0-11
No function
12-23
Chase 1
24-35
Chase 2
36-47
Chase 3
48-59
Chase 4
60-71
Chase 5
72-83
Auto 1
84-95
Auto 2
96-107
Auto 3
108-119
Auto 4
120-131
Auto 5
132-143
Auto 6
144-155
Auto 7
156-167
Auto 8
168-179
Auto 9
180-191
Auto 10
192-203
Auto 11
204-215
Auto 12
216-227
Auto 13
228-239
Auto 14
240-251
Sound 1
252-255
Sound 2
Page 8
8 / 10

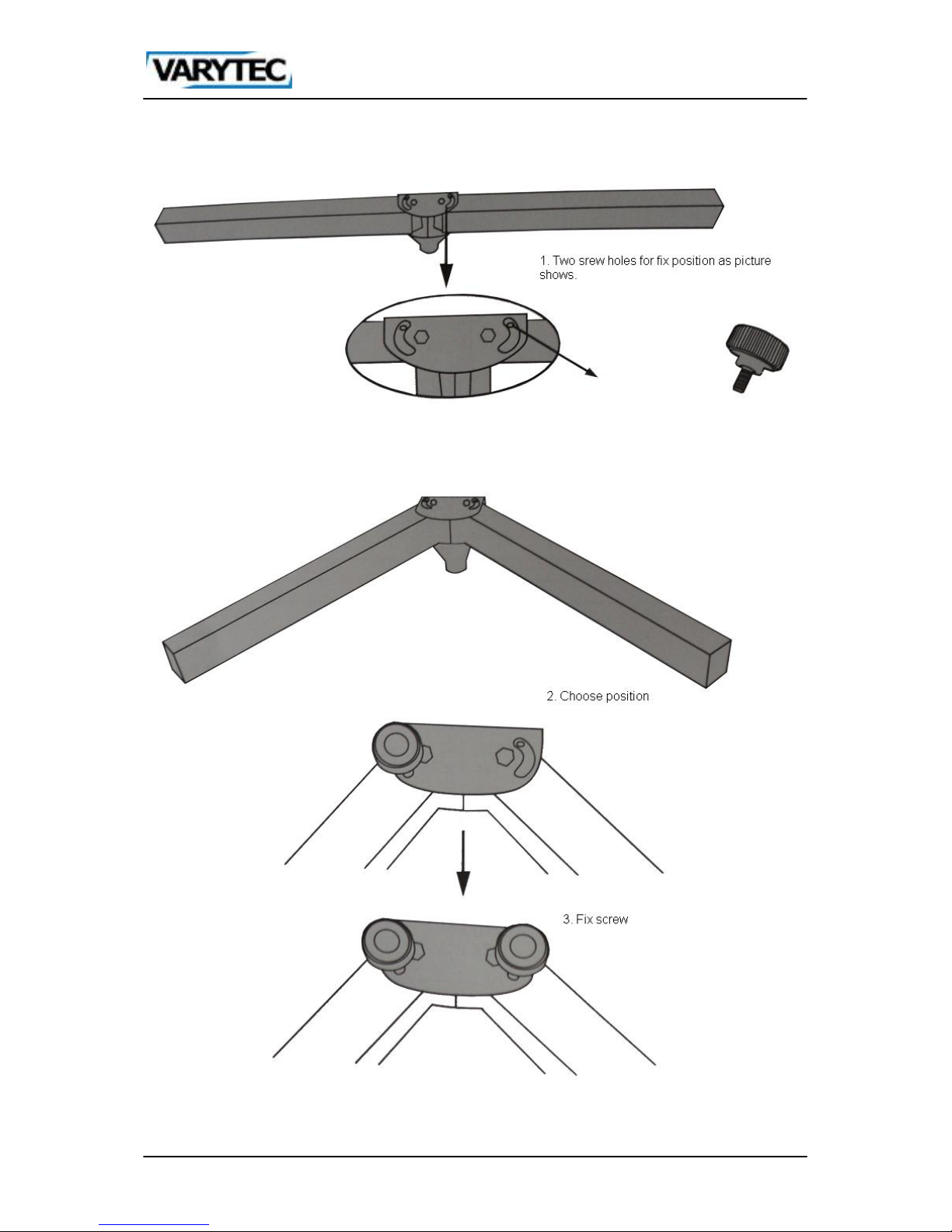

5. Building instructions
Page 9
9 / 10

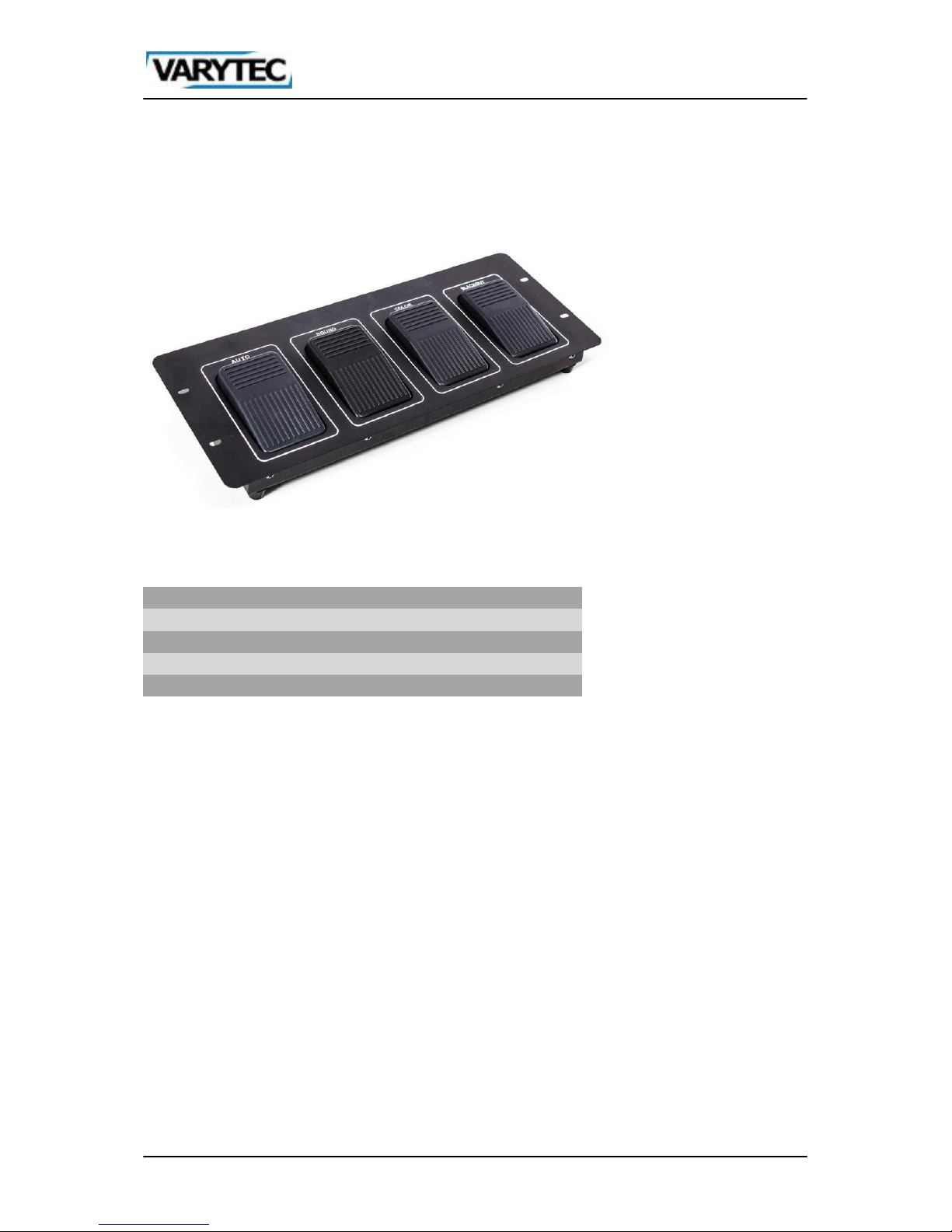

6. Foot controller (optional fixtures)
For the LED Pad bar you can additional purchase a foot controller with this you can also control the
LED Pad Bar.
Pedal
Function
Auto
Activates Auto mode
Sound
Activates Sound to Light
Color
Activates color mode
Blackout
Activates Blackout
7. Technical Data
Power supply: 100-230V AC, 50-60Hz
Power consumption: max. 45W
LED: 4x144 LED RGB
Measurements: 710mm x 440mm x 255mm (L x W x H)
Weight: 15.53 kg
Housing material: Aluminium
Protection class: IP 20
Page 10
10 / 10
Importer:
B & K Braun GmbH
Industriestraße 2
D-76307 Karlsbad
www.bkbraun.com
