Manual
LED Accu Pad 7 7x10 W
RGBWAUV white
2 / 16
Table of contents
1. Safety instructions ............................................................................................................................ 3
1.1. FOR SAFE AND EFFICIENT OPERATION ............................................................................ 3
1.2. Further safety instructions ................................................ Fehler! Textmarke nicht definiert.
1.2.1. Safety-related red flags ............................................ Fehler! Textmarke nicht definiert.
1.2.2. Designated use ................................................................................................................ 4
1.2.3. Overhead installation ....................................................................................................... 5
2. Introduction ....................................................................................................................................... 7
2.1. Product overview ..................................................................................................................... 7
2.2. Battery ..................................................................................................................................... 8
2.2.1. Battery charging............................................................................................................... 8
2.2.2. Service ............................................................................................................................. 8
3. Connections ..................................................................................................................................... 9
3.1. Electrical connections .............................................................................................................. 9
3.2. DMX connections .................................................................................................................... 9
3.3. DMX connection with terminator.............................................................................................. 9
4. Control ............................................................................................................................................ 10
4.1. Structure of the menu ............................................................................................................ 10
4.2. Master-Slave.......................................................................................................................... 11
4.3. Wireless DMX ........................................................................................................................ 11

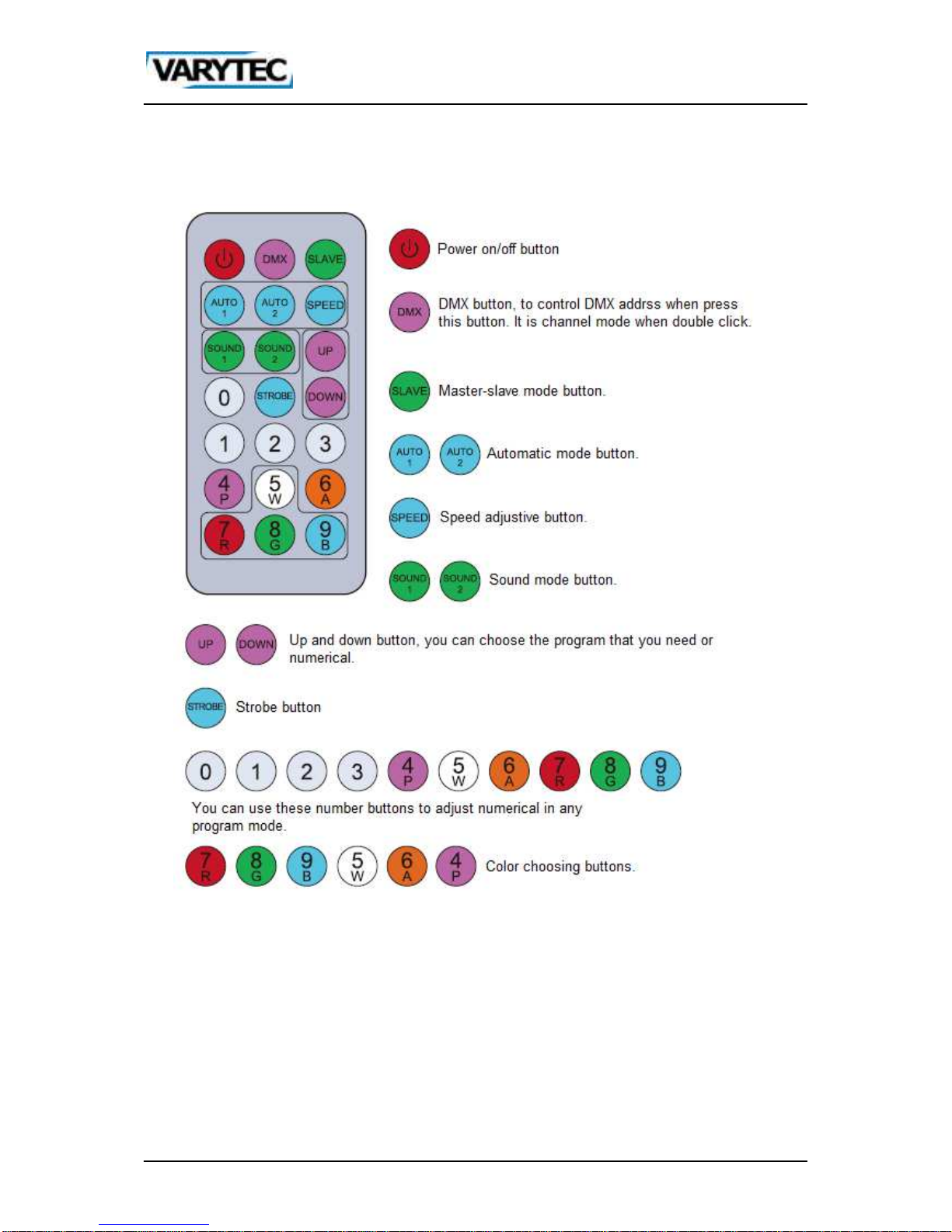

4.4. IR remote ............................................................................................................................... 12
5. DMX chart ...................................................................................................................................... 13
5.1. DMX mode 1 (1 channel) ....................................................................................................... 13
5.2. DMX mode 2 (2 channels) ..................................................................................................... 13
5.3. DMX mode 3 (8 channels) ..................................................................................................... 13
5.4. DMX mode 4 (11 channels) ................................................................................................... 13
6. Technical dato ................................................................................................................................ 15
3 / 16
1. Safety instructions
• This device is suitable for indoor use (not outdoors) only.
• All modifications to the device will void the warranty.
• Repairs are to carry out by skilled personnel only.
• Use only fuses of the same type and original parts as spare parts.
• Protect the unit from rain and humidity to avoid fire and electric shocks.
• Make sure to unplug the power supply before opening the housing.
1.1. FOR SAFE AND EFFICIENT OPERATION
Be careful with heat and extreme temperature
Avoid exposing it to direct rays of the sun or near a heating appliance.
Not put it in a temperature bellow 32°F /0°C, or exceeding 104°F /35°C.
Keep away from humidity, water and dust
Do not place the set in a location with high humidity or lots of dust.
Containers with water should not be placed on the set.
Keep away from sources of hum and noise
Such as transformer motor, tuner, TV set and amplifier.
To avoid placing on un-stable location
Select a level and stable location to avoid vibration.
Do not use chemicals or volatile liquids for cleaning
Use a clean dry cloth to wipe off the dust, or a wet soft cloth for stubborn dirt.
If out of work, contact sales agency immediately
Any troubles arose, remove the power plug soon, and contact with an engineer for repairing, do not
open the cabinet by yourself, it might result a danger of electric shock.
Take care with the power cable
Never pull the power cable to remove the plug from the receptacle, be sure to hold the plug. When not
using the device for an extended period of time, be sure to disconnect the plug from the receptacle.
Important: Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or problems. Make sure
the electrical connection is carried out by qualified personnel. All electrical and mechanical
connections have to be carried out according to the European safety standards.
4 / 16
2. Designated use
This device was developed for professional use on stages, in discos, theatres etc. The device is only
approved for a connection up to 230V 50/60 Hz AC voltage and only for indoor use.
Regular breaks during operation increase the lifetime of your device.
Avoid convulsions or any form of forceful impact during the installation or the start-up of the device.
Make sure that the device is not exposed excessive heat, humidity or dust at the place of installation.
Take care that no cables are lying around. You would endanger your own safety and also the safety of
a third party.
It is not allowed to operate or store the device in an environment in which spray water, rain, humidity
or fog is expected. Humidity or very high atmospheric humidity could reduce the isolation of the device
and could cause deathly electric shocks. If you use fog devices the device has not be exposed to a
direct smoke jet. There has to be a safety distance of at least 0.5m between this device and the fog
machine. Make sure that the saturation of the fog has to enable a visibility of at least 10m.
The ambient temperature has to be between 0°C and +40°C. Avoid direct sunlight and close proximity
to heaters. You have also to attend it during the transport in closed motor vehicles.
You have to attend that with an ambient temperature von 40°C it is not allowed that the relative
humidity exceeds 50%.
Operate the device not during thunderstorms. Surge voltages could destroy the device. Unplug the
power supply during thunderstorms.
During the installation the use of the mounting bracket is obligatory.
Surrounding objects or surfaces should not be in contact with the device.
Make sure that during the installation and removal of the device the area below the place of
installation is basically cordoned off. This also applies to implementation of service.
The device has basically been protected by a suitable safety.
Make familiar yourself with the functions of the device before start-up. People without the experience
should not handle with the device. The most cause of functional disorder is inappropriate handling.
Do not use chemicals or volatile liquids for cleaning. Use a clean dry cloth to wipe off the dust, or a
wet soft cloth for stubborn dirt.
For transport use the original packing or designated accessory to avoid damages during the transport.
For reasons of safety unauthorized changes are forbidden.
A usage of the device which differs from usages which are described in this manual can cause
damages of the device. In that case the warranty expires. Additional you should notice that every
differed usage is related with dangers and can cause e.g. an electrical short, fire, electric shock or
crash.
2.1.1.
Overhead installation
Danger of life!
You have to observe the regulations of BGV C1 (formerly VBG 70) and
EN60598-2-
17
The suspension devices hav
e to be build and measured so they can withstand for an hour the tenfold
of the payload without suffering a permanent detrimental deformation.
Basically installation has to be made by using a second separate suspension. This can be e.g. a
suitable net.
The second suspension must be designed and attached so no part of the installation can
fall down in case of failure.
During construction, reconstruction and deconstruction unnecessary stay in the range of moving
areas, on lightning bridges, under elevated
The operator is obliged to following safety
- Before the first start-
up or after critical changes before restarting it has to be checked by an
expert.
- Review in
the frame of the inspection test at least all four years by an expert. .
-
Review by a qualified person at least once a year.
How to carry out the overhead installation:
In tidal fall you should install the device out of the lounge area of people
IMPORTANT!
Overhead installation requires a high level of experience. This includes knowledge of
calculating the payload, used installation material and safety inspections of the used material and the
projector whereas the required experience is not limited to t
yourself under any circumstances if you are not qualified. Contact a professional installer. An
inappropriate installation can lead to injuries and/or damaged properties.
It is not allowed to install the device i
If the device may hang from the ceiling or from high beams, the use of truss systems is mandatory.
The device may not be installed so it can swing freely in the room.
Please note: Crashing down items can cause serious injuries
the safety of a possible installation form!
Before installation make sure that the mounting surface has the ability to carry the tenfold point load of
the own weight of the device.
Mount the device with the mo
unting
During overhead installation the device must be always secured by a safety rope which is designed to
hold the twelvefold weight of device. Only safety ropes with quick
may be used. Hang up the safety rope in the hole of the mounting bracket. Direct the rope over the
truss or an appropriate fastening point. Hang up the end in the fastening element and tie up the
locking nut. A safety rope once exposed to fai
5 / 16
Installations are to carry out by skilled personnel only.
work stations or any other danger zones is forbidden.
-related and mechanical facilities:
his. Do not try to carry out installation
n the grip area of people.
! Do not install the projector, if you doubt
-
bracket to your trussing system using an appropriate clamp.
-
release safety fast
ling load or damaged may not be used furthermore.
ener elements
