Page 1
Manual
LED Typhoon PAR Outoor
12x10W RGBWA UV 6in1
IP65
Page 2
2 / 20
Table of contents
1. Safety instructions ............................................................................................................................ 3
1.1. For safe and efficient operation ............................................................................................... 3
2. Designated use ................................................................................................................................ 4
2.1.1. Overhead installation ....................................................................................................... 5
3. Introduction ....................................................................................................................................... 7
3.1. Product overview ..................................................................................................................... 7
3.2. Dimensions .............................................................................................................................. 8
4. Connections ..................................................................................................................................... 9
4.1. Electrical connections .............................................................................................................. 9
4.2. DMX connections .................................................................................................................... 9
4.3. DMX connection with terminator.............................................................................................. 9
5. Control ............................................................................................................................................ 10
5.1. Structure of the menu ............................................................................................................ 10
6. DMX chart ...................................................................................................................................... 13
6.1. DMX Mode 1(3 channel) ........................................................................................................ 13
6.2. DMX mode2 (6 channels) ...................................................................................................... 13
6.3. DMX mode 3 (8 channels) ..................................................................................................... 13
6.4. Dimmer mode 4 (10 channels) .............................................................................................. 14
6.5. Dimmer mode 5 (13 channels) .............................................................................................. 16
7. Technical data ................................................................................................................................ 19
Page 3
1. Safety instructions
• This
device is suita
•
All modifications to the device will void the warranty.
•
Repairs are to carry out by skilled personnel only.
•
Use only fuses of the same type and original parts as spare parts.
•
Make sure to unplug the power supply before
1.1.
For safe and efficient operation
Be careful with heat and extreme temperature
Avoid exposing it to direct rays of the sun or near a heating appliance.
Not put it in a temperature bellow 32
To avoid placing on un-
stable location
Select a level and stable location to avoid vibration.
Do not use chemicals or volatile liquids for cleaning
Use a clean dry cloth to wipe off the dust, or a wet soft cloth for stubborn dirt.
If out of work, contact sales
agency immediately
Any troubles arose, remove the power plug soon, and contact with an engineer for repairing, do not
open the cabinet by yourself, it might result a danger of electric shock.
Take care with the power cable
Never pull the power cable to re
move the plug from the receptacle, be sure to hold the plug. When not
using the device for an extended period of time, be sure to disconnect the plug from the receptacle.
Important:
Damages caused by the disregard of this user manual are not subject to
accept liability for any resulting defects or problems. Make sure the electrical connection is carried out
by qualified personnel. All electrical and mechanical connections have to be carried out according to
the European safety standards.
3 / 20
ble for indoor and outdoor use.
opening the housing.
°F /0°C, or exceeding 104°F /40°C.
warranty. The dealer will not
Page 4
4 / 20
2. Designated use
This device was developed for professional use on stages, in discos, theatres etc. The device is only
approved for a connection up to 230V 50/60 Hz AC voltage and for indoor and outdoor use.
Regular breaks during operation increase the lifetime of your device.
Avoid convulsions or any form of forceful impact during the installation or the start-up of the device.
Take care that no cables are lying around. You would endanger your own safety and also the safety of
a third party.
If you use fog devices the device has not be exposed to a direct smoke jet. There has to be a safety
distance of at least 0,5m between this device and the fog machine. Make sure that the saturation of
the fog has to enable a visibility of at least 10m.
Operate the device not during thunderstorms. Surge voltages could destroy the device. Unplug the
power supply during thunderstorms.
During the installation the use of the mounting bracket is obligatory.
Surrounding objects or surfaces should not be in contact with the device.
Make sure that during the installation and removal of the device the area below the place of
installation is basically cordoned off. This also applies to implementation of service.
The device has basically been protected by a suitable safety.
Make familiar yourself with the functions of the device before start-up. People without the experience
should not handle with the device. The most cause of functional disorder is inappropriate handling.
Do not use chemicals or volatile liquids for cleaning. Use a clean dry cloth to wipe off the dust, or a
wet soft cloth for stubborn dirt.
For transport use the original packing or designated accessory to avoid damages during the transport.
For reasons of safety unauthorized changes are forbidden.
A usage of the device which differs from usages which are described in this manual can cause
damages of the device. In that case the warranty expires. Additional you should notice that every
differed usage is related with dangers and can cause e.g. an electrical short, fire, electric shock or
crash.
Page 5

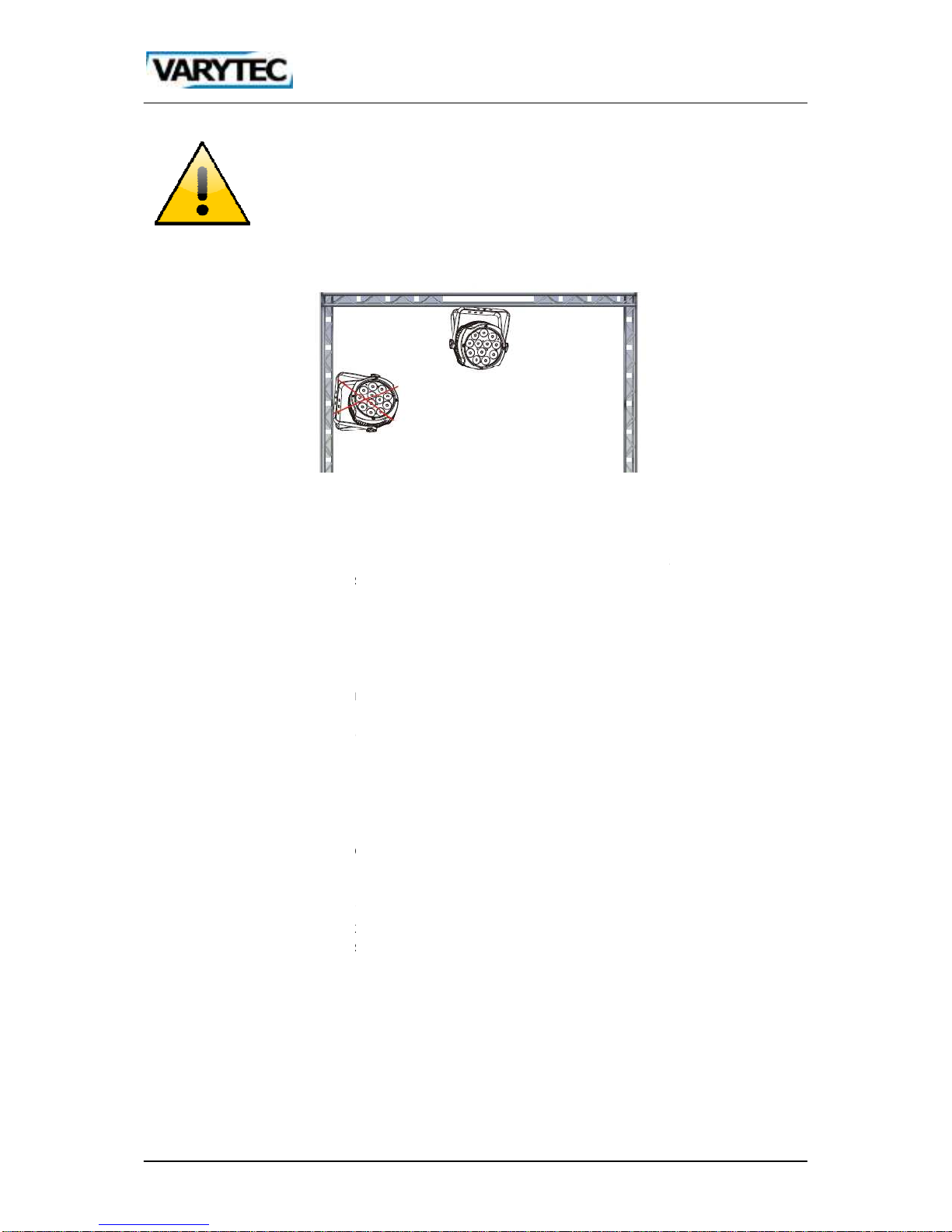

2.1.1.
Overhead installation
Danger of life!
You have to observe the regulations of BGV C1 (formerly VBG 70) and
EN60598-2-
17
The
suspension devices have to be build and measured so they can withstand for an hour the tenfold
of the payload without suffering a permanent detrimental deformation.
Basically installation has to be made by using a second separate suspension. This can be e
suitable net. The second suspension must be designed and attached so no part of the installation can
fall down in case of failure.
During construction, reconstruction and deconstruction unnecessary stay in the range of moving
areas, on lightning bri
dges, under elevated work stations or any other danger zones is forbidden.
The operator is obliged to following safety
- Before the first start-
up or after critical changes before restarting it has to be checked by an
expert.
-
Review in the frame of the inspection test at least all four years by an expert. .
-
Review by a qualified person at least once a year.
How to carry out the overhead installation:
In tidal fall you should install the device out of the lounge area
IMPORTANT!
Overhead installation requires a high level of experience. This includes knowledge of
calculating the payload, used installation material and safety inspections of the used material and the
projector whereas the required experience is
yourself under any circumstances if you are not qualified. Contact a professional installer. An
inappropriate installation can lead to injuries and/or damaged properties.
It is not allowed to ins
tall the device in the grip area of people.
If the device may hang from the ceiling or from high beams, the use of truss systems is mandatory.
The device may not be installed so it can swing freely in the room.
Please note: Crashing down items can cause
the safety of a possible installation form!
5 / 20
Installations are to carry out by skilled personnel only.
-related and mechanical facilities:
of people
not limited to this. Do not try to carry out installation
serious injuries! Do not install the projector, if you doubt
.g. a
Page 6
6 / 20
Before installation make sure that the mounting surface has the ability to carry the tenfold point load of
the own weight of the device.
Mount the device with the mounting-bracket to your trussing system using an appropriate clamp.
During overhead installation the device must be always secured by a safety rope which is designed to
hold the twelvefold weight of device. Only safety ropes with quick-release safety fastener elements
may be used. Hang up the safety rope in the hole of the mounting bracket. Direct the rope over the
truss or an appropriate fastening point. Hang up the end in the fastening element and tie up the
locking nut. A safety rope once exposed to failing load or damaged may not be used furthermore.
The maximum drop exceed must not exceed 20cm.
A safety rope once exposed to failing load or damaged may not be used furthermore.
Adjust the desired inclination angle via the mounting bracket and tighten the screw.
Page 7
7 / 20
3. Introduction
Thank you for buying the LED Typhoon PAR Outdoor 12x10W RGBWA UV 6in1 IP65. It is a
powerful device.
For a successful installation and operation, please read this manual carefully.

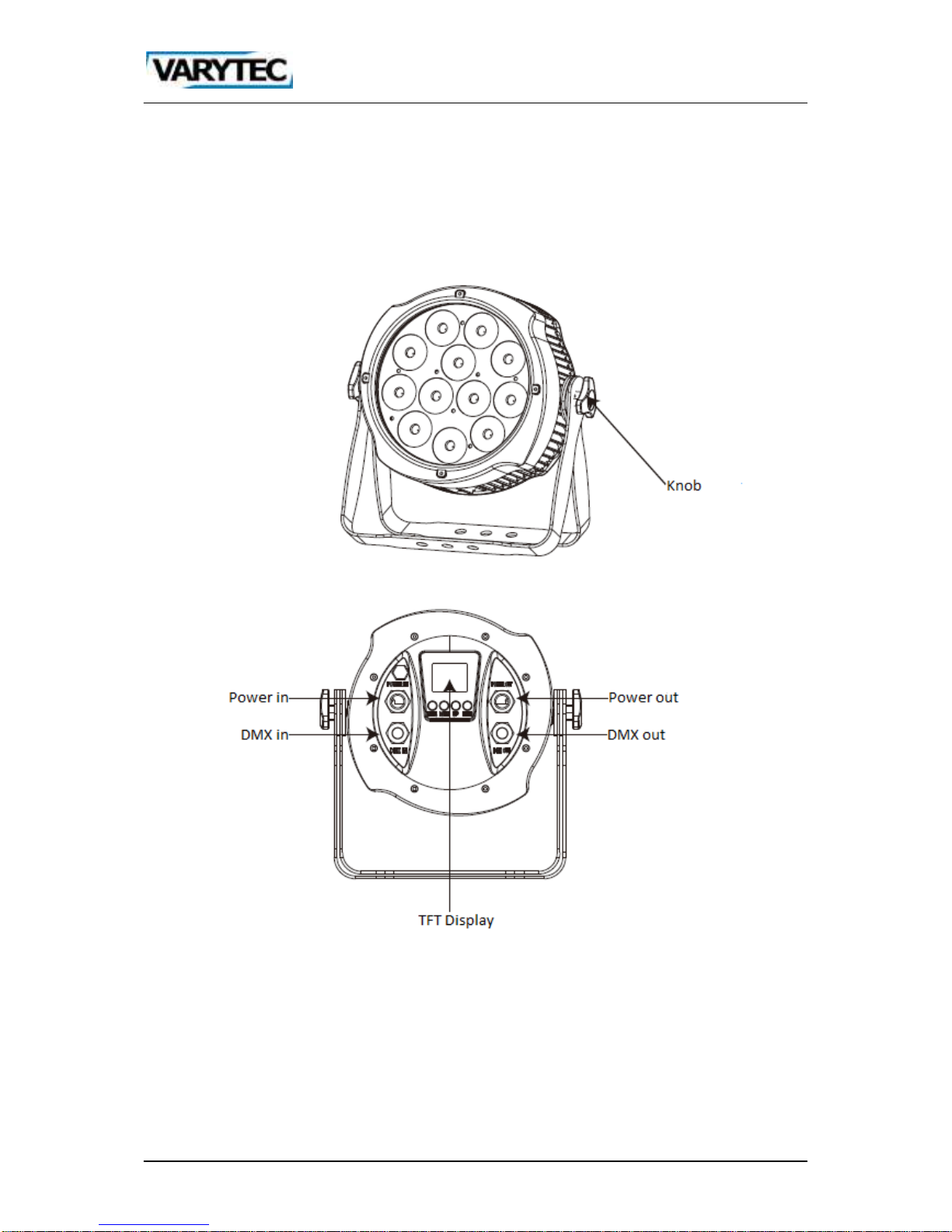

3.1. Product overview
Page 8
8 / 20

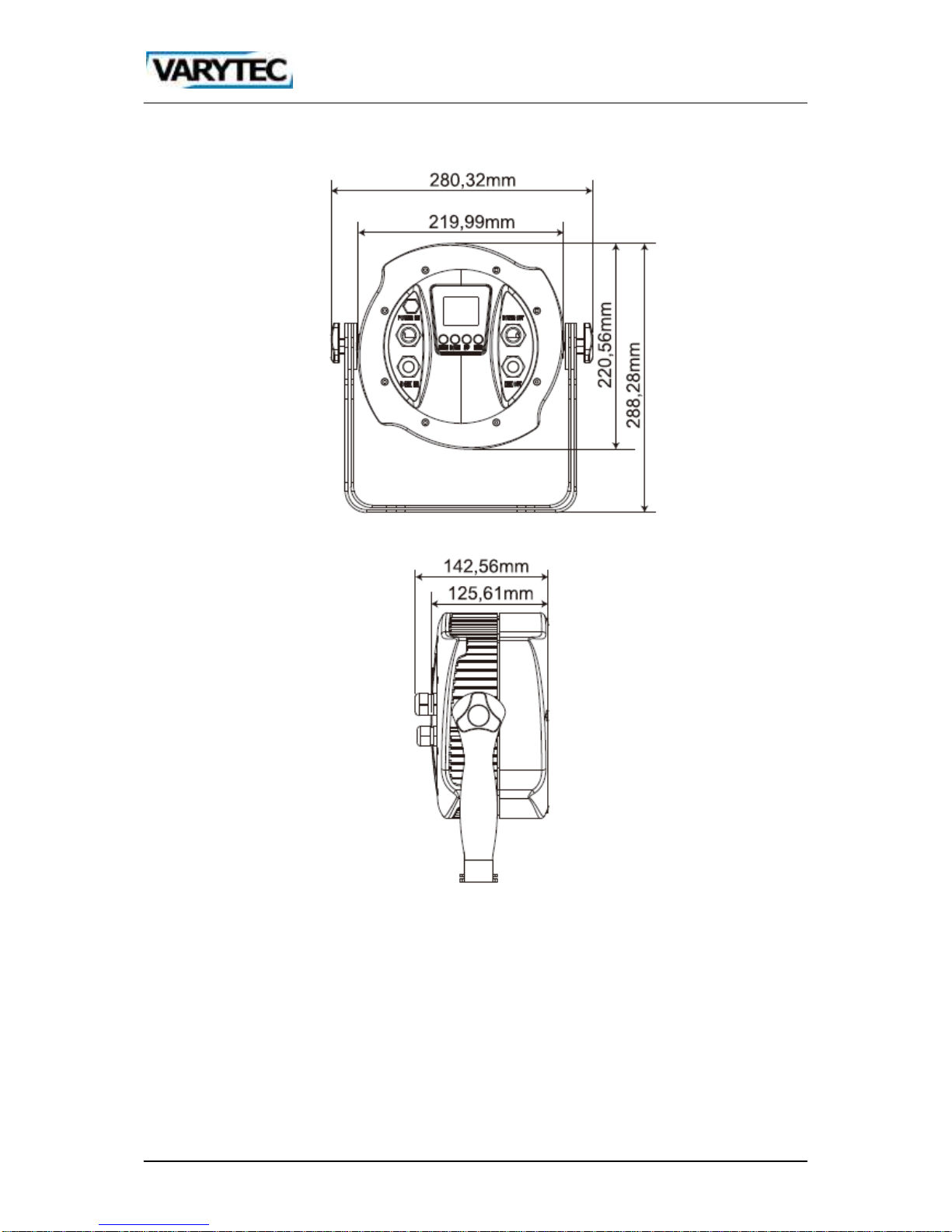

3.2. Dimensions
Page 9
9 / 20
4. Connections
4.1. Electrical connections
If you wish to change the power supply settings, see the chapter Appendix. Connect the fixture to the
mains with the enclosed power cable and plug. The earth has to be connected.
Cable (EU) Cable (US) Pin International
Brown Black Live L
Light blue White Neutral N
Yellow/Green Green Earth

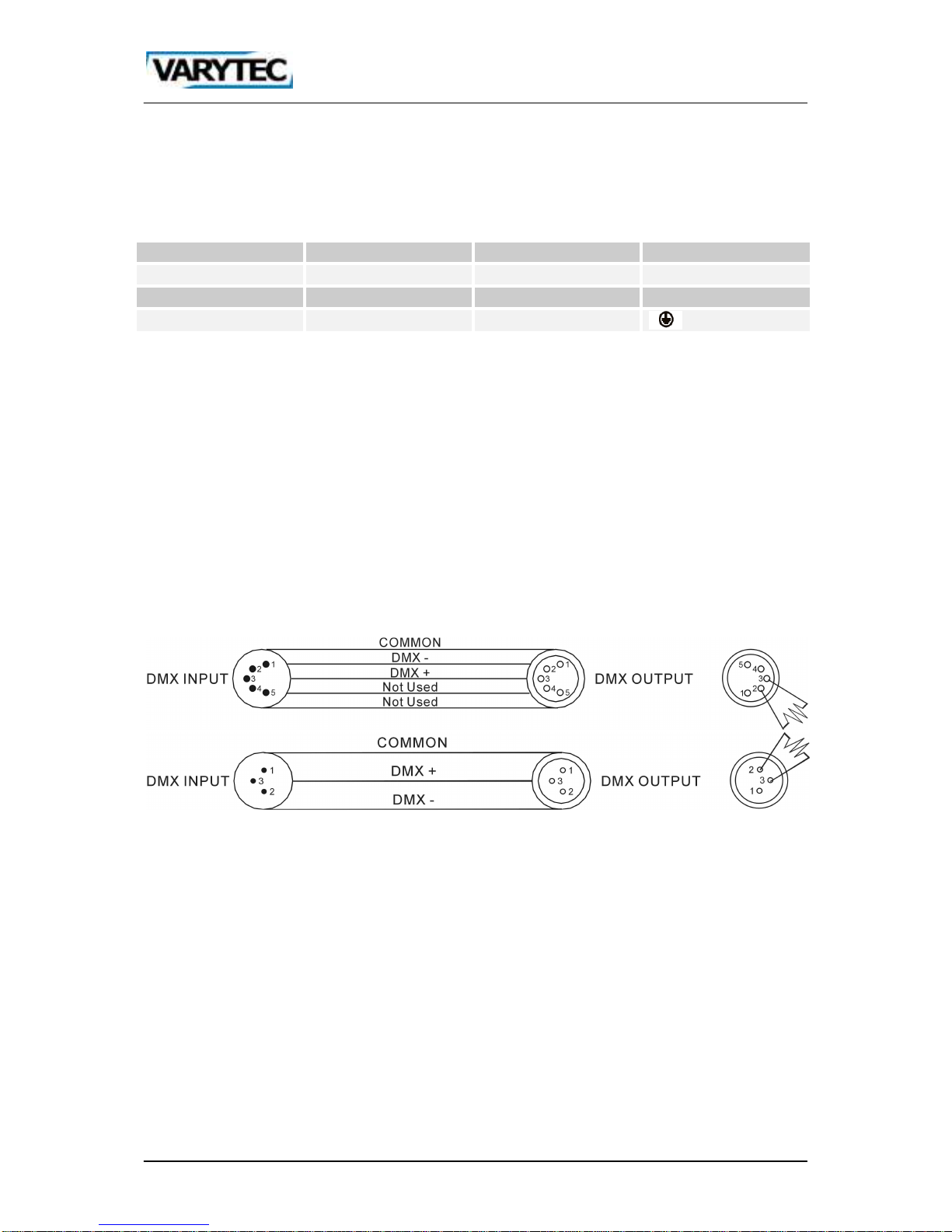

4.2. DMX connections
To make a DMX512 connection go ahead like it is described in the picture. Make sure that you
use shielded cable. 3pole or 5pole XLR cables are suitable.
Important! After the last device the line has to be terminated. In order to do this you have to solder
a 120Ω resistor between the pins Data + and Data -. You can solder this end resistor on a 3pin or
5pin XLR: Plug this adapter into the DMX output of the device.
4.3. DMX connection with terminator
Where the DMX cable has to run a long distance or the equipment is operated in an electrically noisy
environment like a disco for installations, we recommend using a DMX terminator. This prevents
corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR
connector with a 120 Ω resistor between pins 2 and 3, which is then plugged into the XLR output
socket of the last device in the series. Please look to the bottom drawings.
Page 10
10 / 20
5. Control
Press MENU, to get into the menu. With UP/DOWN you can choose the required point of menu.
Confirm with ENTER. With UP/DOWN you can make the required settings or choose another
submenu. Confirm with ENTER. By pressing MENU you can step back to the main menu.
5.1. Structure of the menu
Menu
Submenu 1 Submenu 2 Submenu 3 Submenu
4
Function
DMX
CHANNE
L 03
Choosing one DMX mode.
CHANNE
L 06
CHANNE
L 08
CHANNE
L 10
CHANNE
L 13
ADDRES
S 001 –
Setting the DMX address.
Page 11
11 / 20
ADREDD
512
RUN
MODE
DMX Activates the DMX mode.
SLAVE Activates the Slave mode.
SETUP
ID
Number
OFF Deactivates the ID Number.
1 – 66 Setting the ID number.
Display
LED
ON / OFF
If you choose OFF the
display shuts down, if the
device was not operated for
10s.
Key locks ON / OFF
If this function is activated
the key lock is active. To
unlock the keys press DOWN
+ UP + DOWN + UP.
Max temp 002 – 120
Setting the max working
temperature. If the device
exceeds the max working
temperature the letters and
numbers in the display
change their color from white
to yellow.
Dimmer
RED
000 – 255 Dimmer red 0 – 100%
Dimmer
GREEN
000 – 255 Dimmer green 0 – 100%
Dimmer
BLUE
000 – 255 Dimmer blue 0 – 100%
Dimmer
WHITE
000 – 255 Dimmer white 0 – 100%
Dimmer
AMB
000 – 255 Dimmer amber 0 – 100%
Dimmer
UV
000 – 255 Dimmer UV 0 – 100%
Dimmer
ALL
000 – 255 Dimmer 0 – 100%
INFORM
ATION
Software
V.xxx
Shows the current software
version.
Hardware
H.xxx
Shows the current hardware
version.
Fix times
xxxxxh
xxm
Shows the current operating
hours of the device.
AUTO
SPEED 00 – 31
Setting the speed for
programs slow – fast
AUTO
MODE
01 – 21
Choosing one automatic
program.
CUSTOM
ER
CUSTOM
MODE 01
–
CUSTOM
Here you can choose one of
11 customer automatic
programs. These automatic
programs you can set in the
Page 12
12 / 20
MODE 11 menu EDIT.
CAL
WHITE
WHITE 1
– WHITE
11
RED 000 – 255
Here you can set 11
customer whites.
GREEN 000 – 255
BLUE 000 – 255
WHITE 000 – 255
AMB 000 – 255
UV 000 – 255
STAT
COLOR
STAT
RED
000 – 255 Dimmer red 0 – 100%
STAT
GREEN
000 – 255 Dimmer green 0 – 100%
STAT
BLUE
000 – 255 Dimmer blue 0 – 100%
STAT
WHITE
000 – 255 Dimmer white 0 – 100%
STAT
AMB
000 – 255 Dimmer amber 0 – 100%
STAT UV 000 – 255 Dimmer UV 0 – 100%
SELECT
COLOR
01 – 70
Here you can choose one of
70 preset colors. .
STAT
STROB
00 -31 Speed for strobe slow - fast
EDIT
PRO1 –
PRO11
SC01 –
SC32
RED 000 – 255
Here you can set 11
customer automatic
programs. For every program
you can set up to 32 scenes.
You can call these programs
with the point of menu
CUSTOMER or via DMX in
DMX mode 5 (13 channels).
GREEN 000 – 255
BLUE 000 – 255
WHITE 000 – 255
AMB 000 – 255
UV 000 – 255
FADE 00 – 31
FLASH 00 – 50
STRO 00 – 31
TIME 00 – 100
UPLOAD
Connect several devices. Set
one as master and the others
as slave. Choose as master
this device which has stored
the customers programs
which you want also to save
on the other devices. Press
ENTER and UO/DOWN until
you can read out “UPLOAD”
and confirm with ENTER.
The customer programs will
be saved on the slave
devices.
RESET Reset.
Page 13
13 / 20
6. DMX chart
6.1. DMX Mode 1(3 channel)
Channel Value from Value to Function
1 0 255 Hue
2 0 255 Saturation
3 0 255 Dimmer 0 – 100%
6.2. DMX mode2 (6 channels)
Channel Value from Value to Function
1 0 255 Dimmer red 0 – 100%
2 0 255 Dimmer green 0 – 100%
3 0 255 Dimmer blue 0 – 100%
4 0 255 Dimmer white 0 – 100%
5 0 255 Dimmer amber 0 – 100 %
6 0 255 Dimmer UV 0 – 100%
6.3. DMX mode 3 (8 channels)
Channel Value from Value to Function
1 0 255 Dimmer 0 – 100%
2 0 255 Dimmer red 0 – 100%
3 0 255 Dimmer green 0 – 100%
4 0 255 Dimmer blue 0 – 100%
5 0 255 Dimmer white 0 – 100%
6 0 255 Dimmer amber 0 – 100 %
7 0 255 Dimmer UV 0 – 100%
8
0 49 No function
50 99 Dimmer 1
100 149 Dimmer 2
150 199 Dimmer 3
200 255 Dimmer 4
Page 14
14 / 20
6.4. Dimmer mode 4 (10 channels)
Channel Value from Value to Function
1 0 255 Dimmer 0 – 100%
2 0 255 Dimmer red 0 – 100 %
3 0 255 Dimmer green 0 – 100%
4 0 255 Dimmer blue 0 – 100%
5 0 255 Dimmer white 0 – 100%
6 0 255 Dimmer amber 0 – 100 %
7 0 255 Dimmer UV 0 – 100%
8
0 19 No function
20 23 Red
24 27 Green
28 31 Blue
32 35 Yellow
36 39 Cyan
40 43 Magenta
44 47 White
48 51 Orange
52 55 Pink
56 59 Violet
60 63 Aquamarine
64 67 Sky blue
68 71 Full white
72 75 Cool white
76 79 Warm White
80 83 White 3200
84 87 White 2500
88 91 Yellow 2
92 95 Straw
96 99 Orange 2
100 103 Light rose
104 107 Dark pink
108 111 Magenta 2
112 115 Blue 2
116 119 Med blue green
120 123 Dark blue
124 127 Bright pink
128 131 Medium blue
132 135 Golden amber
136 139 Deep golden amber
140 143 Pale lavender
144 147 Apricot
148 151 Dark lavender
152 155 Chocolate
156 159 Just blue
Page 15
15 / 20
160 163 Surprise pink
164 167 Scarlet
168 171 Surprise peach
172 175 Fire
176 179 English rose
180 183 Mauve
184 187 Bright blue
188 191 Alice blue
192 195 Rose indigo
196 199 Urban blue
200 203 Cool blue
204 207 Light salmon
208 211 Mayan Sun
212 215 Cherry rose
216 219 Flesh pink
220 223 Skelton exotic sangria
224 255 Amber
9 0 255 36 different color macros
10 0 255 Strobe slow - fast
Page 16
16 / 20
6.5. Dimmer mode 5 (13 channels)
Channel Value from Value to Function
1 0 255 Dimmer 0 – 100%
2 0 255 Dimmer red 0 – 100 %
3 0 255 Dimmer green 0 – 100%
4 0 255 Dimmer blue 0 – 100%
5 0 255 Dimmer white 0 – 100%
6 0 255 Dimmer amber 0 – 100 %
7 0 255 Dimmer UV 0 – 100%
8
0 10 No function
11 20 R100% / G upwards / B0% / W0%
21 30 R downwards / G100% / B0% / W0%
31 40 R0% / G100% / B upwards / W0%
41 50 R upwards / G downwards / B100% / W0%
51 60 R upwards / G0% / B100% / W0%
61 70 R100% / G0% / B downwards / W0%
71 80 R100% / G0% / B0% / W upwards
81 90 R100% / G0% / B0% / W downwards
91 100
R upwards / G downwards / B0% / W0%
R downwards / G upwards / B0% / W0%
101 110
R upwards / G0% / B downwards / W0%
R downwards / G0% / B upwards / W0%
111 120
R0% / G upwards / B downwards / W0%
R0% / G upwards / B downwards / W0%
121 130
R upwards / G upwards / B downwards / W0%
R downwards / G downwards / B upwards / W0%
131 140
R upwards / G downwards / B downwards / W0%
R downwards / G upwards / B upwards / W0%
141 150
R upwards / G downwards / B upwards / W0%
R downwards / G upwards / B downwards / W0%
151 160
R upwards / G0% / B downwards / W0%
R downwards / G upwards / B0% / W0%
R0% / G downwards / B upwards / W0%
161 170
R upwards / G100% / B downwards / W0%
R100% / G downwards / B upwards / W0%
R downwards / G upwards / B100% / W0%
R downwards / G upwards / B0% / W0%
R0% / G downwards / B upwards / W0%
R 0% / G 0% / B downwards / W upwards
171 180
R upwards / G0% / B0% / W0%
R0% / G100% / B downwards / W0%
R upwards / G100% / B0% / w0%
181 190
R100% / G downwards / B0% / W0%
R100% / G0% / B upwards / W0%
R downwards / G0% / B100% W0%
R0% / G upwards / B100% / W0%
191 200 RGBW
Page 17
17 / 20
201 205 White 1
206 210 White 2
211 215 White 3
216 220 White 4
221 225 White 5
226 230 White 6
231 235 White 7
236 240 White 8
241 245 White 9
246 250 White 10
251 255 White 11
9
If channel 8 is activated
0 255 Setting the speed for channel 8.
If channel 8 is not activated
0 15 No function
16 255 Strobe slow – fast
10
0 8 No function
9 10 Automatic program 1
11 20 Automatic program 2
21 30 Automatic program 3
31 40 Automatic program 4
41 50 Automatic program 5
51 60 Automatic program 6
61 70 Automatic program 7
71 80 Automatic program 8
81 90 Automatic program 9
91 100 Customer program 1
101 110 Customer program 2
111 120 Customer program 3
121 130 Customer program 4
131 140 Customer program 5
141 150 Customer program 6
151 160 Customer program 7
161 170 Customer program 8
171 180 Customer program 9
181 190 Customer program 10
191 255 Customer program 11
11 0 255 Setting the speed for channel 10
12
0 49 No function
50 99 Dimmer 1
100 149 Dimmer 2
150 199 Dimmer 3
200 255 Dimmer 4
13
0 – 9 All IDs
170 –
179
ID 17 223 ID 34 240 ID51
10 – 19 ID 1 180 – ID 18 224 ID 35 241 ID52
Page 18
18 / 20
189
20 – 29 ID 2
190 –
199
ID 19 225 ID 36 242 ID 53
30 – 39 ID 3
200 –
209
ID 20 226 ID 37 243 ID 54
40 – 49 ID 4 210 ID 21 227 ID 38 244 ID 55
50 – 59 ID 5 211 ID 22 228 ID 39 245 ID 56
60 – 69 ID 6 212 ID 23 229 ID 40 246 ID 57
70 – 79 ID 7 213 ID 24 228 ID 41 247 ID 58
80 – 89 ID 8 214 ID 25 229 ID 42 248 ID 59
90 – 99 ID 9 215 ID 26 230 ID 43 249 ID 60
100 –
109
ID 10 216 ID 27 231 ID 44 250 ID 61
110 –
119
ID 11 217 ID 28 232 ID 45 251 ID62
120 –
129
ID 12 218 ID 29 233 ID 46 252 ID 63
130 –
139
ID 13 219 ID 30 234 ID 47 253 ID 64
140 –
149
ID 14 220 ID 31 235 ID 48 254 ID 65
150 –
159
ID 15 221 ID 32 236 ID 49 255 ID 66
160 –
169
ID 16 222 ID 33 237 ID50
Page 19
19 / 20
7. Technical data
Power supply
Voltage 110 – 250 V / 50-60 Hz
Power consumption max. 120 W
Light source
LM type LED 6in1
Color spectrum RGBWAUV
Power 120 W
Number / Power 12 x 10 W
Connections
Strom in IP65 Power cable
Strom out IP65 Power cable
XLR in/out IP65
Controlling
Sound-to-Light Yes
Automatic Yes
Master-Slave Yes
DMX512 Yes
Number of channels 3 / 6 / 10 / 13 channel
Hardware
Protection class IP65
Suitability Outdoor
Dimensions (L/B/H) 288 x 280 x 160 mm
Weight 5,25 kg
Page 20
20 / 20
Importeur:
B & K Braun GmbH
Industriestraße 2
D-76307 Karlsbad
www.bkbraun.com
info@bkbraun.com
Loading...
