BAT.PARset 4 RGBW
LED lighting set
User manual
Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
E-mail: info@thomann.de
Internet: www.thomann.de
17.10.2017, ID: 385484
Table of contents
1 General notes............................................................................................................................................... 6
1.1 Further information........................................................................................................................... 7
1.2 Notational conventions.................................................................................................................... 8
1.3 Symbols and signal words............................................................................................................... 8
2 Safety instructions.................................................................................................................................. 10
3 Features....................................................................................................................................................... 15
4 Installation.................................................................................................................................................. 16
5 Starting up.................................................................................................................................................. 21
6 Connections and controls................................................................................................................... 24
7 Operating.................................................................................................................................................... 29
7.1 Operating on the unit..................................................................................................................... 29
7.2 System settings................................................................................................................................. 33
7.3 Menu overview................................................................................................................................. 38
7.4 Functions in 6-channel DMX mode........................................................................................... 40
7.5 Functions in 8-channel DMX mode........................................................................................... 41
Table of contents
BAT.PARset 4 RGBW
3
LED lighting set
7.6 Functions in 10-channel DMX mode........................................................................................ 42
7.7 Functions in 13-channel DMX mode........................................................................................ 43
7.8 Functions in 14-channel DMX mode........................................................................................ 48
7.9 Functions in 20-channel DMX mode........................................................................................ 50
7.10 Functions in 24-channel DMX mode...................................................................................... 52
8 Technical specifications....................................................................................................................... 54
9 Plug and connection assignments.................................................................................................. 55
10 Troubleshooting...................................................................................................................................... 56
11 Cleaning....................................................................................................................................................... 58
12 Protecting the environment.............................................................................................................. 59
Table of contents
4
BAT.PARset 4 RGBW
LED lighting set
BAT.PARset 4 RGBW
5
LED lighting set
1 General notes
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General notes
6
BAT.PARset 4 RGBW
LED lighting set
1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search
Use the search function in the electronic version to find the topics of
interest for you quickly.
Online guides
Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service
If you have any problems with the device the customer service will
gladly assist you.
General notes
BAT.PARset 4 RGBW
7
LED lighting set
1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’.
1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
Displays
General notes
8
BAT.PARset 4 RGBW
LED lighting set
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos-
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos-
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General notes
BAT.PARset 4 RGBW
9
LED lighting set
2 Safety instructions
This device is intended to be used as an electronic illumination effect using LED technics. The
device is designed for professional use and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
10
BAT.PARset 4 RGBW
LED lighting set
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
Safety
Safety instructions
BAT.PARset 4 RGBW
11
LED lighting set
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons
should avoid looking at strobe lights.
Safety instructions
12
BAT.PARset 4 RGBW
LED lighting set
WARNING!
Incorrect handling of lithium batteries can result in injury
In the event of a short circuit, overheating or mechanical damage, lithium batteries can cause severe injuries.
Follow the advice on the correct handling of lithium batteries in the present section.
NOTICE!
Risk of fire
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked flames.
Safety instructions
BAT.PARset 4 RGBW
13
LED lighting set
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
Safety instructions
14
BAT.PARset 4 RGBW
LED lighting set
3 Features
The LED lighting set is particularly suitable for flexible wireless use in clubs, on stages, etc.
Special features of the device:
n
Four LED spotlights with each three 4-in-1 LEDs (RGBW)
n
Four LED front spots (WW)
n
Control options:
– DMX-512
– Buttons and display on the unit
– Wireless foot switch (included)
n
Automatic mode
n
Sound control
n
Master / Slave mode
n
Suitable for mains and battery operation
n
Doubled battery compartment to replace the lithium batteries during operation
n
Precise charge indication
n
Easy transport, easy mounting
n
Gig bag included
Features
BAT.PARset 4 RGBW
15
LED lighting set
4 Installation
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
The unit can be operated either with mains voltage or with rechargeable lithium batteries
(included). Observe the following notes when handling lithium batteries:
n On proper and correct handling, lithium batteries are not a hazard.
n
Store lithium batteries cool and dry, preferably in the original packaging.
n
Keep lithium batteries away from sources of heat (e.g. radiators or solar radiation). Lithium
batteries are hermetically sealed. Never try to open lithium batteries.
n
If the battery housing is damaged, small amounts of electrolyte can escape. In this case,
wrap the lithium battery airtight and absorb electrolyte residues with absorbent paper
while wearing rubber gloves. Clean the ground and hands with cold water.
n
Never attempt to recharge lithium batteries that are not intended to be recharged. Only
suitable chargers may be used for charging.
Voltage supply
Installation
16
BAT.PARset 4 RGBW
LED lighting set
n Remove lithium batteries from the device before disposal. Protect used lithium batteries
against short circuit, for example by taping the poles.
n
Burning lithium batteries may only be extinguished with powder extinguishers or other
suitable extinguishing agents.
The lithium batteries can be charged either during mains operation or with a separate charger.
In mains operation, charging takes about three hours.
NOTICE!
Risk of overheating
Always ensure sufficient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
Charging the lithium batteries
Installation
BAT.PARset 4 RGBW
17
LED lighting set
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordinary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or amplifiers.
Installation
18
BAT.PARset 4 RGBW
LED lighting set
Please note that this device must not be connected to a dimmer.
Installation
BAT.PARset 4 RGBW
19
LED lighting set

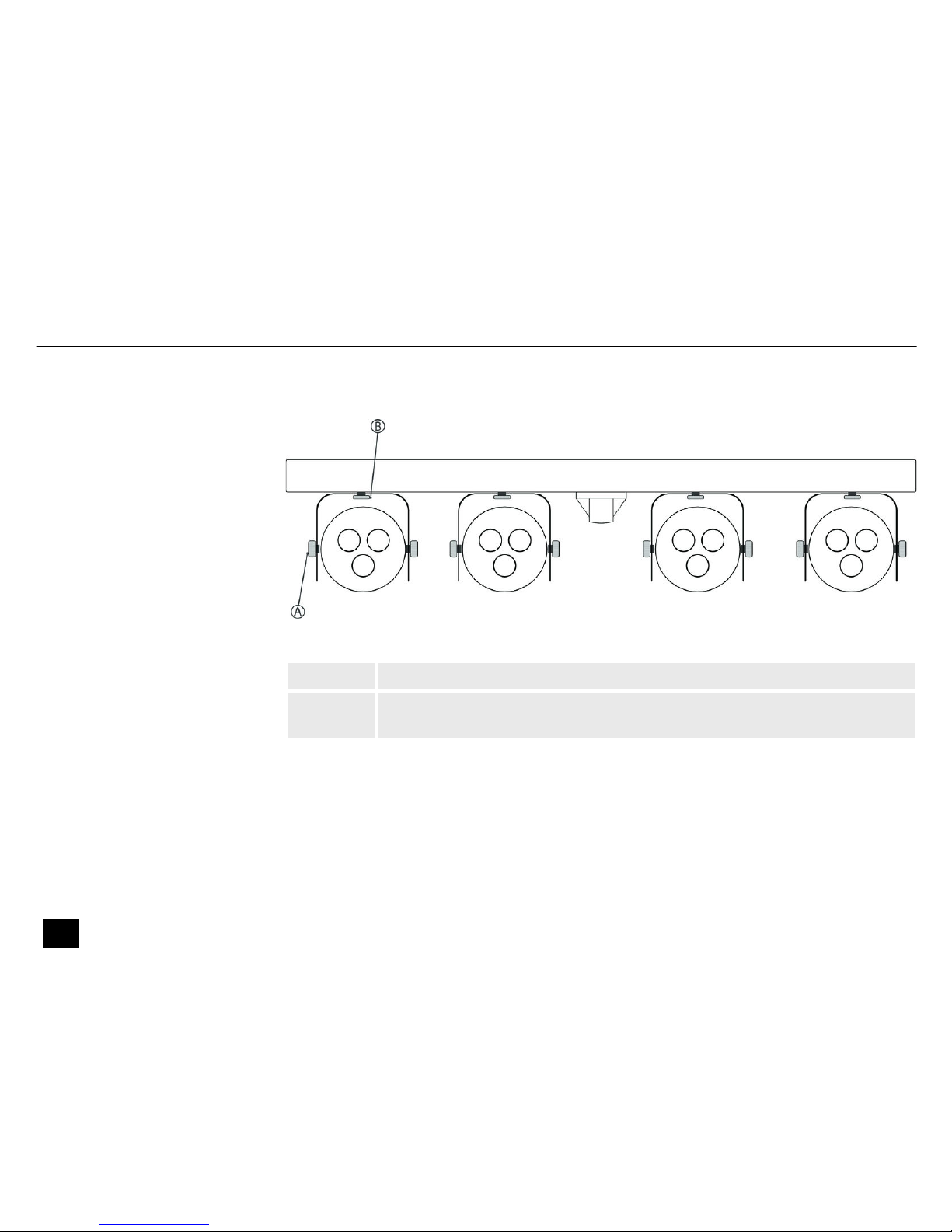

The four spots are pre-mounted on the T-bar and factory-wired.
A Locking screw for fixing the inclination angle.
B Locking screws for fixing the spots on the T-bar and the horizontal orientation
(dispersion direction).
Pre-mounted spots
Installation
20
BAT.PARset 4 RGBW
LED lighting set
5 Starting up
Create all connections while the device is off. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Starting up
BAT.PARset 4 RGBW
21
LED lighting set
Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the first DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼ W).
Connections in DMX mode
Starting up
22
BAT.PARset 4 RGBW
LED lighting set
When the device and the DMX controller are operational, the DMX indicator in the display
shows that a DMX signal is being received on the input.
When you configure a group of devices in master/slave mode, the first unit will control the
other units for an automatic, sound-activated, synchronized show. This function is ideal when
you want to start a show immediately. Connect the DMX output of the master device to the
DMX input of the first slave device. Then connect the DMX output of the first slave device to
the DMX input of the second slave device and so on.
DMX indicator
Connections in master/slave
mode
Starting up
BAT.PARset 4 RGBW
23
LED lighting set
6 Connections and controls
Connections and controls
24
BAT.PARset 4 RGBW
LED lighting set
1 [POWER IN]
IEC chassis plug for mains connection.
2 [POWER OUT]
IEC chassis socket for the power supply cable to the next unit.
3 [SWITCH]
Main switch to turn the device on and off.
4 [ANTENNA]
Antenna for receiving the foot switch signals.
5 [DMX IN]
DMX input.
6 [DMX OUT]
DMX output.
7 Display with function buttons.
Connections and controls
BAT.PARset 4 RGBW
25
LED lighting set
[MENU]
Activates the main menu and toggles between menu items. Closes an opened submenu.
[UP]
Increases the displayed value by one.
[DOWN]
Decreases the displayed value by one.
[ENTER]
Selects an option of the respective operating mode, confirms the set value.
8 Battery holder
To unlock, press the two side push buttons and remove the insert. Always ensure that the insert snaps in correctly
during assembly.
Connections and controls
26
BAT.PARset 4 RGBW
LED lighting set
[AUTO] Press this button to activate the ‘Automatic’ mode.
[SOUND ] Press this button to activate the ‘Sound control’ mode.
[COLOR] Press this button several times repeatedly to call up the various colour settings.
[BLACKOUT] Press this switch to blackout all LEDs.
Foot switch
Connections and controls
BAT.PARset 4 RGBW
27
LED lighting set
The charge level indicator can be accessed on the device display for each of the four batteries
inserted. The bar length and the colour coding symbolically show the remaining load capacity.
This display appears when the unit is powered with the mains switch turned off.
Charge level indicator
Connections and controls
28
BAT.PARset 4 RGBW
LED lighting set
7 Operating
7.1 Operating on the unit
Connect the device to the power supply to start operation. All functions of the device are controlled via the buttons and display on the unit as well as the supplied wireless foot switch.
Press [MENU] to open the main menu. Use [UP] and [DOWN] to change the respectively indicated value. When the display shows the desired value press [ENTER].
Operating
BAT.PARset 4 RGBW
29
LED lighting set
This setting is only relevant when the device is controlled via DMX.
Press [MENU] repeatedly until the display shows ‘RUN MODE’ . Use [UP] or [DOWN] to select the
option ‘DMX’ for operating the device in DMX mode. Confirm with [ENTER] and use [UP] or
[DOWN] to select the desired DMX mode.
Mode Display Highest possible DMX address
6-channel ‘CHANNEL 06’ 507
8-channel ‘CHANNEL 08’ 505
10-channel ‘CHANNEL 10’ 503
13-channel ‘CHANNEL 13’ 500
14-channel ‘CHANNEL 14’ 499
20-channel ‘CHANNEL 20’ 493
24-channel ‘CHANNEL 24’ 489
Confirm with [ENTER]. Now you can set the number of the first DMX channel to be used by the
device (DMX address). Use [UP] or [DOWN] to select a value between 1 and 512.
DMX mode
Operating
30
BAT.PARset 4 RGBW
LED lighting set
In this mode, the device exactly follows the operation of the master that it is connected to.
Press [MENU] repeatedly until the display shows ‘RUN MODE’ . Use [UP] or [DOWN] to select the
option ‘SLAVE’ for operating the device in Slave mode. Confirm with [ENTER].
In this mode, programmed patterns are played with the selected colour settings of the unit
one by one. This setting is only relevant if the device is not controlled via DMX.
Press [MENU] repeatedly until the display shows ‘AUTO’ . Confirm with [ENTER].
Use [UP] or [DOWN] to select the option ‘AUTO SPEED’ and confirm with [ENTER]. Use [UP] or
[DOWN] to set the programme speed in a range from ‘01’ (slow) to ‘31’ (fast). Confirm again
with [ENTER] to apply the setting.
Then use [UP] or [DOWN] to select the option ‘AUTO MODE’ and confirm with [ENTER]. Use [UP]
or [DOWN] to set the desired auto mode in a range from ‘01’ to ‘15’. Confirm again with
[ENTER] to apply the setting.
Operating mode Slave
Operating mode Auto
Operating
BAT.PARset 4 RGBW
31
LED lighting set
Sound mode can only be activated when the unit is operated alone. This setting is only relevant if the device is not controlled via DMX. In this operating mode, the device responds to
acoustic pulses which are recorded by the integrated microphone.
Press [MENU] repeatedly until the display shows ‘SOUND’ . Confirm with [ENTER].
Use [UP] or [DOWN] to select the option ‘SOUND SENS’ and confirm with [ENTER]. Use [UP] or
[DOWN] to set the sensitivity of the built-in microphone in a range from ‘00’ (off) to ‘99’ (maximum). Confirm again with [ENTER] to apply the setting.
Then use [UP] or [DOWN] to select the option ‘SOUND MODE’ and confirm with [ENTER]. Use
[UP] or [DOWN] to set the desired sound mode in a range from ‘01’ to ‘04’. Confirm again with
[ENTER] to apply the setting.
In this mode, you can manually set a constant colour pattern for all LEDs. This setting is only
relevant if the device is not controlled via DMX.
Press [MENU] repeatedly until the display shows ‘STAT COLO’ . Confirm with [ENTER] and use
[UP] or [DOWN] to select the option ‘SELECT COLOR’ . Confirm again with ENTER and select the
desired colour macro in a range from ‘01’ to ‘51’.
Sound mode
Constant colour pattern
Operating
32
BAT.PARset 4 RGBW
LED lighting set
7.2 System settings
In the SETUP menu, you have the option of adjusting various device parameters, retrieving
device information and resetting the device to the factory defaults.
Press [MENU] repeatedly until the display shows ‘SETUP’ . Use [UP] or [DOWN] to successively
select the following options and adjust the values as desired:
Parameter Value range Function
Fixture sta ON, OFF Static colours all spots
ID number OFF, 1 … 66 Device ID within the DMX universe
Display LED ON (10 s, 30 s), OFF Turning the display on and off
Key Locks ON, OFF Turning the key lock on and off
Dimmer RED 0 … 255 Dimmer preset red, 0 % to 100 %
Dimmer GREEN 0 … 255 Dimmer preset green, 0 % to 100 %
Dimmer BLUE 0 … 255 Dimmer preset blue, 0 % to 100 %
Operating
BAT.PARset 4 RGBW
33
LED lighting set
Parameter Value range Function
Dimmer WHITE 0 … 255 Dimmer preset cold white, 0 % to 100 %
Dimmer Warm1 0 … 255 Dimmer preset front spot 1, 0 % to 100 %
Dimmer Warm2 0 … 255 Dimmer preset front spot 2, 0 % to 100 %
Dimmer Warm3 0 … 255 Dimmer preset front spot 3, 0 % to 100 %
Dimmer Warm4 0 … 255 Dimmer preset front spot 4, 0 % to 100 %
Dimmer ALL 0 … 255 Master dimmer, 0 … 100%
Wireless rel Pressing [UP] or [DOWN] ends the radio connection
Work mode High, Normal Power saving mode. In High mode, the device operates
at a power of 100 %. In normal mode, the power is
reduced to 80 %. This allows for a longer battery opera‐
tion.
Wireless sta ON, OFF Foot switch operation on / off
Confirm the selection each time with [ENTER] to accept the changes.
Operating
34
BAT.PARset 4 RGBW
LED lighting set
In this menu, you can manually adjust the intensity of the basic colours for all LEDs. This setting
is only relevant if the device is not controlled via DMX.
Press [MENU] repeatedly until the display shows ‘STAT COLO’ . Use [UP] or [DOWN] to select one
of the following options:
n ‘STAT RED’ (red)
n
‘STAT GREEN’ (green)
n
‘STAT BLUE’ (blue)
n
‘STAT WHITE’ (cold white)
n
‘STAT WARM1’ … ‘STAT WARM4’ (warm white front spot 1 … 4)
Confirm the selection each time with [ENTER]. Use [UP] or [DOWN] to set the colour intensity in
a range from ‘000’ to ‘255’. Confirm again with [ENTER] to apply the setting.
Colour intensity all spots
Operating
BAT.PARset 4 RGBW
35
LED lighting set
In this menu, you can manually adjust the intensity of the basic colours for individual spots.
This setting is only relevant if the device is not controlled via DMX.
Press [MENU] repeatedly until the display shows ‘MANUALLEDs’ . Use [UP] or [DOWN] to select
one of the following options:
n ‘LED’ : assign a colour (red, green, blue, cold white) to spot 1 … 4 using [UP] or [DOWN] .
n
‘WARM’ : set the colour intensity for front spots 1 … 4 using [UP] or [DOWN] .
Confirm the selection each time with [ENTER]. Use [UP] or [DOWN] to set the colour intensity in
a range from ‘000’ to ‘255’. Confirm again with [ENTER] to apply the setting.
Press [MENU] repeatedly until the display shows ‘INFORMATION’ .
Use [UP] or [DOWN] to select the option ‘SOFTWARE’ to read out the version number of the
installed software.
Then use [UP] or [DOWN] to select the option ‘HARDWARE’ to read out the version number of
the hardware.
Then use [UP] or [DOWN] to select the option ‘FIX TIMES’ to retrieve the current turn-on time of
the spots.
Colour intensity individual
spots
Device info
Operating
36
BAT.PARset 4 RGBW
LED lighting set
Proceed as follows to reset the device to factory defaults:
Press [MENU] repeatedly until the display shows ‘RESET’ and confirm with [ENTER].
Reset to factory defaults
Operating
BAT.PARset 4 RGBW
37
LED lighting set
7.3 Menu overview
Operating
38
BAT.PARset 4 RGBW
LED lighting set
Operating
BAT.PARset 4 RGBW
39
LED lighting set
7.4 Functions in 6-channel DMX mode
Channel Value Function
1 0 … 255 Intensity red (0 % to 100 %)
2 0 … 255 Intensity green (0 % to 100 %)
3 0 … 255 Intensity blue (0 % to 100 %)
4 0 … 255 Intensity white (0 % to 100 %)
5 0 … 255 Intensity warm white front spot 1 … 4 (0 % to 100 %)
6 0 … 255 Dimmer (0 % to 100 %) front spot 1 to 4
Operating
40
BAT.PARset 4 RGBW
LED lighting set
7.5 Functions in 8-channel DMX mode
Channel Value Function
1 0 … 255 Colour selection
2 0 … 255 Saturation
3 0 … 255 Brightness
4 0 … 255 Intensity warm white front spot 1 (0 % to 100 %)
5 0 … 255 Intensity warm white front spot 2 (0 % to 100 %)
6 0 … 255 Intensity warm white front spot 3 (0 % to 100 %)
7 0 … 255 Intensity warm white front spot 4 (0 % to 100 %)
8 0 … 255 Dimmer (0 % to 100 %) front spot 1 to 4
Operating
BAT.PARset 4 RGBW
41
LED lighting set
7.6 Functions in 10-channel DMX mode
Channel Value Function
1 0 … 255 Master dimmer (0 % to 100 %)
2 0 … 255 Intensity red (0 % to 100 %)
3 0 … 255 Intensity green (0 % to 100 %)
4 0 … 255 Intensity blue (0 % to 100 %)
5 0 … 255 Intensity white (0 % to 100 %)
6 0 … 255 Intensity warm white front spot 1 (0 % to 100 %)
7 0 … 255 Intensity warm white front spot 2 (0 % to 100 %)
8 0 … 255 Intensity warm white front spot 3 (0 % to 100 %)
9 0 … 255 Intensity warm white front spot 4 (0 % to 100 %)
10 0 … 255 Dimmer (0 % to 100 %) front spot 1 to 4
Operating
42
BAT.PARset 4 RGBW
LED lighting set
7.7 Functions in 13-channel DMX mode
Channel Value Function
1 0 … 255 Master dimmer (0 % to 100 %)
2 0 … 255 Intensity red (0 % to 100 %)
3 0 … 255 Intensity green (0 % to 100 %)
4 0 … 255 Intensity blue (0 % to 100 %)
5 0 … 255 Intensity white (0 % to 100 %)
6 0 … 255 Intensity warm white front spot 1 (0 % to 100 %)
7 0 … 255 Intensity warm white front spot 2 (0 % to 100 %)
8 0 … 255 Intensity warm white front spot 3 (0 % to 100 %)
9 0 … 255 Intensity warm white front spot 4 (0 % to 100 %)
10 0 … 255 Dimmer (0 % to 100 %) front spot 1 to 4
11 0 … 6 No function
Operating
BAT.PARset 4 RGBW
43
LED lighting set
Channel Value Function
7 … 255 Colour macro selection
12 Fixed colour selection
0 … 19 No function
20 … 23 Red
24 … 27 Green
28 … 31 Blue
32 … 35 Yellow
36 … 39 Cyan
40 … 43 Magenta
44 … 47 Cold white
48 … 51 Orange
52 … 55 Pink
56 … 59 Purple
Operating
44
BAT.PARset 4 RGBW
LED lighting set
Channel Value Function
60 … 63 Aquamarine
64 … 67 Sky-blue
68 … 71 Neutral white
72 … 75 Cold white
76 … 79 Warm white
80 … 83 White 3200
84 … 87 White 2500
88 … 91 Yellow 2
92 … 95 Straw yellow
96 … 99 Orange 2
100 … 103 Bright pink
104 … 107 Dark purple
108 … 111 Magenta 2
Operating
BAT.PARset 4 RGBW
45
LED lighting set
Channel Value Function
112 … 115 Blue 2
116 … 119 Blue-green
120 … 123 Dark blue
124 … 127 Bright pink
128 … 131 Medium blue
132 … 135 Amber
136 … 139 Gold amber
140 … 143 Pale lavender
144 … 147 Apricot
148 … 151 Dark lavender
152 … 155 Chocolate
156 … 159 Blue
160 … 163 Surprise pink
Operating
46
BAT.PARset 4 RGBW
LED lighting set
Channel Value Function
164 … 167 Scarlet red
168 … 171 Apricot
172 … 175 Fire red
176 … 179 English rose
180 … 183 Malva
184 … 187 Light blue
188 … 191 Alice blue
192 … 195 Indigo rose
196 … 199 Urban blue
200 … 203 Ice blue
204 … 207 Salmon-coloured
208 … 211 Maya sun
212 … 215 Strawberry rose
Operating
BAT.PARset 4 RGBW
47
LED lighting set
Channel Value Function
216 … 219 Pink rose
220 … 223 Skelton Exotic Sangria
224 … 255 Amb64 – 67 Blue Sky
13 0 … 255 Strobe effect
7.8 Functions in 14-channel DMX mode
Channel Value Function
1 0 … 255 Master dimmer (0 % to 100 %)
2 0 … 255 Intensity red (0 % to 100 %)
3 0 … 255 Intensity green (0 % to 100 %)
4 0 … 255 Intensity blue (0 % to 100 %)
Operating
48
BAT.PARset 4 RGBW
LED lighting set
Channel Value Function
5 0 … 255 Intensity white (0 % to 100 %)
6 0 … 255 Intensity warm white front spot 1 (0 % to 100 %)
7 0 … 255 Intensity warm white front spot 2 (0 % to 100 %)
8 0 … 255 Intensity warm white front spot 3 (0 % to 100 %)
9 0 … 255 Intensity warm white front spot 4 (0 % to 100 %)
10 0 … 255 Dimmer (0 % to 100 %) front spot 1 to 4
11 0 … 255 Strobe effect
12 0 … 255 Auto mode, Sound mode
13 0 … 255 Programme speed Auto mode, microphone sensitivity Sound mode
14 0 … 255 Device ID
Operating
BAT.PARset 4 RGBW
49
LED lighting set
7.9 Functions in 20-channel DMX mode
Channel Value Function
1 0 … 255 All LEDs spot 1 red
2 0 … 255 All LEDs spot 1 green
3 0 … 255 All LEDs spot 1 blue
4 0 … 255 All LEDs spot 1 cold white
5 0 … 255 All LEDs spot 2 red
6 0 … 255 All LEDs spot 2 green
7 0 … 255 All LEDs spot 2 blue
8 0 … 255 All LEDs spot 2 cold white
9 0 … 255 All LEDs spot 3 red
10 0 … 255 All LEDs spot 3 green
11 0 … 255 All LEDs spot 3 blue
Operating
50
BAT.PARset 4 RGBW
LED lighting set
Channel Value Function
12 0 … 255 All LEDs spot 3 cold white
13 0 … 255 All LEDs spot 4 red
14 0 … 255 All LEDs spot 4 green
15 0 … 255 All LEDs spot 4 blue
16 0 … 255 All LEDs spot 4 cold white
17 0 … 255 Intensity warm white front spot 1 (0 % to 100 %)
18 0 … 255 Intensity warm white front spot 2 (0 % to 100 %)
19 0 … 255 Intensity warm white front spot 3 (0 % to 100 %)
20 0 … 255 Intensity warm white front spot 4 (0 % to 100 %)
Operating
BAT.PARset 4 RGBW
51
LED lighting set
7.10 Functions in 24-channel DMX mode
Channel Value Function
1 0 … 255 Master dimmer (0 % to 100 %)
2 0 … 255 All LEDs spot 1 red
3 0 … 255 All LEDs spot 1 green
4 0 … 255 All LEDs spot 1 blue
5 0 … 255 All LEDs spot 1 cold white
6 0 … 255 All LEDs spot 2 red
7 0 … 255 All LEDs spot 2 green
8 0 … 255 All LEDs spot 2 blue
9 0 … 255 All LEDs spot 2 cold white
10 0 … 255 All LEDs spot 3 red
11 0 … 255 All LEDs spot 3 green
Operating
52
BAT.PARset 4 RGBW
LED lighting set
Channel Value Function
12 0 … 255 All LEDs spot 3 blue
13 0 … 255 All LEDs spot 3 cold white
14 0 … 255 All LEDs spot 4 red
15 0 … 255 All LEDs spot 4 green
16 0 … 255 All LEDs spot 4 blue
17 0 … 255 All LEDs spot 4 cold white
18 0 … 255 Intensity warm white front spot 1 (0 % to 100 %)
19 0 … 255 Intensity warm white front spot 2 (0 % to 100 %)
20 0 … 255 Intensity warm white front spot 3 (0 % to 100 %)
21 0 … 255 Intensity warm white front spot 4 (0 % to 100 %)
22 0 … 255 Strobe effect
23 0 … 255 Auto mode, Sound mode
24 0 … 255 Programme speed Auto mode, Microphone sensitivity Sound mode
Operating
BAT.PARset 4 RGBW
53
LED lighting set
8 Technical specifications
LED configuration: 4 × spot with each 3 × 4-in-1 LEDs, RGBW, each 8 W
4 × front spot, warm white, each 3 W
Number of DMX channels 6, 8, 10, 13, 14, 20 or 24
Power consumption approx. 108 W
Operating supply voltage
AC 100 – 240 V 50/60 Hz
Fuse 5 mm × 20 mm, 2 A, 250 V, fast-acting
Battery capacity High mode: approx. 5 h
Normal mode: approx. 8 h
Dimensions (W × H × D) 950 mm × 90 mm × 240 mm
Weight 7 kg
Technical specifications
54
BAT.PARset 4 RGBW
LED lighting set
9 Plug and connection assignments
This chapter will help you select the right cables and plugs to connect your valuable equipment so that a perfect light experience is guaranteed.
Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug
fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a
short circuit or ‘just’ a not working light show!
The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please
refer to the drawing and table below for the pin assignment of a suitable XLR plug.
Pin Configuration
1 Ground, shielding
2 Signal inverted (DMX–, ‘cold signal’)
3 Signal (DMX+, ‘hot signal’)
Introduction
DMX connections
Plug and connection assignments
BAT.PARset 4 RGBW
55
LED lighting set
10 Troubleshooting
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordinary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or amplifiers.
In the following we list a few common problems that may occur during operation. We give you
some suggestions for easy troubleshooting:
Troubleshooting
56
BAT.PARset 4 RGBW
LED lighting set
Symptom Remedy
The unit does not work, no light Check the mains connection and the fuse.
No response to the DMX con-
troller
1. If the dot behind the first character of the display is
flashing in the DMX mode, no DMX signal is received.
Make sure that the DMX controller is turned on. Check
the DMX ports and cables for proper connection.
2. If the display does not flash and still no response,
check the address settings and the DMX polarity.
3. Try using another DMX controller.
4. Check to see if the DMX cables run near or alongside
to high voltage cables that may cause damage or inter-
ference to DMX interface circuits.
If the procedures recommended above do not succeed, please contact our Service Center. You
can find the contact information at www.thomann.de.
Troubleshooting
BAT.PARset 4 RGBW
57
LED lighting set
11 Cleaning
Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the
light output. The frequency of cleaning depends on the operating environment: wet, smoky or
particularly dirty surroundings can cause more accumulation of dirt on the optics of the
device.
n Clean with a soft cloth using our lamp and lens cleaner (item no. 280122).
n
Always dry the parts carefully.
Optical lenses
Cleaning
58
BAT.PARset 4 RGBW
LED lighting set
12 Protecting the environment
For the packaging, environmentally friendly materials have been chosen that can be supplied
to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that
they are collected for recycling. Please follow the notes and markings on the packaging.
Batteries do contain some hazardous chemicals so they should not be thrown away with the
normal household waste. They should be returned to the manufacturer for disposal or recycled
elsewhere in accordance with your local regulations.
Remove lithium batteries from the device before disposal. Protect used lithium batteries
against short circuit, for example by taping the poles.
Disposal of the packaging material
Disposal of batteries
Protecting the environment
BAT.PARset 4 RGBW
59
LED lighting set
This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE) in its currently valid version. Do not dispose with your normal household waste.
Dispose of this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.
Disposal of your old device
Protecting the environment
60
BAT.PARset 4 RGBW
LED lighting set
Notes
BAT.PARset 4 RGBW
61
LED lighting set
Notes
62
BAT.PARset 4 RGBW
LED lighting set
Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
Loading...
