Varytec BAT.BAR 240 RGB User Manual

BAT.BAR 240 RGB

LED spotlight

User manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [e-mail]
Internet: www.thomann.de

16.02.2018, ID: 385471

Table of contents

1 General information................................................................................................................................. 6

1.1 Further information........................................................................................................................... 7

1.2 Notational conventions.................................................................................................................... 8

1.3 Symbols and signal words............................................................................................................... 8

2 Safety instructions.................................................................................................................................. 11

3 Features....................................................................................................................................................... 18

4 Installation.................................................................................................................................................. 19

4.1 Dealing with lithium batteries..................................................................................................... 23

5 Starting up.................................................................................................................................................. 25

6 Connections and controls................................................................................................................... 27

7 Operating.................................................................................................................................................... 33

7.1 Starting the device........................................................................................................................... 33

7.2 Operating on the unit..................................................................................................................... 33

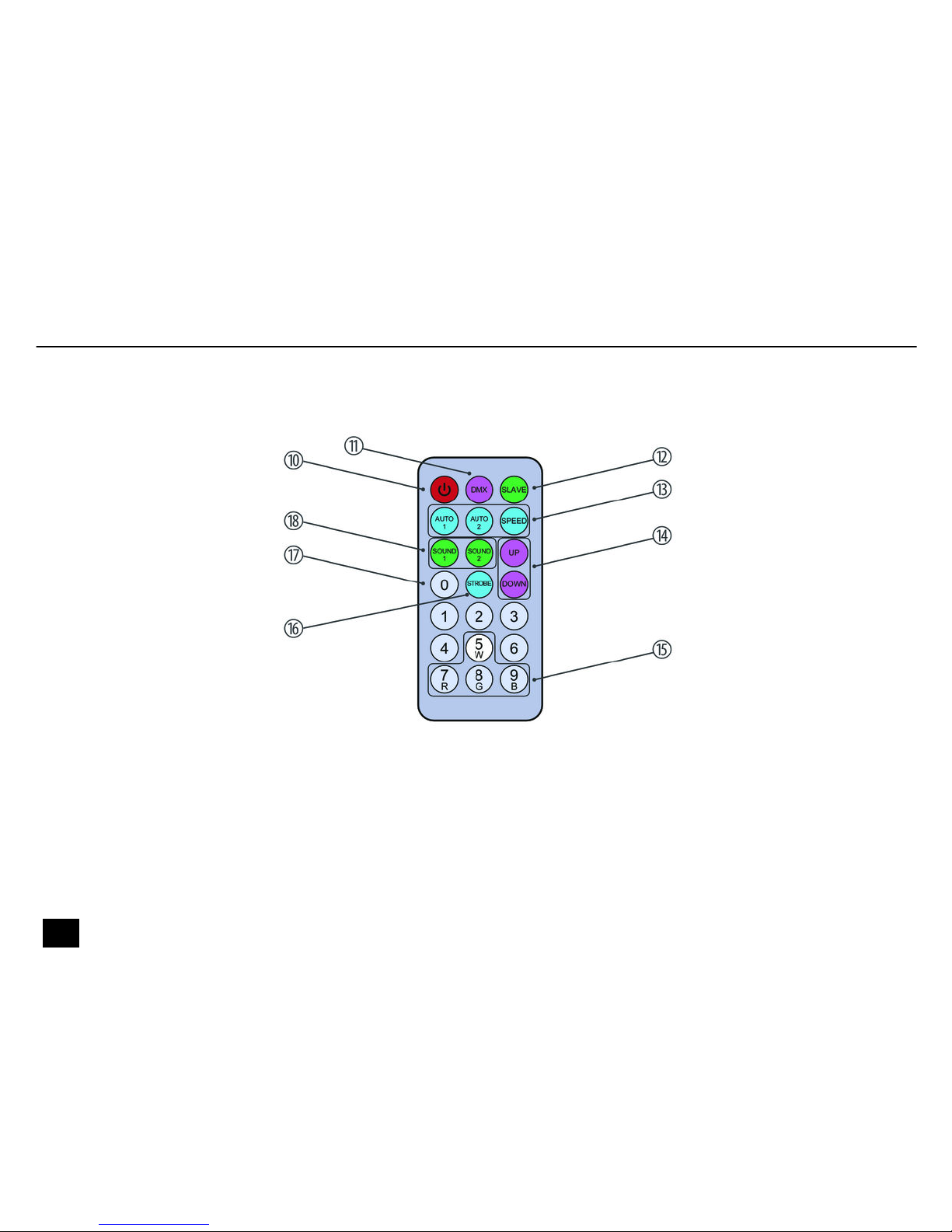

7.3 IR remote control............................................................................................................................. 36

7.4 Menu overview................................................................................................................................. 37

Table of contents

BAT.BAR 240 RGB

3

LED spotlight

7.5 Functions in 3-channel DMX mode........................................................................................... 38

7.6 Functions in 5-channel DMX mode........................................................................................... 38

7.7 Functions in 8-channel DMX mode........................................................................................... 39

7.8 Functions in 14-channel DMX mode........................................................................................ 41

7.9 Functions in 24-channel DMX mode........................................................................................ 43

7.10 Functions in 26-channel DMX mode...................................................................................... 45

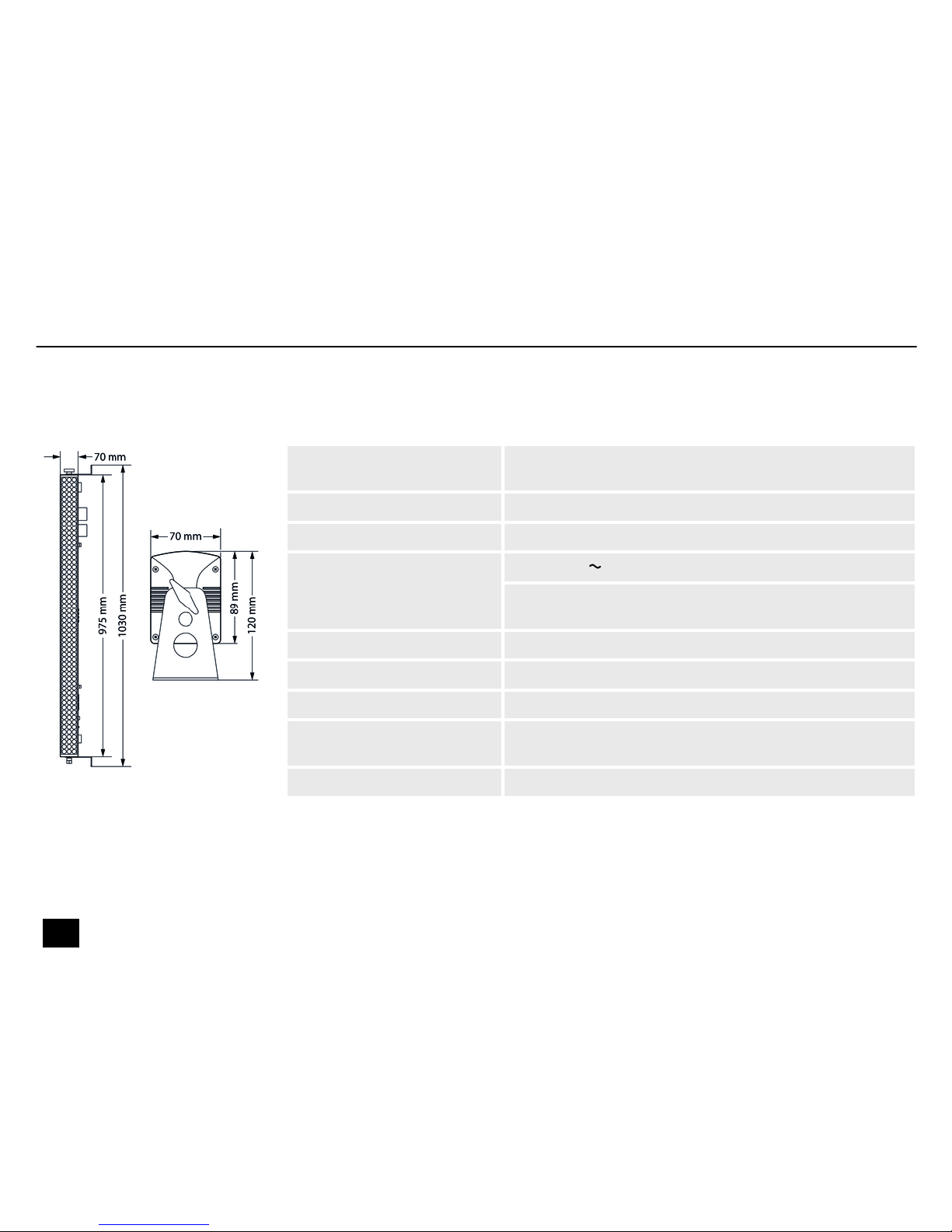

8 Technical specifications....................................................................................................................... 48

9 Plug and connection assignments.................................................................................................. 50

10 Troubleshooting...................................................................................................................................... 51

11 Cleaning....................................................................................................................................................... 54

12 Protecting the environment.............................................................................................................. 55

Table of contents

4

BAT.BAR 240 RGB
LED spotlight

BAT.BAR 240 RGB

5

LED spotlight

1 General information

This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.

Our products are subject to a process of continuous development. Thus, they are subject to
change.

General information

6

BAT.BAR 240 RGB
LED spotlight

1.1 Further information

On our website (www.thomann.de) you will find lots of further information and details on the
following points:

Download This manual is also available as PDF file for you to download.

Keyword search

Use the search function in the electronic version to find the topics of
interest for you quickly.

Online guides

Our online guides provide detailed information on technical basics
and terms.

Personal consultation For personal consultation please contact our technical hotline.

Service

If you have any problems with the device the customer service will
gladly assist you.

General information

BAT.BAR 240 RGB

7

LED spotlight

1.2 Notational conventions

This manual uses the following notational conventions:

The letterings for connectors and controls are marked by square brackets and italics.

Examples: [VOLUME] control, [Mono] button.

1.3 Symbols and signal words

In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.

Letterings

General information

8

BAT.BAR 240 RGB
LED spotlight

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an

immediate dangerous situation that will result in death or
serious injury if it is not avoided.

WARNING! This combination of symbol and signal word indicates a pos-

sible dangerous situation that can result in death or serious
injury if it is not avoided.

NOTICE! This combination of symbol and signal word indicates a pos-

sible dangerous situation that can result in material and
environmental damage if it is not avoided.

Warning signs Type of danger

Warning – high-voltage.

Warning – suspended load.

General information

BAT.BAR 240 RGB

9

LED spotlight

Warning signs Type of danger

Warning – danger zone.

General information

10

BAT.BAR 240 RGB
LED spotlight

2 Safety instructions

This device is intended to be used as an electronic illumination effect using LED technics. The
device is designed for professional use and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con­ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.

This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.

Intended use

Safety instructions

BAT.BAR 240 RGB

11

LED spotlight

DANGER!
Danger for children

Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!

Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!

Never let children unattended use electrical devices.

DANGER!
Electric shock caused by high voltages inside

Within the device there are areas where high voltages may be present. Never
remove any covers.

There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or

damaged.

Safety

Safety instructions

12

BAT.BAR 240 RGB
LED spotlight

DANGER!
Electric shock caused by short-circuit

Always use proper ready-made insulated mains cabling (power cord) with a pro­tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or fire. If in doubt, seek advice from a regis­tered electrician.

WARNING!
Eye damage caused by high light intensity

Never look directly into the light source.

WARNING!
Risk of epileptic shock

Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons
should avoid looking at strobe lights.

Safety instructions

BAT.BAR 240 RGB

13

LED spotlight

WARNING!
Incorrect handling of lithium batteries can result in injury

In the event of a short circuit, overheating or mechanical damage, lithium bat­teries can cause severe injuries.

Follow the advice on the correct handling of lithium batteries in the present sec­tion.

NOTICE!
Risk of fire

Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked flames.

Safety instructions

14

BAT.BAR 240 RGB
LED spotlight

NOTICE!
Operating conditions

This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.

NOTICE!
Power supply

Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.

Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.

Safety instructions

BAT.BAR 240 RGB

15

LED spotlight

NOTICE!
Risk of fire due to incorrect polarity

Incorrectly inserted batteries may destroy the device or the batteries.
Ensure that proper polarity is observed when inserting batteries.

NOTICE!
Possible damage by leaking batteries

Leaking batteries can cause permanent damage to the device.
Take batteries out of the device if it is not going to be used for a longer period.

Safety instructions

16

BAT.BAR 240 RGB
LED spotlight

NOTICE!
Possible damage due to incorrect storage

Deep discharge can cause batteries to become permanently damaged or lose
some of their capacity.

Before prolonged rest periods, charge the batteries to around 50 % of their
capacity and then switch the equipment off. Store the equipment at a tempera­ture between 10 °C and 32 °C in as dry an environment as possible. During
extended storage periods, charge the batteries to 50 % approximately every three
months.

Safety instructions

BAT.BAR 240 RGB

17

LED spotlight

3 Features

Special features of the device:

n

LED configuration: 240 RGB LEDs (10 mm, each 0.6 W)

n

Stand-alone, master-slave or DMX mode operation

n

Control via DMX (six different modes), via the supplied infrared remote and via buttons
and display on the unit

n

Stand-alone operation with static colours

n

Sound control

n

Battery or mains powered

n

Rechargeable battery pack and infrared remote control included

n

Suitable for use in clubs, bars, theatres, exhibitions, etc., also for mobile use due to battery
operation

Features

18

BAT.BAR 240 RGB
LED spotlight

4 Installation

Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.

WARNING!
Risk of injury caused by falling objects

Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.

Installation

BAT.BAR 240 RGB

19

LED spotlight

NOTICE!
Risk of overheating

Always ensure sufficient ventilation.
The ambient temperature must always be below 40 °C (104 °F).

NOTICE!
Use of stands

When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.

Installation

20

BAT.BAR 240 RGB
LED spotlight

NOTICE!
Possible data transmission errors

For error-free operation make use of dedicated DMX cables and do not use ordi­nary microphone cables.

Never connect the DMX input or output to audio devices such as mixers or ampli­fiers.

You can install the unit in hanging or standing position. When in use, the device must always
be attached to a solid surface or an approved truss.

Always work from a stable platform whenever installing, moving or servicing the unit. In doing
so, the area underneath the unit must be cordoned off.

The safety cable must be threaded through one of the mounting brackets.

Mounting options

Installation

BAT.BAR 240 RGB

21

LED spotlight

Please note that this device must not be connected to a dimmer.

Push the lock of the battery holder towards the centre of the housing and pull out the battery
holder like a drawer. Insert the batteries in the correct polarity according to the marking on the
remote. Slide the battery holder back into the remote until it clicks into place.

When shipping, the batteries are already installed in the remote and protected against dis­charge by a transparent plastic film. Remove the plastic film before initial use.

Inserting batteries into the
remote

Installation

22

BAT.BAR 240 RGB
LED spotlight

4.1 Dealing with lithium batteries

WARNING!
Incorrect handling of lithium batteries can result in injury

In the event of a short circuit, overheating or mechanical damage, lithium bat­teries can cause severe injuries.

Follow the advice on the correct handling of lithium batteries in the present sec­tion.

When handled correctly and appropriately lithium batteries pose no risk.
Store lithium batteries in a cool, dry place, ideally in the original packaging.
Store lithium batteries away from heat sources (e.g. radiators or sunlight). Lithium batteries are

hermetically sealed. Never attempt to open a lithium battery.
If the battery housing is damaged small amounts of the electrolyte may leak out. If this should

happen, seal the lithium battery in airtight packaging and wipe up the traces of electrolyte
using absorbent paper towels. You must wear protective rubber gloves when doing so. Clean
your hands and the affected surface thoroughly with cold water.

Installation

BAT.BAR 240 RGB

23

LED spotlight

Never attempt to recharge non-rechargeable lithium batteries. When charging lithium bat­teries you must use a suitable charging device intended for the purpose.

Before disposing of the device remove the lithium batteries. Protect used lithium batteries
against potential short circuits, e.g. by covering the poles with adhesive tape.

Only use powder extinguishers or other suitable extinguishing agents to extinguish a burning
lithium battery.

Installation

24

BAT.BAR 240 RGB
LED spotlight

5 Starting up

Create all connections while the device is off. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.

Starting up

BAT.BAR 240 RGB

25

LED spotlight

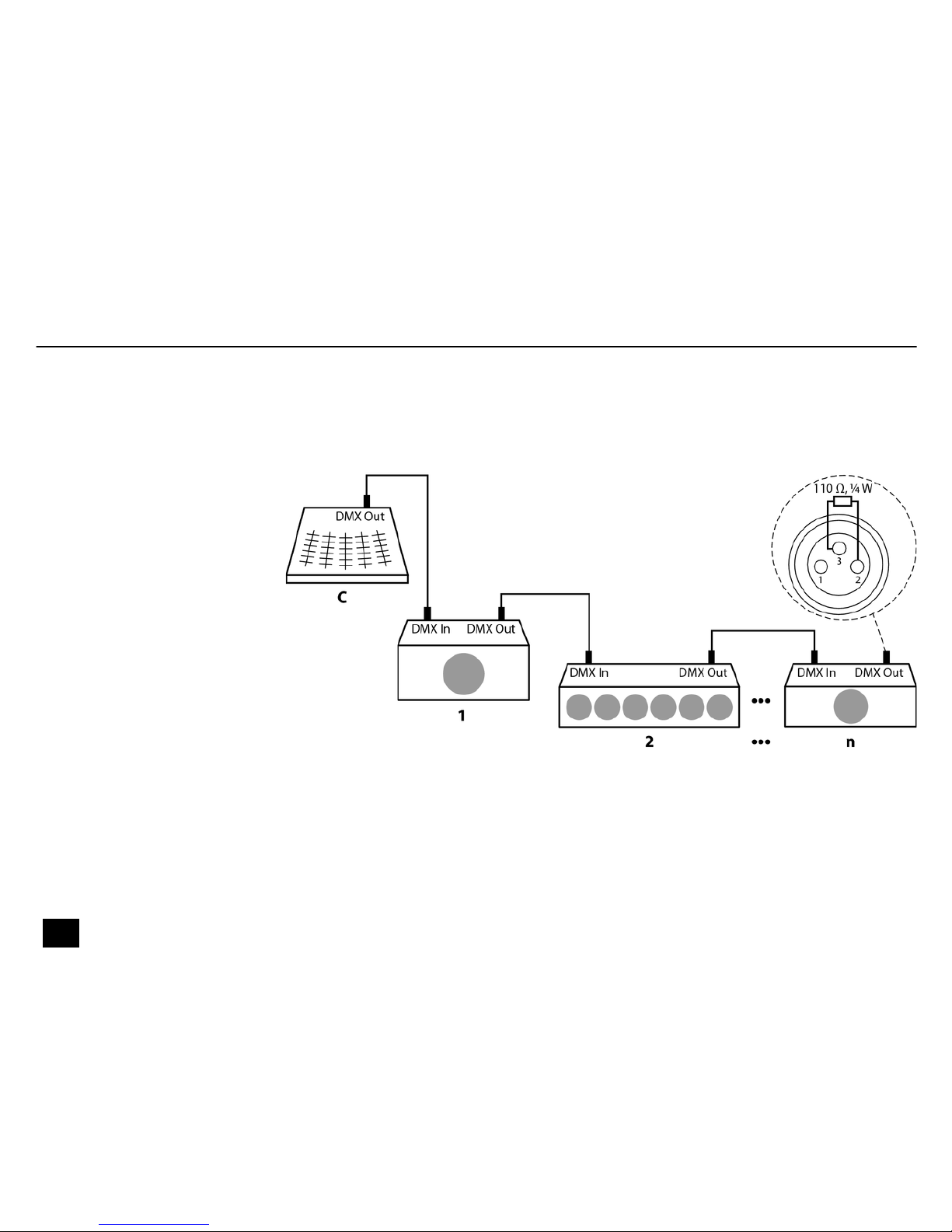

Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the first DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼ W).

Connections in DMX mode

Starting up

26

BAT.BAR 240 RGB
LED spotlight

6 Connections and controls

Connections and controls

BAT.BAR 240 RGB

27

LED spotlight

1 IEC chassis plug for the mains cable with fuse holder
2 [FUSE]

Fuse holder. Should the fuse have blown, disconnect the unit from the power supply and replace the fuse with a new
fuse of the same type.

3 [DMX IN]

DMX input.

4 [DMX OUT]

DMX output

5 [POWER]

Main switch. Turns the device on and off in mains operation.

6 Display and function buttons.

[MENU]

Activates the main menu and toggles between menu items. Closes an opened submenu.

Connections and controls

28

BAT.BAR 240 RGB
LED spotlight

[UP], [DOWN]
Toggles between the menu items of a menu level, increases or decreases the displayed value by one.

[ENTER]

Selects an option of the respective operating mode, confirms the set value.

7 [POWER OUT]

IEC chassis socket for the power supply of further devices

8 Battery holder

To unlock, press the two side push buttons and remove the insert. Always ensure that the insert snaps in correctly
during assembly.

9 Main switch. Turns the device on and off in battery operation.

10 [BATTERY INDICATOR]

Remaining battery capacity display.

n

All LEDs light up: Charging is complete, all inserted batteries are fully charged

n

LEDs flash from left to right: Charging

Connections and controls

BAT.BAR 240 RGB

29

LED spotlight

Remote control

Connections and controls

30

BAT.BAR 240 RGB
LED spotlight

10 Button to activate the standby mode.
11 [DMX]

Button to switch between DMX and stand-alone mode.
Press twice to select the DMX mode.

12 [SLAVE]

Button to activate the slave mode.

13 [AUTO 1], [AUTO 2], [SPEED]

Buttons to activate automatic mode 1 or 2 and to adjust the programme speed.

14 [UP], [DOWN]

Buttons to switch between programmes and to increase / decrease numeric values.

15 Buttons for colour selection, [R], [G] or [B] for primary colours red, green and blue. Use one of the buttons to turn the

respective colour on or off. When the colour appears in the display, you can adjust its intensity with [UP] or [DOWN] in
the range from 0 to 255.

Connections and controls

BAT.BAR 240 RGB

31

LED spotlight

16 [STROBE]

No function.

17 No function.
18 [SOUND 1], [SOUND 2]

Buttons to activate sound-control mode 1 or 2.

Connections and controls

32

BAT.BAR 240 RGB
LED spotlight

7 Operating

7.1 Starting the device

Connect the device to the mains or insert a charged battery.
Turn on the device using one of the main switches. The display shows the current operation

mode.

7.2 Operating on the unit

Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘Addr’ . Confirm with [ENTER].
Now you can set the number of the first DMX channel to be used by the device (DMX address).

Use [UP] and [DOWN] to select a value between 1 and 512 (the display shows ‘A001’ … ‘A512’).
Confirm with [ENTER].

Make sure that this number matches the configuration of your DMX controller.

DMX address

Operating

BAT.BAR 240 RGB

33

LED spotlight

Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘Soud’ . Confirm with [ENTER].
Use [UP] and [DOWN] to select the desired mode ‘SoU1’ , ‘Sou2’ or ‘Sou3’. Confirm with

[ENTER].
Now you can adjust the sensitivity of the built-in microphone for sound control. Use [Up] or

[Down] to select a value between 0 (low sensitivity) and 9 (high sensitivity), the display shows

‘Se0’ … ‘Se9’.

Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘CoLo’ . Confirm with [ENTER].
Use [UP] and [DOWN] to select a constant colour in the range of ‘CoL1’ … ‘Col9’ or the option

for a random colour mix. Confirm with [ENTER]. In menu item ‘Atf’ , use [UP] and [DOWN] to
select the colour whose setting you want to change. Red, green, blue. Adjust the setting as
desired in a range from 0 … 255 (0 % to 100 %) and confirm with [ENTER] to move to the next
colour in the menu.

Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘Auto’ . Confirm with [ENTER].
Use [UP] and [DOWN] to select the desired mode ‘AUt1’ , ‘AUt2’ or ‘AUt3’. Confirm with

[ENTER]. Now you can adjust the progress speed of the programme between ‘SP 1’ and ‘SP 9’.

Sound control

Constant colour

Operating mode Auto

Operating

34

BAT.BAR 240 RGB
LED spotlight

Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘uer’ . Confirm with [ENTER].
The display shows the version number of the currently installed software.

Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘SLAv’ . Confirm with [ENTER].
The display shows ‘SLA’ , the unit is now in Slave mode.

Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘Chnd’ . Confirm with [ENTER].
With [UP] or [DOWN] you can now select one of the following DMX modes:

n ‘3Ch’ (three channels)
n

‘5Ch’ (five channels)

n

‘8Ch’ (eight channels)

n

‘14Ch’ (14 channels)

n

‘24Ch’ (24 channels)

n

‘26Ch’ (26 channels)

Confirm the selection with [ENTER].

Device info

Operating mode Slave

DMX mode

Operating

BAT.BAR 240 RGB

35

LED spotlight

7.3 IR remote control

Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘rEno’ . Confirm with [ENTER].
Use [UP] and [DOWN] the option ‘on’ to operate the device via IR remote control, or ‘oFF’ if the

remote control is not to be used. Confirm with [ENTER].

Operating

36

BAT.BAR 240 RGB
LED spotlight

7.4 Menu overview

Operating

BAT.BAR 240 RGB

37

LED spotlight

7.5 Functions in 3-channel DMX mode

Channel Value Function

1 0…255 Intensity red (0 % to 100 %)
2 0…255 Intensity green (0 % to 100 %)
3 0…255 Intensity blue (0 % to 100 %)

7.6 Functions in 5-channel DMX mode

Channel Value Function

1 Function selection

0…7 No automatic, setting the intensity with channels 3…5
8…15 Strobe effect
16…231 Selecting a preprogrammed automatic show

Operating

38

BAT.BAR 240 RGB
LED spotlight

Channel Value Function

232…255 Selecting a sound-controlled programme
2 0…255 Speed of the effect selected with channel 1
3 0…255 Intensity red (0 % to 100 %), if channel 1 = 0…7
4 0…255 Intensity green (0 % to 100 %), if channel 1 = 0…7
5 0…255 Intensity blue (0 % to 100 %), if channel 1 = 0…7

7.7 Functions in 8-channel DMX mode

Channel Value Function

1 Function selection

0…7 No automatic, setting the intensity with channels 3…8

8…15 Strobe effect

Operating

BAT.BAR 240 RGB

39

LED spotlight

Channel Value Function

16…231 Selecting a preprogrammed automatic show

232…255 Selecting a sound-controlled programme
2 0…255 Speed of the effect selected with channel 1
3 0…255 Intensity red (0 % to 100 %), segment 1…4, if channel 1 = 0…7
4 0…255 Intensity green (0 % to 100 %), segment 1…4, if channel 1 = 0…7
5 0…255 Intensity blue (0 % to 100 %), segment 1…4, if channel 1 = 0…7
6 0…255 Intensity red (0 % to 100 %), segment 5…8, if channel 1 = 0…7
7 0…255 Intensity green (0 % to 100 %), segment 5…8, if channel 1 = 0…7
8 0…255 Intensity blue (0 % to 100 %), segment 5…8, if channel 1 = 0…7

Operating

40

BAT.BAR 240 RGB
LED spotlight

7.8 Functions in 14-channel DMX mode

Channel Value Function

1 Function selection

0…7 No automatic, setting the intensity with channels 3…8

8…15 Strobe effect

16…231 Selecting a preprogrammed automatic show

232…255 Selecting a sound-controlled programme
2 0…255 Speed of the effect selected with channel 1
3 0…255 Intensity red (0 % to 100 %), segment 1…2, if channel 1 = 0…7
4 0…255 Intensity green (0 % to 100 %), segment 1…2, if channel 1 = 0…7
5 0…255 Intensity blue (0 % to 100 %), segment 1…2, if channel 1 = 0…7
6 0…255 Intensity red (0 % to 100 %), segment 3…4, if channel 1 = 0…7
7 0…255 Intensity green (0 % to 100 %), segment 3…4, if channel 1 = 0…7

Operating

BAT.BAR 240 RGB

41

LED spotlight

Channel Value Function

8 0…255 Intensity blue (0 % to 100 %), segment 3…4, if channel 1 = 0…7
9 0…255 Intensity red (0 % to 100 %), segment 5…6, if channel 1 = 0…7
10 0…255 Intensity green (0 % to 100 %), segment 5…6, if channel 1 = 0…7
11 0…255 Intensity blue (0 % to 100 %), segment 5…6, if channel 1 = 0…7
12 0…255 Intensity red (0 % to 100 %), segment 7…8, if channel 1 = 0…7
13 0…255 Intensity green (0 % to 100 %), segment 7…8, if channel 1 = 0…7
14 0…255 Intensity blue (0 % to 100 %), segment 7…8, if channel 1 = 0…7

Operating

42

BAT.BAR 240 RGB
LED spotlight

7.9 Functions in 24-channel DMX mode

Channel Value Function

1 0…255 Intensity red (0 % to 100 %), segment 1, if channel 1 = 0…7
2 0…255 Intensity green (0 % to 100 %), segment 1, if channel 1 = 0…7
3 0…255 Intensity blue (0 % to 100 %), segment 1, if channel 1 = 0…7
4 0…255 Intensity red (0 % to 100 %), segment 2, if channel 1 = 0…7
5 0…255 Intensity green (0 % to 100 %), segment 2, if channel 1 = 0…7
6 0…255 Intensity blue (0 % to 100 %), segment 2, if channel 1 = 0…7
7 0…255 Intensity red (0 % to 100 %), segment 3, if channel 1 = 0…7
8 0…255 Intensity green (0 % to 100 %), segment 3, if channel 1 = 0…7
9 0…255 Intensity blue (0 % to 100 %), segment 3, if channel 1 = 0…7
10 0…255 Intensity red (0 % to 100 %), segment 4, if channel 1 = 0…7
11 0…255 Intensity green (0 % to 100 %), segment 4, if channel 1 = 0…7

Operating

BAT.BAR 240 RGB

43

LED spotlight

Channel Value Function

12 0…255 Intensity blue (0 % to 100 %), segment 4, if channel 1 = 0…7
13 0…255 Intensity red (0 % to 100 %), segment 5, if channel 1 = 0…7
14 0…255 Intensity green (0 % to 100 %), segment 5, if channel 1 = 0…7
15 0…255 Intensity blue (0 % to 100 %), segment 5, if channel 1 = 0…7
16 0…255 Intensity red (0 % to 100 %), segment 6, if channel 1 = 0…7
17 0…255 Intensity green (0 % to 100 %), segment 6, if channel 1 = 0…7
18 0…255 Intensity blue (0 % to 100 %), segment 6, if channel 1 = 0…7
19 0…255 Intensity red (0 % to 100 %), segment 7, if channel 1 = 0…7
20 0…255 Intensity green (0 % to 100 %), segment 7, if channel 1 = 0…7
21 0…255 Intensity blue (0 % to 100 %), segment 7, if channel 1 = 0…7
22 0…255 Intensity red (0 % to 100 %), segment 8, if channel 1 = 0…7
23 0…255 Intensity green (0 % to 100 %), segment 8, if channel 1 = 0…7
24 0…255 Intensity blue (0 % to 100 %), segment 8, if channel 1 = 0…7

Operating

44

BAT.BAR 240 RGB
LED spotlight

7.10 Functions in 26-channel DMX mode

Channel Value Function

1 Function selection

0…7 No automatic, setting the intensity with channels 3…8

8…15 Strobe effect

16…231 Selecting a preprogrammed automatic show

232…255 Selecting a sound-controlled programme
2 0…255 Speed of the effect selected with channel 1
3 0…255 Intensity red (0 % to 100 %), segment 1, if channel 1 = 0…7
4 0…255 Intensity green (0 % to 100 %), segment 1, if channel 1 = 0…7
5 0…255 Intensity blue (0 % to 100 %), segment 1, if channel 1 = 0…7
6 0…255 Intensity red (0 % to 100 %), segment 2, if channel 1 = 0…7
7 0…255 Intensity green (0 % to 100 %), segment 2, if channel 1 = 0…7

Operating

BAT.BAR 240 RGB

45

LED spotlight

Channel Value Function

8 0…255 Intensity blue (0 % to 100 %), segment 2, if channel 1 = 0…7
9 0…255 Intensity red (0 % to 100 %), segment 3, if channel 1 = 0…7
10 0…255 Intensity green (0 % to 100 %), segment 3, if channel 1 = 0…7
11 0…255 Intensity blue (0 % to 100 %), segment 3, if channel 1 = 0…7
12 0…255 Intensity red (0 % to 100 %), segment 4, if channel 1 = 0…7
13 0…255 Intensity green (0 % to 100 %), segment 4, if channel 1 = 0…7
14 0…255 Intensity blue (0 % to 100 %), segment 4, if channel 1 = 0…7
15 0…255 Intensity red (0 % to 100 %), segment 5, if channel 1 = 0…7
16 0…255 Intensity green (0 % to 100 %), segment 5, if channel 1 = 0…7
17 0…255 Intensity blue (0 % to 100 %), segment 5, if channel 1 = 0…7
18 0…255 Intensity red (0 % to 100 %), segment 6, if channel 1 = 0…7
19 0…255 Intensity green (0 % to 100 %), segment 6, if channel 1 = 0…7
20 0…255 Intensity blue (0 % to 100 %), segment 6, if channel 1 = 0…7

Operating

46

BAT.BAR 240 RGB
LED spotlight

Channel Value Function

21 0…255 Intensity red (0 % to 100 %), segment 7, if channel 1 = 0…7
22 0…255 Intensity green (0 % to 100 %), segment 7, if channel 1 = 0…7
23 0…255 Intensity blue (0 % to 100 %), segment 7, if channel 1 = 0…7
24 0…255 Intensity red (0 % to 100 %), segment 8, if channel 1 = 0…7
25 0…255 Intensity green (0 % to 100 %), segment 8, if channel 1 = 0…7
26 0…255 Intensity blue (0 % to 100 %), segment 8, if channel 1 = 0…7

Operating

BAT.BAR 240 RGB

47

LED spotlight

8 Technical specifications

LED configuration: 240 × RGB (80 × red 80 × green, 80 × blue, each 10 mm,

0.6 W)
Number of DMX channels 3, 5, 8, 14, 24 or 26
Beam angle 25°
Voltage supply

100 – 240 V 50/60 Hz
Replaceable rechargeable battery packs, item # 385488

(lithium ion battery, 10.8 V, 1500 mAh)
Fuse 5 mm × 20 mm, 1 A, 250 V, fast-acting
Power consumption 26 W
Batteries (remote control) 2 button cells (LR1130/AG10, 1.5 V)
Operating time with two bat-

tery packs

approx. 3 h

Protection class IP20

Technical specifications

48

BAT.BAR 240 RGB
LED spotlight

Dimensions (W × H × D) 975 mm × 89 mm × 60 mm (without feet)

975 mm × 120 mm × 60 mm (with feet)
Weight 1.6 kg

Technical specifications

BAT.BAR 240 RGB

49

LED spotlight

9 Plug and connection assignments

This chapter will help you select the right cables and plugs to connect your valuable equip­ment so that a perfect light experience is guaranteed.

Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug
fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a
short circuit or ‘just’ a not working light show!

The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please
refer to the drawing and table below for the pin assignment of a suitable XLR plug.

Pin Configuration

1 Ground, shielding
2 Signal inverted (DMX–, ‘cold signal’)
3 Signal (DMX+, ‘hot signal’)

Introduction

DMX connections

Plug and connection assignments

50

BAT.BAR 240 RGB
LED spotlight

10 Troubleshooting

NOTICE!
Possible data transmission errors

For error-free operation make use of dedicated DMX cables and do not use ordi­nary microphone cables.

Never connect the DMX input or output to audio devices such as mixers or ampli­fiers.

In the following we list a few common problems that may occur during operation. We give you
some suggestions for easy troubleshooting:

Troubleshooting

BAT.BAR 240 RGB

51

LED spotlight

Symptom Remedy

The unit does not work, no light Check the mains connection.

If the device is to be operated independently from the
mains power supply, check the charge status of the bat­tery pack.

Apparently no function despite
proper power supply

Check if the unit is in DMX mode or in ‘slave’ mode. If so,
check the unit in another mode.

No response to the DMX con­troller

1. Check whether the DMX controller is switched on.
Check the DMX connectors and cables for proper con­nection.

2. Check the address settings and the DMX polarity.

3. Try using another DMX controller.

Troubleshooting

52

BAT.BAR 240 RGB
LED spotlight

Symptom Remedy

4. If the device is to be controlled wirelessly via DMX,
check whether the module is activated in the menu. If
so, find a better DMX antenna orientation.

5. Check whether the DMX cables run near or parallel to
high-voltage cables that may cause damage or interfer­ence to a DMX interface circuit.

If the procedures recommended above do not succeed, please contact our Service Center. You
can find the contact information at www.thomann.de.

Troubleshooting

BAT.BAR 240 RGB

53

LED spotlight

11 Cleaning

Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the
light output. The frequency of cleaning depends on the operating environment: wet, smoky or
particularly dirty surroundings can cause more accumulation of dirt on the optics of the
device.

n Clean with a soft cloth using our lamp and lens cleaner (item no. 280122).
n

Always dry the parts carefully.

The fan grids of the device must be cleaned on a regular basis to remove dust and dirt. Before
cleaning, switch off the device and disconnect AC-powered devices from the mains. Use a lint­free damp cloth for cleaning. Never use solvents or alcohol for cleaning.

Optical lenses

Fan grids

Cleaning

54

BAT.BAR 240 RGB
LED spotlight

12 Protecting the environment

For the packaging, environmentally friendly materials have been chosen that can be supplied
to normal recycling.

Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that

they are collected for recycling. Please follow the notes and markings on the packaging.

Batteries do contain some hazardous chemicals so they should not be thrown away with the
normal household waste. They should be returned to the manufacturer for disposal or recycled
elsewhere in accordance with your local regulations.

Remove lithium batteries from the device before disposal. Protect used lithium batteries
against short circuit, for example by taping the poles.

Disposal of the packaging mate­rial

Disposal of batteries

Protecting the environment

BAT.BAR 240 RGB

55

LED spotlight

This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE) in its currently valid version. Do not dispose with your normal household waste.

Dispose of this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.

Disposal of your old device

Protecting the environment

56

BAT.BAR 240 RGB
LED spotlight

Notes

BAT.BAR 240 RGB

57

LED spotlight

Notes

58

BAT.BAR 240 RGB
LED spotlight

Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
