LED ACCU WASH
Product Overview
LED ACCU WASH Introduction
Unpacking: Thank you for purchasing the LED ACCU WA
thoroughly tested and has been shipped in perfect operating condition. Carefully check the
shipping carton for damage that may have occurred during shipping. If the carton appears to be
damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to
operate the unit has arrived intact.
SH. Every LED ACCU WASH has been
Introduction: The LED ACCU WASH is
wireless controlled colour changer with 12 powerful RGBW full color LEDs.This light can be used in a
stand alone mode or connected in a Master/Slave configuration. Our rechargeable battery pack fixture, is
particularly suitable for events where set - up time is problematic, and the passage of cables is hard.
Setup and configuration of the fixture by touch control panel.
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to rain or
moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, doing
so will void your manufactures warranty. In the unlikely event your unit may require service please
contact us
PLEASE recycle the carton when ever possible.
is the newest revolutionary battery powered and main supply
LED ACCU WASH General Instructions
To optimize the performance of this product, please read these operating instructions carefully
familiarize yourself with the basic operations of this unit. These instructions contain important
to
safety information regarding the use and maintenance of this unit. Please keep this manual with the
unit, for future reference.
LED ACCU WASH
DMX-512 protocol
Battery can be discharged
Two application.With battery and without battery.
Build-in W-DMX Wireless receiver inside
Waterproof rating: IP 65
10 built-in programs
Radiator air valve on the rear panel
Electronic dimming without flicker: 0-100%
3 DMX Channels: 1, 4, 8,CH
LED ACCU WASH
• SOURCE
n.12x8W (5W in battery mode) RGBW LEDs for a total result of 48 LEDs
4680 total lms (lms: 900 R, 1620 G,360 B, 1800 W) with main supply
3120 total lms (lms: 600 R, 1080 G, 240 B, 1200 W) with battery supply
OPTIC
30mm lenses standard beam 25
• TILT
Manual 220°
• CONTROL
Standard interface: DMX control,wireless DMX control
Optional control:With remote control(Within 500m)
Waterproof: IP66
POWER SUPPLY
Switching power supply (universal main voltage)
Rated voltage: 100-240V~; 50-60Hz
Total Rated power: 80W (115W on charge)
Rated current: 0.5A @ 230V - fuse T3.15A

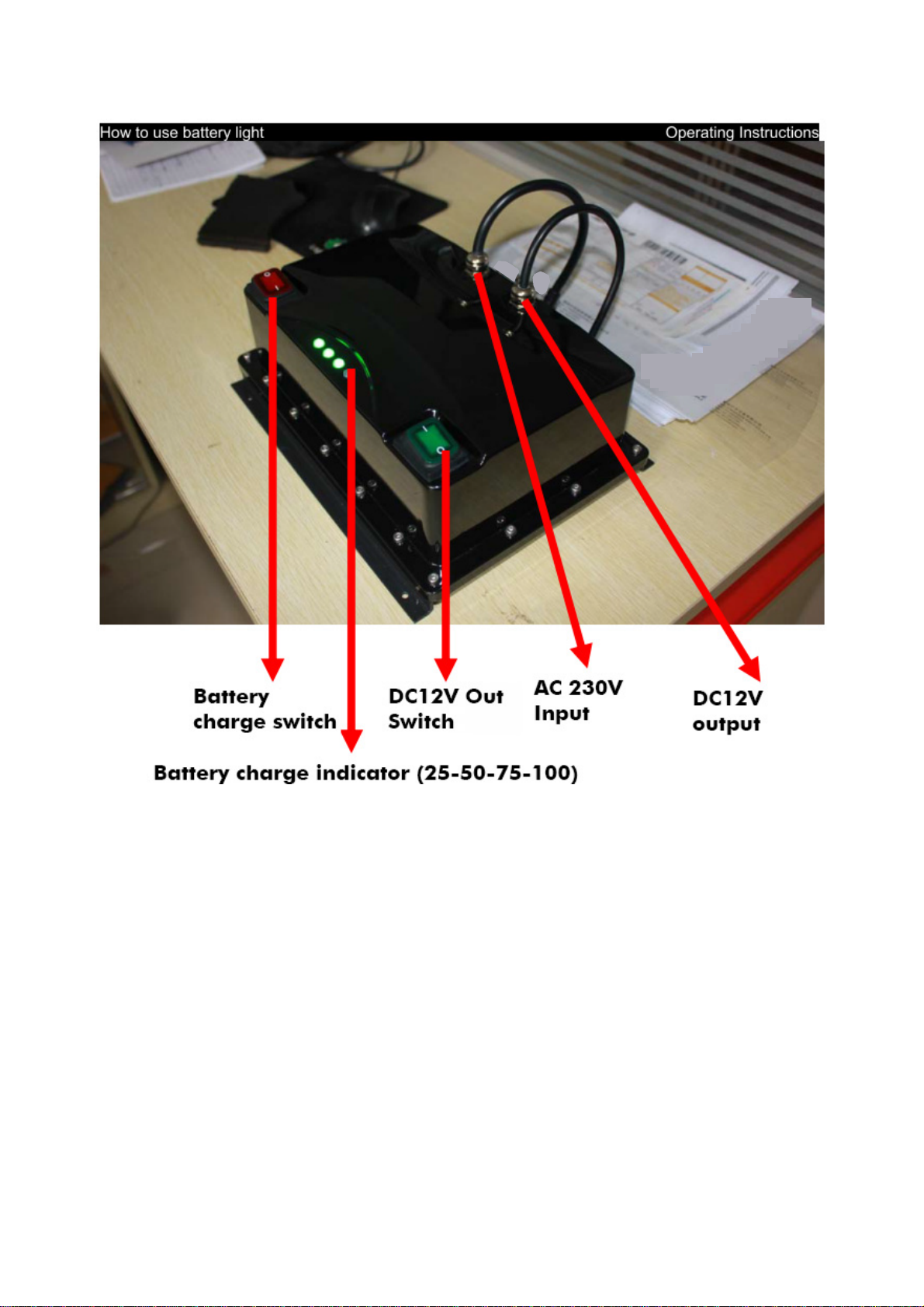

24V 22A/h BATTERY PACK.
Battery charge time: 10 hours
Battery working autonomy: 10 hours with 2-3 color running.
Package
Carton and flight case
Size: 398*220*289cm
Features
Specifications
D ACCU WASH Operating Instructions
LE
On-Board System
The LED ACCU WASH comes with an easy to navigate
system menu. This next section will detail the functions of each
command in the system menu. Please read the next section
thoroughly!
To access the main menu press the ESC button. Tap the UP or
DOWN buttons until you reach function you wish to change. When
you reach the function you wish to change press the ENTER button.
When a function is selected use the UP or Down buttons to change
the function settings. Once your changes are made press the
ENTER button,
Addr - DMX Address Setting via control board
1. Tap the ESC button and UP button or DOWN button until “Addr” is
displayed, press ENTER.
2. “Axxx” will now be displayed, “x” represents the displayed
address. Press the UP or DOWN buttons to find your desired
address.
Chnd - This menu will let you select your desired DMX Channel
mode.
1. Tap the ESC button and UP button or DOWN button until “Chnd”
is displayed, press ENTER.
2. “X Ch” will now be displayed, “X” represen ts the displayed DMX
channel mode. Press the UP or DOWN buttons to find your desired
Channel mode.
Menu.
Auto - This menu will let you select your desired auto mode
1. Tap the ESC button and UP button or DOWN button until “Auto”
is displayed, press ENTER.
2. “Autx” will now be displayed, You can confirm three modes by
UP or DOWN for auto mode.
Stat- This menu will let you select your desired static color mode and
strobe mode
1. Tap the MENU button until “Stat” is displayed, press ENTER.
2. There will be five options. Press ENTER can select the option and
press UP or DOWN button can select the value you desire as below.
1) R000
2) G000~G255
3) B000~B255
4) U000~U255
5) St00~St30
Colo – Build-in color mix
1. Tap the ESC button and UP button or DOWN button until “CoLo” is displayed, press ENTER.
2. “CoLX” will now be displayed,, “X” representing a number between 0-51 will be displayed. Press the
SLav- This menu will let you select your desired Master/slave mode
1. Tap the MENU button until “SLav” is displayed, press ENT ER.
2. “Sla ” will now be displayed,Slave mode is confirmed. It will be slaved by auto mode sound mode and
Info - This will display the software version and working time
1. Tap the MENU button until “Info” is displa yed. Press the ENTER button an d the software vesion will
2. Press the MENU button to leave this function.
~R255
UP or DOWN buttons to select either a static color mode.
chase mode
be displayed.
PASd – Password function switch
W-DMX solution Operating Instructions
Build-in Wireless DMX System made in Sweden.
This Wireless DMX System is the ideal solution for DJ’s, nightclubs, bars or for any event where you
don’t want data cables to be seen and when it is not easy to run data cables to your fixture(s) locati on.
The most important is that the control distance is up to 500 wireless meter (open line of sight)
DMX control mode
This function will allow you to control each individual fixtures traits with a standard DMX-512 controller
Universal DMX Control: This function allows you to use a universal DMX-512 controller such all ows you
to create unique programs tailored to your individual needs.
1.
The LED ACCU WASH uses six DMX channel modes . See next page for detailed
description of the DMX traits.
2. This will allow you to create your own programs.
DMX channel and function
1 DMX Channel
Channel Value Function
0 Light off
1-4 Color 1
5-9 Color 2
10-14 Color 3
1
…. ….
240-244 Color 48
245-249 Color 49
250-254 Color 50
255 Color 51
4 DMX Channel
Channel Value Function
1 0-255 Red
2 0-255 Green
3 0-255 Blue
4 0-255 White
8 DMX Channel
Channel Value Function
1 0-255 Dimmer
2 0-255 Red
3 0-255 Green
4 0-255 Blue
5 0-255 White
6 0-255 Strobe
0 Light off
1-27 Auto 0
28-55 Auto 1
56-83 Auto 2
84-111 Auto 3
7
8 0-255 Speed (slow-fast)
112-139 Auto 4
140-167 Auto 5
168-195 Auto 6
196-223 Auto 7
224-251 Auto 8
252-255 Auto 9
