VarTech Systems VTPC2100VS User Manual

Solutions for Demanding Applications

VARTECH

S Y S T E M S I N C.

21.5” Wide Format Class 1 - Division 2 Certified

Model VTPC2100VS / VTPC2100VS Video Monitor

VESA Mount Enclosed PC

User’s Guide

Read these instructions completely before attempting to operate your new VESA Mount PC

Revision History

Date Rev No Summary Page

12/04/17 00 First Issue

Safety Instructions

PLEASE NOTE - This equipment is suitable for use in Class I, Division 2 or non-hazardous
locations only.

WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS
BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NON-HAZARDOUS.

AVERTISSEMENT - RISQE D'EXPLOSION - AVANT DE DECONNECTER L'EQUIPMENT, COUPER
LE COURANT OU S'ASSURER QUE L'EMPLACEMENT EST DESIGNE NON DANGEREUX.

 Read the Safety Instructions carefully and keep it for use later.
 The chassis metalwork of the module must be installed properly to the main earthing termination

for Class 1 equipment.

 Care must be exercised in the application of the system to prevent overheating. Ensure that the

ambient temperature around the system does not exceed 60°C and provide adequate means of
ventilation to achieve this.

 When cleaning cut off the electrical supply at all times. Never use liquid or aerosol detergent,

use a soft damp cloth instead.

 To avoid electric shock, never touch the inside of the system. There are no user adjustable

components inside, only a qualified technician should open the system’s case.

 If the system does not operate normally – in particular, if there are any unusual sounds or smells

coming from it – disconnect it immediately.

 Do not put pressure on the LCD panel screen because it is very fragile.
 Always handle the system with care when moving it.
 Take care that the system is disposed of correctly at the end of its life. If in doubt refer to your

local ordinances or regulations for proper disposal.

 User to supply appropriate lockable type plug and power disconnecting switch.
 The end user must either supply a switch to their power outlet suitable for Class 1, Division 2

use (if adjacent to the power outlet), or locate the said switch outside the hazardous area.

 This equipment is suitable for use in a Class 1, Division 2, Groups A, B, C, and D or non-

hazardous location only.

 Explosion Hazard - Substitution of components may impair suitability for hazardous locations.

 Any Equipment or associated cabling connected to this device must be non-incendive and/or

suitable for the Class 1, Division 2 area in which it is to be installed.

Hazardous Locations:

This equipment is suitable only for the locations specified on the product nameplate, specifically:

 Class I, Division 2 Groups A, B, C, D
 Non-hazardous locations

The following statement applies to use in hazardous locations:

WARNING! Explosion Hazard

Substitution of components may impair suitability for hazardous locations.
Do not disconnect equipment unless power has been switched off and area is

known to be non-hazardous.
Do not connect or disconnect components unless power has been switched off.
All wiring must comply with NEC 2014 articles are 501.10(B), 502.10(B), and

503.10(B) as appropriate.
Peripheral equipment must be suitable for the location in which it is used.

This equipment has an operating temperature code of T4 when operating in a
60`C (140`F) ambient environment. Do not install this product in environments
where atmospheric gases have an ignition temperature of less than 135`C
(275`F).

Environment and Enclosure Information:

Review this information on enclosures before installing the product:

ATTENTION: Environment and Enclosure

This equipment is intended for use in a Pollution Class 2 industrial environment, in
overvoltage Category II applications (as defined in IEC publication 60664-1), at
altitudes up to 2000 meters (6561 feet).

See NEMA Standards publication 250 and IEC publication 60529, as applicable,
for explanations of the degrees of protection provided by different types of

enclosures. The user may also reference the Industrial Automation Wiring and
Grounding Guidelines, publication 1770-4.1, for additional installation
requirements pertaining to this equipment.

Cleaning the LCD monitor

To clean the LCD panel:

 Wipe the screen gently with a clean lens brush made of camel hair, or a soft, clean, lint free

cloth. This is to remove dust and other particles without scratching the LCD panel.

 If it is still not clean, then wipe with a damp lint free cloth and blow on it to dry.

Do not clean the panel with a keton-type material (e.g. acetone), or ethyl toluene, ethyl acid, methyl
or chloride. These may damage the LCD panel.

Do not apply pressure to the LCD panel.

Standard Technical Specifications:
LCD Monitor:

Size / Type
Native Resolution
Contrast Ratio
Viewing Angles

Pixel Pitch
Brightness (typical) 300 cd/m²
Response Time (typical) 25ms GTG(Avg. Typ.)
Colors Supported

21.5” 1080P Full HD TFT LCD
1920 x 1080
5000:1
Horizontal: 178°
Vertical: 178°

248.25mm x 248.25mm

16.7 million

Computer System:

Processor

2.0GHz Quad Core Intel® Celeron® Processor J1900

System Memory

4GB DDR3L-1333 SO-DIMM x 1

BIOS

AMI

500 GB SATA

Hard Drive
Operating System

Windows 10 - 32 bit

I/O Ports

2 x LAN
3 x RS-232
1 x RS-422/485
2 x USB 2.0
1 x Power Connector

Graphics

Intel® HD Graphics

LAN

2 x 10/100/1000Mbs support Wake-on-LAN

Touch Screen

Resistive Touch

Touch Screen Interface

USB

Power & Operational Specifications:

Power Input
Power Consumption
Temperature

100 - 220 VAC 1.5A
60W
Operational: -32°F to 122°F 0°C to 50°C
Storage: -4°F to 140°F -20°C to 60°C

Humidity

Operational: 20 to 40°C, 90% RH NC
Storage: 5 to 65°C, 28% RH NC

Installation of Your VESA Mount PC

Packaged with each carton will be:
1 – VTPC2100VS

1 - Users Guide (Printed or on CD/Flash Drive)

BEFORE MAKING ANY CONNECTIONS OR APPLYING POWER,

FIRST READ THROUGH THE ENTIRE MANUAL

Mounting Procedure

VESA Panel Mounting Procedure:

1- Install the enclosure to a 100mm VESA mount pedestal.
2- Secure the enclosure using the screws and lock washers, supplied with the unit.

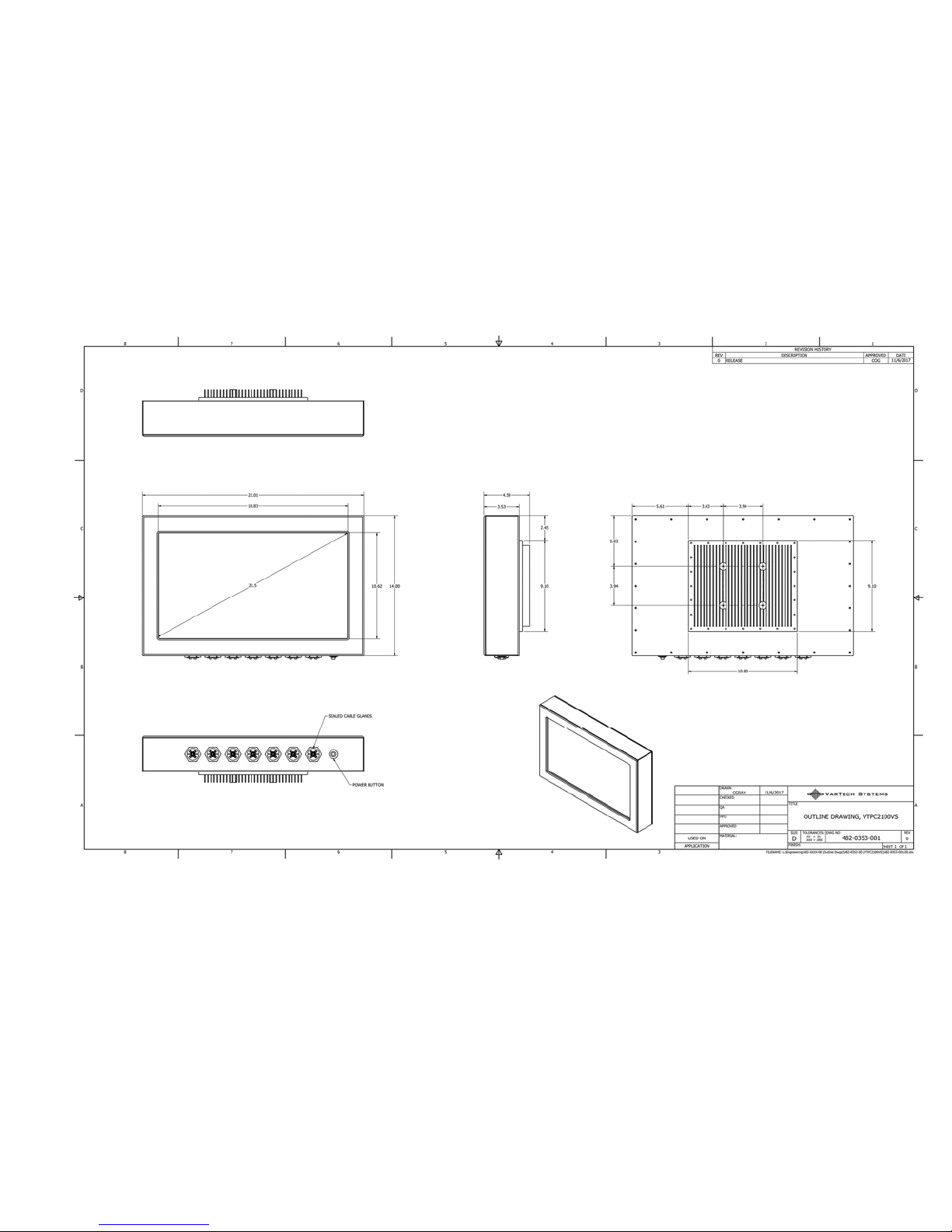

VESA Mount Drawing: Detail –A–

Connections to the VESA Mount PC

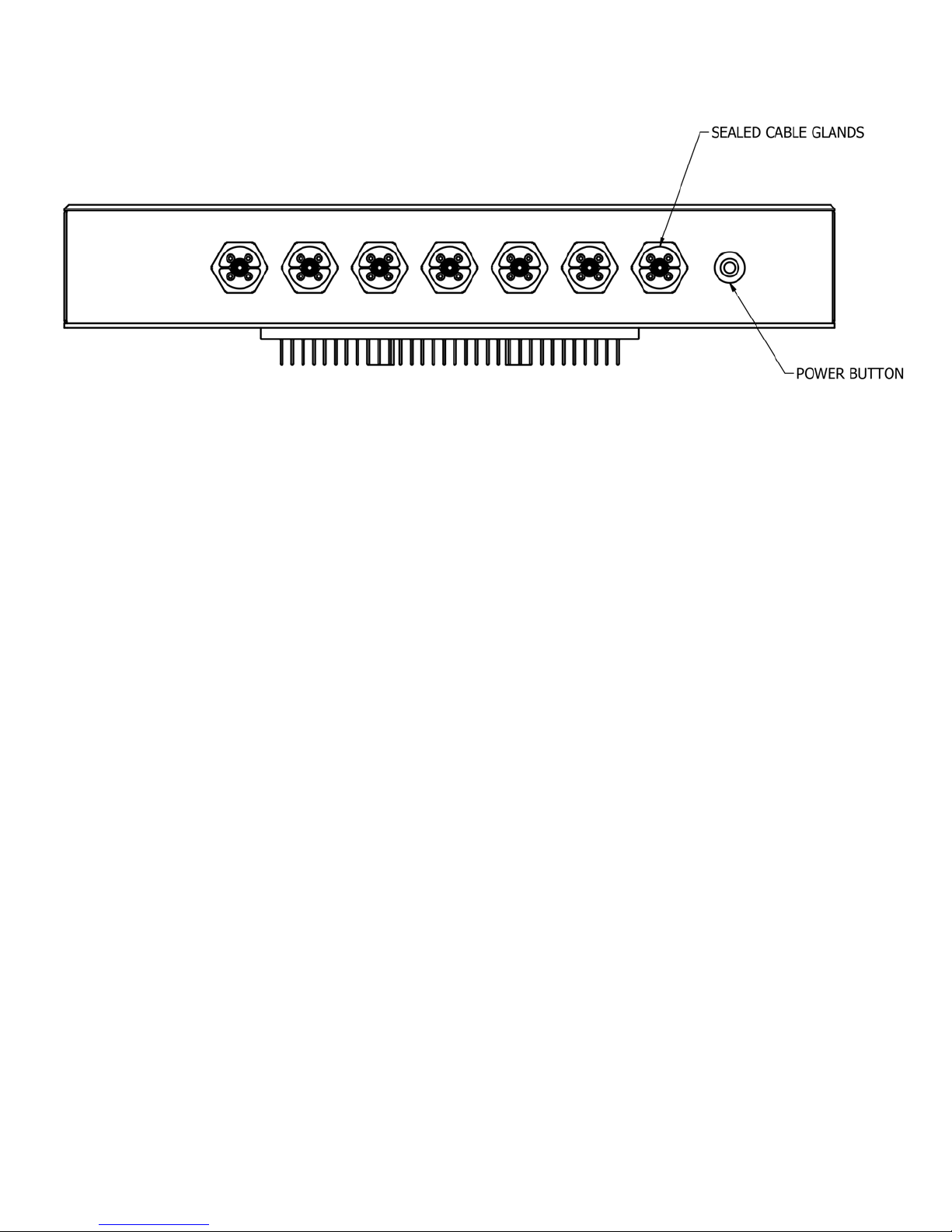

Bottom Rear View

-Connector Panel-

PLEASE NOTE – ANY EQUIPMENT OR ASSOCIATED CABLING CONNECTED TO THIS
DEVICE MUST BE NON-INCENDIVE AND/OR SUITABLE FOR THE CLASS I DIVISION 2
AREA IN WHICH IT IS TO BE INSTALLED.Power Connection (Power In)

Power Connection (Power In)

The VESA Mount Enclosed PC includes an AC line cord which is 3ft long with stripped wires at
the connection end. The user must supply a lockable industrial-type power supply plug to mate
with their power outlet. Also, the end user must either supply a switch to their power outlet

suitable for Class I, Division 2 use (if adjacent to the power outlet), or locate the said switch
outside the hazardous area.

Serial Connections (COM)
The Enclosed VESA PC is supplied with a serial connector configured for RS-232. The

connector is a 9 pin female connectors and can be set up for any baud rate from 300 to 19.2
baud. The connector is located on the bottom panel of the system.

Ethernet Connections (LAN)
The Enclosed PC is supplied with integrated Ethernet. The interface will support 10/100/1000

BaseT connection to a local area network (LAN). The Enclosed PC is supplied with a RJ-45
female connector located on the bottom panel of the system.

USB Connections (USB)

The Enclosed VESA PC is supplied with three USB 2.0 connectors, which are located on the
bottom panel of the system.

Turning the system On and Off

Before connecting the Enclosed VESA Mount PC to power, connect any peripheral devices. As
a general rule, any peripheral device should only be connected or disconnected when the
Enclosed PC is off with the exception of any USB peripheral.

The Enclosed VESA Mount PC is turned on using the main On-Off switch located on the bottom
panel. Once the Enclosed PC is powered on the computer power pushbutton switch must be
depressed for Windows to start. Windows must be properly shut down before the main power
switch is turned off to prevent the chance of corrupting files in the operating system.

The Enclosed VESA Mount PC is rated for continuous duty. However, to extend the life of the
various components and conserve power, it is highly recommended that the system be properly
shut down and power turned off when the Enclosed VESA Mount PC is not in use.

LCD Monitor Warm-up Time

All LCD monitors need time to become thermally stable the first time you turn them on.
Therefore, to achieve more accurate adjustments for parameters, allow the LCD monitor to
warm (be on) for at least 20 minutes before making any screen adjustments.

Maintenance

The Enclosed VESA Mount PC is designed to provide optimum service and performance with
minimal maintenance including the occasional external cleaning. For cleaning the Enclosed
VESA Mount PC enclosure follow the suggested guidelines.

General – NEVER use abrasive cleaners or solvent-based cleaners!! Use a clean soft cloth.
The Enclosed VESA Mount PC should only be opened and serviced by a qualified technician.
Keep the area around the Enclosed VESA Mount PC clear and free of excessive dirt or other
contaminants.

Contact Your VarTech Sales Representative

For Additional Assistance

Vartech Systems, Inc.
11422 Industriplex Blvd.
Baton Rouge, LA 70809

800-223-8050

Fax: [phone]

www.vartechsystems.com
