Page 1
Solutions for Demanding Applications
VARTECH
S Y S T E M S I N C.
Read these instructions completely before attempting to operate your new Panel Mount PC
17.0” Panel Mount PC
Model VTPC170P / PSS
User’s Guide
Page 2
Revision History
Date Rev No Summary Page
8/11/08 00 First Issue
10/07/08 01 Revised panel mounting drawing 6
12/08/08 02 Identify ports on bottom panel view 7
17.0 Panel Mount PC 486-0003-01-01
2
Page 3
Safety Instructions
• Read the Safety Instructions carefully and keep it for use later.
• The chassis metalwork of the module must be installed properly to the main earthing termination
for Class 1 equipment.
• Care must be exercised in the application of the system to prevent overheating. Ensure that the
ambient temperature around the system does not exceed 60°C and provide adequate means of
ventilation to achieve this.
• When cleaning cut off the electrical supply at all times. Never use liquid or aerosol detergent,
use a soft damp cloth instead.
• Never insert anything metallic into the chassis openings. This may create an electric shock
hazard or hazard from rotating fan blades.
• To avoid electric shock, never touch the inside of the system. There are no user adjustable
components inside, only a qualified technician should open the system’s case.
• Openings in the system enclosure are to allow for ventilation. To prevent overheating, these
openings should not be blocked or covered.
• If the system does not operate normally – in particular, if there are any unusual sounds or smells
coming from it – disconnect it immediately.
• Do not put pressure on the LCD panel screen because it is very fragile.
• Always handle the system with care when moving it.
• Take care that the system is disposed of correctly at the end of its life. If in doubt refer to your
local ordinances or regulations for proper disposal.
Cleaning the LCD monitor
To clean the LCD panel:
• Wipe the screen gently with a clean lens brush made of camel hair, or a soft, clean, lint free
cloth. This is to remove dust and other particles without scratching the LCD panel.
• If it is still not clean, then wipe with a damp lint free cloth and blow on it to dry.
Do not clean the panel with a keton-type material (e.g. acetone), or ethyl toluene, ethyl acid, methyl
or chloride. These may damage the LCD panel.
Do not apply pressure to the LCD panel.
17.0 Panel Mount PC 486-0003-01-01
3
Page 4
Standard Technical Specifications:
LCD Monitor:
Size / Type
Native Resolution
Contrast Ratio
Viewing Angles
Pixel Pitch
Brightness (typical) 300 cd/m²
Response Time (typical) 5ms
Colors Supported
17.0” XGA TFT LCD
1280 x 1024
800:1
Horizontal: 160°
Vertical: 160°
0.264mm
16.7 million
Computer System:
Processor
System Memory
BIOS
Hard Drive
Operating System
Expansion Slots
Back Panel I/O Ports
Graphics
1.73GHz Intel T5300 Core 2 Duo Processor
DDR2 533 DIMM 2 GB x 1 (expandable to 4GB)
AMI BIOS
120 GB SATA
Microsoft Windows XP Professional (SP3)
PCI x 1 (Optional)
Mini PCI x 1
PS/2 Keyboard Connector x 1
PS/2 Mouse Connector x 1
AC Power Inlet x 1 (IEC320)
RS-232 Port x 2 (x1 422/485 Optional)
USB 2.0 Port x 6 (x4 on Stainless Steel Models)
RJ45 LAN Port x 2
VGA Port x 1
DVI-D Port x 1
Audio Jacks: Line Out x 1 / Line In x 1
Integrated Intel 945GME Graphics
LAN
DVD Drive (E-IDE / ATAPI)
Touch Screen
Touch Screen Interface
17.0 Panel Mount PC 486-0003-01-01
Broadcom BCM5787M PCIe GbE controllers
DVD-R, DVD+R, DVD-RW, DVD+RW, DVD-R DL, DVD+R9 CD-R,
CD-RW,
Resistive
USB
4
Page 5
Power Input
100 - 240 VAC 1.5A 50/60 Hz
12 - 24 VDC (Optional)
6 – 32 VDC without DVD (Optional)
Power Consumption
Temperature
51W
Operational: 32°F to 140°F 0°C to 60°C
Storage: -4°F to 149°F -20°C to 65°C
Humidity
Operational: 20 to 40°C, 90% RH NC
Storage: 5 to 65°C, 28% RH NC
Installation of Your Panel PC
Packaged with each carton will be:
1 - VTPC170P / PSS
1 - AC Power Cable
1 - #10-32 Mounting Hardware
1 - Users Guide (Printed or on CD)
BEFORE MAKING ANY CONNECTIONS OR APPLYING POWER,
FIRST READ THROUGH THE ENTIRE MANUAL

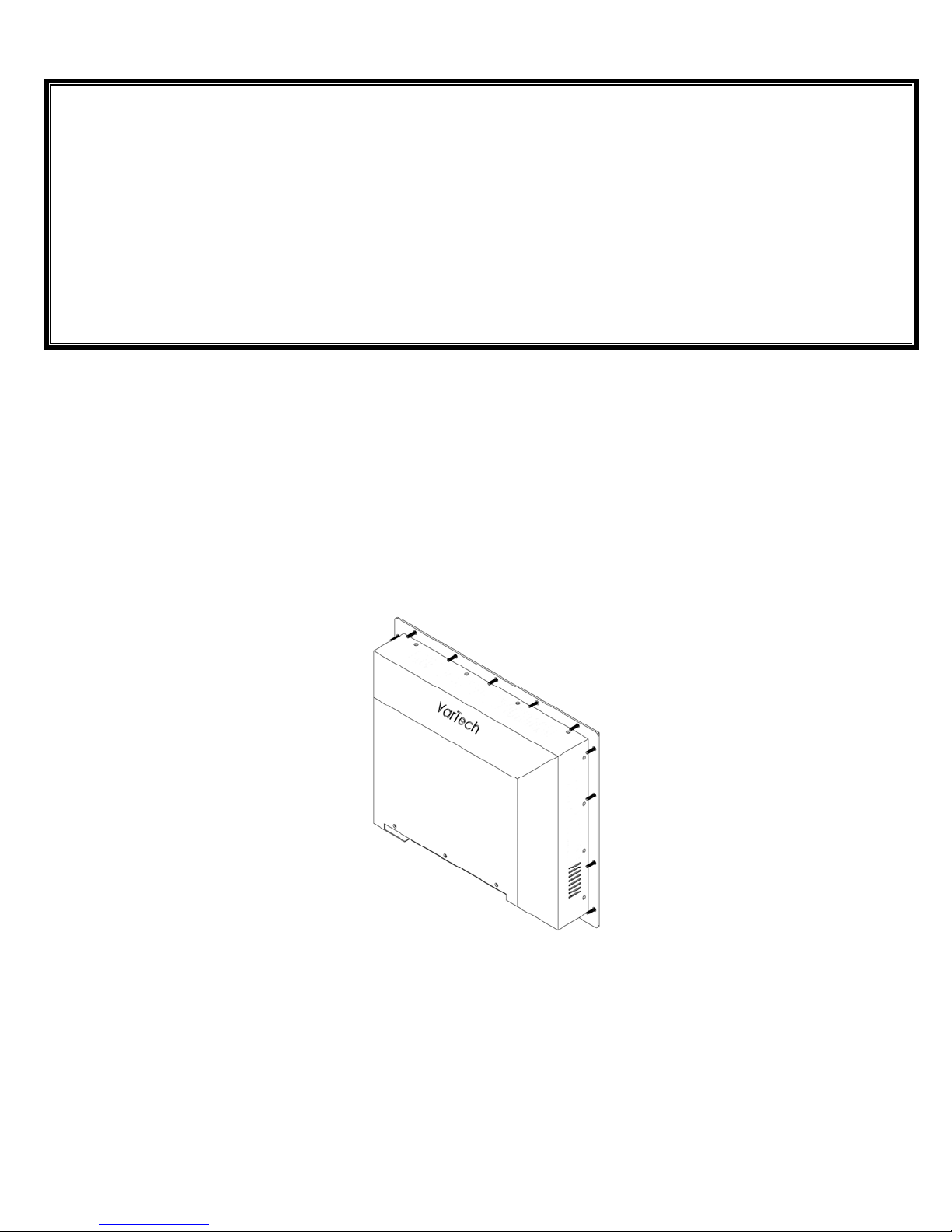

Panel Mount Procedure
17.0 Panel Mount PC 486-0003-01-01
5
Page 6
Panel Mounting Procedure:
1- Cut and drill the panel (refer to the panel mount drawing, Figure A). Measurements are
provided in inches and millimeters.
Panel Mounting Cutout:
1- If access to the bottom of the enclosure is not available following installation, attach the
power and all necessary cables to the bottom side of the enclosure at this time.
2- Install the enclosure in the prepared cutout.
3- Secure the enclosure using the lock nuts and washers, supplied with the unit, behind the
holes running along the sides and the top and bottom of the cutout in the panel. Extra lock
nuts and washers are provided.
NOTE: Use #10-32 nuts for mounting.
4- Tighten all mounting hardware to a torque of 24 inch-pounds.
ATTENTION: Mounting nuts must be tightened to a torque of 24 inch-pounds to provide a
proper panel seal and avoid potential damage. Vartech Systems assumes no responsibility for
water or chemical damage to the monitor or other equipment within the enclosure due to
improper installation.
5- Attach the power, video and system cables to the bottom side of the enclosure if you have
not already done so.
17.0 Panel Mount PC 486-0003-01-01

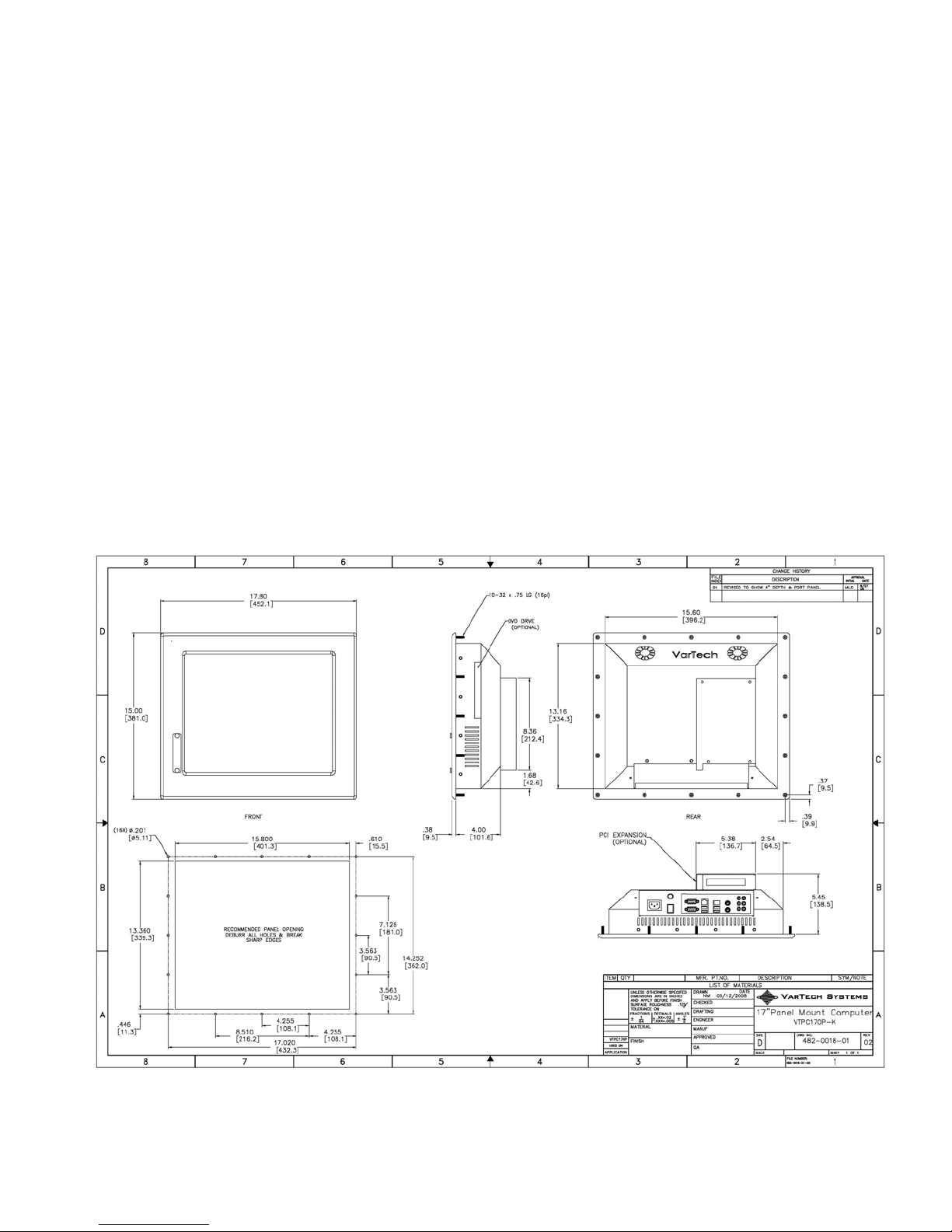

Panel Mount Drawing: Detail –A–
6
Page 7
Connections to the Panel Mount PC
Power Connection (Power In)
The Panel Mount PC includes an AC line cord which is 6ft long. The power input receptacle is
located on the bottom rear panel of the system.
Serial Connections (COM 1-2)
The Panel Mount PC is supplied with two serial connectors configured for RS-232. The
connector is a 9 pin female connectors and can be set up for any baud rate from 300 to 19.2
baud. The connector is located on the bottom rear panel of the system.
Ethernet Connections (LAN 1-2)
The Panel Mount PC is supplied with two integrated Ethernet connectors. The interface will
support 10/100/1000 BaseT connection to a local area network (LAN). The Panel Mount PC is
supplied with two RJ-45 female connectors located on the bottom rear panel of the system.
USB Connections (USB 1-4)
The Panel Mount PC is supplied with four USB 2.0 connectors located on the bottom rear panel
of the system.
VGA Port
The 15-pin female VGA connector can be used to connect to any analog VGA monitor.
DVI Port
DVI 1.0 support for external digital monitor.

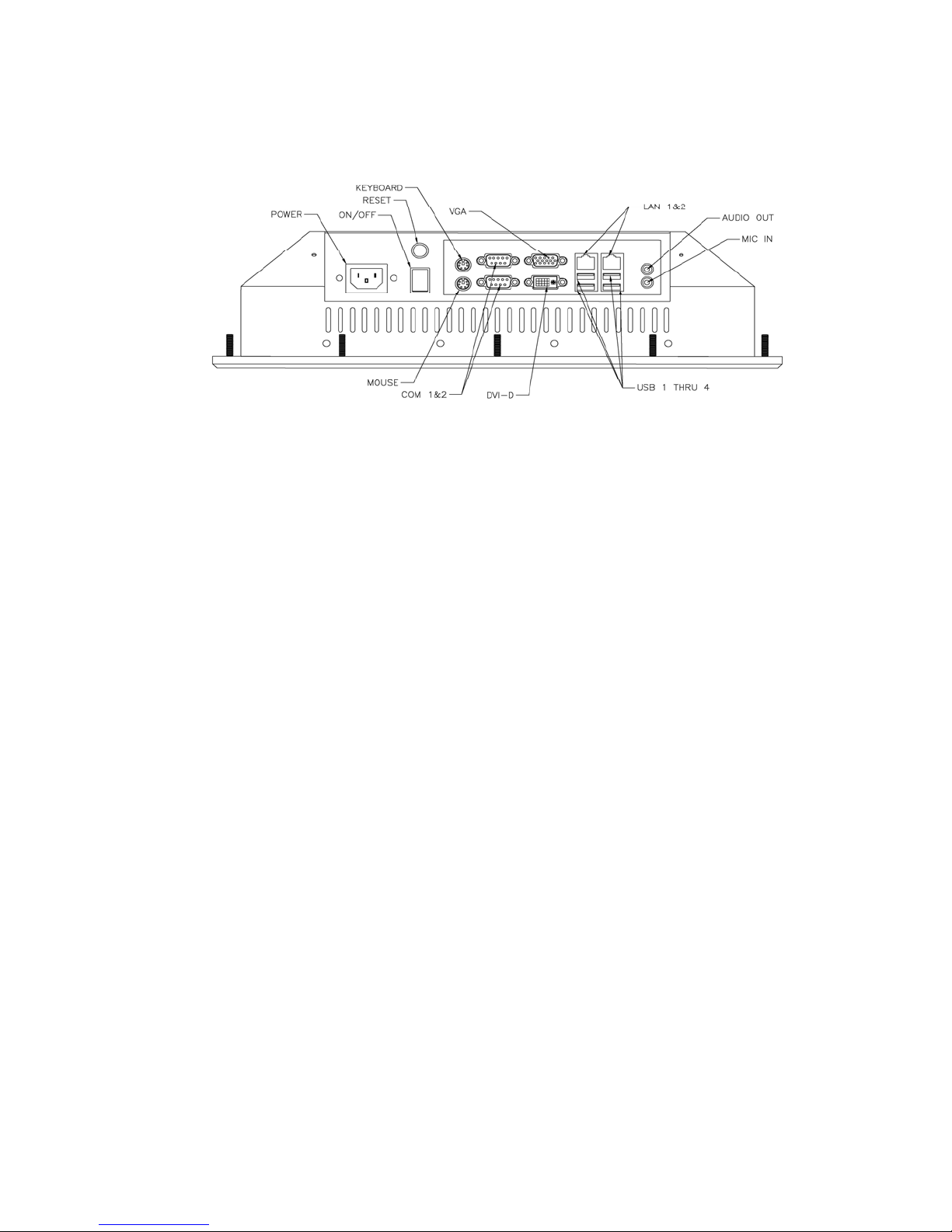

Bottom Rear View
-Connector Panel-
17.0 Panel Mount PC 486-0003-01-01
7
Page 8
Turning the system On and Off
Before connecting the Panel Mount PC to power, connect any peripheral devices. As a general
rule, any peripheral device should only be connected or disconnected when the Panel Mount PC
is off with the exception of any USB or 1394 peripheral.
The Panel Mount PC is turned on using the main On-Off rocker switch located on the bottom
rear panel. Once the Panel Mount PC main switch is turned on the computer power pushbutton
switch must be depressed for Windows to start. Windows must be properly shut down before
the main power switch is turned off to prevent the chance of corrupting files in the operating
system.
The Panel Mount PC is rated for continuous duty. However, to extend the life of the various
components and conserve power, it is highly recommended that the system be properly shut
down and power turned off when the Panel Mount PC is not in use.
LCD Monitor Warm-up Time
All LCD monitors need time to become thermally stable the first time you turn them on.
Therefore, to achieve more accurate adjustments for parameters, allow the LCD monitor to
warm (be on) for at least 20 minutes before making any screen adjustments.
Maintenance
The Panel Mount PC is designed to provide optimum service and performance with minimal
maintenance including the occasional external cleaning. For cleaning the Panel Mount PC
enclosure follow the suggested guidelines.
General – NEVER use abrasive cleaners or solvent-based cleaners!! Use a clean soft cloth.
The Panel Mount PC should only be opened and serviced by a qualified technician. Keep the
area around the Panel Mount PC clear and free of excessive dirt or other contaminants. Do not
use water or any liquids on the Panel Mount PC.
For Additional Assistance
Contact Your VarTech Sales Representative
Vartech Systems, Inc.
11529 Sun Belt Ct.
Baton Rouge, LA 70809
800-223-8050
Fax: 225-297-2440
www.vartechsystems.com
17.0 Panel Mount PC 486-0003-01-01
8
