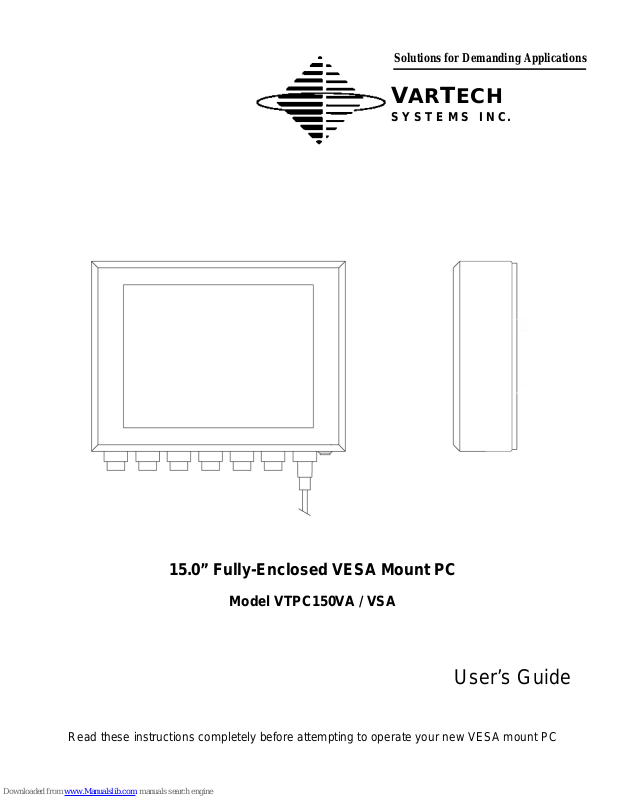

Page 1
Solutions for Demanding Applications
VARTECH
S Y S T E M S I N C.
15.0” Fully-Enclosed VESA Mount PC
Read these instructions completely before attempting to operate your new VESA mount PC
Model VTPC150VA / VSA
User’s Guide
Page 2
Revision History
Date Rev No Summary Page
07/15/09 00 First Issue
15.0 Fully-Enclosed VESA Mount PC 486-0007-01-00
2
Page 3
Safety Instructions
Read the Safety Instructions carefully and keep it for use later.
The chassis metalwork of the module must be installed properly to the main earthing termination
for Class 1 equipment.
Care must be exercised in the application of the system to prevent overheating. Ensure that the
ambient temperature around the system does not exceed 50°C and provide adequate means of
ventilation to achieve this.
When cleaning cut off the electrical supply at all times. Never use liquid or aerosol detergent,
use a soft damp cloth instead.
To avoid electric shock, never touch the inside of the system. There are no user adjustable
components inside, only a qualified technician should open the system’s case.
If the system does not operate normally – in particular, if there are any unusual sounds or smells
coming from it – disconnect it immediately.
Do not put pressure on the LCD panel screen because it is very fragile.
Always handle the system with care when moving it.
Take care that the system is disposed of correctly at the end of its life. If in doubt refer to your
local ordinances or regulations for proper disposal.
A socket-outlet shall be installed near the equipment and shall be easily accessible.
Cleaning the LCD monitor
To clean the LCD panel:
Wipe the screen gently with a clean lens brush made of camel hair, or a soft, clean, lint free
cloth. This is to remove dust and other particles without scratching the LCD panel.
If it is still not clean, then wipe with a damp lint free cloth and blow on it to dry.
Do not clean the panel with a keton-type material (e.g. acetone), or ethyl toluene, ethyl acid, methyl or
chloride. These may damage the LCD panel.
Do not apply pressure to the LCD panel.
15.0 Fully-Enclosed VESA Mount PC 486-0007-01-00
3
Page 4
Standard Technical Specifications:
LCD Monitor:
Size / Type
Native Resolution
Contrast Ratio
Viewing Angles
Pixel Pitch
Brightness (typical) 400 cd/m²
Response Time (typical)
Colors Supported:
15.0” XGA TFT LCD
1024 x 768
600:1
Horizontal: 140°
Vertical: 120°
0.294mm
7ms
16.7 million
Computer System:
Processor
System Memory
BIOS
Hard Drive
Operating System
Expansion Slots
I/O Ports
Graphics
LAN
Touch Screen
Touch Screen Interface
Intel® Atom™ N270, 1.6 GHz Processor with a 533 Mhz FSB
DDR2 533 SO-DIMM 1 GB (system max 2GB)
AMI BIOS
320 GB SATA (system max 2x SATA)
Microsoft Windows XP Professional (SP3)
1x PCI Express Mini Card
AC Power Inlet x 1
COMM Port x 2 (RS232)
USB 2.0 Port x 3
RJ45 LAN Port x 1
Intel Generation 3.5 integrated GFX Core (133Mhz)
PCIe Realtek 8111CP GbE
Resistive
Serial
Power Specifications:
Power Input: 100-240 VAC 1.5A 50/60 Hz
Temperature:
Power Consumption:
Humidity:
15.0 Fully-Enclosed VESA Mount PC 486-0007-01-00
Operational: 32°F to 122°F 0°C to 50°C
Storage: -4°F to 149°F -20°C to 65°C
30W
Operational: 0 to 90% RH NC
Storage: 0 to 95% RH NC
4
Page 5
Installation of Your Fully-Enclosed VESA Mount PC
Packaged with each carton will be:
1 - VTPC150VA / VSA
1 - AC Power Cable
1 – LAN Male Cable
2 – RS232 Male Cables
3 – USB Cables
1 - Users Guide (Printed or on CD)
BEFORE MAKING ANY CONNECTIONS OR APPLYING POWER,
FIRST READ THROUGH THE ENTIRE MANUAL
Mounting Procedure
VESA Enclosure Mounting Procedure:
1- Install the enclosure to a 100mm VESA mount pedestal.
2- Secure the enclosure using the screws and lock washers.
3- Tighten all mounting hardware to a torque of 15 inch-pounds.
ATTENTION: Mounting hardware must be tightened to a torque of 15 inch-pounds to provide a
proper panel mount and avoid potential damage. Vartech Systems assumes no responsibility for
water or chemical damage to the monitor or other equipment within the enclosure due to
improper installation.
4- Attach the power and system cables to the bottom side of the enclosure if you have not
already done so.
Connections to the Enclosed PC
15.0 Fully-Enclosed VESA Mount PC 486-0007-01-00

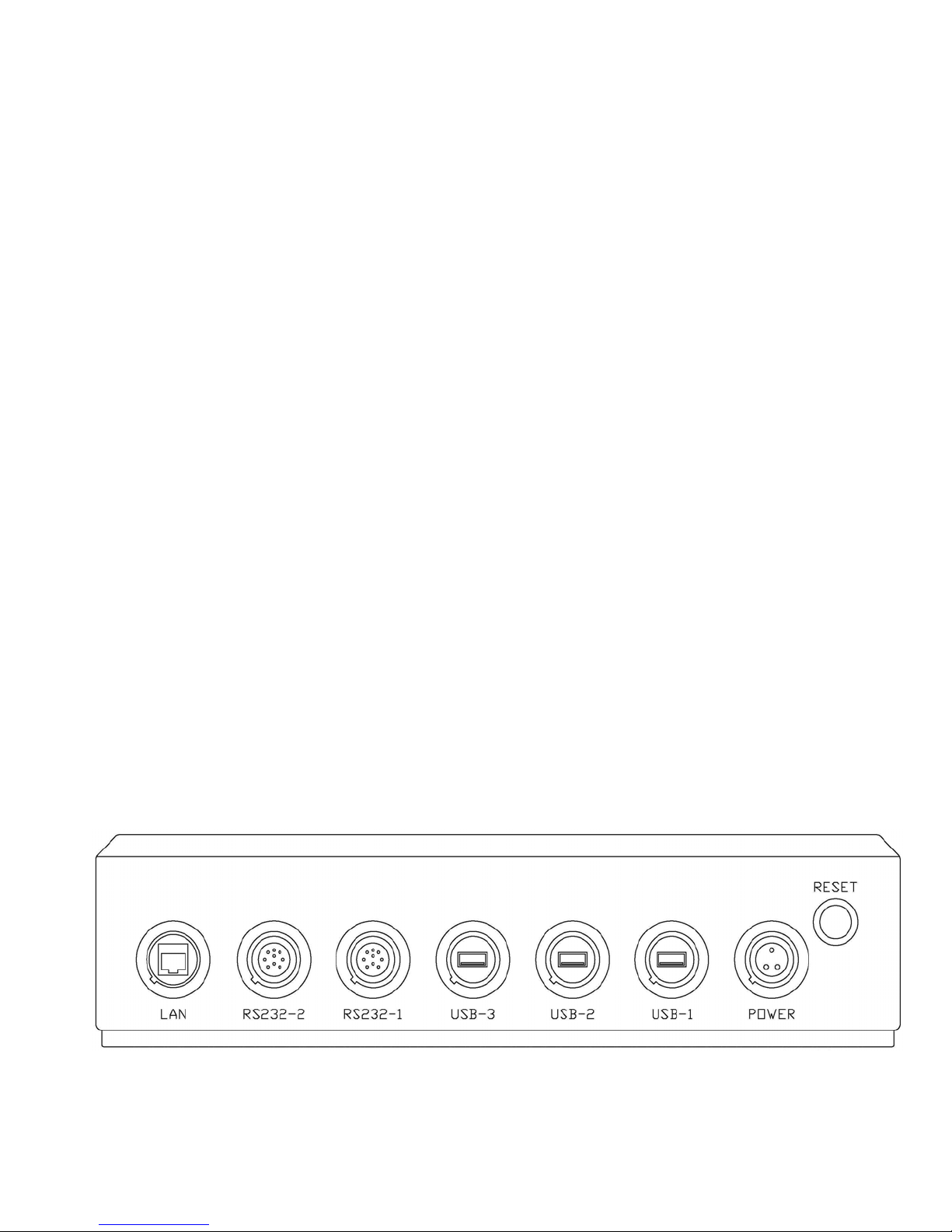

Bottom Rear View
- Connector Panel -
5
Page 6
Product Drawing: Detail –A–
Power Connection (Power In)
The Fully-Enclosed VESA Mount PC includes an AC line cord which is 6ft long. The power input
receptacle is located on the bottom rear panel of the system.
Serial Connections (COM 2 - 3)
The Fully-Enclosed VESA PC is supplied with two serial connectors configured for RS-232. The
connector is a 9 pin female connectors and can be set up for any baud rate from 300 to 19.2
baud. The connector is located on the bottom panel of the system.
Ethernet Connections (LAN)
The Fully-Enclosed PC is supplied with integrated Ethernet. The interface will support
10/100/1000 BaseT connection to a local area network (LAN). The Enclosed PC is supplied with
a RJ-45 female connector located on the bottom panel of the system.
USB Connections (USB 1 - 2 - 3)
The Fully-Enclosed VESA PC is supplied with three USB 2.0 connectors, which are located on
the bottom panel of the system.
15.0 Fully-Enclosed VESA Mount PC 486-0007-01-00
6
Page 7
Turning the system On and Off
Before connecting the Fully-Enclosed VESA Mount PC to power, connect any peripheral
devices. As a general rule, any peripheral device should only be connected or disconnected
when the Enclosed PC is off with the exception of any USB peripheral.
The Fully-Enclosed VESA Mount PC is turned on using the main On-Off pushbutton switch
located on the bottom panel. The pushbutton switch must be depressed for Windows to start.
Windows must be properly shut down before the main pushbutton switch is turned off to prevent
the chance of corrupting files in the operating system.
The Fully-Enclosed VESA Mount PC is rated for continuous duty. However, to extend the life of
the various components and conserve power, it is highly recommended that the system be
properly shut down and power turned off when the Enclosed VESA Mount PC is not in use.
LCD Monitor Warm-up Time
All LCD monitors need time to become thermally stable the first time you turn them on.
Therefore, to achieve more accurate adjustments for parameters, allow the LCD monitor to
warm (be on) for at least 20 minutes before making any screen adjustments.
Maintenance
The Fully-Enclosed VESA Mount PC is designed to provide optimum service and performance
with minimal maintenance including the occasional external cleaning. For cleaning the Enclosed
VESA Mount PC enclosure follow the suggested guidelines.
General – NEVER use abrasive cleaners or solvent-based cleaners!! Use a clean soft cloth.
The Enclosed VESA Mount PC should only be opened and serviced by a qualified technician.
Keep the area around the Enclosed VESA Mount PC clear and free of excessive dirt or other
contaminants.
For Additional Assistance
Contact Your VarTech Sales Representative
Vartech Systems, Inc.
11529 Sun Belt Ct.
Baton Rouge, LA 70809
800-223-8050
Fax: 225-297-2440
www.vartechsystems.com
15.0 Fully-Enclosed VESA Mount PC 486-0007-01-00
7
