VarTech Systems VT420W, VT420C User Manual

Solutions for Demanding Applications

VARTECH

S Y S T E M S I N C.

Industrial CRT and Flat Panel Displays

VT420 Large Screen Series

42.0” Large Screen Series LCD Monitors

Read these instructions completely before attempting to operate your new Color Display.

VT420 Liquid Display User Guide 150-098

VT420W, VT420C

User’s Guide

Table Of Contents

Page

1. GENERAL DESCRIPTION 3

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATIONS

2. ABSOLUTE RATINGS OF ENVIRONMENT 4

3. INTERFACE PIN CONNECTION 5

3.1 COMPOSITE VIDEO

3.2 S-Video

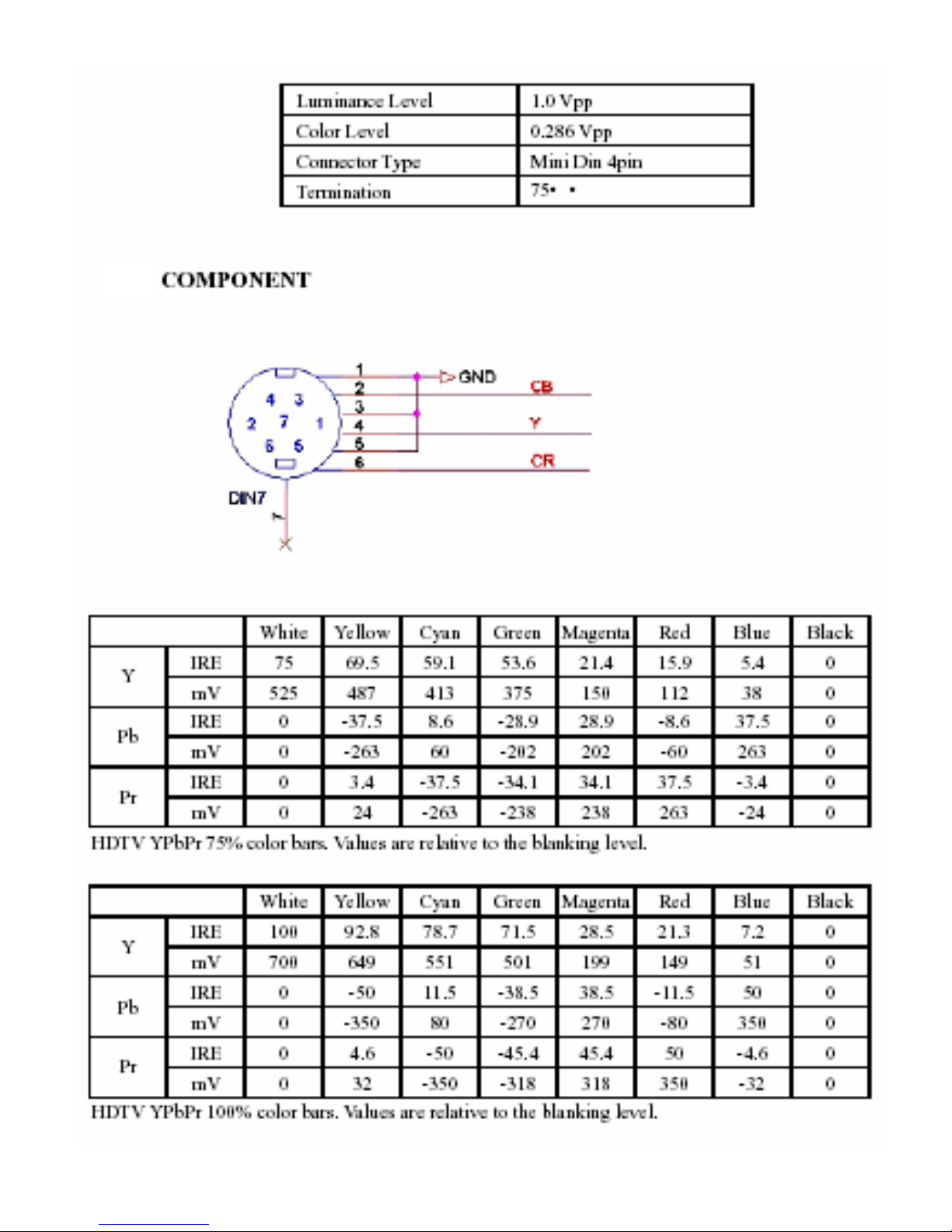

3.3 COMPONENT

3.4 DVID 24pin

3.5 DVID 15pin

3.6 RS 232 In

3.7 RS 232 Out

4. VARTECH ADJUSTMENTS 10

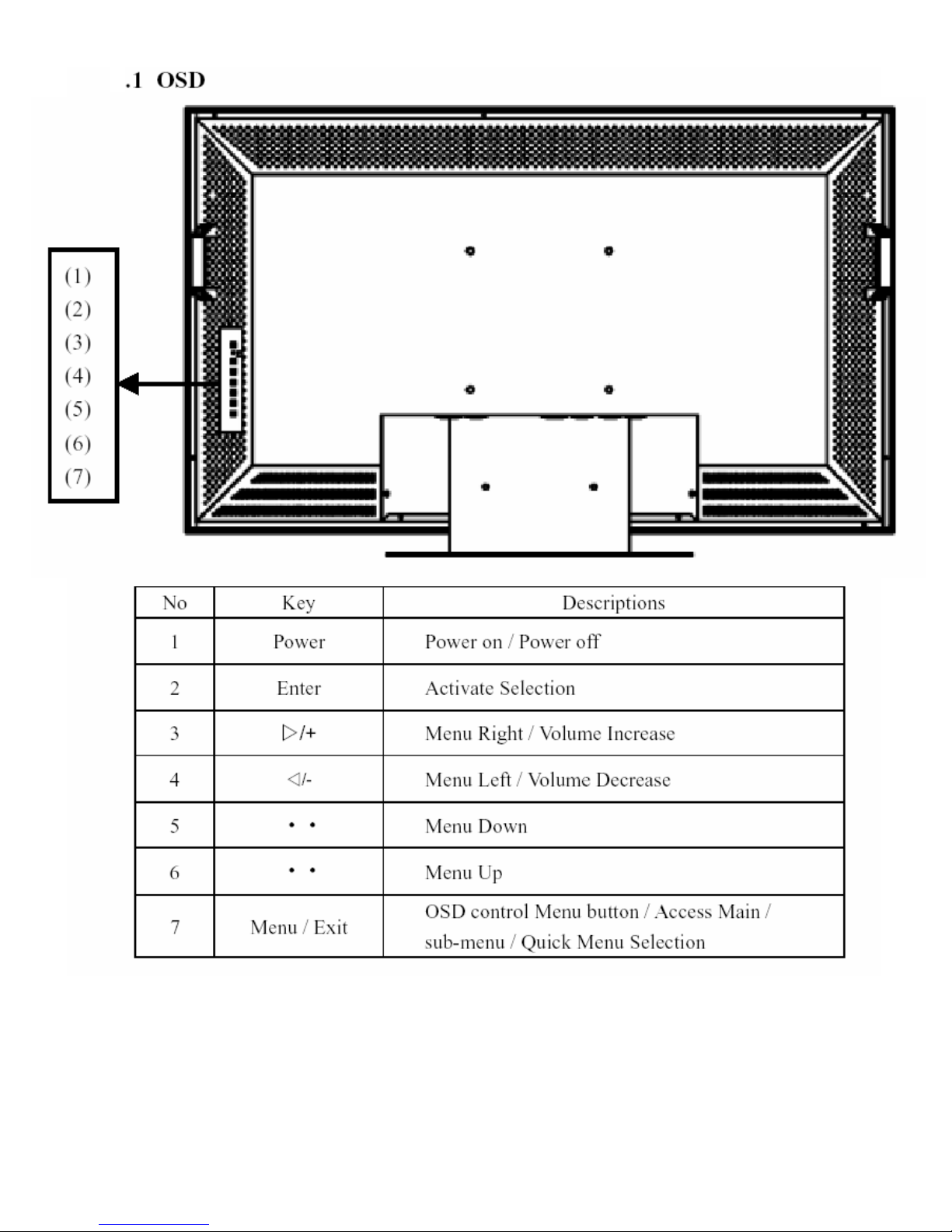

4.1 OSD

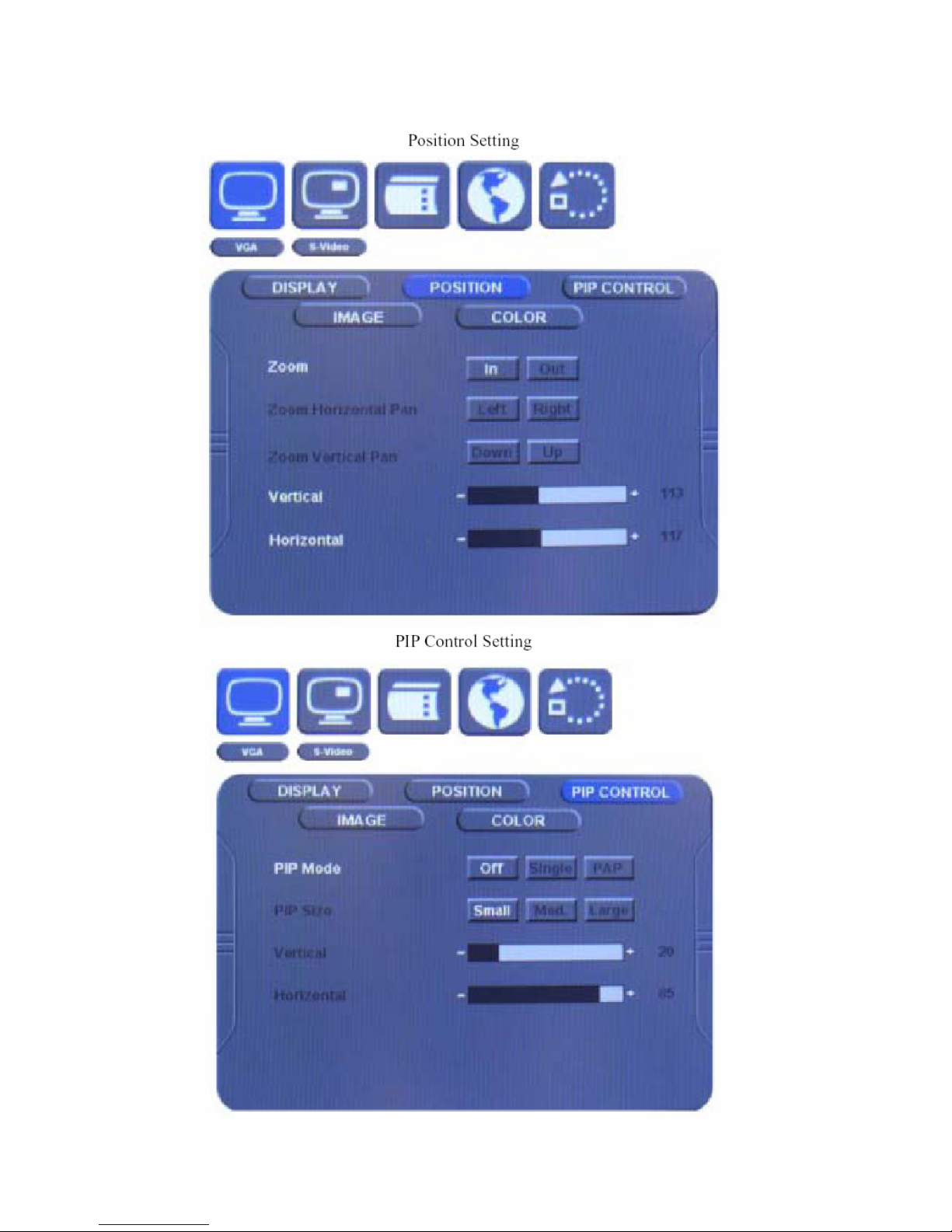

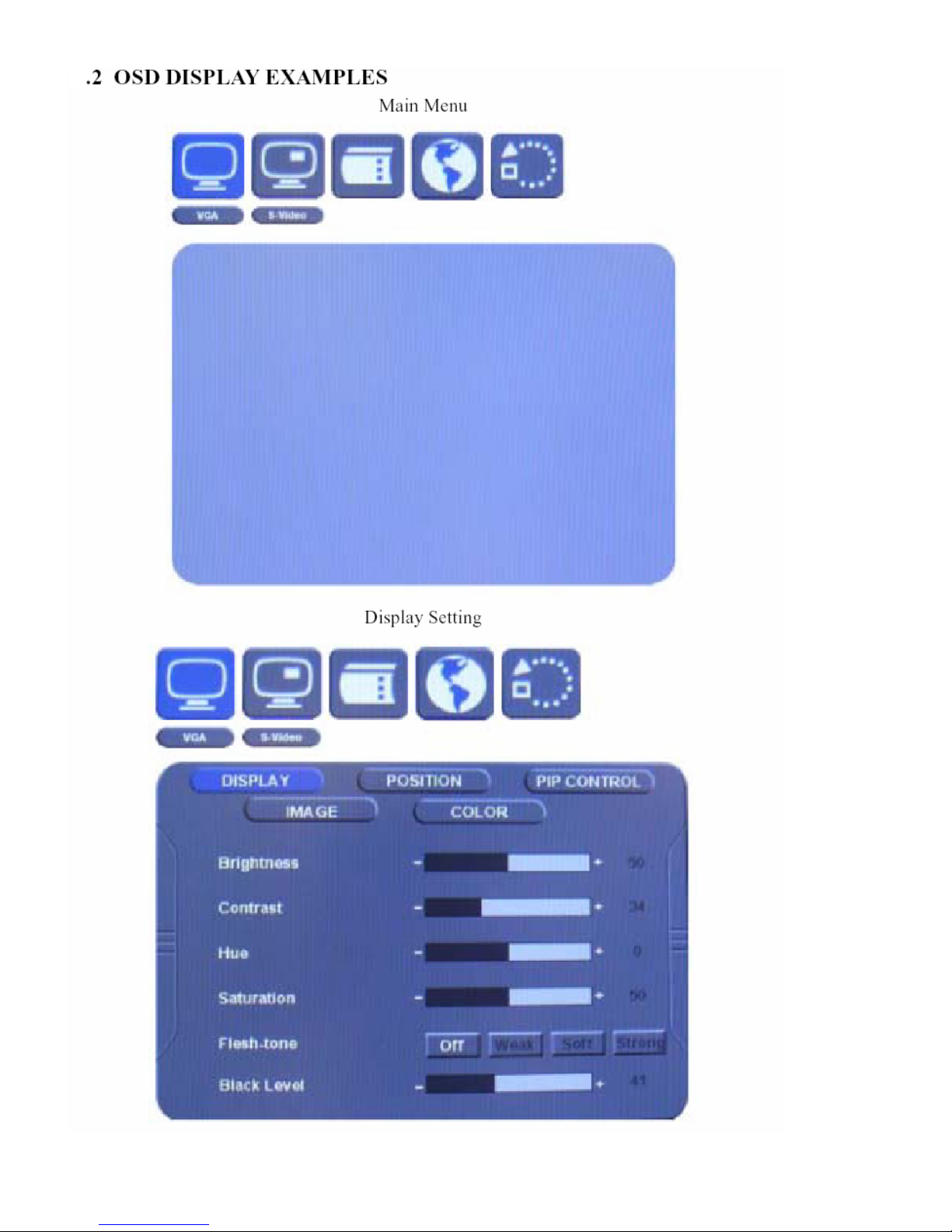

4.2 OSD DISPLAY EXAMPLES

4.3 REMOTE CONTROL

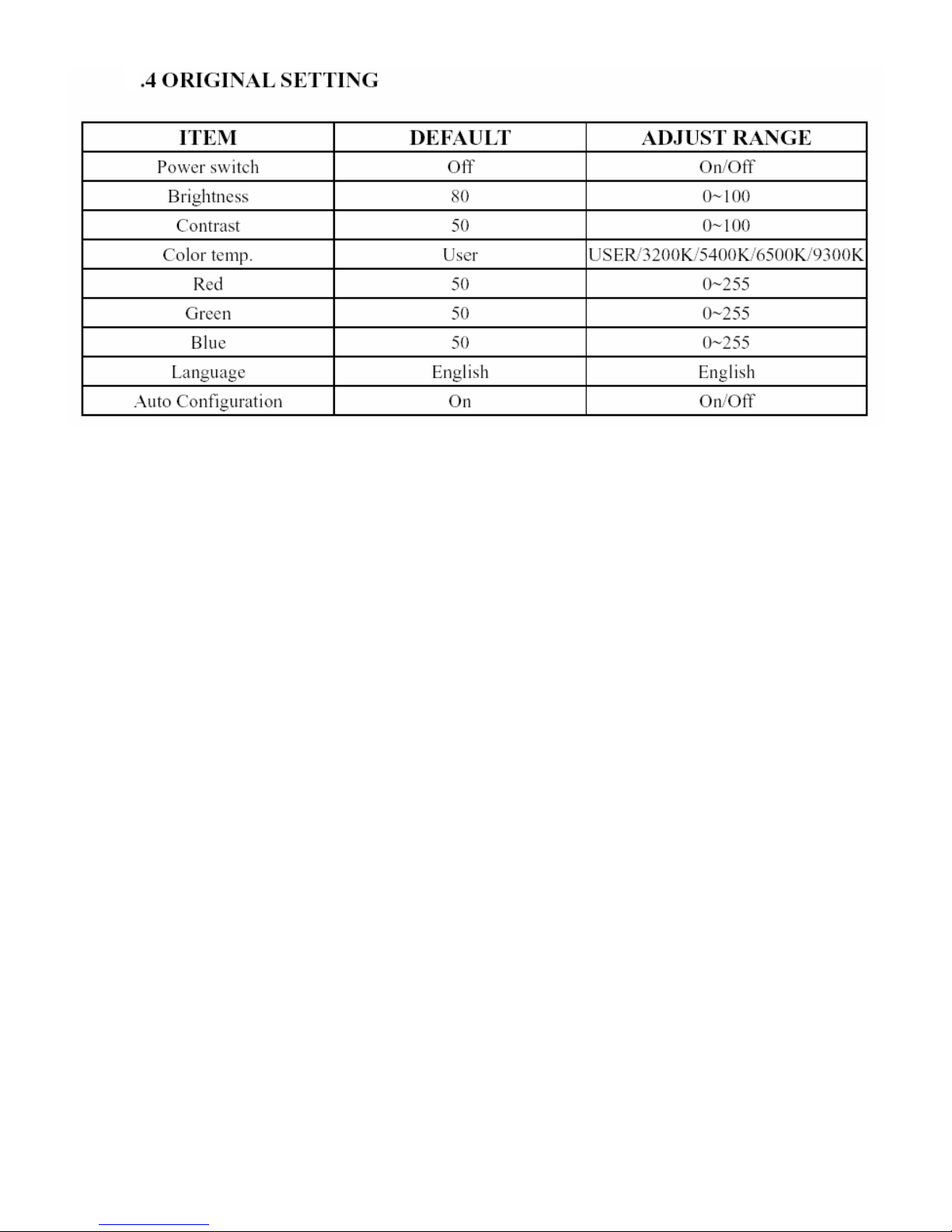

4.4 ORIGINAL SETTING

5. EMC & SAFETY 19

6. HANDLING PRECAUTIONS 20

VT420 Liquid Display User Guide 2 150-098

1. GENERAL DESCRIPTION

1.1 OVERVIEW

VT420 is a 42” TFT Liquid Display with 24-CCFL Backlight units. This display

supports 1920 x 1080 HDTV format and can display true 16.7M colors (8-bit/

color).

1.2 FEATURES

-High brightness (550 nits)

-High contrast ratio (800:1)

-Fast response time (8msec)

-High color saturation NTSC 75%

-HD (1920 x 1080 pixels) resolution

-DE (Data Enable) only mode

-Optimized response time for 50/60 Hz frame rate

-Ultra wide viewing angle: 176(H)/176(V) (CR>20) Super MVA technology

1.3 APPLICATION

-Direct view LCD flat panel display

VT420 Liquid Display User Guide 3 150-098

2. ABSOLUTE RATINGS OF ENVIRONMENT

Note
(1) Temperature and relative humidity range is shown in the figure below.

(a) 90% RH Max. (Ta ≦ 40ºC)
(b) Wet-bulb temperature should be 39ºC Max. (Ta ＞ 40ºC)
(c) No condensation.

(2) The maximum operating temperature is based on the test condition that the

surface temperature of display area is less than or equal to 60ºC with LCD
module alone in a temperature controlled chamber. Thermal management
should be considered in final product design to prevent the surface tempera­ture of display area from being over 60ºC. The range of operating tempera­ture may degrade in case of improper thermal management in final product
design.

(3) 11 ms, half sine wave, 1 time for ±X, ±Y, ±Z.

(4) 10~200 Hz, 10 min, 1 time each X, Y, Z.

(5) At testing Vibration and Shock, the fixture in holding the module has to be

hard and rigid enough so that the module would not be twisted or bent by
the fixture.

VT420 Liquid Display User Guide 4 150-098

3. INTERFACE PIN CONNECTION

3.1

3.2

VT420 Liquid Display User Guide 5 150-098

3.3

VT420 Liquid Display User Guide 6 150-098

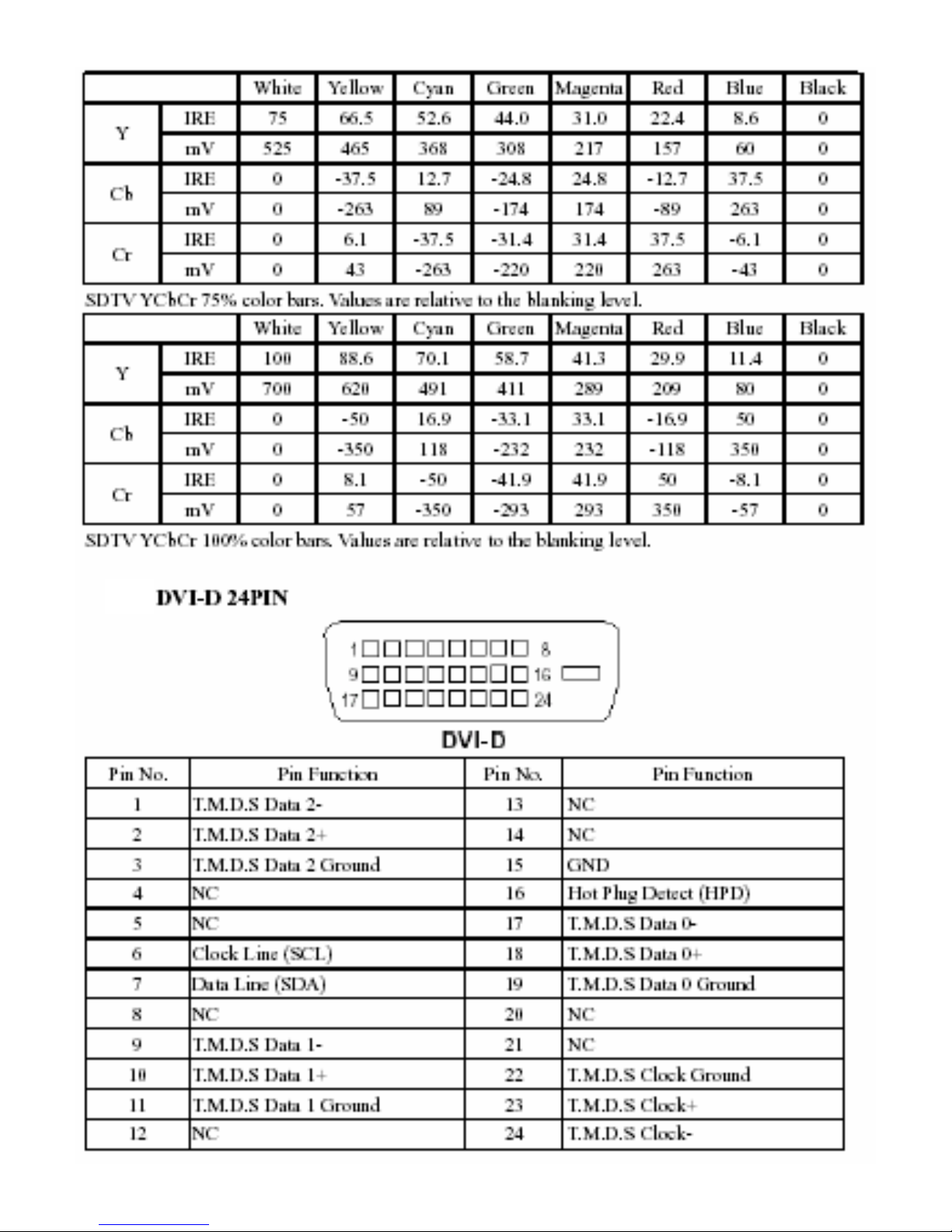

3.4

VT420 Liquid Display User Guide 7 150-098

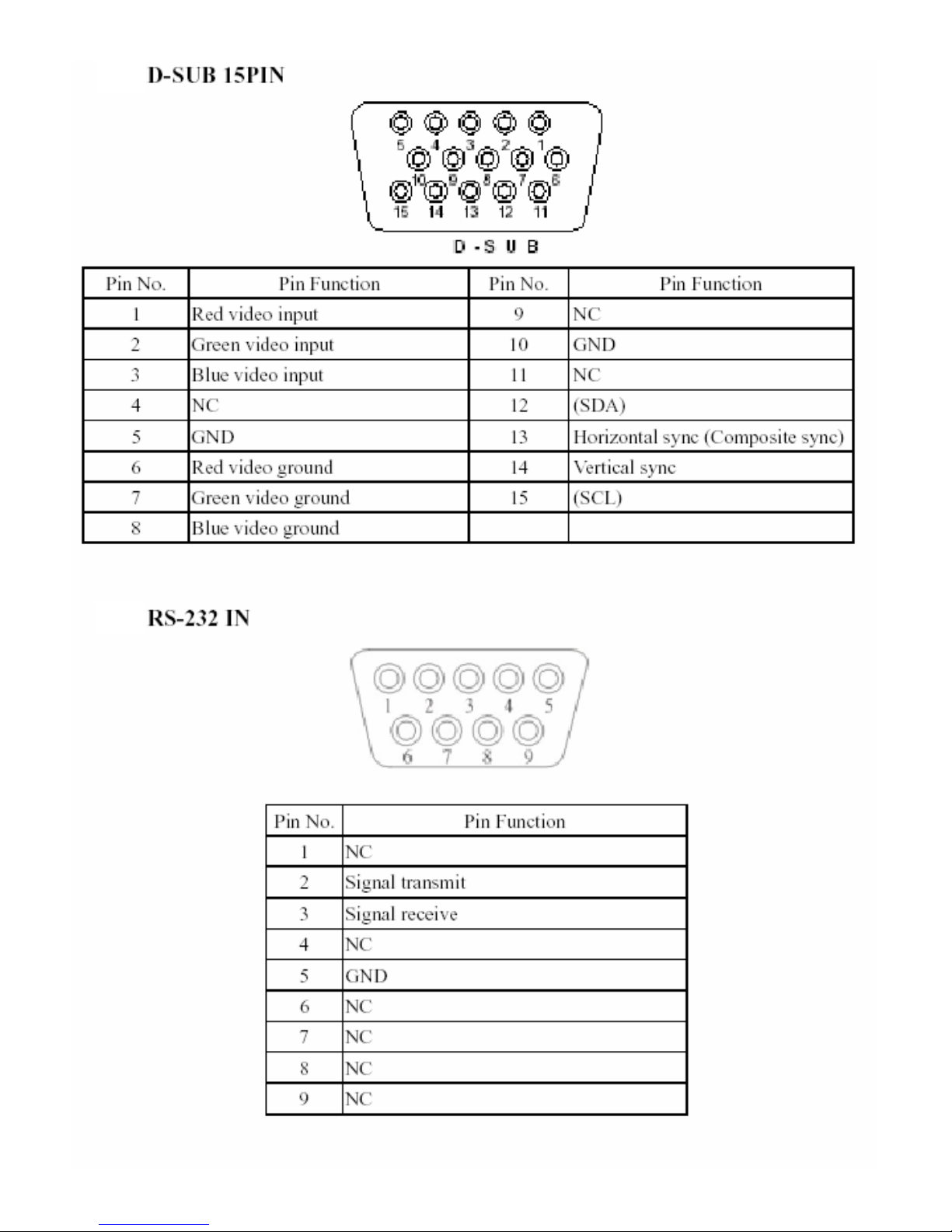

3.5

3.6

3

VT420 Liquid Display User Guide 8 150-098

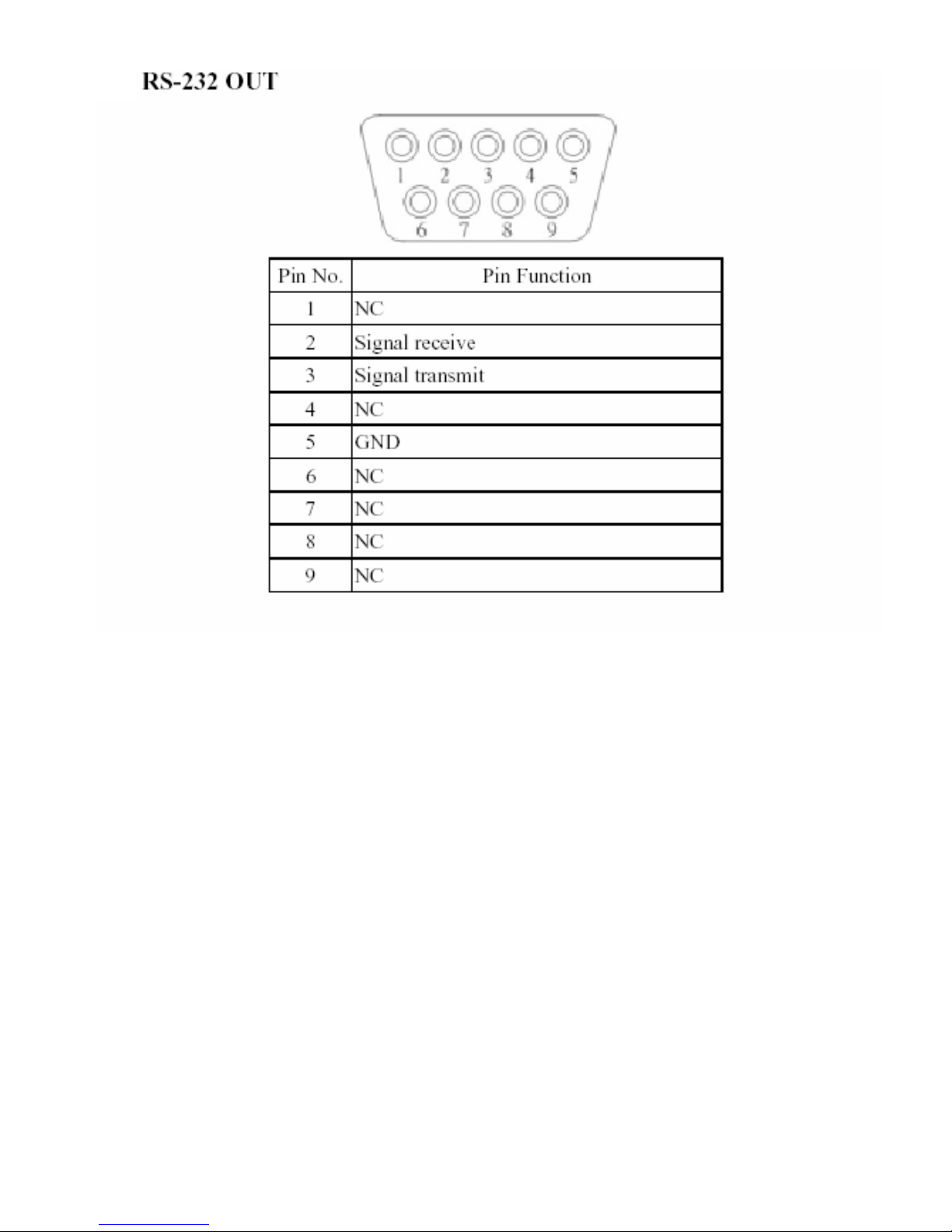

3.7

VT420 Liquid Display User Guide 9 150-098

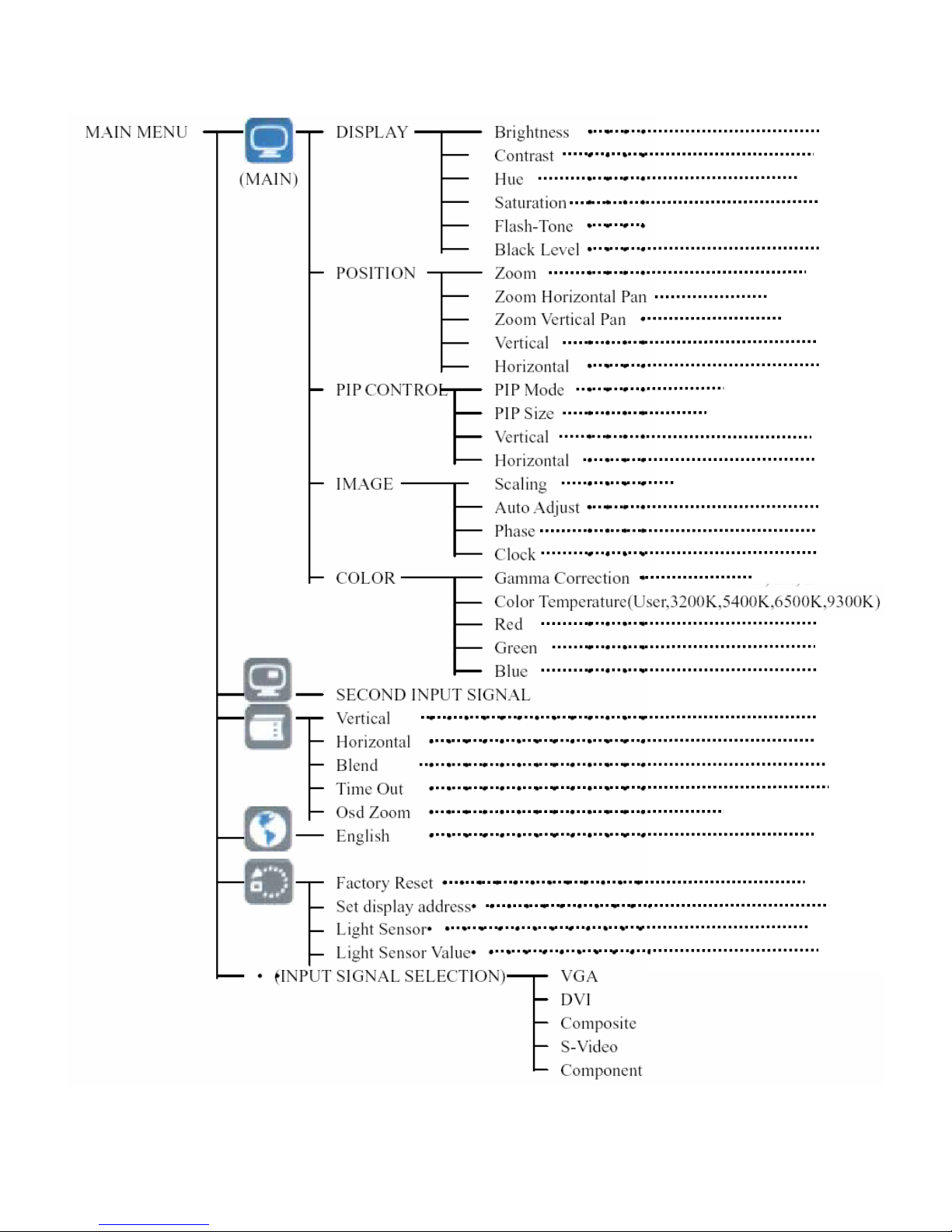

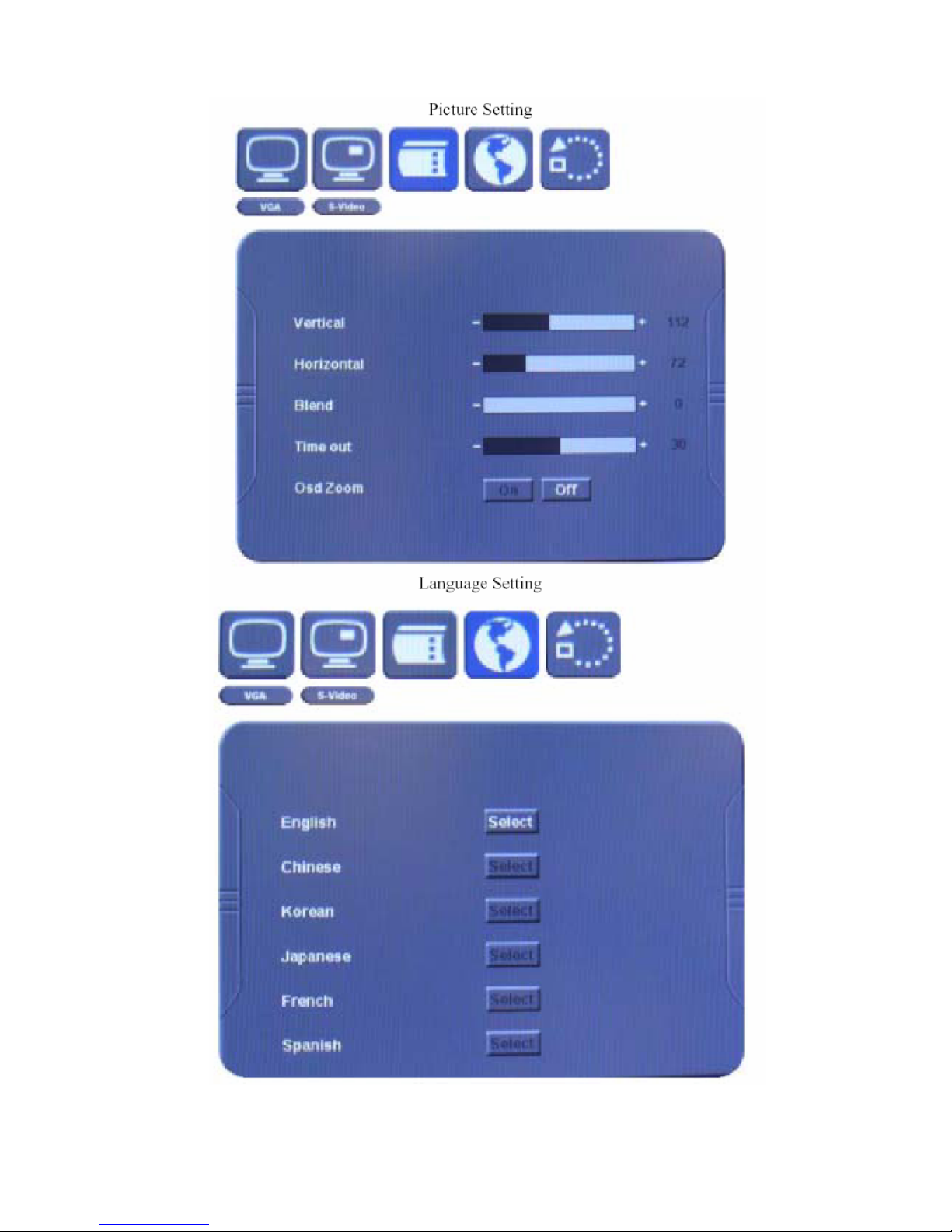

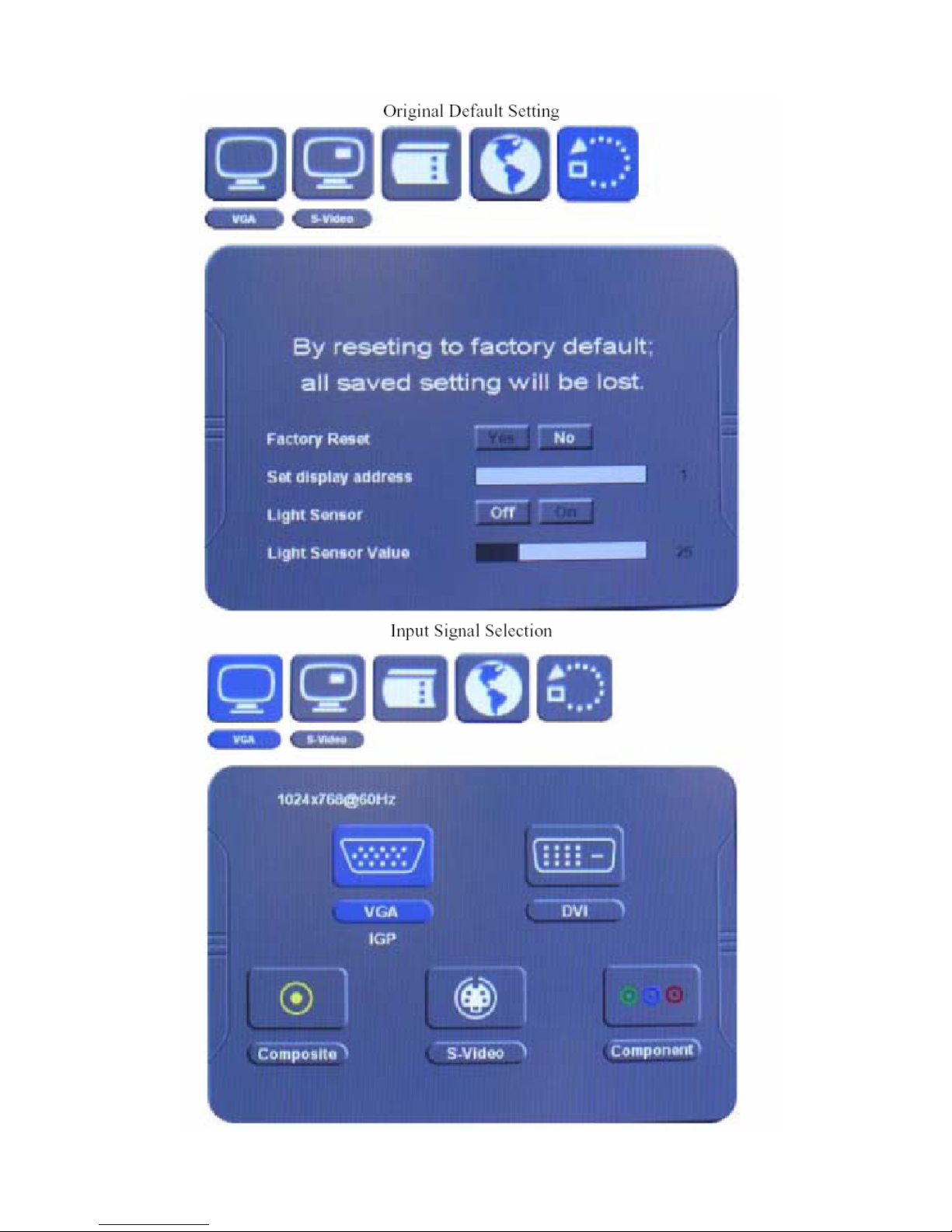

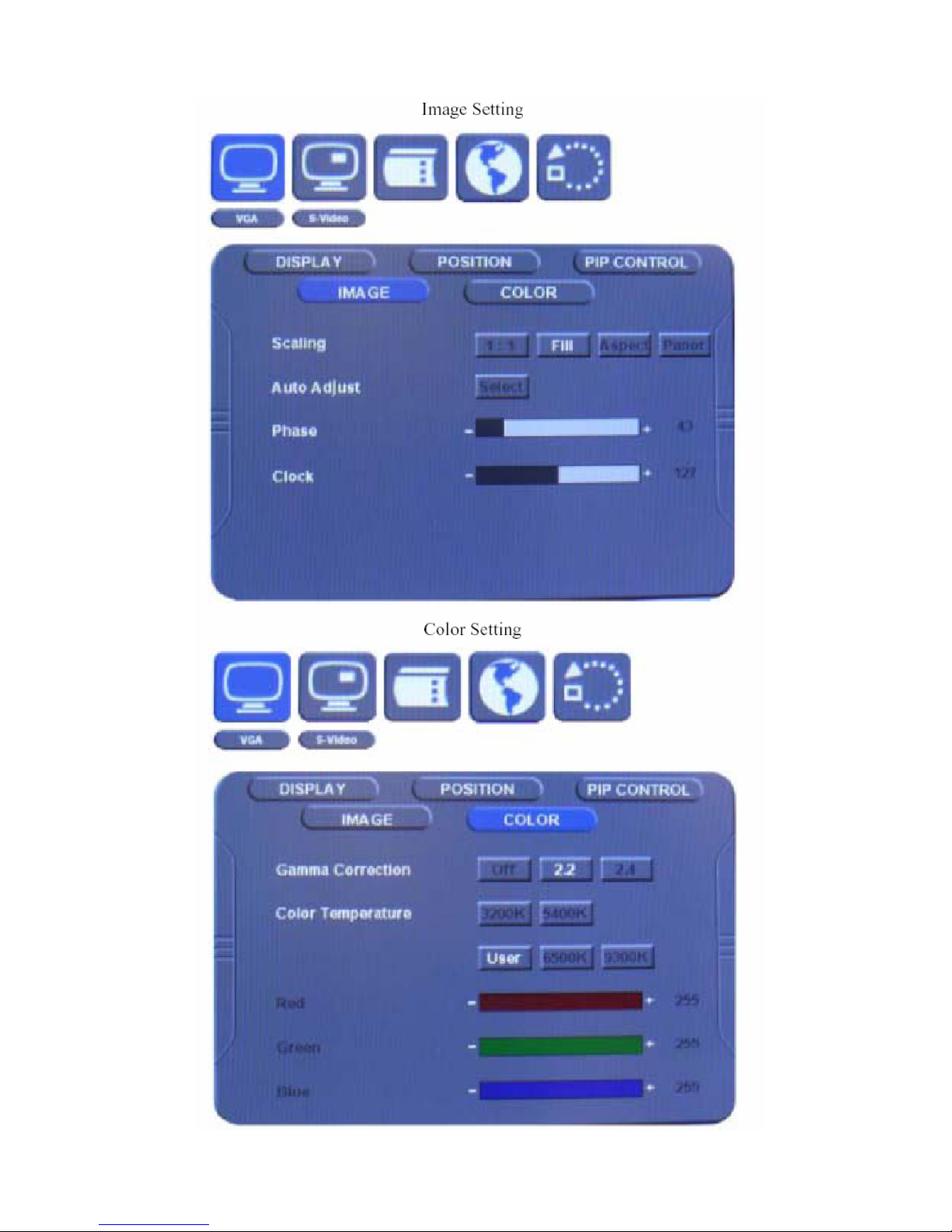

4. VARTECH ADJUSTMENTS

0 , 100
0 , 100

-45 , +45
0 , 100

Off, Weak, Soft, Strong

0 , 100

In , Out

Left, Right

Down, Up

0 , 255
0 , 255

Off, Single, PAP

Small, Med, Large

0 , 100
0 , 100

1:1,Fill,Aspect,Panor

Select
0 , 255
0 , 255

Off , 2.2, 2.4

0 , 255
0 , 255
0 , 255

0 , 255
0 , 255

0 , 15
0 , 60

On , Off

Select

Yes , No

0,255

Off, On

0, 100

VT420 Liquid Display User Guide 10 150-098

4

VT420 Liquid Display User Guide 11 150-098

4

VT420 Liquid Display User Guide 12 150-098

VT420 Liquid Display User Guide 13 150-098

VT420 Liquid Display User Guide 14 150-098

VT420 Liquid Display User Guide 15 150-098

VT420 Liquid Display User Guide 16 150-098

4.3

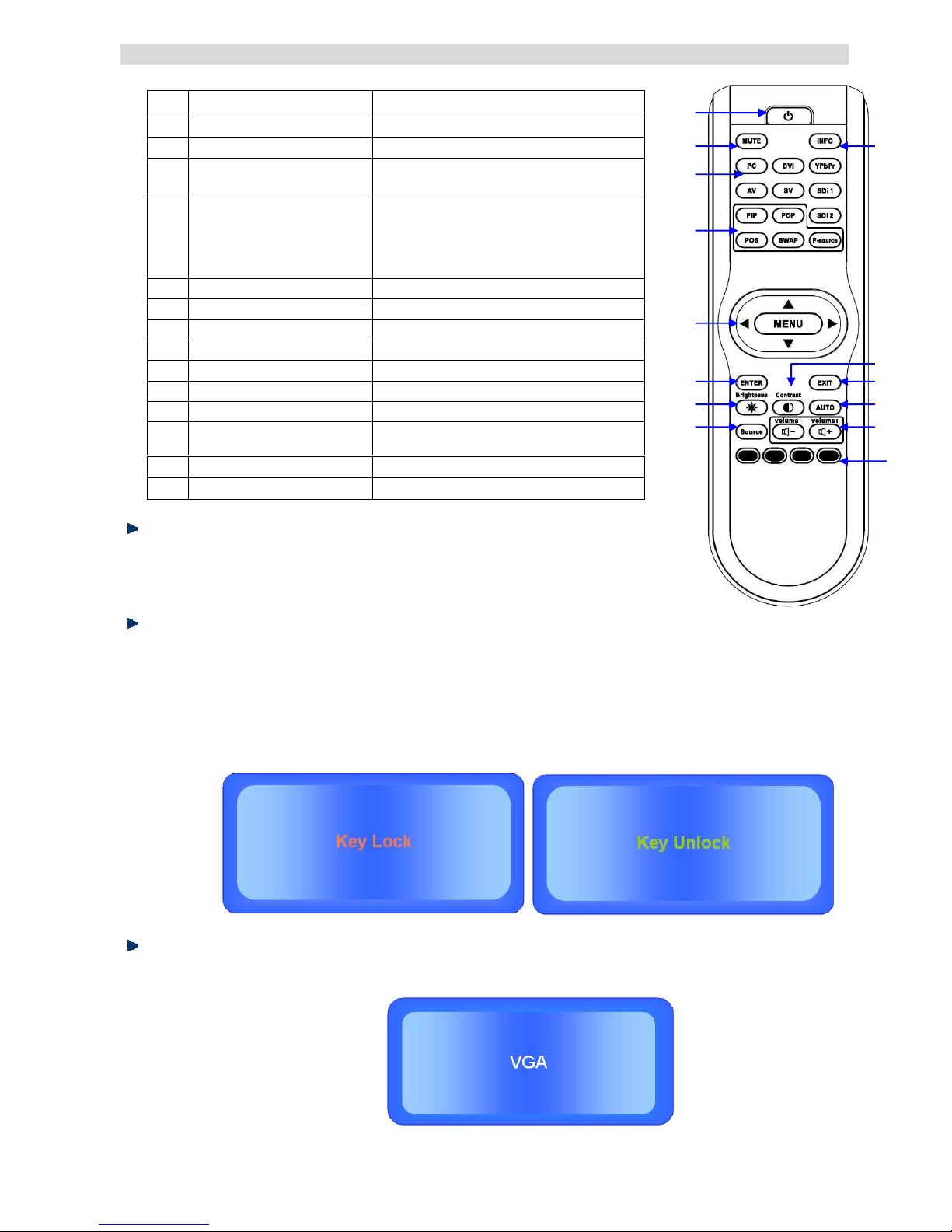

The Remote Control (RCU ) Instructions

No. Key Description

10
11

12

13
14

1
2

3

4

5
6
7
8
9

POWER

MUTE

PC, DVI, YPbPr

AV, SV

,SDi 1, SDi 2

PIP

,MENU

ENTER

INFO

Contrast

Brightness

EXIT

Source

AUTO

Volume +/ -

R,G,B,Yellow

Power ON / OFF
Volume mute

Input source selection

Select PIP function -PIP
POS: PiP position
SWAP: Main, sub source swap
SWAP hot key: White balance
POP / PiP source: No function

OSD menu selection
ENTER the OSD selection
Show out OSD information / Life time
Contrast value adjustment
Brightness value adjustment
OSD menu Exit / One level up
Input source selection
Adjust clock, phase, H & V position

automatically
Volume adjustment (no function)

No function

11

White balance hot key

When the color of picture is abnormal, please try to press “AUTO”key,
and if the color is still abnormal, please press “SWAP” Key without PIP function ON.

1

2

7

3

4

5

8

6

9

10

12
13

14

OSD Lock/Unlock Control
Use control push buttons at side

Lock: Press (/+) and () at the same time and OSD will be locked.
Unlock: Press (/+) and () at the same time again and OSD will be unlocked.

Use remote controller

Lock: Press Enter, Enter, Exit, Exit, Enter and Exit on the controller by sequence and OSD will be locked.

Unlock: Press Enter, Enter, Exit, Exit, Enter and Exit on the controller by sequence again and OSD will be unlocked.

Source Selection Hot Key

Press ”ENTER” on side of Monitor, select input source directly.
Input source: VGA/DVI/ Composite (AV) / S-Video/ Component (YPbPr)/ SDi 1/ SDi 2

VT420 Liquid Display User Guide 17 150-098

4

VT420 Liquid Display User Guide 18 150-098

5. EMC & SAFETY

This product was tested to the following standards and found compliance.

Standards:

FCC: CFR47, Part 15 / CISPR 22 3rd Edition: 1997, Class B

ANSI C63.4: 2003
Canadian ICES-003

CE: EN 55022: 1998+A1: 2000+A2: 2003, Class B
EN 55024: 1998+A1: 2001+A2: 2003 IEC 61000-4 Series
EN 61000-3-2: 2000 & EN 61000-3-3: 1995+A1: 2001

UL: UL 60950-1: 2003, First Edition
CSA C22.2 No. 60950-1-03 1st Ed. April 1, 2003

TUV: IEC 60950-1: 2001, First Edition

VT420 Liquid Display User Guide 19 150-098

6. HANDLING PRECAUTIONS

(1) The panel is made of glass, which may be broken or cracked if drop or bump on hard

surface. Handle with extra care of the module.

(2) Use a soft dry cloth without chemicals for cleaning, for the surface of polarizer is very soft

and easily scratched.

(3) It is recommended to assemble or install module into the user’s system in clean working

areas. The dust and oil may cause electrical short or worsen the polarizer.

(4) Since contact with water may cause discoloration or spots, wipe off the water immediately

when drop on the surface of the panel.

(5) Always follow the correct power-on sequence when the LCD module is turned on. This can

prevent the damage and latch-up of the CMOS LSI chips.

(6) Take care of static electricity and handle with caution to prevent the damage of CMOS LSI

in the module.

(7) Do not pull the I/F connector in or out while the module is operating.

(8) Moisture can easily penetrate into LCD module and may cause the damage during

operation.

(9) When handling LCD modules and assembling them into cabinets, please noted that long-

term storage in the environment of oxidization or deoxidization gas and the use of such
materials as reagent, solvent, adhesive, resin, etc. May cause corrosion and discoloration
of the LCD module.

(10) When ambient temperature is lower than 10℃, the display quality might be reduced. For

example, the response time will become slow, and the starting voltage of CCFL will be
higher than that of room temperature.

VT420 Liquid Display User Guide 20 150-098
