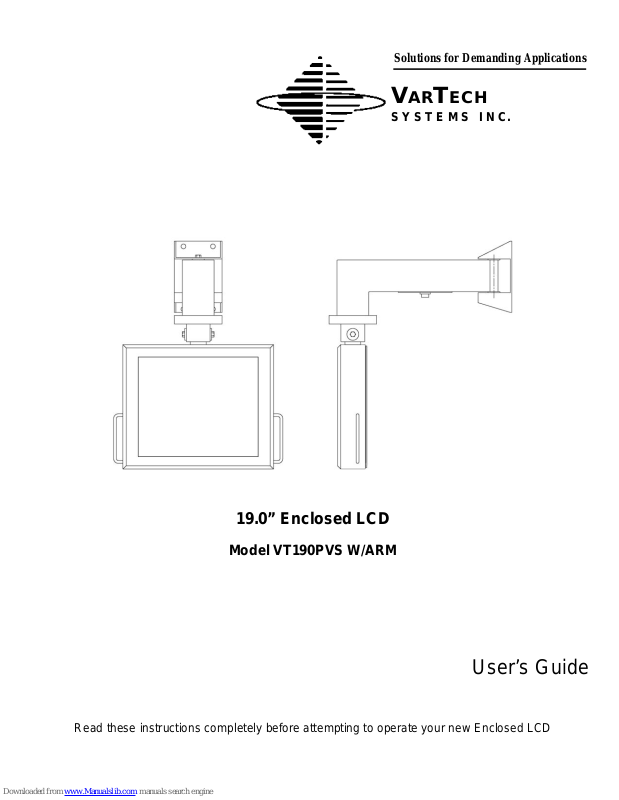

19.0” Enclosed LCD
Model VT190PVS W/ARM
User’s Guide
Read these instructions completely before attempting to operate your new Enclosed LCD

19.0 Enclosed LCD 486-0021-00-00
2

Revision History
Date Rev No Summary Page
03/27/09 00 First Issue
19.0 Enclosed LCD 486-0021-00-00
3

Safety Instructions
Read the Safety Instructions carefully and keep it for use later.
The chassis metalwork of the module must be installed properly to the main earthing termination
for Class 1 equipment.
Care must be exercised in the application of the system to prevent overheating. Ensure that the
ambient temperature around the system does not exceed 50°C and provide adequate means of
ventilation to achieve this.
When cleaning cut off the electrical supply at all times. Never use liquid or aerosol detergent,
use a soft damp cloth instead.
Never insert anything metallic into the enclosure. This may create an electric shock hazard or
hazard from rotating fan blades.
To avoid electric shock, never touch the inside of the system. There are no user adjustable
components inside, only a qualified technician should open the enclosure’s case.
If the LCD does not operate normally – in particular, if there are any unusual sounds or smells
coming from it – disconnect it immediately.
Do not put pressure on the LCD panel screen because it is very fragile.
Always handle the system with care when moving it.
Take care that the system is disposed of correctly at the end of its life. If in doubt refer to your
local ordinances or regulations for proper disposal.
Cleaning the LCD monitor
To clean the LCD panel:
Wipe the screen gently with a clean lens brush made of camel hair, or a soft, clean, lint free
cloth. This is to remove dust and other particles without scratching the LCD panel.
If it is still not clean, then wipe with a damp lint free cloth and blow on it to dry.
Desirable cleaners are water, IPA (Isopropyl Alcohol) or Hexane.
Do not clean the panel with a Ketone type material (e.g. Acetone), or Ethyl alcohol, Toluene, Ethyl
acid, Methyl chloride. These may permanently damage the polarizer due to chemical reaction.
Do not apply pressure to the LCD panel.
19.0 Enclosed LCD 486-0021-00-00
4

Standard Technical Specifications:
LCD Monitor:
Size / Type
Native Resolution
Contrast Ratio
Viewing Angles
Pixel Pitch
Brightness (typical) 250 cd/m²
Response Time (typical) 12ms
Colors Supported
19.0” XGA TFT LCD
1280 x 1024
1000:1
Horizontal: 178°
Vertical: 178°
0.294mm
16.7 million
Touch Screen:
Touch Screen
Touch Screen Interface
Resistive
Standard: Serial
Environmental:
Power Input
Power Consumption
LCD Weight
Temperature
Humidity
Installation of Your Enclosed VESA Mount PC
Packaged with each carton will be:
1 - VT190PVS W/ARM
1 - AC Power Cable
1 – Serial Touch Screen Cable
1 – VGA Cable
1 - Users Guide (Printed or on CD)
100-240 VAC 1.5A 50/60 Hz
30W
23.5 lbs
Operational: 32°F to 122°F 0°C to 50°C
Storage: -40°F to 149°F -40°C to 65°C
Operational: 0 to 90% RH NC
Storage: 0 to 95% RH NC
19.0 Enclosed LCD 486-0021-00-00
5

BEFORE MAKING ANY CONNECTIONS OR APPLYING POWER,
Mounting Procedure
ATTACH ARM TO WALL:
ATTENTION: Ensure that the wall structure is capable of supporting four times the total weight
of the mounted equipment. Mounting to wall surfaces that do not meet these criteria may result
in an unstable, unsafe condition which could result in personal injury and/or property damage.
Vartech Systems assumes no responsibility for water or chemical damage to the monitor or
other equipment within the enclosure due to improper installation.
FIRST READ THROUGH THE ENTIRE MANUAL
19.0 Enclosed LCD 486-0021-00-00
Product Drawing: Detail –A–
6

Connections to the Enclosed LCD:
Power Connection (Power In)
The Enclosed LCD includes an AC line cord which is 10ft long. The power input receptacle is
located on a panel mounted to the support arm of the system.
VGA Port Connection (VGA)
The Enclosed LCD is supplied with a 15-pin D-Shell connector. The cable is located on a panel
mounted to the support arm of the system.
Touch Screen Connection (TOUCH)
The Enclosed LCD is supplied with a 9-pin D-Shell serial connector configured for resistive
touch screen. The cable is located on a panel mounted to the support arm of the system.
LCD Monitor Warm-up Time
All LCD monitors need time to become thermally stable the first time you turn them on.
Therefore, to achieve more accurate adjustments for parameters, allow the LCD monitor to
warm (be on) for at least 20 minutes before making any screen adjustments.
Maintenance
The Enclosed LCD is designed to provide optimum service and performance with minimal
maintenance including the occasional external cleaning. For cleaning the Enclosed LCD
enclosure follow the suggested guidelines.
General – NEVER use abrasive cleaners or solvent-based cleaners!! Use a clean soft cloth.
The Enclosed LCD should only be opened and serviced by a qualified technician. Keep the area
around the Enclosed VESA Mount PC clear and free of excessive dirt or other contaminants.
19.0 Enclosed LCD 486-0021-00-00
7

For Additional Assistance
Contact Your VarTech Sales Representative
Vartech Systems, Inc.
11529 Sun Belt Ct.
Baton Rouge, LA 70809
800-223-8050
Fax: 225-297-2440
www.vartechsystems.com
