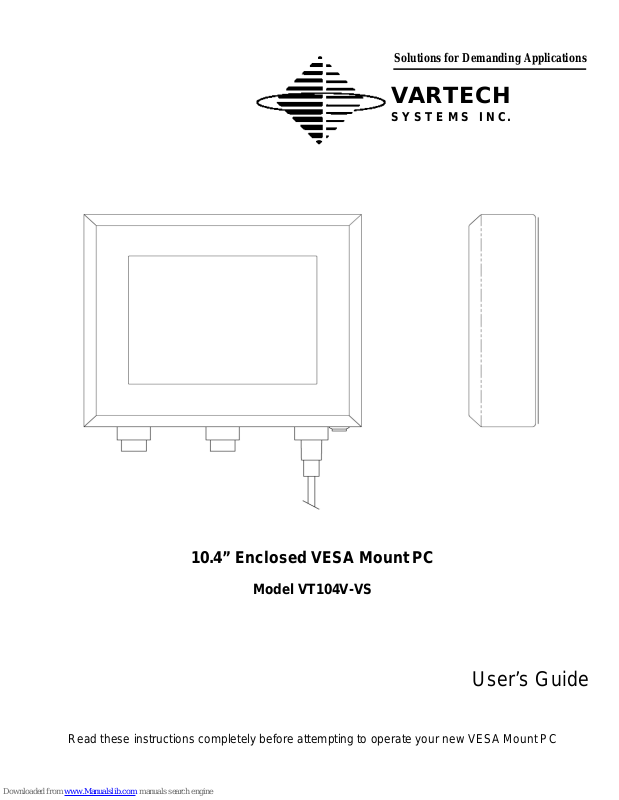

Solutions for Demanding Applications
VARTECH
S Y S T E M S I N C.
10.4” Enclosed VESA Mount PC
Read these instructions completely before attempting to operate your new VESA Mount PC
Model VT104V-VS
User’s Guide
Page 2
Revision History
Date Rev No Summary Page
03/04/09 00 First Issue
10.4 Enclosed VESA Mount LCD Monitor 486-0020-00-00
2
Page 3
Safety Instructions
Read the Safety Instructions carefully and keep it for use later.
The chassis metalwork of the module must be installed properly to the main earthing termination
for Class 1 equipment.
Care must be exercised in the application of the system to prevent overheating. Ensure that the
ambient temperature around the system does not exceed 50°C and provide adequate means of
ventilation to achieve this.
When cleaning cut off the electrical supply at all times. Never use liquid or aerosol detergent,
use a soft damp cloth instead.
Never insert anything metallic into the chassis openings. This may create an electric shock
hazard or hazard from rotating fan blades.
To avoid electric shock, never touch the inside of the system. There are no user adjustable
components inside, only a qualified technician should open the system’s case.
If the system does not operate normally – in particular, if there are any unusual sounds or smells
coming from it – disconnect it immediately.
Do not put pressure on the LCD panel screen because it is very fragile.
Always handle the system with care when moving it.
Take care that the system is disposed of correctly at the end of its life. If in doubt refer to your
local ordinances or regulations for proper disposal.
A socket-outlet shall be installed near the equipment and shall be easily accessible.
Cleaning the LCD monitor
To clean the LCD panel:
Wipe the screen gently with a clean lens brush made of camel hair, or a soft, clean, lint free
cloth. This is to remove dust and other particles without scratching the LCD panel.
If it is still not clean, then wipe with a damp lint free cloth and blow on it to dry.
Do not clean the panel with a keton-type material (e.g. acetone), or ethyl toluene, ethyl acid, methyl or
chloride. These may damage the LCD panel.
Do not apply pressure to the LCD panel.
10.4 Enclosed VESA Mount LCD Monitor 486-0020-00-00
3
Page 4
Standard Technical Specifications:
LCD Monitor:
Size / Type
Native Resolution
Contrast Ratio
Viewing Angles
Pixel Pitch
Brightness (typical) 230 cd/m²
Response Time (typical) 10ms
Colors Supported
10.4” XGA TFT LCD
800 x 600
500:1
Horizontal: 140°
Vertical: 130°
0.264mm
16.7 million
Touch Screen:
Touch Screen
Touch Screen Interface
Power Specifications:
Power Input
Resistive
Standard: Serial
Optional: USB
100-240 VAC 1.5A 50/60 Hz
Power Consumption
Temperature
Humidity
Installation of Your Enclosed VESA Mount PC
Packaged with each carton will be:
1 - VT104V-VS
1 - AC Power Cable
1 – VGA Cable
1 – SERIAL Cable
1 - #8-32 Mounting Hardware
1 - Users Guide (Printed or on CD)
22W
Operational: 32°F to 122°F -0°C to 50°C
Storage: -40°F to 149°F -40°C to 65°C
Operational: 0 to 90% RH NC
Storage: 0 to 95% RH NC
10.4 Enclosed VESA Mount LCD Monitor 486-0020-00-00
4
Page 5
BEFORE MAKING ANY CONNECTIONS OR APPLYING POWER,
Mounting Procedure
VESA Panel Mounting Procedure:
1- Install the enclosure to a 100mm VESA mount pedestal.
2- Secure the enclosure using the screws and lock washers, supplied with the unit.
3- Tighten all mounting hardware to a torque of 15 inch-pounds.
ATTENTION: Mounting hardware must be tightened to a torque of 15 inch-pounds to provide a
proper panel mount and avoid potential damage. Vartech Systems assumes no responsibility for
water or chemical damage to the monitor or other equipment within the enclosure due to
improper installation.
4- Attach the power and system cables to the bottom side of the enclosure if you have not
already done so.
FIRST READ THROUGH THE ENTIRE MANUAL
10.4 Enclosed VESA Mount LCD Monitor 486-0020-00-00
Product Drawing: Detail –A–
5
Page 6
Connections to the Enclosed LCD Monitor
Power Connection (Power In)
The Enclosed VESA Mount PC includes an AC line cord which is 6ft long. The power input
receptacle is located on the bottom rear panel of the monitor.
Serial Connection (Touch Screen)
The Enclosed VESA LCD monitor is supplied with a 9-Pin serial cable to connect the monitor to
an available serial connector on your PC. The connector is located on the bottom rear panel of
the monitor.
VGA Connections (VGA)
The Enclosed PC is supplied with a Monitor-to-PC VGA Cable. Connect one end of the signal
cable to the LCD Monitor’s VGA port located on the bottom panel of the monitor. Connect the
other end of the signal cable to the VGA port of your PC. Make sure the connections are secure.
LCD Monitor Warm-up Time
All LCD monitors need time to become thermally stable the first time you turn them on.
Therefore, to achieve more accurate adjustments for parameters, allow the LCD monitor to
warm (be on) for at least 20 minutes before making any screen adjustments.
Bottom Rear View
- Connector Panel -
10.4 Enclosed VESA Mount LCD Monitor 486-0020-00-00
6
Page 7
Maintenance
The Enclosed VESA Mount LCD Monitor is designed to provide optimum service and
performance with minimal maintenance including the occasional external cleaning. For cleaning
the Enclosed VESA Mount LCD enclosure follow the suggested guidelines.
General – NEVER use abrasive cleaners or solvent-based cleaners!! Use a clean soft cloth.
The Enclosed VESA Mount PC should only be opened and serviced by a qualified technician.
Keep the area around the Enclosed VESA Mount LCD Monitor clear and free of excessive dirt
or other contaminants.
For Additional Assistance
Contact Your VarTech Sales Representative
Vartech Systems, Inc.
11529 Sun Belt Ct.
Baton Rouge, LA 70809
800-223-8050
Fax: 225-297-2440
www.vartechsystems.com
10.4 Enclosed VESA Mount LCD Monitor 486-0020-00-00
7
