SL1000AC/SL1500AC
Sliding Gate Opener
User Manual
2017
1
Dear users,
Thank you for choosing this product. Please read the manual carefully before assembling and using it.
Please do not leave out the manual if you send this product to a third party.
1. Safety Instruction
Please ensure that the using power voltage matches with the supply voltage of gate opener
(AC110V or AC220V); kids are forbidden to touch the control devices or the remote-control unit.
The remote-control unit is controlled by a single button mode or three button mode (please refer to
the instructions of the remote control in accordance with the actual gate opener type). The indicator
light on the remote-control unit will flicker when the button on it is pressed. Main engine and gate can
be unlocked by disengagement wrench and the gate can move with manual operation after
disengagement.
Please ensure that no one is around the main engine or gate when the switch is operated and it is
usually demanded to examine the stability of installation. Please temporarily stop using if the main
engine needs repairing or regulation.
The installation and maintenance of the products must be carried out by professionals.
2
2. Packing List (standard)
No.
Name
Quantity
1 Main engine
1
2 Manual release key
2
3
A
B
C
D
A
B
C
D
Remote control
2
4
Spring limit switch
accessories box / Magnetic
limit switch accessories box
1
4-1
or
Spring limit switch block
/ Magnetic limit switch block
1
4-2 Foundation bolt M10
4
4-3
Spring limit switch block
mounting screw M6X10
/ Magnetic limit switch block
mounting screw M6X18
4
4-4 Nut M10
8
4-5 Flat washer Ø10
8
4-6 Spring washer Ø10
4
3

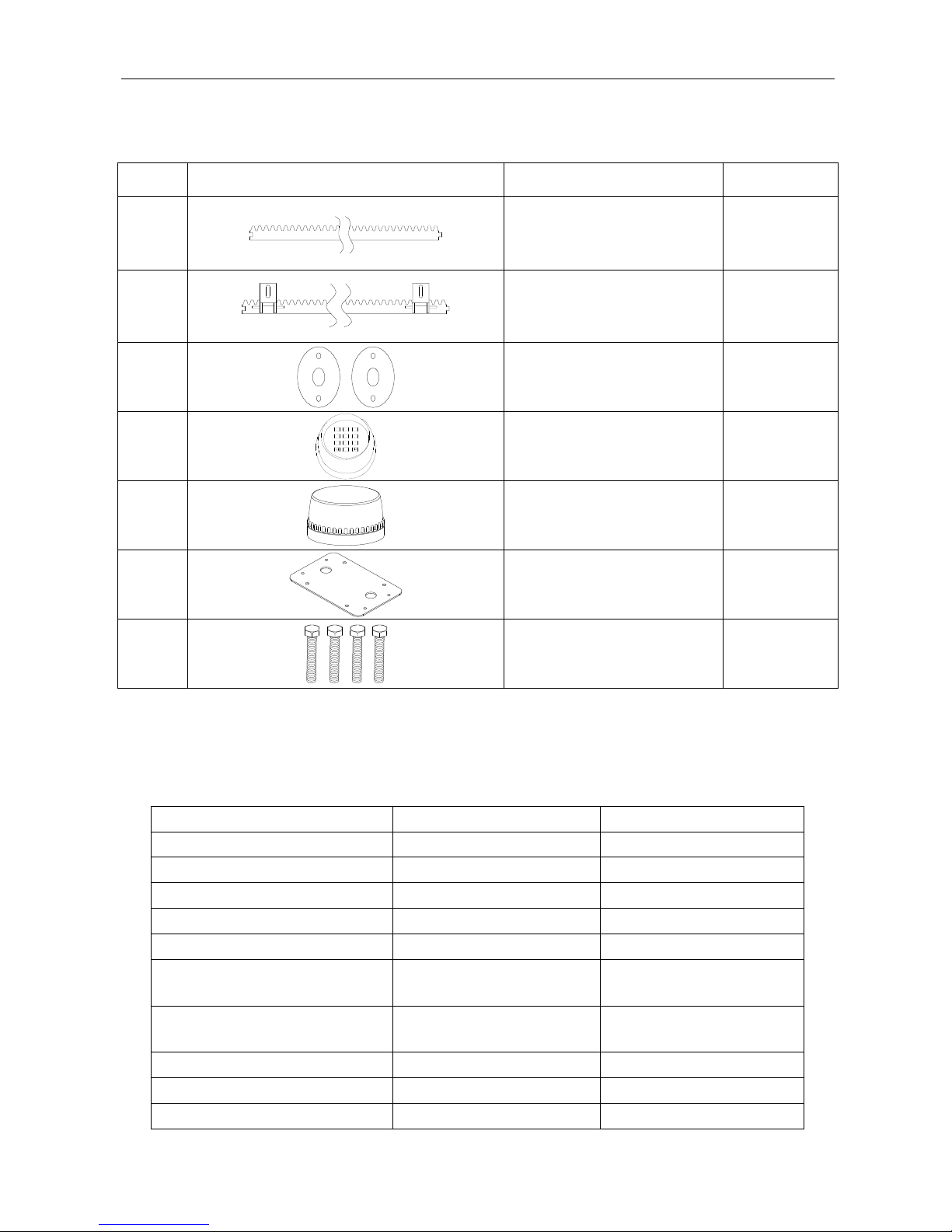

2. Packing List (optional)
No.
Name
Quantity
1 Steel gear rack
1m/pc
2 Nylon gear rack
1m/pc
3 Infrared sensor
1
4
0
8
5 6974
1 2 3
Wireless keypad
1
5 Alarm lamp
1
6 Mounting plate
1
7
Hexagon head bolt M10×60
4
3. Technical parameters
Model
SL1000AC
SL1500AC
Power supply
220V/50Hz;110V/60Hz
220V/50Hz;110V/60Hz
Motor power
400W
550W
Gate moving speed
11-13m/min
11-13m/min
Maximum weight of gate
1000Kg
1500Kg
Remote control distance
≥30m
≥30m
Remote control mode
Single button mode
/ Three button mode
Single button mode
/ Three button mode
Limit switch
Spring limit switch
Magnetic limit switch
Spring limit switch
/ Magnetic limit switch
Noise
≤60dB
≤60dB
Working duty
S2, 20min
S2, 20min
Recording of up remote controls
25
25
4
Frequency
433.92 MHz
433.92 MHz
Working temperature
-20°C ~ +70°C
-20°C ~ +70°C
Package weight
15Kg
16Kg
4. Installation
SL1000AC/SL1500AC sliding gate opener is applicable to gate weight less than 1000kg/1500kg,
and length of the sliding gate should be less than 12m. The drive mode adopts the gear and rack
transmission. This gate opener must be installed inside the enclosure or yard for protection.
4.1 Installation drawing
⑤
④
③
②
0
8
5 6974
1 2 3
⑧
①
⑦
⑥
Figure 1
① Gate opener; ② Wireless keypad (optional); ③ Gate; ④ Infrared sensor (optional);
⑤ Alarm lamp (optional); ⑥ Safety stop block; ⑦ Gear rack; ⑧ Remote control;
4.2 Size of main engine and accessories
4.2.1 Size of main engine
5
271
280
228
Figure 2
4.2.2 Size of mounting plate
270
177
150±0.3
141±0.3
4×φ10
Figure 3
4.3 Installation procedures
4.3.1 Preparation work before installation
Please ensure that the sliding gate is correctly installed, the gate rail is horizontal, and the gate can
glide back and forth smoothly when moved by hands before installing the gate opener.
Cable installation
Please bury the motor & power cable and controlling cable with PVC tube, and use two PVC tubes
to bury (motor & power cable) and (controlling cable) separately, so as to guarantee normal
operation of the gate opener and protect the cables from damages.
Concrete pedestal
Please cast a concrete pedestal with the size of 500mm x 300mm and depth of 250mm in advance,
so as to firmly install SL1000AC/SL1500AC gate opener. Please verify whether the distance
between the gate and gate opener is suitable before casting the pedestal.
6
Embedded screws
Concrete
Power line
Mounting plate
Foundationbolt
Figure 4
4.3.2 Main engine installation
a) Dismantle the plastic housing on the main engine before installation and keep relevant fasteners
properly;
b) Please prepare the power line for connecting mounting plate and main engine (the number of
power supply cable core shall not be less than 3 PCS, the sectional area of cable core shall not be
lower than 1.5mm² and the length shall be determined by users according to the field situation) due
to different installation environments;
c) Please unlock the main engine before installation, the unlock method is: take out the key cover,
insert the key, and open the manual release bar till it rotates by 90° as shown in Figure 5. Then turn
the output gear and the gear can be rotated easily;
Turn on 90°
Figure 5
4.3.3 Gear rack installation
Fix the mounting screws to the rack.
Put the rack on the output gear, and weld the mounting screw to the gate (each screw with one
solder joints firstly).
Unlock the motor and can pull the gate smoothly.
Please check whether there is a fit clearance between rack and output gear, as shown in Figure
7.
7
Weld all the mounting screws to the gate firmly.
Make sure that all racks on the same straight line.
Pull the gate after installed, make sure the entire trip is flexible no stuck.
Figure 6
The fit clearance of output gear and rack is shown in Figure 7 below:
1-21-2
GearGear rackrack
OutputOutput geargear
mmmm
Figure 7
Warnings
·To ensure safety, install safety stop blocks on both ends of the rails to prevent the gate out of the rail.
Before installing the main engine, make sure that the safety stop blocks are in place and whether it
has the function of preventing the gate from moving out of the rail and out of the safety range.
·Please ensure that the main engine and its components have good mechanical properties, and the
gate can operate flexibly when moved by hands before installing the main engine.
·In this product, one control can drive one main engine only, otherwise, the control system will be
damaged.
·Earth leakage circuit breaker must be installed where the gate movement can be seen, and the
minimum mounting height is 1.5m to protect it from being touched.
·After installation, please check whether the mechanical property is good or not, whether gate
movement after manual unlocking is flexible or not, and whether the infrared sensor (optional) is
installed correctly and effectively.
8
4.3.4 Limit switch adjustment
Spring limit switch - The installation site of spring limit switch is shown in Figure 8:
GateGate
SpringSpring limitlimit switchswitch
SpringSpring limitlimit switchswitch stopstop blockblock
GearGear rackrack
OutputOutput geargear
Figure 8
The installation of spring limit switch stop block is shown in Figure 9:
M6×10M6×10 M6×10M6×10
Figure 9
9
Magnetic limit switch - The installation site of magnetic limit switch is shown in Figure 10:
GateGate
MagnetsMagnets
MagneticMagnetic limitlimit switchswitch stopstop blockblock
GearGear rackrack
OutputOutput geargear
Figure 10
The installation of magnetic limit switch block is shown in Figure 11:
M6×18M6×18 M6×18M6×18
Left side mounting
Right side mounting
Figure 11
Note: The default setting is right side mounting. (According to actual situation, please refer to the
“Note” of section 4.3.5.1 and 4.3.5.2 “Adjustment and operation” to adjust.)
10
4.3.5 Control board wiring
4.3.5.1 Standard control board
+
+
O
+
24VDC24VDC
GNDGND
I.RI.R
CLLMCLLM
COMCOM
OPLMOPLM
COMCOM
STPSTP
X5X5
10A10A 250V250V
CLSCLS
OPNOPN
X1X1
W U V PEPE
D2D2 D1D1 C C
SW1SW1
ONON
AN1AN1
LED1LED1
X2X2X3X3
PEPE N L
X8X8
M
24VDC24VDC
GNDGND
PowerPower
LampLamp
CapacitorCapacitor
InfraredInfrared sensorsensor
LimitLimit switchswitch
EarthEarth
LED2LED2
ExternalExternal buttonbutton
switchswitch
X7X7
MotorMotor
Figure 12
Wiring instruction:
1. Connect L and N to the power supply of AC220V/50HZ; AC110V/60HZ; L is live wire, N is
Neutral wire, and PE is grounding wire.
2. Connect LAMP to D1, D2; voltage: AC220V/50HZ; AC110V/60HZ.
3. Connect the motor wire U to the REV motor wire, connect W to the FWD motor wire, and
connect V to the motor common wire.
4. Connect C, C to the capacitor wire.
X5 Terminal
24VDC Power supply for fittings +24VDC（Electric current ≤50mA）;
GND Power ground;
I.R Photocell input (N.C.);
CLLM Close limit switch;
COM Limit switch common terminal;
OPLM Open limit switch.
X7 Terminal
COM Control button common terminal;
STP Stop control button (N.O.);
CLS Gate close control button (N.O.);
OPN Gate open control button (N.O.).
11
DIP Switch
1. External button switch. ON - Three button switch; OFF - One button switch (X7 terminal CLS
button can be used to circularly control the main engine OPEN/STOP/CLOSE/STOP).
2. Automatic close time.
3. Automatic close time.
2 ON 3 OFF: automatic close time is 15s,
2 OFF 3 ON: automatic close time is 30s,
2 OFF 3 OFF: automatic close time is 45s,
2 ON 3 ON: no automatic close function.
Infrared connection
Infrared photocell function: In the closing process, when infrared ray of the infrared sensor is
covered, the gate will open immediately, to protect user and property security.
The distance between photocell receiver and photocell emitter should be not less than 2 meters,
otherwise will affect the induction of the photocell.
If connect the infrared photocell, please remove the short connection between I.R and GND on the
X5 terminal.
24VDC24VDC
GNDGND
I.RI.R
CLLMCLLM
COMCOM
OPLMOPLM
COMCOM
STPSTP
X5X5
10A10A 250V250V
CLSCLS
OPNOPN
X1X1
PEPE N L
X8X8
ComCom OutOut
SetSet NCNC
InfraredInfrared receiverreceiver connectingconnecting
－ ＋
－ ＋
X7X7
InfraredInfrared emitteremitter connectingconnecting
Figure 13
12
Adjustment and operation
Remote control operation
When remote control is three button mode, three buttons on the remote control to control the main
engine OPEN/CLOSE/STOP separately.
When remote control is single button mode, one same button on the remote control to circularly
control the main engine OPEN/STOP/CLOSE/STOP.
ThreeThree buttonbutton modemode remoteremote controlcontrol
SingleSingle buttonbutton modemode remoteremote controlcontrol
A
B
C
D
OPENOPEN
A
B
C
D
CLOSECLOSE
STOPSTOP
CLOSECLOSE
OPENOPEN
STOPSTOP
Figure 14
Add extra remote control (remote control learning): Remove the upper cover of main engine,
remove the upper cover of the control box, press the learning button AN1 on the control board, and
indicator light LED2 will flash once and then go out; press the same button on the remote control
twice, the LED2 flashes repeatedly and then goes out; remote control learning is succeed. At most
25 remote controls can be learned.
Delete remote control: Delete remote control that have been learned; press the learning button
AN1 and LED2 will be on; loosen the button until LED2 is off. This indicates that all remote controls
that learned previously have been deleted.
Note: To disengage gate opener, move the gate to the middle position, then close the clutch and
press the open button of external button switch to open the gate. If the gate opening direction is
wrong, can through the toggle switch SW1 on the control board or exchange the two motor
lines U and W. Please seriously observe whether the motor can stop automatically when the
gate fully opened. If the position cannot be limited correctly, please exchange limit switch
lines CLLM and OPLM.
13
4.3.5.1 Intelligent control board
L
PEPE
1313
LAMPLAMP
PEPE
32
1
4
5
6
7
9
1010 1111
1212
8
MOTMOT
MOTM OT
COMCOM
MOT1MOT1
MOT2MOT2
CAPCAP
SPEEDSPEED GNDGND VCCVCC
N
L N
OFFOFF
ONON
X1X1
J5J5
U1U1
HALLHALL
J2J2
U2U2
S1S1
VR3VR3
VR4VR4
LEARNLEARN
POWERPOWER
J1J1
J6J6
J3J3
13131111
5 6
VR1VR1
VR2VR2
8
1010
SW1SW1
1 2 3
J4J4
12VDC12VDC
GNDGND
LimitLimit switchswitch
LoopLoop detetcordetetcor
O/S/CO/S/C switchswitch
ExternalExternal buttonbutton
PedestrianPedestrian switchswitch
M
PowerPower
EarthEarth
CapacitorCapacitor
LampLamp
HallHall lineline
InfraredInfrared sensorsensor
switchswitch
Figure 15
Wiring instruction:
1. Connect L and N to the power supply of AC220V/50HZ; AC110V/60HZ; L is live wire, N is
Neutral wire, and PE is grounding wire.
2. Connect LAMP to caution light; voltage: AC220V/50HZ; AC110V/60HZ.
3. Connect the motor wire MOT2 to the REV motor wire, connect MOT1 to the FWD motor wire,
and connect MOTCOM to the motor common wire.
4. Connect MOTCAP to the capacitor wire.
J2 (For the convenience of wiring, this terminal is accompanied with failure diagnosis light)
1. Gate close control button (N.O.)
2. Gate open control button (N.O.)
3. Stop control button (N.O.)
4. Control button common terminal
5. Open/Stop/Close/Stop loop control button (N.O.)
6. Pedestrian mode control button (N.O.)
14
J5 (For the convenience of wiring, this terminal is accompanied with failure diagnosis light)
7. Power supply for fittings: +12V（Electric current ≤100mA）
8. Photocell input (N.C.); short out the device if not used.
9. GND
10. Loop detector (sensor coil) connector (N.O.)
In the closing process, once vehicles are detected by the loop detector, the gate will open
soon; when the vehicle passes, the gate will close automatically. When the gate is in a
halted state, it will keep this state when vehicles are detected; after the vehicle passes, the
gate will close automatically.
In the above loop detector function, users can make the gate close automatically 12
seconds later after the vehicle passes. Change the No.4 key of the dip switch on circuit
board, and the gate will close automatically 12 seconds later after the vehicle passes.
11. Close limit switch
12. Limit switch and other input signal common terminal
13. Open limit switch
Function adjustment
Functional parameters of the control board equipped with microprocessor can be adjusted through
potentiometer and dip switch, so as to meet different installation requirements.
1313
1212
SPEEDSPEED GNDGND VCCVCC
OFFOFF
ONON
X1X1
HALLHALL
U2U2
S1S1
VR3VR3
VR4VR4
LEARNLEARN
POWERPOWER
J1J1
1313
VR1VR1 VR2VR2
SW1SW1
1 2 3 4 5
Figure 16
Adjusting knob
VR1: When meet obstacle reverse function is enabled (DIP switch 5 at OFF position and the motor
assembled the hall line). This knob is used for sensitivity adjustment of meet obstacle.
Clockwise rotation to reduce sensitivity of obstacle, counter-clockwise rotation to increase sensitivity
of obstacle.
When meet obstacle reverse function is disabled (DIP switch 5 at ON position). This knob is used for
motor working total time adjustment. Clockwise rotation to increase, counter-clockwise rotation to
reduce. The total time can be set to 10 seconds as minimum and 90 seconds as maximum.
VR2: For brake force adjustment in limit position.
Clockwise rotation to increase, counter-clockwise rotation to reduce.
Rotate to minimum to cancel brake function in place.
VR3: For slow stop width adjustment.
Clockwise rotation to increase, counter-clockwise rotation to reduce.
15
VR4: For motor output force adjustment to keep safe usage.
Clockwise rotation to increase, counter-clockwise rotation to reduce.
Note: the default setting is VR1, VR2, VR3, VR4 are the maximum value, and the user can adjust
according to the actual requirement.
Warning: the motor output force cannot set too large, just to be able to drive the gate.
Dip switch
1. Soft start function. OFF - enabled; ON - disabled.
2. Limit switch setting. OFF- normal open (N.O.); ON - normal close (N.C.).
3. Automatic close time.
4. Automatic close time.
Setting for automatic close time:
3 OFF 4 ON: automatic close time is 12s,
3 ON 4 OFF: automatic close time is 24s,
3 ON 4 ON: automatic close time is 36s,
3 OFF 4 OFF: no automatic close function.
5. Meet obstacle reversal function. OFF - enabled; ON - disabled.
Infrared connection
Infrared photocell function: In the closing process, when infrared ray of the infrared sensor is
covered, the gate will open immediately, to protect user and property security.
The distance between photocell receiver and photocell emitter should be not less than 2 meters,
otherwise will affect the induction of the photocell.
If connect the infrared photocell, please remove the short connection between 8 and 9 on the J5
terminal.
1313
7
9
1010
1111
1212
8
SPEEDSPEED GNDGND VCCVCC
OFFOFF
ONON
X1X1
J5J5
U1U1
HALLHALL
U2U2
S1S1
VR3VR3
VR4VR4
LEARNLE ARN
POWERPOWER
J1J1
1313
1111
VR1VR1
VR2VR2
8
1010
SW1SW1
ComCom OutOut
SetSet NCNC
InfraredInfrared receiverreceiver connectingconnecting
InfraredInfrared emitteremitter connectingconnecting
－ ＋
－ ＋
Figure 17
16
Adjustment and operation
Remote control operation
When remote control is three button mode, three buttons on the remote control to control the main
engine OPEN/CLOSE/STOP separately.
When remote control is single button mode, one same button on the remote control to circularly
control the main engine OPEN/STOP/CLOSE/STOP.
ThreeThree buttonbutton modemode remoteremote controlcontrol
SingleSingle buttonbutton remoteremote controlcontrol
A
B
C
D
OPENOPEN
A
B
C
D
CLOSECLOSE
STOPSTOP
CLOSECLOSE
OPENOPEN
STOPSTOP
PedestrianPedestrian modemode PedestrianPedestrian modemode
Figure 18
Add extra remote control (remote control learning): Remove the upper cover of main engine;
press the learning button S1 on the control board, and indicator light LEARN will flash once and then
go out; press the same button on the remote control twice, the LEARN flashes repeatedly and then
goes out; remote control learning is succeed. At most 25 remote controls can be learned.
Delete remote control: Delete remote control that have been learned; press the learning button
S1 and LEARN will be on; loosen the button until LEARN is off. This indicates that all remote
controls that learned previously have been deleted.
The fourth button on the remote control is for pedestrian mode, press the button the door will open
about 1 meter when the door is closed, for pedestrian only.
Note: To disengage gate opener, move the gate to the middle position, then close the clutch and
press the open button of external button switch to open the gate. If the gate opening direction is
wrong, exchange the two motor lines MOT2 and MOT1. Please seriously observe whether the
motor can stop automatically when the gate fully opened. If the position cannot be limited
correctly, please exchange limit switch lines 11 and 13.
5. Others
5.1 Maintenance
Check whether the gate operates normally every month.
For the sake of safety, each gate is suggested to be equipped with infrared protector, and regular
inspection is required.
Before installation and operation of the gate opener, please read all instructions carefully.
Our company has the right to change the instruction without prior notice.
17
5.2 Troubleshooting
Problems
Possible Reasons
Solutions
The gate cannot open or
close normally, and LED
does not light.
1.The power is off.
2.Fuse is burned.
3.Control board power wiring with
problem.
1.Switch on the power supply.
2.Check the fuse (code FU),
change the fuse if burnt.
3.Re wiring according to
instructions.
The gate can open but
cannot close.
1.Photocell wiring with problem.
2.Photocell mounting with problem.
3.Photocell is blocked by objects.
4.Sensitivity of obstacle is too high
(Intelligent type).
5.Hall switch parts is damaged
(Intelligent type).
1.If not connect photocell,
please make sure that the
infrared port and GND short
circuit; if connect infrared
sensor, please make sure the
wiring is correct and the
photocell is N.C.
2.Make sure that the photocell
mounting position can be
mutually aligned.
3.Remove the obstacle.
4.Reduce the sensitivity of
obstacle.
5.Change hall switch parts.
Remote control doesn’t
work.
1.Battery level of the remote
control is low.
2.Remote control learning is not
completed.
1.Change the remote control
battery.
2.Re-conduct remote control
learning.
Press OPEN, CLOSE
button, the gate is not
moving, motor has
noise.
1.Capacitor is broken.
2.Capacitor is poor connected.
3.Gate moving is not smoothly.
1.Change capacitor.
2.Check the capacitor wiring.
3.According to the actual
situation to adjust the motor or
the gate.
Not stop at the limit
position when opening /
closing.
1. The limit direction is wrong.
2. The mounting of magnetic limit
switch with problem.
1.Check whether the limit
switch wiring is consistent with
the actual direction of
operation.
2. Check whether the distance
between magnetic limit switch
and motor, and the height of
the magnetic limit switch can
reach up the mounting
requirement.
Leakage switch tripped.
Power supply line short circuit or
motor line short circuit.
Check wiring.
18
Remote control working
distance is too short.
Signal is blocked.
Connect external receiver
antenna, 1.5 meters above
ground.
The gate moves to the
middle position to stop
or reverse.
1.Motor output force is not enough
(Intelligent type).
2.Sensitivity of obstacle is too
big(Intelligent type).
3.Gate meets obstacle.
1.Adjust the VR4.
2.Adjust the VR1.
3.Remove the obstacle.
Loading...
