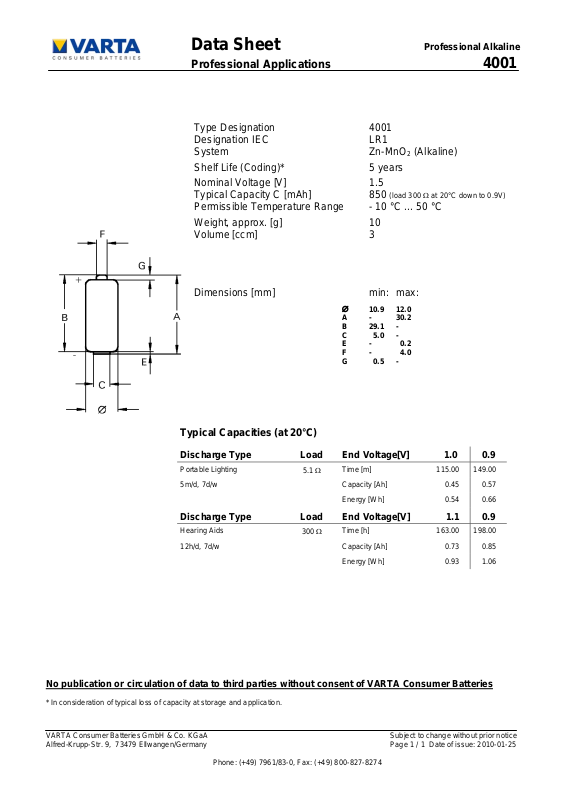

Data Sheet Professional Alkaline
Professional Applications 4001
Type Designation 4001
Designation IEC LR1
System Zn-MnO
Shelf Life (Coding)* 5 years
Nominal Voltage [V] 1.5
Typical Capacity C [mAh] 850
Permissible Temperature Range - 10 °C ... 50 °C
Weight, approx. [g] 10
Volume [ccm] 3
(Alkaline)
2
(load 300 at 20°C down to 0.9V)
Dimensions [mm] min: max:
10.9 12.0
A - 30.2
B 29.1 C 5.0 E - 0.2
F - 4.0
G 0.5 -
Typical Capacities (at 20°C)
Discharge Type Load End Voltage[V] 1.0 0.9
Portable Lighting
5m/d, 7d/w Capacity [Ah] 0.45 0.57
Energy [Wh] 0.54 0.66
Discharge Type Load End Voltage[V] 1.1 0.9
Hearing Aids
12h/d, 7d/w Capacity [Ah] 0.73 0.85
Energy [Wh] 0.93 1.06
No publication or circulation of data to third parties without consent of VARTA Consumer Batteries
* In consideration of typical loss of capacity at storage and application.
5.1
300
Time [m] 115.00 149.00
Time [h] 163.00 198.00
VARTA Consumer Batteries GmbH & Co. KGaA Subject to change without prior notice
Alfred-Krupp-Str. 9, 73479 Ellwangen/Germany Page 1 / 1 Date of issue: 2010-01-25
