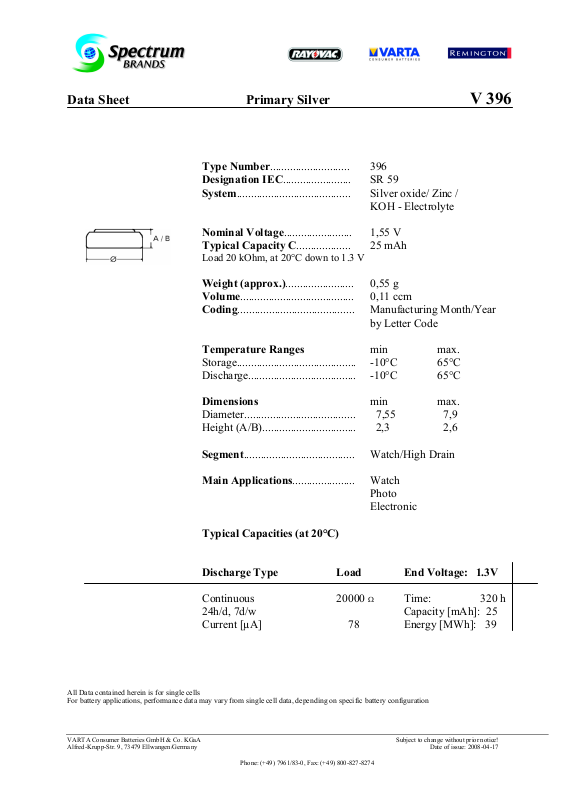

Data Sheet Primary Silver V 396

Type Number............................ 396

Designation IEC........................ SR 59

System........................................ Silver oxide/ Zinc /

KOH - Electrolyte

Nominal Voltage........................ 1,55 V

Typical Capacity C................... 25 mAh

Load 20 kOhm, at 20°C down to 1.3 V

Weight (approx.)........................ 0,55 g

Volume........................................ 0,11 ccm

Coding......................................... Manufacturing Month/Year

by Letter Code

Temperature Ranges min max.

Storage.......................................... -10°C 65°C

Discharge...................................... -10°C 65°C

Dimensions min max.

Diameter....................................... 7,55 7,9

Height (A/B)................................. 2,3 2,6

Segment....................................... Watch/High Drain

Main Applications...................... Watch

Electronic

Typical Capacities (at 20°C)

Discharge Type Load End Voltage: 1.3V

Continuous 20000 Ω Time: 320 h
24h/d, 7d/w Capacity [mAh]: 25
Current [µA] 78 Energy [MWh]: 39

All Data contained herein is for single cells
For battery applications, performance data may vary from single cell data, depending on specific battery configuration

VARTA Consumer Batteries GmbH & Co. KGaA Subject to change without prior notice!
Alfred-Krupp-Str. 9, 73479 Ellwangen/Germany Date of issue: 2008-04-17
