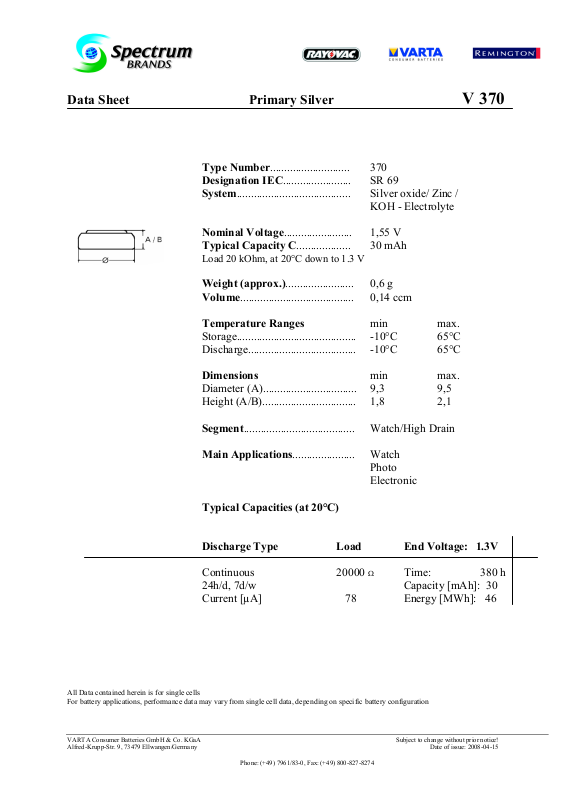

Data Sheet Primary Silver V 370

Type Number............................ 370

Designation IEC........................ SR 69

System........................................ Silver oxide/ Zinc /

KOH - Electrolyte

Nominal Voltage........................ 1,55 V

Typical Capacity C................... 30 mAh

Load 20 kOhm, at 20°C down to 1.3 V

Weight (approx.)........................ 0,6 g

Temperature Ranges min max.

Storage.......................................... -10°C 65°C

Discharge...................................... -10°C 65°C

Dimensions min max.

Diameter (A)................................. 9,3 9,5

Height (A/B)................................. 1,8 2,1

Segment....................................... Watch/High Drain

Main Applications...................... Watch

Electronic

Discharge Type Load End Voltage: 1.3V

Continuous 20000 Ω Time: 380 h
24h/d, 7d/w Capacity [mAh]: 30
Current [µA] 78 Energy [MWh]: 46

All Data contained herein is for single cells
For battery applications, performance data may vary from single cell data, depending on specific battery configuration

Volume........................................ 0,14 ccm

Typical Capacities (at 20°C)

VARTA Consumer Batteries GmbH & Co. KGaA Subject to change without prior notice!
Alfred-Krupp-Str. 9, 73479 Ellwangen/Germany Date of issue: 2008-04-15
