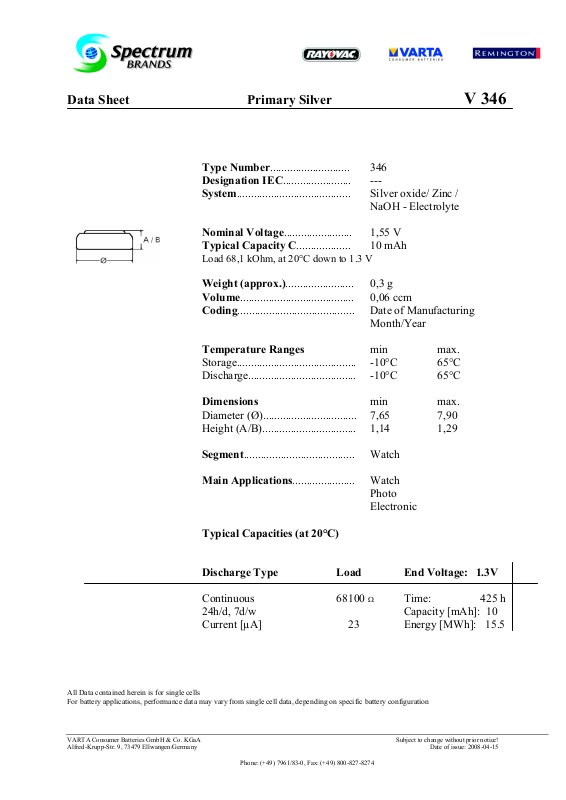

Data Sheet Primary Silver V 346

Type Number............................ 346

Designation IEC........................ ---

System........................................ Silver oxide/ Zinc /

NaOH - Electrolyte

Nominal Voltage........................ 1,55 V

Typical Capacity C................... 10 mAh

Load 68,1 kOhm, at 20°C down to 1.3 V

Weight (approx.)........................ 0,3 g

Temperature Ranges min max.

Storage.......................................... -10°C 65°C

Discharge...................................... -10°C 65°C

Dimensions min max.

Diameter (Ø)................................. 7,65 7,90

Height (A/B)................................. 1,14 1,29

Segment....................................... Watch

Main Applications...................... Watch

Electronic

Discharge Type Load End Voltage: 1.3V

Continuous 68100 Ω Time: 425 h
24h/d, 7d/w Capacity [mAh]: 10
Current [µA] 23 Energy [MWh]: 15.5

All Data contained herein is for single cells
For battery applications, performance data may vary from single cell data, depending on specific battery configuration

Volume........................................ 0,06 ccm

Coding......................................... Date of Manufacturing

Month/Year

Typical Capacities (at 20°C)

VARTA Consumer Batteries GmbH & Co. KGaA Subject to change without prior notice!
Alfred-Krupp-Str. 9, 73479 Ellwangen/Germany Date of issue: 2008-04-15
