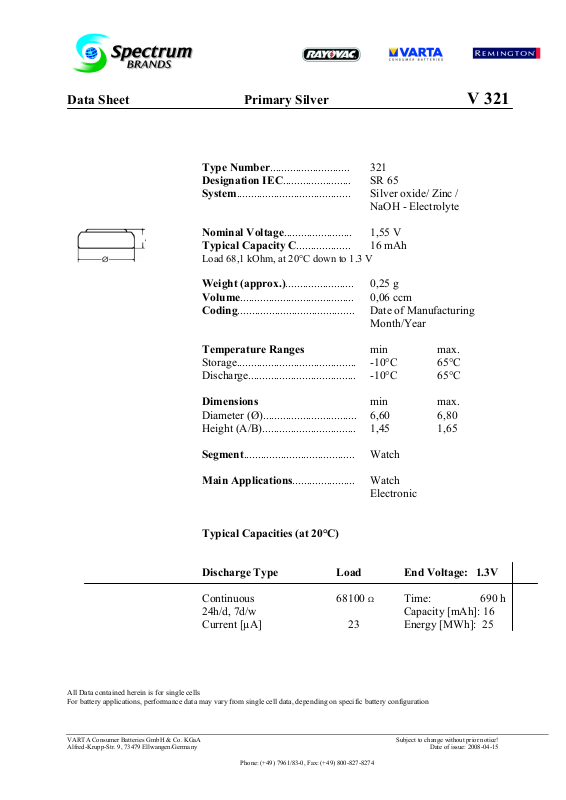

Data Sheet Primary Silver V 321

Type Number............................ 321

Designation IEC........................ SR 65

System........................................ Silver oxide/ Zinc /

NaOH - Electrolyte

Nominal Voltage........................ 1,55 V

Typical Capacity C................... 16 mAh

Load 68,1 kOhm, at 20°C down to 1.3 V

Weight (approx.)........................ 0,25 g

Volume........................................ 0,06 ccm

Coding......................................... Date of Manufacturing

Month/Year

Temperature Ranges min max.

Storage.......................................... -10°C 65°C

Discharge...................................... -10°C 65°C

Dimensions min max.

Diameter (Ø)................................. 6,60 6,80

Height (A/B)................................. 1,45 1,65

Segment....................................... Watch

Main Applications...................... Watch

Electronic

Typical Capacities (at 20°C)

Discharge Type Load End Voltage: 1.3V

Continuous 68100 Ω Time: 690 h
24h/d, 7d/w Capacity [mAh]: 16
Current [µA] 23 Energy [MWh]: 25

All Data contained herein is for single cells
For battery applications, performance data may vary from single cell data, depending on specific battery configuration

VARTA Consumer Batteries GmbH & Co. KGaA Subject to change without prior notice!
Alfred-Krupp-Str. 9, 73479 Ellwangen/Germany Date of issue: 2008-04-15
