StingRay Series Visual Guide
Covering RigLits and StingShot-Stinger-StingRay Configurations
The StingRay series is the latest and most versatile
addition to our long line of award-winning camera
supports. Completely modular and tool-free in
design, the StingRay series is built up with “RigLits”
architecture, a system of support components
mounted on industry-standard 15mm rods.
The RigLits system allows you to buy our unique,
ergonomic components to upgrade 15mm rod
systems from other manufacturers, or build your own
system from the ground up. Check out this visual
guide for detailed information.
Note: Levers and knobs on actual unit may differ slightly from those shown in this manual

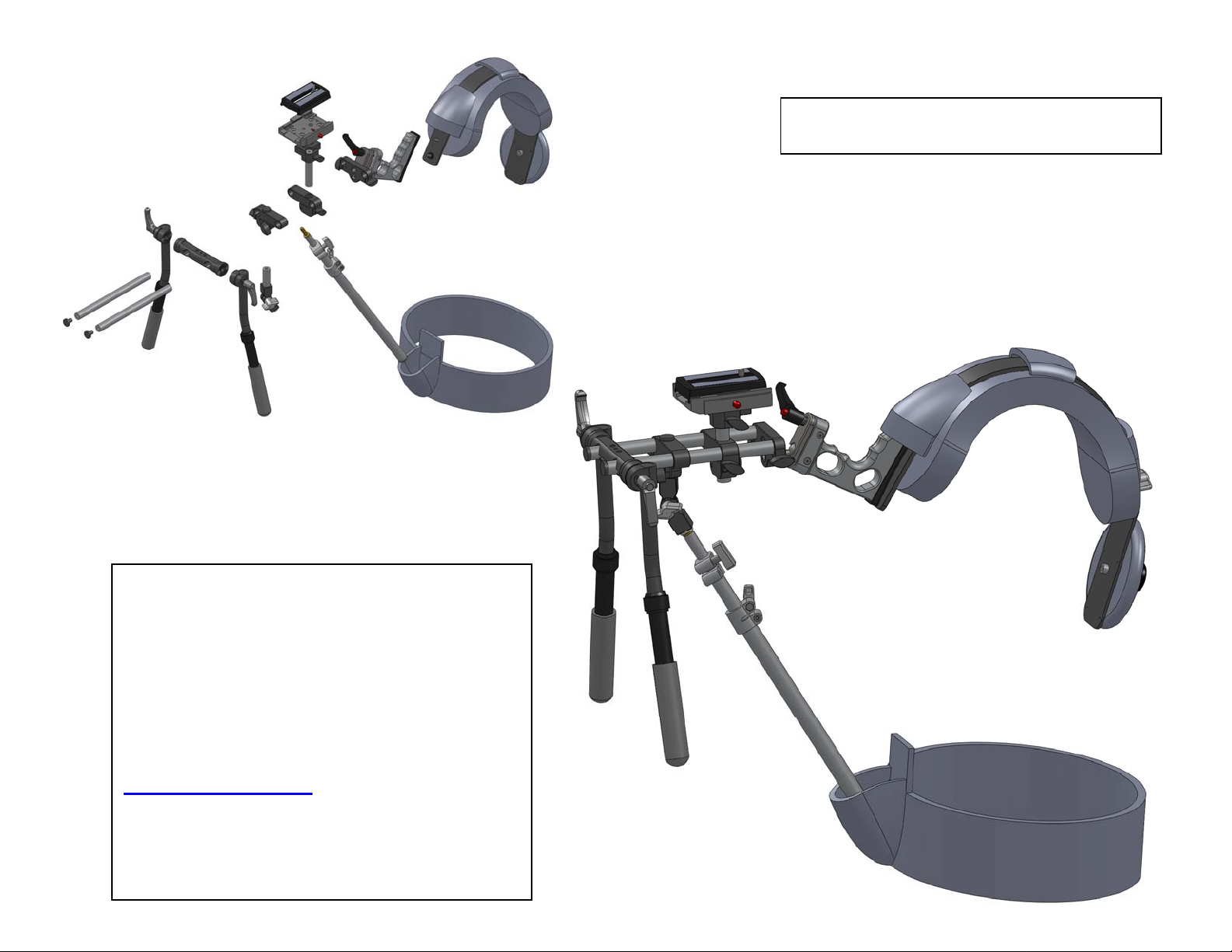

Master StingRay configuration in
exploded view
StingRay
Stinger II
Stinger III
Stinger
StingShot
The StingRay series modular support is designed with several attributes in mind: flexibility, compatibility, portability, and
reliability. Based on standard 15mm rods, the StingRay series builds up using the RigLits system, which allows you to buy components
(RigLits) incrementally to configure own support or add our components to another manufacturer’s 15mm rod-based system.
There are 5 recommended configurations, all of which are available with the master StingRay system. In other words, if you buy
the VZ-StingRay, you can configure it into at least 5 setups (each shown on the previous page), and the entire system breaks down
neatly for compact storage and transport without the use of any tools. The StingShot and Stinger I, II, & III are each capable of fewer
configurations than the master StingRay, but each system can be purchased as a turnkey product and upgraded through the purchase
of RigLits (below):
VZ-R1001 – Belt/Holster +
Suspension Pod +
Articulated Pod Socket +
Rod Clamp
VZ-R1000 –
Quick-Release
Camera Platform
+ Rod Clamp
VZ-R1002 –
Dual Handle
System
(telescoping
& adjustable)
VZ-R1003 –
Pair 15mm x
8” Rods
VZ-R1004 – Pivoting
Pistol Grip/Shoulder
Stock with Rod Clamp
VZ-R1005 – Padded
Shoulder Arch Brace w/
Pivoting Counterweight
VZ-R1006 – Padded
Shoulder Brace w/ Pivoting
Counterweight + Pivoting
Pistol Grip/Shoulder Stock
WARNINGS:
1) Always tighten all locking knobs and attach rod endcap screws before operating
the unit – failure to do so could result in accidental separation of components
and damage to your camera.
2) Always tighten the locking knobs on the suspension pod when storing and handling.
Only unlock the knobs when the suspension pod has been properly mounted into the
belt holster and the articulated socket on the fully assembled StingRay/Stinger
camera support. Also make sure the endcap screw is attached to the short
mounting rod on the articulated socket.
Setup and Configuration
The RigLit system allows for great flexibility in how your support can be configured
and adjusted. We recommend using the systems in one of the 5 configurations
depicted in this manual. You should be able to assemble the system by using this
manual as a visual guide.
If you are using one of our RigLits to upgrade a support from another
manufacturer, please make sure you continue to adhere to any warnings or special
instructions given by the manufacturer.
StingShot Assembly
Stinger Assembly
Stinger II Assembly
Stinger III Assembly
StingRay Assembly
Warranty: 2 years for parts and labor,
covering defects in manufacturing or
workmanship. Warranty does not cover
lost or damaged parts
If you have questions or comments,
please feel free to contact us!
www.varizoom.com
512-219-7722
