VariZoom VZEFC User Manual

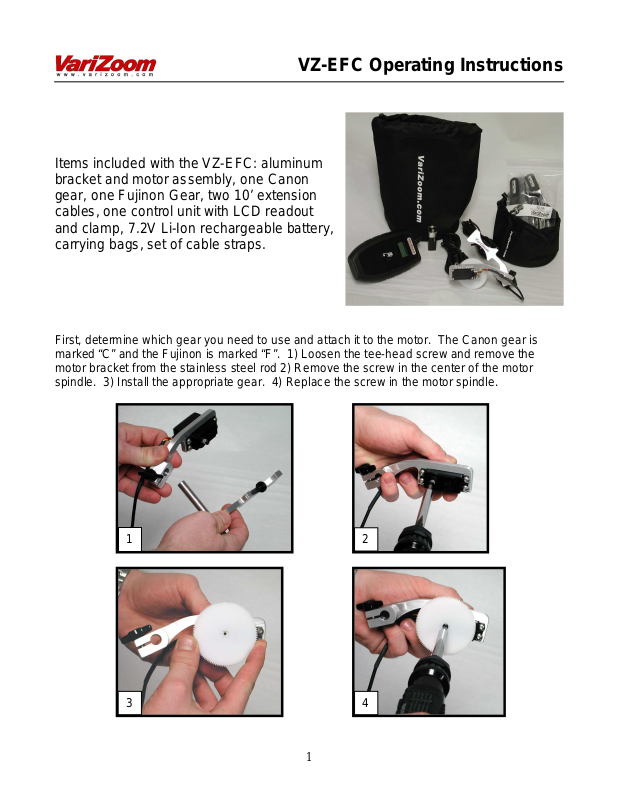

VZ-EFC Operating Instructions

Items included with the VZ-EFC: aluminum
bracket and motor assembly, one Canon
gear, one Fujinon Gear, two 10’ extension
cables, one control unit with LCD readout
and clamp, 7.2V Li-Ion rechargeable battery,
carrying bags, set of cable straps.

First, determine which gear you need to use and attach it to the motor. The Canon gear is
marked “C” and the Fujinon is marked “F”. 1) Loosen the tee-head screw and remove the
motor bracket from the stainless steel rod 2) Remove the screw in the center of the motor
spindle. 3) Install the appropriate gear. 4) Replace the screw in the motor spindle.

1

3 4

2

1

Smaller arc

See the above pictures for an idea of how to attach the assembly to a standard Canon or
Fujinon lens, but please read the rest of the instructions before continuing.

-IF you have one of the smaller Fujinon lenses (Th16x5.5, S14x7.3, S16x7.3, S12x5,
A12x6.8), you will have to make one small change (see pictures below). The aluminum
bracket that screws onto the lens barrel (A) comes oriented to fit standard Canon and
Fujinon lenses, but to make it fit the smaller Fujinon lens you will have to remove it and
flip it around (note that one side of the bracket has a slightly smaller arc – this will be the
side facing the barrel of the smaller lens).

Loosen the black tee-head screw that fixes the bracket to the stainless steel rod and
slide the bracket off the rod (see picture 1 on previous page). Unscrew the black
knurled-head screw from the bracket until it comes out completely (A). Now insert the
screw from the other side, threading it in until it is captured (B). Mount the bracket on
the rod (with the smaller arc and screw tip facing the lens) and you will be ready to
attach the assembly to your lens.

A B

2
