Owner’s Manual for VSM1, VSM1-T, VSM1-K

54” VariSlider Manual 1-Section Camera Slider

VSM1 includes the following:

1) 54” slider w/ cart and 4x leveling feet attached

2) Carrying case

3) ¼”-28 x 1” stainless knurled thumbscrew for fixing cart to endcap

4) Head mounting kit (in pouch) a. 100mm bowl adapter b. 100-75mm bowl step-down ring c. Flat base adapter d. 2x - ¼”-20 x ¾” button socket screw (for 100mm bowl attachment) e. 4x - ¼”-20 x ½” flat socket screw (for flat base attachment) f. M10 ‘Metric’ hand knob w/ removable 3” stud and nut g. 3/8”-16 ‘Inch’ hand knob w/ removable 3” stud (bowl mount), 2” stud (flat mount), & nut h. Machined cup washer for bowl mounting

5) Tool Kit (in pouch): 5/16” combination wrench for adjusting outrigger position + Inch hex key set for tuning

cart and making attachments

VSM1-T includes all of the above plus 2 attached tripod mounts w/ tie-down knobs

VSM1-K includes all of the above plus 2 VZT100AM 100mm tripods

Notes and Warnings:

1) The track surface (the upside-down ‘V’ part) must remain in good condition for the slider to move smoothly. Always protect this surface by

packing the slider in its case as it was received, with the padding on top of the slider.

2) The track surface must be clean and free of debris for the slider to move smoothly. We recommend periodically cleaning the track with WD40,

which will remove any residue or debris, and it acts as an excellent lubricant for smooth rolling.

3) Do not stand on the slider or attempt to ride it like a skateboard – being a human slider is tempting, but dangerous.

4) Do not attempt to mount the 54” slider to only one tripod – IT WILL TIP OVER. When using the slider on 2 tripods, as recommended, make sure

the unit is level and the tripod legs are locked.

5) After extended use, the cart’s subtrack rollers may need adjustment – this is easy, read on!

Unpacking the VSM1

Although the VSM1 is sturdy and designed for heavy loads, it can be damaged by careless handling in a way that will make it work poorly, and unfortunately we can’t cover damages under warranty. The good news is that as long as you treat it well, pack it in its case and don’t back over it with your car, it will work beautifully for many years.

Please note that we pack the unit with the padded insert on top of the track to protect the most sensitive area of the device. When removing the slider from its case, always set it down feet first, and be aware that onlookers may suddenly feel irrational jealousy at the sight of your VSM1. This is normal.

Remove the slider from the case and set it down feet-first. Remove the bubble wrap by hand - DON’T USE A KNIFE OR SHARP OBJECT, OR YOU MIGHT DAMAGE THE SLIDER.

You’ll also find a ‘VariZoom’ pouch inside the case that contains your tools and head mounting kit.

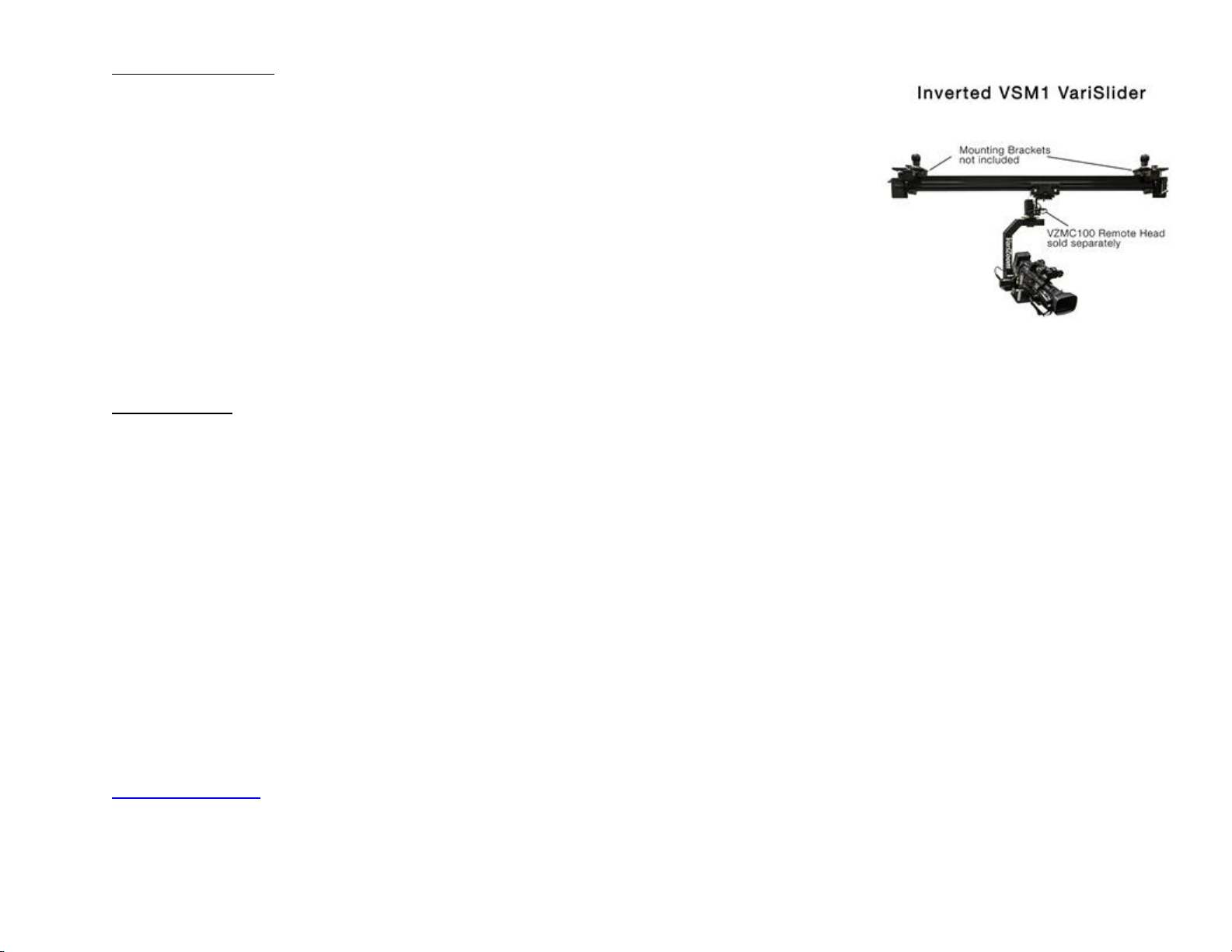

Setting up the First Time

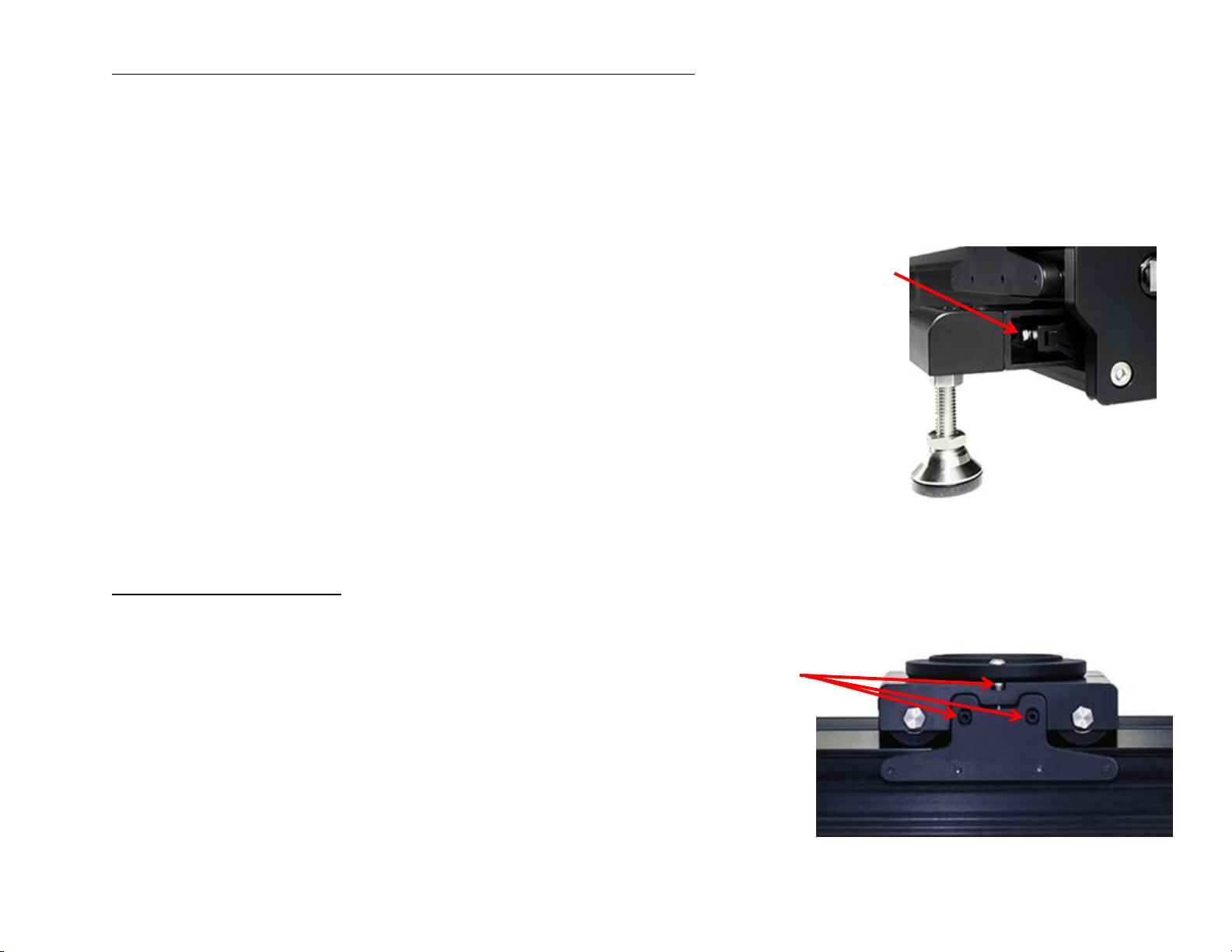

-VSM1 If you’re operating from a tabletop or ground mount, take note of the leveling feet. These can be adjusted by hand or using tools. The advantage of being able to use tools is that you can achieve excellent precision and fixity, and you can adjust the feet easily even under heavy loads. The top end of the leveling foot incorporates a hex socket that allows you to use your hex wrench to thread the feet in or out from the topside for easy adjustment, or you can simply use your fingers to thread the feet from the bottom. Also included with the leveling feet are nuts for fixing position and eliminating wobble. Again, you can do this by finger tightening or use a wrench if you wish.
