CENTRAL VACUUM CLEANER
Operating and
Installation Instructions
by
INTRODUCTION
Dear Customer
We would like to congratulate you on your purchase of your central vacuum cleaner.
You have chosen a high quality product “Made in Germany”.
Hygienic cleanliness, easy and whisper quiet operation are convincing arguments for choosing
this central vacuum system.
Modern production facilities in Germany, selected materials and examined quality are the basis
for the 5-year-guarantee issued from the original purchase date.
Enjoy your new “home help”!
2
SAFETY INSTRUCTIONS
Please read your Operating and Installation Instructions carefully and follow the directions.
Please keep your manual in a safe place. You may need it in the future for other useful
information and tips.
The central vacuum cleaner is intended solely for private and not for industrial use.
The central vacuum system may be installed in the garage, basement, or some sort of indoor
storage room. The room must be dry, heated and well ventilated.
The central vacuum cleaner is designed for a voltage of 230 Volt / 50 Hz. The electric power
circuit has a 16 amp time-lag fuse. Please make sure that the central vacuum cleaner is only
powered by the indicated voltage.
Always disconnect the unit before you perform any sort of maintenance or unit care. Never
work on electrical appliances with wet hands. Make sure that the floor is dry.
The electric motors we use are air-cooled. The cold air is sucked in under the lid and therefore
the lid must always be kept clear. During the operations the motors heat up. Please do not
vacuum up any flammable or combustible materials. These materials may cause an explosion.
Do not vacuum any burning or hot objects for they will damage the filter. Also, do not vacuum
any cement dust, since the dust hardens with moisture and will clog the filter. The central vacuum
cleaner is not designed to suck in fluids of any sort.
Always use the central vacuum cleaner with a filter. Otherwise the motors may be damaged.
The dirt container must be emptied regularly. Dust bags are enclosed to prevent dust from
leaking out when emptying the dust container. Dust bags must be kept away from children
to prevent suffocation.
Check filter on a regular basis to see if it is necessary to be exchanged. The filter may also be
rinsed and cleaned with cold water.
Upon use, keep away the nozzles from your face, eyes, ears or unprotected parts of your body.
If the electric power circuit of the system is damaged, it has to be replaced by customer service,
the manufacturer or a similarly qualified and authorized person in order to prevent hazardous
situations.
This central vacuum cleaner is not apt to be used by persons (including children) with limited
physical, sensory or mental capabilities or in the absence of experience and/or lacking
adequate knowledge, unless such persons are being supervised by authorized personnel
or have received relevant instructions as to how to use the central vacuum system.
Children should be supervised in order to ensure that they are not playing with the central
vacuum system.
3
INSTALLATION INSTRUCTIONS
The central vacuum cleaner must be installed in a dry and well-ventilated room.
You need a power outlet within range (max. 1 m) of the unit.
For the suction side of the pipe installation please use pipes of 2 inch diameter. We
recommend that you glue the pipe system. We do not recommend the use of 50 mm HT pipe
because it is not possible to properly seal the pipe system. It is also not recommended to install
pipe with a smaller diameter (e. g. 40 mm HT pipe) or a larger diameter (> 50.8 mm). Such
cases will void the guarantee in case of damage.
For the extracted air side of the pipe installation please use the following dimensions:
Exhaust pipe: length up to 3 m use 2 inch adhesive pipe (Ø 50 mm)
Exhaust pipe: length 3 m up to 8 m use pipe Ø 70 mm
Exhaust pipe: length longer than 8 m use pipe Ø 100 mm
Generally avoid using an exhaust pipe longer than 3 m. If the exhaust pipe needs to be any
longer, please consider an alternative location for your central vacuum cleaner.
All parts and accessories for the installation are located inside the dirt container.
Open the fastenings and remove all needed parts.
4

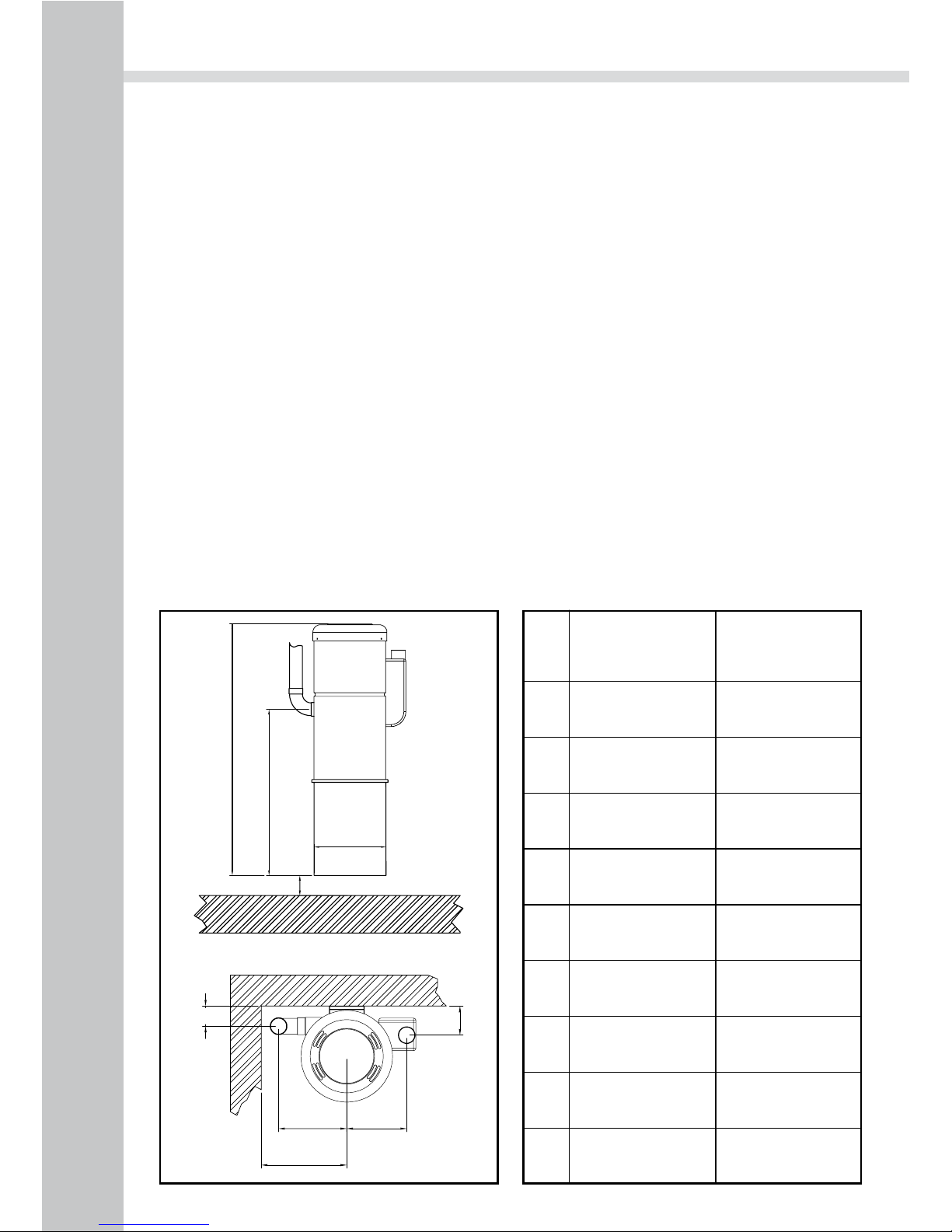

One-motor Two-motor
version version
A at least 8 cm at least 8 cm
B 66 cm 69 cm
C 100.5 cm 113.5 cm
D 28.7 cm 35.7 cm
E 8.5 cm 8.5 cm
F 24.5 cm 24.5 cm
G 20 cm 24 cm
H 34 cm 36 cm
I 10 cm 10 cm
A
B
C
D
E
F
G
H
I
3
4
1 2

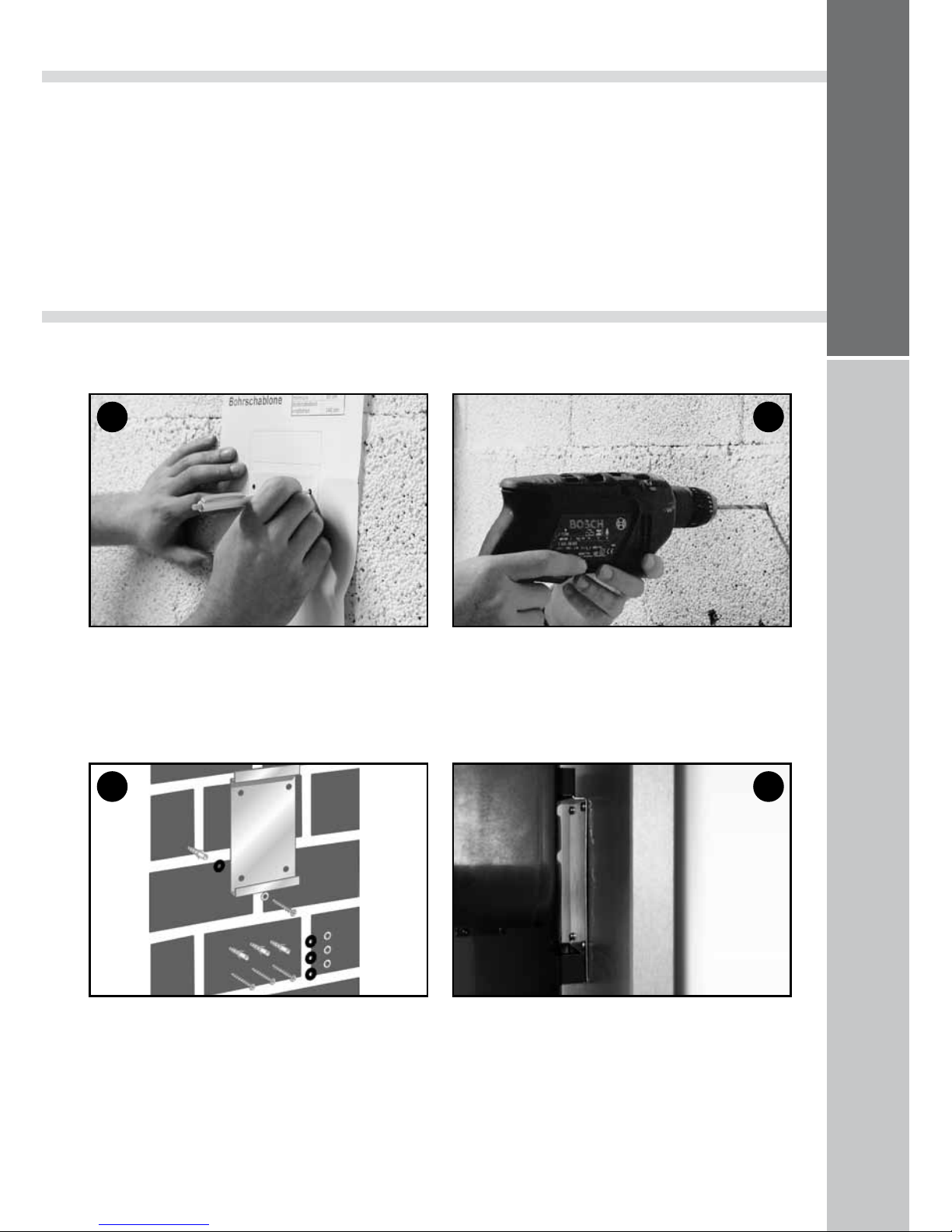

1. Place template at desired height on the wall
and mark drill holes onto the wall.
INSTALLATION
2. Drill all four holes with a 6 mm drill bit.
Drill holes deep enough so that the anchors
(when inserted) are flush with the wall.
INSTALLATION INSTRUCTIONS
Please examine the central vacuum cleaner after it is unpacked for any external damage that
may have occurred during transport. If you notice any damage please contact us on our service
number located on your central vacuum cleaner. Let us know the extent of damage, date of
purchase, and serial number. You will find the serial number on the model plate on the side of
the central vacuum cleaner or on the test certificate on page 19 under “Technical Data”.
For the wall mount please use the enclosed drilling template. The wall mount should be at least
1 m up to 1.4 mm above the ground.
5
3. In the material bag you will find a seal for
the wall mount, screws, and washers you
need for installing the wall mount. The seal
must be placed between the mount and the
wall. Make sure when fastening the wall
mount that the writing “TOP” is at the top.
4. Hang the brackets on the back of the
central vacuum cleaner over the wall
mount to hang up the unit.
INSTALLATION INSTRUCTIONS
6
5
6

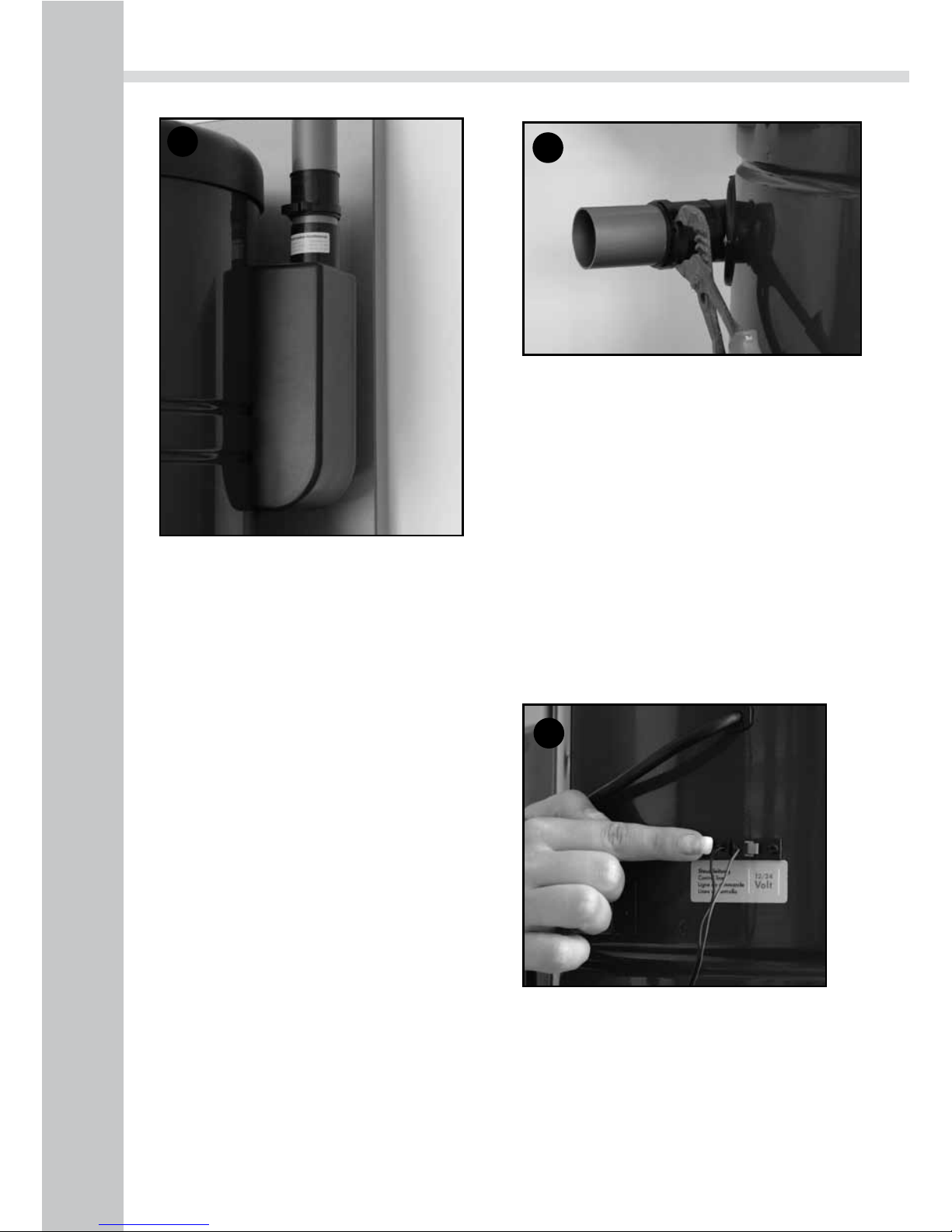

5. The air extractor pipe is in the upper right
hand corner. Secure it with a hose clamp
contained in the delivery.
You can choose to connect the high
performance sound muffler to your exhaust
air outlet pipe and also fasten it with an
additional clamp.
6. The suction pipe is located at the bottom left
hand corner of the central vacuum cleaner.
Place rubber sleeve and the remaining two
hose clamps over the suction pipe and
secure the rubber sleeve for one via the
stub and for another via the suction pipe.
The pipe section should have a length of at
least 6 cm before installing an elbow or tee.
This enables a future withdrawal of the unit.
7. Connect the 12/24 V control line from the
vacuum line to the 24 V control line of the
central vacuum cleaner. Plug in the 230 V
cable into the insulated ground receptacle.
Now the central vacuum cleaner can be
operated properly.
7
