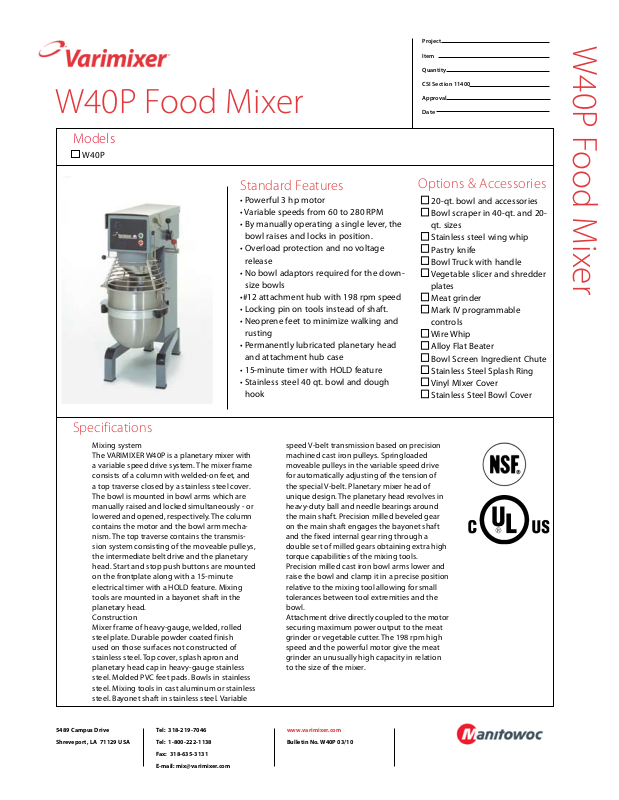

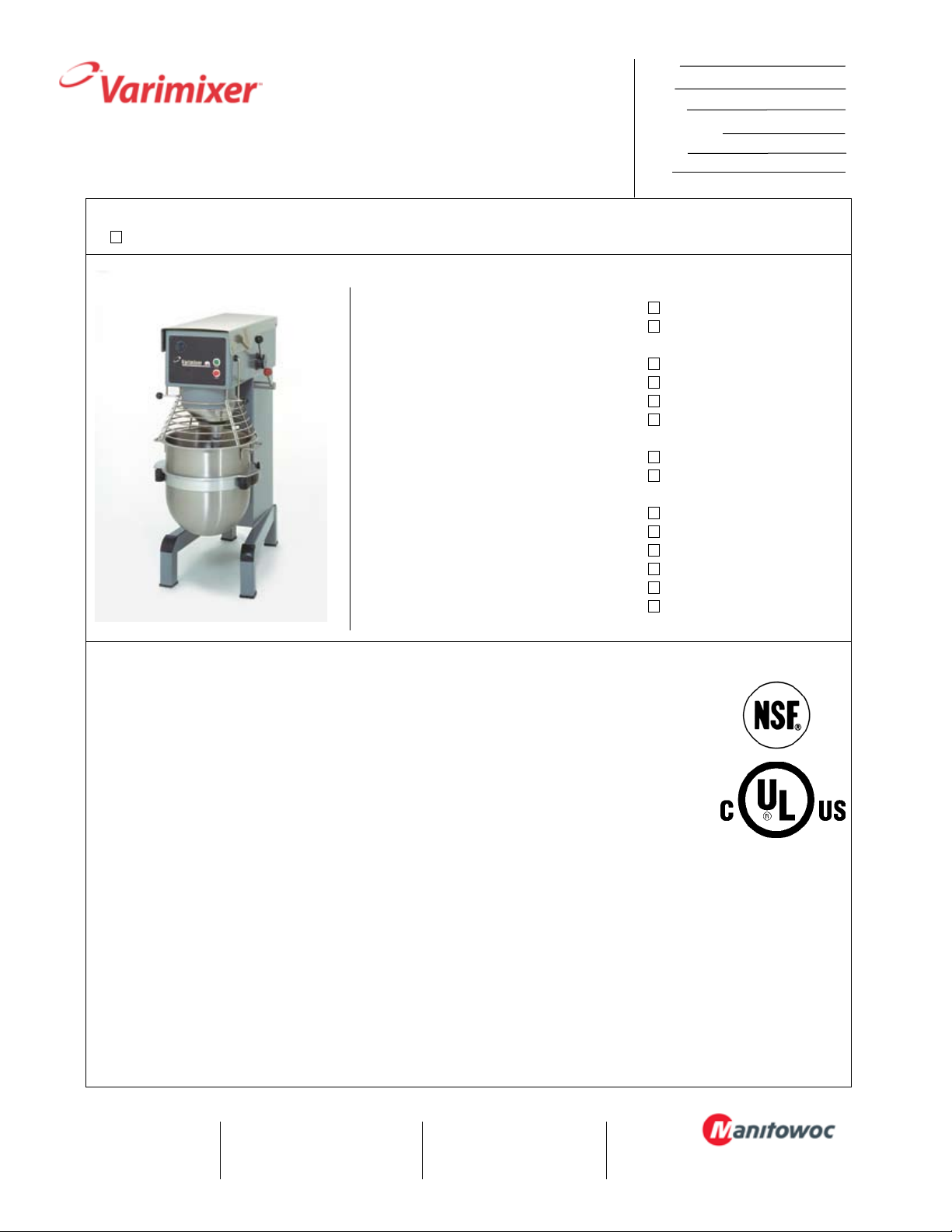

W40P Food Mixer
Models
W40P
Project
Item
Quantity
CSI Section 11400
Approval
Date
W40P Food Mixer
Specifications
Mixing system
The VARIMIXER W40P is a planetary mixer with
a variable speed drive system. The mixer frame
consists of a column with welded-on feet, and
a top traverse closed by a stainless steel cover.
The bowl is mounted in bowl arms which are
manually raised and locked simultaneously - or
lowered and opened, respectively. The column
contains the motor and the bowl arm mechanism. The top traverse contains the transmission system consisting of the moveable pulleys,
the intermediate belt drive and the planetary
head. Start and stop push buttons are mounted
on the frontplate along with a 15-minute
electrical timer with a HOLD feature. Mixing
tools are mounted in a bayonet shaft in the
planetary head.
Construction
Mixer frame of heavy-gauge, welded, rolled
steel plate. Durable powder coated finish
used on those surfaces not constructed of
stainless steel. Top cover, splash apron and
planetary head cap in heavy-gauge stainless
steel. Molded PVC feet pads. Bowls in stainless
steel. Mixing tools in cast aluminum or stainless
steel. Bayonet shaft in stainless steel. Variable
Standard Features
• Powerful 3 hp motor
• Variable speeds from 60 to 280 RPM
• By manually operating a single lever, the
bowl raises and locks in position.
• Overload protection and no voltage
release
• No bowl adaptors required for the downsize bowls
•#12 attachment hub with 198 rpm speed
• Locking pin on tools instead of shaft.
• Neoprene feet to minimize walking and
rusting
• Permanently lubricated planetary head
and attachment hub case
• 15-minute timer with HOLD feature
• Stainless steel 40 qt. bowl and dough
hook
speed V-belt transmission based on precision
machined cast iron pulleys. Springloaded
moveable pulleys in the variable speed drive
for automatically adjusting of the tension of
the special V-belt. Planetary mixer head of
unique design. The planetary head revolves in
heavy-duty ball and needle bearings around
the main shaft. Precision milled beveled gear
on the main shaft engages the bayonet shaft
and the fixed internal gear ring through a
double set of milled gears obtaining extra high
torque capabilities of the mixing tools.
Precision milled cast iron bowl arms lower and
raise the bowl and clamp it in a precise position
relative to the mixing tool allowing for small
tolerances between tool extremities and the
bowl.
Attachment drive directly coupled to the motor
securing maximum power output to the meat
grinder or vegetable cutter. The 198 rpm high
speed and the powerful motor give the meat
grinder an unusually high capacity in relation
to the size of the mixer.
Options & Accessories
20-qt. bowl and accessories
Bowl scraper in 40-qt. and 20-
qt. sizes
Stainless steel wing whip
Pastry knife
Bowl Truck with handle
Vegetable slicer and shredder
plates
Meat grinder
Mark IV programmable
controls
Wire Whip
Alloy Flat Beater
Bowl Screen Ingredient Chute
Stainless Steel Splash Ring
Vinyl MIxer Cover
Stainless Steel Bowl Cover
5489 Campus Drive
Shreveport, LA 71129 USA
Tel: 318-219-7046
Tel: 1-800-222-1138
Fax: 318-635-3131
E-mail: [email protected]
www.varimixer.com
Bulletin No. W40P 03/10
Page 2
W40P Food Mixer

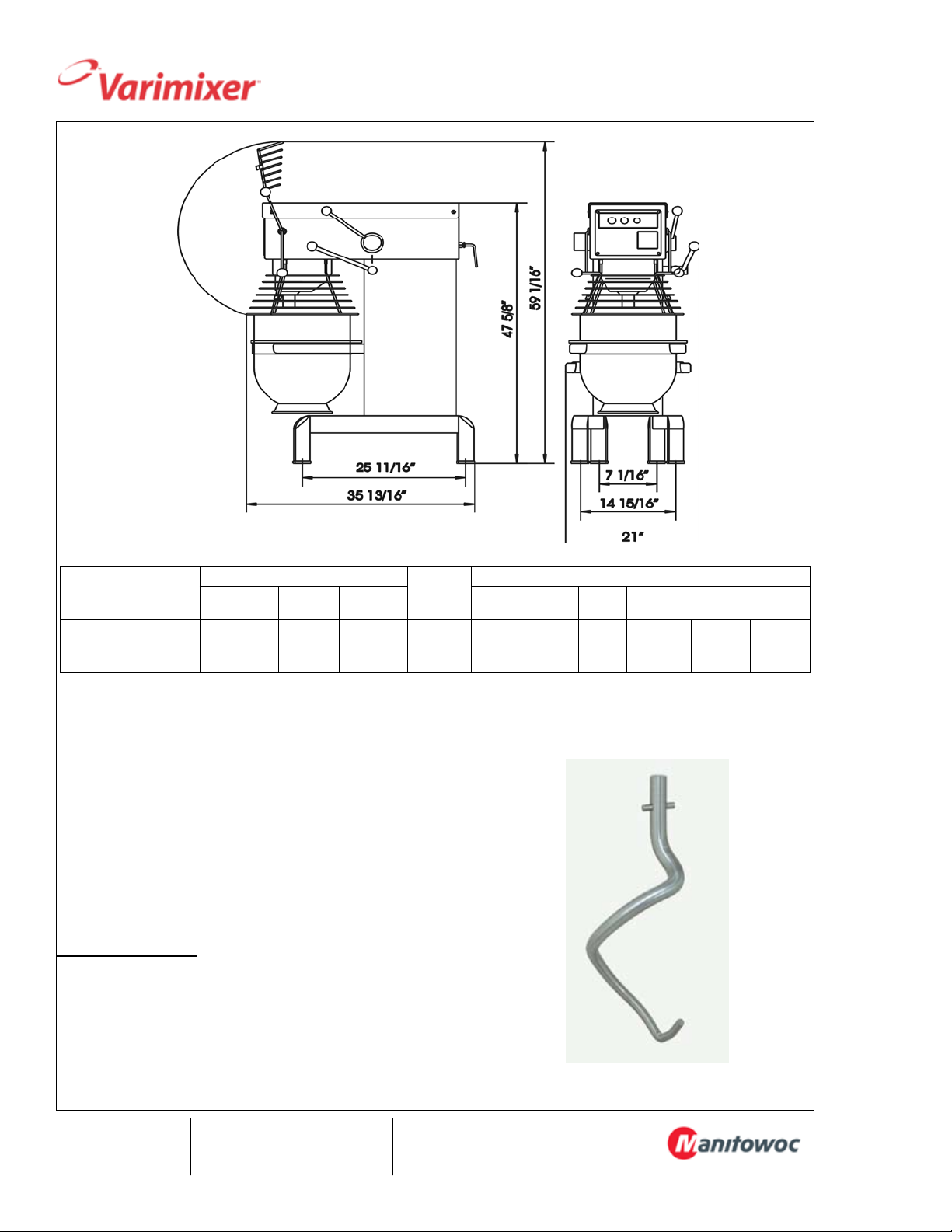

DIMENSIONS
MODEL
NO.
W40P Large Bowl.
CAPACITY OVERALL SIZE cm NE T
HEIGHT WIDTH LENGTH WEIGHT CLASS CU. FT. DIMENSIONS
40-Qt.
Small Bowl
20-Qt.
47 5/8”
(120.97 cm)
21”
(53.34 cm)
35 13/16”
(90.96 cm)
WEIGHT
456 lbs.
(206.84 kg)
ELECTRICAL DATA FOR MOTOR**
*230VAC Supply/60 HZ/1 Phase
Wires (including. Ground) ............ ...........................3
Motor Power ....................................HP .......................3
Amperes, full load ..........................A ...................... 10
No power cord included
*208-240VAC Supply/60 HZ/3 Phase
Wires (including. Ground) ........................................4
Motor Power ....................................HP .......................3
Amperes, full load ..........................A .........................8
No power cord included
MIXING SPEED
Agitator Speed ................................Min. ................. 60
Agitator Speed ................................Max ...............280
Attachment Hub ............................RPM ...............198
%AR= weight of water
weight of our
Batch size and/or speed reduction is required if any of the following conditions
exist.
1. High Gluten Flour
2. AR % under 40%
3. Water Temperature under 65 Degrees F
SHIPPING INFORMATION
525 lbs.
(238.14 kg)
85 55 H
(154.94 cm)
61”
W
32”
(81.28 cm)
CAPACITY CHART
Donuts, Yeast Hook 52 lbs.
Bread Dough (65% AR) Hook 55 lbs.
Pizza Dough (50% AR) Hook 45 lbs.
L
49”
(124.4 cm)
Model #_______________
CSI Section 11400
*On the nominal motor voltage, + or - 10% tolerance is allowed.
**Also available in 480/60/3, 380/50/3, 220/50/3, 220/50/1, - not submitted for UL
listing.
5489 Campus Drive
Shreveport, LA 71129 USA
We reserve the right to change specications appearing in this bulletin without incurring any obligation for equipment previously or subsequently sold.
Tel: 318-219-7046
Tel: 1-800-222-1138
Fax: 318-635-3131
E-mail: [email protected]
www.varimixer.com
Bulletin No. W40P 03/10
Litho in U.S.A. ©Varimixer.
Standard tool: Stainless Steel dough Hook.
