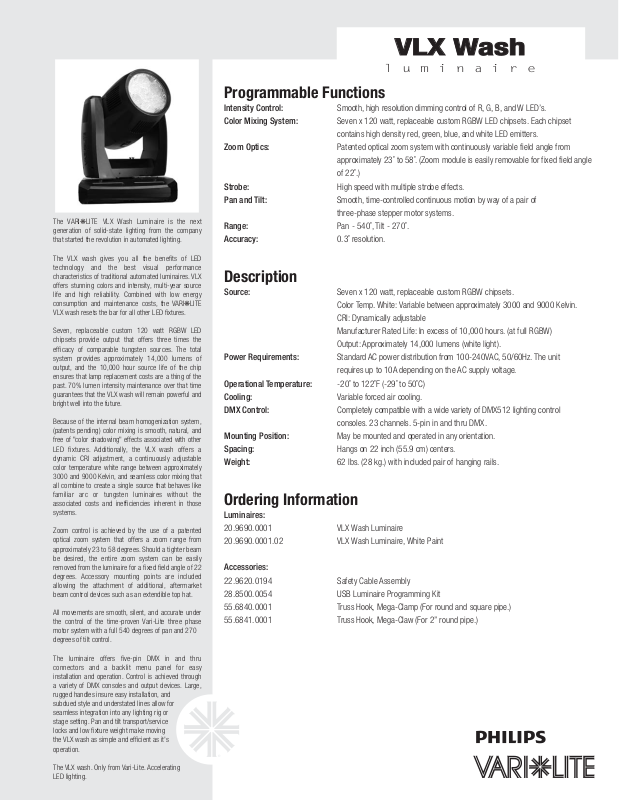

The VARI❋LITE VLX Wash Luminaire is the next
generation of solid-state lighting from the company
that started the revolution in automated lighting.
The VLX wash gives you all the benefits of LED
technology and the best visual performance
characteristics of traditional automated luminaires. VLX
offers stunning colors and intensity, multi-year source
life and high reliability. Combined with low energy
consumption and maintenance costs, the VARI❋LITE
VLX wash resets the bar for all other LED fixtures.
Seven, replaceable custom 120 watt RGBW LED
chipsets provide output that offers three times the
efficacy of comparable tungsten sources. The total
system provides approximately 14,000 lumens of
output, and the 10,000 hour source life of the chip
ensures that lamp replacement costs are a thing of the
past. 70% lumen intensity maintenance over that time
guarantees that the VLX wash will remain powerful and
bright well into the future.
Because of the internal beam homogenization system,
(patents pending) color mixing is smooth, natural, and
free of "color shadowing" effects associated with other
LED fixtures. Additionally, the VLX wash offers a
dynamic CRI adjustment, a continuously adjustable
color temperature white range between approximately
3000 and 9000 Kelvin, and seamless color mixing that
all combine to create a single source that behaves like
familiar arc or tungsten luminaires without the
associated costs and inefficiencies inherent in those
systems.
Zoom control is achieved by the use of a patented
optical zoom system that offers a zoom range from
approximately 23 to 58 degrees. Should a tighter beam
be desired, the entire zoom system can be easily
removed from the luminaire for a fixed field angle of 22
degrees. Accessory mounting points are included
allowing the attachment of additional, aftermarket
beam control devices such as an extendible top hat.
All movements are smooth, silent, and accurate under
the control of the time-proven Vari-Lite three phase
motor system with a full 540 degrees of pan and 270
degrees of tilt control.
VLX Wash
l u m i n a i r e
Programmable Functions
Intensity Control: Smooth, high resolution dimming control of R, G, B, and W LED’s.
Color Mixing System: Seven x 120 watt, replaceable custom RGBW LED chipsets. Each chipset
contains high density red, green, blue, and white LED emitters.
Zoom Optics: Patented optical zoom system with continuously variable field angle from
approximately 23˚ to 58˚. (Zoom module is easily removable for fixed field angle
of 22˚.)
Strobe: High speed with multiple strobe effects.
Pan and Tilt: Smooth, time-controlled continuous motion by way of a pair of
three-phase stepper motor systems.
Range: Pan - 540˚, Tilt - 270˚.
Accuracy: 0.3˚ resolution.
Description
Source: Seven x 120 watt, replaceable custom RGBW chipsets.
Color Temp. White: Variable between approximately 3000 and 9000 Kelvin.
CRI: Dynamically adjustable
Manufacturer Rated Life: In excess of 10,000 hours. (at full RGBW)
Output: Approximately 14,000 lumens (white light).
Power Requirements: Standard AC power distribution from 100-240VAC, 50/60Hz. The unit
requires up to 10A depending on the AC supply voltage.
Operational Temperature: -20˚ to 122˚F (-29˚ to 50˚C)
Cooling: Variable forced air cooling.
DMX Control: Completely compatible with a wide variety of DMX512 lighting control
consoles. 23 channels. 5-pin in and thru DMX.
Mounting Position: May be mounted and operated in any orientation.
Spacing: Hangs on 22 inch (55.9 cm) centers.
Weight: 62 lbs. (28 kg.) with included pair of hanging rails.
Ordering Information
Luminaires:
20.9690.0001 VLX Wash Luminaire
20.9690.0001.02 VLX Wash Luminaire, White Paint
Accessories:
22.9620.0194 Safety Cable Assembly
28.8500.0054 USB Luminaire Programming Kit
55.6840.0001 Truss Hook, Mega-Clamp (For round and square pipe.)
55.6841.0001 Truss Hook, Mega-Claw (For 2” round pipe.)
The luminaire offers five-pin DMX in and thru
connectors and a backlit menu panel for easy
installation and operation. Control is achieved through
a variety of DMX consoles and output devices. Large,
rugged handles insure easy installation, and
subdued style and understated lines allow for
seamless integration into any lighting rig or
stage setting. Pan and tilt transport/service
locks and low fixture weight make moving
the VLX wash as simple and efficient as it's
operation.
The VLX wash. Only from Vari-Lite. Accelerating
LED lighting.
Page 2
VLX Wash
l u m i n a i r e

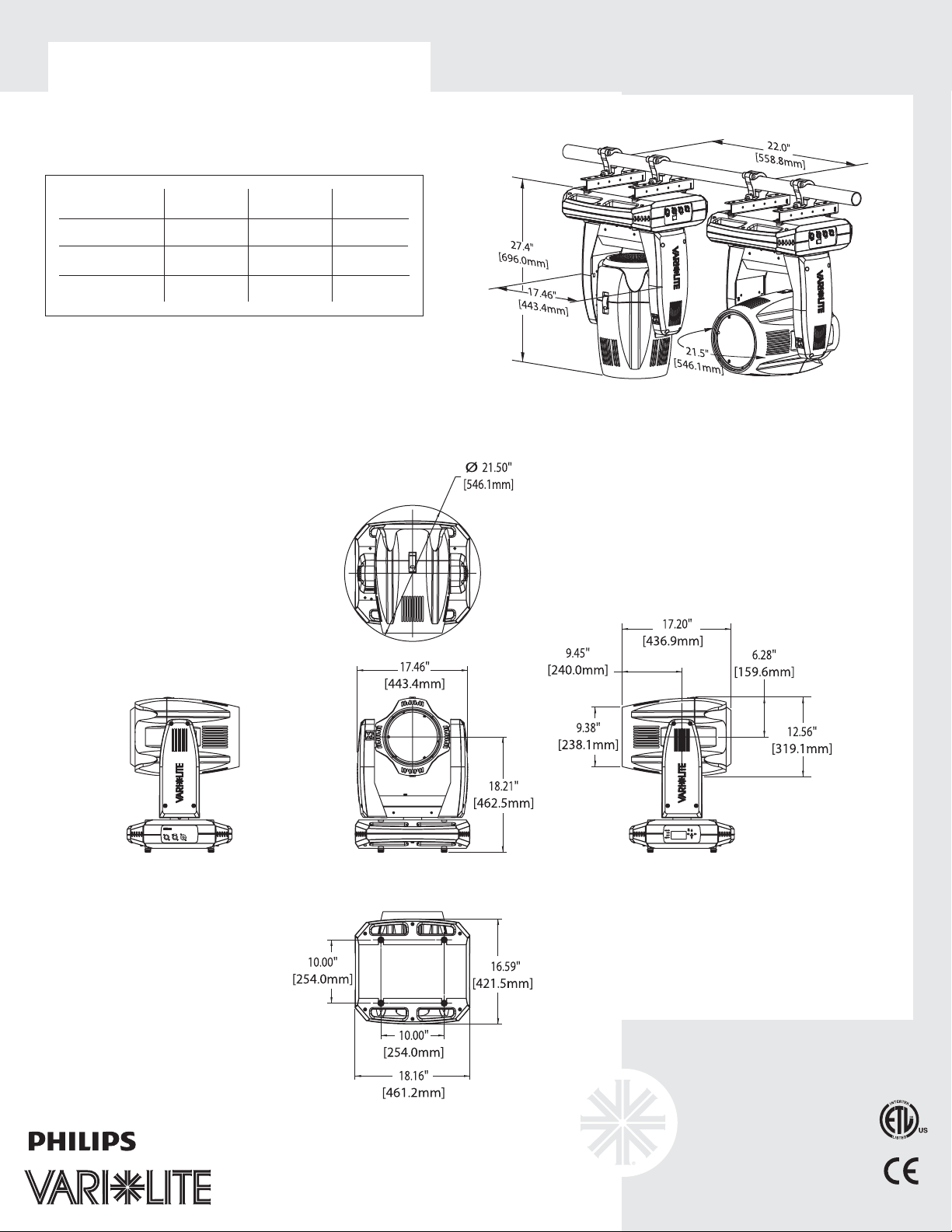

Photometric Data
Zoom LED Mode Field Angle Lumens
Narrow RGBW 23
Wide RGBW 58
Without Lens Array RGBW 22
o
o
o
12200
10900
13900
DATA IN DATA THRU
MODEL
100-240 VAC
9A 50/60 Hz
VLX
AC IN
Vari-Lite
10911 Petal Street
Dallas, TX 75238
1.877.VARILITE
C
fax: 214.647.8038
©2009-2010 Philips Group. All rights reserved. Printed in the U.S.A. We reserve the right to change
details of design, materials and finishes. Specifications are subject to change without notice.
VARI❋LITE automated lighting equipment is made in the U.S.A.
www.vari-lite.com
VLX_101110
