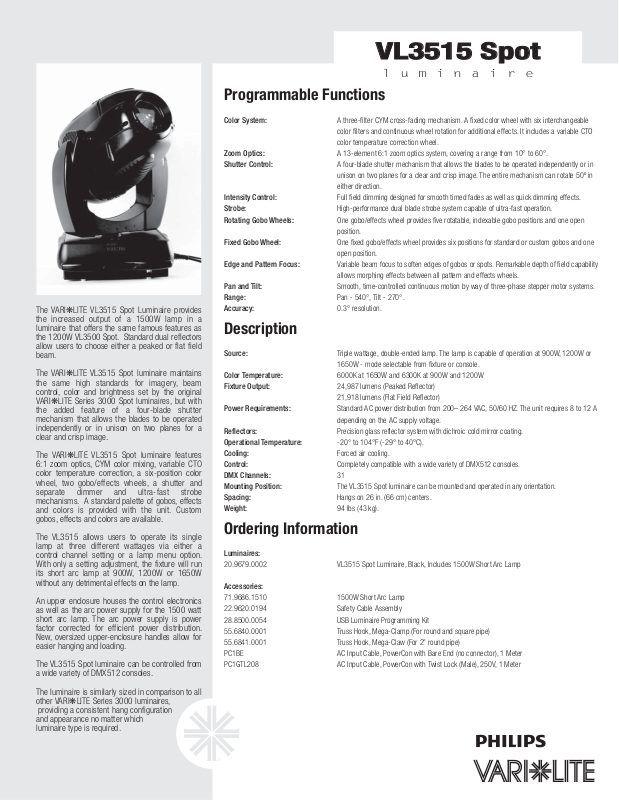

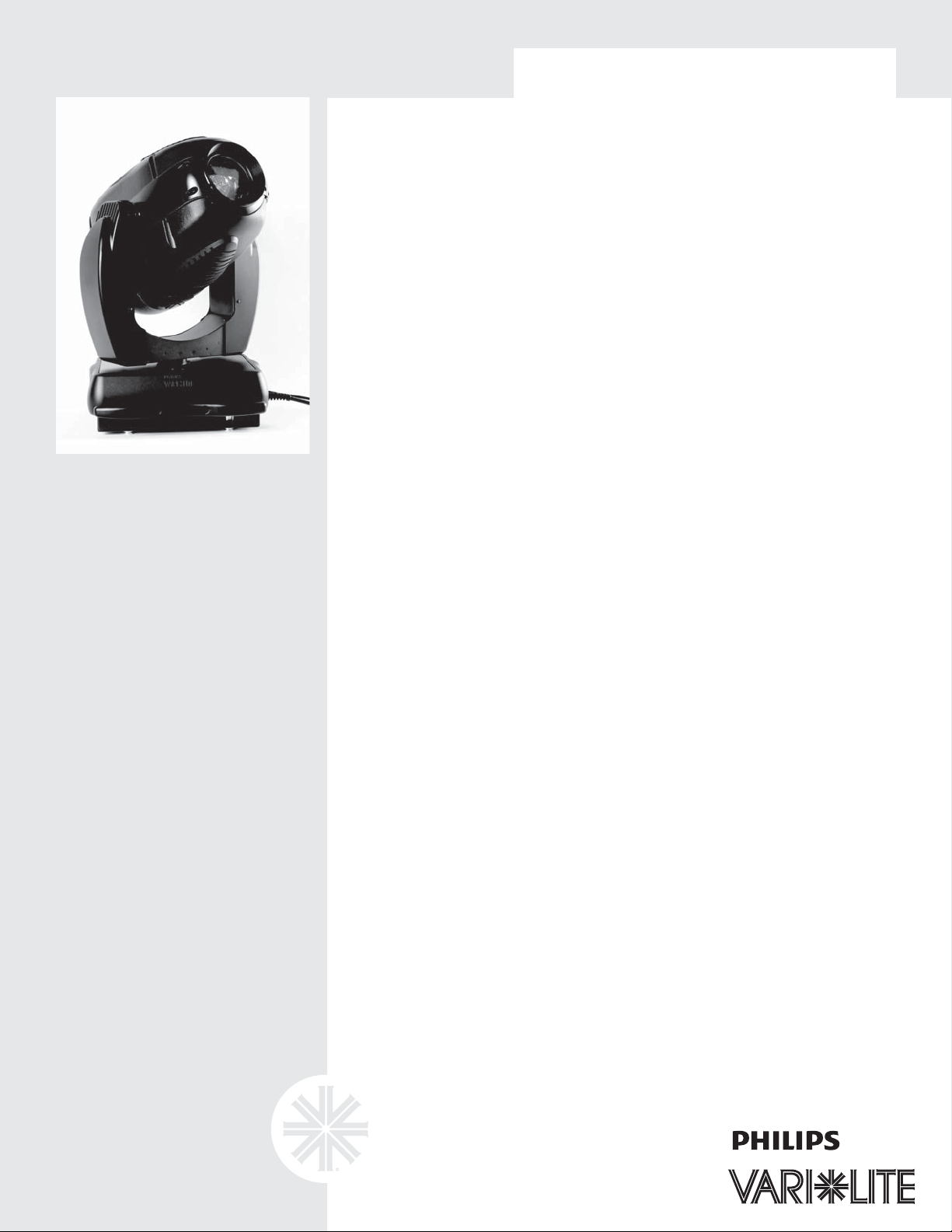

VL3515 Spot
The VARI❋LITE VL3515 Spot Luminaire provides
the increased output of a 1500W lamp in a
luminaire that offers the same famous features as
the 1200W VL3500 Spot. Standard dual reflectors
allow users to choose either a peaked or flat field
beam.
The VARI❋LITE VL3515 Spot luminaire maintains
the same high standards for imagery, beam
control, color and brightness set by the original
VARI❋LITE Series 3000 Spot luminaires, but with
the added feature of a four-blade shutter
mechanism that allows the blades to be operated
independently or in unison on two planes for a
clear and crisp image.
The VARI❋LITE VL3515 Spot luminaire features
6:1 zoom optics, CYM color mixing, variable CTO
color temperature correction, a six-position color
wheel, two gobo/effects wheels, a shutter and
separate dimmer and ultra-fast strobe
mechanisms. A standard palette of gobos, effects
and colors is provided with the unit. Custom
gobos, effects and colors are available.
The VL3515 allows users to operate its single
lamp at three different wattages via either a
control channel setting or a lamp menu option.
With only a setting adjustment, the fixture will run
its short arc lamp at 900W, 1200W or 1650W
without any detrimental effects on the lamp.
An upper enclosure houses the control electronics
as well as the arc power supply for the 1500 watt
short arc lamp. The arc power supply is power
factor corrected for efficient power distribution.
New, oversized upper-enclosure handles allow for
easier hanging and loading.
The VL3515 Spot luminaire can be controlled from
a wide variety of DMX512 consoles.
VL3515 Spot
l u m i n a i r e
Programmable Functions
Color System: A three-filter CYM cross-fading mechanism. A fixed color wheel with six interchangeable
color filters and continuous wheel rotation for additional effects. It includes a variable CTO
color temperature correction wheel.
Zoom Optics: A 13-element 6:1 zoom optics system, covering a range from 10° to 60°.
Shutter Control: A four-blade shutter mechanism that allows the blades to be operated independently or in
unison on two planes for a clear and crisp image. The entire mechanism can rotate 50º in
either direction.
Intensity Control: Full field dimming designed for smooth timed fades as well as quick dimming effects.
Strobe: High-performance dual blade strobe system capable of ultra-fast operation.
Rotating Gobo Wheels: One gobo/effects wheel provides five rotatable, indexable gobo positions and one open
position.
Fixed Gobo Wheel: One fixed gobo/effects wheel provides six positions for standard or custom gobos and one
open position.
Edge and Pattern Focus: Variable beam focus to soften edges of gobos or spots. Remarkable depth of field capability
allows morphing effects between all pattern and effects wheels.
Pan and Tilt: Smooth, time-controlled continuous motion by way of three-phase stepper motor systems.
Range: Pan - 540°, Tilt - 270°.
Accuracy: 0.3° resolution.
Description
Source: Triple wattage, double-ended lamp. The lamp is capable of operation at 900W, 1200W or
1650W - mode selectable from fixture or console.
Color Temperature: 6000K at 1650W and 6300K at 900W and 1200W
Fixture Output: 24,987 lumens (Peaked Reflector)
21,918 lumens (Flat Field Reflector)
Power Requirements: Standard AC power distribution from 200– 264 VAC, 50/60 HZ. The unit requires 8 to 12 A
depending on the AC supply voltage.
Reflectors: Precision glass reflector system with dichroic cold mirror coating.
Operational Temperature: -20° to 104°F (-29° to 40°C).
Cooling: Forced air cooling.
Control: Completely compatible with a wide variety of DMX512 consoles.
DMX Channels: 31
Mounting Position: The VL3515 Spot luminaire can be mounted and operated in any orientation.
Spacing: Hangs on 26 in. (66 cm) centers.
Weight: 94 lbs (43 kg).
Ordering Information
Luminaires:
20.9679.0002 VL3515 Spot Luminaire, Black, Includes 1500W Short Arc Lamp
Accessories:
71.9686.1510 1500W Short Arc Lamp
22.9620.0194 Safety Cable Assembly
28.8500.0054 USB Luminaire Programming Kit
55.6840.0001 Truss Hook, Mega-Clamp (For round and square pipe)
55.6841.0001 Truss Hook, Mega-Claw (For 2” round pipe)
PC1BE AC Input Cable, PowerCon with Bare End (no connector), 1 Meter
PC1GTL208 AC Input Cable, PowerCon with Twist Lock (Male), 250V, 1 Meter
The luminaire is similarly sized in comparison to all
other VARI❋LITE Series 3000 luminaires,
providing a consistent hang configuration
and appearance no matter which
luminaire type is required.
Page 2
VL3515 Spot
VL3515 Spot
l u m i n a i r e
Specifications
The unit is an integrally designed, remote-controlled, motorized spot luminaire.
The head, yoke and enclosure housings are constructed of aluminum alloy for
light weight, strength and durability. Low-noise fans provide forced-air cooling for
internal components. The rear cap is hinged, providing easy access to the lamp
for replacement. Oversized upper-enclosure handles allow for easier hanging and
loading.
A single PowerCon input connector along with two, five-pin DMX512 compatible
connectors (in and through) are provided. The unit can be controlled from a wide
variety of DMX512 consoles.
Each unit is equipped with an on-board processor providing diagnostic and
self-calibration functions as well as internal test routines and software update
capabilities.
The unit contains two independent three-phase stepper motors to provide
movement of the head through 540° in the horizontal plane (pan) and 270° in the
vertical plane (tilt). The pan and tilt mechanisms are belt-driven, providing
positional resolution and repeatability of 0.3° on either axis.
A 6:1 zoom optics system adjusts the projected field angle over a range of 10° to
60°. Variable beam focus is provided to soften the edges of gobos or spots and to
provide gobo morphing. The projected image remains in focus throughout the
entire zoom range.
Standard dual reflectors shall allow users to achieve either a peaked or flat field
beam.
The unit contains a CYM color mixing system, as well as variable CTO color
temperature correction.
One fixed color filter wheel is included. The color wheel holds six interchangeable
dichroic colors to allow for custom configurations. The unit comes equipped with
a standard palette of dichroic color filters.
The fixture’s shutter mechanism is comprised of four frame blades that move
independently or in unison on two planes for a crisp, sharp image. The entire
assembly operates in a smooth, time-continuous motion using stepper motors
(two per frame blade and one for the entire mechanism). The shutter mechanism
can rotate 50° in either direction and the frame blades can tilt +/- 30°.
Each luminaire has two gobo/effects wheels. One is a six-position rotating gobo
wheel containing individually rotating, indexable gobos and patterned glass
effects. One position on this wheel is open. A second gobo effects wheel is a
seven position, fixed wheel and accepts six gobos with one position open. Each
gobo/effects wheel is such that allows customization of the unit. The unit comes
equipped with a standard set of gobos and effects. (A wide selection of colored
and patterned gobos and effects is available from Vari-Lite.)
The unit contains a patterned glass dimmer wheel that provides full field dimming
and allows for smooth timed fades and fast blackouts.

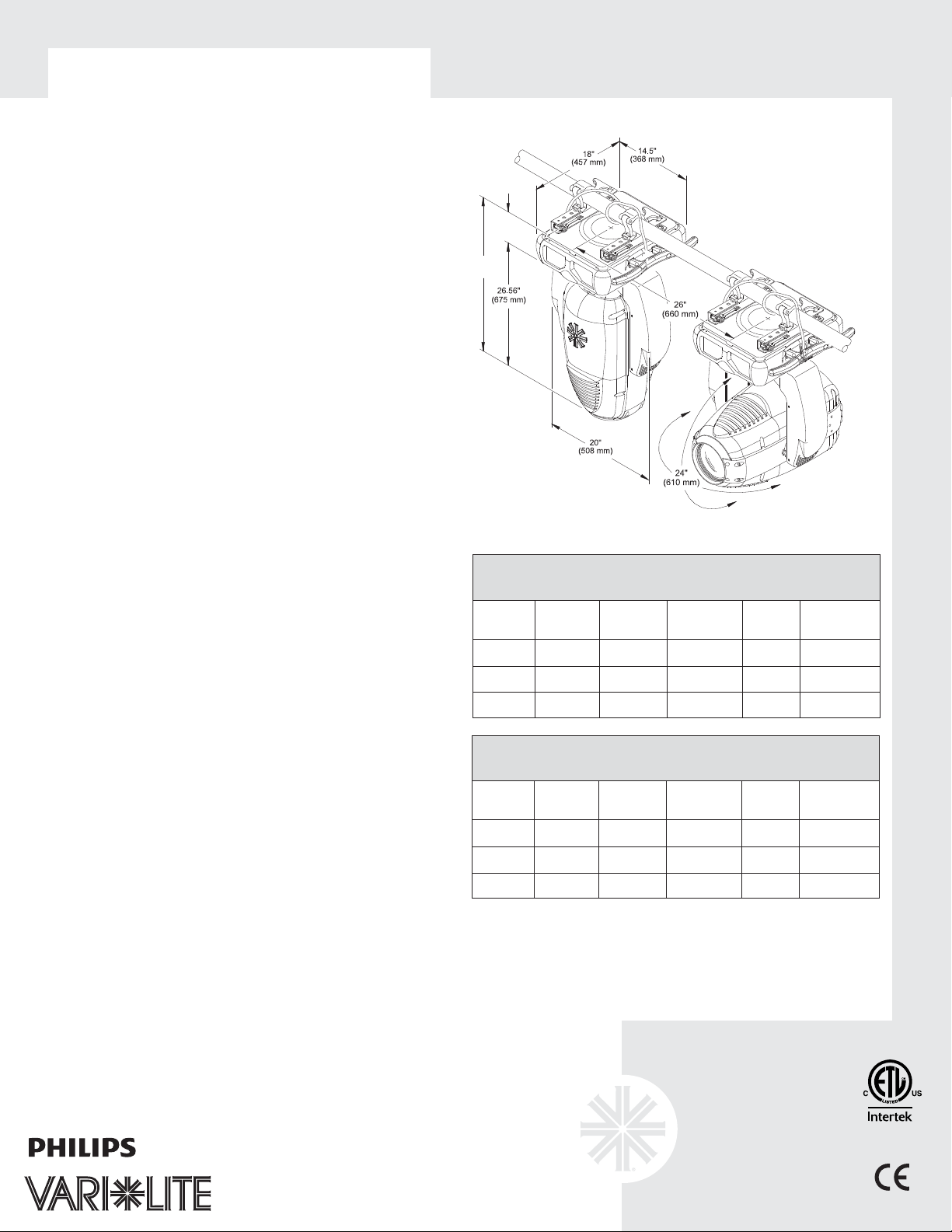

Hanging Dimensions
6”
(152 mm)
32.57”
(828 mm)
Photometric Data
VL3015 Spot Luminaire - 1500W Metal Halide
(Flat Field Reflector)
Zoom Lens
Position
NFOV
MFOV
WFOV
VL3015 Spot Luminaire - 1500W Metal Halide
(Peaked Reflector)
Zoom Lens
Position
NFOV
MFOV
WFOV
1
Multiply distance by TN to determine field diameter.
To calculate center beam Illuminance (I), at a specific distance (D): I = cd / D
— if (D) is in feet, (I) is in foot candles
— if (D) is in meters, (I) is in lux
Notes:
All data taken with seasoned light source at 20 hours of life.
Fixture output = 24,900 lumens (Peaked Reflector) / 19,500 lumens (Flat Field Reflector).
Center Beam
Candela
1,483,115
225,449
39,968
Center Beam
Candela
1,779,487
272,930
47,902
Center Beam
Foot-Candle
4,734
4,601
5,098
Center Beam
Foot-Candle
5,680
5,570
6,110
Total
Lumens
21,592
21,408
21,918
Total
Lumens
24,472
23,215
24,987
Field Angle
(degrees)
9.7
24.2
58.7
Field Angle
(degrees)
9.7
24.2
57.2
2
Field Diameter
1
TN
0.1695
0.4286
1.0714
Field Diameter
1
TN
0.1695
0.4286
1.0714
A dual blade strobe and dousing system provides variable strobe effects capable
of rapid operation.
The unit shall be ETL and ETLc certified and CE-marked. Exterior finish is black.
©2015 Philips Group. All rights reserved. Printed in the U.S.A. We reserve the right to change
details of design, materials and finishes. Specifications are subject to change without notice.
VARI❋LITE automated lighting equipment is made in the U.S.A.
