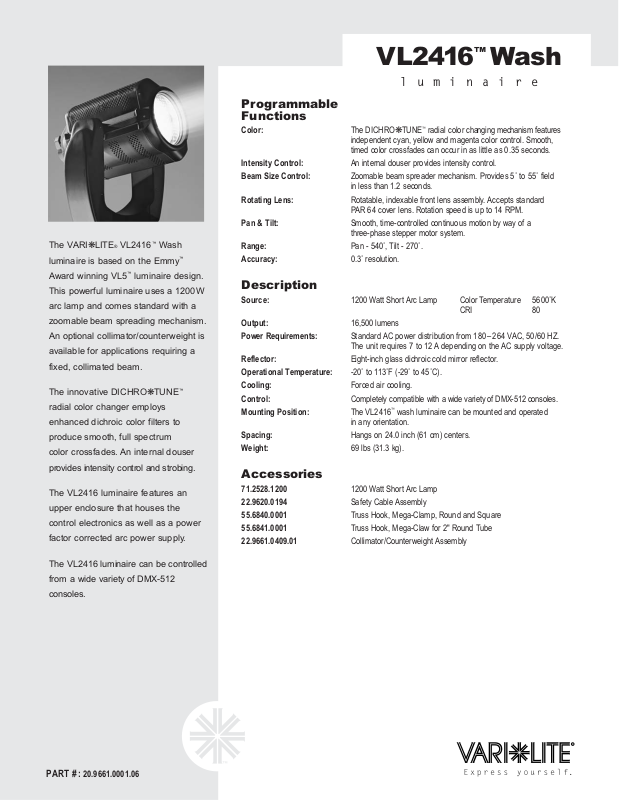

Page 1

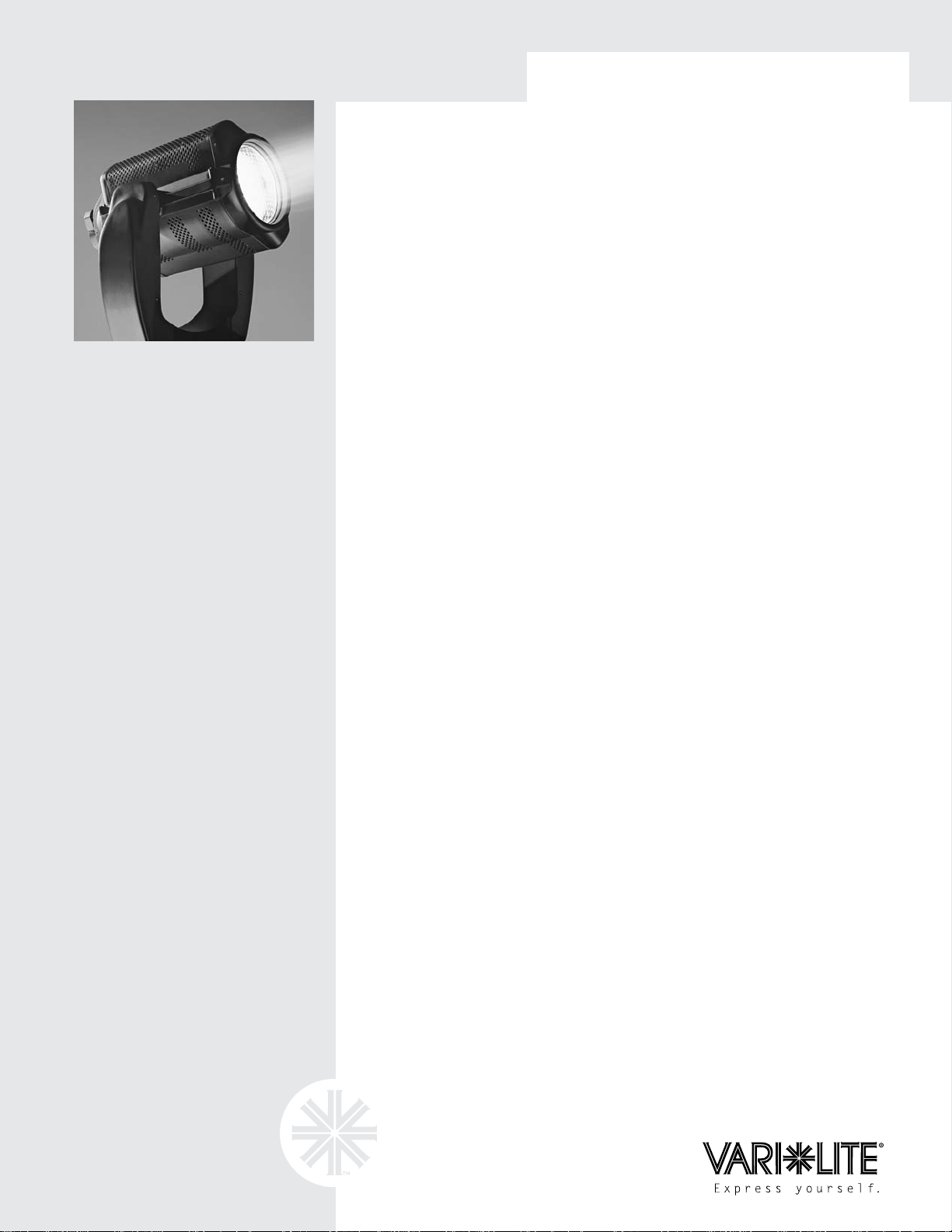

VL2416™ Wash
luminaire
The VARI❋LITE®VL2416™Wash
luminaire is based on the Emmy
™
Award winning VL5™luminaire design.
This powerful luminaire uses a 1200W
arc lamp and comes standard with a
zoomable beam spreading mechanism.
An optional collimator/counterweight is
available for applications requiring a
fixed, collimated beam.
The innovative DICHRO
❋TUNE
™
radial color changer employs
enhanced dichroic color filters to
produce smooth, full spectrum
color crossfades. An internal douser
provides intensity control and strobing.
The VL2416 luminaire features an
upper enclosure that houses the
control electronics as well as a power
factor corrected arc power supply.
The VL2416 luminaire can be controlled
from a wide variety of DMX-512
consoles.
Programmable
Functions
Color: The DICHRO❋TUNE™radial color changing mechanism features
independent cyan, yellow and magenta color control. Smooth,
timed color crossfades can occur in as little as 0.35 seconds.
Intensity Control: An internal douser provides intensity control.
Beam Size Control: Zoomable beam spreader mechanism. Provides 5˚ to 55˚ field
in less than 1.2 seconds.
Rotating Lens: Rotatable, indexable front lens assembly. Accepts standard
PAR 64 cover lens. Rotation speed is up to 14 RPM.
Pan & Tilt: Smooth, time-controlled continuous motion by way of a
three-phase stepper motor system.
Range: Pan - 540˚, Tilt - 270˚.
Accuracy: 0.3˚ resolution.
Description
Source: 1200 Watt Short Arc Lamp Color Temperature 5600˚K
CRI 80
Output: 16,500 lumens
Power Requirements: Standard AC power distribution from 180– 264 VAC, 50/60 HZ.
The unit requires 7 to 12 A depending on the AC supply voltage.
Reflector: Eight-inch glass dichroic cold mirror reflector.
Operational Temperature: -20˚ to 113˚F (-29˚ to 45˚C).
Cooling: Forced air cooling.
Control: Completely compatible with a wide variety of DMX-512 consoles.
Mounting Position: The VL2416™wash luminaire can be mounted and operated
in any orientation.
Spacing: Hangs on 24.0 inch (61 cm) centers.
Weight: 69 lbs (31.3 kg).
Accessories
71.2528.1200 1200 Watt Short Arc Lamp
22.9620.0194 Safety Cable Assembly
55.6840.0001 Truss Hook, Mega-Clamp, Round and Square
55.6841.0001 Truss Hook, Mega-Claw for 2" Round Tube
22.9661.0409.01 Collimator/Counterweight Assembly
PART # : 20.9661.0001.06
Page 2
Specifications
The unit is an integrally designed, remote-controlled, motorized wash luminaire. The head, yoke and
enclosure housings are constructed of aluminum alloy and steel for lightweight strength and durability.
Virtually silent fans provide forced-air cooling for internal components. The rear cap is hinged,
providing easy access to the lamp for replacement.
A single AC input cable along with two, five-pin DMX-512 compatible connectors (in and through) are
provided. The unit can be controlled by any VARI
❋LITE console or a wide variety of DMX-512 consoles. In
addition, a built-in Master/Slave function enables operation of multiple luminaires without a control console.
Each unit is equipped with multiple on-board processors providing diagnostic and self-calibration
functions as well as internal test routines and software update capabilities.
The unit contains two independent three-phase stepper motors to provide movement of the head
through 540° in the horizontal plane (pan) and 270° in the vertical plane (tilt). The pan and tilt
mechanisms are belt-driven, providing positional resolution and repeatability of 0.3° on either axis.
Three radial color changers holding 16 panels of dichroic media of a typical color set: cyan, yellow and
magenta enable full spectrum color changes. Three motors provide independent drive of each color
set. Positional accuracy of the dichroic filters with respect to the beam is ensured through specialized
motor control software. The color changers are capable of movement from fully open to fully closed in
less than 0.35 seconds.
The unit contains a dimmer/strobe mechanism holding 16 black, aluminum dimmer panels that
intercept the beam to provide a continuously variable dimming range. The dimmer/strobe mechanism
is capable of movement from fully open to fully closed in less than 0.10 seconds and provides a
dimmable strobe rate of up to 6Hz.
The front lens is user replaceable and configured with a continuously rotatable, indexable mechanism.
The unit is ETL and ETLc certified and CE-marked. Exterior finish is black.
Vari-Lite, Inc.
201 Regal Row
Dallas, TX 75247
1.877.VARILITE
fax: 214.630.5867
www.vari-lite.com
© 2002. Printed in the U.S.A. Specifications are subject to change without
notice. VARI
❋LITE®is a registered trademark of Vari-Lite, Inc. VL2416™, VL5™,
DICHRO
❋TUNE™, and VL2400™are trademarks of Vari-Lite, Inc. VARI❋LITE
®
automated lighting equipment is made in the U.S.A. Vari-Lite products are
protected by patents granted and pending in the U.S. and other countries.
VL2416™ Wash
luminaire
02.4237.0001 R1
9/02, 5K

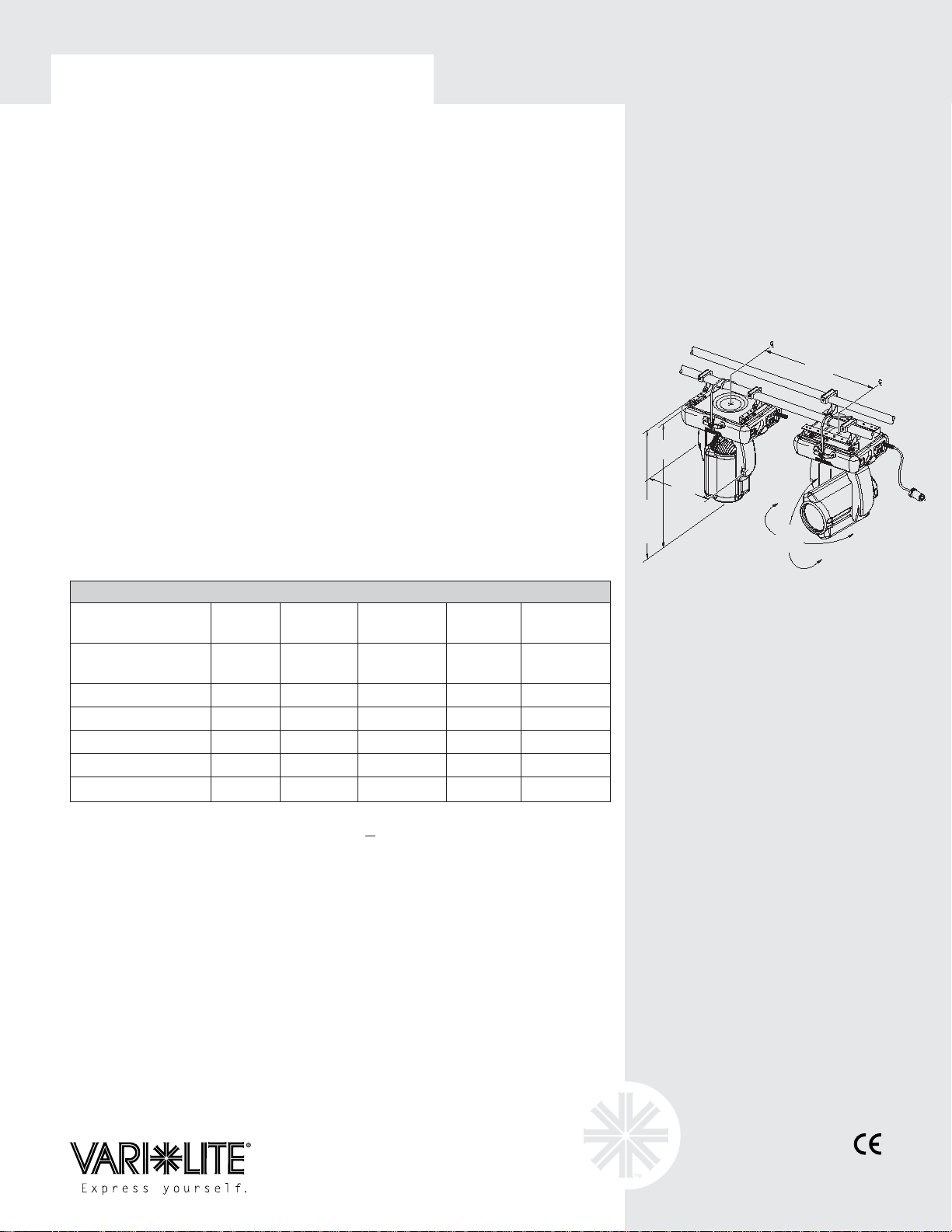

33.125"
(84.2 cm)
fully
extended
vertical
31.375"
(79.7 cm)
19.25"
(48.9 cm)
24"
(61 cm)
23.75"
(60.33 cm)
VL2416 Photometric Data with 1200 Watt Short Arc Lamp*
CANDELA BEAM ANGLE BEAM DIAMETER FIELD ANGLE FIELD DIAMETER
Diffusion
(cd) (DEGREES) TN
1
(DEGREES) TN
1
Beam Spreader 5,800,000 02.0 .035 05.5 0.096
Mechanism Removed
Mechanism at full spot 1,960,000 04.0 .070 08.5 0.149
Mechanism at 25% flood 0,440,000 10.0 .175 18.0 0.317
Mechanism at 50% flood 0,148,000 18.5 .326 31.0 0.555
Mechanism at 75% flood 0,072,000 27.0 .480 45.0 0.828
Mechanism at full flood 0,043,200 33.5 .602 55.0 1.041
1
Multiply distance by Tn to determine coverage.
To calculate center beam Illuminance (I), at a specific distance (D): I = cd
D
2
— if (D) is in feet, (I) is in foot candles
— if (D) is in meters, (I) is in lux
* Note:
All data taken with seasoned light source at 20 hours of life.
Fixture output = 16,500 lumens with beam spreader in place.
