VL2200™ Series

Spot Luminaires

User’s Manual

02.9673.0001

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

VARI❋LITE®, Artisan®, VL2® and VLD® are trademarks owned by Vari-Lite, Inc., 201 Regal Row, Dallas TX 75247 USA
and are registered in the United States and other countries.

VL2000™, VL2200™ (and the individual product designations), VL2400™ (and the individual product designations),
Series 2000™, Series 300™, Virtuoso™ and the Vari-Lite Asterisk are also trademarks owned by Vari-Lite, Inc.

VARI❋LITE® products are protected by one or more of the following patents, and other pending patent applications worldwide:

US Patents No. 5,959,758; 5,7 28,994; 5,590,954;5,367,444; 5,329,431; 5,209,560; 5,186,536; 5,073,847; 5,010,459; 4,980,806 ;
4,602,321; 4,392,187; U.S. Desig n Pat e nts No. 366,712; 359,574;

Australia Patents No. 703868 ; 693 691; 683695; 667109; 657152; 649264; 646588; 618559; 586095; 576400; 575271; 546433;
Australia Design Reg. No. 126781;

German Patents No. (DBP) 693 14122.0; 69208615.3; 69207692.1; 69121029.2; 3768727.1; 3750201.8; 3587270.5; 3279888.1;

3274291.6; DGM G9312884; DGM 9407689.8;
European Patents No. 0586049 (FR, G B); 0547732 (BE, DK, FR, GB); 0534710 (BE, FR, GB); 0474202 (BE , DK, FR, GB);

0253082 (BE, FR, GB); 0253081 (BE, FR, GB); 0192882 (BE, FR, GB); 0140994 (BE, FR, GB); 006 006 8 (BE, FR, GB);
France Design Reg. No. 335132 - 33514 7;
Spain Patents No. 2090191; 2084289; 2082384; 2058071; 2020960; 0548328; Spain Ut ilit y Model No. 2031748; Spain Design

Reg. No. 129596;
Japan Patents No. 2,059,669; 2,055,324; 2,002,168; 1,889,481; 1,770,241; 1,723,825; 1,683,007; 1,553,011; KR 206051; 181180;

76310; 47673; Japan Design Reg. N o. 9475 52; 945436-1; 945436;
Korean Design Reg. No. 175178;
Mexico Patents No. 180148; 179138;
Taiwan Patents No. 78726; 66975; 65380; 63471; 40611; 28275;
United Kingdom Design Reg. No. 20 42174; 2033108; 2029499.

Apple®, Macintosh®, and FireWire® are registered trademarks of Apple Computer, Inc.
All other brand or product na m es wh i ch ma y be mentioned in this manual are trademarks or registered trademarks of their

respective companies or organizations.

VL2200™ Series Spot Luminaire User’s Manual
The informa tion furnished in thi s manual is for informational use only and is subject to change witho ut notice. Vari-Lite, In c.

assumes no responsibility or liabi lity for any errors or inaccuracies that may appe ar i n thi s ma nual. All information and graphic
representations are property of Vari-Lite, Inc. 201 Regal Row, Dallas, Texas 75247 USA.

Version as of: 22-May-01

Printed in th e USA.

Part number: 02.9673.000 1 A

VL2200™ Series Spot Luminaire Us er’s Manual

© 2000, 2001 Vari-Lite, Inc. All Rights Reserved.

ii 22-May-01 02.9673.0001 A

HOW TO OBTAIN WARRANTY SERVICE

How To Obtain Warranty Service

A copy of the Vari-Lite, Inc. Limited Warranty was included in the shipping package
for this VARI❋LITE® product.

To obtain warranty service, please contact customer service at 1-877-VARI-LITE
(1-877-827-4548) or [email protected] and request a Return Material
Authorization (RMA) for warranty service. You need to provide the model and serial
number of the item being returned, a description of the problem or failure and the
name of the registered user or organization. If available, you should have your sales
invoice to establish the date of sale as the beginning of the warranty period. The form
at the end of this manual should be completed and included with the product when
shipping.

Once you obtain the RMA, pack the product in its original packing material along with
a copy of your invoice (if available), the completed service form, and write the RMA
number legibly on or near the shipping address label. Return the unit, freight prepaid
to:

Vari-Lite, Inc.
201 Regal Row
Dallas, TX 75247
Attention: Warranty Service

As stated in the warranty, it is required that the shipment be insured and FOB our
service center.

02.9673.0001 A 22-May-01 iii

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Compliance Notice

FCC

This equipment has been tested and found to comply with the limits for a Class A
digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when this equipment is operated in
a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with Vari-Lite system,
service, and safety guidelines, may cause harmful interference to radio communica­tions. Operation of this equipment in a residential area is likely to cause harmful inter­ference, in which case the user will be required to correct the interference at his/her
own expense.

Declaration of Conformity

We declare, under our sole responsibility, that this product complies with the relevant
clauses of the following standards and harmonized documents:

Safety

EN 60598-1:1997 Luminaire Safety Standard, General Requirements
EN 60598-2 17:1989 Specification for Luminaires for Stage and Studio Li ghting

EMC

EN 55022A:1994 Radiated and Conducted Emissions
EN 50082-1:1997 Generic Immunity Standard

We certify that the product conforms to the protection requirements of council direc­tives: 73/23/EEC (LVD) and 89/336/EEC (EMC)

iv 22-May-01 02.9673.0001 A

SAFETY NOTICE

Safety Notice

It is extremely important to read ALL safety information and instructions provided in
this manual and any accompanying documentation before installing and operating the
products described herein. Heed all cautions and warnings during installation and use
of this product.

Safety symbols used throughout this manual are as follows:

CAUTION advising of potential damage to product.

WARNING advising of potential injury or death to persons.

GENERAL INFORMATION PERTAINING TO PROTECTION AGAINST ELEC­TRICAL SHOCK, FIRE, EXPOSURE TO EXCESSIVE UV RADIATION, AND
INJURY TO PERSONS CAN BE FOUND BELOW.

WARNING:
INSTRUCTIONS FOR CONTINUED PROTECTION AGAINST FIRE

1. VARI❋LITE® luminaires have bee n designe d for use only with certain Philips and Osram

HID lamps. Note lamp type (MSR400, MSR575HR etc.) before replacing lamps.
Installing another type of lamp may be hazardous.

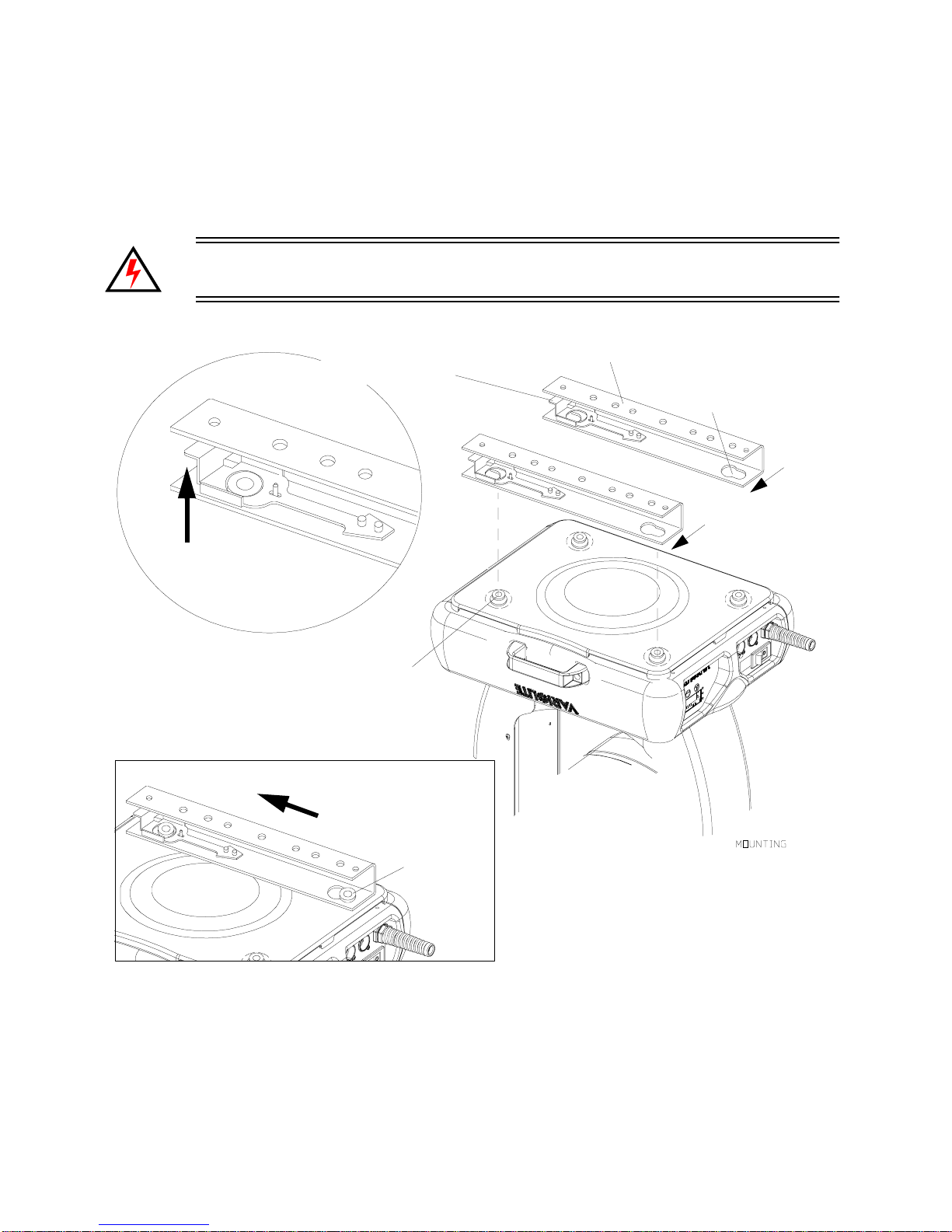

2. Luminaires may be mounted on any type of surface as long as mounting instructions are
followed. See instructions detailed in this manual.

3. Replace fuses with same type and rating only.

4. Note distance requirement from combustible materials or illuminated objects for
VARI❋LITE® luminaires.

WARNING:
INSTRUCTIONS FOR CONTINUED PROTECTION AGAINST ELECTRICAL
SHOCK

1. VARI❋LITE® luminaires are designed for dry locations only. Exposure to rain or
moisture may damage luminaire.

2. Disconnect power before servicing any VARI❋LITE® equipment.

3. Servicing to be performed by qualified personnel only.

02.9673.0001 A 22-May-01 v

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

WARNING:
INSTRUCTIONS FOR CONTINUED PROTECTION AGAINST EXCESSIVE
EXPOSURE TO UV RADIATION

1. Many VARI❋LITE® luminaires use an HID type lamp that produces UV radiation. DO

NOT look directly at lamp.

2. It is hazardous to operate luminaires without lens or shield. Shields, lenses, or ultraviolet
screens shall be changed if the y have become vis ibly damaged to such an extent that their
effectiveness is impaired. For example, by cracks or deep scratches.

WARNING:
INSTRUCTIONS FOR PROTECTION AGAINST INJURY TO PERSONS

1. Exterior surfaces of the luminaire will be hot during operation. Use appropriate safety
equipment (gloves, eye protection, etc.) when handling and adjusting hot equipment and
components.

2. Luminaires will have a hot lamp when operating. Disconnect power and allow lamp to
cool before replacing.

3. Arc lamps emit ultraviolet radiation which can cause serious skin burn and eye
inflammation. Additionally, arc lamps operate under high pressure at very high
temperatures. Should the lamp break, there can exist a danger of personal injury and/or
fire from broken lamp particles being discharged.

4. Wear eye protection when relamping.

5. Appropriate safety equipment (gloves, eye protection) should be used when handling
damaged lamps.

6. If lamp is touched with bare hands, clean lamp with denatured alcohol and wipe with lint­free cloth before installing or powering up the luminaire.

7. The lamp shall be changed if it has become damaged or thermally deformed.

WARNING:
RF INTERFERENCE

1. This is a Class A product. In a domestic environment this product may cause radio
interferen ce, in which case, the user may be required to take adequate meas ures.

ARC LAMP CHARACTERISTIC CONSIDERATIONS

1. Arc lamps require a pe ri od of time to relight aft er a p o wer in terruption or a sever e v o lt ag e
dip. In some cases, lamp will auto matica lly rel ight after it ha s cooled dependi ng on Lamp
Power-Up State (L ON/ LOFF) system configuration setting.

2. Burning position is Universal.

vi 22-May-01 02.9673.0001 A

SICHERHEITSHINWEISE

Sicherheitshinweise

Es ist äußerst wichtig, ALLE Sicherheitsinformationen und -hinweise in diesem
Handbuch und dem beiliegenden Informationsmaterial zu lesen, bevor Sie die hierin
beschriebenen Produkte installieren bzw. bedienen. Halten Sie bei der Installation und
dem Einsatz dieses Produkts alle Warnhinweise und Vorsichtsmaßnahmen ein.

Folgende Sicherheitssymbole werden in diesem Handbuch verwendet:

VORSICHT - weist auf möglichen Produktschaden hin.

WARNUNG - weist auf mögliche Körperverletzung und

Lebensbedrohung hin.

NACHSTEHEND FINDEN SIE ALLGEMEINE HINWEISE ÜBER SICHER­HEITSVORKEHRUNGEN GEGEN ELEKTROSCHOCK, FEUER, ÜBERHÖHTE
UV-STRAHLUNG UND KÖRPERVERLETZUNGEN.

WARNUNG:
HINWEISE ZUM FEUERSCHUTZ

1. VARI❋LITE®-Scheinwerfer sind ausschließlich für den Einsatz mit bestimmten Philips

und Osram HID-Lampen geeignet. Achten Sie auf den Lampentyp (MSR400,
MSR575HR etc.), bevor Sie die jeweiligen Lampen ersetzen. Die Installation eines
anderen Lampentyps kann gefährlich sein.

2. Scheinwerfer können auf jeder beliebigen Oberfläche montiert werden, solange Sie die

Montageanweisungen befolgen. Detaillierte Hinweise finden Sie in diesem Handbuch.

3. Ersetzen Sie Sicherungen nur mit Sicherungen vom gleichen Typ und gleicher Stärke.

4. Beachten Sie die Einhaltung des erforderlichen Sicherheitsabstandes der VARI❋LITE®-

Scheinwerfer von brennbarem Material oder beleuchteten Objekten.

WARNUNG:
HINWEISE ZUM SCHUTZ GEGEN ELEKTROSCHOCK

1. VARI❋LITE®-Scheinwerfer eignen sich ausschließlich für trockene Standorte. Regen

oder Feuchtigkeit können die Scheinwerfer beschädigen.

2. Unterbrechen Sie die Stromzufuhr, bevor Sie mit der Arbeit an VARI❋LITE®-Geräten

beginnen.

3. Die Geräte sollten nur von qualifiziertem Personal gewartet werden.

02.9673.0001 A 22-May-01 vii

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

WARNUNG:
HINWEISE ZUM SCHUTZ GEGEN ÜBERHÖHTE UV-STRAHLUNG

1. Viele VARI❋LITE®-Scheinwerfer verwenden einen HID-Lampentyp, der UV-Strahlen
abgibt. SCHAUEN SIE NICHT direkt in die Lampe.

2. Es ist gefährlich, Leuchten ohne Linsen oder Blenden zu bedienen. Blenden, Linsen oder
Ultraviolettschirme müssen ausgetauscht werden, sofern deren Schutzwirkung durch
sichtbare Beschädigung (z. B. Sprünge oder Schrammen) eingeschränkt ist.

WARNUNG:
HINWEISE ZUM SCHUTZ GEGEN KÖRPERVERLETZUNGEN

1. Bei Betrieb sind die Außenflächen der Scheinwerfer heiß. Verwenden Sie bei der
Bedienung von aufgeheizter Apparatur die jeweils geeignete Sicherheitsausrüstung
(Handschuhe, Augenschutz etc.).

2. Bei Betrieb der Scheinwerfer ist die Lampe heiß. Unterbrechen Sie die Stromzufuhr und
lassen Sie die Lampe abkühlen, wenn Sie diese austauschen.

3. Bogenlampen senden ultraviolette Strahlen aus, die Hautverbrennungen und
Augenentzündungen verursachen können. Der Betrieb von Bogenlampen erfolgt unter
Hochdruck und bei hohen Temperaturen. Sollte d ie Lampe zerbrechen, besteht die Gef ahr
von Körperverletzung bzw. von Feuer, das von Lampenteilen ausgelöst werden kann.

4. Tragen Sie beim Austausch der Lampen einen Augenschutz.

5. Die geeignete Siche rheitsausr üstung (Han dschuhe, Augenschu tz) sollte beim Umgang mi t
beschädigten Lampen verwendet werden.

6. Wenn die Lampe mit bloßen Händen berührt wird, reinigen Sie sie mit denaturiertem
Alkohol und einem flusenfreien Tuch, bevor Sie die Scheinwerfer installieren oder in
Betrieb nehmen.

7. Wenn die Lampe beschädigt oder durch Hitzeeinwirkung deformiert ist, muß diese
ausgetaus cht werden.

WARNUNG:
HF-INTERFERENZ

1. Es handelt sich um ein Produkt der Klasse A. In einer Wohnumgebung kann das Produkt
Hochfrequenzstörungen verursachen. In diesem Fall müssen eventuell geeignete
Maßnahmen getroffen werden.

BESONDERHEITEN VON BOGENLAMPEN

1. Bogenlampen benötigen eine gewisse Zeitdauer, um nach einem Stromausfall oder einem
Spannungsgefälle wieder aufzuleuchten. In einigen Fällen wird die Lampe nach
Abkühlung automatisch wieder aufleuchten, je nach der Systemkonfigurationseinstellung
des Lampeneinschaltungsstatus (L ON/ LOFF).

2. Die Brennposition ist Universa l.

viii 22-May-01 02.9673.0001 A

NOTES DE SÉCURITÉ

Notes de sécurité

A vant de procéder à l’installation des produits décrits dans ce guide et de les mettre en
marche, il est extrêmement important de lire TOUS les renseignements et TOUTES
les directives de sécurité contenues dans ce guide ainsi que toute documentation jointe.
Tenir compte de tous les avertissements et suivre toutes les précautions pendant
l’installation et l’utilisation de cet appareil.

Les symboles de sécurité utilisés dans ce guide sont les suivants :

ATTENTION Ce symbole annonce que l’appareil risque
d’être endommagé.

AVERTISSEMENT Ce symbole annonce qu’il y a risque
d’accident grave ou même fatal.

CETTE SECTION CONTIENT DES INFORMATIONS GÉNÉRALES POUR SE
PROTÉGER CONTRE LES DÉCHARGES ÉLECTRIQUES , LES INCENDIES,
L’EXPOSITION EXCESSIVE AUX RAYONS UV ET TOUT AUTRE ACCIDENT
POUVANT ENTRAÎNER DES BLESSURES.

AVERTISSEMENT:
DIRECTIVES POUR SE PROTÉGER CONTRE LES INCENDIES

1. Les luminaires VARI❋LITE® o nt é té conçus pour être uti li sés uni que me nt ave c c ert aines

lampes Philips et Osram HID. Vérifier le type de lampe (MSR400, MSR575HR etc.)
avant de remplacer les lampes. L’installation d’un autre type de lampe peut poser un
danger.

2. Les luminaires peuvent être fixés sur tout type de surface tant que les directives de

montage sont respectées. Voir les explications détaillées dans ce guide.

3. Ne remplacer les fusibles qu’avec ceux du même type, ayant les mêmes caractéristiques.

4. Vérifier la distance à respecter entre les matériaux combustibles ou les objets illuminés et

les luminaires VARI❋LITE®.

AVERTISSEMENT:
DIRECTIVES POUR SE PROTÉGER CONTRE LES DÉCHARGES ÉLECTRIQUES

1. Les luminaires VARI❋LITE® sont conçus pour une utilisation au sec uniquement. Une

exposition à la pluie et à l’humidité risque d’endommager le luminaire.

2. Débrancher l’appareil avant de procéder à la révision de tout matériel VARI❋LITE®.

3. Les révisions doivent être effectuées uniquement par des personnes qualifiées.

02.9673.0001 A 22-May-01 ix

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

AVERTISSEMENT:
DIRECTIVES POUR SE PROTÉGER CONTRE UNE EXPOSITION EXCESSIVE
AUX RAYONS UV

1. Plusieurs luminaires VARI❋LITE® utilisent une lampe de type HID qui produit des
rayons UV. NE PAS fixer son regard sur la lampe.

2. L’utilisation des luminaires sans lentille ou blindage pose des risques. Tous blindages,
lentilles ou écrans ultraviolet visiblement endommagés au point que leur efficacité en est
affectée doivent être remplacés, par exemple s’il y a des fissures ou de profondes rayures.

AVERTISSEMENT:
DIRECTIVES POUR SE PROTÉGER CONTRE LES ACCIDENTS POUVANT
ENTRAÎNER DES BLESSURES

1. Les surfaces externes du luminaire deviennent brûlantes quand l’appareil est en marche.
Pour manœuvrer ou ajuster des appareils brûlants et leurs composants, se protéger
suffisamment (gants, protection pour les yeux, etc.).

2. La lampe du luminaire est brûlante lorqu’il est en marche. Débrancher le courant et
attendre que la lampe ait refroidi avant de la remplacer.

3. Les lampes à arc émettent des rayons ultraviolets pouva nt caus er de graves brûlures su r l a
peau et une inflammation des yeux. De plus, les lampes à arc fonctionnent sous haute
tension à de très hautes températures. Si la lampe se casse, les particules de la lampe
cassée peuvent causer blessures et/ou incendie en s’éparpillant.

4. Se protéger les yeux pour remplacer la lampe.

5. Utiliser des appareils de protection appropriés (gants, protection des yeux) pour manier
des lampes endommagées.

6. Si la lampe a été touchée avec des mains nues, la nettoyer avec de l’alcool dénaturé et
l’essuyer avec un chiffon non-pelucheux avant d’installer ou de brancher le luminaire.

7. Si la lampe a été endommagée ou a reçu une déformation thermique, elle doit être
remplacée.

AVERTISSEMENT:
INTERFÉRENCE RF

1. Cet appareil est d e Classe A. Dans un e nvironnemen t domest ique, ce t appareil peut caus er
des interférences radio, et si c’est le cas, l’utilisateur peut avoir à prendre des mesures
adéquates.

CONSIDÉRATIONS DES CARACTÉRISTIQUES DE LAMPES À ARC

1. Après une interruption de courant ou une baisse importante de voltage, les lampes à arc
mettent du temps avant de se rallumer. Dans certains cas, la lampe se rallumera
automatiquemet après s’êt re r efroi die. Cela dé pen d de l a mani ère do nt le s ystème est rég lé
pour le statut de mise en marche de la lampe (L ON/ LOFF).

2. La position Brûler est Universelle.

x 22-May -01 02.9673.0001 A

AVISO SOBRE SEGURIDAD

Aviso sobre Seguridad

Es muy importante leer TODA la información e instrucciones sobre seguridad que se
indica en este manual así como en los documentos adjuntos antes de instalar y operar
los productos descritos. Se debe prestar atención a todos los avisos y advertencias
durante la instalación y uso de este producto.

Los símbolos de seguridad usados en este manual son los siguientes:

CUIDADO, indica posibles daños al producto.

ADVERTENCIA, indica posibles lesiones o muerte a las

personas.

LA INFORMACIÓN GENERAL RELACIONADA A LA PROTECCIÓN CON­TRAGOLPES DE CORRIENTE ELÉCTRICA, INCENDIO, EXPOSICIÓN
EXCESIVA A RADIACIÓN ULTRA VIOLETA Y LESIONES A LAS PERSONAS
SE PUEDE ENCONTRAR SEGUIDAMENTE:

ADVERTENCIA:
INSTRUCCIONES PARA PROTECCIÓN CONTINUA CONTRA INCENDIO

1. Las luminarias VARI❋LITE® han sido diseñadas para ser usadas solamente con algunas

lámparas HID Philips y Osram. Tome nota del tipo de lámpara (MSR400, MSR575HR
etc.) antes de reemplazarla. Instalación de otro tipo de lámpara puede ser peligroso.

2. Las luminarias se pueden instalar en cualquier tipo de superficie siempre que se sigan las

instrucciones de instalación. Vea las instrucciones detalladas en este manual.

3. Reemplaze los fusibles solamente con los del mismo tipo y especificación.

4. Tome nota de los requerimientos de distancia de materiales combustibles u objetos

iluminados para las luminarias VARI❋LITE®.

ADVERTENCIA:
INSTRUCCIONES PARA PROTECCIÓN CONTINUA CONTRA CHOQUE
ELÉCTRICO

1. Las luminarias VARI❋LITE® están diseñadas solamente para lugares secos. La

exposición a la lluvia o humedad pueden dañar la luminaria.

2. Desconecte la energía antes de dar servicio a cualquier equipo de VARI❋LITE®.

3. El servicio debe ser realizado solamente por personal calificado.

02.9673.0001 A 22-May-01 xi

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

ADVERTENCIA:
INSTRUCCIONES PARA PROTECCIÓN CONTINUA CONTRA LA EXPOSICIÓN
EXCESIVA DE RADIACIÓN ULTRA VIOLETA

1. Muchas luminarias VARI❋LITE® usan un tipo de lámpara HID que produce radiación
UV. NO mire directamente a la lámpara.

2. Es peligroso operar luminarias sin lentes o protectores. Debe cambiar los protectores,
lentes o pantallas ultravioletas si se aprecia que han sido dañadas, y que su efectividad
pudiera estar deteriorada. Por ejemplo, si tuvieran rajaduras o raspaduras profundas.

ADVERTENCIA:
INSTRUCCIONES PARA PROTECCIÓN CONTRA LESIONES DE PERSONAS

1. Las superficies exteriores de las luminarias están calientes durante su operación. Use un
equipo de seguridad apropiado (guantes, protección para los ojos, etc.) cuando haga
ajustes en el equipo y componentes que están calientes.

2. Cuando las luminarias están en operación la lámpara estará muy caliente. Desconecte la
energía y deje que la lámpara se enfríe antes de reemplazarla.

3. Las lámparas de arco emiten radiaciones ultravioletas que pueden ocasionar serias
quemaduras a la pi el e i nf lama ci ón a los ojos. Además, las lámparas de arco oper an a al ta
presión y muy alta temperatura. Si la lámpara se rompe, puede existir el peligro de
lesiones al personal o un incendio ocasionado por las partículas de la lámpara rota que se
caen.

4. Use protección para los ojos cuando vuelve a colocar una lámpara nueva.

5. Use un equipo de seguridad apropiado (guantes, protección para los ojos, etc.) cuando
trabaje con lámparas dañadas.

6. Si toca la lámpar a con l as manos , limpie la l ámpara c on alc ohol de snatur aliz ado y co n tel a
sin pelusas antes de instalar o volver a conectar la luminaria.

7. Cambie la lámpara si está dañada o deformada term icamente.

ADVERTENCIA:
INTERFERENCIA RF

1. Este es un producto de Clase A. En el ambiente de la casa este producto puede ocasionar
radiointerferencia, en cuyo caso, el usuario debe tomar las medidas adecuadas.

CONSIDERACIONES SOBRE LAS CARACTERÍSTICAS DE LA LÁMPARA DE
ARCO

1. Las lámparas de arco requieren un período de tiempo para volver a iluminarse después de
una interrupción de ener gía o de una sev era caída de volt aje. En algunos cas os, la lámpara
se volverá a iluminar en forma automática después que se ha enfriado dependiendo de la
configuración del sistema de energía de la lámpara (L ON / L OFF) (L encendida / L
apagada).

2. La posición de encendido es universal.

xii 22-May-01 02.9673.0001 A

_KHæPÔHçPÄ



Î



SAFETY NOTICE (JAPANESE)

ÎÎæ%¿Ð

á¿~ÒÁ'

êùÕÄQ>X^Åî

ûéQ>X^é_KHæPÔ±ãÿ

ÚsÙæÄ~
îTæÐçÒáÞ:

Ä

Q>X^

âê

é_KQo"öª

ÌÚöªÔÙ

ТбКЫР¿

æêÔôáéHçPÄÅ

Òá¿ùÔ

Hç ~æÊÍÃ¾HǽùÔ

T qPæßåÇ¾H

õ

ûxå±æß¿áê

+4é¢ËÚüé

1. VARI❋LITE®

ÿzU



4. VARI❋LITE®

+4UV|¿æ»Ô2é:´ÅîqP

éÿÅ

:

T

Ef;

ÿzUê

3Ð

MSR575HR

Ìã¾âÔ

Jé+YæâýÌÎãЗвИщФf¦
ó

EXo-dµÔ'

ÒáÊÛп

Òá

á¿ùÔ

åäÕÕzÔ

êÄQ>X^é0æåÞá2ÞÔ

ТбКЫР¿

ÿzUê»H°ùÚêé6.ÆÐåÛÌ

)

ÒáÊÛп

Philips

\fJdµÔÙê

ê+Ó

Åî

ÁæТбКЫР¿é³é\fJ

EXo-Ô+Ó³+Ó

úÊÛп

OsraméHID

\fJé³Ô

ÔôáÅúÊÛпù

ǽùÔ

ËÚüé

\fJöªÔ

MSR400

ÆÉäéÁå

æß¿áêÄQ>X^

"\,Õöª

Áæ



2



:

T

õËÚüé

1. VARI❋LITE®

Ôâè²ÿ(Çé¿²æÌ
ǽùÔ

2. VARI❋LITE®

¿

ÿzUéCPêp,ßÛçéúÇÁÁæТбКЫР¿

02.9673.0001 A 22-May-01 xiii

Ef;

ÿzUêGÎ

ÿzUCPÔ'

ÒÚcºâöªÔ



Áæ

3Ð

ãÿzUÇÍ

êÕ5æ.¾

á¿ù

ûÎã

ЮбКЫР

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL





c



~

Î

:

T

2é

UV

|¿æÐÐå¿Úüé

Ef;

1. VARI❋LITE®

Òá¿ùÔ



_f-

ùÚê

*o^<¡"¹Y

ÇÊå

T



:

qPËÚüé

ÿzUÇP.

ÿ

&fPo@f;ÒÁÙæê¡¾åUÔ»<ÿ;ªÜÕ

ª

ÒáÊÛп

ÿzUÇP.

ÿzUéÊêUV|¿¢Õ

\fJåÞÔ
*o^<ö

Îãê±ÌáÊÛп

ÕæÿzUP.Ôã¾âÔ

êíîÿÓ¿

ÁæåÞÚ§Ã

ÁæÒùÔ

Ef;

Òá¿ãÈêØé¥Ç²

Òá¿ãÈêØé

\fJDz

HID



ÞÆÈÍåäæ

2Jé\fJöª



Øé

ÊåùÔ²ÊåÞÚzU

ÊåùÔ

\fJdµ

Ô'êÿzUé.¾\fJé÷2ÇÇùâÙÞáÊÛ
п

¾



o".ê¡"|¿
áé;àОФОгЗ½ùÔÐæ

â6

âqPÿ+4Ç¢Ô¾H

cP.Ô
ÊÍ

\fJ

'

ÒÚ

\fJÒÁ'

é

ñÚ½Ìã¤¿

ǽùÔ

ÒùÔÎé¡"æÞáíä¿+Ív

ÒùÔØéÚüû

o".ÇÊÔ

ǽùÔ

ãÈæê;ªÜª

ê¡¾åUÔ»<ÿ;ªÜÕª

,64ÇÛ

¿á

o".êö÷éA

ÒáÊÛп

\fJé.Ç

ã'îÞÚ

ÒáÊÛп

»<ªÖÕæå»â

\fJÈ

.I

ÍÇß¿Ú

¿æÒ{ÊÕé´å¿Óâ¿áÆÿzUÌ

ÁæÒùÔ

\fJÿ²æ

\fJÞÚ'

Þá»

ÒÚ

\fJê§

êH

^&o^öÞá

ÃáÊÛп

_f-

2

ÞÚ



ö

:

T

RF



ä

1.

Ä



ê

Class A

ÎÔ»HǽùÔØé'öª*꡾å
å¿ÎãǽùÔ

o".é$H

1.

ß

ùÚê"Èåö

Ê(FÅÊÁжТбКЫР¿

,9S3oæ

½ùÔ



o".êP6.âÔ

xiv 22-May-01 02.9673.0001 A

æ½Ð

ùÔ

:6Jßæ

Þáê÷2Ç

Ä~

ê8cº

o".cP.Ô'

æÅ¿áu"äà

£



åÌëå

êÒë

Lamp Power- Up State ÔL ON/ L OFF

Õ

ЗЮЪгИæDGæcP.Ð'





*

ý

Table of Contents

Introduction

About This Manual...................................................................................................... 1

Additional Support and Documentation ...................................................................... 1

Text Conventions ......................................................................................................... 2

Chapter 1. Description

Features

Overview...................................................................................................................... 5

Standard Features.................................................................................................. 5

Specific Features................................................................................................... 5

Components

VL2200 Series Spot Luminaire ................................................................................... 6

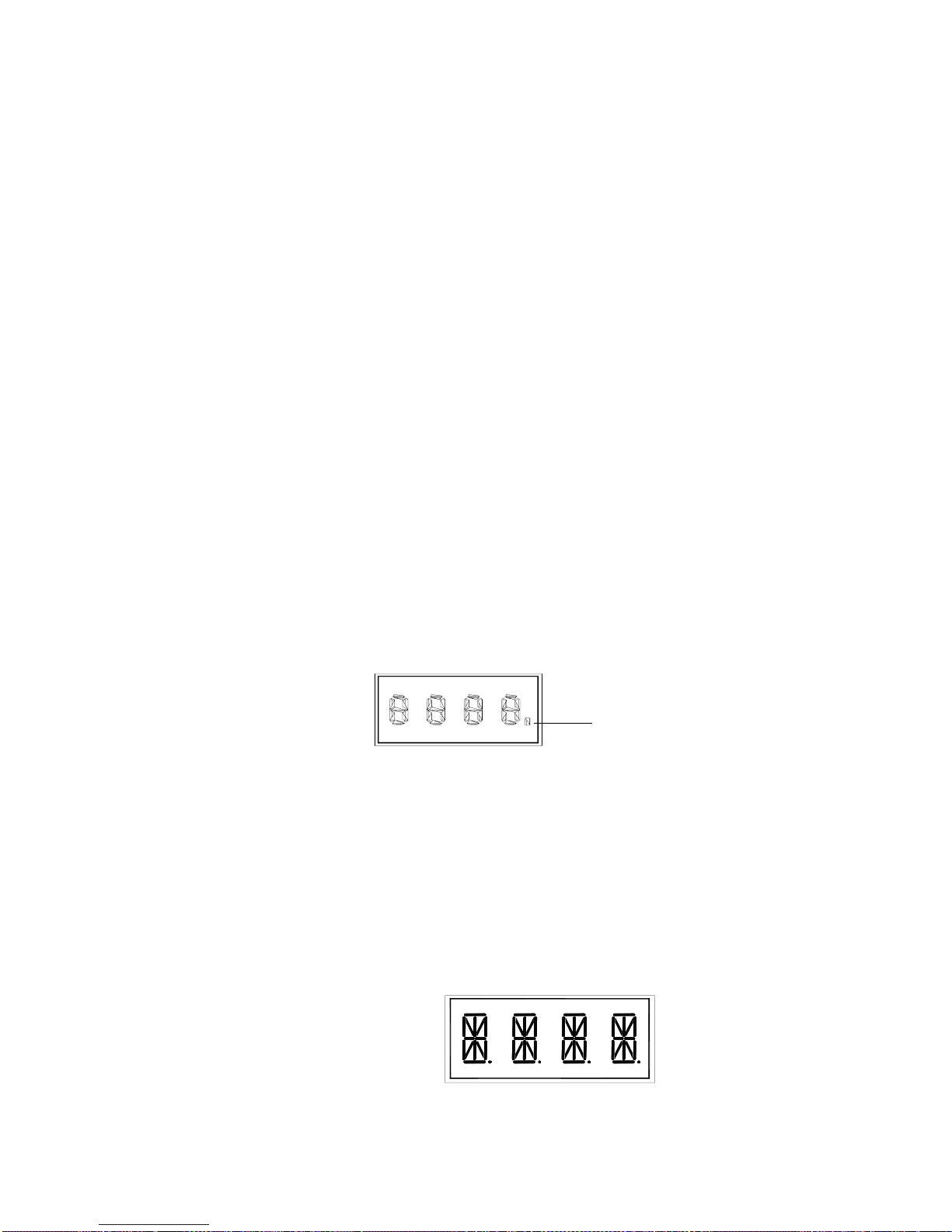

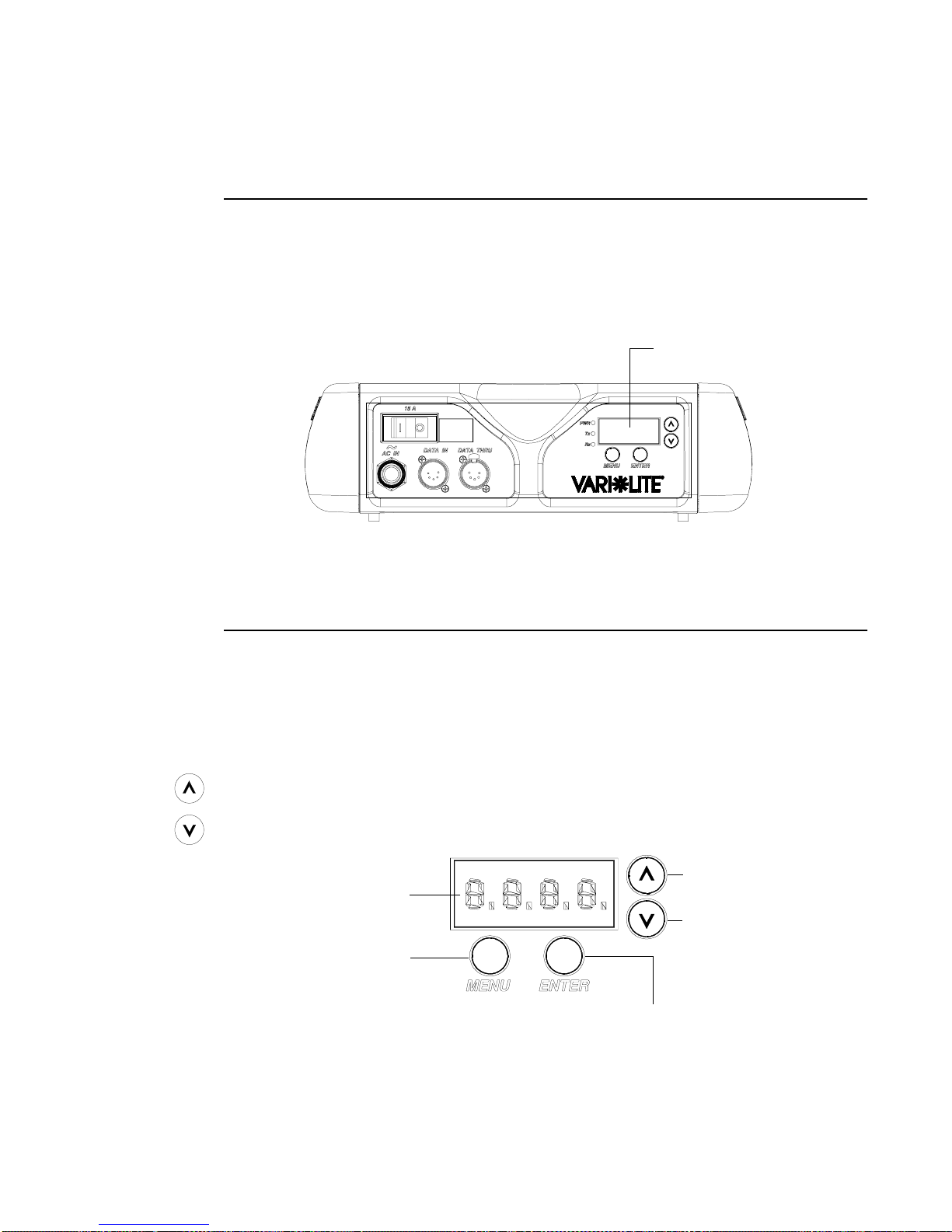

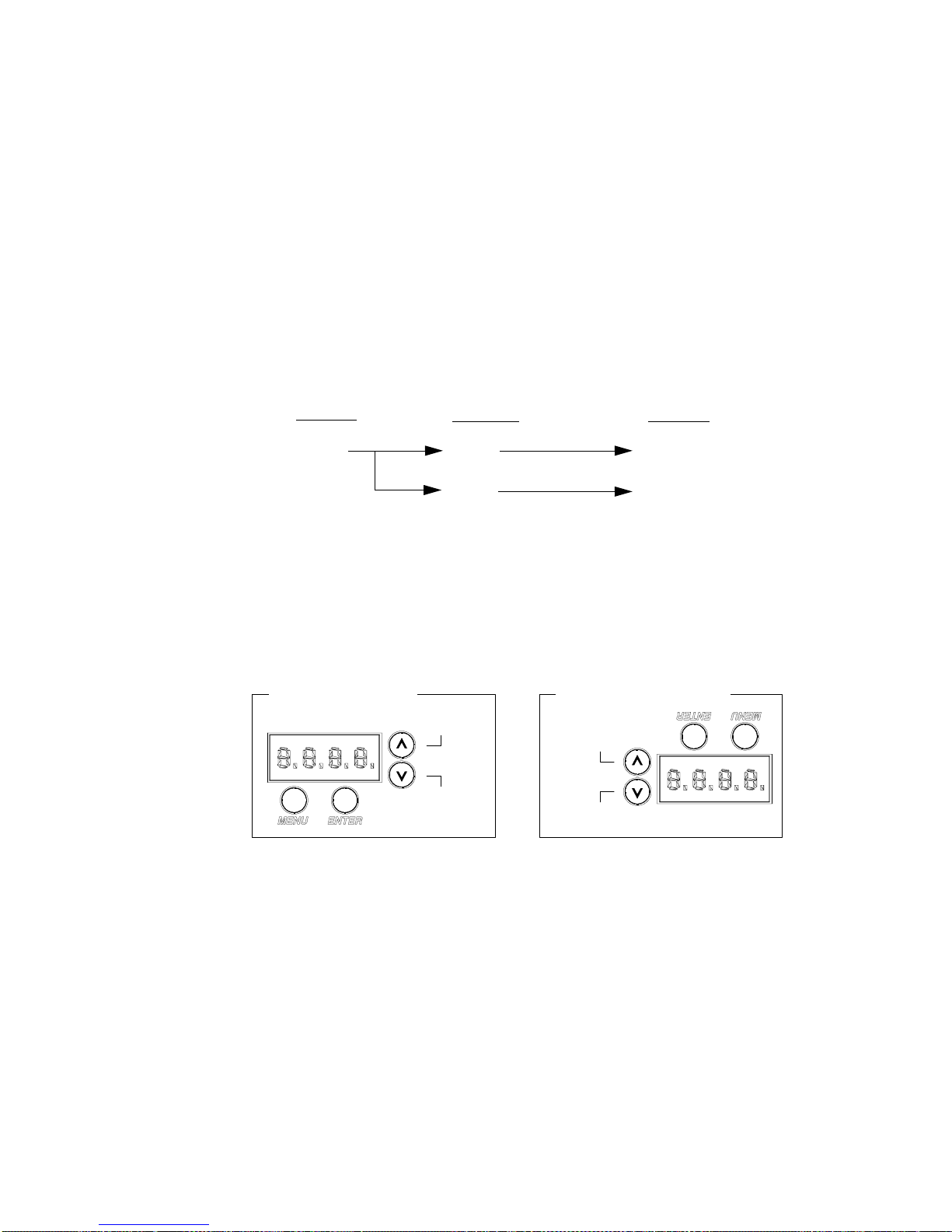

Menu Display............................................................................................................... 7

LED Indicators............................................................................................................. 7

TABLE OF CONTENTS

Chapter 2. Installation

Power and Data Cabling Requirements

Power ......................................................................................................................... 11

Current vs. Voltage.................................................. ............................................ 12

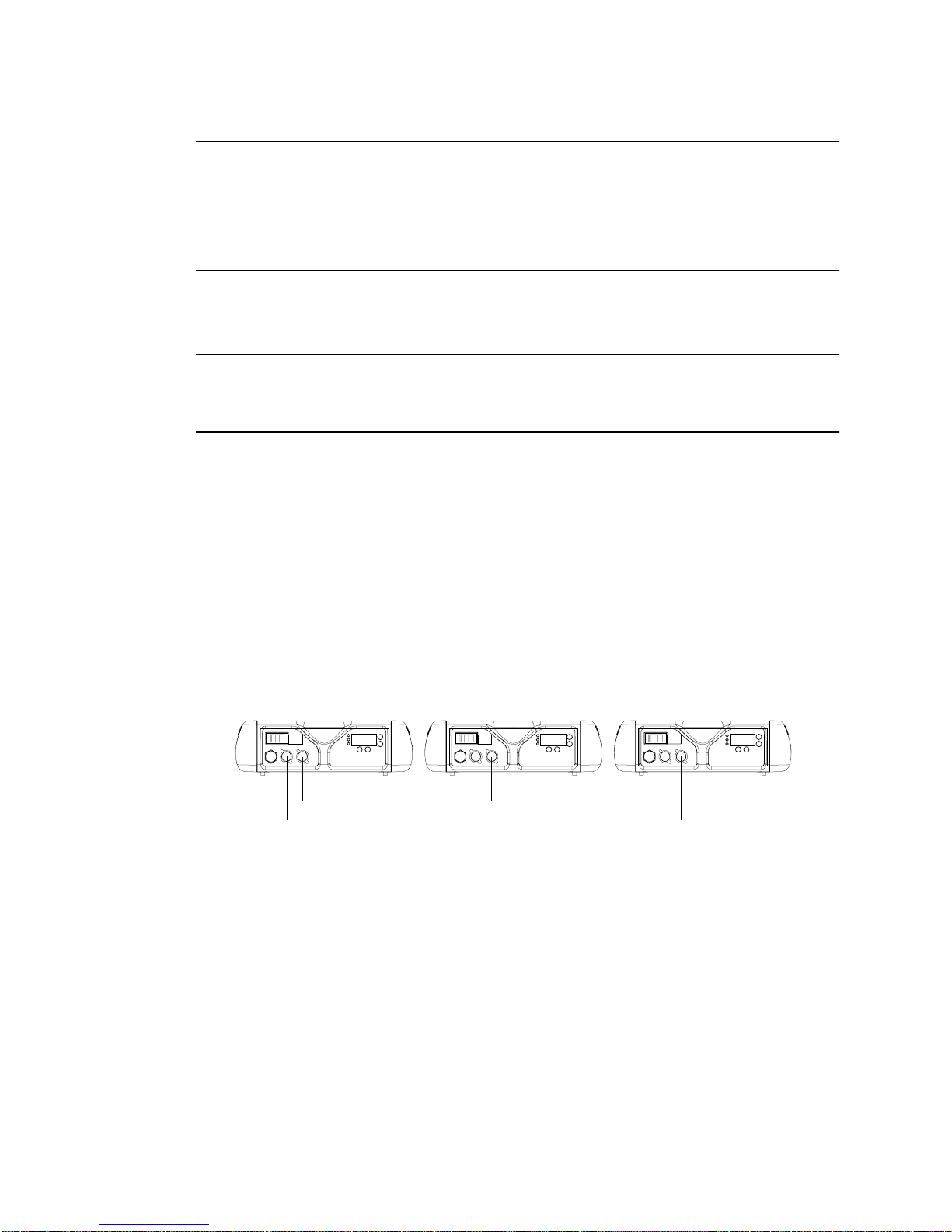

Data Cables................................................................................................................ 13

Recommended Cable Types/Manufacturers ....................................................... 14

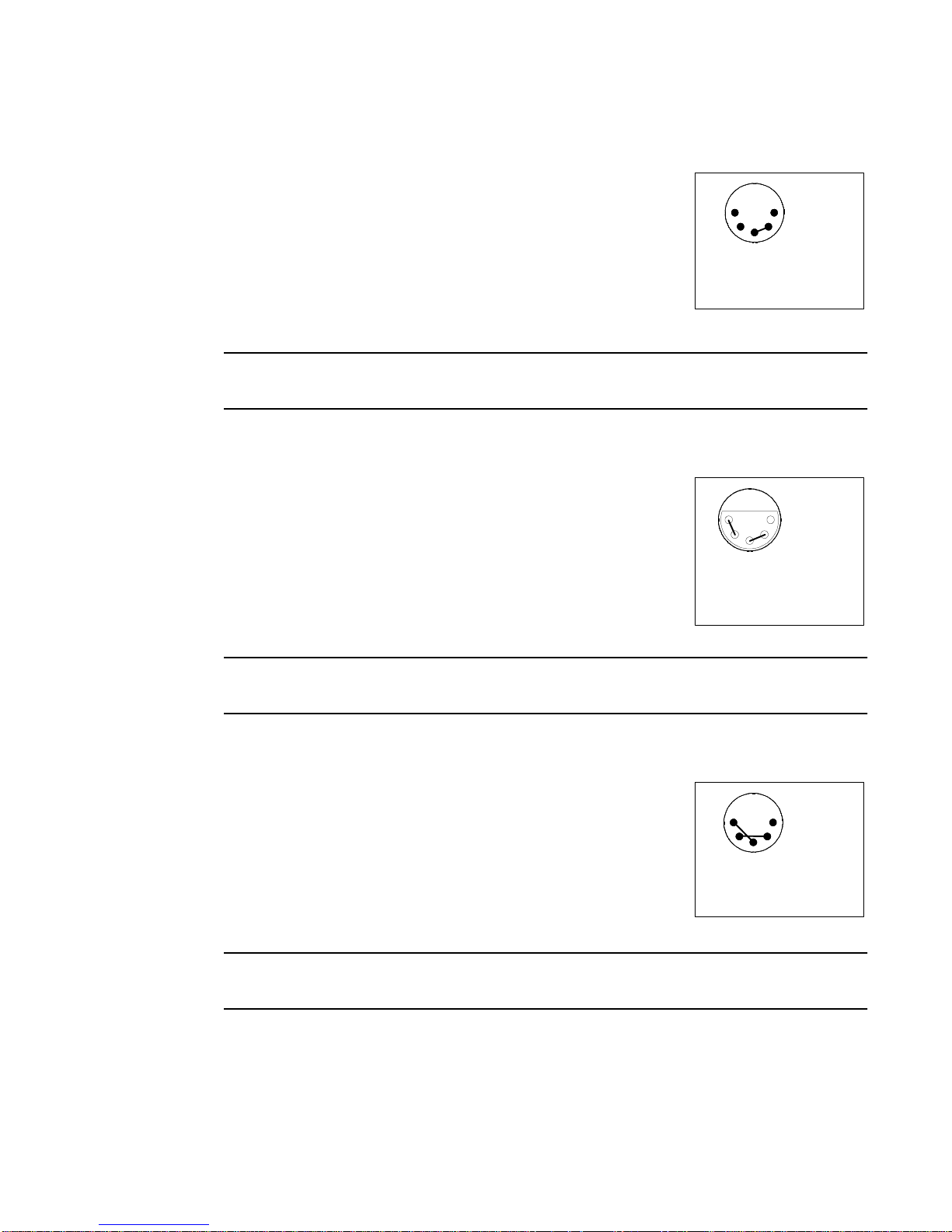

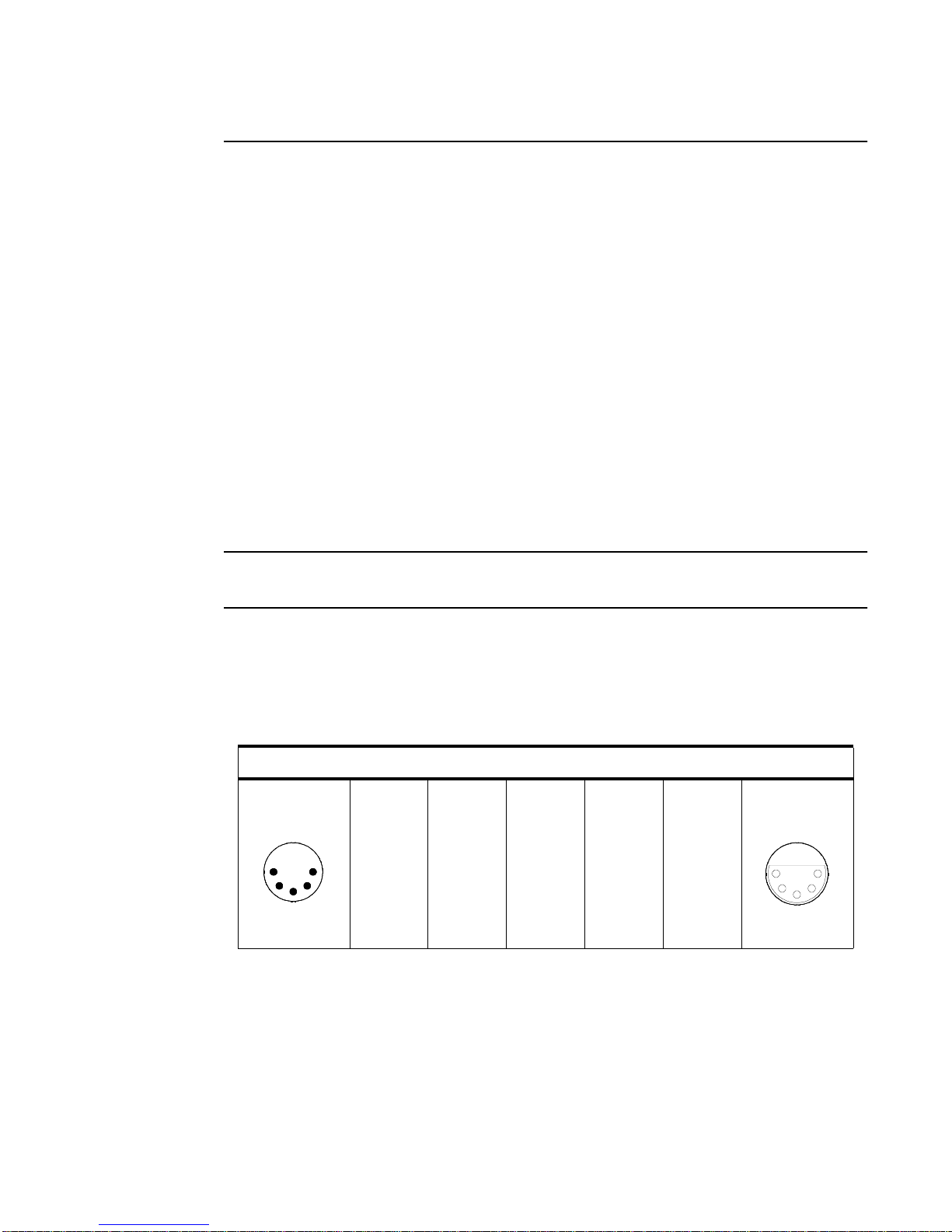

Male Termination Connector.............................................................................. 15

Female Termination Connector........................................................................... 15

Loopback Connector........................................................................................... 15

Installation Proce dures

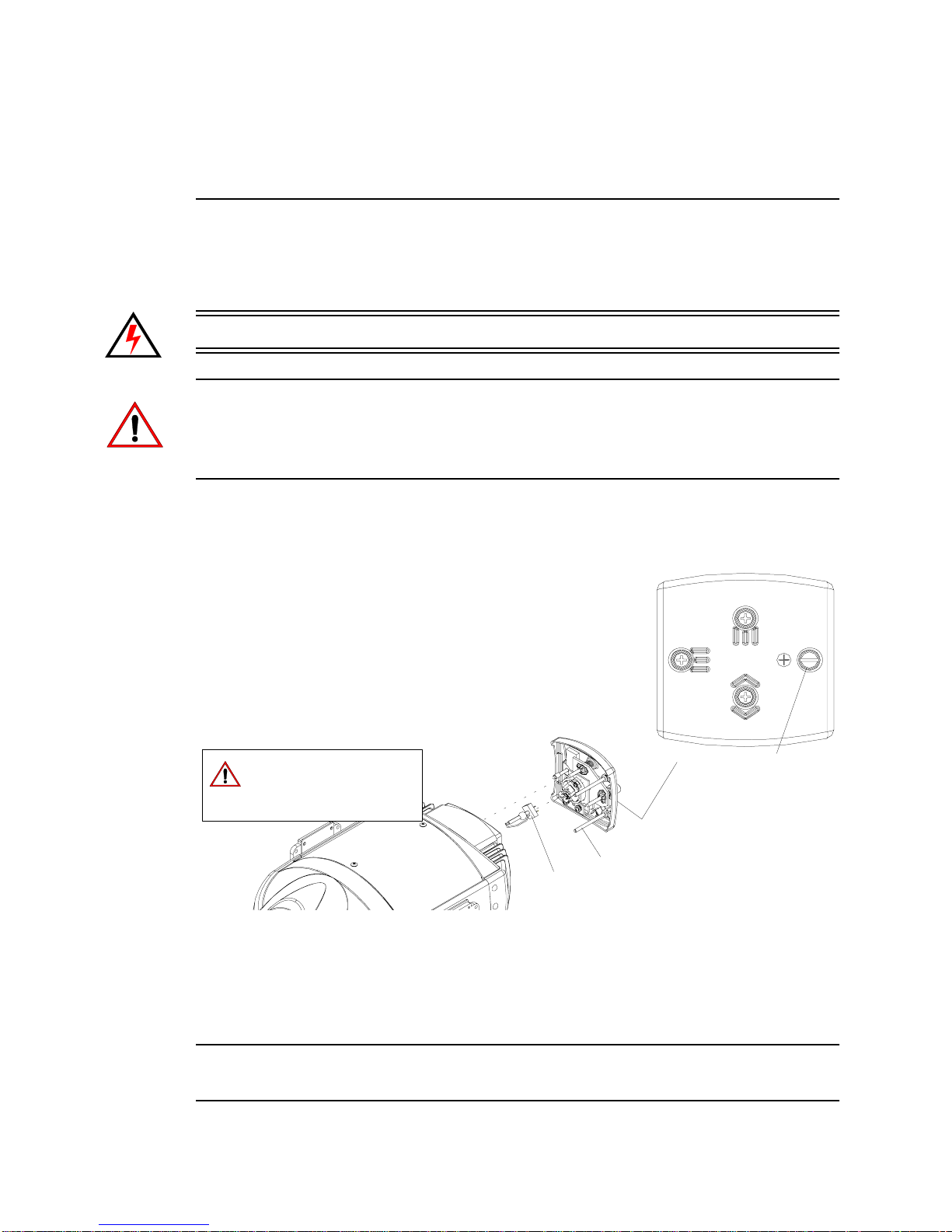

Installing Lamp.......................................................................................................... 16

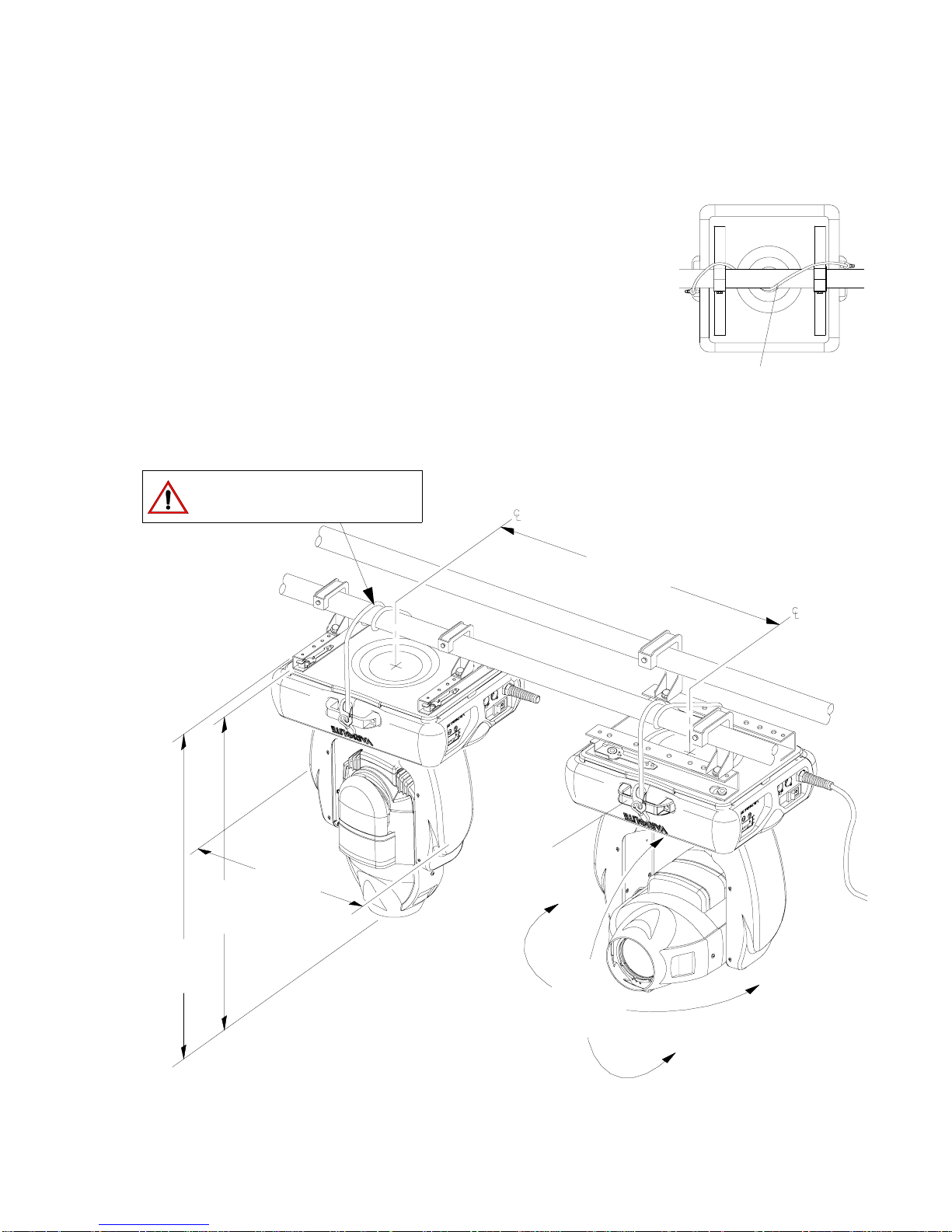

Hanging the Luminaire.............................................................................................. 17

Floor Mounting the Luminaire................................................................................... 20

Connecting Data and Power....................................................................................... 20

Powering Up

Power-Up Procedure.................................................................................................. 21

Align Lamp for Peaked or Flat Field......................................................................... 22

Set DMX Mode.......................................................................................................... 23

Addressing

Program Starting Address.......................................................................................... 24

Program Starting Address Without Calibrating the Luminaire ................................. 24

02.9673.0001 A 22-May-01 xv

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Chapter 3. Operation

Color/Gobo Control

Color/Gobo Wheel Positions...................................................................................... 27

Standard Colors and Gobos........................................................................................ 27

Standard Colors - Wheel 1 (Color Wheel)........................................................... 27

Standard Gobos - Wheel 2 (Fixed Gobo Wheel)................................................. 27

Standard Rotating Gobos..................................................................................... 28

DMX Modes

8-Bit and 16-Bit Modes.............................................................................................. 29

DMX Mapping

Color/Gobo Wheels.................................................................................................... 30

Rotating Gobo Index/Rotation............................................................................. 34

Rotating Gobo Wheel .......................................................................................... 34

Beam Control.............................................................................................................. 35

Beam Iris.............................................................................................................. 35

Edge ..................................................................................................................... 35

Strobe................................................................................................................... 35

Zoom.................................................................................................................... 35

Luminaire Timing

Luminaire Timing Channel Information.................................................................... 36

Control Channel Functions......................................................................................... 42

Updating Software

Reprogramming Luminaires....................................................................................... 43

Install and Reprogramming Procedure ................................................................ 44

Transferring Software From Luminaire to Luminaire................................................ 47

Hardware Requirements....................................................................................... 47

Transfer Procedure............................................................................................... 47

Chapter 4. Menu System

Operation

What Is the Menu System?......................................................................................... 53

Controls Operation ..................................................................................................... 53

Display Orientation.............................................................................................. 54

Default State......................................................................................................... 55

Decimal Placement.............................................................................................. 55

Display Test......................................................................................................... 55

Shortcuts .............................................................................................................. 56

Error Messages..................................................................................................... 57

Mapping

Menu System Overview............................................................................................. 59

Menu System Functions............................................................................................. 60

Function Definitions................................................................................................... 64

xvi 22-May-01 02.9673.0001 A

Cues and Sequences

Overview.................................................................................................................... 68

Storing................................................................................................................. 68

Playback .............................................................................................................. 68

Hardware Requirements...................................................................................... 68

Cue Operations........................................................................................................... 69

Self Tests

Running Parameter Tests ........................................................................................... 73

Move Disable ...................................................................................................... 73

Lamp.................................................................................................................... 73

Diagnostic Tests......................... ...................................................... ......... ......... ........ 75

Test Descriptions................................................................................................. 75

Appendix A. Troubleshooting and Maintenance

Troubleshooting

Protecting Your Warranty .......................................................................................... 87

Troubleshooting Guide .............................................................................................. 88

Routine Maintenance

Lamp Replacement .................................................................................................... 93

Color Filter Replacement........................................................................................... 95

Fixed Gobo Replacement........................................................................................... 97

Rotating Gobo Replacement...................................................................................... 99

Cleaning Optical Lenses and Filters........................................................................ 101

TABLE OF CONTENTS

Appendix B. Technical Specifications

Mechanical............................................................................................................... 103

Optical...................................................................................................................... 104

Operational............................................................................................................... 104

Photometric.............................................................................................................. 105

Appendix C. Accessories

...................................................................................................................................107

Returning Parts For Service......................................................................................109

02.9673.0001 A 22-May-01 xvii

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

(This page intentionally blank.)

xviii 22-May-01 02.9673.0001 A

Introduction

About This Manual

This manual provides necessary information regarding product safety, installation,
operation, and routine maintenance for VARI❋LITE® VL2200™ Series Spot
Luminaires. Familiarizing yourself with this information will help you to get the most
out of your luminaire.

WARNING: It is important to read ALL accompanying safety and installation
instructions to avoid damage to the product and potential injury to yourself or others.

Additional Support and Documentation

A support webpage for the Series 2000™ luminaires is available at:
www.vari-lite.com (connect to the Vari-Lite homepage and follow the Customer
Support link to the Series 2000 Support Center).

INTRODUCTION : ABOUT THIS MANUAL

A service manual is available for extended maintenance of VL2200 Series Spot
Luminaires. This manual is available in both printed and electronic (PDF) formats.

VL2200 Series Spot Luminaire Service Manual (02.9673.0010).

■

- Troubleshooting, Component Replacement, Illustrated Parts Breakdown.

Note: Performing maintenance procedures contained in the VL2200 Series Spot
Luminaire Service Manual may void the product warranty. Refer to the Vari-Lite, Inc.
Limited Warranty card included in the shipping package for this VARI❋LITE®
product.

For more information on DMX512 systems, refer to the following document available
from United States Institute for Theatre Technology, Inc. (USITT).

Digital Data Transmission Standard for Dimmers & Controllers plus AMX

■

192 Analog Multiplex Data Transmission Standard for Dimmers &
Controllers. (A copy of Recommended Practice for DMX512 is included.)
USITT Inc.
Suite 5A, 10 West 19th St.
New York, NY 10011-4206 USA
Tel : (212) 924 - 9088 Fax : (212) 924 - 9343
www.usitt.org

02.9673.0001 A 22-May-01 1

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Text Conventions

The following styles and meanings are used throughout this manual:

[Button] Front panel button. Example: Press [Menu].
[Up] / [Down] arrows Press either [Up] or [Down] arrow button at Menu

Display.

MENU Menu Display read-out. Example: Press [Up] / [Down]

arrows until CFG (Configuration) appears.

2 22-May-01 02.9673.0001 A

C

HAPTER

C

HAPTER

Description

Description

DescriptionDescription

• Features

• Components

1.

1.

02.9673.0001 A 22-May-01 3

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

(This page intentionally blank.)

4 22-May -01 02.9673.0001 A

Features

Overview

The VL2200 series spot luminaire is available in two
different configurations - VL2201™ luminaire and
VL2202™ luminaire. The model number can be found
next to the power switch.

Standard Fea tures

All VL2200 series spot luminaires have the following
standard features:

• Variable beam focus to soften the edges of gobos or

• Full field dimmer to allow smooth timed fades and fast blackouts.

DESCRIPTION : FEATURES

1

spots and enable gobo morphing.

• A mechanical iris which provides continuous beam size control for both rapid

beam size changes and smooth timed beam angle changes.

• Rotatable gobo wheel which contains five individually rotatable, indexable gobos.

• Two, 12-position wheels, each providing 11 easily loaded positions (and 1 open)

for interchangeable dichroic color and gobo selections.

• Power factor corrected arc power supply for a Philips arc lamp.

• Control by DMX512 protocol.

• Two truss hook brackets for versatile hanging configurations.

Specific Features

Each individual configuration has the following features:

VL2201 Lum inaire

• 400 watt arc source.

• Zoom optics system with a zoom angle of 2.8 to one.

• Smooth reflector which produces a peaked or flat field.

VL2202 Lum inaire

• 700 watt arc source.

• Zoom optics system with a zoom angle of 2.8 to one.

• Faceted reflector designed for an optimal flat field.

02.9673.0001 A 22-May-01 5

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Components

VL2200 Series Spot Luminaire

The following illustration shows the major luminaire components and controls.

Truss Hook
Bracket Assembly

Yoke
Assembly

Head Assembly

Removable Lamp Assembly

(to access lamp for replacement)
Upper Enclosure
Assembly

AC Input Cable

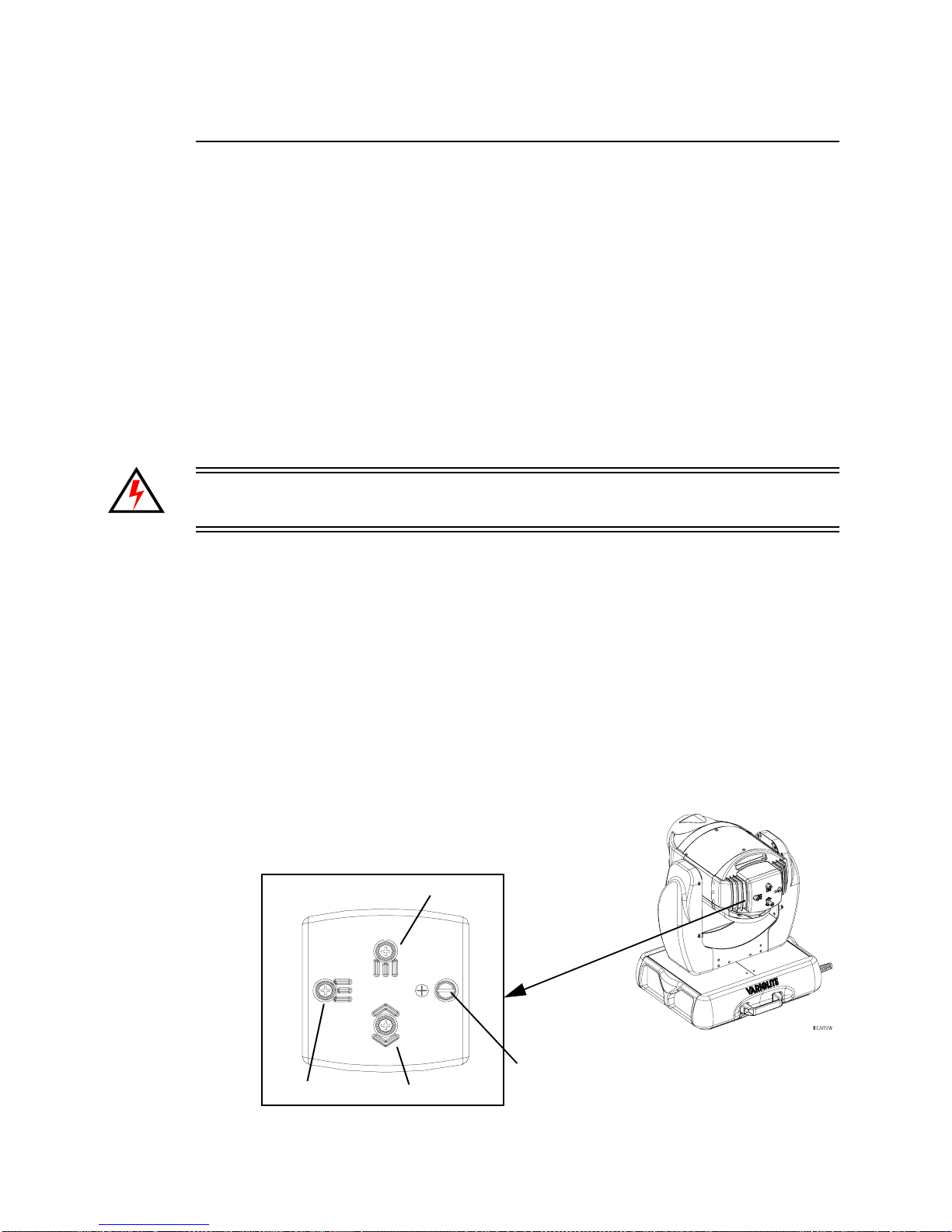

Beam Adjustment Controls

Vertical

Input Panel Components

Product Label ID

Main Power
Switch

AC Input Cable

6 22-May -01 02.9673.0001 A

Data In

Power and Data
LED Indicators

Data Thru

Horizontal

Focus

Menu Display

Captive Knob
for lamp access
(does not adjust
beam)

DESCRIPTION : COMPONENTS

1

Menu Display

The Menu System Display is used to access the menu system, which is a
programmable set of commands used to address, operate, and test the luminaire.

The menu system is controlled by four buttons. These buttons function as follows:

Changes a value or

Multi-Segment
Display

Displays the menu,
or if at first level, the
current address

Selects the current menu option
or enters current data value

Refer to Chapter 4: Menu System for more detailed instructions regarding display
orientation and operation.

scrolls through menus
Changes a value or

scrolls through menus

LED Indicators

The LED indicators report the status of power and data to the luminaire.

Indicates DC power is being
supplied via AC Input when lit

Indicates data is being
transmitted when flashing

Indicates data is being
received when flashing fast;
when flashing in 2 sec. heartbeat,
indicates l uminaire is idle

02.9673.0001 A 22-May-01 7

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

(This page intentionally blank.)

8 22-May -01 02.9673.0001 A

C

HAPTER

C

HAPTER

Installation

Installation

InstallationInstallation

• Power and Data Cabling Requirements

• Installation Procedures

• Powering Up

• Addressing

2.

2.

02.9673.0001 A 22-May-01 9

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

(This page intentionally blank.)

10 22-May -01 02.9673.0001 A

INSTALLATION : POWER AND DATA CABLING REQUIREMENTS

Power and Data Cabling Requirements

Power

The luminaire requires standard AC power distribution from 100-240 VAC, 50/60 Hz.
Three amps to twelve amps will be required depending on the AC supply voltage and
product model.

Depending on the application, the luminaire’s AC input cable may require a different
connector. If required, install a new connector meeting your requirements using the
following wire color code reference:

Wire* Connection

Green/Yellow AC Ground

Blue AC Neutral

Brown AC Line

2

* International (Harmonized) Standard

WARNING: DO NOT connect to three-phase service in countries with 240 volt
power.

For single-phase power at 100 to 240 volts RMS:

Connection Pin

AC Neutral X

AC Line Y

Ground (Earth) G

X

G

Y

For three-phase power at 208 volts RMS:

Connection Pin

Phase 1 X
Phase 2 Y

Ground (Earth) G

X

G

Y

02.9673.0001 A 22-May-01 11

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Curr ent vs. Voltage

The following tables provide the luminaire’s current draw at specific voltages.
Current is calculated with the lamp on and all motors sequencing.

Table 2-1: VL2201 Current vs. Voltage

Voltage @ 60Hz Current

90.0 8.2

100.0 7.1

110.0 6.3

120.0 5.8

130.0 5.3

140.0 4.8

180.0 3.8

190.0 3.5

200.0 3.3

210.0 3.2

220.0 3.1

230.0 2.9

240.0 2.8

250.0 2.7

Table 2-2: VL2202 Current vs. Voltage

Voltage @ 60Hz Current

90.0 11.8

100.0 10.6

110.0 9.5

120.0 8.5

130.0 7.9

140.0 7.2

180.0 5.5

190.0 5.2

200.0 4.9

210.0 4.7

220.0 4.5

230.0 4.3

240.0 4.1

250.0 3.9

12 22-May -01 02.9673.0001 A

INSTALLATION : POWER AND DATA CABLING REQUIREMENTS

2

Data Cables

The luminaire is equipped with two, 5-pin XLR connectors for DATA IN and DATA
THRU (out) applications. DATA IN requires a 5-pin, female XLR connector and
DATA THRU requires a 5-pin, male XLR connector. When purchasing or
constructing data cables, it is important that not only the correct cable type be used,
but also quality cable to ensure a reliable DMX512 system. Your cabling should meet
the following USITT DMX specification requirements:

• Suitable for use with EIA485 (RS485) operation at 250k baud.

• Characteristic impedance 85-150 ohms, nominally 120 ohms.

• Low capacitance.

• Two twisted pairs.

• Foil and braid shielded.

• 24 AWG min. gauge for runs up to 1000 feet (300m).

• 22 AWG min. gauge for runs up to 1640 feet (500m).
Note: Microphone type cables and other general purpose, two-core audio or signal

cables are not suitable for use with DMX512.

Refer to the USITT Recommended Practice for DMX512 guide for additional
information regarding DMX512 systems. How to obtain a copy is detailed in

“Additional Support and Documentation” on page 1.

The XLR 5-pin connectors should be wired as follows:

Pin/Wire Code to XLR Connectors

Data Thru

Cable Pinout

1

2

4

3

Male Conn

Pin 1

Foil &

Braided

Shield

5

Pin 2

1st

conductor

of 1st

twisted

pair

Data (-)

Pin 3

2nd

conductor

of 1st

twisted

pair

Data (+)

Pin 4

1st

conductor

of 2nd

twisted

pair

Data (-)

Pin 5

2nd

conductor

of 2nd

twisted

pair

Data (+)

Data In

Cable Pinout

5

4

2

3

Female Conn

1

02.9673.0001 A 22-May-01 13

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Recommended Cable Types/Manufacturers

These are only a few of the suitable cable types. Any quality EIA485, twisted pair,
120 ohm, shielded cable will also work.

Type Pairs

Belden Cables

1215A 2 150 PVC 26 IBM Type 6

1269A 2 100 PTFE 22 (Solid) High Temp,

8102 2 100 PVC 24 UL2919 80
8132 2 120 PVC 28 UL2919 80
8162 2 100 PVC 24 UL2493 60

82729 2 100 PTFE 24 High Temp,

88102 2 100 PTFE 24 High Temp,

89696 2 100 PTFE 22 High Temp,

89729 2 100 PTFE 24 High Temp,

89855 2 100 PTFE 22 High Temp,

9729 2 100 PVC 24 UL2493 60
9804 2 100 PVC 28 UL2960 60
9829 2 100 PVC 24 UL2919 80
9842 2 120 PVC 24 UL2919 80

ZΩ

∗

Jacket AWG Use Temp (F)

Office cable

Plenum cable

Plenum cable

Plenum cable

Plenum cable

Plenum cable

Plenum cable

75

200

200

200

200

200

200

Proplex Cables

PC224P 2 110 Polyure-

PC224T 2 110 PVC 22 UL2464 105
PC226T 3 110 PVC 22 UL2464

* Characteristic Impedance

14 22-May -01 02.9673.0001 A

thane

22 Heavy Duty

and Portable

105

INSTALLATION : POWER AND DATA CABLING REQUIREMENTS

Male Terminat ion Connector

2

A male XLR termination connector is required across (+) and
(-) data lines at the final luminaire or device in a data link. T o
construct your own connector, you will need the following
components:

• 5-pin, male XLR connector.

• 1/4W 5% 120 ohm resistor.

5

4

3

Solder resistor
across pins 2 & 3

BACK

VIEW

1

2

Note: A male termination connector is available as an accessory from Vari-Lite. See

“Accessories” on page 107.

Female Termination Connector

When transferring software versions from luminaire to
luminaire, a female XLR termination connector is required at
the “master” luminaire. T o construct your own connector , you
will need the following components:

• 5-pin, female XLR connector.

• Two 1/4W 5% 120 ohm resistors.

5

4

3

Solder resistor
across pins 2 & 3,
and 4 & 5

BACK

VIEW

1

2

Note: A female termination connector is available as an accessory from Vari-Lite.
See “Accessories” on page 107.

Loopback Connector

When transferring software versions from luminaire to
luminaire, a loopback connector is required at the final
luminaire in the data link. To construct your own connector,
you will need the following components:

• 5-pin, male XLR connector.

• Two small segments of 22AWG wire.

5

4

3

Solder wires across
pins 2 & 4 and 3 & 5

BACK

VIEW

1

2

Note: A loopback connector is available as an accessory from Vari-Lite. See “Acces-

sories” on page 107.

02.9673.0001 A 22-May-01 15

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Installation Procedur es

Installing Lamp

In the event the lamp was packed separately during shipment, it will be necessary to
install in the luminaire before use.

WARNING: Ensure that power is removed from luminaire when installing lamp.

CAUTION: Wear cotton gloves or other covering while installing lamp. Touching

lamp glass with bare fingers will leave oil and may cause the lamp to explode or
reduce lamp life. If touched, use alcohol and cotton cloth to thoroughly clean glass
portion of lamp.

To install lamp:

1. Ensure power is removed from luminaire.

2. Remove lamp from shipping box.

3. At backcap, using slotted screwdriver
(or fingers) turn captive knob until
loose.

4. Slide backcap away from head assembly
(it will remain attached by tether and
lamp wires.).

CAUTION:

Ensure lamp is seated
straight in socket before
re-installing backcap.

Backcap Assembly

Guide Rod

Lamp

Captive Knob

5. Install lamp by pressing into socket. Ensure lamp is fully seated in socket
and parallel to guide rods. (Lamp can be damaged when inserted through
reflector if not parallel to guide rods.)

6. Align guide rods in guide holes and slide backcap into head assembly. Re­tighten captive knob.

Note: After installing a new lamp, it is necessary to adjust the beam for optimum per­formance. This procedure is covered in “Powering Up” on page 21.

16 22-May -01 02.9673.0001 A

INSTALLATION : INSTALLATION PROCEDURES

2

Hanging the Luminaire

The luminaire can be hung horizontally or vertically from any structure designed to
work with the type of load created by this moving luminaire. Two truss hook bracket
assemblies (provided) are used to attach truss hooks or other mounting hardware as
required. Many compatible truss hooks are available from different manufacturers for
your particular needs.

A minimum of one hook per truss hook bracket is required. If mounting method does
not use truss hooks, two attachment points per truss hook bracket are required. When
attaching more than one point on a single bracket, the attach points must be spaced as
far apart as possible using the supplied mounting holes.

A safety cable is recommended for all hanging installations and may be required by
local codes.

Install mounting hardware and brackets:

1. Install truss hooks on two provided truss hook brackets as required.

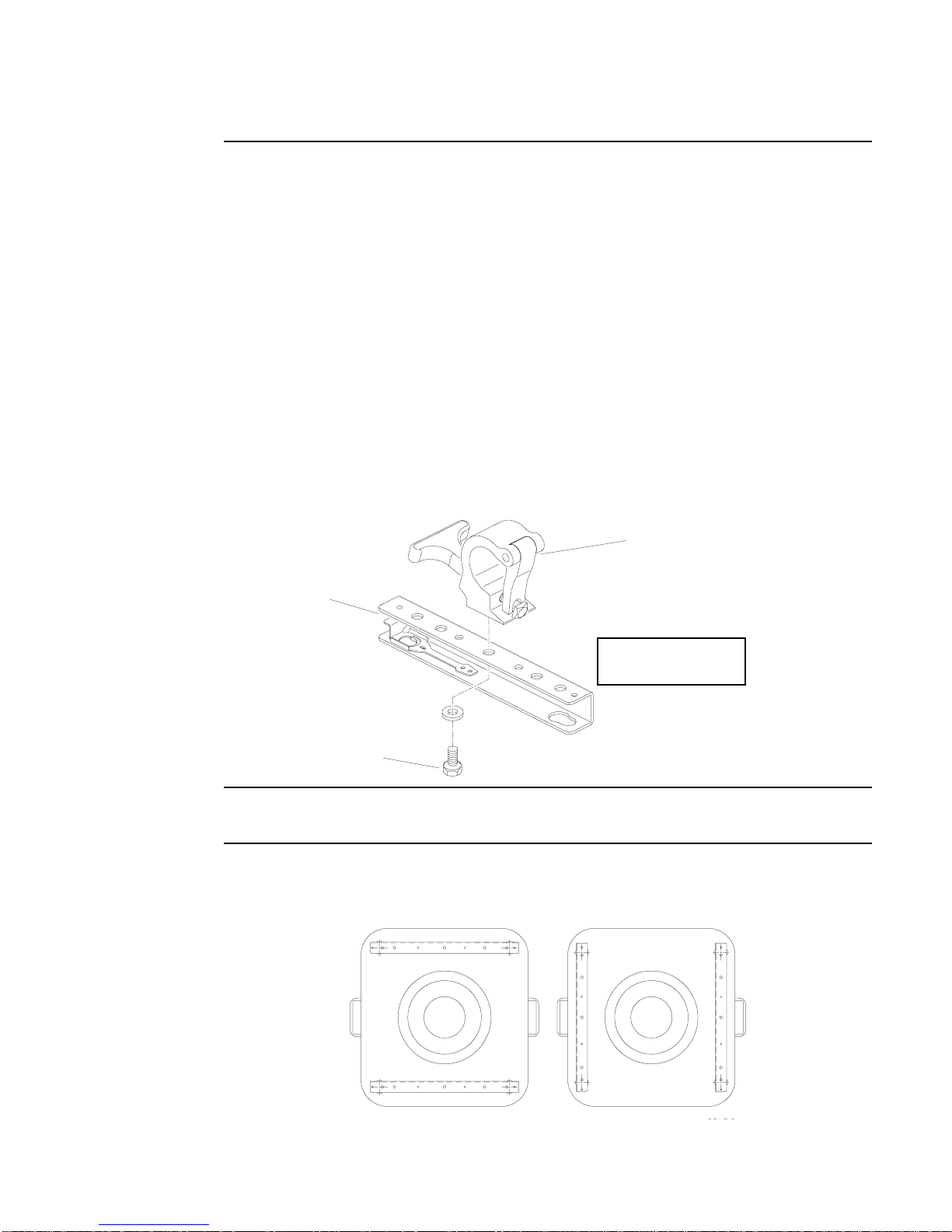

Mega Claw
Truss Hook
(Not Provided)

Bracket

Example Truss
Hook Installation

Truss Hook Hardware
(not provided)

Note: Various types of truss hooks can be used. The Mega Claw truss hook (as shown
in the example above) as well as many other standard hooks, can be ordered seperately .

2. Determine required configuration of bracket installation. Brackets may be
installed in either orientation as shown.

02.9673.0001 A 22-May-01 17

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

3. While pulling up on locking mechanism release, fit keyed holes onto raised
mounting buttons at bottom of enclosure. Slide forward and release locking
mechanism to lock in place. Ensure brackets are locked securely. (Always
face brackets in same direction as shown.)

WARNING: Ensure that the bracket locking mechanism is fully seated after the
bracket is installed on the luminaire.

Locking Mechanism

Press up when
installing or releasing

Truss Hook Bracket

Keyed Hole

Face brackets in
same direction for
all configurations

Raised
Mounting

Button

Once fitted over buttons,
slide forward to lock
in place

Locked

18 22-May -01 02.9673.0001 A

INSTALLATION : INSTALLATION PROCEDURES

Installing in Truss:

1. Using two people, lift luminaire into mounting position.

2. Secure in place with truss hook. Ensure truss
hook hardware that locks hook in place (e.g. wing
bolt) is properly tightened and that luminaire is
fully supported.

3. Attach safety cable (as required) as follows :
a. Connect one end of cable to luminaire handle.

2

b. Loop at least once around truss/pipe and

attach other end of cable to other handle.

4. Connect power and data cables according to
procedure given in “Connecting Data and Power” on page 20.

Safety Cable:

Recommended for hanging installations.
May be required by local codes.

Safety Cable

Loop at least once.

19”

(48.3cm)

17.25”

**

25.375”

(64.5cm)

*

27.125”

(68.9cm)

02.9673.0001 A 22-May-01 19

(43.8cm)

*

From lens to top of bracket

**

From lens to base of enclosure

Handles are
approved for
safety cable
anchor points

***

18.5”

(47cm)

***

Head Swing
Diameter

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Floor Mounting the Luminaire

The luminaire enclosure is sufficient to stabilize the luminaire in a floor installation,
provided that the mounting surface is flat and sturdy.

Connecting Data and Power

A maximum of 32 luminaires may be connected in any one DMX data link.
Note: This maximum limit applies to the luminaire "daisy chain" only. Your system

or console may require fewer luminaires on a single data link path. Consult your
console documentation for more information.

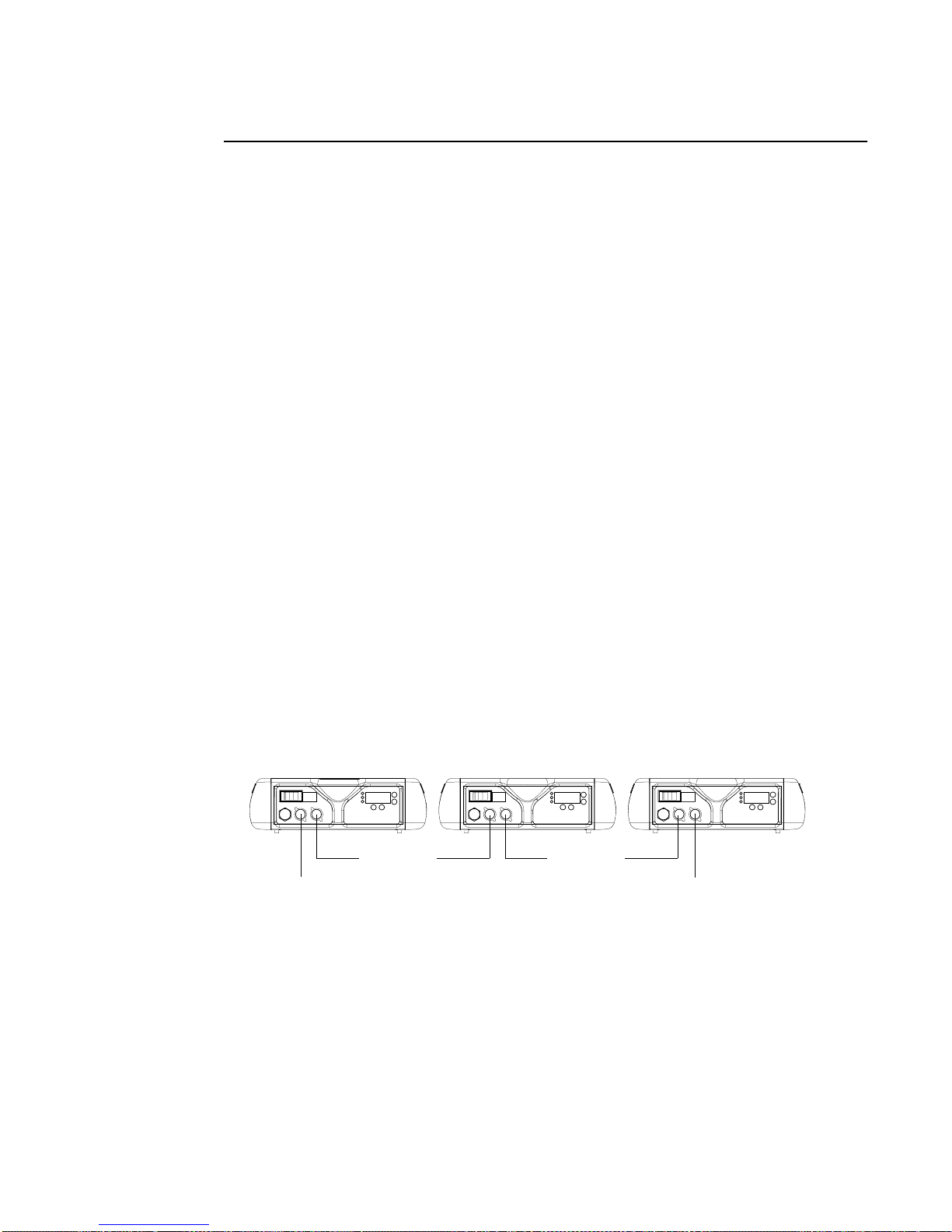

To connect power and data:

1. Connect data cable from console to first luminaire in chain at DATA IN
connector.

2. If required, connect additional data cables from DATA THRU connectors to
DATA IN connectors of remaining luminaires in link.

3. At last luminaire in link, install terminator at DATA THRU connector.
(Luminaire(s) and other devices on the same DMX chain may not function
properly without termination.)

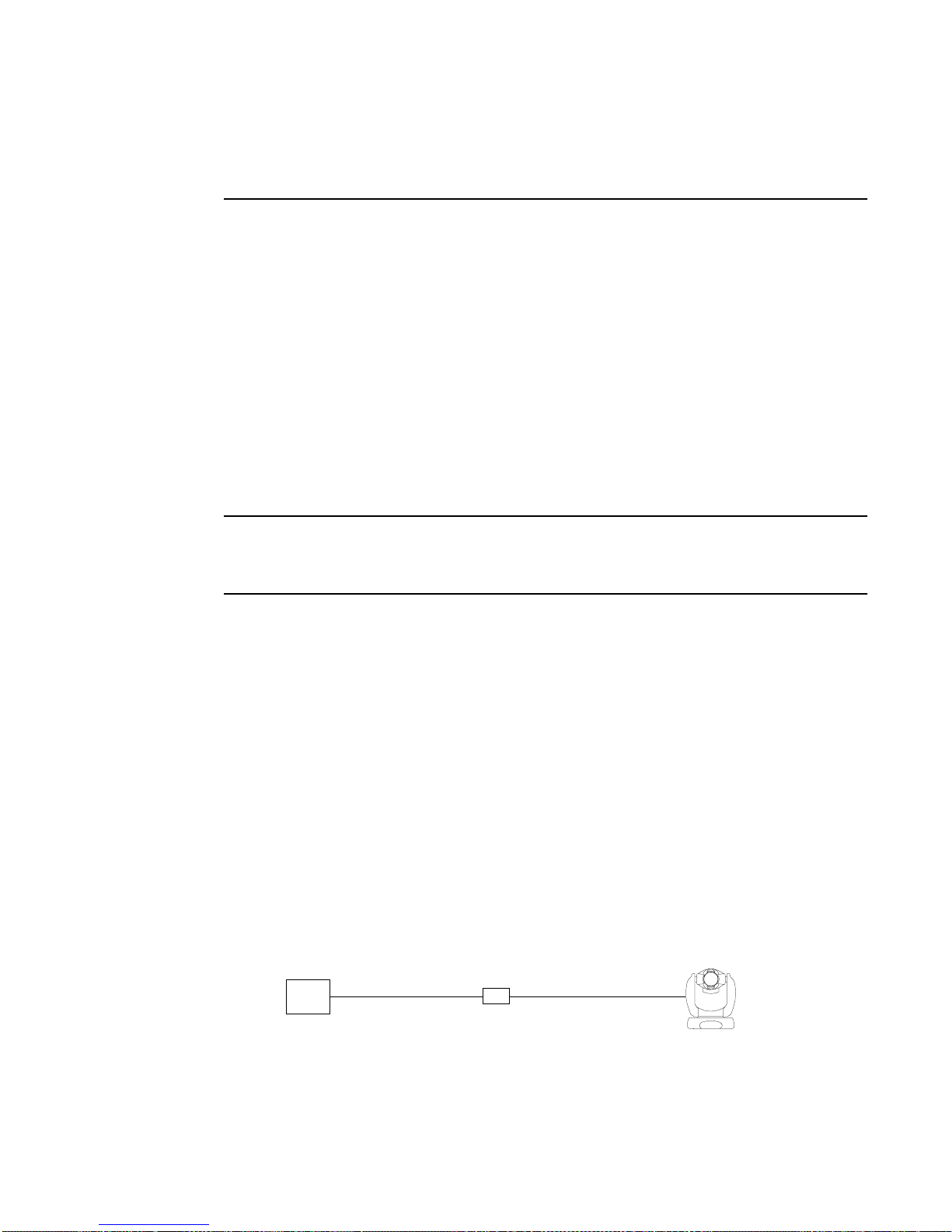

Data Thru Data Thru

Data In

from console

Termination

4. Connect AC Input Cable connector to power input source.

5. Dress AC input and data cables and secure them so that they will not
interfere with luminaire head and yoke movement.

20 22-May -01 02.9673.0001 A

Powering Up

Power-Up Procedure

Since Lamp On is the default st ate, the la mp will strike when the lumina ire is powered
up for the first time. When AC power is a pplied, the luminaire will imm ediately begin
a calibration sequence that steps it through full pan and tilt movements. The internal
color, gobo, and beam mechanisms will also move through a full range of motion.
After calibration, the luminaire head will either stop at its "home" position (which
positions the pan axis at mid-rotation and the head parallel to the yoke with the lens
pointing away from the luminaire upper enclosure) or move to its current DMX­defined position if DMX data is present. All internal mechanisms also move to their
"home" or DMX-defined positions.

Subsequently , depending on the luminaire’s setting for Lamp Power-Up State (refer to

“Menu System Functions” on page 60), when power is applied, the arc lamp will

either a) "strike" or ignite - Lamp On (default), b) await calibration and then strike ­Cal On, or c) await manual command to strike - Lamp Off.

INSTALLATION : POWERING UP

2

CAUTION: Before applying power, be sure the luminaire is hung or positioned so
that the head and yoke can move freely without restriction.

To power up:

1. At each luminaire, apply power by switching power switch to "I" (ON)

position. Luminaire will automatically step through following procedure:
a. If Lamp Power-Up State is set to Lamp On, lamp will strike (ignite).
b. Luminaire will cycle through calibration and stop at "home" position.
c. If Lamp Power-Up State is set to Cal On, lamp will strike (ignite) at end

of calibration sequence.

02.9673.0001 A 22-May-01 21

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Align Lamp for Peaked or Flat Field

The design of the VL2201 optical system is based on a peaked field. A peaked field is
one where the intensity of the beam is greater at the center of the beam than at the
perimeter (see “Photometric” on page 105 for photometric data). At this position, the
center beam intensity is maximized. The beam fall off ratio can be reduced by
repositioning the lamp by adjusting the focus knob. This results in a beam with a
flattened appearance.

The design of the VL2202 optical system is based on a flat field. A flat field is one
where there is no detectable hot spot.

After a new lamp is installed, it will be necessary to align the lamp to optimize the
beam for either the peaked or flat field (depending on the luminaire model). Knobs
located at the luminaire’s backcap will allow adjustment.

WARNING: Backcap and adjustment knobs will be HOT during lamp operation.
Wear gloves and/or use tools to prevent burns.

To align lamp:

1. Using internal menus select Lamp test to set beam. See “Lamp” on page 73
for more information. (If using console, set intensity to 100%, open beam
size iris and focus for hard edge.)

2. Position beam on a white wall at a distance of 10' to 20'.

3. At backcap, using Vertical and Horizontal knobs, adjust hot spot to center of
beam.

4. Using Focus knob, do one of the following:
a. For peaked field (VL2201), adjust hot spot for maximum center beam

intensity.

b. For flat field (VL2202), adjust beam for

best spot.

Vertical

Horizontal

22 22-May -01 02.9673.0001 A

Focus

Captive Knob for lamp access
(does not adjust beam)

INSTALLATION : POWERING UP

2

Set DMX Mode

The VL2000 Series luminaires provide four modes for DMX operation. The mode is
set using the luminaire’s Menu Display.

• 8-bit Standard - provides one 8-bit DMX channel for control of each luminaire

function.

• 8-bit Enhanced - provides additional channels for timing control.

• 16-bit Standard - provides 16-bit control for pan/tilt.

• 16-bit Enhanced (default) - provides 16-bit control for pan/tilt and additional

channels for timing control.

To set the mode:

1. Press [Menu].

2. Press [Up] or [Down] button until DMX appears. Press [Enter].

3. Press [Up] or [Down] to until desired mode is reached (8, 16, E 8, or E

16). Press [Enter] to set mode.

See “DMX Modes” on page 29 for more information.
Note: Which mode is used may also be determined by the profile available in the

DMX control console. For best control, response, smoothest movement and transi­tions, the 16-bit Enhanced mode is recommended. The 8-bit modes are supported for
older style consoles with a limited number of DMX channels available, and if profiles
are not supported. The 16-bit mode is supported for DMX consoles that do not provide
access to the timing channels through either their architecture or their profiles. For
more information see “Luminaire Timing Channel Information” on page 36.

02.9673.0001 A 22-May-01 23

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Addressing

Program Starting Address

The address setting for DMX console or Virtuoso console controlled systems is
entered using the Menu Display. (Refer to Chapter 4: Menu System for detailed
instructions.)

The luminaire retains the DMX and Virtuoso addresses that are stored even if power is
removed.

Note: Refer to your console operating instructions for specific information regarding
its addressing requirements.

Program a DMX or Virtuoso starting address:

1. Press [Menu].

2. Press [Up] / [Down] arrows until ADDR (Address) appears. Press [Enter].

3. Press [Up] / [Down] arrows to access DMX (DMX console control) or VIRT
(Virtuoso console control). Press [Enter].

4. Press [Up] / [Down] arrows to enter starting address.

5. Press [Enter] to set.

Program Starting Address W ithout Calibrating the
Luminaire

It is possible to bypass the calibration sequence and go directly to the Menu Display
programming in order to pre-program an address setting.

Program starting address without calibrating luminaire:

• While powering up luminaire, press and hold [Menu]. Program address as in

“Program Starting Address” above.

Note: The luminaire will require a reset to restore control.

24 22-May -01 02.9673.0001 A

C

HAPTER

C

HAPTER

Operation

Operation

OperationOperation

• Color/Gobo Control

• DMX Modes

• DMX Mapping

• Luminaire Timing

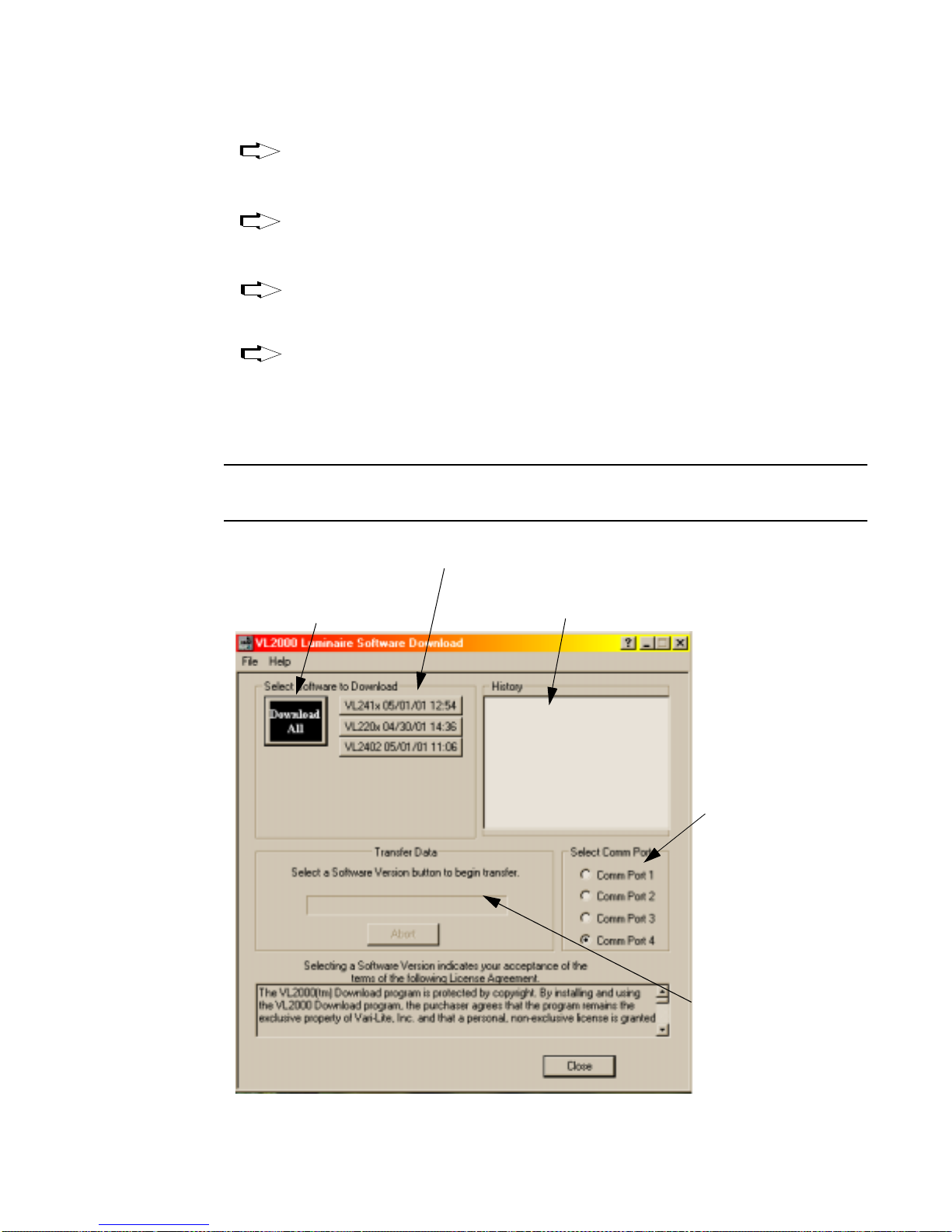

• Updating Software

3.

3.

02.9673.0001 A 22-May-01 25

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

(This page intentionally blank.)

26 22-May -01 02.9673.0001 A

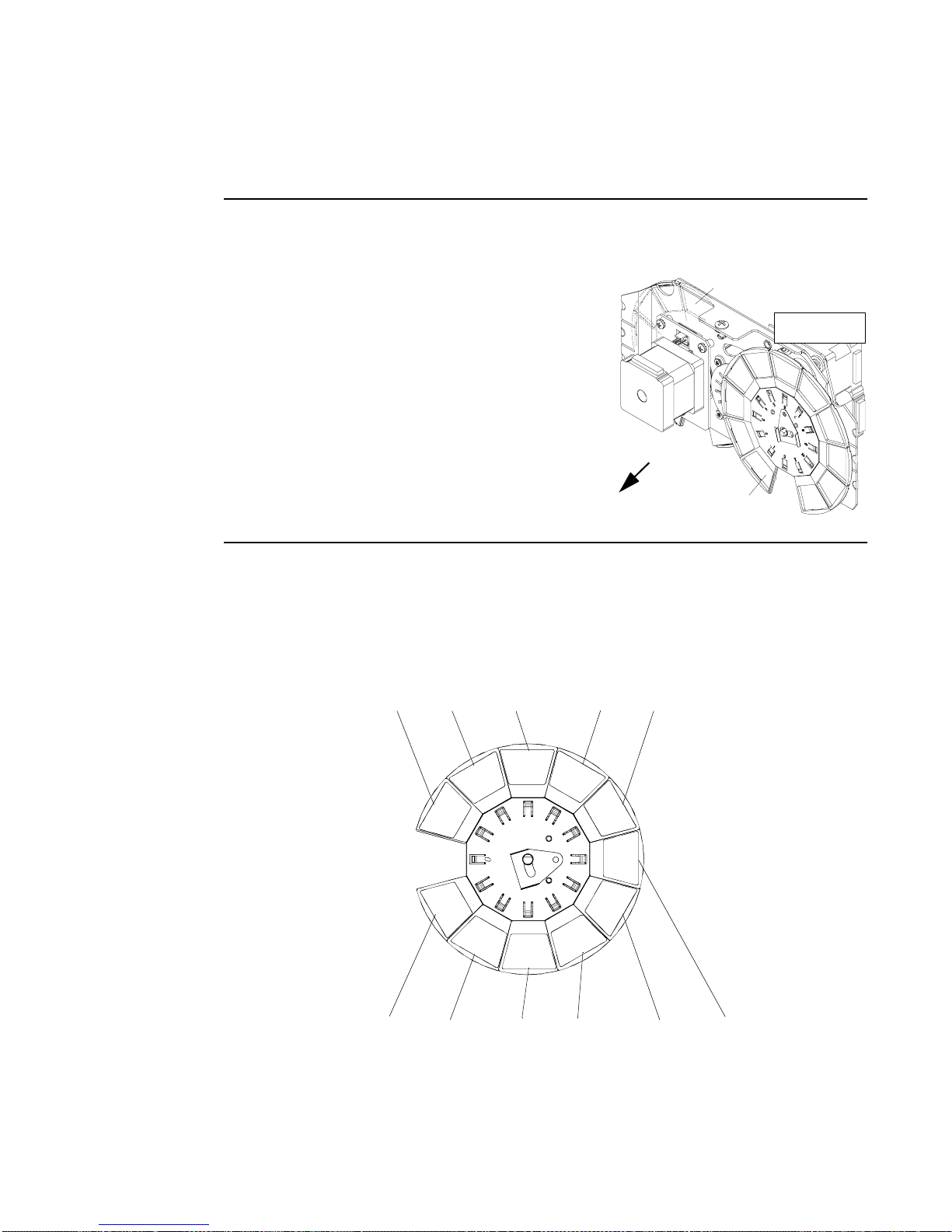

Color/Gobo Control

Color/Gobo Wheel Positions

OPERATION : COLOR/GOBO CONTROL

3

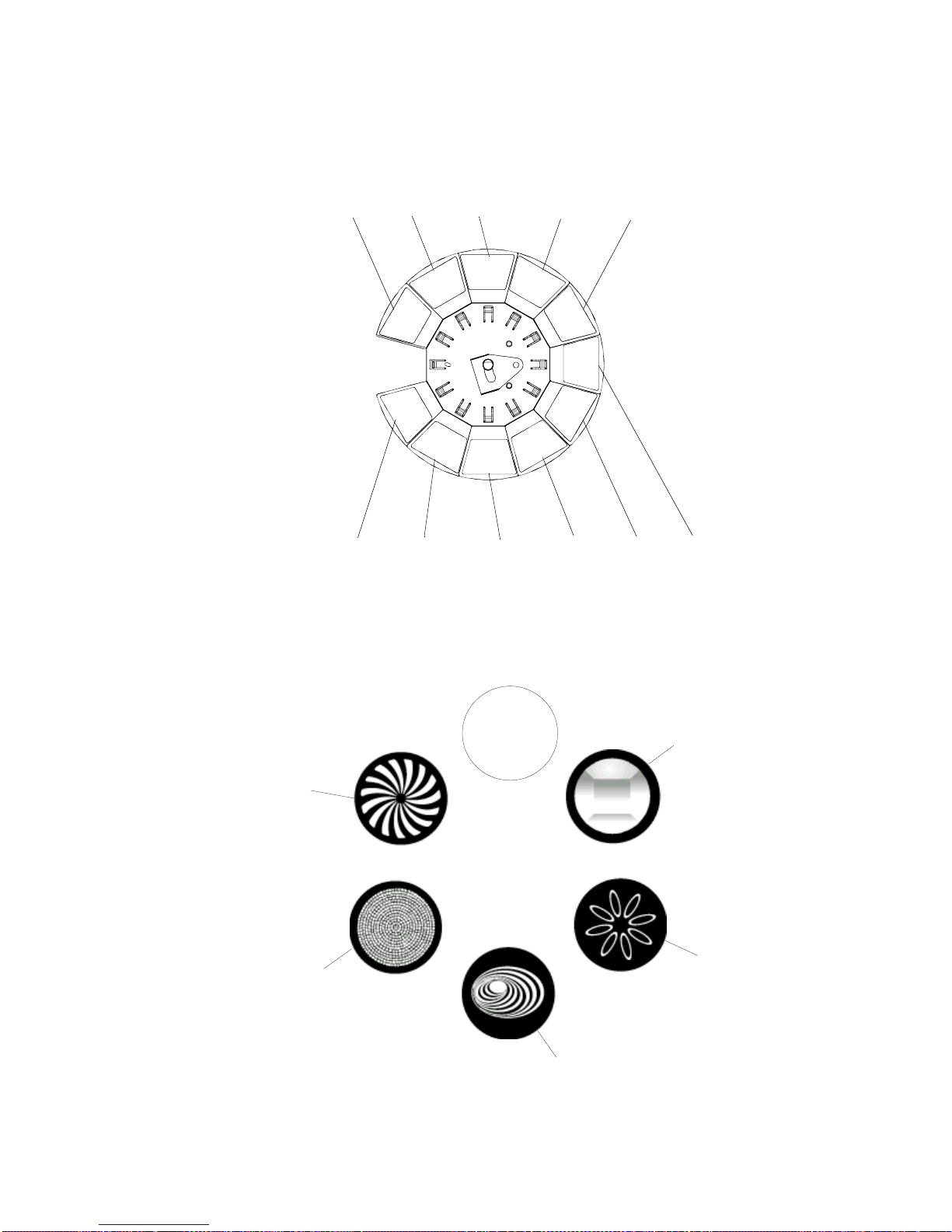

The standard configurations for color and fixed
gobo wheels are: all color filters installed on

Wheel 1 - Colors

(Behind plate)

Wheel 1 (wheel nearest lamp) and all gobos
installed on Wheel 2 (wheel nearer to front lens).

Color/Gobo/Iris
Bulkhead

These wheels each have 12 positions, one being
open.

All rotating gobos are installed on the Rotating
Gobo Wheel (nearest to front lens). This wheel
has six positions, one being open.

Front Lens

Color and gobo wheels offer partial frame control
and various spin rates in either direction.

Wheel 2 - Gobos

Standard Colors and Gobos

The following illustrations show the color and gobo standard configurations.

Standard Colors - Wheel 1 (Color Wheel)

Light Red Light Blue Pink

Blue Yellow

Standard Gobos - Wheel 2 (Fixed Gobo Wheel)

02.9673.0001 A 22-May-01 27

3

2

1

12

11

4

10

5

6

7

8

9

GreenMagentaLavenderAmberOrangeUV

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Dust Medium

Pebbles

Breakup Circles

Night Sky

Leaves

3

2

1

12

11

Alpha
Rays

Liquid
Breakup

Standard Rotating Gobos

4

10

Tribal
Breakup

5

9

6

7

8

Block
Breakup

Wave

Vertical
Bars

open

Pinwheel

5 Facet Prism

1

6

5

2

3

4

Spiral Stones

Hypnospiral

28 22-May -01 02.9673.0001 A

Circle of Ovals

DMX Modes

8-Bit and 16-Bit Modes

These tables assume a DMX start address of 1. When a different starting address is
used, this address becomes channel 1 function and other functions follow in sequence.

Standard 8-Bit (8) Standard 16-Bit (16)

Function DMX Channel Function DMX Channel

Intensity 1 Intensity 1

Pan 2 Pan 2 - 3

Tilt 3 Tilt 4 - 5

Fixed Gobo 4 Fixed Gobo 6

Color 5 Color 7

Iris 6 Iris 8

Edge 7 Edge 9

Strobe 8 Strobe 10

Zoom 9 Zoom 11

Rot Wheel 10 Rot Wheel 12

Gobo Index 11 Gobo Index 13

Control 12 Control 14

OPERATION : DMX MODES

3

Enhanced 8-Bit (E 8) Enhanced 16-Bit (E 16) - De fault

Function DMX Channel Function DMX Channel

Intensity 1 Intensity 1

Pan 2 Pan 2 - 3

Tilt 3 Tilt 4 - 5

Fixed Gobo 4 Fixed Gobo 6

Color 5 Color 7

Iris 6 Iris 8

Edge 7 Edge 9

Strobe 8 Strobe 10

Zoom 9 Zoom 11

Rot Wheel 10 Rot Wheel 12

Gobo Index 11 Gobo Index 13

Focus Timing 12 Focus Timing 14

Color Timing 13 Color Timing 15

Beam Timing 14 Beam Timing 16

Control15 Control17

02.9673.0001 A 22-May-01 29

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

DMX Mapping

Color/Gobo Wheels

Table 3-1: DMX Map for Color/Fixed Gobo Wheels

% Value DMX (0-255) Wheel Position % Value DMX (0-255)

0 0 Open Frame 1 29

130
21231

13 32

41333

25 34

6 35 Full Frame 3
71436

38 37

9 Half Frame 15 38

410 39

11 40

12 16 41

513 42

14 17 43

615 44Half Frame

Wheel

Position

16 45
17 Full Frame 2 18 46

718 47

19 19 48

820 49

21 50
22 50 51

923 52

24 53 Full Frame 4

10 25 21 54

26 Half Frame 55
27 22 56

11 28 57

30 22-May -01 02.9673.0001 A

OPERATION : DMX MAPPING

Table 3-1: DMX Map for Color/Fixed Gobo Wheels (Continued)

3

% Value DMX (0-255) Wheel Position % Value DMX (0-255)

58 91

23 59 36 92

60 93

24 61 37 94

62 Half Frame 96
63 38 97

25 64 98 Half Frame

65 39 99

26 66 100

67 101
68 40 102

27 69 103

70 104

28 71 Full Frame 5 41 105

72 106
73 42 107 Full Frame 7

Wheel

Position

29 74 108

75 109

30 76 43 110

77 111
78 44 112

31 79 113

80 Half Frame 114
81 45 115

32 82 116 Half Frame

83 46 117

33 84 118

85 119
86 47 120

34 87 121

88 48 122

35 89 Full Frame 6 123

90 124

02.9673.0001 A 22-May-01 31

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Table 3-1: DMX Map for Color/Fixed Gobo Wheels (Continued)

% Value DMX (0-255) Wheel Position % Value DMX (0-255)

49 125 Full Frame 8 62 158

126 159
127 160

50 128 63 161 Full Frame 10

129 162

51 130 64 163

131 164
132 165

52 133 65 166

134 Half Frame 167

53 135 66 168

136 169
137 170 Half Frame

54 138 67 171

139 172

55 140 68 173

Wheel

Position

141 174
142 175

56 143 Full Frame 9 69 176

144 177

57 145 178

146 70 179 Full Frame 11
147 180

58 148 71 181

149 182

59 150 183

151 72 184
152 Half Frame 185

60 153 73 186

154 187
155 188 Half Frame

61 156 74 189

157 190

32 22-May -01 02.9673.0001 A

OPERATION : DMX MAPPING

Table 3-1: DMX Map for Color/Fixed Gobo Wheels (Continued)

3

% Value DMX (0-255) Wheel Position % Value DMX (0-255)

75 191 88 224

192 225 Spin M CCW
193 226

76 194 89 227

195 228

77 196 229

197 Full Frame 12 90 230
198 231

78 199 91 232

200 233 Spin S CCW

79 201 234 Stop

202 92 235 Stop
203 236 Stop

80 204 93 237 Spin S CW

205 238
206 Half Frame 239

Wheel

Position

81 207 94 240

208 241

82 209 95 242

210 243

211 244

83 212 96 245

213 246 Spin M CW

84 214 97 247

215 248
216 Spin F CCW 249

85 217 98 250

218 251

86 219 99 252

220 253
221 254

87 222 100 255 Sp in F CW

223

02.9673.0001 A 22-May-01 33

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Rota ting Gobo Index/Rotation

Table 3-2: DMX Map for Rotating Gobo Index/Rotation

% Value DMX (0-255) Wheel Position

0-84 0-215 Index Position

85 216 Fast Spin CW

86-90 217-232 Variable Rates

91 233 Slow Spin CW
92 234-237 Stop
93 238 Slow Spin CCW

94-99 239-254 Variable Rates

100 255 Fast Spin CCW

Rotating Gobo Wheel

Table 3-3: DMX Map for Rotating Gobo Wheel

% Value DMX (0-255) Action

0 0 Positi on 1 (Open)
20 51 Position 2
40 102 Position 3
60 153 Position 4
80 204 Position 5

100 255 Position 6

34 22-May -01 02.9673.0001 A

Beam Control

Beam Iris

Edge

OPERATION : DMX MAPPING

3

Table 3-4: DMX Map for Beam Iris

% Value DMX Value Action

0 0 Closed

100 255 Open

Table 3-5: DMX Map for Edge

% Value DMX Value Action

0 0 Blooms In

100 255 Blooms Out

Strobe

Zoom

Table 3-6: DMX Map for Strobe

% Value DMX Value Action

00-2Open
1 3-5 Closed
2 6-7 Slow Random
3 8-10 Med Random
4 11-12 Fast Rand om

5-100 13-255 Speed Range

Table 3-7: DMX Map for Zoom

% Value DMX Value Action

0 0 Narrow

100 255 Wide

02.9673.0001 A 22-May-01 35

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Luminaire Timing

Luminaire Timing Channel Information

Timing channel control has been developed to improve the timed moves of certain
groups of parameters. We provide 3 timing channels, one for Focus (Pan and Tilt), one
for color parameters and one for beam parameters. Timing channels support time
values of up to six minutes.

A timing value of zero is full speed. A time value of 100% (or 255 in DMX) causes the
associated parameter(s) to follow cue fade time (console time) rather than the timing
channel.

The particular storing syntax for your console, as well as instructions on how to write
part cues, can be found in the operation manual for that console.

To use these channels, you must:

1. Create the cue, including color, gobo, edge, diffusion, etc.

2. Decide which fixtures and which parameter groups will use timing chan­nels.(Timing channels work only if all channels affected by the timing
channel are in the same part of the cue.)

3. Assign a value to the particular timing channel(s) you wish to use (for timi ng
information see chart on next page).

4. Create a part cue containing only the attributes chosen and their associated
timing channels. Store this part cue with a fade time of zero seconds.

5. Store the rest of the cue using console timing.

Note: Avoid changing timing channel values in a fading cue. This can cause unex­pected behavior in the luminaire as the timing channel value is updated over time.
Timing channel values and the final destination of the parameters affected by the
timing channel should always be sent in a zero count.

Timing channels can be set in either % or 0-255 (DMX) modes, with the following
values assigned. See chart on the next page.

Note: We recommend profiles set timing channels in extended modes to a default
value of 255 (full speed).

36 22-May -01 02.9673.0001 A

OPERATION : LUMINAIRE TIMING

Table 3-8: Channel Function / Timing Channel Relationship

3

Channel Function

Focus Time Color Time Beam Time

Pan (Hi Byte/Lo Byte) !

Tilt (Hi Byte/Lo Byte) !

Color !

Gobo !

Rotating Gobo !

Index !

Iris !

Edge !

Zoom !

Timing Channel

02.9673.0001 A 22-May-01 37

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Table 3-9: Timing Channels Map

% Value DMX = Seconds % Value DMX = Seconds

0 Full Speed 14 36 7.2

10.2 377.4
2 0.4 15 38 7.6

13 0.6 397.8

40.8 408

25 1 16418.2

61.2 428.4
7 1.4 17 43 8.6

38 1.6 448.8

91.8 459

4 10 2 18 46 9.2

11 2.2 47 9.4

12 2.4 19 48 9.6

513 2.6 49 9.8

14 2.8 50 10

6 15 3 20 51 10.2

16 3.2 52 10.4
17 3.4 53 10.6

7 18 3.6 21 54 11

19 3.8 55 11

8 20 4 22 56 12

21 4.2 57 12
22 4.4 58 13

9 23 4.6 23 59 13

24 4.8 60 14

10 25 5 24 61 14

52 10.4 62 14
53 10.6 63 15

11 28 5.6 25 64 15

29 5.8 65 16
30 6 26 66 16

12 31 6.2 67 16

32 6.4 68 17

13 33 6.6 27 69 17

34 6.8 70 18
35 7.0

38 22-May -01 02.9673.0001 A

OPERATION : LUMINAIRE TIMING

Table 3-9: Timing Channels Map (Continued)

% Value DMX = Seconds % Value DMX = Seconds

28 71 18 38 97 28

72 18 98 29
73 19 39 99 29

29 74 19 100 29

75 20 101 30

30 76 20 40 102 30

77 20 103 30
78 21 104 31

31 79 21 41 105 31

80 21 106 32
81 22 42 107 32

32 82 22 108 32

83 23 109 33

29 74 19 43 110 33

75 20 111 34

30 76 20 44 112 34

77 20 113 34
78 21 114 35

31 79 21 45 115 35

80 21 116 36
81 22 46 117 36

32 82 22 118 36

83 23 119 37

33 84 23 47 120 37

85 23 121 38
86 24 48 122 38

34 87 24 123 38

88 25 160 53

35 89 25 63 161 53

90 25 162 54
91 26 64 163 54

36 92 26 164 54

93 27 165 55

37 94 27 65 166 55

95 27 167 56
96 28 66 168 56

3

02.9673.0001 A 22-May-01 39

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Table 3-9: Timing Channels Map (Continued)

% Value DMX = Seconds % Value DMX = Seconds

169 56 205 120
170 57 206 130

67 171 57 81 207 130

172 58 208 140

68 173 58 82 209 140

174 58 210 140
175 59 211 150

69 176 59 83 212 150

177 59 213 160
178 60 84 214 160

70 179 60 215 160

180 65 216 170

71 181 65 85 217 170

182 65 218 180
183 70 86 219 180

72 184 70 220 180

185 75 221 190

73 186 75 87 222 190

187 75 223 200
188 80 88 224 200

74 189 80 225 200

190 85 226 210

75 191 85 89 227 210

192 85 228 210
193 90 229 220

76 194 90 90 230 220

195 95 231 230

77 196 95 91 232 230

197 95 233 230
198 100 234 240

78 199 100 92 235 240

200 110 236 250

79 201 110 93 237 250

202 110 238 250
203 120 239 260

80 204 120 94 240 260

40 22-May -01 02.9673.0001 A

OPERATION : LUMINAIRE TIMING

Table 3-9: Timing Channels Map (Continued)

% Value DMX = Seconds % Value DMX = Seconds

241 270 248 290

95 242 270 249 300

243 270 98 250 300
244 280 251 310

96 245 280 99 252 310

246 290 253 310

97 247 290 254 310

100 255 Follows Cue

Data

3

02.9673.0001 A 22-May-01 41

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Control Channel Functions

The following control actions must be accomplished with zero time transition or with
timing disabled. Discrete values must be used and not manual controls such as faders
or encoders.

Control

Channel

Function

Display On 1 1-4 0

Luminaire Reset 33 81 - 87 0

Lamp Off 66 165 - 171 0
Lamp On 99 249 - 255 0

% Value

Control Channel Value

For 3 Secs

or Greater

After

3 Secs

To use control channel functions:

1. Select an action to be sent.

2. Set control channel value for desired action (for example, 84 for reset). Hold
value for 3 seconds.

Note: A numerical keypad is required for sending values. An encoder or fader does
not allow for a “snap” value change, which is required to affect the control functions.

3. Set control channel value to zero. (This must occur without any scaling
values. Action will be voided if other values are detected between action
value and zero.)

42 22-May -01 02.9673.0001 A

Updating Software

Reprogramming Luminaires

In some cases, it may be necessary to reprogram the luminaire(s) with VL2000
Luminaire Software. This process will require a Windows PC, the Luminaire
Programming Kit (VL Part Number: 28.9661.0054), and the Setupex.exe program. The
Setupex.exe program (which contains the VL2000Download.exe program) is available

on the VL2000 Download Installer Disk (VL Part Number: 87.7303.0004) or on the
Vari-Lite Series 2000 support webpage at: www.vari-lite.com (connect to the
Vari-Lite homepage and follow links to Customer Support).

The Setupex.exe is used to install the VL2000Download.exe program. The

VL2000Download program easily transfers new versions of VL2000 Luminaire
Software to any luminaires connected to the PC. (The software contains operating
software for the VL2000 Master Board.)

OPERATION : UPDATING SOFTWARE

3

Note: Up to 32 luminaires can be program med at the same time i f they are data linked
together. Refer to “Connecting Data and Power” on page 20. (Programming more than
32 luminaires will require programming in batches of 32 or less.)

Luminaire Programming Kit (28.9661.0054) components:

• 6-Ft. Serial Straight Thru DB9M-F Cable (46.6033.0006)

• RS-232 to RS-485 Interface Converter (46.6036.0001)

• 6-Ft. RJ45 to 5-Pin Female XLR Cable (25.9661.0055)

Computer System Requirements:

• PC computer running Windows 95/98, Windows NT (4.0 or higher), or Windows

2000. (Program is not compatible with Macintosh computers.)

• Serial communication port. (RS-232 only, USB not supported.)

Hardware Setup Procedure:

1. Assemble cable components (included in Luminaire Programming Kit) by
connecting Serial Straight Thru Cable and RJ45-to-XLR cable to Interface
Converter.

Interface

PC

Serial Straight

Thru Cable

Converter

RJ45-to-XLR Cable

Luminaire

(DMX In)

2. Connect Serial Straight Thru cable to serial Comm Port of PC and connect
RJ45-to-XLR cable to DMX In connector of luminaire.

3. Apply power to PC and luminaire(s).

02.9673.0001 A 22-May-01 43

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Install and Rep rogramming Procedure

This procedure will install the VL2000Download.exe program onto the PC and then
allow you to reprogram the luminaires.

Note: If running Windows NT or Windows 2000, you must be working from an
account in the Administrators group to install the VL2000Download program onto the
computer.

Install VL2000Download.exe program using Programming Disk:

1. Insert VL2000 Download Installer Disk (VL Part Number: 87.7303.0004)
into appropriate drive.

2. Run Setupex.exe.

3. A confirmation window will appear. Click Yes to proceed with installation.
(Installation process will begin. VL2000Download.exe program will be
installed onto PC and an Icon will be added to Desktop and Start menu
Programs list.)

Install VL2000Download.exe program from Vari-Lite VL2000 support webpage:

1. From PC that will be used to operate software, connect to Vari-Lite VL2000
support webpage at: www.vari-lite.com (connect to the Vari-Lite homepage
and follow the VL2000 link).

2. Follow instructions provided on webpage to install program.

Update luminaire software:

1. Run VL2000Download.exe program by double-clicking its desktop Icon,
selecting from Start menu Programs list, or by selecting from C:\Program­Files\Vari-Lite\VL2000Download directory. (VL2000 Luminaire Software
Download window will open.)

2. At Select Comm Port section of window, select serial Comm Port (Comm

Port 1, Comm Port 2, Comm Port 3, or Comm Port 4) where Serial
Straight Thru Cable is connected.

Note: DMX Data must be disconnected before downloading to luminaires. (Do not
merge with DMX signal.)

3. At Select Software to Download section of window, select required
luminaire software version to download by clicking its button or select
Download All. The buttons function as follows:

44 22-May -01 02.9673.0001 A

OPERATION : UPDATING SOFTWARE

3

Choice 1

VL220x 04/30/01 12:54 button downloads the specific software version to

VL2200 series luminaires. (Software version is identified by the date and
time: MM/DD/YY HH.MM.)

Choice 2

VL2402 05/01/01 14:36 button downloads the specific software version to

VL2402 luminaires. (Software version is identified by the date and time:
MM/DD/YY HH.MM.)

Choice 3

VL241x 05/01/01 11:06 button downloads the specific software version to

VL2400 series luminaires. (Software version is identified by the date and
time: MM/DD/YY HH.MM.)

Choice 4

Download All button is the equivalent of executing all of the specific

software version buttons described above. They will be executed one at a
time in the order they appear in the window. This button can be used when
any combination of VL2200, VL2400, and VL2402 luminaires are connected
to the PC.

Note: Version dates shown in this graphic are for illustration purposes only and may
not correspond to the version you are downloading.

Click to download specific software version
to VL220x, VL2402, or VL241x series luminaires.

Click to download all
specific software versions
to connected luminaires.

Lists the specific versions of
software that have been downloaded

02.9673.0001 A 22-May-01 45

Select PC serial
port where cable
is connected.

Shows curren t
progress of download

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

4. Download will proceed. One of the following will occur:

Correct

Luminaire’s green Rx LED will blink rapidly and its menu will display
number of blocks received (this number will vary depending on software
version being downloaded). This indicates that data is being sent from PC to
luminaire. However, if display does not show blocks as they are received,
this indicates that the version being downloaded matches the one already
installed or that the luminaire type does not match.

Trouble

If luminaire’s green Rx LED does not blink rapidly and its menu does not
display blocks, this indicates that no data is being received. (Check cable
connections, port selection, etc. and try again.)

Note: Without any data connected, the normal standby cycle of the Rx LED is 2 sec
on, 2 sec off.

5. Once download is complete, luminaire will automatically recalibrate. Once
recalibration is complete, luminaire is ready for operation with its new
software version.

6. Click Close to exit.

Note: The History section of the window shows what specific types of VL2000
Luminaire Software have been downloaded since the beginning of the session

(window will reset once the program is closed and re-opened).

Verify software version at luminaire:

1. At Menu Display, press [Menu].

2. Press [Up] / [Down] arrows until Fixt (Fixture) appears. Press [Enter].

3. Press [Up] / [Down] arrows until Ver (Version) appears. Press [Enter].

The first half of the version date will be displayed as MM.DD. (month.day):
For example, 07.21. = July 21

Press [Up] / [Down] arrows to display second half of version date.

The second half of the version date will be displayed as YY.TT (year.time):
For example, 00.XX = 2000 (XX is a timecode)

46 22-May -01 02.9673.0001 A

OPERATION : UPDATING SOFTWARE

3

Transferring Software From Luminaire to Luminaire

It is possible to transfer specific software versions between luminaires. As in the case
of installing new software versions, multiple luminaires can be programmed at the
same time if they are data linked together (refer to “Connecting Data and Power” on

page 20), however a maximum of 32 luminaires can be updated at once.

The transfer process can be used to download an earlier or later version of the VL2000
Luminaire Software to other connected luminaires of the same type.

Hardware Requirements

Data cables used in this process must have two twisted pairs and a shield. It is also
recommended that cables meet all other USITT DMX specification requirements.
Refer to “Data Cables” on page 13.

A loopback connector is required at the final luminaire in the link and a female
termination connector is required at the “master” luminaire. Refer to page 15 for more
information regarding the construction of these connectors.

Transfer Procedure

This procedure is used to transfer software versions between VL2000 series
luminaires of the same type.

1. At last luminaire in link, install loopback connector into DATA THRU XLR
connector.

2. At master luminaire (first luminaire in link), install female termination
connector into DATA IN XLR connector.

Master luminaire containing
software version to download

Data Thru Data Thru

Female Termination Connector

Luminaire 1
requiring update

Luminaire 2
requiring update

Loopback Connector

3. At master luminaire Menu Display, press [Menu].

4. Press [Up] / [Down] arrows until FIXT (Fixture) appears.

5. Press [Up] / [Down] arrows until Dnld (Download) appears. Press [Enter].

6. OK? will be displayed. Press [Enter] to accept.

7. Download will proceed. (Download will take 1-2 seconds.) One of the
following will occur:

02.9673.0001 A 22-May-01 47

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Correct

The receiving luminaire’s green Rx LED will blink rapidly and its menu will
display number of blocks received (this number will vary depending on
software version being downloaded). This indicates that data is being sent
from luminaire to luminaire. However, if display does not show blocks as
they are received, this indicates that the version being downloaded matches
the one already installed or that the luminaire type does not match.

Trouble

If the receiving luminaire’s green Rx LED does not blink rapidly and its
menu does not display blocks, this indicates that no data is being received.
(Check cable connections, Loopback Connector, etc. and ensure ALL
cabling is the 5-conductor type.)

Note: Without any data connected, the normal standby cycle of the Rx LED is 2 sec
on, 2 sec off.

Note: The number of blocks displayed will be less in a luminaire-to-luminaire
download than in a PC-to-luminaire download for the same software version.

8. Once download is complete, luminaire will automatically recalibrate. Once
recalibration is complete, luminaire is ready for operation with its new
software version.

Verify software version at luminaire:

1. At Menu Display, press [Menu].

2. Press [Up] / [Down] arrows until Fixt (Fixture) appears. Press [Enter].

3. Press [Up] / [Down] arrows until Ver (Version) appears. Press [Enter].

The first half of the version date will be displayed as MM.DD. (month.day):
For example, 07.21. = July 21

Press [Up] / [Down] arrows to display second half of version date.

The second half of the version date will be displayed as YY.TT (year.time):
For example, 00.XX = 2000 (XX is a timecode)

48 22-May -01 02.9673.0001 A

C

HAPTER

C

HAPTER

Menu System

Menu System

Menu SystemMenu System

• Operation

• Mapping

• Cues and Sequences

• Self Tests

4.

4.

02.9673.0001 A 22-May-01 51

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

(This page intentionally blank.)

52 22-May -01 02.9673.0001 A

Operation

What Is the Menu System?

The menu system is a programmable set of commands used to configure, address,
operate, and test the luminaire. The menu system is controlled at the Menu Display
available at the enclosure input panel.

MENU SYSTEM : OPERATION

4

Menu Display

The menu system has seven main functions which are referred to as “1st level.” Within
these main functions, there can be up to four addition al sub-func tions (leve ls 2 thru 5) ,
making five total levels.

Controls Operation

The menu system is controlled by four buttons. These buttons function as follows:

[Menu] button. Displays the menu, or if at first level, the current address.
[Enter] button. Selects the current menu option or stores current data value.
[Up] arrow. Scrolls menu options upward or increases current data value.*
[Down] arrow. Scrolls menu options downward or decreases current data value.*

Up / Increase *

Multi-Segment
Display

Displays the menu,
or if at first level, the
current address

Down / Decrease *

* The arrows will have opposite functions if luminaire is hung upside down in a hanging

orientation and the Display Direction Orientation is “flipped.” Refer to “Display

Orientation” on page 54.

02.9673.0001 A 22-May-01 53

Selects the current menu option
or stores current data value

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

T o enter th e menu system, first press [ Menu]. The functions displa yed will be 1st level
functions. Scroll through the 1st level functions by pressing [Up] / [Down] arrows.
Once the desired function appears in the display, press [Enter]. You are now at the 2nd
level. Once again, press the [Up] / [Down] arrows to scroll through 2nd level
functions. Press [Enter] to access 3rd level functions and so forth. When the highest
level for the function is reached, [Up] / [Down] arrows can be pressed to select a value
or select a toggle activation such as ON/OFF. Press [Enter] to store the value or select
an action.

For example, the Addr (Address) function has two sub-levels: DMX and VIRT
(V irtuoso). Both of these 2nd level menus allow access to a 3rd level, which is a value
in both of these functions. The Address function is a 3-level menu.

1st Level

Addr

2nd Level 3rd Level

DMX

VIRT

XXX

XXXX

Display Orientation

To assist in reading the Menu System if the luminaire is installed in a hanging
position, the display read-out orientation can be changed so that it still reads from left­to-right. Keep in mind that when the display read-out orientation is switched, the
function of the [Up] / [Down] arrows are also switched respectively. In any case, when
the display is in its readable orientation, the lower arrow button functions as down/
decrease and the upper arrow button functions as up/increase.

Floor Installation Hanging Installation

Up /
Increase

Down /
Decrease

Up /
Increase

Down /
Decrease

The default setting for the display orientation is Auto, which will automatically
detect the orientation of the luminaire and adjust the display accordingly. However, a
fixed orientation can also be programmed.

To program a fixed display read-out orientation:

1. Press [Menu].

2. Press [Up] / [Down] arrows until CFG (Configuration) appears. Press
[Enter].

3. Press [Up]/ [Down] arrows to access DDir. Press [Enter].

4. Press [Up] / [Down] arrows to select ⇑⇑ or ⇓⇓. When desired direction is
reached, press [Enter].

54 22-May -01 02.9673.0001 A

MENU SYSTEM : OPERATION

4

Default Stat e

The menu display’s default state during normal operation is to display the address
(V irtuoso or DMX). After 10 seconds of inactivity at the display , it will change to the
default state.

After longer periods of inactivity, the menu display will switch to its off state. The
default state for this feature is 5 minutes, however, different time lengths can also be
programmed.

To program a different time length for menu off feature:

1. Press [Menu].

2. Press [Up] / [Down] arrows until CFG (Configuration) appears. Press

[Enter].

3. Press [Up] / [Down] arrows to access DisP (Display). Press [Enter].

4. Press [Up] / [Down] arrows to select either 30s (30 sec.), 5M (5 minutes),
10M (10 minutes), or ON (on indefinitely). Press [Enter] to set.

Decimal Placement

A decimal to the right of a menu display readout can indicate two things:

• Virtuoso address - for example, XXXX.

• One of two pages - for example, the eight-digit luminaire ID number page 1:

XXXX. and page 2: XXXX

Decimal Indicator

Display Test

The Display Test will display every character on the menu display to check for
missing characters.

The following procedure is used to test the display.

1. Press [Menu].

2. Press [Up]/[Down] until Test appears. Press [Enter].

3. Press [Up]/[Down] until DISP appears. Press [Enter]. All segments in the
alpha-numeric display should be lit.

02.9673.0001 A 22-May-01 55

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Shortcuts

A few button combinations are provided as shortcuts for frequently used menu
functions. These shortcuts are as follows:

• Pressing [Enter] and [Up] at the same time = Lamp On

• Pressing [Enter] and [Down] at the same time = Lamp Off

• Pressing [Menu] and [Up] at the same time = Recalibrate

• Pressing [Menu] at Power up interrupts calibration. See “Program Starting

Address Without Calibrating the Luminaire” on page 24 for more information.

Keep in mind that [Up] and [Down] arrows are dependent on the Display Orientation.
Refer to “Display Orientation” on page 54.

56 22-May -01 02.9673.0001 A

MENU SYSTEM : OPERATION

4

Error Messages

If a problem occurs during luminaire calibration, at the end of the calibration sequence
the Menu Display will cycle through any applicable error message(s), one a time until
the end of the list is reached. To review the error messages again, it will be necessary
to access them using the Status function. (Refer to “Troubleshooting” on page 87 for a
list of possible causes and remedies associated with the error messages.)

Access Error Messages:

1. Press [Menu].

2. Press [Up] / [Down] arrows until Fixt (Fixture) appears. Press [Enter].

3. Press [Up]/ [Down] arrows to access STAT. Press [Enter]. (Display will
now scroll through any error messages or display OK if no errors.)

Table 1: Error Messages

Display Message...

OK No Errors Found
B1M1 / Whl2 / NoSn Aux Board 1, Motor 1 / Wheel 2 / Sensor Not Found
B1M1 / Whl2 / SAct Aux Board 1, Motor 1 / Wheel 2 / Sensor Always Active
B1M2 / Dimm /

NoSn
B1M2 / Dimm / SAct Aux Board 1, Motor 2 / Dimmer / Sensor Always Active
B1M3 / Whl1 / NoSn Aux Board 1, Motor 3 / Wheel 1 / Sensor Not Found
B1M3 / Whl1 / SAct Aux Board 1, Motor 3 / Wheel 1 / Sensor Always Active
B2M1 / Gobo /

NoSn

B2M1 / Gobo / SAct

B2M2 / Indx / NoSn

B2M2 / Indx / SAct

BRD1 / NO / COMM Aux Board 1 Communication Failure

Aux Board 1, Motor 2 / Dimmer / Sensor Not Found

Aux Board 2, Motor 1 / Rotating Gobo Wheel / Sensor Not
Found

Aux Board 2, Motor 1 / Rotating Gobo Wheel / Sensor Always
Active

Aux Board 2, Motor 2 / Rotating Gobo Index / Sensor Not
Found

Aux Board 2, Motor 2 / Rotating Gobo Index / Sensor Always
Active

BRD2 / NO / COMM Aux Board 2 Communication Failure
LAMP / STRK /

FAIL
PAN / ENCR / FAIL Pan Encoder Failure

02.9673.0001 A 22-May-01 57

Lamp Strike Failure

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Table 1: Error Messages

Display Message...

PAN / NO / SENS Pan Sensor Not Found
PA N / SENS /

ACTV
SRCH/FOR/BRD1 Attempting to communicate with Board 1
SRCH/FOR/BRD2 Attempting to communicate with Board 2
TILT / ENCR / FAIL Tilt Encoder Failure
TILT / NO / SENS Tilt Sensor Not Found
TILT / SENS /

ACTV
WAIT Retrieving Current Status
WRNG / SW /

PROG

Pan Sensor Always Active

Tilt Sensor Always Active

Wrong Software Program

58 22-May -01 02.9673.0001 A

Mapping

Menu System Overview

The following is a graphic representation of the entire menu system.

Addr

CFG

DMX
VIRT

LAMP

P/T

DDir

DisP

RDef

value

value

POWR

P UP

LHrs
Strk

RHrs

Move

Auto

⇓⇓

⇑⇑

5M
10M
ON
30s

OK?

ON
OFF

L ON
LOFF
C ON

# of hours

# of Strikes

OK?
Enab
Dis

Man

Cue

Pan
Tilt
Whl1
Whl2

Iris
Dimm
Strb
Gobo
IndX

Edge

Zoom

Time

FLTM
Stor
Mod
Del
PCue
PSEQ

DSEQ

SEQ

Auto

MENU SYSTEM : MAPPING

value

value
value
value
value
value
value
value
value
value

value

ITim
FTim
CTim
BTim

value

cXX

cXX

cXX

cXX
[Enter] = start
[Menu] = stop

OK?
ISEQ

MSEQ

OFF

ON

value
value
value
value

cue #
cue #
cue #
cue #

ScXX

4

DMX

Fixt

MODE

DATA

P/T

STAT
Cal

Modl

LId
Ver
FHrs
Dnld

8
16
E 8
E 16

cXXX
SWAP

InvP

InvT

scrolls errors or displays OK

OK?

model

pg. 1
pg. 1

pg. 1
OK?

data

ON
OFF

ON
OFF

ON
OFF

pg. 2
pg. 2

pg. 2

Test

MOVE
ALL

P/T

Dimm

Cwhl
FGob
RGob
Iris
EDGE
Zoom

LAMP

Encr

Sens

DISP

Dis

Enab

ALL1/ALL2

PT1/PT2/Pan1/Pan2/Pan3/Tlt1/Tlt2/Tlt3
Dim1/Dim2/Dim3/Str
Cwl1/Cwl2/Cwl3
FG 1/FG 2/FG 3
RG 1/RG 2
Irs1/Irs2
EDG1/EDG2
Zm 1/Zm 2/Zm 3

RTST
Pan
Tilt

Pan
Tilt
Whl1

Whl2
Dimm
Gobo

IndX

Lights all segments

value
value

STST
STST

STST
STST

STST

STST
STST

02.9673.0001 A 22-May-01 59

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Menu System Functions

Table 2: Menu System Functions

1st Level 2n d Level 3rd Level 4th Level 5thLevel

Addr

Address

CFG

System
Configuration

DMX

DMX Mode
and Data

DMX DMX Address XXX Address value
VIRT Virtuoso Address XXXX. Address value
LAMP Lamp Options POWR Lamp Power ON (default)

OFF

P UP Lamp Power-up State L ON Lamp On

LHrs Lamp Hours Used XXXX Cumulative #

Strk # of Lamp Strikes XXXX # of Strikes

RHrs Reset Lamp Hour

and Lamp Strike Counters

P/T Pan and Tilt Options Move Position Recovery Enab Enable

DDir Display Orientation Auto (default)

⇓⇓
⇑⇑

DisP Display Illumination 30s OFF in 30 seconds

5M OFF in 5 minutes

(default)

10M OFF in 10 minutes

ON ON indefinitely
RDef Reset Default Values OK?
MODE 8 Standard 8 bit

16 Standard 16 bit (default)

E 8 Enhanced 8 bit

E16 Enhanced 16 bit
DATA cXXX DMX Channel XXXX Data
P/T Pan/Tilt Options SWAP Swap Pan & Tilt ON

InvP Invert Pan ON

InvT Invert Tilt ON

(default)

LOFF Lamp Off
C ON On after

Calibration

of Operation Hours

(Not editable)

(not editable)

OK?

Dis Disable

OFF (default)

OFF (default)

OFF (default)

60 22-May -01 02.9673.0001 A

MENU SYSTEM : MAPPING

Table 2: Menu System Functions (Continued)

1st Level 2n d Level 3rd Level 4th Level 5thLevel

Fixt STAT Status/Error Display Scrolls error messages *

Cal Recalibrate OK?
Modl Luminaire Model T y pe XXXX Model Type
LId Luminaire ID XXXX. Luminaire ID

Ver Version XX.XX. Version (Page 1) XX.XX Version

FHrs Fixture Hours On XXXX Hours
Dnld Download Program to

Luminaires

Man

Manual
Commands

Cue

Cue
Processing

Pan Pan Motor XXXX Data
Tilt Tilt Motor XXXX Data
Whl1 Wheel 1 (Color) XXX Data
Whl2 Wheel 2 (Gobo) XXX Data
Iris Iris XXX Data
Dimm Dimmer XXX Data
Strb Strobe XXX Data
Gobo Rotating Gobo Select XXX Data
Indx Rotating Gobo Index XXX Data
Edge Edge XXX Data
Zoom Zoom XXX Data
Time Timing Data ITim Dimmer/Intensity Time XXX.X Data

FLTM Follow Time XXX.X Data
Stor Store Cue XX Cue # to Store

Mod Modify Cue XX List of Cues
Del Delete Cue XX Cue # to Delete

PCue Play Cue XX List of Cues
PSEQ Play Sequence Press [Enter] to start

DSEQ Delete Sequence OK?
SEQ

Sequence Playback Mode

Auto Autoplay at Power-Up OFF (default)

or displays OK

Number (Page 1)

OK?

FTim Focus Time XXX.X Data
CTim Color Time XXX.X Data
BTim Beam Time XXX.X Data

(Not editable – given next
cue ID in list)

(Not editable – given last
cue ID in list)

Press [Menu] to stop

ISEQ Individual Sequence
(default)

MSEQ Master Sequence

ON

XXXX Luminaire ID

Number (Page 2)

(Page 2)

4

* Refer to “Error Messages” on page 57.

02.9673.0001 A 22-May-01 61

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Table 2: Menu System Functions (Continued)

1st Level 2n d Level 3rd Level 4th Level 5thLevel

Test*

System Test

MOVE Pan/Tilt Control Dis Disable Press [Menu] to stop

Enab Enable
ALL Test All Motors ALL1 All Synchronized

Test

ALL2 All Test
P/T Pan/Tilt PT 1 Min/Max Fast Pan/TIlt

test

PT 2 Min/Max SlowPan/Tilt

test

Pan1 Min/Ma x Fast Pan

Test

Pan2 Min/Max Slow Pan

Test

Pan3 Pan Test

Tlt1 Min/Max Fast Tilt Test

Tlt2 Min/Max Slow Tilt Test

Tlt3 Tilt Test
Dimm Dimmer/Strobe Dim1 Min/Max Dimmer

Test

Dim2 Min/Max Dimmer

Test

Dim3 Dimmer Test

Str Strobe Test
Cwhl Color Wheel Cwl1 Color Wheel Test

Cwl2 Color Wheel Test

Cwl3 Color Wheel Test
FGob Fixed Gobo Wheel FG 1 Fixed Gobo Wheel

Test

FG 2 Fixed Gobo Wheel

Test

FG 3 Fixed Gobo Wheel

Test
RGob Rotating Gobo Wheel RG 1 Rotating Gobo Wheel

Test

RG 2 Rotating Gobo Wheel

Test

Iris Iris Irs1 Iris Test

Irs2 Iris Test
EDGE Egde EDG1 Edge Test

EDG2 Edge Test
Zoom Zoom Zm 1 Zoom Test

Zm 2 Zoom Test

Zm 3 Zoom Test
LAMP Lamp RTST
Encr Encoders Pan Pan Encoder XXXX Data

Tilt Tilt Encoder XXXX Data

tests

62 22-May -01 02.9673.0001 A

MENU SYSTEM : MAPPING

Table 2: Menu System Functions (Continued)

1st Level 2n d Level 3rd Level 4th Level 5thLevel

Test (cont.)* Sens Sensors Pan EOT Sensor STST Sensor Tes t in

Tilt EOT Sensor STST Sensor Test in

Whl1 Wheel 1 EOT Sensor STST Sensor Test in

Whl2 Wheel 2 EOT Sensor STST Sensor Test in

Dimm Dimmer/Strobe EOT

Sensor
Gobo Gobo Select EOT

Sensor
Indx Gobo Index EOT

Sensor

*Refer to

DISP Display T est X.X.X.X. Ignites all 14

“Diagnostic Tests” on page 75

segments of each of the 4
characters and all 4
decimal points.

for more information.

Progress

Progress

Progress

Progress
STST Sensor Tes t in

Progress
STST Sensor Tes t in

Progress
STST Sensor Tes t in

Progress

PASS

PASS
FAIL
PASS
FAIL
PASS
FAIL
PASS
FAIL
PASS
FAIL
PASS
FAIL

4

Note: A decimal to the right of a menu display readout indicates either a Virtuoso
address or that the page is 1 of 2. Refer to “Decimal Placement” on page 55.

02.9673.0001 A 22-May-01 63

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Function Definitions

Each menu item is listed in the first column by its display abbreviation. The
abbreviations appear in alphabetical order as opposed to their position in the menu
display sequence for easy reference.

Table 3: Menu Function Definitions

Display Definition Purpose

8 Standard 8-bit Configures luminaire for operation in standard DMX 8-bit mode.
16 Standard 16-bit Configures luminaire for operation in standard DMX 16-bit mode.
10M 10 Minutes Sets Menu Display to automatically shut off after 10 minutes of non-use.
30s 30 Seconds Sets Menu Display to automatically shut off after 30 seconds of non-use.
5M 5 Minutes Sets Menu Display to automatically shut off after 5 minutes of non-use.

Addr Address
ALL All Motors Tests all internal motors.

Auto

BTim Beam Time Accepts timing value for beam time.
C ON
Cal Recalibrate Recalibrates luminaire.

CFG

CTim Color Time Sets color time.
Cue Cue Processing Accesses cue store, modify, delete, and playback commands.
Cwhl Color Wheel Specifies Color wheel for testing.
cXXX DMX Channel Specifies DMX channel for display of current data value.
DATA DMX Data Accesses function for displaying DMX data by channel number.

DDir

Del Delete Cue

Auto Detect or
Auto Playback

On after Calibra­tion

System
Configuration

Display Orienta­tion

Accesses functions for setting luminaire starting address in either Virtu­oso (VIRT) or DMX (DMX) controlled systems.

Automatically detects required Menu Display orientation when selected
(DDir) or initiates automatic playback of a cue sequence at power-up
(CUE).

Configures arc luminaire so that lamp will strike after calibration proce­dure is complete.

Accesses functions for setting lamp start up, pan/tilt, and Menu Display
configurations. Also accesses lamp information such as number of
strikes, and hours used, along with their respective reset function.

Accesses option to orient Menu display for reading correctly in either
hanging or floor mounting installations.

Deletes cues by number. Cue number deleted is dependent on last cue
ID in cue list since this field is not editable.

Dimm Dimmer
Dis Disable Disables a function.

DISP Display Test Tests all 14 seg men ts in the Dis pl ay.

64 22-May -01 02.9673.0001 A

Specifies dimmer mechanism for manual control (Man) or tests dimmer/
strobe functions (Test).

Table 3: Menu Function Definitions (Continued)

Display Definition Purpose

MENU SYSTEM : MAPPING

4

DisP

DMX DMX
Dnld Download Downloads program to luminaires.

DSEQ Delete Sequence Deletes cue sequence.
E 16 Enhanced 16-bit Configures luminaire for operation in enhanced DMX 16-bit mode.
E 8 Enhanced 8-bit Configures luminaire for operation in enhanced DMX 8-bit mode.
Edge/

EDGE
Enab Enable Enables a function.
Encr Encoders Accesses encoder choices for diagnostic testing.
FAIL Test Fail Indicates that sensor test has failed.
FGob Fixed Gobo Tests fixed wheel gobo function.
FHrs Fixture Hours Displays total number of hours luminaire has been powered on.

Fixt Fixture

FLTM Follow Time Accepts value for cue follow feature.
FTim Focus Time Accepts timing value for focus time.

Display Illumina­tion

Edge Motor Specifies edge function for manual control or testing.

Accesses options for Menu Display on and off times.
Accesses functions for setting DMX mode or pan/tilt options (1st level

menu) or sets starting address for luminaire in DMX systems (Addr).

Access luminaire specification information such as model, serial num­ber, software version, along with status information and download func­tion.

Gobo Gobo Select

Indx Gobo Index
InvP Invert Pan Reverses pan action for special focus requirements.

InvT Invert Tilt Reverses tilt action for special focus requirements.
Iris Iris Motor Specifies iris mechanism for manual control or testing.

ISEQ

ITim Intensity Time Accepts timing value for intensity fade time.
L ON Lamp is On Configures arc luminaire so that lamp will strike upon power up.

LAMP Lamp
LHrs Lamp Hours Displays total number of lamp operating hours.
LId Luminaire ID

Individual
Sequence

Specifies rotating gobo select for manual control (Man) or gobo select
EOT sensor for testing (Test).

Specifies rotating gobo index for manual control (Man) or gobo index
EOT sensor for testing (Test).

A sequence playback mode which will play the cues from each individual
luminaire, if any. (In ISEQ, if the number of cues is different, it will only
play as many as each luminaire has stored. The follow time is taken
from the master luminaire.)

Accesses lamp power up options and information (CFG) or sets beam
for lamp alignment adjustment (TEST).

Displays unique ID number for the luminaire which is used by Virtuoso
consoles to identify the unit (in two pages).

02.9673.0001 A 22-May-01 65

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Table 3: Menu Function Definitions (Continued)

Display Definition Purpose

LOFF Lamp is Off

Man

Manual Com­mands

Configures arc luminaire so that lamp will await manual command
before striking.

Accesses functions for controlling luminaire mechanisms and timing by
entry of an absolute data value.

Mod Modify Cue Accepts cue number of cue to modify from cue list.
MODE DMX Mode

Accesses functions for setting DMX mode to standard or enhanced 8-bit
or 16-bit.

Modl Model Displays model number of luminaire. For example, 2413 (VL2413).
Move Move

MSEQ Master Sequence

Enables and disables pan and tilt movement and auto-correction.

A sequence playback mode which will replay the cues from the master
luminaire.

NoPg No Program Indicates that there is no software present in the luminaire.
OFF Off Turns off a function.
OK Okay Indicates that luminaire is ready to accept commands.
OK? Okay? Prompt for pressing [Enter] before an action is executed.

ON On Indefinitely

Sets Menu Display to stay on until programmed otherwise (DisP), turns
on a function, or turns on a menu item.

P UP Lamp Power Up Accesses options for lamp power up: on, off, or after calibration.
P/T Pan/Tilt

Pan Pan

Accesses pan and tilt options for DMX function, system configuration,
and testing.

Specifies pan function for manual control (Man) or pan encoder for test­ing (Test).

PASS Test Pass Indicates that sensor test has passed.
PCue Play Cue Accesses cue list for play back of cues by number.
POWR Lamp Power Accesses function to turn lamp on or off.
PSEQ Play Sequence Plays back cue sequence. Press [Enter] to start and [Menu] to stop.
RDef Reset Default Resets default system configuration values.
RGob Rotating Gobo Tests rotating gobo wheel.

RHrs Reset Lamp Info

Resets lamp hour and lamp strike counters. For use when new lamp is
installed.

RTST Run-Test Indicates t hat a system mechanism test is in progress.
Sens Sensors Accesses sensor choices for diagnostic testing.

SEQ

STAT

66 22-May -01 02.9673.0001 A

Sequence Play­back

Status/Error Dis­play

Sets sequence playback mode to Individual (plays cues from each lumi­naire) or Master (all luminaires play same cue).

Allows scrolling through erro r list or displ ays OK if no errors.

Table 3: Menu Function Definitions (Continued)

Display Definition Purpose

MENU SYSTEM : MAPPING

4

Stor S tor e Cue
Str Strobe Specifies strobe function for manual control.

Strk Strike Displays total number of lam p strikes.
STST Sensor Test Indicates that a system sensor test is in progress.

SWAP Swap
Test System Tests Accesses diagnostic tests for internal mechanisms.
Tilt Tilt

Time Timing Data
Ver Version Displays current software version (in two pages).

VIRT Virtuoso console Sets starting address for luminaire in Virtuoso systems.
Whl1 Wheel 1 (Color) Specifies wheel 1 for manual control or testing.

Whl2
Zoom Zoom Specifies zoom function for manual control or testing.

Wheel 2 (Fixed
Gobo)

Stores cue by number. Cue number stored is dependent on next cue ID
in cue list since this field is not editable.

Swaps pan and tilt functions for special focus requirements such as
moving mirror mechanisms.

Specifies tilt function for manual control (Man) or tilt encoder for testing
(Test).

Allows manual setting of timing values for dimmer/intensity, focus,
color, and beam.

Specifies wheel 2 for manual control or testing.

02.9673.0001 A 22-May-01 67

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Cues and Sequences

Overview

The luminaire has the ability to store and playback cues independent of a console.
Cues are stored as numbers from 1 to 99 by using the Cue (Cue Processing) functions
available in the menu system. This also allows you to create your own test sequences
to be played back on a group of luminaires.

Refer to “Menu System Functions” on page 60 for a complete breakdown of Cue and
Man (Manual Commands) functions.

Storing

The luminaire is able to store its current position into a cue; this informati on can be set
via a console or by using the menu system Man (Manual Commands) function.

Playback

Cues can be joined into a sequence to be played back without a console. However,
only one sequence can run at a time.

A sequence can either replay the cues stored in each luminaire or replay the cues
stored in a master luminaire. Play ing a cue se quence for a ll luminaire s in the data link
is triggered by a “master” luminaire using the PSEQ (Play Sequence) command. The
cue follow time (FLTM) is taken from the luminaire that is running the sequence (it is
possible to view the follow time of each cue by playing the cue PCUE and then
viewing the cue follow time FLTM ). A playback sequence can be set to start
automatically after power up by setting the Auto (AutoPlay) feature to ON.

Note: Up to 32 luminaires can be linked together to run a sequence if they are data
linked together. Refer to “Connecting Data and Power” on page 20.

Hardware Requirements

Data cables used in the multi-luminaire playback feature must have two twisted pairs
and a shield. It is also recommended that cables meet all other USITT DMX
specification requirements. Refer to “Data Cables” on page 13.

Note: A loopback connector is required at the final luminaire in the link and a female
termination connector is required at the “master” luminaire. Refer to page 15 for more
information regarding the construction of these connectors.

68 22-May -01 02.9673.0001 A

MENU SYSTEM : CUES AND SEQUENCES

4

Cue Operations

The following section provides instructions for performing cue, sequence, and
playback operations.

Note: The Mod, Del, PCue, PSEQ commands will all display "---" if no cues
have been stored.

Note: After 10 seconds of inactivity at the display, it will change to the default state
showing the address.

To use the menus:

The data stored by the luminaire is “last takes precedence.” This means the last
command received by the luminaire will be the basis of the cue to be stored.

To clear all input data and timing values from previous tests or cues, cycle power to
the luminaire with DMX data cables disconnected. This will reset parameter’s data
and timing values to defaults.

Set position:

1. Press [Menu].

2. Press [Up]/ [Down] arrows until Man appears. Press [Enter].

3. Press [Up]/ [Down] arrows until desired parameter appears. Press [Enter].

4. Press [Up] / [Down] arrows to adjust value. (The values wrap from 0 to 255
in either direction. Pan and Tilt values operate in a range of 0-4095, and wrap
also.) Press [Enter] to set value.

5. Parameter timing can be set using the Time sub-functions. This allows
timing to be added to Intensity, Pan & Tilt, Color, and Beam parameters.

02.9673.0001 A 22-May-01 69

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Set follow time between cues:

The following procedure is used to set the follow time between each cue. The value
can be different for each cue. The range is 0.0 to 365.9 seconds.

1. Press [Menu].

2. Press [Up] / [Down] arrows until Cue appears. Press [Enter].

3. Press [Up] / [Down] arrows until FLTM appears. Press [Enter].

4. Press [Up] / [Down] arrows to set value. Once the value is set press [Enter]

button. The display will return to FLTM.

To store a cue:

1. Press [Menu].

2. Press [Up] / [Down] arrows until Cue appears. Press [Enter].

3. Press [Up] / [Down] arrows until Stor appears. Press [Enter]. The number

displayed is the cue number to be stored.

4. Press [Enter] to store cue. (Number will increase by one for next cue to be
stored.)

5. Repeat for remaining cues.

To delete a cue:

1. Press [Menu].

2. Press [Up] / [Down] arrows until Cue appears. Press [Enter].

3. Press [Up] / [Down] arrows until Del appears. Press [Enter]. The last cue
number stored will be displayed and only the last cue will be deleted.

4. Press [Enter] to delete cue. (There is no “undo” function.)

To play a cue:

1. Press [Menu].

2. Press [Up] / [Down] arrows until Cue appears. Press [Enter].

3. Press [Up] / [Down] arrows until PCue appears. Press [Enter]. This allows
the stored cues to be selected by using [Up] / [Down] arrows and then played
by pressing [Enter]. (If there are no stored cues, “C --” will be displayed. If
there is one or more cues, “C xx” will be displayed - where xx is the cue
number from 1 to 99. Only cues in one luminaire will play.)

70 22-May -01 02.9673.0001 A

MENU SYSTEM : CUES AND SEQUENCES

To edit or modify a cue:

1. Recall cue to be changed from PCue.

2. Change luminaire data to desired levels using Man (Manual Command)

functions.

3. Press [Up] / [Down] arrows until Cue appears. Press [Enter].

4. Press [Up] / [Down] arrows until Mod appears. Press [Enter]. The number

displayed is the same as the selected cue.

5. Press [Enter] and changes will be saved.

To play cues as a sequence:

1. Press [Menu].

2. Press [Up] / [Down] arrows until Cue appears. Press [Enter].

3. Press [Up] / [Down] arrows until PSEQ appears. Press [Enter] and the

sequence will play. The active cue will be shown in the display. [Enter] to
start, [Menu] to stop.

4

To change the follow time in a sequence:

The follow time is stored for each cue individually.

1. Select cue to be changed from PCue.

2. Go to Mod to modify active cue and press [Enter] to save the change.

3. Set FLTM (Follow T ime ) to desir ed value (refer to “Set foll ow time between

cues:” on page 70).

To delete a sequence and all cues:

1. Press [Menu].

2. Press [Up] / [Down] arrows until Cue appears. Press [Enter].

3. Press [Up] / [Down] arrows until DSEQ appears. Press [Enter].

4. OK? prompt will appear. Press [Enter] to delete stored sequence.

02.9673.0001 A 22-May-01 71

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Choose Sequence Mode:

MSEQ will replay the cues from the master luminaire.
ISEQ will play the cues from each individual luminaire, if any. In ISEQ, if the

number of cues is different, it will only play as many as each luminaire has stored.
The follow time is taken from the master luminaire.

1. Press [Menu].

2. Press [Up] / [Down] arrows until Cue appears. Press [Enter].

3. Press [Up] / [Down] arrows until SEQ appears. Press [Enter].

4. Press [Up] / [Down] arrows to toggle between ISEQ and MSEQ. Press
[Enter] to select mode.

To make a sequence AutoPlay at power up:

1. Press [Menu].

2. Press [Up] / [Down] arrows until Cue appears. Press [Enter].

3. Press [Up] / [Down] arrows until Auto appears. Press [Enter].

4. Use [Up] / [Down] arrows to toggle between OFF (the default) and ON.
Press [Enter] to select the mode.

To store cues from a console:

1. Clear memory by deleting cues or sequence, if required.

2. Recall cue at the console.

3. From Cue menu, set FLTM, then at Stor store cue. If each luminaire has
separate data then store each cue into each luminaire. The sequence mode to
use in this case would be ISEQ.

72 22-May -01 02.9673.0001 A

Self Tests

Running Parameter Tests

The luminaire is capable of running self tests by using the TEST menu functions.
When running tests on multiple luminaires, a loopback connector is required at the

final luminaire in the link and a female termination connector is required at the
“master” luminaire. Refer to page 15 for more information regarding the construction
of these connectors.

For complete details and values for each test refer to “Diagnostic Tests” on page 75
Note: After 10 seconds of inactivity, the menu display will change to the default state

showing the address.

Move Disable

MENU SYSTEM : SELF TESTS

4

The Move option has been added to the test menu. This allows for pan/tilt functions
to be disabled so that the luminaire can be placed in any position for testing without
movement occurring. In order to regain full control of the luminaire, Move will need
to be enabled after testing.

Note: When setting the Move option to disable, luminaires linked by a loopback
connector will have pan and tilt disabled for all the luminaires that are linked.

WARNING: Backcap and adjustment knobs will be HOT during lamp operation.
Wear gloves and/or use tools to prevent burns.

Lamp

The Lamp option has been added to the test menu. This option sets the lamp intensity
to 100%, adjusts the iris and edge to produce a hard edge. See “Align Lamp for Peaked

or Flat Field” on page 22 for instructions on lamp adjustment. Pan/Tilt are disabled

while using the Lamp option, and pan/tilt settings will be restored upon exit of the
Lamp feature.

Note: When setting the Lamp option on luminaires linked by a loopback connector,
pan and tilt will be disabled for all the luminaires that are linked.

02.9673.0001 A 22-May-01 73

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

To run tests:

1. Press [Menu].

2. Press [Up] / [Down] arrows until TEST appears. Press [Enter].

3. Use [Up] / [Down] arrows to select a parameter to test. Refer to “Menu

System Functions” on page 60 for a complete list of test parameters which

can be chosen.

4. Press [Enter] to run test.

5. Press [Menu] to stop test at any time.

74 22-May -01 02.9673.0001 A

MENU SYSTEM : SELF TESTS

4

Diagnostic Te sts

The following diagnostic tests are available in the test menu. Time is specified for
each action in the test, and the total time equals the time it takes to complete each
action. If the time is zero the luminaire will perform the test at full speed.

For specific DMX values for each test see “Diagnostic Tests” on page 76.

Test Descriptions

ALL1....................Tests low voltage power supplies by moving all motors at once.

ALL2....................Tests all functions and provides a burn in or soak test.

Cwl1 ....................Steps through each position of color wheel to verify order. The test

then performs a Max forward spin, stops, and perf orms a Max
reverse spi n.

Cwl2 ....................Tests color wheel stabilizers. Performs Max reverse spin, stops on

a color, and then stops on the sensor.

Cwl3 ....................Test color wheel stabilizers. Steps through selected colors.

Dim1....................Fast dimmer test from full to closed.

Dim2.... .. ..............S low dimmer test from full to cl o se d .

Dim3....................Tests different dimmer moves.

EDG1...................Fast edge test from min to max.

EDG2...................Slow edge test from min to max.

FG1 .....................Fixed gobo test. Steps through every gobo, performs a max

forward spin and a max reverse spin.

FG2 .....................Fixed gobo test. Performs a max reverse spin, stops on a gobo,

and then stops on the sensor.

FG3 .....................Fixed gobo test. Steps through selected gobos.

Irs1 ............ .. ........Fast ir is te st . G o e s fr o m m in to m ax .

Irs2 ............ .. ........Slow iris te s t. Goe s fro m m in to ma x .

PT1......................Fast pan and tilt from stop to stop.

PT2......................Slow pan and tilt from stop to stop.

Pan1....................Fast pan only test from stop to stop.

Pan2....................Slow pan only test from stop to stop.

Pan3....................Tests different pan movements.

RG1.....................Rotating gobo test. Goes through wheel positions.

RG2.....................Rotating gobo test. Goes through index and rotation positions.

Tlt1 ......................Fast tilt only test from stop to stop.

Tlt2 ......................Slow tilt only test from stop to stop.

Tlt3 ......................T ests different tilt movements.

Str........................Strobe test that tests 0-Open, 4-Closed, 11-Fast Random, 255-

Max Strobe actions.

Zm 1....................Slow zoom test.

Zm 2....................Fast zoom test.

Zm 3....................Tests different zoom movements.

The chart on the following page shows the 16-bit DMX values used in each test.

02.9673.0001 A 22-May-01 75

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Table 4-4: Diagnostic Tests

F.

Parameters

Iris

R.

Gobo

Index Edge Zoom Str time/total time

Test

Name

Pan* Tilt* Dim CWhl

Gobo

0 0 0000000000/5

ALL1

65535 65535 255 255 255 255 255 255 255 255 255 0/5

ALL2 0 0 002550000000/5

65535655350000000000/5
0 0 00000025525500/5
655356553500000025525500/5
0 0 0000000007/7 (P/T only)
65535655350000000007/7 (P/T only)
0 0 00000025525507/7 (P/T only)
655356553500000025525507/7 (P/T only)
45167 27000 255 35 35 255 0 0 85 0 0 0/2
45167 27000 255 143 143 255 0 0 85 0 11 0/2
45167 27000 255 53 53 255 0 0 85 0 0 0/2
45167 27000 255 179 179 255 0 0 85 0 255 0/3
45167 27000 255 71 71 255 0 0 85 0 0 0/2
45167 27000 255 161 161 255 0 0 85 0 0 0/2
45167 27000 255 179 179 255 0 0 85 0 0 0/2
45167 27000 255 53 53 255 0 0 85 0 0 0/2
45167 27000 255 143 143 255 0 0 85 0 0 0/2
45167 27000 255 0 0 255 102 0 215 0 0 0/2
45167 27000 255 0 0 255 102 216 215 128 0 0/3
45167 27000 255 0 0 255 102 0 215 255 0 0/2
45167 27000 255 0 0 255 102 255 215 128 0 0/3

76 22-May -01 02.9673.0001 A

MENU SYSTEM : SELF TESTS

Table 4-4: Diagnostic Tests (Continued)

4

Test

Name

ALL2
(cont.)

Parameters

Pan* Tilt* Dim CWhl

45167 27000 255 0 0 255 153 107 215 128 0 0/2
45167 27000 255 0 0 255 153 50 215 0 0 0/2
45167 27000 255 0 0 255 153 120 215 255 0 0/3
4516727000255143000053000/3
45167 27000 255 0 0 255 0 0 53 0 0 0/2
451672700025571000053000/2
45167 27000 255 0 0 255 255 0 255 0 0 0/3
451672700025503525525500000/3
45167 27000 255 0 35 255 255 0 255 0 0 0/4
45167 27000 100 161 255 255 0 0 85 0 0 0/3
45167 27000 200 216 161 255 0 0 85 0 0 0/3

F.

Gobo

Iris

R.

Index Edge Zoom Str time/total time

Gobo

45167 27000 100 71 216 255 0 0 85 0 0 0/3
45167 27000 200 255 71 255 0 0 85 0 0 0/2

PT 1 0 0 0000000000/4.5

65535655350000000000/4.5

PT 2 0 0 0000000007/7

65535655350000000007/7

Pan1 0 549570000000000/4.5

65535549570000000000/4.5

Pan2 0 549570000000006.5/6.5

65535549570000000006.5/6.5

02.9673.0001 A 22-May-01 77

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Table 4-4: Diagnostic Tests (Continued)

F.

Parameters

Iris

R.

Gobo

Index Edge Zoom Str time/total time

Test

Name

Pan* Tilt* Dim CWhl

Gobo

Pan3 33511549570000000000/2

22227549570000000000/2
35511549570000000000/2
22227549570000000000/2
44423549570000000000/3
39401549570000000000/2
44423549570000000000/2
34901549570000000000/2
65535549570000000000/4
0 549570000000000/4

Tlt1 451670 0000000000/2.2

45167655350000000000/2.2

Tlt2 451670 0000000004.5/4.5

45167655350000000004.5/4.5

Tlt3 45167327670000000000/1.2

45167112070000000000/1
4516744870000000000/1
45167112070000000000/1
4516744870000000000/1
45167645550000000000/1.5
45167549570000000000/1.1
45167476770000000000/1
45167549570000000000/1
45167655350000000000/1

78 22-May -01 02.9673.0001 A

MENU SYSTEM : SELF TESTS

Table 4-4: Diagnostic Tests (Continued)

4

F.

Parameters

R.

Iris

Gobo

Index Edge Zoom Str time/total time

Test

Name

Dim1 4516727000255000000000/0.5

Dim2 4516727000255000000004.5/4.5

Dim3 4516727000255000000000/0.5

Pan* Tilt* Dim CWhl

45167270000000000000/0.5

45167270000000000004.5/4.5

4516727000128000000000/0.5
451672700080000000000/0.5
4516727000100000000000/0.5
451672700040000000000/0.5
451672700050000000000/0.5
451672700040000000000/0.5

Gobo

451672700060000000000/0.5
45167270000000000000/0.5

Str 45167270000000000000/1

45167270000000000040/1
45167270000000000000/1
45167270000000000040/1
451672700000000000110/4
45167270000000000000/1
4516727000000000002550/3
45167270000000000040/1
4516727000000000002550/3

02.9673.0001 A 22-May-01 79

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Table 4-4: Diagnostic Tests (Continued)

F.

Parameters

Iris

R.

Gobo

Index Edge Zoom Str time/total time

Test

Name

Pan* Tilt* Dim CWhl

Gobo

Cwl1 45167270000000000000/1

451672700001700000000/1
451672700003500000000/1
451672700005300000000/1
451672700007100000000/1
451672700008900000000/1
4516727000010700000000/1
4516727000012500000000/1
4516727000014300000000/1
4516727000016100000000/1
4516727000017900000000/1
4516727000019700000000/1
4516727000021600000000/1.65
4516727000017900000000/1
4516727000025500000000/1.9

Cwl2 4516727000025500000000/1.9

451672700003500000000/1
45167270000000000000/1

Cwl3 4516727000012500000000/0.4

451672700007100000000/0.4
4516727000019700000000/0.4
4516727000010700000000/0.4
451672700008900000000/0.4
4516727000017900000000/0.4
45167270000000000000/0.4

80 22-May -01 02.9673.0001 A

MENU SYSTEM : SELF TESTS

Table 4-4: Diagnostic Tests (Continued)

4

F.

Parameters

R.

Iris

Gobo

Index Edge Zoom Str time/total time

Test

Name

FG 1 45167 27000 0 0 0 255 0 0 85 0 0 0/1

Pan* Tilt* Dim CWhl

45167 27000 0 0 17 255 0 0 85 0 0 0/1
45167 27000 0 0 35 255 0 0 85 0 0 0/1
45167 27000 0 0 53 255 0 0 85 0 0 0/1
45167 27000 0 0 71 255 0 0 85 0 0 0/1
45167 27000 0 0 89 255 0 0 85 0 0 0/1
45167 27000 0 0 107 255 0 0 85 0 0 0/1
45167 27000 0 0 125 255 0 0 85 0 0 0/1
45167 27000 0 0 143 255 0 0 85 0 0 0/1
45167 27000 0 0 161 255 0 0 85 0 0 0/1
45167 27000 0 0 179 255 0 0 85 0 0 0/1

Gobo

45167 27000 0 0 197 255 0 0 85 0 0 0/1
45167 27000 0 0 216 255 0 0 85 0 0 0/1.65
45167 27000 0 0 179 255 0 0 85 0 0 0/1
45167 27000 0 0 255 255 0 0 85 0 0 0/1.9

FG 2 45167 27000 0 0 255 255 0 0 85 0 0 0/1.9

45167 27000 0 0 35 255 0 0 85 0 0 0/1
45167 27000 0 0 161 255 0 0 85 0 0 0/1

FG 3 45167 27000 0 0 125 255 0 0 85 0 0 0/0.4

45167 27000 0 0 71 255 0 0 85 0 0 0/0.4
45167 27000 0 0 197 255 0 0 85 0 0 0/0.4
45167 27000 0 0 107 255 0 0 85 0 0 0/0.4
45167 27000 0 0 89 255 0 0 85 0 0 0/0.4
45167 27000 0 0 179 255 0 0 85 0 0 0/0.4
45167 27000 0 0 0 255 0 0 85 0 0 0/0.4

02.9673.0001 A 22-May-01 81

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

Table 4-4: Diagnostic Tests (Continued)

F.

Parameters

Iris

R.

Gobo

Index Edge Zoom Str time/total time

Test

Name

Pan* Tilt* Dim CWhl

Gobo

RG 1 45167 27000 0 0 0 255 0 0 212 0 0 0/1

45167 27000 0 0 0 255 51 0 212 0 0 0/1
45167 27000 0 0 0 255 102 0 212 0 0 0/1
45167 27000 0 0 0 255 153 0 212 0 0 0/1
45167 27000 0 0 0 255 204 0 212 0 0 0/1
45167 27000 0 0 0 255 255 0 212 0 0 0/1

RG 2 4516727000000015300000/1

451672700000001531070000/1
45167270000000153500000/1
451672700000001532040000/1
451672700000001532550000/3
451672700000001531750000/2
451672700000001532160000/4
451672700000001532320000/1
451672700000001532300000/4
451672700000001532340000/4
451672700000001532400000/4

Irs1 451672700000000030000/1

45167 27000 0 0 0 255 0 0 30 0 0 0/1

Irs2 451672700000000030004/4

45167 27000 0 0 0 255 0 0 30 0 0 4/4

EDG1 4516727000000255000000/1

45167 27000 0 0 0 255 0 0 255 0 0 0/1

EDG2 4516727000000255000007/7

45167 27000 0 0 0 255 0 0 255 0 0 7/7

82 22-May -01 02.9673.0001 A

MENU SYSTEM : SELF TESTS

Table 4-4: Diagnostic Tests (Continued)

4

F.

Parameters

R.

Iris

Gobo

Index Edge Zoom Str time/total time

Man control display.

Test

Name

Zm 1 4516727000001700085000/1

Zm 3 4516727000001700085000/3

*Pan and Tilt values are 16-bit DMX and will be different from the values in the

Pan* Tilt* Dim CWhl

451672700000170008525500/1
4516727000001700085007/7
451672700000170008525507/7

451672700000170008512800/2
4516727000001700085000/2
451672700000170008525500/3
451672700000170008512800/2
451672700000170008525500/3

Gobo

02.9673.0001 A 22-May-01 83

VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL

(This page intentionally blank.)
